A BANDWIDTH DETERMINED MOBILE MULTIMODAL

SYSTEM

Anthony Solon, Paul Mc Kevitt, Kevin Curran

Intelligent Multimedia Research Group

University of Ulster, Magee Ca

mpus, Northland Road, Northern Ireland, BT48 7JL, UK

Keywords: Mobile Intelligent Multimedia, Intelligent Multimedia Generation & Presentation

Abstract: This paper presents the initial stages of research at

the University of Ulster into a mobile intelligent

multimedia presentation system called TeleMorph. TeleMorph aims to dynamically generate multimedia

presentations using output modalities that are determined by the bandwidth available on a mobile device’s

wireless connection. To demonstrate the effectiveness of this research TeleTuras, a tourist information guide

for the city of Derry will implement the solution provided by TeleMorph, thus demonstrating its

effectiveness. This paper does not focus on the multimodal content composition but rather concentrates on

the motivation for & issues surrounding such intelligent tourist systems.

1 INTRODUCTION

Whereas traditional interfaces support sequential and

un-ambiguous input from keyboards and

conventional pointing devices (e.g., mouse,

trackpad), intelligent multimodal interfaces relax

these constraints and typically incorporate a broade

range of input devices (e.g., spoken language, eye

and head tracking, three dimensional (3D) gesture)

(Maybury 1999). The integration of multiple modes

of input as outlined by Maybury allows users to

benefit from the optimal way in which human

communication works. Although humans have a

natural facility for managing and exploiting multiple

input and output media, computers do not. To

incorporate multimodality in user interfaces enables

computer behaviour to become analogous to human

communication paradigms, and therefore the

interfaces are easier to learn and use. Since there are

large individual differences in ability and preference

to use different modes of communication, a

multimodal interface permits the user to exercise

selection and control over how they interact with the

computer (Fell et al., 1994). In this respect,

multimodal interfaces have the potential to

accommodate a broader range of users than

traditional graphical user interfaces (GUIs) and

unimodal interfaces- including users of different

ages, skill levels, native language status, cognitive

styles, sensory impairments, and other temporary or

permanent handicaps or illnesses.

Interfaces involving spoken or pen-based input, as

well as th

e combination of both, are particularly

effective for supporting mobile tasks, such as

communications and personal navigation. Unlike the

keyboard and mouse, both speech and pen are

compact and portable. When combined, people can

shift these input modes from moment to moment as

environmental conditions change (Holzman 1999).

Implementing multimodal user interfaces on mobile

devices is not as clear-cut as doing so on ordinary

desktop devices. This is due to the fact that mobile

devices are limited in many respects: memory,

processing power, input modes, battery power, and

an unreliable wireless connection with limited

bandwidth. This project researches and implements a

framework for Multimodal interaction in mobile

environments taking into consideration fluctuating

bandwidth. The system output is bandwidth

dependent, with the result that output from semantic

representations is dynamically morphed between

modalities or combinations of modalities. With the

advent of 3G wireless networks and the subsequent

increased speed in data transfer available, the

possibilities for applications and services that will

link people throughout the world who are connected

to the network will be unprecedented. One may even

anticipate a time when the applications and services

available on wireless devices will replace the

original versions implemented on ordinary desktop

computers. Some projects have already investigated

mobile intelligent multimedia systems, using

Curran K., Solon A. and Mc Kevitt P. (2004).

A BANDWIDTH DETERMINED MOBILE MULTIMODAL SYSTEM.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 24-31

DOI: 10.5220/0001379500240031

 SciTePress

tourism in particular as an application domain. Koch

(2000) is one such project which analysed and

designed a position-aware speech-enabled hand-held

tourist information system for Aalborg in Denmark.

This system is position and direction aware and uses

these abilities to guide a tourist on a sight seeing

tour. In TeleMorph bandwidth will primarily

determine the modality/modalities utilised in the

output presentation, but also factors such as device

constraints, user goal and user situationalisation will

be taken into consideration. A provision will also be

integrated which will allow users to choose their

preferred modalities.

The main point to note about these systems is that

current mobile intelligent multimedia systems fail to

take into consideration network constraints and

especially the bandwidth available when

transforming semantic representations into the

multimodal output presentation. If the bandwidth

available to a device is low then it’s obviously

inefficient to attempt to use video or animations as

the output on the mobile device. This would result in

an interface with depreciated quality, effectiveness

and user acceptance. This is an important issue as

regards the usability of the interface. Learnability,

throughput, flexibility and user-attitude are the four

main concerns affecting the usability of any

interface. In the case of the previously mentioned

scenario (reduced bandwidth => slower/inefficient

output) the throughput of the interface is affected

and as a result the user’s attitude also. This is only a

problem when the required bandwidth for the output

modalities exceeds that which is available; hence,

the importance of choosing the correct output

modality/modalities in relation to available

resources.

2 RELATED WORK

SmartKom (Wahlster 2001) is a multimodal

dialogue system currently being developed by a

consortium of several academic and industrial

partners. The system combines speech, gesture and

facial expressions on the input and output side. The

main scientific goal of SmartKom is to design new

computational methods for the integration and

mutual disambiguation of different modalities on a

semantic and pragmatic level. SmartKom is a

prototype system for a flexible multimodal human-

machine interaction in two substantially different

mobile environments, namely pedestrian and car.

The system enables integrated trip planning using

multimodal input and output. The key idea behind

SmartKom is to develop a kernel system which can

be used within several application scenarios. In a

tourist navigation situation a user of SmartKom

could ask a question about their friends who are

using the same system. E.g. “Where are Tom and

Lisa?”, “What are they looking at?” SmartKom is

developing an XML-based mark-up language called

M3L (MultiModal Markup Language) for the

semantic representation of all of the information that

flows between the various processing components.

SmartKom is similar to TeleMorph and TeleTuras in

that it strives to provide a multimodal information

service to the end-user. SmartKom-Mobile is

specifically related to TeleTuras in the way it

provides location sensitive information of interest to

the user of a thin-client device about services or

facilities in their vicinity.

DEEP MAP (Malaka & Zipf 2000, 2001) is a

prototype of a digital personal mobile tourist guide

which integrates research from various areas of

computer science: geo-information systems, data

bases, natural language processing, intelligent user

interfaces, knowledge representation, and more. The

goal of Deep Map is to develop information

technologies that can handle huge heterogeneous

data collections, complex functionality and a variety

of technologies, but are still accessible for untrained

users. DEEP MAP is an intelligent information

system that may assist the user in different situations

and locations providing answers to queries such as-

Where am I? How do I get from A to B? What

attractions are near by? Where can I find a

hotel/restaurant? How do I get to the nearest Italian

restaurant? The current prototype is based on a

wearable computer called the Xybernaut. DEEP

MAP displays a map which includes the user’s

current location and their destination, which are

connected graphically by a line which follows the

roads/streets interconnecting the two. Places of

interest along the route are displayed on the map.

Other projects focusing on mobile intelligent

multimedia systems, using tourism in particular as

an application domain include (Koch 2000) who

describes one such project which analysed and

designed a position-aware speech-enabled hand-held

tourist information system. The system is position

and direction aware and uses these facilities to guide

a tourist on a sight-seeing tour. (Pieraccini 2002)

outlines one of the main challenges of these mobile

multimodal user interfaces, that being the necessity

to adapt to different situations (“situationalisation”).

Situationalisation as referred to by Pieraccini

identifies that at different moments the user may be

subject to different constraints on the visual and

aural channels (e.g. walking whilst carrying things,

driving a car, being in a noisy environment, wanting

privacy etc.).

A BANDWIDTH DETERMINED MOBILE MULTIMODAL SYSTEM

EMBASSI (Hildebrand 2000) explores new

approaches for human-machine communication with

specific reference to consumer electronic devices at

home (TVs, VCRs, etc.), in cars (radio, CD player,

navigation system, etc.) and in public areas (ATMs,

ticket vending machines, etc.). Since it is much

easier to convey complex information via natural

language than by pushing buttons or selecting

menus, the EMBASSI project focuses on the

integration of multiple modalities like speech, haptic

deixis (pointing gestures), and GUI input and output.

Because EMBASSI’s output is destined for a wide

range of devices, the system considers the effects of

portraying the same information on these different

devices by utilising Cognitive Load Theory (CLT)

(Baddeley & Logie 1999). (Fink & Kobsa 2002)

discuss a system for personalising city tours with

user modelling. They describe a user modelling

server that offers services to personalised systems

with regard to the analysis of user actions, the

representation of the assumptions about the user, and

the inference of additional assumptions based on

domain knowledge and characteristics of similar

users. (Nemirovsky and Davenport 2002) describe a

wearable system called GuideShoes which uses

aesthetic forms of expression for direct information

delivery. GuideShoes utilises music as an

information medium and musical patterns as a

means for navigation in an open space, such as a

street.

3 COGNITIVE LOAD THEORY

Elting et al. (2002) explain the cognitive load theory

where two separate sub-systems for visual and

auditory memory work relatively independently. The

load can be reduced when both sub-systems are

active, compared to processing all information in a

single sub-system. Due to this reduced load, more

resources are available for processing the

information in more depth and thus for storing in

long-term memory. This theory however only holds

when the information presented in different

modalities is not redundant, otherwise the result is

an increased cognitive load. If however multiple

modalities are used, more memory traces should be

available (e.g. memory traces for the information

presented auditorially and visually) even though the

information is redundant, thus counteracting the

effect of the higher cognitive load. Elting et al.

investigated the effects of display size, device type

and style of Multimodal presentation on working

memory load, effectiveness for human information

processing and user acceptance. The aim of this

research was to discover how different physical

output devices affect the user’s way of working with

a presentation system, and to derive presentation

rules from this that adapt the output to the devices

the user is currently interacting with. They intended

to apply the results attained from the study in the

EMBASSI project where a large set of output

devices and system goals have to be dealt with by

the presentation planner. Accordingly, they used a

desktop PC, TV set with remote control and a PDA

as presentation devices, and investigated the impact

the multimodal output of each of the devices had on

the users. As a gauge, they used the recall

performance of the users on each device. The output

modality combinations for the three devices

consisted of

- plain graphical text output (T),

- text output with synthetic speech output of the

same text (TS),

- a picture together with speech output (PS),

- graphical text output with a picture of the

attraction (TP),

- graphical text, synthetic speech output, and a

picture in combination (TPS).

The results of their testing on PDAs are relevant to

any mobile multimodal presentation system that

aims to adapt the presentation to the cognitive

requirements of the device. The results show that in

the TV and PDA group the PS combination proved

to be the most efficient (in terms of recall) and

second most efficient for desktop PC. So pictures

plus speech appear to be a very convenient way to

convey information to the user on all three devices.

This result is theoretically supported by Baddeley’s

“Cognitive Load Theory” (Baddeley & Logie 1999,

Sweller et al. 1998), which states that PS is a very

efficient way to convey information by virtue of the

fact that the information is processed both

auditorally and visually but with a moderate

cognitive load. Another phenomenon that was

observed was that the decrease of recall performance

in time was especially significant in the PDA group.

This can be explained by the fact that the work on a

small PDA display resulted in a high cognitive load.

Due to this load, recall performance decreased

significantly over time. With respect to presentation

appeal, it was not the most efficient modality

combination that proved to be the most appealing

(PS) but a combination involving a rather high

cognitive load, namely TPS). The study showed that

cognitive overload is a serious issue in user interface

design, especially on small mobile devices. From

their testing Elting et al. discovered that when a

system wants to present data to the user that is

important to be remembered (e.g. a city tour) the

most effective presentation mode should be used

(Picture & Speech) which does not cognitively

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

overload the user. When the system simply has to

inform the user (e.g. about an interesting sight

nearby) the most appealing/accepted presentation

mode should be used (Picture, Text & Speech).

These points should be incorporated into multimodal

presentation systems to achieve ultimate usability.

This theory will be used in TeleMorph in the

decision making process which determines what

combinations of modalities are best suited to the

current situation when designing the output

presentation, i.e. whether the system is presenting

information which is important to be remembered

(e.g. directions) or which is just informative (e.g.

information on a tourist site).

4 TELEMORPH

The focus of the TeleMorph project is to create a

system that dynamically morphs between output

modalities depending on available network

bandwidth. The aims are to:

- Determine a wireless system’s output

presentation (unimodal/multimodal) depending

on the network bandwidth available to the

mobile device connected to the system.

- Implement TeleTuras, a tourist information

guide for the city of Derry and integrate the

solution provided by TeleMorph, thus

demonstrating its effectiveness.

The aims entail the following objectives which

include receiving and interpreting questions from the

user; Mapping questions to multimodal semantic

representation; matching multimodal representation

to database to retrieve answer; mapping answers to

multimodal semantic representation; querying

bandwidth status and generating multimodal

presentation based on bandwidth data. The domain

chosen as a test bed for TeleMorph is eTourism. The

system to be developed called TeleTuras is an

interactive tourist information aid. It will incorporate

route planning, maps, points of interest, spoken

presentations, graphics of important objects in the

area and animations. The main focus will be on the

output modalities used to communicate this

information and also the effectiveness of this

communication. The tools that will be used to

implement this system are detailed in the next

section. TeleTuras will be capable of taking input

queries in a variety of modalities whether they are

combined or used individually. Queries can also be

directly related to the user’s position and movement

direction enabling questions/commands such as

“Where is the Leisure Center?”.

J2ME (Java 2 Micro Edition) is an ideal

programming language for developing TeleMorph,

as it is the target platform for the Java Speech API

(JSAPI) (JCP 2002). The JSAPI enables the

inclusion of speech technology in user interfaces for

Java applets and applications. The Java Speech API

Markup Language (JSML 2002) and the Java

Speech API Grammar Format (JSGF 2002) are

companion specifications to the JSAPI. JSML

(currently in beta) defines a standard text format for

marking up text for input to a speech synthesiser.

JSGF version 1.0 defines a standard text format for

providing a grammar to a speech recogniser. Media

Design takes the output information and morphs it

into relevant modality/modalities depending on the

information it receives from the Server Intelligent

Agent regarding available bandwidth, whilst also

taking into consideration the Cognitive Load Theory

as described earlier. Media Analysis receives input

from the Client device and analyses it to distinguish

the modality types that the user utilised in their

input. The Domain Model, Discourse Model, User

Model, GPS and WWW are additional sources of

information for the Multimodal Interaction Manager

that assist it in producing an appropriate and correct

output presentation. The Server Intelligent Agent is

responsible for monitoring bandwidth, sending

streaming media which is morphed to the

appropriate modalities and receiving input from

client device & mapping to multimodal interaction

manager. The Client Intelligent Agent is in charge of

monitoring device constraints e.g. memory

available, sending multimodal information on input

to the server and receiving streamed multimedia.

4.1 Data Flow of TeleMorph

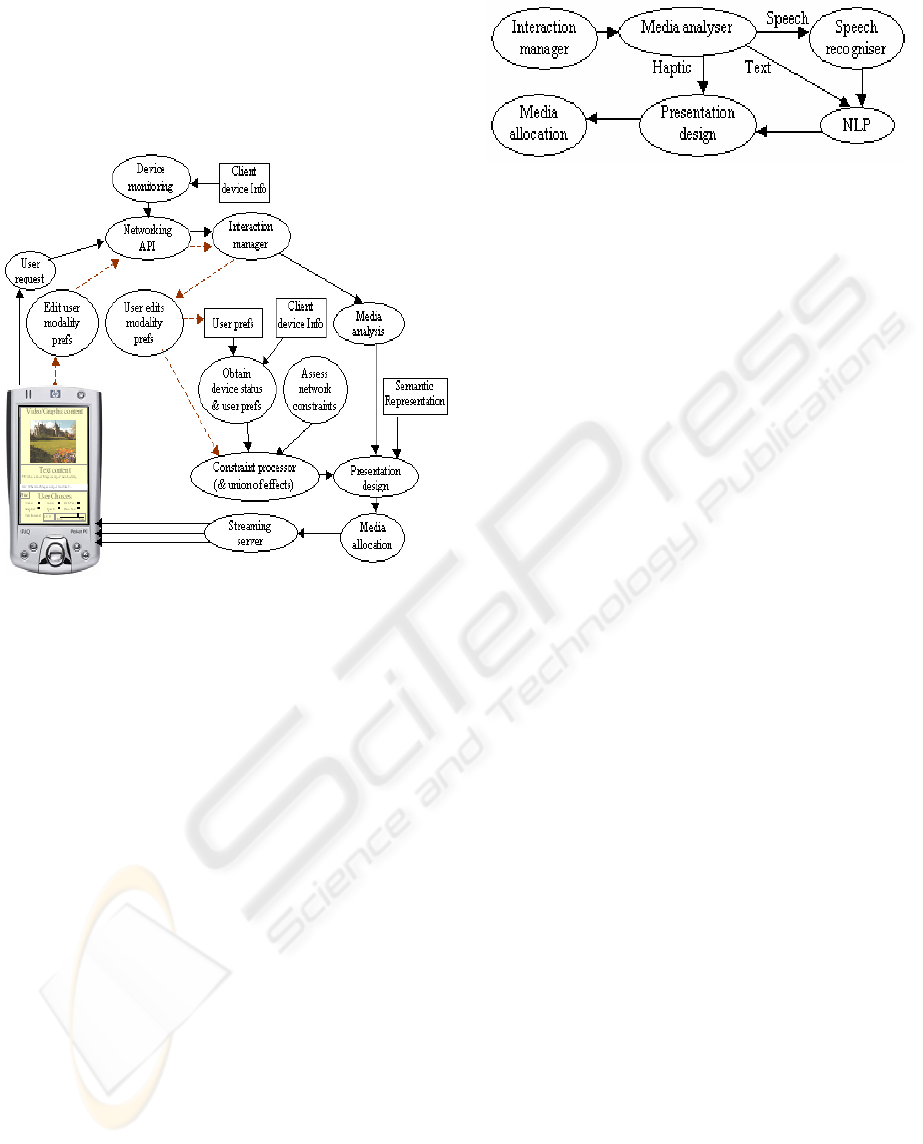

The data flow within TeleMorph is shown in Figure

1 which details the data exchange among the main

components. Figure 1 shows the flow of control in

TeleMorph. The Networking API sends all input

from the client device to the TeleMorph server. Each

time this occurs, the Device Monitoring module will

retrieve information on the client device’s status and

this information is also sent to the server. On input

the user can make a multimodal query to the system

to stream a new presentation which will consist of

media pertaining to their specific query. TeleMorph

will receive requests in the Interaction Manager and

will process requests via the Media Analysis module

which will pass semantically useful data to the

Constraint Processor where modalities suited to the

current network bandwidth (and other constraints)

will be chosen to represent the information. The

presentation is then designed using these modalities

by the Presentation Design module. The media are

A BANDWIDTH DETERMINED MOBILE MULTIMODAL SYSTEM

processed by the Media Allocation module and

following this the complete multimodal

Synchronised Multimedia Integration Language

(SMIL) (Rutledge 2001) presentation is passed to

the Streaming Server to be streamed to the client

device.

Figure 1: TeleMorph flow of control

A user can also input particular modality/cost

choices on the TeleMorph client. In this way the

user can morph the current presentation they are

receiving to a presentation consisting of specific

modalities which may be better suited their current

situation (driving/walking) or environment

(work/class/pub). This path through TeleMorph is

identified by the dotted line in Figure 1. Instead of

analysing and interpreting the media, TeleMorph

simply stores these choices using the User Prefs

module and then redesigns the presentation as

normal using the Presentation Design module. The

Media Analysis module that passes semantically

useful data to the Constraint Processor consists of

lower level elements that are portrayed in Figure 2.

As can be seen, the input from the user is processed

by the Media Analysis module, identifying Speech,

Text and Haptic modalities. The speech needs to be

processed initially by the speech recogniser and then

interpreted by the NLP module. Text also needs to

be processed by the NLP module in order to attain

its semantics. Then the Presentation Design module

takes these input modalities and interprets their

meaning as a whole and designs an output

presentation using the semantic representation. This

is then processed by the Media Allocation modules.

Figure 2: Media Analysis data flow

The Mobile Client’s Output Processing module will

process media being streamed to it across the

wireless network and present the received modalities

to the user in a synchronised fashion. The Input

Processing module on the client will process input

from the user in a variety of modes. This module

will also be concerned with timing thresholds

between different modality inputs. In order to

implement this architecture for initial testing, a

scenario will be set up where switches in the project

code will simulate changing between a variety of

bandwidths. To implement this, TeleMorph will

draw on a database which will consist of a table of

bandwidths ranging from those available in 1G, 2G,

2.5G (GPRS) and 3G networks. Each bandwidth

value will have access to related information on the

modality/combinations of modalities that can be

streamed efficiently at that transmission rate. The

modalities available for each of the fore-mentioned

bandwidth values (1G-3G) will be worked out by

calculating the bandwidth required to stream each

modality (e.g. text, speech, graphics, video,

animation). Then the amalgamations of modalities

that are feasible are computed.

4.2 Client output

Output on thin client devices connected to

TeleMorph will primarily utilise a SMIL media

player which will present video, graphics, text and

speech to the end user of the system. The J2ME

Text-To-Speech (TTS) engine processes speech

output to the user. An autonomous agent will be

integrated into the TeleMorph client for output as

they serve as an invaluable interface agent to the

user as they incorporate modalities that are the

natural modalities of face-to-face communication

among humans. A SMIL media player will output

audio on the client device. This audio will consist of

audio files that are streamed to the client when the

necessary bandwidth is available. However, when

sufficient bandwidth is unavailable audio files will

be replaced by ordinary text which will be processed

by a TTS engine on the client producing synthetic

speech output.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

4.3 Autonomous agents in TeleTuras

An autonomous agent will serve as an interface

agent to the user as they incorporate modalities that

are the natural modalities of face-to-face

communication among humans. It will assist in

communicating information on a navigation aid for

tourists about sites, points of interest, and route

planning. Microsoft Agent

provides a set of

programmable software services that supports the

presentation of interactive animated characters. It

enables developers to incorporate conversational

interfaces, which leverage natural aspects of human

social communication. In addition to mouse and

keyboard input, Microsoft Agent includes support

for speech recognition so applications can respond to

voice commands. Characters can respond using

synthesised speech, recorded audio, or text. One

advantage of agent characters is they provide higher-

levels of a character’s movements often found in the

performance arts, like blink, look up, look down,

and walk. BEAT, another animator’s tool which was

incorporated in REA (Real Estate Agent) (Cassell et

al, 2000) allows animators to input typed text that

they wish to be spoken by an animated figure. These

tools can all be used to implement actors in

TeleTuras.

4.4 Client input

The TeleMorph client will allow for speech

recognition, text and haptic deixis (touch screen)

input. A speech recognition engine will be reused to

process speech input from the user. Text and haptic

input will be processed by the J2ME graphics API.

Speech recognition in TeleMorph resides in Capture

Input as illustrated in figure 5. The Java Speech API

Mark-up Language

defines a standard text format

for marking up text for input to a speech synthesiser.

As mentioned before JSAPI does not provide any

speech functionality itself, but through a set of APIs

and event interfaces, access to speech functionality

(provided by supporting speech vendors) is

accessible to the application. For this purpose IBM’s

implementation of JSAPI “speech for Java” is

adopted for providing multilingual speech

recognition functionality. This implementation of

the JSAPI is based on ViaVoice, which will be

positioned remotely in the Interaction Manager

module on the server.

http://www.microsoft.com/msagent/default.asp

http://java.sun.com/products/java-media/speech/

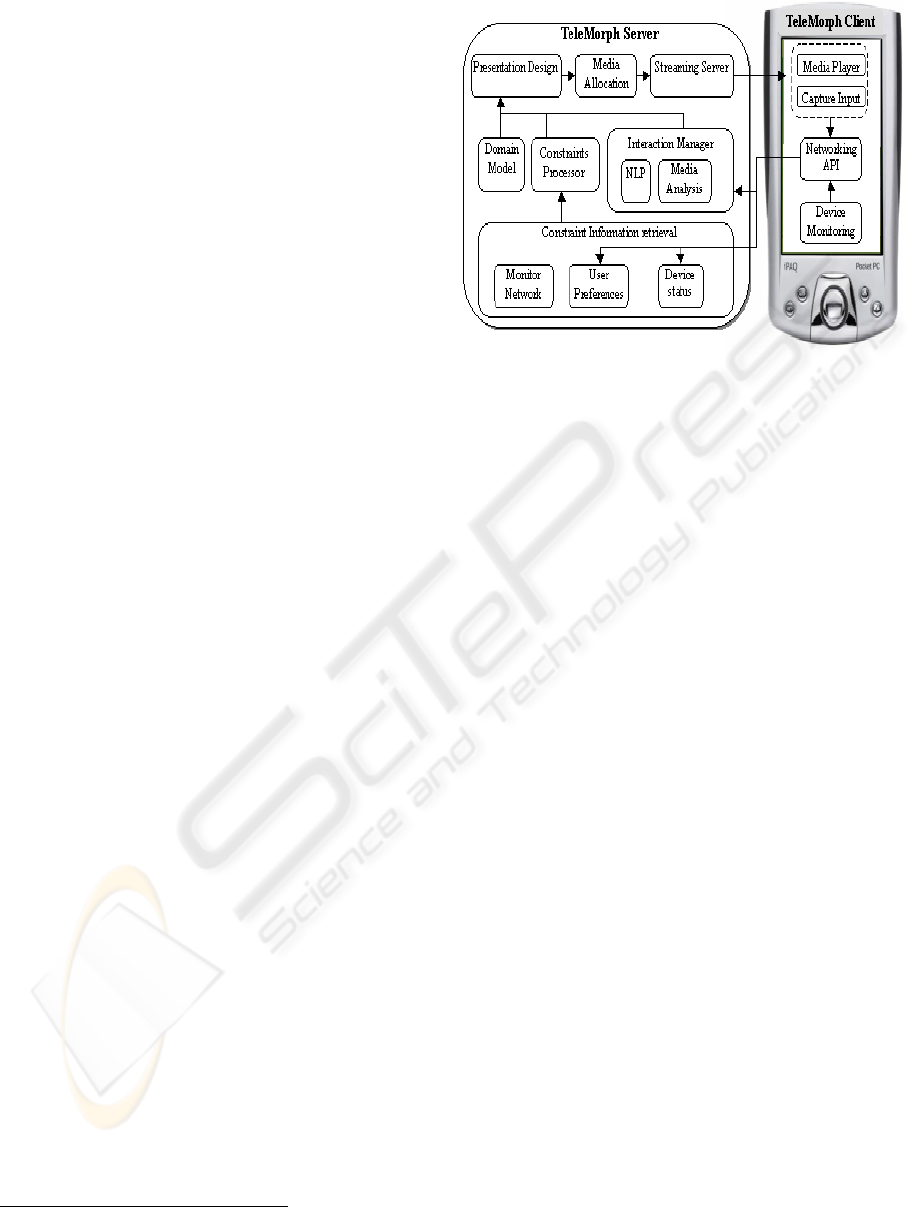

Figure 3: Modules within TeleMorph

The relationship between the JSAPI speech

recogniser (in the Capture Input module in figure 5)

on the client and ViaVoice (in the Interaction

Manager module in figure 5) on the server is

necessary as speech recognition is computationally

too heavy to be processed on a thin client. After the

ViaVoice speech recogniser has processed speech

which is input to the client device, it will also need

to be analysed by an NLP module to assess its

semantic content. A reusable tool to do this is yet to

be decided upon to complete this task. Possible

solutions for this include adding an additional NLP

component to ViaVoice; or perhaps reusing other

natural understanding tools such as PC-PATR

(McConnel 1996) which is a natural language parser

based on context-free phrase structure grammar and

unifications on the feature structures associated with

the constituents of the phrase structure rules.

3.5 Graphics

The User Interface (UI) defined in J2ME is logically

composed of two sets of APIs, High-level UI API

which emphasises portability across different

devices and the Low-level UI API which emphasises

flexibility and control. The portability in the high-

level API is achieved by employing a high level of

abstraction. The actual drawing and processing user

interactions are performed by implementations.

Applications that use the high-level API have little

control over the visual appearance of components,

and can only access high-level UI events. On the

other hand, using the low-level API, an application

has full control of appearance, and can directly

access input devices and handle primitive events

generated by user interaction. However the low-level

API may be device-dependent, so applications

developed using it will not be portable to other

A BANDWIDTH DETERMINED MOBILE MULTIMODAL SYSTEM

devices with a varying screen size. TeleMorph uses

a combination of these to provide the best solution

possible. Using these graphics APIs, TeleMorph

implements a Capture Input module which accepts

text from the user. Also using these APIs, haptic

input is processed by the Capture Input module to

keep track of the user’s input via a touch screen, if

one is present on the device. User preferences in

relation to modalities and cost incurred are managed

by the Capture Input module in the form of standard

check boxes and text boxes available in the J2ME

high level graphics API.

3.8 TeleMorph Server-Side

SMIL is utilised to form the semantic representation

language in TeleMorph and will be processed by the

Presentation Design module in figure 5. The

HUGIN development environment allows

TeleMorph to develop its decision making process

using Causal Probabilistic Networks which will

form the Constraint Processor module as portrayed

in figure 5. The ViaVoice speech recognition

software resides within the Interaction Manager

module. On the server end of the system Darwin

streaming server

is responsible for transmitting the

output presentation from the TeleMorph server

application to the client device’s Media Player.

3.8.1 SMIL semantic representation

The XML based Synchronised Multimedia

Integration Language

(SMIL) language (Rutledge

2001) forms the semantic representation language of

TeleMorph used in the Presentation Design module

as shown in figure 5. TeleMorph designs SMIL

content that comprises multiple modalities that

exploit currently available resources fully, whilst

considering various constraints that affect the

presentation, but in particular, bandwidth. This

output presentation is then streamed to the Media

Player module on the mobile client for displaying to

the end user. TeleMorph will constantly recycle the

presentation SMIL code to adapt to continuous and

unpredictable variations of physical system

constraints (e.g. fluctuating bandwidth, device

memory), user constraints (e.g. environment) and

user choices (e.g. streaming text instead of

synthesised speech). In order to present the content

to the end user, a SMIL media player needs to be

available on the client device. A possible contender

to implement this is MPEG-7, as it describes

multimedia content using XML.

http://developer.apple.com/darwin/projects/darwin/

3.8.2 TeleMorph reasoning - CPNs/BBNs

Causal Probabilistic Networks aid in conducting

reasoning and decision making within the

Constraints Processor module (see figure 5). In

order to implement Bayesian Networks in

TeleMorph, the HUGIN (HUGIN 2003)

development environment is used. HUGIN provides

the necessary tools to construct Bayesian Networks.

When a network has been constructed, one can use it

for entering evidence in some of the nodes where the

state is known and then retrieve the new

probabilities calculated in other nodes corresponding

to this evidence. A Causal Probabilistic Network

(CPN)/Bayesian Belief network (BBN) is used to

model a domain containing uncertainty in some

manner. It consists of a set of nodes and a set of

directed edges between these nodes. A Belief

Network is a Directed Acyclic Graph (DAG) where

each node represents a random variable. Each node

contains the states of the random variable it

represents and a conditional probability table (CPT)

or, in more general terms, a conditional probability

function (CPF). The CPT of a node contains

probabilities of the node being in a specific state

given the states of its parents. Edges reflect cause-

effect relations within the domain. These effects are

normally not completely deterministic (e.g. disease -

> symptom). The strength of an effect is modelled as

a probability.

6 CONCLUSION

We have touched upon some aspects of Mobile

Intelligent Multimedia Systems. Through an analysis

of these systems a unique focus has been identified –

“Bandwidth determined Mobile Multimodal

Presentation”. This paper has presented our

proposed solution in the form of a Mobile Intelligent

System called TeleMorph that dynamically morphs

between output modalities depending on available

network bandwidth. TeleMorph will be able to

dynamically generate a multimedia presentation

from semantic representations using output

modalities that are determined by constraints that

exist on a mobile device’s wireless connection, the

mobile device itself and also those limitations

experienced by the end user of the device. The

output presentation will include Language and

Vision modalities consisting of video, speech, non-

speech audio and text. Input to the system will be in

the form of speech, text and haptic deixis.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

REFERENCES

Baddeley, A. D. & R.H. Logie (1999) Working Memory:

The Multiple-Component Model. In Miyake, A. and

Shah, P. (Eds.), 28-61, Models of working memory:

Mechanisms of active maintenance and executive

control, Cambridge University Press.

Cassell, J., J. Sullivan, & E. Churchill, (2000) Embodied

Conversational Agents. Cambridge, MA: MIT Press

Elting, C., J. Zwickel & R. Malaka (2002) Device-

Dependant Modality Selection for User-Interfaces,

International Conference on Intelligent User

Interfaces. Intelligent User Interfaces, San Francisco,

CA, Jan 13-16, 2002.

Fell, H., H. Delta, R. Peterson, L. Ferrier et al (1994)

Using the baby-babble-blanket for infants with motor

problems. Conference on Assistive Technologies

(ASSETS’94), 77-84. Marina del Rey, CA.

Fink, J. & A. Kobsa (2002) User modeling for

personalised city tours. Artificial Intelligence Review,

18(1) 33–74.

Hildebrand, A. (2000) EMBASSI: Electronic Multimedia

and Service Assistance. In Proceedings IMC’2000,

Rostock-Warnem¨unde, Germany, November, 50-59.

Holzman, T.G. (1999) Computer human interface solution

for emergency medical care. Interactions, 6(3), 13-24.

HUGIN (2003)

http://www.hugin.com/

JCP (2002) Java Community Process.

http://www.jcp.org/en/home/index

JSML & JSGF (2002). Java Community Process.

http://www.jcp.org/en/home/index Site visited

30/09/2003

Koch, U.O. (2000) Position-aware Speech-enabled Hand

Held Tourist Information System. Semester 9 project

report, Institute of Electronic Systems, Aalborg

University, Denmark.

Malaka, R. & A. Zipf (2000) DEEP MAP - Challenging

IT Research in the Framework of a Tourist

Information System. Proceedings of ENTER 2000, 7th

International Congress on Tourism and

Communications Technologies in Tourism, Barcelona

(Spain), Springer Computer Science, Wien, NY.

Malaka, R. (2001) Multi-modal Interaction in Private

Environments. International Seminar on Coordination

and Fusion in MultiModal Interaction, Schloss

Dagstuhl International Conference and Research

Center for Computer Science, Wadern, Saarland,

Germany, 29 October - 2 November.

Maybury, M.T. (1999) Intelligent User Interfaces: An

Introduction. Intelligent User Interfaces, 3-4 January

5-8, Los Angeles, California, USA.

McConnel, S. (1996) KTEXT and PC-PATR: Unification

based tools for computer aided adaptation. In H. A.

Black, A. Buseman, D. Payne and G. F. Simons

(Eds.), Proceedings of the 1996 general CARLA

conference, November 14-15, 39-95. Waxhaw,

NC/Dallas: JAARS and Summer Institute of

Linguistics.

Nemirovsky, P. & G. Davenport (2002) Aesthetic forms of

expression as information delivery units. In Language

Vision and Music, P. Mc Kevitt, S. Ó Nualláin and C.

Mulvihill (Eds.), 255-270, Amsterdam: John

Benjamins.

Pieraccini, R., (2002) Wireless Multimodal – the Next

Challenge for Speech Recognition. ELSNews, summer

2002, ii.2, Published by ELSNET, Utrecht, The

Netherlands.

Rutledge, L. (2001) SMIL 2.0: XML For Web

Multimedia. In IEEE Internet Computing, Oct, 78-84.

Sweller, J., J.J.G. van Merrienboer & F.G.W.C. Paas

(1998) Cognitive Architecture and Instructional

Design. Educational Psychology Review, 10, 251-296.

Wahlster, W.N. (2001) SmartKom A Transportable and

Extensible Multimodal Dialogue System.

International Seminar on Coordination and Fusion in

MultiModal Interaction, Schloss Dagstuhl Int

Conference and Research Center for Computer

Science, Wadern, Saarland, Germany, 29 Oct-2 Nov.

A BANDWIDTH DETERMINED MOBILE MULTIMODAL SYSTEM
