A POLICY-BASED ARCHITECTURE FOR PROTECTING 802.11

WLANS AGAINST DDOS ATTACKS

Alan Marshall, Wenzhe Zhou

School of Electrical & Electronic Engineering, Queen’s University of Belfast, Belfast, Northern Ireland, UK

Keywords: Network Security, WLANs, Policy, DDoS

Abstract: The security mechanisms available in 802.11WLANs are considered to be extremely vulnerable to malicious

attacks. This paper proposes a policy-based architecture to protect 802.11 WLANs against Distributed Denial

of Service (DDoS) attacks. The architecture proposed is based on the 802.1X standard, which forms the basis

of the Robust Security Network (RSN) framework. The main focus of our work is to develop a policy-based

server that can control certain actions taken by WLAN access points so that proper countermeasures will be

taken whenever a DDoS attack occurs. The policies are both rule and case based and are contained in a Policy

Based Security Server (PBSS). The approach taken is to simulate the behaviour of this architecture when

faced with a range of DDoS attack strategies, and to use this to characterise the type of security policies

required by the PBSS.

1 INTRODUCTION

In a very recent timeframe, the security of wireless

networks has become a critically important topic

worldwide. Since the emergence of the first DDoS

attack tool toward mobile phones, known as the

SMA-flooder (L.Sherriff,

http://www.theregister.co.uk/content/1/12394.html),

wireless security has attracted much more attention

from researchers. DDoS is generally considered to be

one of the most powerful forms of attack because of

the high damage to network services. In fixed

networks, large servers can be rendered inactive in

seconds by the millions of packets generated by

DDoS attacks. This situation is further compounded

in the WLAN environment, where any attacker can

eavesdrop on all network services without any fear of

detection. In the 802.11 WLAN infrastructure mode,

every station communicates through the access point

(AP). If a malicious attacker launches a DDoS attack

towards the AP, all services in the WLAN may be

disrupted. Unfortunately, 802.11 standards don’t

have strong security mechanisms. The first security

protocol, the wired equivalency protocol (WEP) was

launched in 1999, and this was shortly found to have

serious weaknesses. Two new solutions have been

proposed: the Wi-Fi Protected Access (WPA) is an

interim standard and the forthcoming new standard

will be 802.11i (Jon Edney et al., 2003).

Unfortunately, neither of these protections is against

DDoS attacks.

This paper aims at designing a framework to protect

against

DDoS attacks in 802.11 WLANs. DDoS

attacks can span a range of protocol layers, from

MAC to transport, and we propose to design a

policy-based architecture, which can make

appropriate strategies at each layer whenever an

attack occurs. In our approach, we imagine that the

WLAN is programmable, under the control of the

policies. We introduce a Policy-Based Security

Server (PBSS), which resides in the fixed network.

The PBSS monitors the security information of

802.11 WLANs via the access points and initiates

appropriate countermeasures should an attack be

detected. The rest of this paper is organized as

follows.

Section 2 gives a brief overview of the

802.11 security protocols. Section 3 describes the

DDOS threats to 802.11 WLANs. Section 4

introduces the policy framework, and section 5

describes future work and conclusions.

107

Marshall A. and Zhou W. (2004).

A POLICY-BASED ARCHITECTURE FOR PROTECTING 802.11 WLANS AGAINST DDOS ATTACKS .

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 107-112

DOI: 10.5220/0001393901070112

 SciTePress

2 REVIEW OF SECURITY

MECHANISMS IN 802.11

2.1 Security Protocols and Basic

Security Mechanism

In order to connect to an Access Point (AP) and

transmit data, a client must complete both

authentication and association. The primary

authentication methods are open system and shared

key authentication, and MAC address based access

control lists. The security solution in the classic

802.11 standard is called the Wired Equivalent

Privacy (WEP). Previous work has shown that WEP

is absolutely insecure (Nikita Borisov et al.,

http://www.isaac.cs.berkeley.edu/isaac/mobicom.pdf

). In order to address the vulnerabilities in WEP, the

IEEE group has designed the Robust Security

Network (RSN), which is based on 802.1X standard.

2.2 IEEE 802.1X Standard and RSN

The IEEE 802.1X was originally a simple standard

for passing EAP (Extensible Authentication Protocol)

messages over a wired or wireless LAN. With

802.1X, EAP messages are transmitted in Ethernet

frames rather than PPP. There are three terms in

802.1X: the Supplicant, the Authenticator and the

Authorizer. Figure 1 shows the IEEE 802.1X

reference model. RSN provides mechanisms to

restrict network connectivity (at the MAC Layer) to

authorized entities only via 802.1X. In the WLAN the

users are the supplicants and the AP is the

authenticator. The function of an AP is to forward the

traffic. It doesn’t need to know the detail of the

authentication procedure. This is the idea of 802.1X,

which can guarantee both scalability and flexibility.

Our work is based on this idea. Our approach also

introduces a centralized server, based on a policy

architecture, which is responsible for determining

security threats, and implementing various security

policies.

While RSN improves the key management (TKIP

per-packet key used), the management frames are not

authenticated. It is therefore easy to forge the

management frames to generate attacks. The

authentication method in RSN is one-way, and thus

clients may be easily compromised by an attacker

who pretends to be an access point.

3 DDoS ATTACKS

3.1 General Situation

Distributed Denial-Of-Service attacks generally

follow the architecture shown in figure 2. The

primary goal of the attack is to deny the victim(s)

access to a particular resource (CERT Coordination

Center, 2001). The services are denied by sending a

stream of packets to a victim that either consumes

some key resources, thus rendering it unavailable to

legitimate clients, or providing the attacker with

unlimited access to the victim’s machine so that he

can inflict arbitrary damage (J.Mirkovic et al., 2002).

The DDoS strategy uses a classic Agent/Zombie

control topology with direct communication via

custom TCP, UDP, and ICMP protocols. Packet

flooding attacks used UDP floods, TCP SYN floods

and ICMP echo request floods (CERT Coordination

Center, 2001).

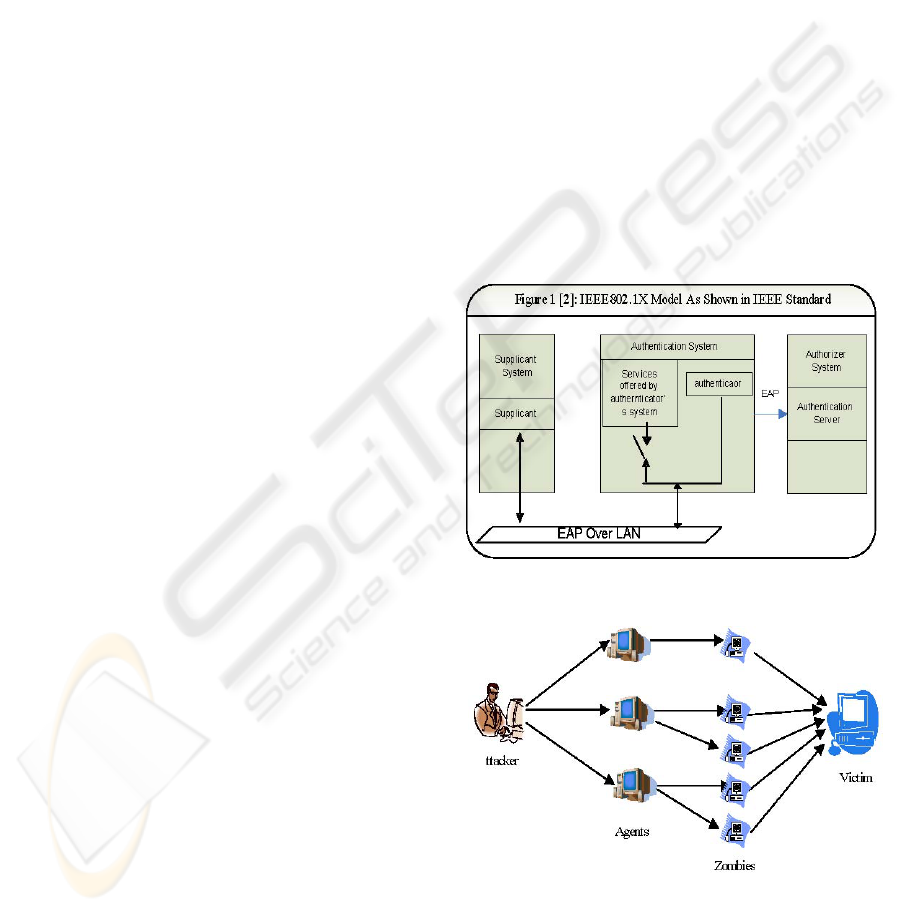

Figure 1: (Jon Edney et al., 2003): IEEE 802.1X Model

Figure 2: DDoS attack architecture

3.2 DDoS Threats to 802.11 WLAN

DDOS attacks threaten both the lower and the upper

layers of the network. In the infrastructure network,

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

108

TCP and UDP are used. Hackers can use current

attacking tools to perform DDOS attacks against the

TCP, UDP and ICMP protocols. Denial of service

can be performed in different layers in 802.11.

Attacks in the IP and TCP layers are exactly the same

as in the fixed network, and include SYN flood attack,

ICMP ECHO request floods. Several

denial-of-service scenarios in the MAC layer are

described:

(i) Because the disassociation and deauthentication

frames permit use of the broadcast MAC address

as the target station, the attacker forges some

disassociation or deauthentication frame and

sends it to either the AP or the wireless station

(STA). The AP thinks that the STA wants to

disconnect from the network and grants the

request and closes the association service.

(ii) An attacker can deny service to a STA when there

is more than one AP on the same WLAN. It can

send a forged Association-request message to

any other AP with which the legal supplicant is

not connected, with the victim’s MAC address.

The AP approves the association (authenticate

after association in 802.11 (Tim Moore et al.,

http://www.drizzle.com/~aboba/IEEE/11-01-TB

D-I-Authenticated-FastHandoff.ppt)) and sends

out a layer 2 update frame to the wired LAN. The

router or switch now begins forwarding traffic to

the AP that just sent the layer 2 update, and the

actual station no longer receives any traffic (Jon

Edney et al., 2003)

(iii) The attacker compromises a group of Zombie

STAs. These zombies send bogus information to

the AP such as forged STA MAC addresses. The

resources on the AP are exhausted and the AP

either reboots or no longer permits new stations

to associate to it (Jon Edney et al., 2003).

(iv) Because there is only one-way authentication,

the attacker forges an AP’s MAC and network

addresses (BSSID and ESSID). The victims will

think the forged AP and the real AP are the same

and connect to the bogus one. The attacker can

now do whatever it wants to the victims.

(v) Vulnerabilities that appear during the

authentication can cause denial of service attacks

as well. For example, an attacker can inundate

the access point by large numbers of

authentication requests. Figure 7 shows the EAP

message format in 802.1X. The Identifier field

has 8 bits. The IEEE 802.1X indicates that it

should be incremented for each message sent.

Thus the access point limits the parallel

associations to 255. A single attacker can use a

random MAC address and send 255 parallel

requests to prevent any other station from joining

the access point. Another example is EAP failure

message spoofing (Mishr A. et al., 2002). Once

the supplicant receives the EAP failure message,

it goes into to a hold state for up to 60 seconds

before returns into the next state (a detailed state

description is available in (IEEE Draft

P802.1X/D11, 2001)). An attacker can keep

sending a fake EAP failure message every 60 sec

to the target so that it always stays in the hold

state without getting any service. The attacker

can also forge the EAP success message and

send it to the target. Thus the victim’s state goes

to authenticated (IEEE Draft P802.1X/D11,

2001) and the attacker can receive all network

traffic from the supplicant.

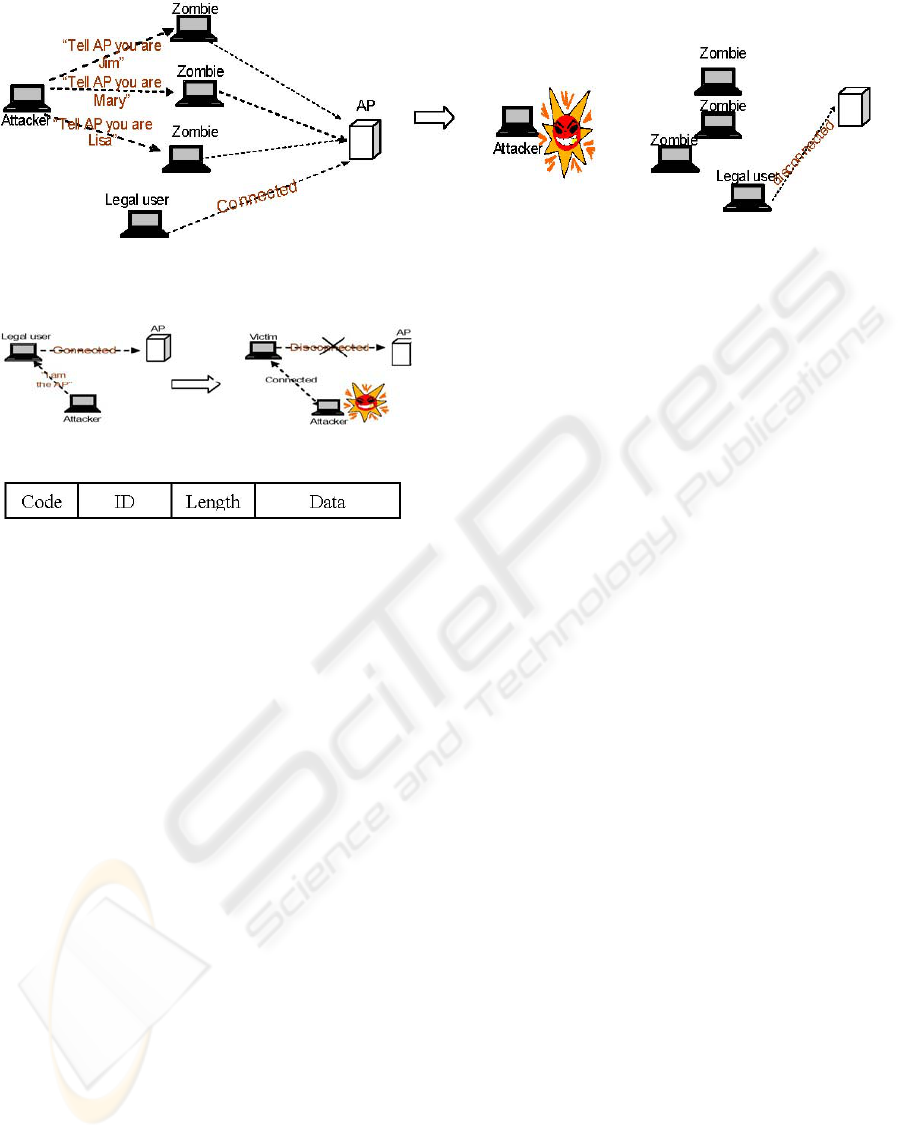

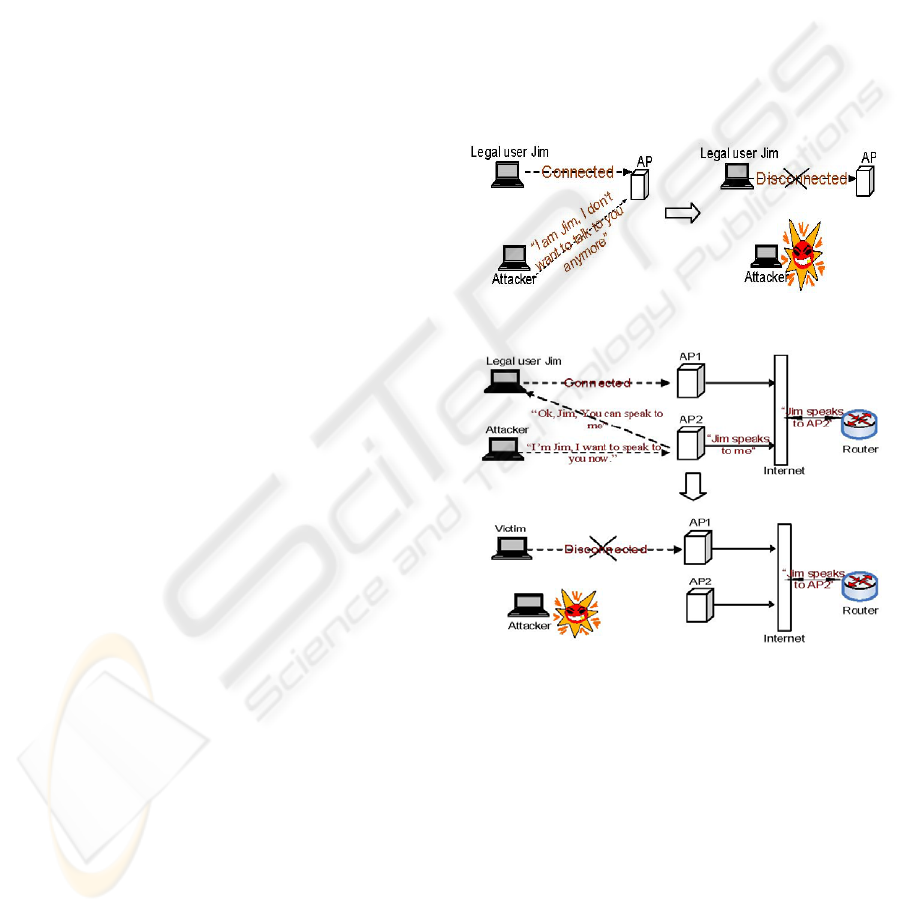

Figure 3: Denial of Service Attack case

Figure 4: Denial of Service attack case (ii)

A POLICY-BASED ARCHITECTURE FOR PROTECTING 802.11 WLANS AGAINST DDOS ATTACKS

109

Figure 5: Denial of Service attack case (iii)

The above cases are several examples of DDoS

attacks in IEEE 802.11 WLANs. Additional attacks

can be performed according to the vulnerabilities in

both the encryption algorithm and the protocol

implementation process.

4 THE POLICY-BASED

ARCHITECTURE

4.1 Policy-based Framework in 802.11

The previous sections described the security

mechanisms and the insecurity in IEEE 802.11. A

proficient attacker can easily listen to the wireless

channel, forge unencrypted management frames and

perform a DDoS attack. This section elucidates the

model to protect against the DDoS attacks identified.

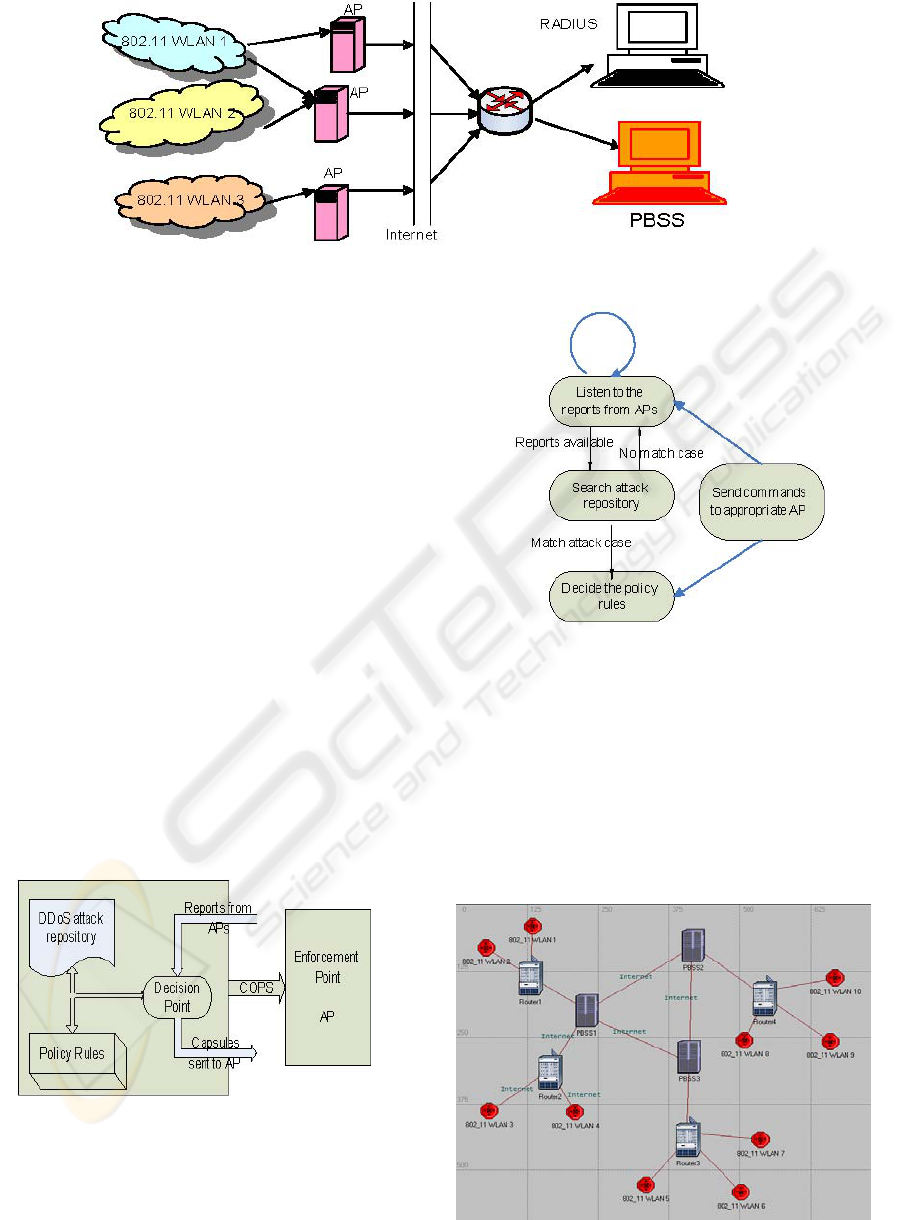

Figure 8 shows the policy-based security architecture.

For flexibility and scalability, we introduce a central

policy-based security server rather than build up

security countermeasures in each access point. This

architecture is based on the idea of “Thin access

points” and the approach to security found in IEEE

802.1X. Here an AP plays the role of a gate guard

who passes the supplicants’ requests to a secure

server.

The Policy Based Security Server (PBSS) actively

monitors the performance of the wireless LANs. It

sends probes to enquire about the activity in the

access points. For example, a good question can be:

“Are there a lot of disassociation requests in the

networks now?” or “Have you rebooted? Why?” At

the same time the access point sends reports to the

PBSS when it suspects something may be wrong. For

example, when attack in case (iii) occurs, the access

point will ask the PBSS: “I have to reboot because it

seems a lot of my clients have changed.” According

to the abnormal phenomenon, the PBSS sends some

‘capsules’ (packets with commands encapsulated) to

the access points to tell them how to deal with the

current situation.

Figure 6: Denial of Service attack case (iv)

Figure 7: EAP packet form

4.2 The Policy-based Security Server

(PBSS)

Figure 9 indicates the construction of the model.

There are three modules: the DDoS attack repository

module which collects different DDoS attack

phenomena, the attack information is input according

to known attacks and new attacks which are recorded

automatically; the policy rules module which stores

the countermeasures for different kinds of attacks;

the decision point module which makes decisions

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

110

Figure 8: A policy-based security architecture for 802.11 WLAN

about a possible attack. The enforcement point in this

model is the access point, which accepts the

commands from the PBSS and executes them for the

corresponding WLAN. According to the APs

responses to the probes, the PBSS does a rule-based

search in its attack repository and checks whether

there is a matching case. If not, the PBSS ignores the

report and continues listening to the next report. If

yes, the PBSS then decides on the appropriate policy

and sends it to the corresponding AP. Figure 10

shows the state machine of the PBSS.

The PBSS and AP communicate with each other

through a COPS (Common Open Policy Service)

protocol over TCP connection. When an AP receives

commands from the PBSS, it applies the policies to

its 802.11 WLANs. The countermeasures could

involve either changing the topology of the WLAN,

or finding out the attack source. In general the

countermeasure policy will depend on the specific

phenomena of the attacks, and here it is intended to

implement a heuristic classification engine.

Figure 9: Architecture of PBSS

Figure 10: PBSS state machine

4.3 Distributed PBSS

Generally, a number of WLANs may be scattered

over a large area. In this a single PBSS is not effective

for controlling all the security situations, and a

distributed architecture of PBSSs located in different

areas is required. Figure 11 shows a distributed PBSS

network. Here PBSSes exchange

Figure 11: Distributed PBSS

A POLICY-BASED ARCHITECTURE FOR PROTECTING 802.11 WLANS AGAINST DDOS ATTACKS

111

policy information between each other to obtain

frequent updates. This distributed architecure

provides better robustness for the WLANs. For

example, a roaming attacker can be discovered more

readily though the cooperation of several PBSSs.

5 CONCLUSIONS

The importance of security in a wireless environment

can never be underestimated. Because of the nature

of wireless transmission and the security mechanisms

in 802.11, DDoS attacks can always take place.

Unfortunately, the RSN mechanism doesn’t protect

WLANs against the attacks demonstrated in this

paper. Deficiencies in both the encryption algorithm

and the security protocols have highlighted the

vulnerability of WLANs to DDoS attacks. As a result,

extra security countermeasures are necessary to

protect the network’s resources. Currently firewalls

are the most popular approach for implementing

security in networks. The main mechanism employed

by them is packet filtering. However this approach

has vulnerabilities as it only addresses attacks at one

(the network) level. In this paper, a new approach to

implementing countermeasures based on a

Policy-Based Security Server (PBSS) is presented.

The PBSS construction aims at defeating the attacks

by considering the entire behaviour of the network

system (PBSS, AP, Mobile clients). At the same time

as the clients filter the defined packets, the PBSS

periodically sends probes. It asks the APs about the

current status of the network. If any abnormal

phenomenon is found, the PBSS sends ‘capsules’

(packets encapsulated with programs or pointers) to

the AP. The AP then changes the topology of the

WLAN and cooperates both the AP and wireless

users to defeat the attack. The main feature of the

PBSS framework is that it is designed to organize the

members in the network to defeat viruses rather than

do it solely, so that a single infected machine won’t

affect the whole network’s performance. A number

of typical DDoS attack strategies are identified and

these will be used to define the policy

countermeasure employed. However the approach

can also be applied to other types of attack. A

number of typical DDoS attack strategies are

identified and these will be used to define the policy

countermeasure employed. However the approach

can also be applied to other types of attack.

Future work will focus on the implementation of the

policy-based security server. Our design of the

security architecture aims at the reacting performance

of the wireless LAN, we will use a network

simulation package, OPNET to build up the model

and test its performance over a range of DDoS attack

strategies

REFERENCES

L.Sherriff, “Virus Launches DDOS for mobile phones”,

http://www.theregister.co.uk/content/1/12394.html

Jon Edney, William A. Arbaugh, “Real 802.11

Security----Wi-Fi Protected Access and 802.11i”,

Addison Wesley, July, 2003

The 802.11 Security Web Page

http://www.drizzle.com/~aboba/IEEE/

Nikita Borisov, Ian Goldberg, David Wagner, “Intercepting

Mobile Communications: The Insecurity of 802.11”,

http://www.isaac.cs.berkeley.edu/isaac/mobicom.pdf

CERT Coordination Center, “Denial of Service Attacks”,

http://www.cert.org/tech_tips/denial_of_service.html,

2001

J.Mirkovic, J.Martin, P.Reiher, “A Taxonomy of DDOS

Attacks and DDOS Defense Mechanisms”, ACM CCR,

July, 2002

CERT Coordination Center, “Trends in Denial Of Service

Attack Technology”

http://www.cert.org/archive/pdf/DoS_trends.pdf, Oct,

2001

IEEE 802.11 Tgi, Tim Moore, Bernard Aboba,

“Authenticated fast handoff”,

http://www.drizzle.com/~aboba/IEEE/11-01-TBD-I-Au

thenticated-FastHandoff.ppt

Mishr, A., and W.A.Arbaugh. 2002. “An Initial Security

Analysis of the IEEE 802.1X Standard.” Technical

Report CS-TR-4328. College Park, University of

Maryland.

IEEE. “Standard for local and metropolitan area networks:

Standard for port based network access control”. IEEE

Draft P802.1X/D11, March 2001.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

112
