A SEMANTIC APPROACH TO POLICY-BASED MANAGEMENT

Linking Policies to Ontologies

S. Avallone, S. D’Antonio and S. P. Romano

Dip. Informatica e Sistemistica, University of Napoli Federico II, Via Claudio 21, Napoli, Italy

Keywords:

Policy-based network management, ontologies, heterogeneous networks.

Abstract:

The possibility of dynamically managing Quality of Service (QoS) in heterogeneous networks represents a

key element for telecom operators which aim at making their communication infrastructures able to support

new emerging multimedia services. The large success of triple play services together with the ongoing mi-

gration of voice carriers towards the NGN (Next Generation Network) architecture imposes a new way of

controlling and utilizing network resources in order to fulﬁll user’s requirements. The use of network level

policies to conﬁgure and manage QoS-based communication networks allows network operators to automati-

cally adapt the managed systems to changing requirements of the new operational and business scenarios. In

this paper we present an innovative approach to policy-based network management which ensures ﬂexibility

and effectiveness to all processes composing the service life cycle, from negotiation to delivery. In order to

allow users and applications to modify their QoS requirements, thus triggering the SLA re-negotiation, at the

same time optimizing the conﬁguration of network elements we implemented a novel framework capable to

automatically translate user’s requirements into network policies. Such framework relies on the adoption of

ontologies as means to describe heterogeneous realms such as those associated with the fruition and delivery

of innovative services. Ontologies are used to represent user’s needs and preferences, which feed the policy

creation and enforcement process. Different real world scenarios are depicted to validate the effectiveness of

the proposed approach.

1 INTRODUCTION

In this paper we present an architecture for the dy-

namic creation and adaptation of network conﬁgura-

tion policies. The architecture has been conceived in

the framework of the European project NetQoS (Net,

) and brings in a number of innovative solutions for

the automated management of Next Generation Net-

works. The speciﬁc contribution of this work is

twofold: on one hand we describe a hierarchical ap-

proach to the deﬁnition of high level QoS (Quality of

Service) goals, by means of a semantic process based

on the exploitation of ontologies; on the other hand,

we discuss how such high level (i.e. user-oriented)

goals can be progressively reﬁned in order to arrive

at the deﬁnition of related low-level (i.e. network-

oriented) conﬁguration policies.

The policy-based part of the overall architecture is

based on the utilization of the XACML standard lan-

guage, which, though originally conceived for role-

based access control, can be fruitfully exploited in the

wider context of network management.

The paper is structured as follows. Section 2

brieﬂy presents the scope and objectives of the

NetQoS project, which is a sixth framework pro-

gramme funded initiative. Section 3 starts delving

into the details of our contribution, by providing some

highlights about the use of ontologies for the speciﬁ-

cation of user-level preferences/goals. On the grounds

of this discussion, section 4 explains how to exploit

XACML policies in order to appropriately conﬁgure

QoS-enabled network elements. A crucial component

of the overall architecture, the so-called Context Man-

ager is thoroughly analyzed in section 5, which fo-

cuses on the most advanced autonomic aspects of the

devised framework. The core of our contribution will

311

Avallone S., D’Antonio S. and P. Romano S. (2007).

A SEMANTIC APPROACH TO POLICY-BASED MANAGEMENT - Linking Policies to Ontologies.

In Proceedings of the Second International Conference on Wireless Information Networks and Systems, pages 295-301

DOI: 10.5220/0002151802950301

 SciTePress

be highlighted in section 6, which deals with the awk-

ward task of automatically translating high-level on-

tologies into lower-level policies. Finally, section 7

presents an interesting case study related to the deliv-

ery of an advanced Video on Demand service. Sec-

tion 8 concludes the paper and provides some infor-

mation about future work directions.

2 THE NETQOS PROJECT

The NETQOS project is concerned with the design

and development of a policy-based network man-

agement architecture. The main focus is on an au-

tonomous management approach with the objective

of providing enhanced quality of service (QoS) and

resource utilization in varying operational environ-

ments. The proposed approach maps requirements

and preferences from the actors of the system (users,

service providers, applications, operators) into net-

work and transport level policies, which are then en-

forced. In the course of time, changes in the opera-

tional environment emerge due to many reasons like

the mobility of users, varying service demands, al-

tered QoS requirements etc. Policy management au-

tomation allows for the system to autonomously adapt

to these changes. Equally, a suboptimal QoS delivery

and resource utilization triggers an adaptation of the

employed policies. The NetQoS approach modiﬁes

existing policies, activates/deactivates existing poli-

cies and assembles new policies at run-time while re-

specting the requirements imposed by the different

actors.

In order to fulﬁll the above mentioned objectives,

it is necessary that the NetQoS components are capa-

ble to autonomously manage the network by both han-

dling user requests and reacting to all possible events.

To this end, all the components need to cooperate to

carry out the task of the NetQoS system. Hence, the

need arises for a component that coordinates all the

others. In the NetQoS architecture (Fig. 1), such a co-

ordinating component is denoted as the Context Man-

ager (CM). The Context Manager is in charge to iden-

tify the “context”, i.e., the operational status of the

NetQoS system and all the relevant events. In case

an event that requests actions from some components

occurs, the Context Manager must become aware of

it and notify the appropriate components. Examples

of events that the Context Manager has to be aware

of are the launch of an application, the violation of a

policy, the addition of new policies, etc.

The Context Manager is primarily an event sink

and source: it gets notiﬁed about important events

and forwards this information to the relevant compo-

nents. The detection of the events themselves is real-

ized within the NetQoS monitoring and measurement

tool platform (MoMe Tool). The MoMe Tool is the

component that is responsible for providing informa-

tion about the current state of the network. Clearly,

this view of the network status is indispensable in the

realization of an autonomous management approach.

The Policy Description (PD) represents a set of

ontologies used to specify the actors’ preferences, re-

quirements, proﬁles, etc. The actors of the NetQoS

system (users, applications, service providers, oper-

ators) use the Actor Preference Manager (APM) to

specify their needs through ontologies.

This paper focuses on the automatic translation of

those ontologies into policies. The Automated Policy

Adaptor (APA) enforces the operational policies and

updates them as needed when the system evolves.

3 ONTOLOGIES

Ontologies were originally conceived and introduced

in the context of the Semantic Web. They provide for-

mal speciﬁcation of concepts and their interrelation-

ships, and play an essential role in complex web ser-

vice environments, semantics-based search engines

and digital libraries. One important purpose of these

formal speciﬁcations is sharing of knowledge be-

tween independent entities. Although there are yet

many deﬁnitions for ontology, the most general and

complete one looks at an ontology as “an explicit and

formal speciﬁcation of a shared conceptualization”,

which:

• is explicit because it deﬁnes the concepts, prop-

erties, relationships, functions, axioms and con-

straints that compose it;

• is formal because it is machine readable and inter-

preted;

• is a conceptualization because it is an abstract

model and a simpliﬁed view of the existing things

it represents;

• is shared because there has been previously a con-

sensus about the information and it is accepted by

a group of experts.

In brief, ontology aims at deﬁning a set of con-

cepts and properties, together with axioms providing

the rules that govern them. In the last years, ontol-

ogy languages have been in a rapid development. The

OWL (Bechhofer et al., 2004), proposed by the W3C

for the deﬁnition of ontology in the Semantic Web,

is based on RDF and RDF Schema (RDFS) and pro-

vides greater machine interpretability of Web content

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

312

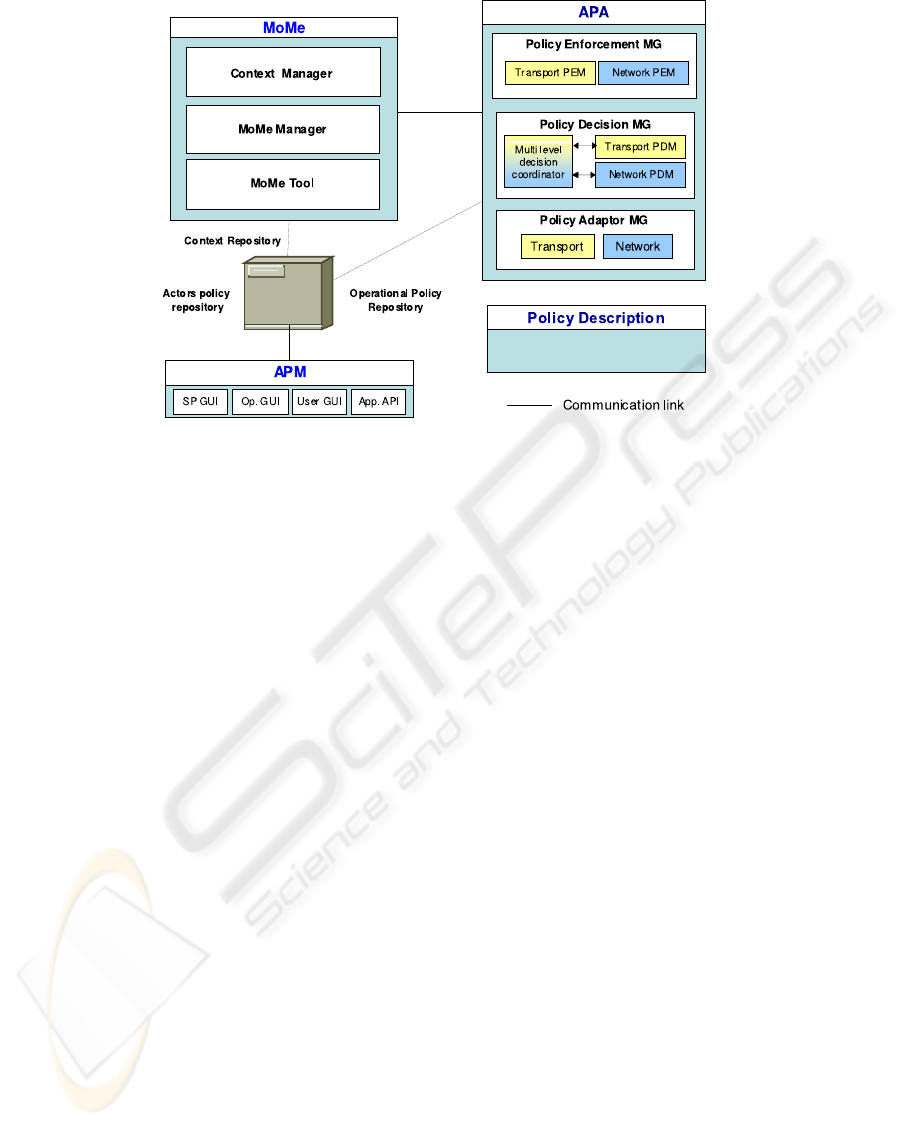

Figure 1: Architecture of the NetQoS system.

by offering additional vocabulary along with formal

semantics.

3.1 Using of Ontology for Service

Creation and Delivery

In the framework of service creation and provision-

ing, different entities interact by exchanging and shar-

ing information concerning different realms and do-

mains. The heterogeneity of both the communication

networks and the user’s devices currently used to de-

liver innovative services represents a further element

which prompts the adoption of an ontology-based ap-

proach to service deﬁnition and negotiation. User’s

requirements and preferences can be optimally de-

scribed by means of ontologies, which, in turn, can

be effectively and automatically translated in network

conﬁguration and management policies. Indeed, pol-

icy based networks provide high levels of ﬂexibil-

ity by allowing deﬁnition of packet handling rules,

resource allocation strategies, network management

techniques, access control restrictions, levels of ser-

vice, etc. All these policies are then enforced by

conﬁguring the network devices with the appropriate

primitives so that the desired actions are performed on

the data streams.

One of the main challenges frequently faced is en-

suring that network conﬁguration settings and poli-

cies are applied consistently throughout the network.

However, this task is often error-prone and difﬁcult

to manage especially when there is heterogeneity of

network devices and protocols. In order to effectively

deﬁne and enforce policies such as “allow trafﬁc from

host A to take priority over trafﬁc from host B” and

“permit user A to receive video at 128 Kbps” onto

heterogeneous networks, the need arises to develop

a framework capable to increase the expressibility of

policies thanks to the use of ontologies as means to

describe concepts, their taxonomy, interrelations and

rules.

In the following of this paper we present a frame-

work which allows users to specify their service

requirements and preferences by exploiting prede-

ﬁned ontologies and automatically translates such on-

tologies into network level policies to be used for

QoS management. To develop ontologies we used

Prot

e (Pro, ), a graphical tool for ontology edit-

ing and knowledge acquisition, which allows thinking

about domain models at a conceptual level without

having to know the syntax of the language ultimately

used on the Web. Prot

e provides full-ﬂedged sup-

port for knowledge modeling and acquisition: classes,

instances of these classes, slots representing attributes

of classes and instances, as well as facets express-

ing additional information about slots. Prot

e en-

ables developers to instantiate ontology that deﬁnes

the abstract data on which speciﬁc operations are

performed with corresponding domain concepts. It

uses the instantiated ontology to generate a domain-

speciﬁc knowledge-acquisition system. Application

experts can then exploit such system to enter the spe-

ciﬁc content knowledge on which the method oper-

ates to solve particular application tasks.

A SEMANTIC APPROACH TO POLICY-BASED MANAGEMENT - Linking Policies to Ontologies

313

4 POLICIES IN XACML

Extensible Access Control Markup Language

(XACML) (XAC, ) is an XML-based language

designed speciﬁcally for creating policies and

automating their use. XACML has two basic compo-

nents. The ﬁrst is an access-control policy language

that lets developers specify the rules about who can

do what and when. The other is a request/response

language that presents requests for access and

describes the answers to those queries. XACML

provides for ﬁne-grained access control of resources

based on several criteria, including the following:

• attributes of the user requesting access (e.g.,

“Only division managers and above can view this

document.”);

• the protocol over which the request is made (e.g.,

“This data can be viewed only if it is accessed over

HTTPS.”);

• the authentication mechanism (e.g., “The re-

quester must have been authenticated using a dig-

ital device.”).

The key top-level element of the policy deﬁnition

language is the PolicySet which aggregates other Pol-

icySet elements or Policy elements. The Policy el-

ement is composed principally of Target, Rule and

Obligation elements and is evaluated at the Policy De-

cision Point to yield resource access decision. The

Target element is used to associate a requested re-

source to an applicable Policy. It contains conditions

that the requesting Subject, Resource, or Action must

meet for a Policy Set, Policy, or Rule to be applicable

to the resource. Rules provide the conditions which

test the relevant attributes within a Policy. Any num-

ber of Rule elements may be used, each generating

a true or false outcome. Combining these outcomes

yields a single decision for the Policy, which may be

‘Permit”, “Deny”, “Indeterminate”, or a “NotAppli-

cable” decision. Attributes provide the typed values

that represent both a resource requester and the Pol-

icy’s condition predicates. Finally, obligations are a

set of operations that must be performed by the Policy

Enforcement Point in conjunction with an authoriza-

tion decision. An obligation may be associated with

a positive or negative authorization decision. In our

case, obligations play a major role, since they trigger

(and appropriately conﬁgure) the dynamic instantia-

tion/updating of NetQoS policies, as it will become

apparent in the next section.

5 THE ROLE OF THE NETQOS

CONTEXT MANAGER

The Context Manager component is a central element

of the NetQoS system, which interacts both with the

other components of the Monitoring and Measure-

ment (MoMe) framework - speciﬁcally the MoMe

Tool and the MoMe Manager - and with the two main

repositories, namely the Ontology Repository and the

Policy Repository. This interaction is needed in order

to make the NetQoS system capable to dynamically

react upon the detection of speciﬁc events related to

changes in the overall execution context. Under this

perspective, we can state that the CM helps the sys-

tem become autonomic, since it provides it with the

following properties:

1. Automatic: this essentially means being able

to self-control its internal functions and opera-

tions. An autonomic system must in fact be self-

contained and able to operate without any external

intervention.

2. Adaptive: an autonomic system must be able to

change its operation. This allows the system to

cope with temporal and spatial changes in its op-

erational context.

3. Aware: an autonomic system must be able to mon-

itor its operational context as well as its internal

state in order to be able to assess if its current

operation serves its purpose. Awareness controls

adaptation of its operational behavior in response

to situation or state changes.

Based on the considerations above, we designed

the CM on the basis of a “Publish/Subscribe”

paradigm: such element “produces” information to

be used by the companion MoMe components. As

an example, when a user launches an application, the

CM has to notify the MoMe Manager of the occur-

rence of such event. At the same time, the CM also

“consumes” information produced both by the repos-

itories and by so-called “NetQoS-aware applications”

(or, in the presence of NetQoS-unaware applications,

by an ad hoc designed Trafﬁc Identiﬁcation Engine

which is also part of the NetQoS system). We herein

focus on the former scenario, which helps clarify the

overall functionality of the CM, at the same time jus-

tifying the design choice related to the adoption of

an asynchronous notiﬁcation paradigm. Hence, with

respect to the interaction with repositories, let us con-

sider the case when new information is inserted into

either the Ontology or the Policy repository: in such

case, the CM has to get a notiﬁcation if other compo-

nents requested it to be kept updated with respect to

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

314

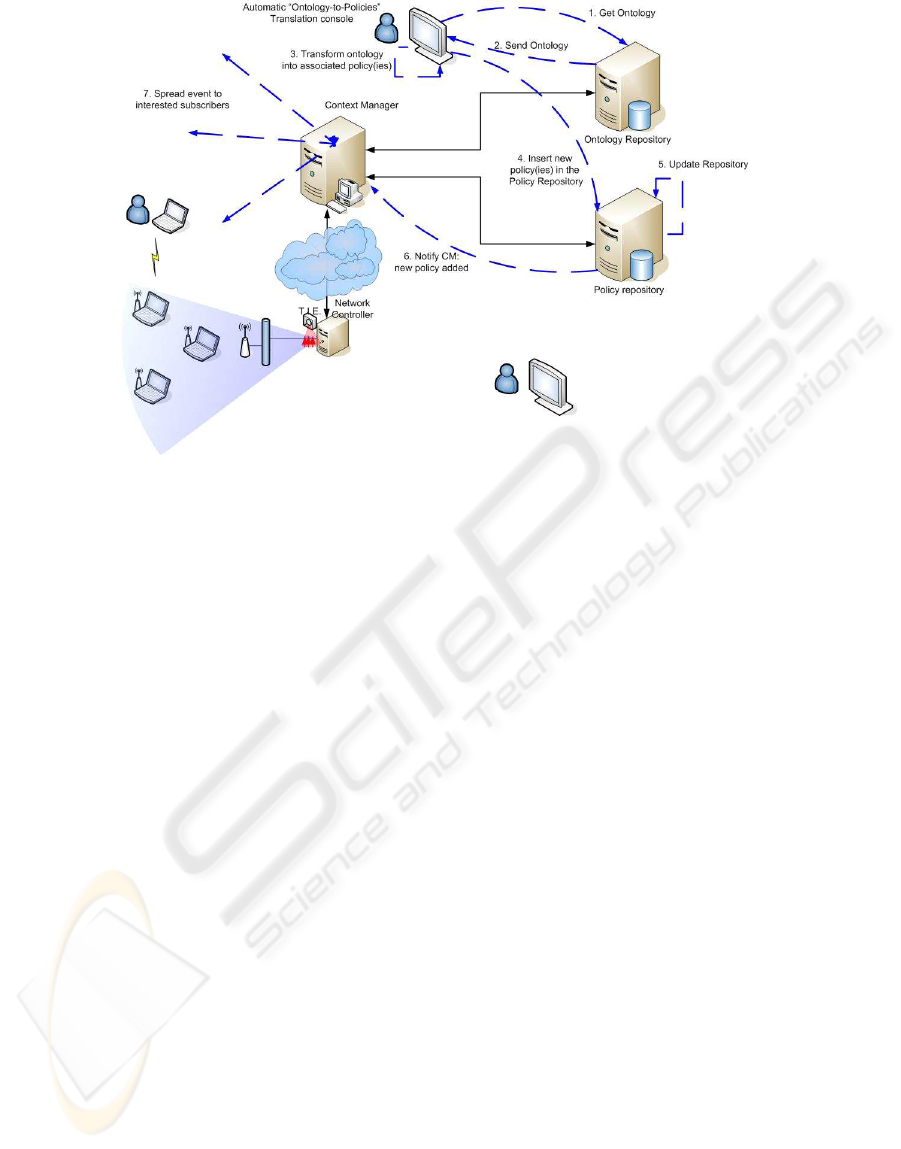

Figure 2: Automatic production of policies starting from an ontology.

the addition/deletion of policies/ontologies. The men-

tioned “subscriber components” will in turn be noti-

ﬁed by the CM of the occurrence of the cited event.

We have identiﬁed three different scenarios associated

with CM’s interaction with repositories:

1. Updating of the Ontology Repository;

2. Updating of the Policy Repository;

3. Automatic translation of ontologies into policies,

which requires dynamic updating of the Policy

Repository.

The three scenarios above have all been imple-

mented within the project. For the sake of concise-

ness, we will herein just focus on the third one, which

is strictly related to the subject of this paper.

6 AUTOMATIC TRANSLATION

OF ONTOLOGIES INTO

POLICIES

This case is by far the most complicated one, since

it envisages the orchestrated operation of both reposi-

tories. Indeed, NetQoS foresees a possibility to dy-

namically create policies starting from higher-level

ontology-based descriptions. This work is a funda-

mental part of the dynamic adaptation functionality

and clearly requires that advanced “inference” tech-

niques be applied. This stated, we have to account for

the scenario depicted in Fig. 2.

The ﬁgure shows a human operator sitting in front

of an automatic “ontology-to-policy” translation con-

sole, used to ﬁrst retrieve (steps 1 and 2 in the picture)

and then deﬁne constraints on the existing ontologies.

Such constraints will then be transparently translated

(step 3 in the picture) into one or more policies, which

will in turn be stored in the policy repository (step 4

in the picture). From this point on, we have the fol-

lowing steps: (i)repository updating - step 5; (ii) CM

notiﬁcation - step 6; (iii) event spreading - step 7.

The way the CM gets the triggering notiﬁcation

depends on whether or not the repository is capable

to directly raise events towards the external world (as

indicated in Fig. 2). We show in Fig. 3 the alternative

situation, dealing with the case when the trigger to

the CM comes from the console rather than the policy

repository.

The CM has been realized as a stateful web ser-

vice with notiﬁcation capabilities. In other words, it

is compliant with an extension of web services, de-

ﬁned and standardized by the OASIS organization un-

der the name of Web Services Resource Framework

(WSRF), which gives a web service the ability to

keep state information. The service and the resource

are nonetheless kept completely separate: the state is

not “in” the web service, but rather in a separate en-

tity called “resource” and each resource is assigned

a unique ’key’, used by the web service whenever

a stateful interaction is needed. Support for notiﬁ-

cation capabilities is made possible by implementing

the “Observer/Observable” design pattern, as speci-

ﬁed in the WS-Notiﬁcations family of speciﬁcations

A SEMANTIC APPROACH TO POLICY-BASED MANAGEMENT - Linking Policies to Ontologies

315

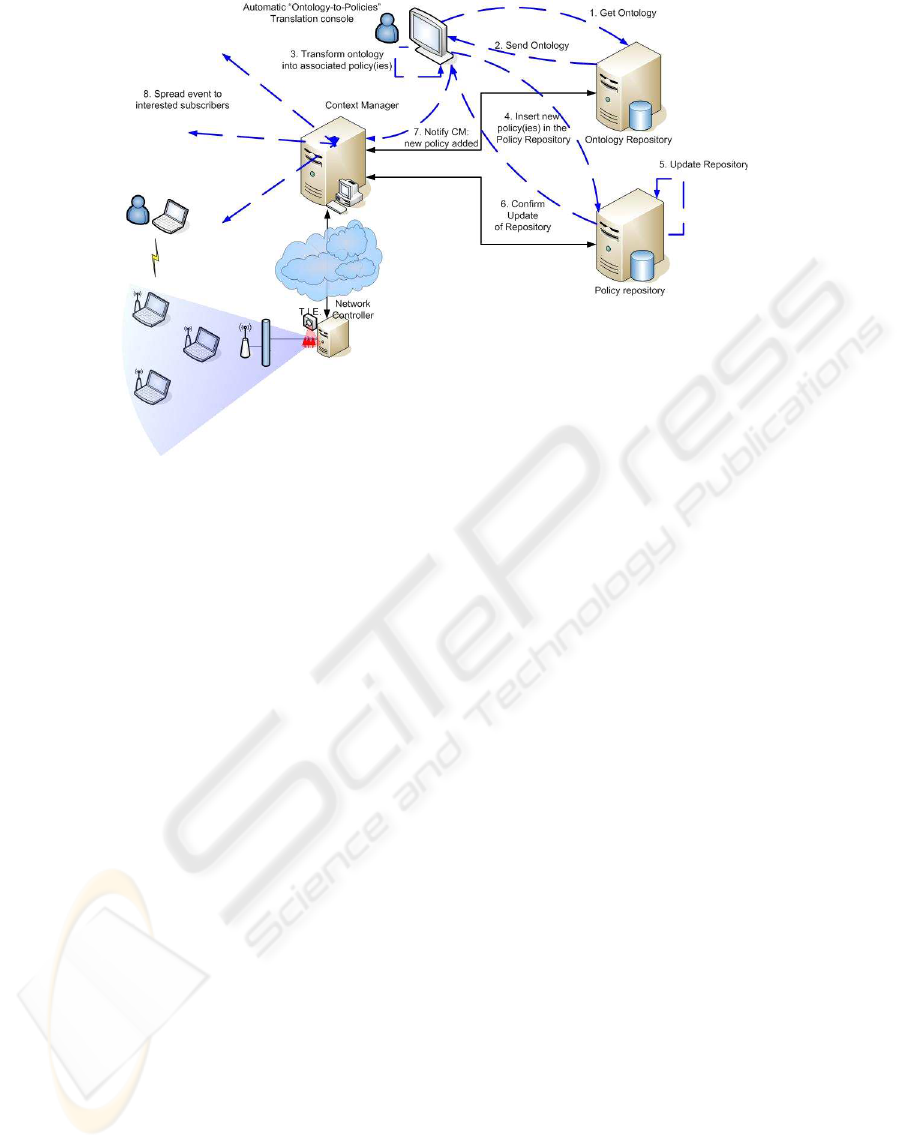

Figure 3: Automatic translation with notiﬁcation from the console.

also deﬁned and standardized by the OASIS organi-

zation. WS-Notiﬁcation is based on the concept of

a “topic”, i.e. an “item of interest for subscription”.

Notiﬁcation producers expose a “subscribe” operation

that notiﬁcation consumers can use to request a sub-

scription. Notiﬁcation consumers, in turn, expose a

“notify” operation that notiﬁcation producers can use

to deliver the notiﬁcation.

7 A CASE STUDY: VIDEO ON

DEMAND SERVICE

In this section we describe how an ontology-based ap-

proach can be adopted to specify user’s requirements

in the context of a Video on Demand service. Let us

consider a generic user who wishes to receive video

contents at different quality levels depending on the

equipment he is using. For instance, he prefers to re-

ceive a movie at the highest resolution in case the used

equipment is a multimedia workstation equipped with

a wide-screen LCD monitor, while he requires a low-

level quality version of the same content if the user

terminal is a PDA or a UMTS phone. A proper on-

tology can be created to allow the user to specify his

requirements and preferences. With reference to the

Video on Demand service, a possible ontology can

comprise the following classes:

• User, which includes information and attributes

related to the VoD user,

• Terminal, which describes the user’s device used

to deliver the service,

• Service, which is intended to specify the service

parameters and elements.

During the service negotiation phase, the user is

required to specify his preferences by providing val-

ues to be associated with the attributes of the pre-

deﬁned ontology.

Such negotiation will automatically bring to the

production of the XACML policies associated with

the ontology itself. In the VoD example above, the

produced XACML policies would contain, for exam-

ple, the following elements with the associated val-

ues:

• Subject: such ﬁeld is ﬁlled in with information

about the identity of the user for which the poli-

cies are being generated;

• Resource: this ﬁeld represents the speciﬁc cate-

gory of movies (e.g. thriller, action, fantasy, etc)

for which the user wants to specify his own pref-

erences;

• Condition: it might represent the terminal type (as

well as terminal capabilities) used to access the

resource.

• Obligation: as already anticipated, such ﬁeld is of

paramount importance, since it contains all policy

directives to be associated with the speciﬁed re-

source in order to appropriately conﬁgure the net-

work infrastructure used to deliver the service, in

a speciﬁc execution context and with the speci-

ﬁed features. In the VoD example, the Obligation

WINSYS 2007 - International Conference on Wireless Information Networks and Systems

316

ﬁeld might for instance indicate that a satisfactory

service fruition requires that a high (where high

might be associated, e.g., with the gold class of

service in a network capable to provide for ser-

vice differentiation bases on the so-called olympic

model) quality level is guaranteed.

8 CONCLUSIONS AND FUTURE

WORK

In this paper we presented an approach to the au-

tomatic creation of network conﬁguration policies,

starting from higher-level ontologies associated with

a semantic view of a service. We described how the

NetQoS architecture, which has been conceived at the

outset with this goal in mind, is capable to dynami-

cally create and adapt policies based both on context

and on higher-level information related to user’s pref-

erences/proﬁles.

The ideas we presented have so far been only par-

tially implemented, since the NetQoS project is now

approaching its ﬁrst year of work. The work is cur-

rently in full swing and we are conﬁdent that within

the next few months further steps will be done to-

wards the completion of the overall architecture we

presented.

ACKNOWLEDGEMENTS

This work has been carried out with the ﬁnancial sup-

port of the European project NetQoS, which is par-

tially funded by the EU as part of the IST Programme,

within the Sixth Framework Programme.

REFERENCES

NetQoS, Policy Based Management of Heterogeneous Net-

works for Guaranteed QoS. http://www.netqos.edu.

OASIS eXtensible Access Control Markup

Language (XACML). http://www.oasis-

open.org/committees/xacml/charter.php.

The Prot

e Ontology Editor and Knowledge Acquisition

System. http://protege.stanford.edu/.

Bechhofer, S. et al. (2004). OWL Web Ontology Language

Reference. http://www.w3.org/TR/owl-ref/.

A SEMANTIC APPROACH TO POLICY-BASED MANAGEMENT - Linking Policies to Ontologies

317
