AN EFFICIENT SYSTEM FOR EJB MOBILIZATION

Liang Zhang, Beihong Jin, Li Lin and Yulin Feng

Institute of Software, Chinese Academy of Sciences, Hai Dian, Beijing, P.R. China

Keywords: Mobile computing, middleware, EJB, MIDP.

Abstract: In these days, conducting business requires more and more employees to be mobile. To be efficient, these

mobile workers need to access the enterprise applications with their mobile devices at anytime and any-

where. How to efficiently extend the enterprise applications to the mobile devices becomes a challenging

task to the enterprise. In this paper, we present our recently developed system for mobilizing enterprise ap-

plications. Considering the characteristics of wireless media, our system can dynamically choose the most

appropriate communication method and provide the synchronous exactly-once communication semantic.

Security is explored by providing data encryption, two-way authentication and a simple tool for managing

the access control list. We also develop a mechanism for supporting priority service. Thread pool and object

caching are implemented to increase the efficiency. Lastly, our system offers various tools to enhance the

development automatism, while still allowing the programming flexibility by providing a rich set of APIs.

1 INTRODUCTION

We live in a fast-paced world that is easily serviced

in an office. But conducting business these days re-

quires more and more employees to be mobile. Ex-

ecutives, consultants and sales people have always

travelled as part of their jobs. Many of these mobile

workers must return to their offices to do paperwork.

This apparently reduces the workers’ working hours,

increases expenses and worst causes both the enter-

prise and the workers from getting real-time data,

which will put the business in an unfavourable situa-

tion under today’s keen competition (Dave, 2002).

To keep the competitive edge, more and more

enterprises have realized the importance of mobile

computing, with which the mobile workers can eas-

ily access the same set of applications provided at

the office while they are away and the enterprise can

promptly place information to its mobile workers as

needs arise. There is a lot of data showing that mo-

bile computing can create a very high return on in-

vestment and bring the enterprise sustainable com-

petition advantages (Douglas, 2004). The rest of this

paper is organized as follows. Section 2 reviews the

related work. Section 3 presents the system architec-

ture. Section 4 describes the communication module.

Section 5 deals with the security issue. Section 6

introduces the detail of mobilizing enterprise appli-

cations. The final section concludes the paper.

2 RELATED WORK

As more and more workers are mobile now, many

IT companies have released their solutions to mobile

computing. Basically, there are two types of solu-

tions: Browser/Server (BS)-based solutions and Cli-

ent/Server (CS)-based solutions. For the former so-

lutions, the mobile worker can use the on-device

web browser for accessing the enterprise web-based

applications. Microsoft’s ASP .Net Mobile and

IBM’s WebSphere Everyplace Access belong to this

type of solutions. Although the BS solution imposes

no requirements on the client side, it requires the

enterprise to invest new products on the server side

for context adaptation and transcoding. The enter-

prise has to also invest in a portal product and wrap

the applications into portals for a portal-based solu-

tion. Another problem of a BS solution is it cannot

support offline operations (Thierry, 2003).

For the CS-based solutions, the mobile worker

can invoke an enterprise application by executing a

client program on the mobile device. Typically, the

enterprise application is deployed on an application

server. As we know, in the world of application mid-

dleware, there are two technologies competing with

each other. One is the .Net technology by Microsoft

and the other is the J2EE technology by SUN and

many IT titans. Because J2EE possesses many fa-

vourable features such as reliability, scalability and.

173

Zhang L., Jin B., Lin L. and Feng Y. (2007).

AN EFFICIENT SYSTEM FOR EJB MOBILIZATION.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - SAIC, pages 173-178

DOI: 10.5220/0002351601730178

 SciTePress

Figure 1: The overall system architecture.

most importantly Java’s “Write Once, Run Every-

where” capability, more and more enterprises have

adopted the J2EE-certified middleware product for

deploying and managing their applications. There-

fore, we target our system to the J2EE-certified mid-

dleware. In this context, Enterprise JavaBean (EJB)

is widely used because of its features such as easy

portability and fast development (Roman, 2004).

On the client side, the client program can be de-

veloped with either native programming or platform-

based programming. For the native programming,

the developer typically has to first install the Soft-

ware Development Kit (SDK), then develop the cli-

ent program with the SDK and finally deploy it to

the mobile device. Obviously, this approach makes

both the application development and deployment

difficult due to the various mobile devices. The plat-

form-based programming provides a device-agnostic

solution. Microsoft’s .Net Compact Framework and

Sun’s J2ME technology belong to this type. How-

ever, although .Net Compact Framework ensures the

client program developed to be run on any Windows

CE device, it is not a truly device-agnostic solution

as it does not support its program run on other oper-

ating systems. The only device-agnostic solution at

present is provided by J2ME. J2ME specifies several

classes of configurations and profiles for each band

of mobile devices, within which MIDP2.0 (Jim,

2002) has the largest popularity. Currently, almost

all new mobile devices support MIDP2.0 as their

standard configuration. Therefore, at the client side,

we choose MIDP2.0 as the target platform.

Our system can be described as EJB component

invocation on MIDP2.0 mobile devices. We believe

our system will provide the greatest applicability

while requiring the lowest investment

3 SYSTEM ARCHITECTURE

The main goal of our system is to provide conven-

ient API support on mobile devices for transparently

invoking the existing EJB components at the enter-

prise. Figure 1 shows the overall architecture of our

system, which adopts a three-tier approach. The cli-

ent-tier is a packaged MIDlet program running on

the J2ME platform. Our system provides the follow-

ing modules in this tier.

 Client side communication module – This

module provides the fundamental support for

mobile applications as they need to interact

with the enterprise. Since wireless communi-

cation suffers from the poor transmission me-

dia – the air, it is more likely to lose messages.

We develop this module to shield the upper

layer program from handling message loss and

provide the synchronous exactly-once com-

munication semantic.

 Serialization module – Since MIDP2.0 does

not support object reflection and serialization,

we develop this module to serialize and dese-

rialize objects to and from a byte stream so

that they can be transmitted over the wireless.

 Message Handler – A trigger when receiving a

new message

 Client side exchange pattern module – Since

wireless communication normally causes long

transmission delay, it is desirable to provide

not only the synchronous EJB component in-

vocation interface but also asynchronous inter-

faces to the developer.

The developer can develop the MIDlet program by

simply invoking the desired interfaces provided by

the client side exchange pattern module.

The proxy-tier, except for SMS Transceiver, is a

packaged web program that can be run in any servlet

ICEIS 2007 - International Conference on Enterprise Information Systems

174

container. Our system provides the following mod-

ules in this tier.

 Proxy side communication module – This

module together with the client side commu-

nication module provides the synchronous ex-

actly-once communication semantic.

 Serialization module – The same as the client

side

 Message Handler – The same as the client side

 ACL Manager – ACL stands for Access Con-

trol List. This module is responsible for au-

thenticating the client’s identity and controls

the access authority.

 Priority Evaluator – This module evaluates the

priority of each EJB component invocation

request and recommends the next request to

process with the highest priority.

 Proxy side exchange pattern module – This

module together with the client side exchange

pattern module provides different EJB com-

ponent invocation patterns.

 EJB Invoker – This module performs the ac-

tual invocation of EJB components.

The server-tier is the multiple EJB components

that may span across several Application Servers

(AS) of different brands.

Our system in addition provides several tools for

assisting the development and management of mo-

bile applications.

 SMS Transceiver – Since SMS messages can-

not directly be sent to or from the proxy web

program, we provide a simple program called

SMS Transceiver to handle SMS transmission

and interact with the proxy through HTTP.

The developer can substitute SMS Transceiver

by developing a program that bridges the SMS

service provider and the proxy the same way

as SMS Transceiver does.

 Account Management Tool –This tool is for

managing the client’s account information

such as user name and password.

 ACL Management Tool – This tool is for

managing the eligibility for calling a certain

method of a certain EJB component.

 EJB Toolkit – This is the most important tool

for our system. During the development of a

mobile application, the developer needs to

modify some parameters of certain modules

according to the situation by editing the proper

configuration files. He also needs to create

some new classes and incorporate them into

certain modules. Of course, it is not feasible to

require the developer to manually perform

these modifications. He should only focus on

the development of the MIDlet program. EJB

Toolkit automates all of these modifications

and packages the proxy side into a Web Ar-

chive (WAR) file ready for deployment. Fur-

thermore, it can generate a sample MIDlet

program, based on which the developer can

quickly develop the program for the applica-

tion. After that, the tool can package the client

side for deployment. If the developer needs,

the tool can even test the program by loading

the WAR file into Apache Tomcat and run-

ning the MIDlet with SUN’s J2ME Simulator.

We believe this tool will greatly increase the

usability of our system.

4 RELIABLE COMMUNICATION

As described in Section 3, a reliable communication

mechanism is the fundamental requirement for any

mobile enterprise application that needs interaction

with the server. Due to the poor transmission charac-

teristics of the wireless media, messages are fre-

quently lost, duplicated, received in different order,

and sometime even transmitted without an upper

bound time limit. It is desirable to have a wireless

communication mechanism that can shield all these

defects and provide to the upper layer program with

the synchronous exactly-once communication se-

mantic. Here synchronous means messages are de-

livered in order with an upper bound time limit, and

exactly-once means messages are reliably delivered

without duplication.

Table 1: Characteristics of HTTP/HTTPS/SMS.

Reliability Duplication Order Time Limit

HTTP Yes No Yes Yes

HTTPS Yes No Yes Yes

SMS No Yes No No

The Generic Connection Framework (GCF) in

MIDP2.0 defines six connection interfaces, within

which only HTTP and HTTPS interfaces are useful

because all the others are either for local connections

or not able to pass the enterprise’s firewall. In addi-

tion, we discover that the optional Wireless Messag-

ing API (Marquart, 2002) is widely supported by

MIDP2.0 mobile devices. Therefore, it is possible

that we use SMS as the alternative path for commu-

nication. Let us first look at the characteristics of

these three communication methods in Table 1.

HTTP and HTTPS are based on TCP/IP, and

therefore in case the link is connected, they can sat-

isfy the desired synchronous exactly-once semantic.

AN EFFICIENT SYSTEM FOR EJB MOBILIZATION

175

However, it is very likely that the wireless link is

disconnected due to various reasons and message

loss occurs. SMS sends messages asynchronously,

and therefore it cannot guarantee our requirement

entirely. So we develop another component above

these three methods to guarantee the synchronous

exactly-once semantic. We name this component

Communication Manager as shown in Figure 1. In

fact, Communication Manager performs a simplified

TCP’s sliding window algorithm (Tanenbaum, 2002)

by piggybacking the next expected message id to the

messages sent so that the other side can determine

whether to need to retransmit some messages. Pig-

gybacking is achieved with the Decorator pattern

(Gamma, 1995) by embedding the original message

in a decorator class which defines a new NextEx-

pected field and some relevant methods.

Communication Manager maintains three

queues: Sending Queue, Receiving Queue and Ex-

ception Queue. Sending Queue is further divided

into three sub-queues for the three communication

methods. Communication Manager determines the

proper sub-queue for each new message and transfer

messages from one sub-queue to another if the cor-

responding communication method does not work.

In our implementation, if Communication Manager

finds HTTP/HTTPS communication fail for twice, it

will transfer the messages in the HTTP/HTTPS sub-

queue to the SMS sub-queue. If a message sending

fails for the predefined maximum retries, it will be

reported to Exception Queue to be handled by the

upper layer program.

Since wireless communication is either charged

by time or data, we provide two different communi-

cation modes for HTTP/HTTPS. The user will be

prompted a window to select the mode for the first

time and the selection will be stored in the persistent

Record Management System (RMS) supported by

MIDP2.0. If the communication is charged by time,

the client side HTTP/HTTPS will periodically poll

its sub-queue and establish the connection when it

has some messages to send. Notice that the

HTTP/HTTPS connection can only be established

from the client side, so the client side has the re-

sponsibility to establish the connection even when it

has no messages to send but the proxy side may

have some invocation return values to deliver. How-

ever, if the connection is charged by data, the client

side HTTP/HTTPS will simply maintain a long term

connection. In this case, both sides can immediately

transfer whatever messages in the sub-queue. If the

connection fails, the client side will wait a few sec-

onds before trying to establish another connection.

5 SECURITY

In mobile computing, security is a very important

topic because data is transmitted over the unpro-

tected air media. Basically, there are three issues to

consider for security: encryption, authentication and

authorization, which are discussed in the next three

paragraphs in detail.

Encryption can prevent attackers from eaves-

dropping the transmitted data. Of course, it is great

to encrypt every transmitted data. However, this will

cost a substantial amount of system resources be-

cause encryption is a computationally expensive

process. It would be much reasonable to only en-

crypt those critical data such as credit card informa-

tion and leave the rest in plaintext. Therefore, we

provide two sets of interfaces to the developer, one

for unencrypted and the other for encrypted. If the

developer chooses the unencrypted interface, Com-

munication Manager will select HTTP as the default

communication method. If the developer chooses the

encrypted interface, Communication Manager will

select HTTPS as the default method since HTTPS in

MIDP2.0 is carried over any of the following secu-

rity protocols: Transport Layer Security (TLS), Se-

cure Sockets Layer (SSL), Wireless Transport Layer

Security (WTLS), and WAP TLS Profile and Tun-

neling Specification (Jonathan, 2002). SMS is also a

secure communication method, and therefore Com-

munication Manager can use SMS as the alternative

path for both HTTP and HTTPS in case they do not

work.

Authentication is a method to prove the identity

of the other side of the communication. With both

encryption and authentication, the communication

two parties are confident that not a third person can

involve the communication. In our system, HTTPS

can be used for the client authenticating the proxy.

But there is not a ready vehicle for the proxy authen-

ticating the client. Although SMS can support two-

way authentication, it cannot guarantee the client is

not a stolen device from a legitimate user. There are

two methods available for the client authentication.

One is password authentication and the other is cer-

tificate authentication. In our system, we does not

use certificate authentication because it involves the

complicated task of distributing the private secret,

i.e., for each copy of the client program, it should be

packaged with a unique client key and certificate.

Also, it cannot prevent a stolen device from access-

ing the application. We adopt password authentica-

tion and implement ACL Manager to authenticate

the client with the provided user name and pass-

word.

ICEIS 2007 - International Conference on Enterprise Information Systems

176

It is common that not every legitimate user can

access the same set of EJB components and meth-

ods. Based on the client authentication, ACL Man-

ager controls whether an invocation request should

be filtered or carried out for processing.

6 EJB INVOCATION

6.1 Exchange Patterns

In our system, we provide not only one synchronous

EJB component invocation interface (i.e., Sync) but

also three asynchronous interfaces (i.e., Fire-and-

Forget, Poll and Push) to the developer. Each inter-

face defines a unique message exchange pattern as

follows:

 Sync – The client issues a request message to

the proxy and makes the current thread pause

until it receives the response.

 Fire-and-Forget – The client issues a request

message to the proxy but is immediately re-

turned because it does not expect any re-

sponse; this interface can be used for invoking

those methods without return values.

 Poll – The client issues a request message to

the proxy but is immediately returned with a

key; the client continues with other business

logic; later the client can use the key to poll

for the response.

 Push – The client issues a request message to

the proxy together with a response handler;

the client continues with other business logic;

the response handler is triggered immediately

after the response is received.

As we can see, the asynchronous exchange pat-

terns do not require the current thread pause for the

response, which is extremely useful when wireless

communication shall cause long transmission delay.

In our implementation, the client side and proxy side

exchange pattern modules work together to provide

the four invocation patterns. There is one tricky that

the Poll pattern in the proxy side module actually

performs the same as the Sync pattern and the re-

sponse is stored in the local memory in the client

side module. When later the client requests the re-

sponse with the key, this process will only involve

the client side, which will reduce the wireless trans-

mission cost and increase the response time.

6.2 Prioritized Service

The proxy side Message Handler together with Pri-

ority Evaluator can provide prioritized service to

EJB component invocation. As shown in Figure 2,

each incoming request is first classified according to

whether it is a synchronous or asynchronous invoca-

tion. For the synchronous invocation, it is inserted

into the synchronous queue specific to the client of

the invocation. For the asynchronous invocation, it is

inserted into the asynchronous queue shared by all

clients. The reason is that we desire synchronous

invocation to be handled in the same sequence as

they are issued, but relax the execution sequence of

asynchronous invocation. Message Handler repeat-

edly invokes Priority Evaluator to evaluate the next

invocation request with the highest priority, and

passes the winner to EJB Invoker for execution. The

candidates for each round of evaluation are mapped

in Figure 2 within the dash line that include all the

requests in the asynchronous queue and the first re-

quest in each synchronous queue. In our implemen-

tation, Priority Evaluator considers four factors as

follows:

 The period that the request has already stayed

in the queue T1

 The average invocation time T2, which is re-

trieved from EJB Invoker

 The average round trip time T3, which is re-

trieved from the proxy side Communication

Manager

 The request mode, which is either synchro-

nous or asynchronous

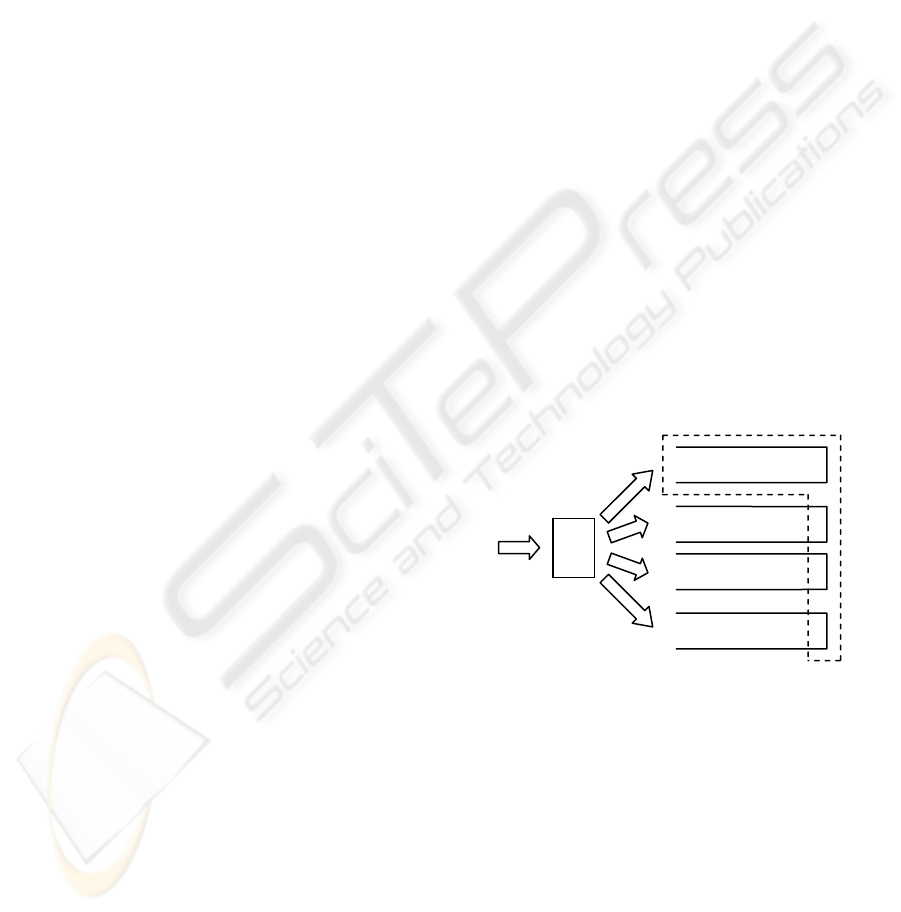

Figure 2: Request classification.

The first three factors add up affecting the re-

sponse time from the client’s point of view. The

priority is calculated with the following equation:

P = W1 × Norm(T1 + T2 + T3) + W2 ×

(Request Mode = Synchronous ? 1 : 0)

(1)

where W1 and W2 respectively mean the weighting

factor of the response time and the request mode,

and we set both of them to 0.5. Norm(t) is a normali-

zation function for time and we define it as follows:

⎩

⎨

⎧

≥

<≤

505

tt/

Norm(t)

(2)

The developer can define his own priority evaluation

Async Queue

Sync Queue for Client 1

Sync Queue for Client 2

Sync Queue for Client n

Request

Classifier

AN EFFICIENT SYSTEM FOR EJB MOBILIZATION

177

strategy by replacing our Priority Evaluator.

6.3 Efficient Invocation

EJB Invoker performs the actual invocation of EJB

components. It could be the system bottleneck as all

the requests are handled in this module. To increase

efficiency, we use two strategies: thread pool and

object caching.

At the start-up of the proxy, a thread pool with

the initial capacity is created. Whenever there is a

new request, EJB Invoker will select an available

thread from the pool to handle it. As the workload

increases, the pool size will also increase. The prin-

ciple is to always make sure there are enough

threads for handling requests unless reaching the

predefined maximum. To accomplish this goal, EJB

Invoker continuously monitors two variables: the

average request incoming rate λ and the average

invocation time 1/μ. (The average invocation time

T2 defined in Section 6.3 has different meaning from

1/μ. T2 is actually the summation of the average

time waiting for an available thread plus 1/μ.) If the

number of available threads is less than the expected

number of new requests (λ/μ) before any working

thread can accomplish its task and become available,

EJB Invoker will create a new thread to the pool. If

the pool size reaches the maximum, EJB Invoker

will start to queue requests when all the threads are

unavailable. However, if the number of busy threads

plus the expected number of new requests is less 2/3

of the pool size, EJB Invoker will destroy one avail-

able thread to preserve system resources unless the

pool size has reached the initial capacity.

During the invocation of an EJB component, it

has to first create a specific context object and then

create an EJB home object based on which a refer-

ence to a new EJB object can be made. After that,

the invocation can be accomplished by calling the

appropriate method of the EJB object reference.

Creating the whole set of objects during each invo-

cation is apparently a time consuming task. There-

fore, we cache these objects in a three-layer tree data

structure. The top layer is context objects, the mid-

dle layer is EJB home objects and the bottom layer

is EJB object references. The upper two layers can

actually be created at the start-up of the proxy as the

set of EJB components has already been determined

during the application development. For the third

layer, since each EJB object may be initialized with

different parameters, it cannot be created prior to the

invocation takes place. However, once created, the

EJB object reference shall be cached for later usage.

7 CONCLUSION

In this paper, we present our recent developed sys-

tem for mobilizing enterprise applications. Our sys-

tem adopts a three-tier Client/Proxy/Server architec-

ture. As the popular of Java, our system is targeted

for providing efficient accessing to EJB components

from MIDP2.0 mobile devices. We consider reliabil-

ity and security issues since the wireless media is

both unreliable and unprotected. To deal with the

long transmission delay, we provide to the developer

not only synchronous invocation API but also asyn-

chronous APIs. We also develop a simple mecha-

nism for supporting priority service. Thread pool

and object caching are implemented to increase the

system efficiency. Lastly, we develop a set of tools

and programs for assisting the development and

management of mobile applications, which will

greatly increase the usability of our system.

ACKNOWLEDGMENTS

This work was supported by the National Natural

Science Foundation of China under Grant No.

60673123 and the National Hi-Tech Research and

Development 863 Program of China under Grant

No. 2006AA01Z231.

REFERENCES

Dave B. and Linda M. P., “Extending Enterprise Applica-

tions to Mobile Users”, Technical Report in IBM Per-

vasive Computing Division, July 2002.

Douglas D., “The Return on Your Mobility Investment:

Enterprise Opportunities for Windows Mobile-based

Pocket PCs and Smartphones”, Technical Report in

Microsoft Mobile Devices Division, April 2004.

Jim V. P. and James W., “JSR 118: Mobile Information

Device Profile 2.0”, November 2002.

Marquart C. F., “JSR 120: Wireless Messaging API”,

August 2002.

Tanenbaum A., “Computer Networks”, Prentice Hall,

August 2002.

Gamma E., Helm R., Johnson R. and Vlissides J., “Design

Patterns: Elements of Reusable Object-Oriented Soft-

ware”, Addison Wesley, January 1995.

Roman E., Rima P. S. and Gerald B., “Mastering Enter-

prise JavaBeans”, Wiley, December 2004.

Thierry V. and Ray O., “Supporting Disconnected Opera-

tion in Wireless Enterprise Applications”, Java Blue-

Prints for Wireless White Paper, June 2003.

Jonathan K., “MIDP Application Security”, Sun Technical

Articles and Tips, December 2002.

ICEIS 2007 - International Conference on Enterprise Information Systems

178
