SURVEYING WI-FI SECURITY

Presentation of Wi-Fi Security Measures, Varius Wi-Fi Attacks

and a Classification Survey of Wi-Fi Networks in Thessaloniki

George E. Violettas, Tryfon L. Theodoroy, Konstantinos Chalkias and George Stephanides

Dept. of Applied Informatics, University of Macedonia, 156 Egnatia Str, Thessaloniki, Hellas, Greece

Keywords: Mac Spoofing, War Drive, Wi-Fi Security, wireless intrusion, WEP Attacks, WPA Attacks.

Abstract: This paper is a study of the use and possible flaws of the two basic cryptographic protocols (WEP, WPA) in

Wi-Fi Networks. It presents some very easy to implement methods to gain malicious access to such

networks by disclosing the network secret key, using Windows Operating Systems, like Win XP. It also

describes the shutter of the myth saying that the MAC Address filtering is a safe practice for securing a

wireless network. There is a field research, in which we show the distribution of wireless networks

according to the security protocol implemented (if any) at a major city centre in Greece. Unfortunately,

according to our results, only 8% of the wireless networks are using a fairly safe cryptographic scheme,

48% is not using any security at all, while the rest is using the totally unsecure WEP encryption.

1 INTRODUCTION

Along with the quick spread of the Wi-Fi networks,

came the need for insuring the integrity and the

security of the transmitted information. Special

techniques were invented for this purpose, since the

existing ones could not fill the gap. Those

techniques were based on already known methods

and algorithms, some of those very successful in

other areas of cryptography.

In order to encrypt and protect the transmitted

information, the Wi-Fi Networks used a specially

invented technique, called WEP, which inherited the

weaknesses of the algorithm used (RC4) (Ohrtman

& Roeder, 2007). Today this protocol is considered

to be tottaly unsafe; still WEP encryption is used in

the majority of wireless networks. In the following

sections we show that intruding to WEP protected

networks is not only possible from Linux OS

operated machines, but it can happen from a

computer running a common used Windows OS.

We also claim that the WEP’s succesor, WPA, is

fairly safe, only when all the security measures are

kept, mainly the length and the complexity of the

selected security key. However, it is a fact that WPA

protocol is vulnerable to “Denial of Service (DoS)

attacks, due to a fundamental securiy

countermeasure implemented by the protocol.

Moreover, we provide proofs that the MAC

filtering protection of a wireless (and a wired one

consequently) network is not secure.

Furthermore, there is a field research. The center

of Thessaloniki, a Greek city with more than one

million citizens, has been scanned for the presence

of wirelless networks. These networks were

categorized based on the location (with the aid of

simultaneously GPS collected data) and the type of

security implemented. Briefly speaking, the results

show that the vast majority of Wi-Fi networks are

either using weak encryption or they are not

protected at all.

In parallel, in order to analyze the above results,

we collected related data from the technical support

center of the largest network and

tellecommunications operator in Greece, OTE S.A.

We would like to state here, that it is very

difficult to find the right word(s) to describe an

attack to a wireless network, usually an illegal act in

most of the European countries. Nevertheless, we

hope that by propagating the followings, we are

contributing to raise the (very weak) security of this

kind of networks.

E. Violettas G., L. Theodoroy T., Chalkias K. and Stephanides G. (2008).

SURVEYING WI-FI SECURITY - Presentation of Wi-Fi Security Measures, Varius Wi-Fi Attacks and a Classiﬁcation Survey of Wi-Fi Networks in

Thessaloniki.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 96-101

DOI: 10.5220/0002027900960101

 SciTePress

2 WI-FI SECURITY

In order to secure a wireless network, one can

transmit the confidential data after applying a

cryptographic protocol on it, so no one else can

understand the ciphertext, apart from the one

knowing the ciphering method and the cipher key

(Bauer, 2002). This technique, as far as it concerns

the wireless communication, is divided into two

major categories:

2.1 WEP (Wired Equivalent Privacy)

The WEP protocol is based on the RC4 Algorithm.

This algorithm has several flaws, as it was invented

for different purposes (Ohrtman & Roeder, 2007).

The use of that protocol is strongly discouraged

(Microsoft, 2008).

2.2 WPA (Wi-Fi Protected Access)

WPA is considered to be the basis in wireless

cryptography nowadays, as it is much safer than its

ancestor (WEP). It is using a new algorithm (CCMP-

Counter Mode with Cipher Block Chaining Message

Authentication Code Protocol) based on the AES

algorithm (Ohrtman & Roeder, 2007).

WPA is divided in two basic categories:

 WPA-Personal or WPA-PSK: It is based on

pre-shared keys, and consequently the

efficiency of the protocol is based on the

complexity of this key, and

 WPA-Enterprise: A much safer

implementation requiring an 802.1x Server

who is responsible of sharing different keys

for each client, raising the security standards.

3 PREREQUISITES OF

ATTACKING WI-FI

The requirements for attacking a Wi-Fi network are

basic and minimal:

3.1 Wi-FI Card (2,4 GHz)

The most important part for that purpose is the Wi-

Fi card. Just a few cards on the market are capable

of completing such an assignment. Chipsets, such as

the Intel (Centrino), which is integrated in the

majority of laptops today, are NOT suitable for the

job. One of the best cards for this kind of ‘activity’

is the series with an “Atheros” chipset inside from

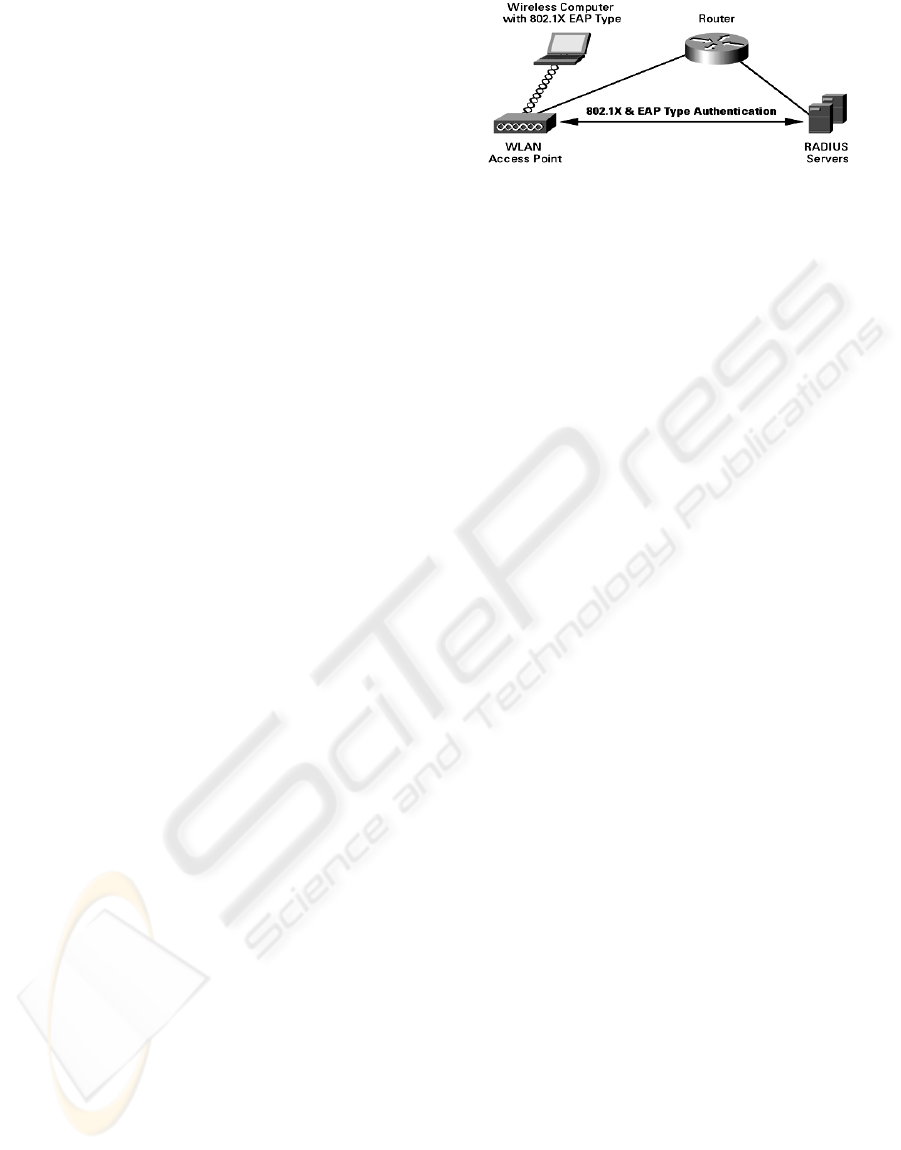

Figure 1: WPA-Enterprise, The highest type of security

today. A Radius server in the corporate network handles

all the users and the dynamic keys (Wi-Fi Alliance, 2003).

“Proxim” (Gold, B/G etc). Other chipsets supported

are “Atheros”, “Aironet” and “RTL8180” (Aircrack-

ng, 2007).

3.2 Operating System

The statement which claims that attacking Wi-Fi

Networks is done only under Linux OS is a myth.

All the attacks described in this paper were carried

out under Windows (XP). This fact makes the

prospect of such attacks more terrifying, considering

the worldwide spreading of Windows OS compared

to Linux OS distributions.

3.3 Software to Use

One of the notorious programs for the purpose is

Kismet (Kershaw, 2007). It runs under Linux OS,

although it can be run under Windows OS as well,

using an emulator like “cygwin” (Cygwin, 2007).

“Airsnort” is also a complete suite “..which

recovers encryption keys..” as stated in the home

page (The Shmoo Workgroup, 2008).

Pocket Warrior (Pocket Warrior, 2003) is “...a

wireless auditing software for PRISM and NDIS 5.1

compatible card that runs on PocketPC 2002”.

In our study, we used aircrack-ng-1.0-beta2-win,

found on (Aircrack-ng, 2007). It is a complete suite

consisting of programs for capturing Wi-Fi packets,

analyzing them, examining various keys and finally

finding the right encryption key. Also it includes

programs for creating valid packets (packet

injection) for a Wi-Fi network, in case this network

is not having a associated client, and consequently is

not broadcasting any packets. The latter is very

“useful” for breaking into home networks, because

those networks could sometimes be inactive for

hours or days.

SURVEYING WI-FI SECURITY - Presentation of Wi-Fi Security Measures, Varius Wi-Fi Attacks and a Classification

Survey of Wi-Fi Networks in Thessaloniki

4 ATTACKING WI-FI

4.1 Attacking WEP

As mentioned above, the WEP protocol is flawless.

No matter how complicated is the key used, it is

possible to extract it with minimum effort. In the

following pictures, we will see a network secured

with this protocol. In Fig. 2, we see the typical

layout of such a network.

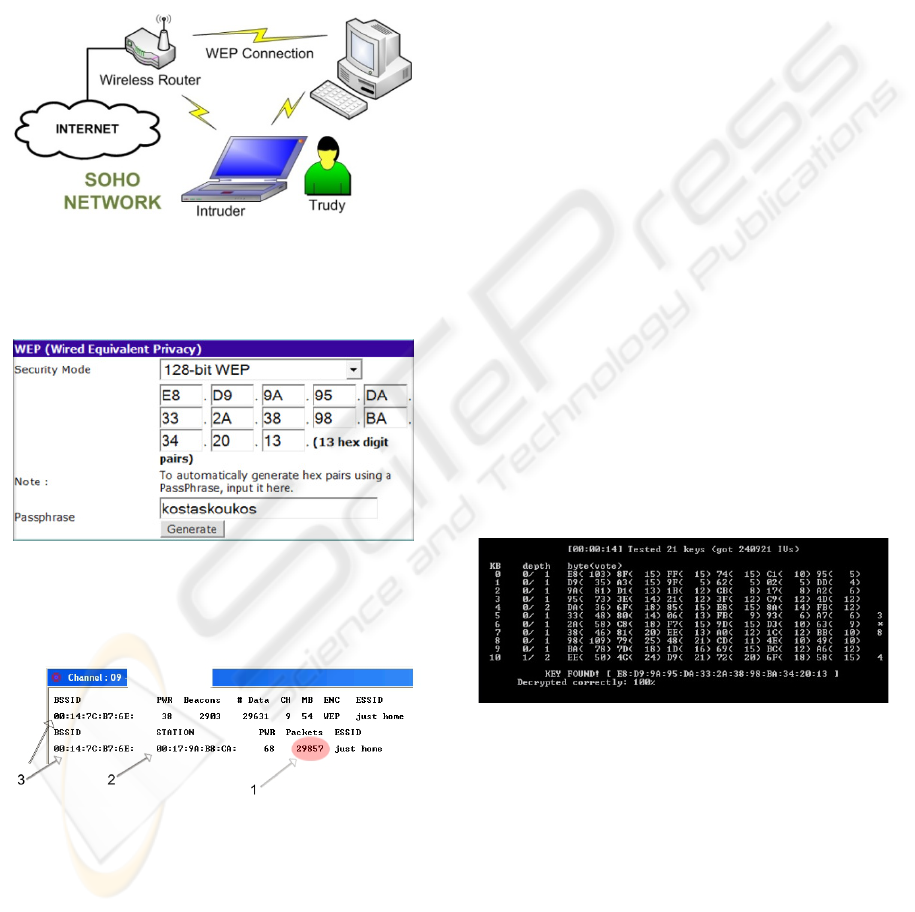

Figure 2: Small House Typical Network. One router

connects wirelessly one or a few more computers to the

internet. The intruder, somewhere in the vicinity is trying

to breach the security of the network.

Figure 3: Typical configuration of a SOHO router. The

specific image displays the particular page where to set the

kind of security for this Wi-Fi device. The security is set

to WEP, with 128-bit security.

Figure 4: BSSID (2) (3): MAC Address’s of the Access

Point. PWR: signal level. BEACONS: base announces of

the Access Point. DATA (1): the packets in question.

ENC: Encapsulation. Security implemented (WEP, WPA,

etc). ESSID: the network name (e.g. SSID). STATION:

the MAC Address of the connected station. It can be used

later on, in case the network administrator has

implemented the MAC Address filtering. This kind of

security is very leaky, as it is very easy to fake a MAC

Address.

The device under “attack” was a WiFi-router

“OfficeConnect” model, made by “3COM”. In Fig.

3, we present the relevant page for creating the WEP

key in such a device.

Additionally, we have to consider that when a user

wants to extract the produced key to store it in a

flash drive or elsewhere, she needs to copy each pair

of the hexadecimal number separately. It is less

possible that anyone will ever bother to change that

key once it is produced. For our experiments, the

key for the network was chosen on purpose to be a

word not existing in the English or in the Greek

dictionary.

The first step is to look for Wi-Fi networks in the

area. The next picture depicts the discovery of the

network in question:

As soon as the target is found (or chosen), there

are two actions to take:

• First step for attacking WEP

We have to record an efficient amount of Wi-Fi

packets (red oval in Figure 4). The exact number is

not accurately set, but usually a number between

500.000 and 700.000 packets is enough. This

number can be collected in about 10 to 20 minutes

from a network with medium traffic (3-5 clients).

• Second step for attacking WEP

As soon as the number of packets needed is

collected, the program for finding the WEP key is

launched through a windows interface with few

parameters to be set

. The next Figure shows the

program in action, checking various letters and

finally finding the WEP key.

Figure 5: “aircrack-ng” in action. The program is

inspecting various combinations of characters and it

finally finds the right key (KEY FOUND).

In the first line we can see that a number of

240,921 packets (IV’s) was enough to find the key.

As seen in the last two lines the key was found

within seconds. The hexadecimal key represented in

this example, is identical with the one provided at

the Figure 3 (“kostaskoukos”).

4.2 Attacking WPA

Unlike WEP, WPA is not vunerable to such attacks

WINSYS 2008 - International Conference on Wireless Information Networks and Systems

(Ohrtman & Roeder, 2007). It implements a

different algorithm so it has none of the weaknesses

of its ancestor. It has only a serious weakness which

has to be taken under serious consideration (Kang &

al, 2004).

The initial key called PTK, used to commence

the handshake protocol is vunerable to dictionary

attacks. As soon as this key (PTK) is collected, it

can easily be deciphered as it holds a little extra info,

only 2.5n + 12 bits, where n is the length of the key

the user entered. The packet, which contains the key

in question, is the “association” packet. In order to

get upper hand on this packet, one needs to wait

until a new station connects to the network or

somehow force an already connected station to

disconnect, so that station will obviously try to

reconnect. As soon as that station tries to reconnect,

the “association” packet is captured (Andrew

Vladimirov, 2006).

WPA has implemented an extra security

measure, described as follows: As soon as the WPA

implementing station “senses” a station trying to

connect for 3 times in a row with the wrong key

phrase, it shuts down completely for 2 minutes. This

can be used also for Denial of Service – DoS

Attacks (Aslam, 2006) (Geier, 2003). Because of the

above security measure of the WPA protocol, the

dictionary attack cannot happen against the real

transmitting station (Access Point) and thus it can

only take place off line.

In the following picture we set an access point

(3COM) implementing the WPA protocol, with the

passphrase “dimitris”.

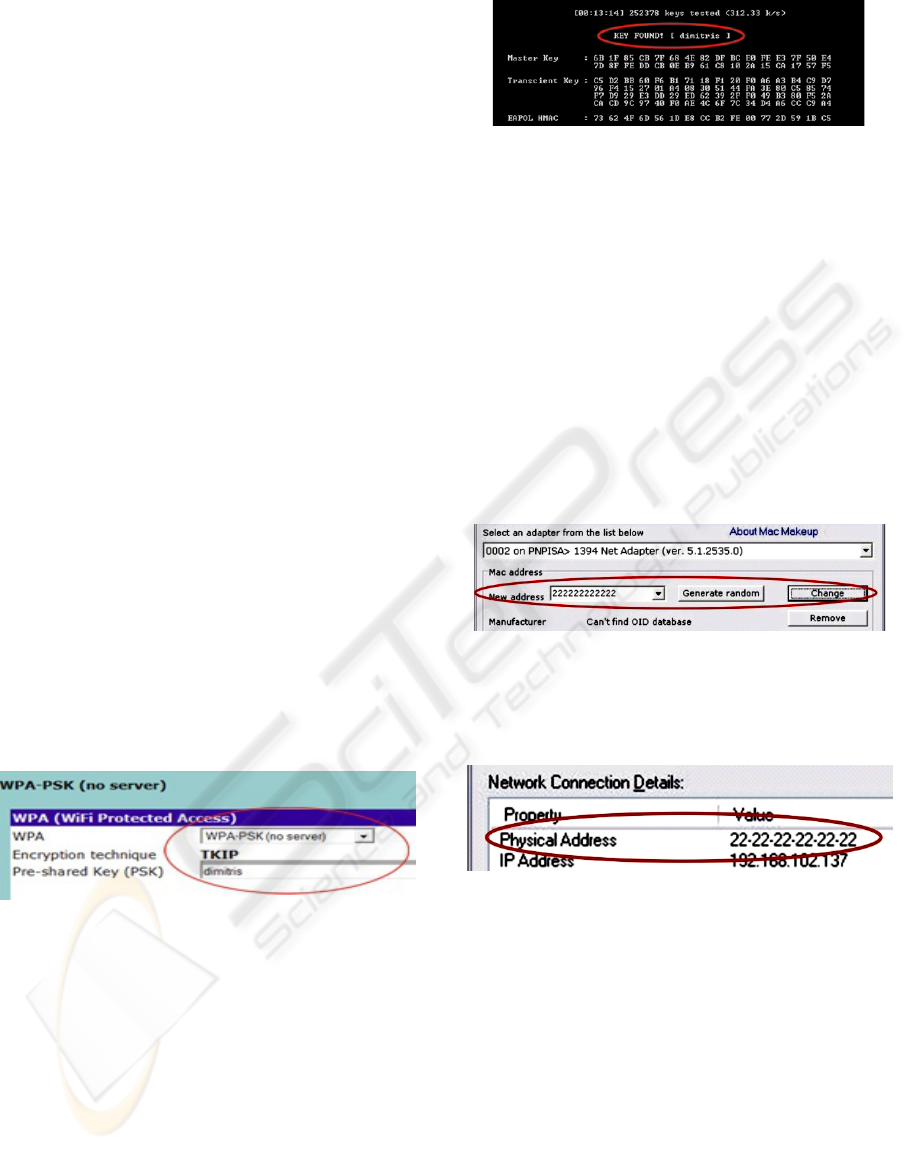

Figure 6: Setting the WPA-PSK key.

We need to state here that the passphrase

“dimitris” has been chosen on purpose. In the on-

line Oxford dictionary (AskOxford, 2008) the word

“dimitris” did not exist, although the word did exist

in the dictionary used for the attack (as almost all the

rest of the words of eight characters long). As seen

in the next image, the passphrase was found after

approximately 15 minutes.

If we want to avoid the brute force attack, the

length of the passphrase has to be at least 20

characters long, with suggested length at least 33

characters (Lisa Phifer, Core Competence Inc,

2004).

Figure 7: Finding the WPA key in seconds.

5 MAC ADDRESS SECURITY

Somehow the Mac Adress filtering is considered

solid and inpenetrable. No one seems to know why

this statemet has not been shuttered, although there

are several references for the opposite from

authorities like (Wi-Fi Alliance, 2003).

In order to attack “Mac Address Security”, we

used one of the many programs freely avaliable on

the internet, called MacMakeup (Gorlani, 2008).

That program can very easily alter the Mac Adress

of any network card. The program is very simple as

demonstrated in the image below:

Figure 8: Changing the Mac Address of a specific

Network Card (NIC) to the desired one 22:22:22:22:22:22.

After resetting the specific wireless card, it has the

new Mac Adress (Fig below):

Figure 9: Finding the WPA key in seconds.

As it has been referred in section 4, when

someone is attacking a WEP protected network, she

is able to get the Mac Adresses of both the Access

Point the client(s), respectively. Thus, even if the

Access Point implements the Mac Address filtering,

the attacker can easily change her computer’s Mac

Address, to the one belonging to the accosiated

client. The Access Point then is “obliged” to accept

this “legal” client.

6 WI-FI SURVEY

In a study about security, it is very critical to study

SURVEYING WI-FI SECURITY - Presentation of Wi-Fi Security Measures, Varius Wi-Fi Attacks and a Classification

Survey of Wi-Fi Networks in Thessaloniki

as well, what are the practices used and what is

generally happening in the real world today.

6.1 “War Driving”

The definition of the term “War driving” is:

someone with a laptop and a GPS is wandering

around, looking for Wi-Fi networks (Andrew

Vladimirov, 2006). As soon as the particular area is

mapped, the weak security networks are targeted and

potentially hacked by the “War driver”.

Imitating the above on Sunday 28 of February

2008, we drove at the center of Thessaloniki town

for around 4 kilometers. Our equipment was: a

laptop with a Wi-Fi card, and a GPS device

preferably connected to the laptop. The software

needed for the job is the notorious (Netstumbler,

2008). We managed to connect the software with the

GPS used (a PCMCIA card of NaviGPS). The only

disadvantage of the particular software for our

research is that: it reports all networks with security

enabled as WEP enabled networks, even if they are

WPA protected. So in order to separate the networks

based on security implemented, we used a mobile

phone (HTC 3300) with a GPS embedded. The

software we found out that distinguishes between

WEP & WPA protection was Airomap (Airomap,

2007).

The outcome of our “tour” was a map (Figure

10) created in Google Maps with the data collected.

Figure 10: Wireless networks discovered during the

survey, at the centre of Thessaloniki – Greece.

7 RESULTS OF WAR DRIVING

The results of the research were very disappointing.

We discovered approximately 490 wireless networks

in an area of about 0,750 Km

. According to our

results, only the 8% of the networks discovered used

the WPA protocol. The 44% of the networks, used

the flawless WEP protocol, and the rest 48% of them

did not use any encryption at all.

Inside the 48% of the networks discovered not to

use any encryption algorithm, those with RADIUS

server or hotspot implementations are also included.

In fact, the latter does not mean that such networks

are protected. The information transmitted is

defenseless, and consequently compromised by

anyone with a “sniffing” program like Ethereal

(Ethereal, 2007). In addition, there are many

networks whose SSID is the default one of the

specific device, along with the channel number (e.g.

9% of the total networks discovered, have the SSID:

CONNX, channel 6. This is the default SSID of the

AP sold by the National Network and

Telecommunications Operator, OTE S.A.). This

repeated occurrence means that many people bought

an Access Point from the local store, plugged it in,

did not even bother to read the manual, connected

their laptop and forgot about it. Unfortunately, these

same people do send their credit card number to

their bank’s secure site, through this totally

unsecured channel.

Table 1: Wireless Networks categorized according to

security protocol implemented.

Type of Security Perrcentege (%)

WPA 8%

WEP 44%

OPEN (No security) 48%

A similar work in Hong Kong (PISA & WTIA,

2005), shows that the above problem is spread

worldwide. The 61% of the AP discovered on that

survey had the WEP/WPA protection turned off.

8 USER-BEHAVIOUR STATS

Motivated by the above disappointing results, we

collected and then examined technical information

from OTE S.A.. In fact, as one of the authors has

been working on the internet technical support

department of OTE S.A., we extracted data from

user-calls reporting problems with their Wi-Fi

network and reliability. The above survey has been

conducted from April 1

to May 15

2008. Some of

the most interesting results include the following:

from the 355 users whose problem has been

recorded,

• 10.7% used WPA (75% of them are

companies and only 25% of them are single

users)

• 28.7% had never used wireless connection;

however their Access Point was turned on

using the default settings.

• 41.6% keep the default router’s settings

• 10.9% claim that they do not require

encryption (they want to freely share it)

WINSYS 2008 - International Conference on Wireless Information Networks and Systems

100

• 39.1% do not change the router’s settings

after resetting the router

• 11.8% reported low bandwidth, because

someone else was maliciously sharing their

Wi-Fi internet connection.

9 SUGGESTIONS

Although, when one uses all the security measures

and the perquisites a wireless network is practically

impenetrable. Those basic measures are:

 WPA protocol should be used, WPA-2 is

preferable,

 The network secret (passphrase) has to be

changed frequently,

 The passphrase should not exist in a dictionary

and it should be at least 20 characters long. As

an extra security measure the passphrase

should contain some symbols (like @#$%^&)

or/and some capital letters,

 MAC Address Security & filtering should be

used only as a complimentary and an extra

security measure. If used as a standalone

security measure is useless as it can be

penetrated in seconds with not much of an

effort.

10 CONCLUSIONS

Although we do have today the means to secure a

wireless network, only a very small percentage (8%)

of the Wi-Fi implementations today, are using a

strong cryptographic security (WPA). Combined

with the availability of the attacking tools for

Windows Operating Systems, makes the possibility

of such a network to be compromised, almost a

certainty.

The 92% of the wireless networks implemented

today, are not using any serious security, although

the wireless security nowadays is reliable. The vast

majority of wireless networks today (54%) are using

obsolete methods like WEP to secure the transmitted

data, setting at risk the transmitted information.

REFERENCES

Aircrack-ng. (2007). Retrieved from http://www.aircrack-

ng.org/doku.php

Aircrack-ng. (2007). Is my card compatible with airodump

/aireplay ? Retrieved from aircrack documentation:

http://www.wirelessdefence.org/ Contents/Aircrack

ORIGINAL.html#q080

Airomap. (2007). Retrieved 01 29, 2008, from

http://www.divideconcept.net/index.php?page=airosuit

e/index.php

Andrew Vladimirov, K. V. (2006). Wi-Foo: The Secrets of

Wireless Hacking .

AskOxford. (2008). Retrieved 02 23, 2008, from Oxford

Online Dictionary: http://www.askoxford. om/

results/?view=dict&freesearch=dimitris&branch=1384

2570&textsearchtype=exact

Aslam, B. I. (2006). 802.11 Disassociation DoS Attack

and Its Solutions: A Survey. Mobile Computing and

Wireless Communication International Conference,

2006. Amman: Nat. Univ. of Sci. & Technol.

Bauer, F. L. (2002). Decrypted Secrets. Springler.

Brad, A. (2008). 802.11 Attacks. Retrieved 04 16, 2008,

from Foundstone Professional Services: http://

www.foundstone.com/us/resources/whitepapers/802.1

1%20Attacks.pdf

Cygwin. (2007). Retrieved from http://www.cygwin.com/

Ethereal. (2007). Retrieved 11 17, 2007, from http://

www.ethereal.com/

Geier, J. (2003, May 1). Tutorials. Retrieved 01 2008,

from Wi-Fi Planet: http://www.wi-fiplanet.com/

tutorials/article.php/2200071

Gorlani, M. (2008). Mac Makeup. Retrieved from http://

www.gorlani.com/publicprj/macmakeup/macmakeup.asp

(2004). Analysis and Countermeasure on Vulnerability of

WPA Key Exchange Mechanism. In Y. S. Kang, & e.

al, Information Networking (pp. 915-924). Berlin:

Springer Berlin / Heidelberg.

Kershaw, M. (2007). Kismetwirless. Retrieved from

Kismet: http://www.kismetwireless.net/

Lisa Phifer, Core Competence Inc. (2004, 11 17). Using

WPA without enterprise AAA.

Microsoft. (2008). What are the different wireless network

security methods? Retrieved 01 2008, from Windows

Help and How-to: http://windowshelp.microsoft.

com/Windows/en-US/Help/b385cc8a-af25-489e-a82e-

decf6df26b681033.mspx#EZB

Netstumbler. (2008). Retrieved from http://

www.netstumbler.com/

Ohrtman, F., & Roeder, K. (2007). Wi-Fi Handbook.

McGraw-Hill.

PISA & WTIA. (2005, April). Wireless LAN War Driving

Survey 2004-05. Retrieved 03 2008, from http://

www.hkwtia.org/wtia/WLAN%20War%20Driving%2

0Report%20(2004-5).pdf

Pocket Warrior. (2003). Retrieved 2008, from http://

pocketwarrior.sourceforge.net/

The Shmoo Workgroup. (2008). Retrieved from

http://airsnort.shmoo.com/

Wi-Fi Alliance. (2003, Febrouary 6). Retrieved 01 16,

2008, from Enterprise Solutions for Wireless LAN

Security: http://www.securitytechnet.com/resource/

hot-topic/wlan/Whitepaper_Wi-Fi_Enterprise2-6-03.pdf

SURVEYING WI-FI SECURITY - Presentation of Wi-Fi Security Measures, Varius Wi-Fi Attacks and a Classification

Survey of Wi-Fi Networks in Thessaloniki

101
