INTERACTIVE 3D USER INTERFACES

FOR NEUROANATOMY EXPLORATION

Felix G. Hamza-Lup

and Tina Thompson

Computer Science, Armstrong Atlantic State University, Savannah, GA, U.S.A.

Biomedical Sciences, Mercer University, Macon, GA, U.S.A.

Keywords: User Interfaces, X3D, Interactive 3D, Neuroanatomy, e-Learning.

Abstract: Human neuroanatomy is extremely complex, and functional neuroanatomical pathways cannot be dissected

and easily visualized in an anatomy lab. Teaching students to see neuro-anatomical relationships over the

extent of the neuraxis is challenging. The ability to internalize a 3D map of the neuraxis with the appropriate

clinically relevant neuro-pathways superimposed is critical for medical students, as it facilitates long-term

retention of the information as opposed to short-term memorization. Interactive 3D simulations can play a

significant role in facilitating learning through engagement, immediate feedback, and by providing real-

world contexts.

1 INTRODUCTION

The human nervous system is the most complex

achievement of the process of evolution. It is the

primary mechanism in the detection of changes in

the external and internal environment triggering

appropriate responses in muscles, glands and organs.

Neuroanatomy is the study of the brain, spinal cord,

and peripheral nervous system. The understanding of

neuroanatomy correlation with function and

dysfunction is a cornerstone for future advances in

clinical neuroscience.

Medical students historically have difficulty

conceptualizing and projecting in their minds the 3D

aspects of the neuro pathways and embryonic organ

development from 2D text materials and electronic

resources. While highly specific laboratory tests and

sophisticated imaging techniques can be critical for

the practice of medicine, the basis of a neurological

exam relies on the physician’s ability to visualize

very complex neuroanatomical relationships, in

order to make highly accurate diagnosis.

Interactive web-based 3D simulations play a

significant role in facilitating learning through

engagement, immediate feedback, and providing

real-world contexts. An obvious benefit of

interactive systems with 3D models is the capability

to view spatial relationships among structures from a

variety of viewpoints.

The maturity of Web standards and

technologies has reached a point where development

and deployment of interactive 3D interfaces for

complex data visualization and knowledge sharing is

feasible.

In this paper we present our preliminary work

towards the development of an interactive Web

portal and a discussion on the usability paradigms

associated with this system. The project is in its

early stages of development and is yet to be

completed and evaluated. In Section 2 we provide a

brief overview of related work. In Section 3 we

present an interactive network that will simulate

nervous impulse propagation. In Section 4 we

discuss a few interaction design and assessment

issues. We close the paper with conclusions in

Section 5.

2 RELATED WORK

The practice of medicine relies on a clinician’s

ability to effectively integrate basic medical

knowledge with clinical experience to arrive at the

appropriate diagnosis. Laboratory tests as well as

sophisticated imaging techniques can supplement the

physician’s diagnostic skills. However, neurology is

one area of medicine which relies more on the

physician’s ability to use his/her knowledge of

130

Hamza-Lup F. and Thompson T.

INTERACTIVE 3D USER INTERFACES FOR NEUROANATOMY EXPLORATION.

DOI: 10.5220/0001823201300134

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

functional neuro-anatomical pathways to precisely

identify the cause and location of the underlying

medical problem (Adams et al, 2008).

Unfortunately, human neuro-anatomy is

extremely complex, and functional neuro-anatomical

pathways, while well described in books, cannot be

dissected and easily visualized in an anatomy lab.

Teaching students to “see” and understand neuro-

anatomical relationships over the extent of the

neuraxis (i.e., axial part of the central nervous

system) represents another level of complexity.

However, the ability to internalize a three-

dimensional map of the neuraxis with the

appropriate clinically relevant neuro-pathways

superimposed is critical for medical students, as it

facilitates long-term retention of the information as

opposed to short-term memorization (Mateen and

D’Eon, 2008). We hypothesize that the ability to

visualize neuro-anatomical pathways in 3D

significantly improves students’ ability to use

clinical deficits to localize discrete lesions.

While exploring the latest technology in 3D

content development for the Web, we followed the

VRML standard which pointed to eXtended 3D

(X3D). The Web3D consortium develops X3D as

an open standard for web-3D modeling and

information exchange. Within the Web3D

consortium, the MedX3D (Web3D, 2008) is tightly

focused on medical applications that can benefit

from real-time 3D visualizations. One of the

MedX3D research group’s focus is representation of

the human anatomy in X3D.

Another research effort to represent anatomy in

a Web setup is targeted at teaching anatomy

(Brenton et al., 2007). A major project, focused on

neuro-informatics tools for modeling the brain and

stressing the importance of modeling and sharing

data about the brain and its associated processes is

the Human Brain Project (Sheperd et al., 1998).

Our main goal is to develop an interactive

advanced learning system that will support

independent exploration and experimentation

through built-in features. The system will allow

students to manipulate in 3D and explore the

changes in the simulated process, and to visualize

motor and sensory systems as well as their

relationships over the neuraxis. At last but not least,

they will be able to visualize neural signal traveling

along the neuro-pathways from the triggered

receptor. The simulation could be presented as

supplementary material in the class, on the projector,

or as an assignment online, and will enhance and

complement the instructional material.

3 AN INTERACTIVE NETWORK

Primarily, two types of phenomena are involved in

processing nerve signals: electrical and chemical.

While electrical events propagate a signal within a

neuron, the chemical processes transmit the signal

from one neuron to another neuron or to a muscle

cell.

To visualize neural signal propagation along the

neuro-pathways, we developed an X3D anatomical

model based on a male dataset, as illustrated in

Figure 1.

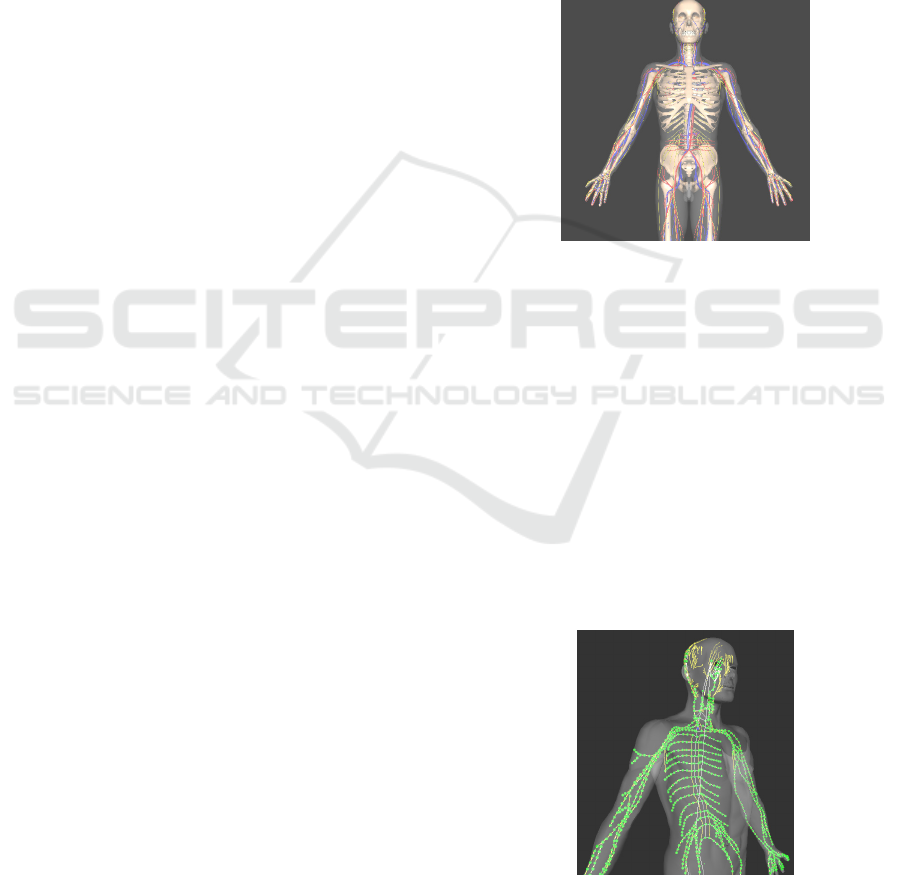

Figure 1: An X3D anatomical male model.

The anatomical model consists of the following

subset: a skeletal system, a circulatory system, a

nervous system, a brain model, and the skin (outer

layer) model.

We decided to model the structure of the

nervous system as a directed graph with vertices that

follow the anatomical structures. The nodes

(vertices) in this graph are nervous excitation points

that can generate a nervous impulse. They

correspond to the triggered receptors of the nervous

system. Such a representation determines an

interactive network that can simulate nervous

impulse behavior at macroscopic and microscopic

levels.

Figure 2: Interactive Network (Macro Level). A graph

(tree) representation of the nervous system merged within

the X3D anatomical model.

INTERACTIVE 3D USER INTERFACES FOR NEUROANATOMY EXPLORATION

131

As the impulses travel along the nerves to the

neuraxis and the brain, they change color and shape.

The animation allows the user to visualize the path

taken by the impulses and the impulse behavior as it

crosses an anatomical structure. The X3D sensor-

based mechanism we implemented allows addition

and removal of nodes (i.e., trigger receptors) on the

skin of the 3D human model. The graph is editable,

and the student is able to develop its own network

and test its behavior.

Two modes are available: design mode and

simulation mode. In design mode, a student can load

a default network and continue to add location

sensors on the skin of the 3D model. By switching to

simulation mode the student can explore in 3D an

animation showing the propagation of the nervous

impulse throughout the nervous system.

As the user zooms-in on the X3D network, after

a certain threshold is reached, the “Micro Level” is

activated and the chain of neurons associated with

that sub-section of the nervous system is rendered.

The microscopic level allows the user to visualize

the signal propagation at the microscopic level (as

illustrated in Figure 3, the signal represented as

yellow spheres that travel along the neurons chain).

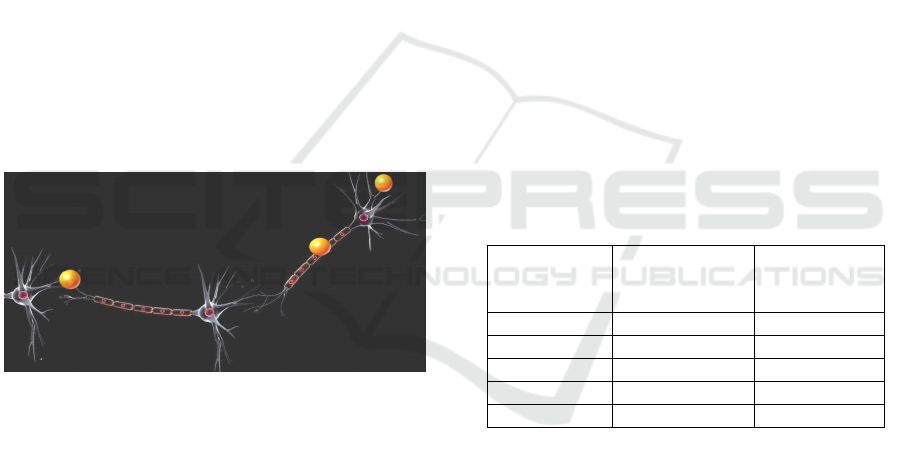

Figure 3: Interactive Network (Micro Level).

The action potentials can travel along axons at

speeds of 0.1-100 m/s. This means that nerve

impulses can get from one part of a body to another

in a few milliseconds, which allows for fast

responses to stimuli. In the microscopic simulation,

the propagation speed of the signal is reduced to

provide a clear visualization of the neuron

components involved in the process. The level of

detail (LOD) change is currently under development.

To reduce the scene rendering time, we have

experimented with billboards with 2D neuron

textures mapped on them. The details of this module

will be presented in future articles.

4 INTERFACE INTERACTION

DESIGN

The goal of interaction design is to gain maximum

usability for our interface. In what follows we

explore several factors that will affect the system

interactivity and usability.

4.1 Optimization for Interactivity

In a 3D Web-based environment the scene graph has

to be loaded and cached on the client side. An X3D

file usually contains large datasets representing the

polygonal models in the scene. Linear

transformations are applied on the polygonal models

at loading time, most of the times. Such

transformations will slowdown the scene loading. To

speed up initial scene upload, we have investigated

compression algorithms for X3D. The X3D

representation of the male anatomical data set is

divided into the following subsets: skeletal system,

circulatory system, nervous system, the brain model,

and the skin. The compression algorithm reduces, on

average, three times the size of the model (as

illustrated in Table 1), and hence the X3D scene

loading time.

Table 1: Uncompressed and compressed X3D.

Body Part or

Subsystem

Before

Compression

(MB)

After

Compression

(MB)

Skeletal 3.04 1.01

Circulatory 12.41 3.81

Nervous 4.87 1.29

Brain 9.18 3.08

Skin 1.85 0.51

We are in the process of exploring compressed

binary encoding (ISO/IEC 19776-3, 2007) for the

X3D. Compressed binary encoding uses several

techniques to reduce the size of an X3D document

and to increase the speed of creating and processing

such documents. These techniques are primarily

based on the use of vocabulary tables that allow

small integer values to be used instead of character

strings.

Another optimization technique, based on the

initial position of the 3D models in the X3D scene,

is possible. For example, the male skin polygonal

model has currently around 18,000 polygons. As the

3D scene is initialized, a set of transformations will

be applied on each polygon in the model. This

computation done on-the-fly can significantly delay

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

132

the loading time of the X3D scene at the client side.

We can pre-compute the transformations in the X3D

file and apply them to the “coordinate” sets

beforehand. We have implemented an optimizer

module that reduces the loading time in half by pre-

computing the transformations for each 3D object in

the scene.

4.2 Paradigms for Usability Support

Learnability is the ease with which new users can

begin effective interaction and achieve maximal

performance. Learnability is enhanced by several

paradigms like predictability, synthesizability, and

familiarity (Dix et al, 2004).

Predictability means that the user can easily

determine the results of his/her future actions on the

interface based on the interaction history. The X3D

interface is a consistent 3D environment that is fully

determined by the interaction history.

Synthesizability of the interface is very high since

the user is able to assess the effect of past operations

on the current state. One of the issues that may arise

is the X3D player’s robustness, i.e., parsing errors

may render parts of the scene invisible, having a

negative effect on predictability. In terms of

familiarity, the X3D interface navigation uses the

mouse buttons and their well-known functionality.

The 3D virtual objects have intrinsic properties that

suggest how they can be manipulated. Our informal

assessment shows that users familiar with the

window system have no difficulty in learning and

using the interface very fast. We have also deployed

a small size assessment experiment on a group of 12

students. The users were explained and asked to rank

the predictability of the system on a scale from 1 to

5 (1 meaning less predictable and 5 meaning very

predictable). The scores average was 4.83, denoting

a highly predictable system.

Another component for usability support is

flexibility. Flexibility represents the multiplicity of

ways the user and system exchange information.

Currently we are working at an interactive dialogue

system that will guide the user through various

simulations linked to a specific topic. We are also

investigating customizability and the transfer of

control for tasks execution, between the system and

the user, to support task migratability (i.e. the user

can have a computer assistant that will provide

guidance through certain parts of the simulation; the

simulation control could be switched from the user

to the computer at any time, to guide through

difficult sections). We are in the process of

developing an assessment experiment for the system

migratability in conjunction with the user task and

application domain.

5 CONCLUSIONS AND FUTURE

We have presented a few aspects of the early stages

of development of an advanced learning tool for

neuroanatomy. We have also discussed important

aspects of interactive interface design, as

interactivity is one of the main goals of the project.

Since there are different learning “speeds”, and

they vary from person to person, the learning tool is

available online in a Web-based environment

facilitating easy access anywhere and at anytime.

For neuroanatomy, theory is easier to grasp than to

translate into practice. In some cases, however,

practical skills are quickly achieved, even without

any basic understanding of the theory. In spite of

these difficulties, we want to achieve the best

theoretical and practical skills employing such

advanced learning tools.

We are currently developing a labeling system

that will allow students to visualize 3D neuro-

anatomical components and their associated names.

The labeling system will be accompanied by a

decomposition module. This module will allow

students to “virtually dissect” complex parts of the

central nervous system, as illustrated in Figure 4.

The figure denotes a 3D decomposition of the brain.

As the user “takes apart” the components of the

brain, s/he can better understand the location of the

parts within the system as well as the spatial

relationship among the nervous system components.

Figure 4: 3D Brain Model Decomposition.

A task of 3D model composition/decomposition

based on labeling will be used as a testing tool to

INTERACTIVE 3D USER INTERFACES FOR NEUROANATOMY EXPLORATION

133

assess student learning performance. We will report

our assessment results in future publications. The

tool is available online at www.neuro-pathways.org.

ACKNOWLEDGEMENTS

We would like to thank Mercer Medical School for

funding the initial development of the Neuro-

Pathways project and the student members of the

NEWS laboratory at the Armstrong Atlantic State

University. Website: www.neuro-pathways.org.

REFERENCES

Adams, M.E., Linn, J., and Yousry, I., 2008. “Pathology

of the ocular motor nerves III, IV, and VI”.

Neuroimaging Clinics of North America, 18 (2),

pp.261–282.

Brenton, H., Hernandez, J., Bello, F., Strutton, P.,

Purkayastha, S., Firth, T., and Darzi, A., 2007. “Using

multimedia and Web3D to enhance anatomy teaching”

Computers and Education, 49 (1), pp. 32–53.

Dix, A., Finlay, J., Abowd, G.D., Beale, R., 2004. “Part II

- Design Process, Chapter 7: Design rules” in Human-

Computer Interaction, Pearson Education Limited, 3

edition, pp.258 – 288.

ISO/IEC 19776-3:2007 Information technology -

Computer graphics, image processing and

environmental data representation - Extensible 3D

(X3D) encodings - Part 3: Compressed binary

encoding.

Mateen, F., D’Eon, M., 2008. “Neuroanatomy: a single

institution study of knowledge loss”, Medical Teacher,

30 (5), pp 537–539.

Shepherd, G.M., Mirsky, J.S., Healy, M.D., Singer, M.S.,

Skoufos, E., Hines, M.S., Nadkarni, P.M., and Miller,

P.L.,1998. “The Human Brain Project:

neuroinformatics tools for integrating, searching and

modeling multidisciplinary neuroscience data”. Trends

Neuroscience, 21 (11), pp. 460–468.

Web3D, 2008. Medical real-time visualization,

communication using X3D. Last accessed Sept. 2008

from: www.web3d.org/x3d/workgroups/medical.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

134
