ASSESSMENT OF MOBILE SECURITY PLATFORMS

Germán Retamosa and Jorge E. López de Vergara

Departamento de Ingeniería Informática, Universidad Autónoma de Madrid, Spain

Keywords: Mobile Security, Mobile Malware, Security Platforms, Windows Mobile, Symbian OS, iPhone OS.

Abstract: Mobility is one of the most important features in users’ communications. The increasing progress carried

out by mobile communications has changed the concept of mobile phone. Nowadays, each new device

offers newer technologies and services adapted to user requirements. However, each added improvement

has a set of threats, which have to be taken into account for ensuring the confidentiality, integrity and

availability of user and system data. In this paper, we analyze some important mobile security platforms,

such as Symbian OS, Windows Mobile and iPhone OS. Then, we compare these platforms giving some

advantages and drawbacks of each one and providing some conclusions about this study.

1 INTRODUCTION

The progress carried out by mobile phone

manufacturers is a present reality, and theirs trends

are growing as the days go by. Furthermore, this

evolution has some advantages like newer features

adapted to current user requirements. However, it

also implies some difficulties, which have to be

taken into account, such as the creation of a

trustworthy mobile platform, which ensures user

privacy and security. The trustworthiness of these

systems must check the three main features on any

computer security: confidentiality, integrity and

availability. However, ensuring user privacy is a

difficult task, which has to be carried out throughout

the software lifecycle, from analysis to development

stage. For this reason, mobile manufacturers have

created security divisions for implemented

platforms, which protect users from different

attacks. But all these security mechanisms are not

completely effective, either because of the effort that

it implies or simply due to design failures. The goal

of this study is to analyze and evaluate the

trustworthiness of some important mobile security

platforms.

The rest of this paper is divided into three sections:

the first one depicts an analysis of some relevant

mobile security platforms such as Symbian,

Windows Mobile and iPhone OS. Then, the second

section uses these obtained results for describing an

evaluation process, which sums up with some

positive and negative aspects of each studied

platform. Finally, the third part finishes with some

final conclusions obtained from the evaluation

process.

2 MOBILE SECURITY

PLATFORM ANALYSIS

The wide mobile security range includes several

types of mobile operating systems. Each one has its

own features and examples, described below (Heath,

2006):

Open Platforms enable the access to native

interfaces, and usually provide an SDK (Software

Development Kit) for accessing to these interfaces

and, develop third-party applications. Despite all

these advantages, these systems are the most

vulnerable due to the wide range of access to system

capabilities and, for that reason, are the main target

of any attacker. Symbian OS, Windows Mobile

(Compact Edition) are examples of this type of

systems.

Layered Execution Environments are considered

closed environments which deny access to native

interfaces, although sometimes enable access on

some restrictive circumstances, named sandboxed

environments. Moreover, these systems usually

provide an SDK (Software Development Kit) for

developing third-party applications. iPhone OS and

Google Android are examples of these types of

systems.

Closed OS denies access to native interfaces, and

usually does not provide an SDK (Software

127

Retamosa G. and E. López de Vergara J. (2009).

ASSESSMENT OF MOBILE SECURITY PLATFORMS.

In Proceedings of the International Conference on Security and Cryptography, pages 127-132

DOI: 10.5220/0002261101270132

 SciTePress

Development Kit) to develop third-party applications

and so, the security platform is not known for any

attacker, unless reverse engineering techniques can

be used. For these reasons, it is very difficult to

develop malware on this type of systems. An

example of this type is the LG Proprietary OS (LG

Electronics, 2009). In response to previous

classification, layered execution environment and

closed platforms seem to be more secure than open

platforms but in fact, both are also exposed to many

attacks such as denial of service. The following

study focuses its efforts on analyzing open platforms

and layered execution environments for providing

user some security knowledge about these platforms.

2.1 Symbian OS

Currently, Symbian OS (Symbian, 2009) is the most

known and used operating system on the mobile

market. Symbian OS is a single-user and multitask

operating system with EKA2 (EPOC Kernel

Architecture 32bits) architecture and some specific

features (Savoldi and Gubian, 2008):

 Modularity.

 RTOS (Real-time Operating System)

nanokernel.

 Priority-based pre-emptive multitask.

Single-user feature reduces considerably the

complexity of security platform, achieving a

lightweight platform, which satisfies common

mobile restrictions, such as effectiveness and

efficiency. Furthermore, the security policies used

on these systems are based on capabilities list. The

following list enumerates some rules, which set up

the basis of Symbian OS security platform.

 Each process must have resources and access

privileges list, which allow the access to

some system capabilities, which are

invariants during their execution.

 Each process must have its own virtual address

space protected by the operating system.

 Each application signature gives access to only

one system capability, although the operating

system allows multiple signed applications.

 Each process can only use shared libraries

(DLL, Dynamic Load Library) with at least

the same level of trust.

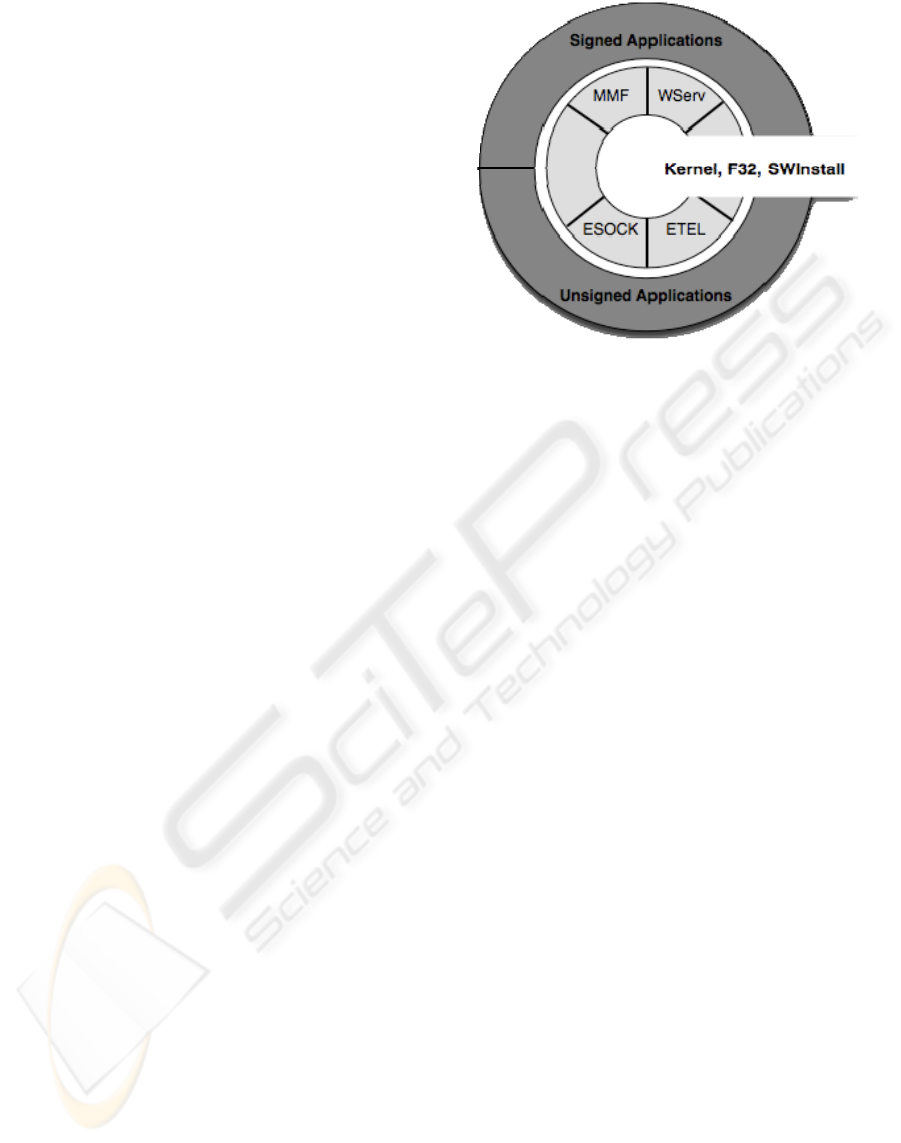

Figure 1 shows the Symbian OS security

architecture, which is divided into four different

tiers.

 TCB, Trusted Computing Base.

 TCE, Trusted Computing Environment.

 Signed software.

 Unsigned software.

Figure 1: Symbian OS Security Architecture (Heath,

2006).

TCB is the core component of the security platform

and so, the most trusted part, which controls the

lowest level of security mechanisms. It includes the

components described below.

 Kernel: Assign privileges on process creation.

 File Server (F32): Load program code on

process creation.

 Software Installer (SWInstall): Install SIS

(Symbian OS Install Script) files, including

software validation.

TCE consists of a set of servers with specific

features. Each server is independent from the rest,

and needs a set of specific privileges to access it.

Signed software is a set of trusted applications

which have enough rights to access TCE interfaces,

and unsigned software is a set of untrusted

applications which does not have rights to access

TCE interfaces. Symbian OS capabilities are a set of

privileges installed on the system. In particular, it

has twenty capabilities divided into three groups:

TCB, user and system. Finally, the last component

of the Symbian OS security platform is the data

caging, which is used to protect the integrity and

confidentiality of the system. There are three special

containers protected by data caging:

\sys,

\resource and \private.

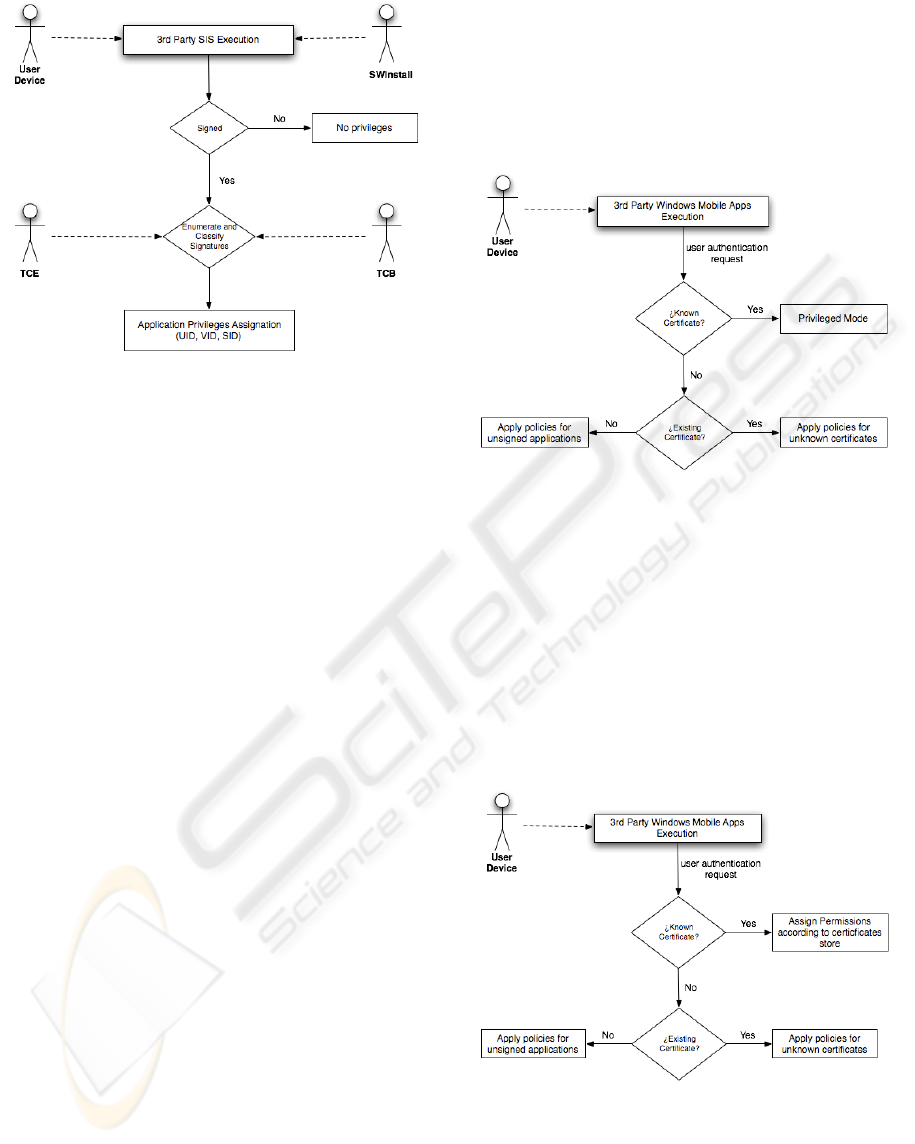

Figure 2 describes the process followed by the

security platform on most of the software installation

process. Firstly, SWInstall verifies the presence of

signatures in the application. If so, TCB and TCE

enumerate the signature or signatures and then,

classify them into the different system servers. If

not, the application is unsigned, so it will not have

privileges.

SECRYPT 2009 - International Conference on Security and Cryptography

128

Figure 2: Symbian OS Execution Process.

2.2 Windows Mobile

Windows Mobile (Microsoft, 2009) is technically a

version of Windows Compact Edition CE. This

system is based on the Win32 API and .NET

Compact Framework, and it is optimized for several

mobile processors, such as XScale or ARM

(Advanced RISC Machines). However, it is not a

homogeneous platform because it is divided into

three different models according to the different type

of devices existing on telecommunications market,

Standard SDK for Smartphones, Professional SDK

for PDAs (Personal Digital Assistant) and Classic

SDK for PDAs with no phone. Taking this

disposition into account, this security platform is the

sum of a set of security policies, roles and

certificates. Windows Mobile supports three different

types of security policies defined on system registry

(

HKLM\Security\Policies\Policies), which

set up the access permissions to the file system

(Microsoft, 2007)(Moreno, 2008):

 Privileged or Kernel Mode. It allows read and

write access to the file system.

 Normal or User Mode. It allows full access to

personal data areas and denies access to

protected zones.

 Blocked. No access at all.

Security roles are the components responsible to

manage access to system resources, and it is

especially used for provisioning purposes.

Furthermore, certificate management is one of the

most important features because it provides

confidentiality to user data and manages the

execution of an application and the assignation of its

respective access rights. All certificates are saved on

certificates stores, each one with different privileges

and access rights. Finally, Windows Mobile defines

five security levels, which are listed below

(Microsoft, 2007) (Moreno, 2008):

 Security Off (only for testing purposes).

 One-tier prompt (see Figure 3).

 Two-tier prompt (see Figure 4).

 Mobile2Market locked.

 Locked.

Figure 3: One-tier Prompt Procedure.

Figure 3 shows the installation process followed by

the one-tier security platform. This type of security

platform is used on the Professional SDK and the

Classic SDK. Firstly, the certificate manager checks

for presence of certificates in the application. If

certificates cannot be found, it will apply security

policies for unsigned applications, elsewhere

certificates get validated. It will apply privileged

mode capabilities if the certificate is known,

otherwise it will apply security policies for unknown

certificates.

Figure 4: Two-tier Prompt Procedure.

Figure 4 shows the installation process followed by

the two-tier security platform. This type of security

platform is used on the Standard SDK. This

procedure is analogous to the one-tier installation

process, but instead of assigning privileged mode

ASSESSMENT OF MOBILE SECURITY PLATFORMS

129

capabilities for known certificates, it assigns

permissions according to the certificates store.

2.3 iPhone OS

iPhone OS (Apple, 2009) is the last analyzed

operating system. It is widely known as the system

Apple iPhone. This system is a single-user and

multitask smaller version of OS X enhanced for

ARM processors and based on the Mach kernel. Its

origins are relatively newer with respect to other

mobile operating systems such as Symbian OS or

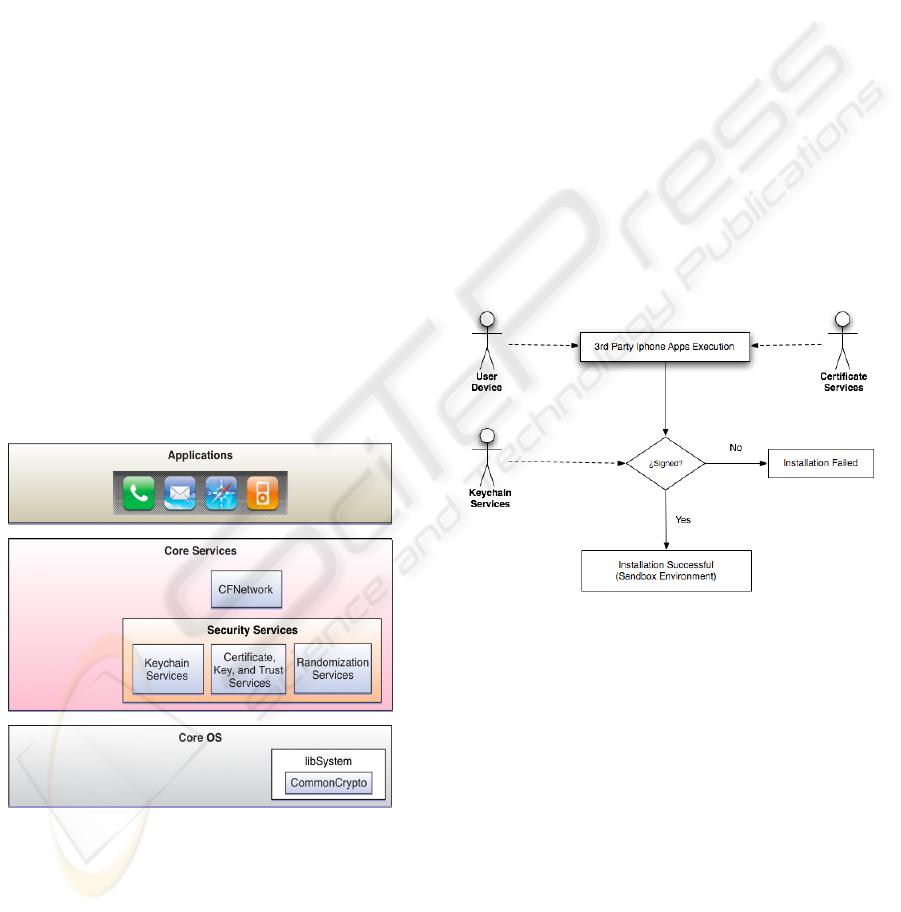

Windows Mobile. Figure 5 shows the main

architecture of iPhone OS and its security services.

The main architecture is divided into five different

and isolate tiers, which are listed below, although

this study will only analyze the security platform

included in the Core Services (Apple, 2008):

 User applications.

 Cocoa Touch.

 Media.

 Core Services.

 Core OS.

In addition, there are some security services, which

define the security platform (Apple, 2008):

 CFNetwork.

 Keychain Services.

 Sandboxing Services.

Figure 5: iPhone OS Architecture (Apple, 2008).

CFNetwork is the component responsible for

establishing secure communications between iPhone

and any external device connected to Internet

throughout TCP/IP by using protocols such as SSL

(Secure Socket Layer) or TLS (Transport Secure

Layer). Keychain services are responsible for

keeping secure user and system data storage by

ensuring the confidentiality, integrity and

availability. These features are based on

encryption/decryption interfaces and certificate

management. Its usage is very important: it protects

the personal data from any possible attacker.

However, the access to keychain services and root

certificates management are driven by the iPhone

OS security server daemon. For security reasons, the

daemon API (Application Program Interface) is not

accessible to software developers. Sandboxing

services are a fine-grained access control system

whose main task is to protect the resources of the

system. This type of system is implemented with

MAC (Mandatory Access Control) and every

installed application is inside of a sandbox

environment. Therefore, with this security

countermeasure, the file system is protected against

some attacks, or misuse. However, there are some

other attacks, such as buffer/heap overflow, which

can avoid this restriction and it is responsibility of

the application designer to create secure

applications, which protect this type of attacks or

malicious applications (Zdziarski, 2008)(Miller et

al., 2007).

Figure 6: iPhone OS Execution Process.

Figure 6 describes the steps followed by the iPhone

OS security platform during the installation of a

third-party application. Firstly, the certificate

manager and the keychain manager checks for

presence of certificates into the application. If so, the

installation process will finish inside of a sandbox

environment if the keychain manager validates the

existing certificate, otherwise the installation process

will fail. Finally, the last security feature is a simple

data caging procedure. The disk drive is divided into

two partitions, and one of them contains the kernel

file system with read-only permissions. Therefore,

this countermeasure protects the file system from

malicious attacks.

SECRYPT 2009 - International Conference on Security and Cryptography

130

3 MOBILE SECURITY

PLATFORM ASSESSMENT

In the previous section, three of the most important

mobile security platforms were analyzed for better

understanding of the topics discussed below. This

section will define the most known vulnerabilities

and weaknesses of these operating systems by using

the following methodology schema:

 Implementation Failures.

 File System Failures.

 Native Application Failures.

 Communication Failures.

 Bluetooth Failures.

 MMS (Multimedia Messaging System)

Failures.

3.1 Symbian OS

Nowadays, Symbian OS is considered the most

attacked operating system on the market, followed

by far by Windows Mobile (Heath, 2006). This

experience is translated into a robust security

platform with a really small number of

vulnerabilities.

Implementation failures, also known as bugs, are

one of the most important loopholes in any operating

system. However, the wide range of this attack

vector exceeds the scope of this assessment, and it

will only analyze file system and native application

failures, which have been considered the most

relevant and harmful inside of a mobile phone.

Currently, the number of known Symbian OS

implementation vulnerabilities is really small or

non-existent.

Communications failures are the most recent

loopholes in any operating system, because the

growing evolution of the mobile phones involves the

creation of weak communications protocols adapted

to user requirements. Bluetooth and MMS failures

are the most known Symbian OS failures, but they

need to use social engineering techniques for

exploiting the mobile phone. The problem of the

social engineering techniques is that the mobile

phone user carries all the liability and the security

platform cannot perform any countermeasure.

Furthermore, Bluetooth attacks have a wide range of

varieties listed below (Gostev, 2008):

 Bluetooth Propagation (Cabir/29.A).

 Operating System Infection (Skulls).

 Phonebook Access and MMS Propagation

(Commwar).

3.2 Windows Mobile

Windows Mobile is nowadays one of the most

important mobile operating systems. This

importance is due to Microsoft Windows

predominance on the computer market and the

current growing number of devices with this

platform.

File system failures are the most dangerous case of

implementation failures because their presence are

extended to all mobile phones with the involved

operating system, but they are also the most cost-

effective to fix because only one patch release can

be applied to all the involved operating systems. A

sample of this type of vulnerability is described

below:

 Bypassing the code-signing protection in

Windows Mobile is relatively easy because, once

a mobile phone user accepts the installation of a

normal application, provided by Visual Studio

but used with malicious purposes

(

SDKCerts.cab), any installed application

signed with a special certificate

(

SDKSamplePrivDeveloper.spc) will have

full privileges (Moreno, 2008).

Native applications failures are the existing

implementation failures in each system application

and excluding third-party applications. These

failures are less dangerous than the previous type,

but the profitability to fix these failures will depend

on the number of existing application instances. If a

majority uses an application, the released patch will

be cost-effective. Some samples of these failures are

the numerous cases of denial of service in

ActiveSync and PIE (Pocket Internet Explorer)

(Dunham, 2009).

Bluetooth and MMS (Bluetooth, 2009) (MMS,

2003) are considered one of the main

communication failures in any operating system, but

in fact, it is commonly used for spreading malicious

applications. However, Bluetooth is vulnerable to

driver-level attacks and BD_ADDR Spoofing attacks

(Moreno, 2009) and MMS has some vulnerabilities

via shellcode-based applications in MMS Client and

Composer (Dunham, 2009).

3.3 iPhone OS

As we discuss in the previous section, iPhone OS is

a single-user operating system. However, the only

system user is the root account and all the

applications are running with no restrictions.

Implementation failures are the only existing

failures in the iPhone OS, because the

communications protocols are very restrictive and

ASSESSMENT OF MOBILE SECURITY PLATFORMS

131

theirs user interfaces are too limited. Currently the

most known implementation failures are the file

system failures and they are described below

(Zdziarski, 2008).

Root account involves that any system failure or

malicious application instantly gets a privileged

mode. For this reason, Apple Inc. restricts extremely

the third-party installation process.

Static addressing means that all the application

instances have the same memory address, instead of

the randomization methods used in the majority of

mobile operating systems.

Static systems means that currently, there are only

two phone models of Apple iPhone based on the

same hardware and software. This feature is useful

for an attacker because all the malicious programs

will have the same pattern.

Finally, earlier firmware versions of the iPhone OS

(1.1.4 – 2.0) had some native applications failures in

the Safari WebKit interfaces. These failures exploit

the mobile phone with denial of service attacks.

4 CONCLUSIONS

The obtained conclusions from this study show that

the maturity of the operating systems is a relevant

point to take into account because it is inversely

proportional to the number of vulnerabilities and

therefore, it can be used such as a security estimator.

As we discuss in the previous section, Symbian OS

is the most attacked platform and it has the smaller

number of vulnerabilities. In fact, Symbian OS has

the most secure execution procedures, followed

closely by Windows Mobile. Moreover, both

platforms have a normal level of security on

installation procedures based on code-signing and

certificates management. On the other hand, iPhone

OS is the least secure operating system because their

execution procedures are too permissive, and these

techniques waste all security efforts placed on the

installation procedures.

Finally, Table 1 shows a resume of the main

differences between each studied security platform.

In future works, we are going to research about

advanced methodologies, which enable the

automatic security assessment of any mobile

operating system. In addition, to improve the

existing procedures, we will research on different

mobile malware classification techniques.

Table 1: Mobile Security Platforms Overview.

Symbian

Windows

Mobile

iPhone OS

Installation

Security Level

Average Average High

Execution

Security Level

High Average Low

Certificates

Management

Average High Average

Communication

Protocols

Security Level

Low Low Average

Security

Policies

Management

Average High Low

Data Caging High Average Low

REFERENCES

Heath, C., 2006. Symbian OS Security Platform. Wiley.

Savoldi, A., Gubian, P., 2008, Symbian Forensics: An

Overview. IIHMSP ’08.

Zdziarski, J., 2008, iPhone Forensics. O’Reilly.

Miller, C., Honoroff, J., Mason J., 2007. Security

Evaluation of Apple’s iPhone. Independent Security

Evaluators.

Apple Inc., 2008, Security Overview.

Microsoft, 2007, Security Model for Windows Mobile 5

and Windows Mobile 6.

Moreno, A., 2008, Windows Mobile Security Model,

http://www.seguridadmobile.com/windows-

mobile/seguridad-windows-mobile/ejecucion-

aplicaciones.html

Moreno, A., 2009, BD_ADDR Spoofing,

http://www.seguridadmobile.com/bluetooth/seguridad-

bluetooth/BD_ADDR-spoofing.html.

Symbian Software Ltd., 2009, http://www.sym

bian.com/index.asp

Microsoft, 2009, http://www.microsoft.com/windows-

mobile/ es-es/default.mspx

Apple Inc., 2009, http://developer.apple.com/iphone/

LG Electronics, 2009, http://www.lge.com/

Dunham, K., 2009. Mobile Malware Attacks and Defense.

Elsevier.

Bluetooth SIG, 2009, https://www.bluetooth.org/

apps/content/

Gostev, A., 2008. Mobile Virology Introduction. Hakin9.

MMS, 2003, 3GPP MMS Specification,

http://www.3gpp.org/ftp/Specs/html-info/23140.htm

SECRYPT 2009 - International Conference on Security and Cryptography

132
