OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES

Sang Min Yoon and Arjan Kuijper

GRIS TU Darmstadt, Fraunhofer IGD & TU Darmstadt, Fraunhoferstrasse 5, Darmstadt, 64283, Germany

Keywords:

Diffusion tensor ﬁelds, Sketch query based image retrieval.

Abstract:

Sketches drawn by users are one of the most intuitive forms of Human Computer Interaction. Users can easily

express their intention by sketching simple hand-drawn lines.

In this paper, we consider the problem of target object detection and retrieval from a query by a sketch which

is not in the database. Our novel approach consists of three steps: (1) Preprocessing to extract the skele-

tal features from a sketched query using size normalization, labelling, and binarization, (2) Skeletal feature

extraction of query and data images in the space of diffusion tensor ﬁelds, and (3) Similarity measure us-

ing tensorial information between sketched query and database to retrieve the most similar target object in

database.

Experiments are conducted to evaluate the performance of our methodology, which shows to be an efﬁcient

and mature retrieval system.

1 INTRODUCTION

There is a growing interest in new Human Computer

Interaction techniques on tablet PCs, touch phones,

and multi-touch screens (Han, 2006; Kim et al.,

2007). Interaction using one or two ﬁngers on these

devices enable users to easily generate and retrieve

multimedia items in databases. However, real HCI

within these devices is still lacking in terms of un-

derstanding freehand input and low level interactive

visualization of content. Among numerous interac-

tion methodologies for detecting and retrieving the

various images in database, we propose a freehand

sketch which is the informal drawing of a shape us-

ing lines and curves as a natural interaction technique

(Hassouna and Farg, 2007). Especially, the sketch

image is very perceptive to human vision and a fast

representation of important features of target objects

for humans at all ages. Although a sketch is com-

posed of few lines, it is a coarse but detailed pic-

ture including its key features. For instance, if we

ask the people to draw objects like a human, a car,

or a cup without any further information, most peo-

ple intend to sketch the objects as shown in Figure 1.

These sketches are passive and cannot be directly sim-

ulated or analyzed using computational engineering

tools. Computers cannot understand the sketched im-

ages which have various viewpoints and non-textual

information, even though users can easily understand

(a) Example images in the database (b) Sketches of

target objects by several persons.

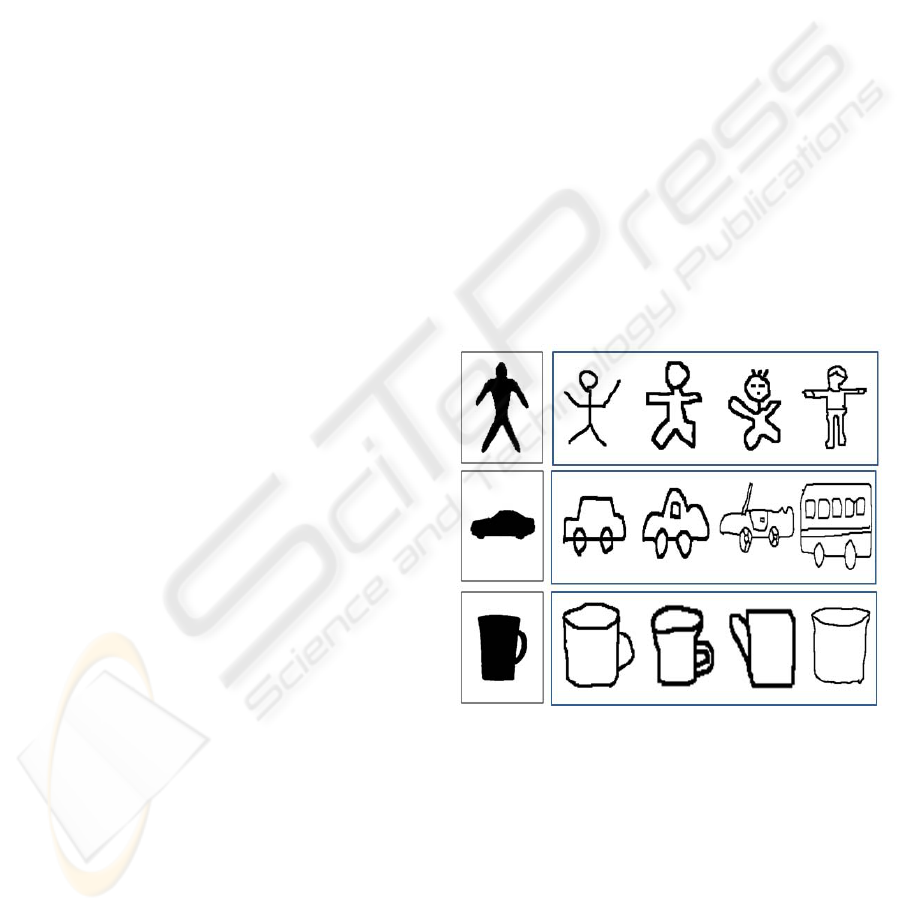

Figure 1: Comparison of the images <human, car, cup> in

a database and in sketches. The sketched images are quickly

drawn and easily created to visualize their shape, but they

are different from user to user.

their characteristics and classify the images into cate-

gories. Therefore, the sketched query image needs to

be transformed into a computer-suited representation.

Then robust features can be extracted that relate to the

intention of the user.

In this paper, we develop a query-by-sketch-based

292

Min Yoon S. and Kuijper A. (2010).

OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 292-299

DOI: 10.5220/0002818702920299

 SciTePress

Our approach is composed of tree steps: i) sketched query

image transformation for size normalization, and

binarization, ii) skeletal feature extraction using NGVF,

and iii) similarity measuring to correctly detect and retrieve

the images in database.

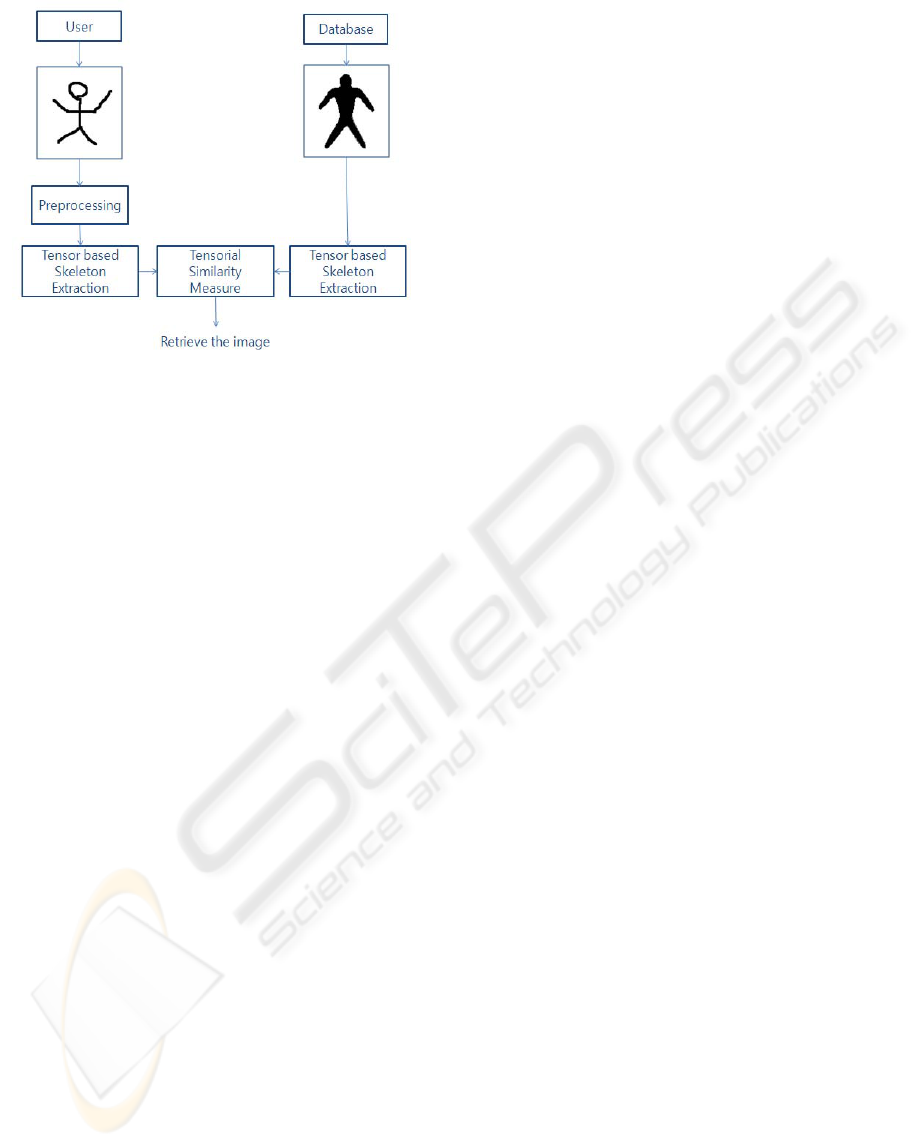

Figure 2: Structure of our proposed query-by-sketch based

target object retrieval system.

target object detection and retrieval system by un-

derstanding the sketched query image, extracting the

skeletal features of query image and database images,

and measuring the similarity to correctly detect or re-

trieve the most similar object in database.

Figure 2 shows our methodology which we will

explain in detail further on. First, the query-by-sketch

image needs to be normalized to extract the efﬁcient

features by transforming the roughly sketched query

image. We then extract the skeleton from binarized

sketched image by using a novel topological analy-

sis in the space of Normalized Gradient Vector Flow

(NGVF) ﬁelds within a given image. Lastly, we re-

trieve the most similar object by measuring their ten-

sorial feature characteristics.

Our proposed methodology has the following ad-

vantages compared to previous vector ﬁeld based

skeleton extraction and object retrieval technique:

(1) There is no need to determine a priori-

information from images in the database or the sketch

query image to detect the target objects.

(2) Our proposed methodology shows an im-

proved skeleton extraction from a sketch image that

includes a singular region.

(3) We can easily detect and retrieve the images in

a database by its skeletal characteristics.

2 PREVIOUS WORK

Our query-by-sketch based image retrieval approach

is based on some computer vision and image pro-

cessing techniques. In this section, we brieﬂy sur-

vey the previous work which is closely related to our

approach, like sketch based image retrieval systems,

skeletal feature extraction and its similarity measures,

and diffusion tensor based object representations.

2.1 Sketch based Image Retrieval

Systems

Research on image retrieval has been carried out in

several ﬁelds such as computer vision, computational

geometry, CAD/CAM, and molecular biology. Con-

tent based Image Retrieval (CBIR) systems allow

users to search images in media databases in order

to derive meaningful features, as well as to measure

the dissimilarity of visual objects by distance func-

tions (Maree07, Veltkamp01). Sketch based Image

Retrieval (SBIR) systems have been developed as one

of part of CBIR.

SBIR systems started from 2D image retrieval and

were recently extended to 3D model retrieval and edit-

ing methods (Ip et al., 2001; Matusiak et al. 1998;

Yang and Xiao, 2008). SBIR was developed to over-

come the limitations of previously well-known ap-

proaches such as keyword or query-by-example based

image retrieval. (Funkhouser et al., 2003) introduce

a web-based search engine that has query images

based on 2D or 3D sketches using a spherical har-

monics shape descriptor. Hou et al. (Hou and Ra-

mani, 2007) also presented a 3D model retrieval sys-

tem using view-dependent 3D shape descriptors. The

obvious advantage of this method is its ease for users

to generate and retrieve the images. However, the

boundary contours of each target object from different

view directions, or information on incomplete shapes

are needed and have to be prepared during a prepro-

cessing phase. Fourier descriptors and Zernike Mo-

ments can also be used to match the sketched query

image on retrieved images from a database (Hou and

Ramani, 2007).

2.2 Skeleton Extraction

Previous skeleton computing methodologies can be

roughly classiﬁed into three categories according to

their approach: i) topological thinning, ii) distance

transform based skeleton extraction, and iii) geomet-

ric modelling from the work of Blum (Blum, 1976),

who deﬁned the skeleton using the Medial Axis

OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES

293

Transform (MAT). However, existing skeleton extrac-

tion methodologies are still weak because of their

high computational complexity, noise sensitivity, cen-

teredness inside the underlying complex shape, and

partial occlusion or artifacts within a singular region

(Bai07,Bitter01,Chalecheale05,Ma03).

2.3 Diffusion Tensor Fields

Most CBIR and skeleton extraction systems are based

on vector ﬁelds which are generated from a given im-

age by different physical properties. Few work are in-

vestigated to extract the features in the space of diffu-

sion tensor ﬁelds. Diffusion tensor ﬁelds (with a focus

on symmetric, second order ones) are useful in many

medical, mechanical, and physical applications such

as ﬂuid dynamics, meteorology, molecular dynam-

ics, biology, astrophysics, mechanics, material sci-

ence and earth science. (Basser et al., 1994) presented

their work on diffusion tensor magnetic resonance

imaging (DT-MRI). Using this new MRI modality, it

was possible to qualify anisotropic properties of the

imaged tissue by characterizing the water diffusion.

3 OUR APPROACH

In this section, we will explain our proposed approach

for target object detection and retrieval using query-

by-sketch image. It is composed of the three steps; i)

sketched query based image transformation, ii) skele-

tal feature extraction using Normalized Gradient Vec-

tor Flow in the space of diffusion tensor ﬁelds, and

iii) similarity measuring between a query image and

an image dataset or target images.

3.1 Sketched Query Image

Transformation

For sketch images which are drawn by users it is very

difﬁcult to understand their characteristics, because

users sometimes omit important features or draw in

detail with noisy lines. We therefore ﬁrst transform

the sketched query image to a simpliﬁed one in order

to easily search and measure the similarity within a

database. We transform the sketched image by using

size normalization, labelling, and binarization meth-

ods.

The imported query-by-sketch image which is

usually a rough and simple black hand-drawn ﬁgure

with draft lines is ﬁrstly normalized to a size of 50 ×

50 pixels. Then, we label the sketched query image

(black / white). Separation of foreground and back-

ground of the sketched image is as follows: First, we

(a) Examples of user drawn sketched images.

(b) Transformed sketch images for skeletal feature

extraction.

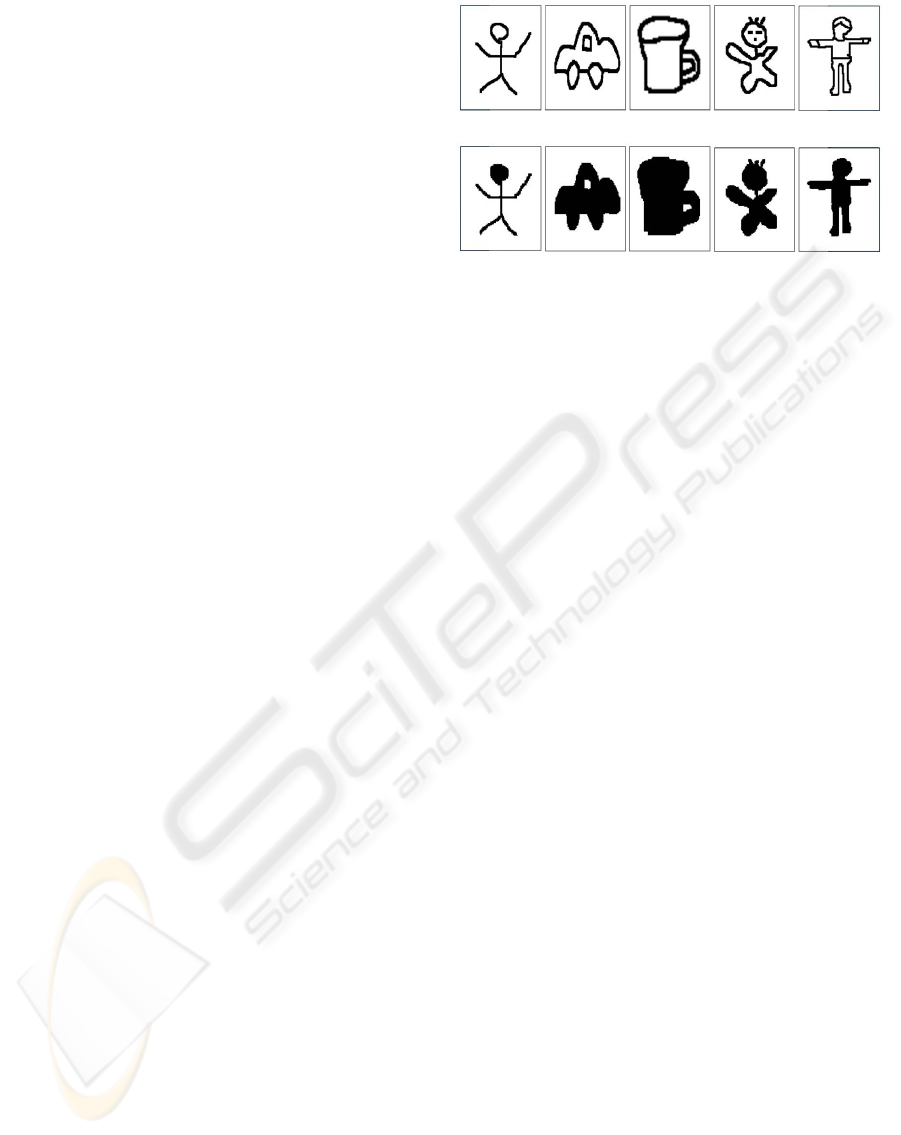

Figure 3: Sketch image transformation for skeleton extrac-

tion.

recognize the labels which neighbor the background

as foreground (that is, the black sketched parts). From

the foreground labels, we iteratively check the label’s

connectivity with neighbor labels and separate back-

ground and foreground by adding background (white)

labels to foreground when they are inside the object.

Figure 3 shows the binarized query images that follow

our proposed size normalization, labeling, and bina-

rization scheme.

3.2 Skeletal Representation in Tensor

Space

In this section, we will explain how we extract the

skeletal features for measuring the similarity between

query and database. It has been shown in literature

that the skeletal feature based image retrieval systems

are more efﬁcient than shape based image retrieval

systems (Zhang07). This is basically because skeletal

features of a given image reduce data, while keeping

its characteristics and being robust in singularities and

under partial occlusion.

3.2.1 NGVF Fields from a Given Image

The Gradient Vector Flow (GVF) is a vector diffusion

approach using Partial Differential Equations (PDEs).

It converges towards the object boundary when it is

very near to the boundary, but it varies smoothly over

homogeneous image regions extending the image bor-

der. Originally, GVF ﬁelds were proposed to solve the

problem of initialization and poor convergence to the

boundaries of concave objects yielding a traditional

snake form (Xu and Prince, 1998). The main advan-

tage of GVF ﬁelds is that it is able to capture a snake

over a long range and to force it into concave regions

(Hassouna and Farg, 2007). Mathematically deﬁned,

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

294

the GVF is the vector ﬁeld v that minimizes the fol-

lowing energy functional:

ε =

Z Z

µ(u

)+||∇ f ||

||v−∇ f ||

dxdy.

(1)

Here v = [u(x, y), v(x, y)], and the initial value of

v(x,y) is determined by ∇ f (x, y). ∇ f (x,y) is the gra-

dient image derived from a given image. µ is a reg-

ularization parameter that is to be set based on noise

present in image. Minimizing this energy will force

v(x, y) to be nearly equal to the gradient of the edge

map, where ||∇ f (x, y)|| is large. Nevertheless, the

general GVF method cannot efﬁciently extract the

medial axis, since a weak vector has very little impact

on its neighbors that have much stronger magnitudes.

A Normalized Gradient Vector Flow (NGVF) can

tremendously affect a strong vector, both in magni-

tude and in orientation by normalizing the vectors

over the image domain during each diffusion iteration

(Yu and Bajaj, 2002).

The traditional GVF has difﬁculty preventing the vec-

tors on the boundary from being signiﬁcantly inﬂu-

enced by the nearby boundaries and thus cause a prob-

lem such that the ”snake” may move out of the bound-

ary gap. NGVF avoids this problem by normalizing

its direction and magnitude (Yoon et al, 2009).

3.2.2 Skeleton Extraction with Diffusion Tensor

Field

Previous skeleton extraction and structural analysis

techniques are computed in a vector ﬁelds and their

topologies are obtained by locating critical points and

displaying the set of their connecting streamlines.

When it comes to representing and analyzing the di-

rections of NGVF from a given image, tensor ﬁelds

provides more information than vector ﬁelds. The

tensor ﬁeld is deﬁned as a symmetric, second-order

matrix at each point as follows:

T ( ¯x) =



(x, y) T

(x, y)

(x, y) T

(x, y)



(2)

T ( ¯x) is can be expressed using its eigensystem as

T ( ¯x) ¯e

( ¯x) = λ

( ¯x) ¯e

( ¯x), (3)

where i=1,2, λ

( ¯x) are the eigenvalues of T (¯x), and

¯e

( ¯x) deﬁne the eigenvectors. Details of the skele-

ton extraction and ellipsoidal representation from a

binalized target object can be found in e.g. (Yoon

and Graf, 2009). The scale and orientation of each

ellipse at each pixel are determined by its eigenval-

ues and eigenvectors. Figure 4 is a conceptual repre-

sentation of an edge image with extracted eigenvalues

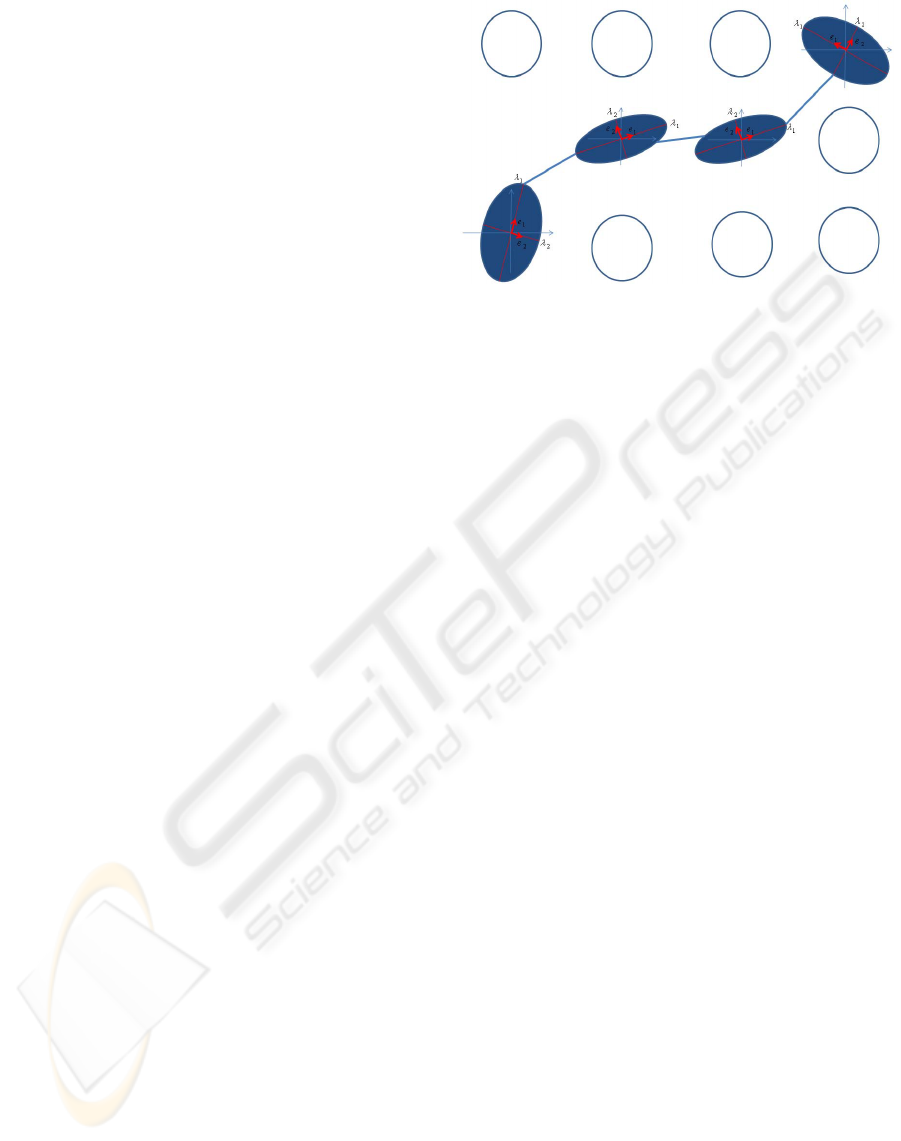

Figure 4: Each pixel of image can be represented as ex-

tracted eigenvalues and eigenvectors which are extracted

from tensorial properties. In a given image, we separate

the edge and other pixels using edge detection. Edge pixels

are expressed as ellipsoid with their eigenvalues and eigen-

vectors and other pixels are shown as circles.

and eigenvectors. The ratio between eigenvalues de-

termines the shape of the ellipsoids, their sum deﬁnes

their scale and its principal eigenvector direction de-

ﬁnes the rotation of the ellipsoid. Using these tenso-

rial elements in each pixel, we can reduce the pixels

of the images within a database and the query image

to an ellipsoidal representation.

Figure 6a shows the skeletons of images which

are extracted by analyzing the tensorial features and

Figure 6b displays the skeletal characteristics with

ellipsoidal representation using the eigenvectors and

eigenvalues which are calculated from the tensor ele-

ments.

3.3 Similarity Measure between Sketch

and Database Images

Before measuring the similarity, we separate the ex-

tracted skeleton into several branches. Thus, we can

express the skeletal features from the sketched query

image, I

, and the image in database I

, as

= { f

, f

, ..., f

p−1

, f

}

and

= { f

, f

, ..., f

q−1

, f

where p and q are the number of branches in I

and

, respectively. Figure 6 shows the F

and F

us-

ing example images and their skeletal features. The

scale and rotation of each branch are represented its

averaged eigenvalues and eigenvectors. The tensorial

elements and eigen-features of F

and F

are used to

measure the similarity measure between images.

OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES

295

(a) Skeleton extraction from binarized sketched and

database images.

(b) Ellipsoidal representation of the extracted

skeleton of the target objects.

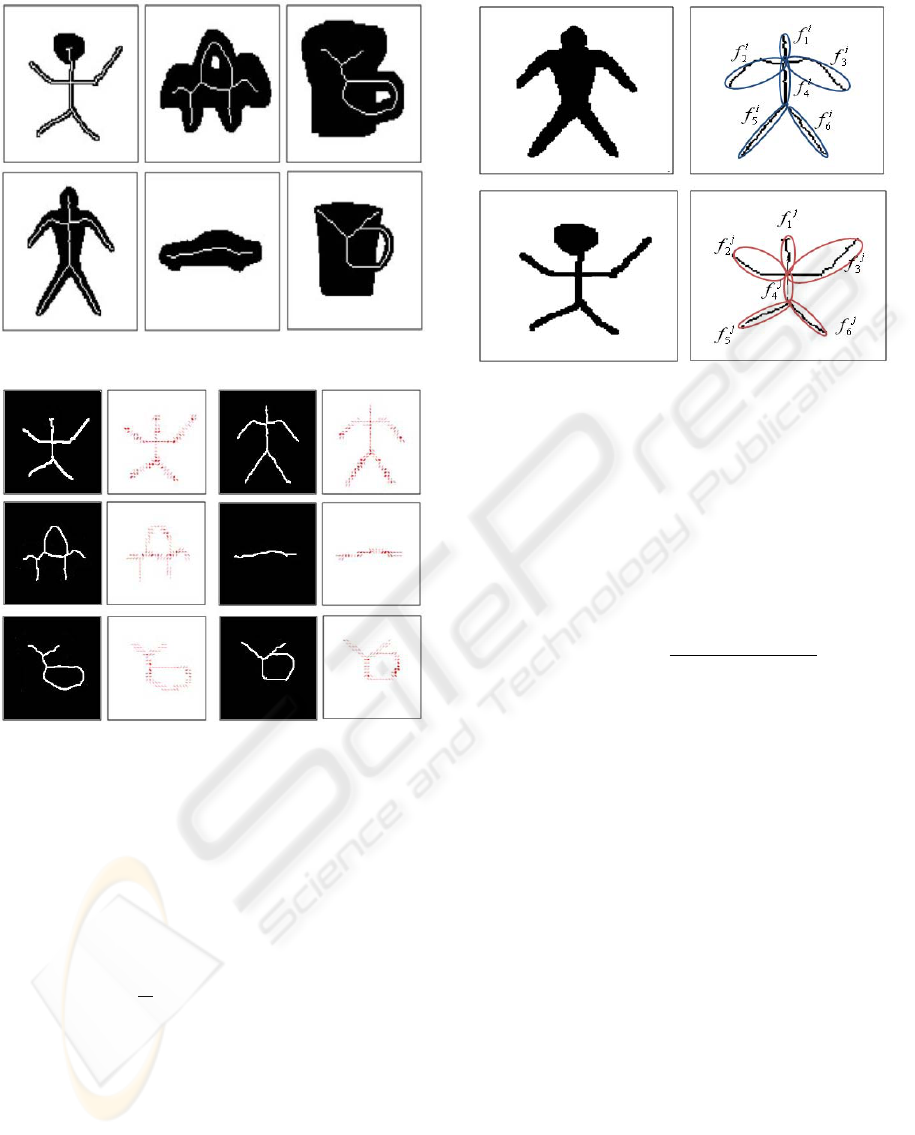

Figure 5: Skeleton extraction and the ellipsoidal represen-

tation of target objects using their tensorial properties.

The score matrix of many to many matching of

skeletal features can be expressed as:

Score

matrix







i j

··· s

i j

··· s

i j

. ··· ···

i j

··· s

i j







, (4)

where N is a normalization factor. Since the score

matrix in tensorial analysis is the proper choice of the

similarity measure to be used, we will explain in the

following how to extract the s

i j

Given two tensorial elements, T

, and T

the

most simple comparison between two tensor quan-

tities is the tensor dot product (Delarcelle and Hes-

selink, 1994):

Figure 6: Ellipsoidal representation of branches by using

averaged eigenvalues and eigenvectors. The similarity mea-

sure between image is determined by characteristic of F

and F

, T

) = λ

1,i

1, j

1,i

· e

1, j

)

+ λ

2,i

2, j

2,i

· e

2, j

)

(5)

One such example is the tensor Euclidean distance ob-

tained by using the Frobenius norm (Alexander99).

Due to its simplicity, tensor Euclidean distance

has been used extensively in DTI restoration.

, T

) =

Trace((T

− T

)

). (6)

From various similarity measure methods, we mea-

sure the similarity measure as the multiplication of

Eqs. (5-6):

i j

= d

, T

) ·d

, T

). (7)

This combines the properties of the two similarity

measures, namely the difference in scale and the dif-

ference in angle of elliptical tensorial elements.

The score matrix s

i j

is merged to each labeled

branch and we can recalculate the similarity measure

between the labels. The ﬁnal score is determined by

combining the minimum similarity values from each

branch.

4 EXPERIMENTS

We performed experiments in order to extract the

skeleton of query by sketch images using our pro-

posed approach. As we explained in section 3, the

imported sketch images are converted to a binary for-

mat with a 50 × 50 pixel size to correctly detect and

retrieve the target objects in the database. Afterwards,

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

296

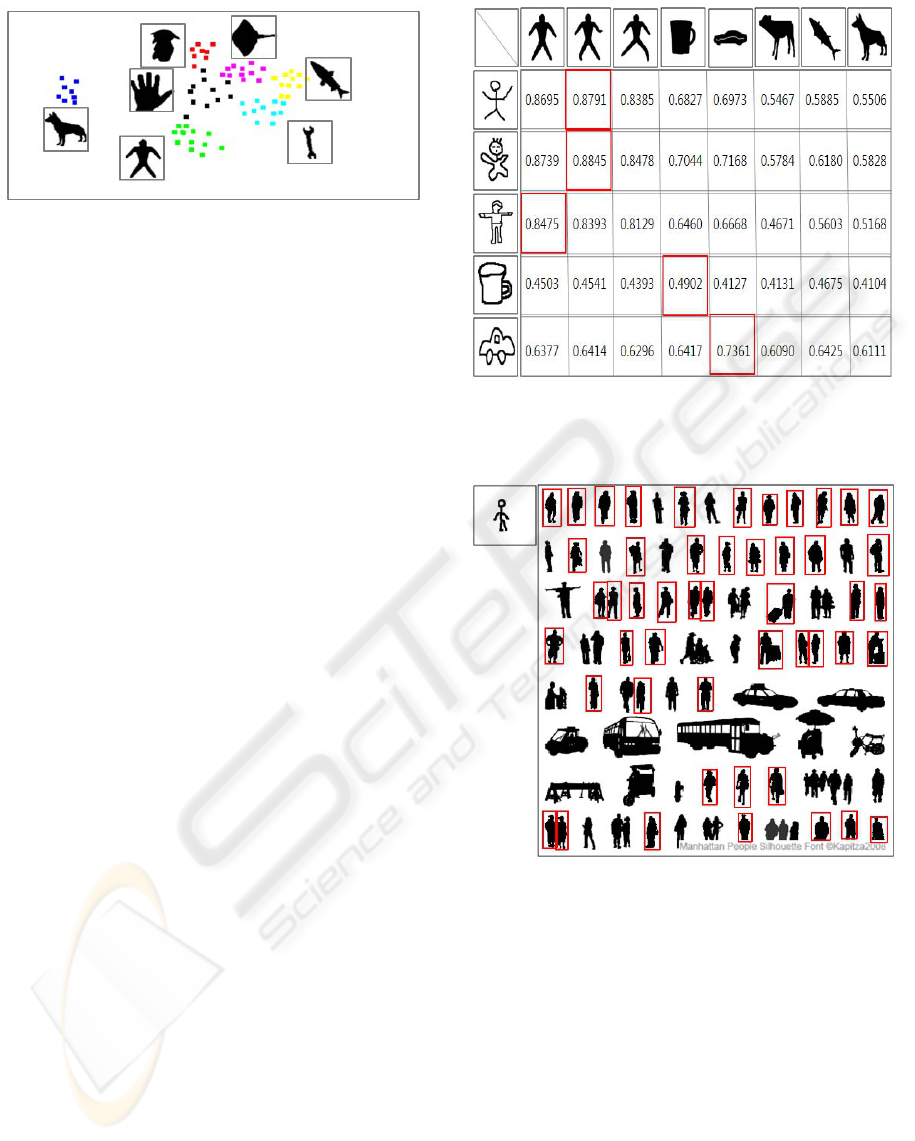

Figure 7: Classiﬁcation of target objects in LEMS 99 image

dataset using our proposed similarity measure. The images

are the representative image in each class which is painted

by different color.

we measure the similarity between a query image and

the database images.

Before search the most similar target object in the

LEMS 99 image dataset, we classify the target ob-

jects using our proposed skeletal feature extraction

and similarity measure methodology shown in Fig-

ure 7. One can see that the two degree of freedom

correctly clustered the images. Figure 8 shows the

sketched and some retrieved objects with their simi-

larity measure in a matrix showing the query images

and some images from the LEMS 99 image dataset.

The red box shows the highest score of a sketched

query image and the found image from the dataset.

We only showed a selection with the best scores form

the LEMS data base for visualization purposes.

Figure 9 shows the extracted silhouettes given one

sketched query image. The test image is composed

of various human body objects and others including

cars. We ﬁrst labeled each object and measured the

similarity between the query image and the various

target objects in image. The target objects which are

painted with a red box are the detected objects from

the simply sketched query image. Figure 9 also shows

that our approach is very robust in partial occlusion

and pose transform of human body object. Obviously,

adding more sketch input images with different topo-

logical properties would increase the number of posi-

tive detections - like persons with both arms and legs

occluded / coinciding, etc. However, given only one

general query image we were already able to detect

most of the humans.

We also tested our proposed method on various

users to see how our system performs on input query

images that differ from user to user. We asked user

to draw a chair and searched for the closed hits in a

chair data base. Figure 10 shows the retrieved ”chair”

images from 5 different users. As we asked them to

draw the chair without specifying further information,

the drawn sketch images differ from case to case. The

score value and ordering is different according to the

Figure 8: Similarity measure evaluation test using one

sketched image. The red box highlights the highest scored

target object in the database.

Figure 9: Extraction of matched silhouettes from one given

image. The red box highlights target objects that are de-

tected from this given sketched query image.

similarity measure. Especially, the best scores of the

retrieved images for user 4 are lower than the others

retrieved top ranked images, because the database in

the chair class does not have similar pictures.

5 CONCLUSIONS AND FUTURE

WORK

The query-by-sketch based image retrieval system is

a very efﬁcient method to express users’ intension

for Human Computer Interaction. The performance

OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES

297

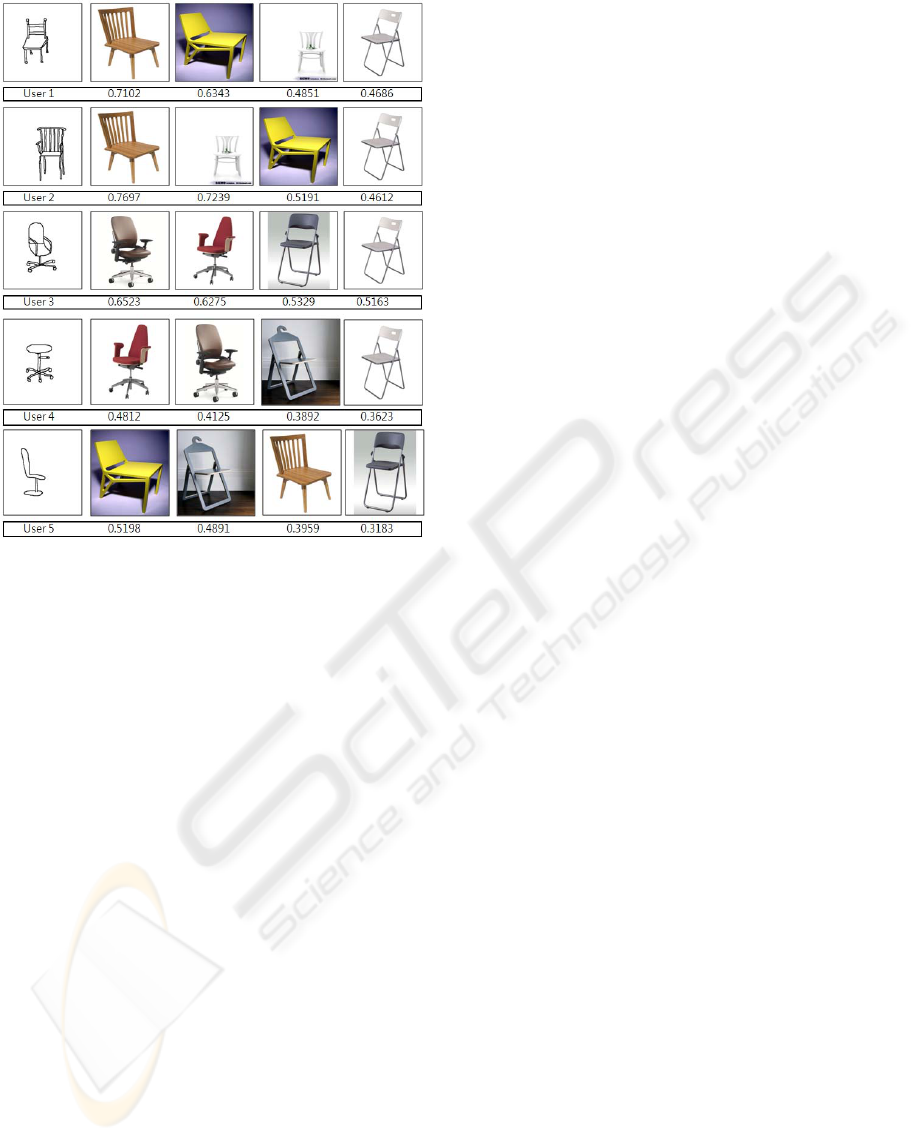

Figure 10: Image retrieval for a sketched ”chair” image

from various users.

of SBIR systems is very dependent on the nature of

complex image data, on the extraction of meaningful

features from complex images, and on the similarity

measure determined by a roughly sketched image.

In this paper, we have presented our approach for

extraction of tensorial features and the measurement

of similarities, as well as enhanced image classiﬁca-

tion techniques. The essential idea is based on an

analysis of a tensor topology in order to extract the

ellipsoidal characteristics of features. We have also

shown that our methodology is very efﬁcient in re-

trieving the most similar images from a large reposi-

tory in a short time. It is scalable due to the addition

of new images into the database.

Our proposed sketch based image retrieval system

is not limited to 2D image search and retrieval. We

are currently working on extending our methodology

to understanding of 2D/3D motions of target objects.

Especially, we are focusing on a 3D structural analy-

sis of objects in the space of tensor ﬁelds.

REFERENCES

Alexander, D., Gee, J., and Bajcsy, R. (1999). Similarity

measures for matching diffusion tensor images. In

Proceedings of BMVC.

Bai, X., Latecki, L. J., and Liu, W. Y. (2007). Skeleton

Pruning by Contour Partitioning with Discrete Curve

Evolution. IEEE trans. on PAMI.

Basser, P. J., Mattiello, J., and Le Bihan, D. (1994). MR

diffusion tensor spectroscopy and imaging. Biophys

Journal.

Bitter, I., Kaufman, A. E., and Sato, M. (2001). Penalized-

distance volumetric skeleton algorithm. IEEE trans.

on Visualization and Computer Graphics.

Blum, H. (1976). A transformation of extracting new de-

scriptions of shape. Models for Perception of Speech

and Visual Forum.

Chalecheale, A., Naghdy, G., and Mertins, A. (2005).

Sketch-Based Image Matching Using Angular Parti-

tioning. IEEE trans. on Systems, man, and cybernet-

ics.

Delarcelle, T., and Hesselink, L. (1994). The topology of

symmetric, second-order tensor ﬁelds. In Proceedings

of IEEE Visualization.

Funkhouser, T., Min, P., Kazhdan, M., Chen, J., Halderman,

A., Dobkin, D., and Jacobs, D. (2003). A search en-

gine for 3D model ACM trans. on Graphics.

Han, J. Y. (2006). Multi-touch interaction wall. In SIG-

GRAPH ’06: ACM SAIGGRAPH Emerging technolo-

gies.

Hassouna, M. S., and Farg, A. A. (2007). On the extraction

of Curve skeletons using Gradient Vector Flow. In

Proceedings of ICCV.

Hou S., and Ramani, K. (2007). Classiﬁer combination for

sketch-based 3D part retrieval. Journal of Computers

Graphics.

Ip, H. H. S., Cheng, A. K. Y., Wong, W. Y. F., and Feng,

J. (2001). Afﬁne-invariant sketch-based retrieval of

images. InProceedings of ICCG.

Kim, J., Park, J., Kim, H., and Lee, C. (2007). HCI using

multi-touch tabletop display. Communications, Com-

puters, and Signal Processing, PacRim.

Ma, W. C., Wu, F. C., and Ouhyoung, M. (2003). Skeleton

extraction of 3D objects with radial basis functions In

Proceedings of the Shape Modeling.

Maree, R., Geurts, P., and Wehenkel, L. (2007). Content-

Based Image Retrieval by Indexing Random Subwin-

dows with Randomized Trees. In Proceedings of

ACCV.

Matusiak, S., Daoudi, M., Blu, T., and Avaro, O. (1998).

Sketch-based images database retrieval. In Proceed-

ings of Int. Workshop Adv. Multimedia Information

System.

Vasconcelos, N., and Lippman, A. (2000). A Probabilistic

Architecture for Content-based Image Retrieval. In

Proceedings of CVPR.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

298

Veltkamp, R. C., Burkhardt, H., and Kriegel, H. P. (2001).

State-of-the Art in Content Based Image and Video

Retrieval. Kluwer Adcademic Publshers.

Xu, C., and Prince, J. L. (1998). Snakes, shapes, and gradi-

ent vector ﬂow. IEEE trans. on Image processing.

Yang, G., and Xiao, Y. (2008). A robust similarity measure

method in CBIR system. In Proceedings of Congress

on ISP.

Yoon, S. M., and Graf, H. (2009). Automatic skeleton ex-

traction and splitting of target objects. IEEE ICIP.

Yoon, S. M., Malerczyk, C., and Graf, H. (2009). 3D skele-

ton extraction from volume data based on Normalized

Gradient Vector Flow. In Proceedings of WSCG.

Yu, Z., and Bajaj, R. (2002). Normalized gradient vector

diffusion and image segmentation. In Proceedings of

ECCV.

Zhang, E., Hays, J., and Turk, G. (2007). Interactive tensor

ﬁeld design and visualization on surfaces. IEEE trans.

on Visualization and Computer Graphics.

OBJECT RETRIEVAL BASED ON USER-DRAWN SKETCHES

299
