MULTI-OBJECT TRACKING BASED ON SOFT ASSIGNMENT OF

DETECTION RESPONSES

Sami Huttunen and Janne Heikkilä

Machine Vision Group, Department of Electrical and Information Engineering, University of Oulu

P.O. Box 4500, FIN-90014, Oulu, Finland

Keywords:

Multi-object tracking, Kalman ﬁlter, Data association.

Abstract:

We introduce a new detection-based method that is able to track multiple objects from a single camera. The

method is built upon an approach that combines Kalman ﬁltering and the Expectation Maximization (EM)

algorithm. The beneﬁt of this approach is that soft assignment of the detections to corresponding objects can

be performed automatically using their a posteriori probabilities. This is a general approach for detection-

based multi-object tracking, and there are various ways to detect the objects. In this paper, we demonstrate the

applicability of the approach for tracking multiple pedestrians and faces using a basic cascade detector.

1 INTRODUCTION

Tracking is an essential part of current computer vi-

sion applications. Especially many modern visual

surveillance and human computer interaction systems

rely on reliable multi-object tracking. In principle

tracking over time involves matching objects in con-

secutive frames using features such as points, lines or

blobs. One difﬁculty in the application of multi-object

tracking involves the problem of getting reliable ob-

servations and associating them with the appropriate

objects. The association process would be simple if

there were only one measurement for each object, but

in order to get reliable information about the position,

the number of observations has to be larger.

One approach to address the limitation of getting

reliable measurements is to combine tracking with de-

tection. Previously detection has been used to initial-

ize new objects or detectors are applied only to se-

lected frames. Between the detections tracking has

been carried out, for example, by a method based

on color or texture features. Due to increased com-

putational power, it is nowadays possible to use de-

tectors for every frame instead of just some frames.

Therefore the approaches using detector responses di-

rectly as observations for tracking are gaining more

and more attention.

Since a typical object detector (Viola and Jones,

2001) is insensitive to small changes in translation

and scale, multiple detection responses will usually

occur around each object in a scanned image, and typ-

ically it often makes sense to return one ﬁnal detection

per object. To obtain this kind of result, it is there-

fore useful to post process the detected sub-windows

in order to combine overlapping detections into a sin-

gle detection. However, it is unclear how fusing mul-

tiple overlapping detections to yield the ﬁnal object

detections should be performed. Unfortunately it is

also difﬁcult to distinguish the false positives using

the post processing, and in some cases a detector can

also output inaccurate responses. The output of the

detector can be thought of as a series of noisy mea-

surements, and therefore our approach uses the orig-

inal detector responses as a set of measurements and

assigns them to the objects currently tracked. In that

way we can leave out the problematic post processing

entirely and at the same time get a number of mea-

surements for tracking.

We present a novel method, which utilizes soft as-

signment to associate the detection responses to the

objects tracked. Due to soft assignment it is able to

cope with inaccurate responses and inter-object oc-

clusions. The method includes a component which

combines the Kalman ﬁltering algorithm (Kalman,

1960) and the expectation maximization (EM) algo-

rithm (Dempster et al., 1977) to estimate the parame-

ters of the objects tracked and to assign the measure-

ments softly. One of the beneﬁts of this approach is

also that neither iterations nor long measurement his-

tory are needed. The basic idea of the Kalman-EM al-

gorithm was originally presented by Hannuksela et al.

(2007) and later it was used for multi-object tracking

296

Huttunen S. and Heikkilä J. (2010).

MULTI-OBJECT TRACKING BASED ON SOFT ASSIGNMENT OF DETECTION RESPONSES.

In Proceedings of the International Conference on Computer Vision Theory and Applications, pages 296-301

DOI: 10.5220/0002820602960301

 SciTePress

for the ﬁrst time (Huttunen and Heikkilä, 2008). Here

we extend the previous work (Huttunen and Heikkilä,

2008), and propose a new method for tracking multi-

ple objects from image sequences using detector re-

sponses as measurements. This makes it possible to

initiate new objects, as well as terminate tracks that

are no longer valid. In addition, the proposed method

is able to adjust the scale of the objects tracked. The

method presented by Huttunen and Heikkilä (2008)

does not provide any of these capabilities.

One of the beneﬁts of detector based tracking is

that it enables to track only the objects of interesting

category, for instance, humans or their faces. Another

advantage is that we are not required to use a static

camera as is the case with multi-object tracking

methods relying on background subtraction.

Related Work. The Kalman ﬁlter (Kalman, 1960) is

widely used in the context of tracking with noisy mea-

surements and data association. In multiple hypoth-

esis tracking (MHT) algorithm (Reid, 1979), target

states are estimated from data-association hypotheses

using the Kalman ﬁlter. For each measurement, prob-

abilities are calculated for hypotheses that the mea-

surement came either from previously known targets

or from a new target. The MHT algorithm is computa-

tionally exponential both in memory and time. Later

Joo and Chellappa (2007) have proposed an improved

algorithm based on MHT. Another classical approach

for data association is Joint Probabilistic Data Associ-

ation Filter (JPDAF) (Fortmann et al., 1983), in which

joint posterior association probabilities are computed

for multiple targets or multiple discrete interfering

sources in Poisson clutter. The major limitation of

the JPDAF algorithm is its inability to initialize new

objects entering the scene and to deal with objects ex-

iting the scene.

There exists a wide variety of detection meth-

ods. At one end of the spectrum are part-based de-

tectors (Mikolajczyk et al., 2004; Wu and Nevatia,

2005), which represent an object as an assembly of

distinct parts. At the other end are detection methods

(Gavrila, 2000; Viola and Jones, 2001) that try to ﬁnd

a speciﬁc object as a whole.

One way of integrating detection and tracking is

to link detection responses in consecutive frames.

Huang et al. (2008) present a detection-based three-

level hierarchical association approach. The more re-

cent work by Singh et al. (2008) introduces a two-

stage multi-object tracking approach using a pedes-

trian detector and association of track segments.

Leibe et al. (2007) have introduced an approach which

considers object detection and space-time trajectory

estimation as a coupled optimization problem.

When comparing the aforementioned methods

(Huang et al., 2008; Leibe et al., 2007; Singh et al.,

2008) with our work, the biggest difference is that

we associate the detector responses to objects with-

out utilizing trajectory history. This means we do not

need iterations or long measurement history in order

to track the objects. In addition, the tracking algo-

rithm presented in this paper is not dependent on a

speciﬁc object detector or object category. Later in

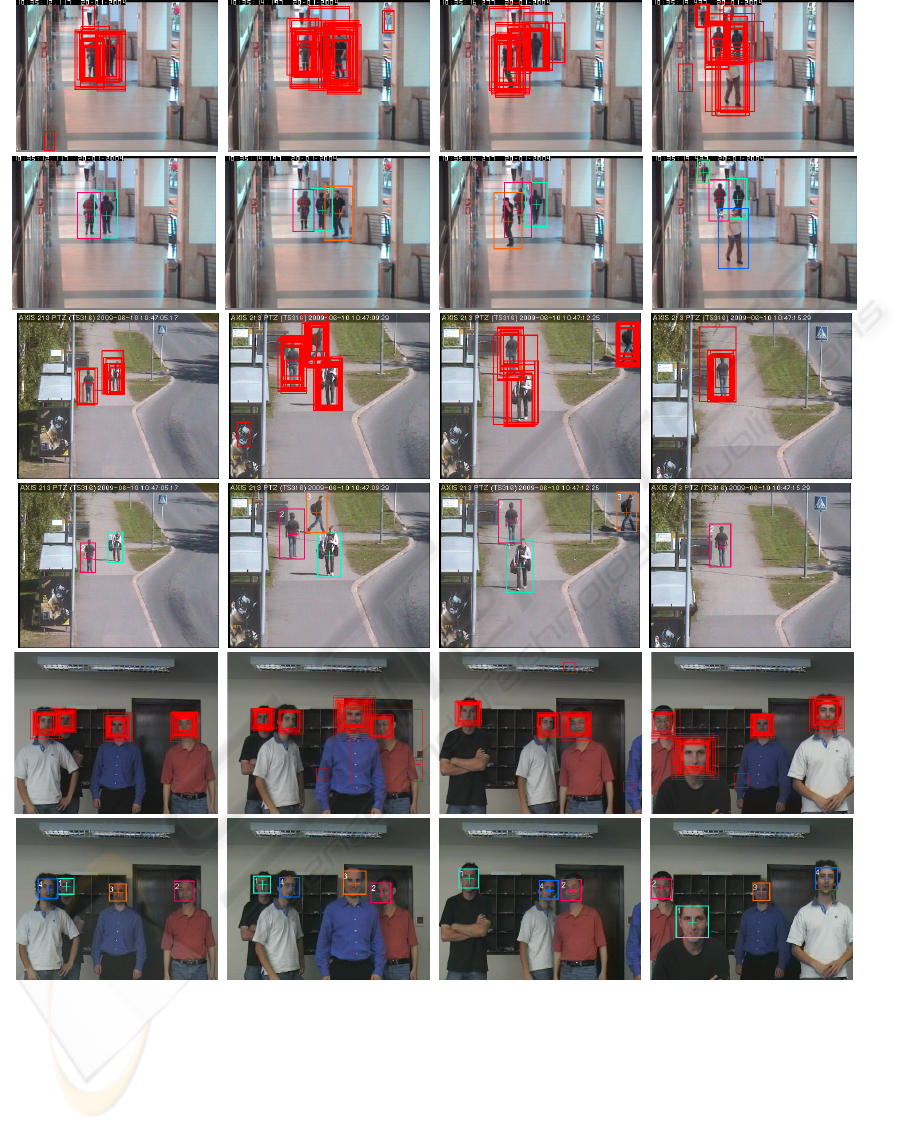

Section 3 we demonstrate the applicability of the ap-

proach for tracking multiple pedestrians and faces us-

ing a basic cascade detector.

The rest of the paper is organized as follows. Sec-

tion 2 describes the tracking algorithm in detail, and

experimental results are reported in Section 3. Fi-

nally, Section 4 concludes the paper.

2 TRACKING ALGORITHM

Our multi-object tracking method is based on soft as-

signment of detector responses. For every frame, ﬁrst

an object detector is applied and the resulting output

is passed to the actual tracking algorithm. If there are

responses that are not assigned to any object, possi-

bly new objects are initialized. On the other hand, if

an object does not get any measurements it might be

necessary to end tracking it.

2.1 Object Detection

The object detector used in this work is built on the

cascade system proposed by Viola and Jones (2001)

and improved by Lienhart and Maydt (2002). Like

any other detectors based on a binary object/non-

object classiﬁer, the detector scans the image with a

detection window at all positions and scales, running

the classiﬁer in each window and yielding multiple

overlapping detections.

It is worth noting that the tracking algorithm pre-

sented in this paper is not bound up with any speciﬁc

detector. The only requirement the object detector

used has to meet is that it must be able to output the

bounding boxes of the objects in a single frame.

2.2 Kalman-EM Algorithm

In order to track multiple objects we are using a

method, which utilizes soft assignment to associate

the detection responses to the corresponding ob-

jects. The method embeds the EM algorithm into the

Kalman ﬁltering algorithm to estimate the parameters

of the objects tracked.

MULTI-OBJECT TRACKING BASED ON SOFT ASSIGNMENT OF DETECTION RESPONSES

297

System model. We assume that each object

j = 1, . . . , M is represented by a vector x

, u

, t

, v

]

of four state variables which contain

information about the object’s position (s

, t

) and

velocity (u

, v

) in the X and Y directions respec-

tively. It should be noted that the dimensions of the

object are not included in the state model and are

therefore updated separately as shown later. Since the

object tracked is represented as a point, then only a

translational model can be used, and the state-space

model of the object j can therefore be formulated as

(k) = Φx

(k − 1) + Γε

(k − 1), (1)

where x

(k) denotes the state of the object j at time

step k, and Φ =



1 1 0 0

0 1 0 0

0 0 1 1

0 0 0 1



, Γ =



0.5 0

1 0

0 0.5

0 1



are the the

state transition and disturbance matrices respectively.

Finally, ε

(k) is the process noise term, which is

assumed to be zero-mean white Gaussian noise with

a 2 × 2 covariance matrix Q

= σ

Measurement Model. Let us denote a detection re-

sponse by r

= [r

]

, in which (r

) are

the pixel coordinates of the center of the bounding

box, and (r

) are the dimensions. The observa-

tion i of the position l

= [r

]

is assumed to fol-

low the measurement model

(k) = H

j=1

i,j

(k) + η

(k), (2)

where M is the number of objects being tracked,

H = [

1 0 0 0

0 0 1 0

] is the measurement matrix, and λ

i,j

a hidden binary assignment variable which indicates

the object that generated the measurement. η

(k)

is the observation noise, which is assumed to obey

zero-mean Gaussian distribution with a covariance

matrix R. In addition, the process noise ε

(k)

and the observation noise η

(k) are assumed to be

independent of each other.

Soft Assignment. It follows from equations (1) and

(2) that the observations {l

}

i=1

form a set of 2-D

points that follow a dynamically evolving Gaussian

mixture model where the mean values of the com-

ponents change during the course of time. Were the

values of the binary assignment variables λ

i,j

known

beforehand, it would be possible to accomplish state

estimation simply by using M ordinary Kalman ﬁl-

ters independently. Since this information is not

available in general, we are compelled to estimate

the assignments as well. For this purpose, we use

an algorithm (Hannuksela et al., 2007; Huttunen and

Heikkilä, 2008), which efﬁciently combines Kalman

ﬁltering and the EM algorithm. It has been shown ex-

perimentally that the algorithm converges to the mean

values of the mixture components. A detailed descrip-

tion of the above-mentioned algorithm is given in Al-

gorithm 1.

When applying the algorithm, the basic assump-

tion is that there are M distributions corresponding

to different objects, and the location measurements

}

i=1

are originating from them. Having the previ-

ous estimate of distribution parameters, we can eval-

uate a posteriori probabilities of the measurements to

obtain the soft assignments w

i,j

∈ [0, 1]. In this work,

the predicted estimates of x

(k) and P

(k) in con-

junction with a priori probabilities π

(k) of associ-

ating observations to the objects are used to compute

soft assignments w

i,j

using the Bayesian formulation.

It can be seen that this part corresponds to the ”E step”

of the EM algorithm.

Soft assignments are then used in computation of

the Kalman gains K

(k) which are needed to get the

ﬁltered estimates of x

(k). Traditionally one way of

thinking about the weighting by K

(k) is that as the

measurement error covariance R approaches zero,

the actual measurement is trusted more, while the

predicted measurement is trusted less. On the other

hand, as the a priori estimate error covariance P

−

(k)

approaches zero the actual measurement will have

smaller effect on the estimate, while the predicted

measurement is given more weight. However, in our

approach we have multiple measurements instead

of a single measurement and therefore we have to

estimate the uncertainties for each of them. The

principle is that the covariance matrix R

i,j

, which

represents the uncertainty of one measurement, is in-

versely proportional to w

i,j

, and directly proportional

to R. The small constant δ has the effect that the

measurements not belonging to any objects, in other

words, outliers, get very small weights and large

uncertainty values and are therefore discarded. This

part corresponds to the ”M step” of the EM algorithm.

Implementation Details. In the actual implementa-

tion of the ﬁlter, the measurement noise covariance is

usually measured prior to operation of the ﬁlter. Esti-

mating the measurement error covariance is possible

because we should usually be able to take some off-

line sample measurements in order to determine the

variance of the measurement noise.

When using detector responses as measurements

the system noise characteristics are not exactly

known. If too much emphasis were given to the dy-

namical model, the estimation would ignore the in-

formation from new measurements. It is even possi-

ble that this can lead to ﬁltering instability and diver-

gence. This can happen, for example, when an object

is at the same position for a very long time. In order

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

298

Algorithm 1: The combined Kalman ﬁlter and EM algorithm to estimate state using the given model.

Step 1. Predict estimate

−

(k) by applying dynamics (1)

ˆx

−

(k) = Φˆx

(k − 1) (3)

and predict error covariance P

−

(k)

−

(k) = ΦP

(k − 1)Φ

f + ΓQ

, f > 1. (4)

Step 2. Compute the weights w

i,j

for each position estimate l

using a

Bayesian formulation. Let π

(k) > 0 be the a priori probability of asso-

ciating a measurement with the object j



(k) = 1



. The weight

i,j

is the a posteriori probability given by



i,j

= 1



i,j

∝ p



| µ

(k), C

(k)



(k − 1), (5)

where the likelihood function p(·) is a Gaussian pdf, with mean

(k) = Hˆx

−

(k), (6)

and covariance

(k) = HP

−

(k)H

+ R. (7)

Step 3. Use the weights w

i,j

to set the observation noise covariance matri-

ces in (2) according to

i,j

= R(w

i,j

+ δ)

−1

, (8)

where δ is a small positive constant to prevent a division by zero. Compute

the Kalman gain

(k) = P

−

(k)O



−

(k)O

+ R



−1

, (9)

where R

is a block diagonal matrix composed of R

i,j

, and O =

[HH · · · H]

is the corresponding 2N × 4 observation matrix. Note

that if w

i,j

has a small value, the corresponding measurement is effectively

discarded by this formulation.

Step 4. Compute ﬁltered estimates of the state

ˆx

(k) = ˆx

−

(k) + K

(k)



z(k) − Ox

−

(k)



(10)

and compute the associated error covariance matrix

(k) =



I − K

(k)O



−

(k), (11)

where z(k) = [l

(k)

, l

(k)

, . . . , l

(k)

]

Step 5. Update a priori probabilities for assignments with a recursive ﬁlter

(k) = aπ

(k − 1) + (1 − a)

i=1

i,j

, (12)

where a < 1 is a learning rate constant.

to alleviate the aforementioned problem it is wise to

introduce a constant fading factor f into the proposed

ﬁltering solution (4) to keep it stable.

2.3 Multi-Object Tracking

Using detector responses as measurements makes it

possible to initiate new objects, as well as terminate

tracks that are no longer valid. In addition, the

proposed method is able to adjust the scale of the

objects tracked unlike the previous method (Huttunen

and Heikkilä, 2008).

Object Initialization. When there exist a number

of detections which are not assigned to any objects

tracked, it is very likely that there is at least one new

object in the image. Detector responses that are left

unassigned and are overlapping with each other form

the bounding box of a new object candidate. In the

current implementation detections are combined in a

very simple fashion. The set of unassigned detections

is ﬁrst partitioned into disjoint subsets. Two detec-

tions are in the same subset if their bounding regions

overlap. Each partition yields a single ﬁnal detection.

A new object is created only if number of detections

in the subset is greater than a predetermined thresh-

old. Dimensions of the new object are selected as

the average of each of the corners of all detections in

the overlapping set. A new object cannot be entirely

initiated from a single measurement since it does not

provide velocity information, and also false detector

responses may cause problems. Therefore we are

using several frames in order to initialize an entirely

new object.

Object Scale. Since the original method (Huttunen

and Heikkilä, 2008) is based on color features, it does

not provide any means to update the dimensions of

the objects tracked. In this work, we are using detec-

tor responses and are able to update the dimensions



, d



using the formula

{w,h}

(k) = a·d

{w,h}

(k−1)+(1−a)

i=1

i,j

·r

{w,h}

(13)

where the weights w

i,j

are given by (5), and a is the

learning rate used in (12).

Track Termination. When an object under tracking

goes out of the camera view, the tracking algorithm

must have a way to detect it and remove the object. In

our method, the criteria for terminating a trajectory

is as follows. If no measurements are assigned to

an object j within a certain time, i.e.∀w

i,j

= 0, the

object is considered to be lost and is therefore deleted.

Occlusion Handling. There are two kinds of oc-

clusions that can take place. The ﬁrst case is occlu-

sion due to a static obstacle, and the second alterna-

tive is that two or more tracked objects occlude each

other. The proposed algorithm can handle both of

the cases. The latter case is taken care of straightfor-

wardly, since the measurements are assigned softly to

the occluded objects. In other words, the same mea-

surements are shared between several objects. When

the objects ﬁnally split, all of the objects are assigned

different measurements. When an object goes, for ex-

MULTI-OBJECT TRACKING BASED ON SOFT ASSIGNMENT OF DETECTION RESPONSES

299

Figure 1: The tracking results of the proposed system for the ExitEnterCrossingPaths1cor (rows 1-2), Axis_Busstop (rows

3-4), and motinas_multi_face_frontal (rows 5-6) sequences. Detector responses (top), and the ﬁnal tracking results (bottom).

ample, behind a static obstacle, there will not be any

detections which could be used to update the posi-

tion of the occluded object. It is therefore necessary

to update the state of the object based on the dynamic

model (1). When the target reappears from behind the

obstacle, there are going to be measurements avail-

able again, and tracking can continue normally.

3 EXPERIMENTAL RESULTS

The object detectors used in the experiment are

built on the cascade system proposed by Viola and

Jones (2001) and improved by Lienhart and Maydt

(2002). The actual implementation of the detector

is based on the software found in the Intel OpenCV

Library (http://sourceforge.net/projects/

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

300

opencvlibrary/).

Human Tracking. For the experiments on hu-

man tracking, the training samples needed for

the cascade detector are taken from the Daim-

lerChrysler Pedestrian Classiﬁcation Benchmark

Dataset (Munder and Gavrila, 2006). The pro-

posed algorithm has been tested on several

sequences from the CAVIAR database (http:

//homepages.inf.ed.ac.uk/rbf/CAVIAR/).

To demonstrate the feasibility of the concept de-

scribed in this paper, some results of the test sequence

ExitEnterCrossingPaths1cor are shown in Fig. 1. The

proposed method can successfully track two objects

even if they are occluded by a third person. Our own

Axis_Busstop sequence has been captured using a

PTZ camera that pans and zooms in to a person when

he is walking by a bus stop. During the course of

sequence the size of the objects changes signiﬁcantly

and turning the camera causes occasionally a large

number of false measurements. Since there are also

several objects that are tracked, the results indicate

that the method is also able to track objects with a

moving camera (Fig. 1).

Face tracking. To evaluate the usefulness of our

method for tracking multiple faces, the method was

tested in conjunction with a basic face detector. For

face detection we used the face detector included in

the OpenCV library directly. The face sequence moti-

nas_multi_face_frontal used for testing is part of the

AVSS2007 dataset (http://www.elec.qmul.ac.

uk/staffinfo/andrea/avss2007_d.html). The

sequence in question includes many situations where

four targets repeatedly occlude each other while ap-

pearing and disappearing from the ﬁeld of view of the

camera. The results show that the method is able to

track the objects after a total occlusion (Fig. 1).

All the tests were run on a regular Pentium 4

2.8GHz desktop PC using MATLAB. Based on the

studies on all test sets, the most computationally in-

tensive part of the method is usually detection. Also

computation of the Kalman gain (9) may take some

time depending on the number of measurements.

However, based on the performance study of the cur-

rent MATLAB implementation we are conﬁdent that

the method is feasible for different applications when

implemented in C/C++.

4 CONCLUSIONS

We have presented a new algorithm for tracking mul-

tiple objects based on detector responses. The method

utilizes the Kalman ﬁlter and Expectation Maximiza-

tion (EM) algorithms in order to update the state of

the objects and assign detector responses to them.

Current implementation uses a well-known cascade

classiﬁer to detect the objects of interest. Preliminary

experiments conducted clearly indicate the usefulness

of the approach proposed in this paper.

REFERENCES

Dempster, A., Laird, N., and Rubin, D. (1977). Max-

imum likelihood from incomplete data via the EM

algorithm. Journal of the Royal Statistical Society,

39(1):1–38.

Fortmann, T., Bar-Shalom, Y., and Scheffe, M. (1983).

Sonar tracking of multiple targets using joint proba-

bilistic data association. IEEE-JOE, 8(3):173–184.

Gavrila, D. (2000). Pedestrian detection from a moving ve-

hicle. In Proc. ECCV, volume 1843 of LNCS, pages

37–49.

Hannuksela, J., Huttunen, S., Sangi, P., and Heikkilä, J.

(2007). Motion-based ﬁnger tracking for user inter-

action with mobile devices. In Proc. CVMP.

Huang, C., Wu, B., and Nevatia, R. (2008). Robust ob-

ject tracking by hierarchical association of detection

responses. In Proc. ECCV, volume 5303 of LNCS,

pages 788–801.

Huttunen, S. and Heikkilä, J. (2008). Multi-object tracking

using binary masks. In Proc. ICIP, pages 2640–2643.

Joo, S.-W. and Chellappa, R. (2007). A multiple-hypothesis

approach for multiobject visual tracking. IEEE-TIP,

16:2849–2854.

Kalman, R. E. (1960). A new approach to linear ﬁltering

and prediction problems. Trans. of the ASME-Journal

of Basic Engineering, 82:35–45.

Leibe, B., Schindler, K., and Van Gool, L. (2007). Coupled

detection and trajectory estimation for multi-object

tracking. In Proc. IEEE ICCV, pages 1–8.

Lienhart, R. and Maydt, J. (2002). An extended set of haar-

like features for rapid object detection. In Proc. ICIP,

volume 1, pages 900–903.

Mikolajczyk, K., Schmid, C., and Zisserman, A. (2004).

Human detection based on a probabilistic assembly of

robust part detectors. In Proc. ECCV, volume 3021 of

LNCS, pages 69–82.

Munder, S. and Gavrila, D. (2006). An experimen-

tal study on pedestrian classiﬁcation. IEEE-TPAMI,

28(11):1863–1868.

Reid, D. (1979). An algorithm for tracking multiple targets.

IEEE-TAC, 24(6):843–854.

Singh, V. K., Wu, B., and Nevatia, R. (2008). Pedestrian

tracking by associating tracklets using detection resid-

uals. In Proc. IEEE WMVC, pages 1–8.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. In Proc. IEEE

CVPR, volume 1, pages 511–518.

Wu, B. and Nevatia, R. (2005). Detection of multiple, par-

tially occluded humans in a single image by bayesian

combination of edgelet part detectors. In Proc. IEEE

ICCV, volume 1, pages 90–97.

MULTI-OBJECT TRACKING BASED ON SOFT ASSIGNMENT OF DETECTION RESPONSES

301
