TOWARDS DATA PROTECTION COMPLIANCE

∗

Nicola Zannone

, Milan Petkovi´c

1,2

and Sandro Etalle

1,3

Eindhoven University of Technology, Eindhoven, The Netherlands

Philips Research, Eindhoven, The Netherlands

University of Twente, Enschede, The Netherlands

Keywords:

Privacy, Auditing, Distributed systems, Accountability, Legal requirements.

Abstract:

Privacy and data protection are fundamental issues nowadays for every organization. This paper calls for

the development of methods, techniques and infrastructure to allow the deployment of privacy-aware IT sys-

tems, in which humans are integral part of the organizational processes and accountable for their possible

misconduct. In particular, we discuss the challenges to be addressed in order to improve organizations privacy

practices, as well as the approach to ensure compliance with legal requirements and increasing efﬁciency.

1 DATA PROTECTION

The ability to protect sensitive information is becom-

ing a critical success factor for an increasingly large

number of organizations, because of market pressure

and legal constraints on data processing. Concerning

the market side, we witness that users are taking into

greater consideration the security and privacy prac-

tices of organizations before they subscribe to a cer-

tain service. Concerning the legal side, there exist

a number of laws and regulations in place (e.g., Di-

rective 95/46/EC, Privacy Act, HIPAA, etc.) that put

stringent requirements on the collection, processing

and disclosure of personal data. Organizations han-

dling personal data have to implement such require-

ments in their business procedures.

The protection of sensitive information is of-

ten implemented by access control (Samarati and

di Vimercati, 2001) and usage control (Park and

Sandhu, 2004) systems. Here, protecting data implies

guaranteeing that data are disclosed solely under spe-

ciﬁc conditions to speciﬁc users (the legitimate recip-

ient), and that speciﬁc obligations are fulﬁlled after

the data have been accessed. When speciﬁcally ad-

dressing privacy protection there is an additional re-

quirement that has to be taken into account, the so

called purpose speciﬁcation: “personal data shall be

collected for speciﬁed, lawful and legitimate purposes

and not processed in ways that are incompatible with

∗

This work has been partially funded by the EU-IST-IP-

216287 TAS

project.

the purposes for which data have been collected”

(Guarda and Zannone, 2009).

Nowadays, a number of frameworks exist for the

speciﬁcation and enforcement of purpose in access

control (Backes et al., 2004; Byun and Li, 2008).

However, these frameworks cannot cope with a num-

ber of increasingly important requirements for mod-

ern organizations. In the last years, organizations

have become more ﬂuid and decentralized, with a big-

ger interplay of physical and digital aspects and thin-

ner security barriers. To mention a few aspects that

have an impact on policy compliance:

• Humans play a fundamental role in organization

processes. However, only some human tasks are

under the control of the IT system. Consequently,

the system cannot capture all actions performed

by users and, therefore, it has to make security

decisions on the basis of a partial knowledge.

• Organizations have to adapt quickly to changes

in structure, businesses, and environmental con-

ditions. Organizations thus have to deal increas-

ingly often with unexpected situations.

• Outsourcing is nowadays a common business

practice to reduce costs. Outsourcing has, how-

ever, a strong impact on the data protection re-

quirements of an organization: personal data are

often disclosed to an external supplier over whom

the organization may not have direct control.

None of the access control and privacy enforce-

ment platforms existing today can cope with these

aspects. The fundamental reason is that all these

213

Zannone N., Petkovi

c M. and Etalle S. (2010).

TOWARDS DATA PROTECTION COMPLIANCE.

In Proceedings of the International Conference on Security and Cryptography, pages 213-216

DOI: 10.5220/0002981802130216

 SciTePress

frameworks are preventative, in the sense that data

are disclosed only if the purpose in the access request

matches the purpose for which the data have been

collected. Preventative frameworks have two main

drawbacks: (1) they do not allow one to determine

if data are actually processed accordingly to the in-

tended (speciﬁed) purpose once being disclosed, and

(2) they are too rigid to deal with exceptions.

Therefore, we need a new radically more ﬂexi-

ble approach for the speciﬁcation and enforcement of

data protection policies to cope with the aforemen-

tioned circumstances. The aim of this paper is to dis-

cuss the main challenges that have to be faced and to

propose research directions for the realization of such

an approach. In particular, we propose:

• a novel purpose representation model that con-

nects the intended purpose of data to the business

activities performed by an organization;

• a-posteriori mechanisms for determining if data

are used in accordance with the speciﬁed purpose;

• methods for analyzing user behavior and the pur-

pose of data usage when audit-logs are partial;

• metrics for identifying and measuring the privacy

risks of infringements;

• a novel infrastructure that combines a-priori and

a-posteriori controls to support data protection

compliance in distributed systems.

2 CHALLENGES

Ensuring compliance to data protection policies that

include purpose speciﬁcation while detecting in-

fringements(and allowing them when appropriate)re-

quires addressing a number of challenges.

Challenge 1. How can we verify that information has

been used to achieve the speciﬁed purpose?

Data protection is usually addressed by augmenting

access control models with purpose, obligations, and

conditions (Backes et al., 2004; Byun and Li, 2008;

Hilty et al., 2005; Karjoth et al., 2002). In existing

purpose-basedframeworks (Backes et al., 2004; Byun

and Li, 2008), the purpose is treated as a label at-

tached to data which speciﬁes their intended use. Ac-

cess requests are evaluated not only against the iden-

tity of the access requester, the data to be accessed,

and the action to be performed, but also against the

purpose for which access is requested. If the purpose

for which data are requested matches the intended

purpose associated with the data, then the access is

granted. For example, in healthcare a doctor can spec-

ify treatment or clinical research as a purposewhen he

requests the data, using the Cross-Enterprise Security

and PrivacyAuthorization (XSPA) proﬁleof XACML

that deﬁnes a purpose attribute and a corresponding

coded value set. However,this and the other proposals

rely on the fact that the data requester (1) has speciﬁed

the purpose correctly and legally and (2) will process

data in accordance to the speciﬁed purpose.

Challenge 2. How can we verify if the user behav-

ior is compliant with data protection policies if some

human activities cannot be observed?

Humans have a key role in the business activities of an

organization. Organizational procedures usually de-

scribe human activities next to IT activities. However,

some of human tasks cannot be IT observable (e.g.,

a physician discussing patient data with a colleague

over the phone for second opinion). The compliance

with the purpose thus cannot be checked. Adopting

mechanisms like video surveillance to monitor user

behavior makes the system too intrusive and conse-

quently can encounter social resistance.

Challenge 3. How can we ensure policy compliance

while dealing with unexpected situations?

Policy enforcement is carried out by access/usage

control (Park and Sandhu, 2004; Samarati and

di Vimercati, 2001), digital rights management

(DRM) (Rosenblatt et al., 2001), or trust management

(Chapin et al., 2008). They share a preventive na-

ture: they permit actions authorized in the policy and

just stop the process if something unexpectedhappens

(Hamlen et al., 2006; Ligatti et al., 2009). In many

application domains like healthcare, users may take

actions that deviate from the normal behavior to re-

spond to the urgency. In such domains, exceptions

are dealt with using the so called break-the-glass pro-

tocol. This protocol takes priority over the running

enforcement mechanism allowing the user to perform

the required action. This makes existing enforcement

mechanisms inadequate for the enforcement of data

protection policies. Auditing has been used to an-

alyze the user behavior: the system logs users’ ac-

tions and then the logs are analyzed manually to iden-

tify possible misconduct. However, analyzing every

exception can be time consuming and costly. Some

steps towards systems which allow a-posteriori pol-

icy compliance are already made (Cederquist et al.,

2007). However, existing proposals do not verify if

data are used for the intended purpose.

Challenge 4. How can we ensure the compliance

with data protection policies in modern distributed

systems and when the data processing is outsourced?

Once information has been outsourced, it is no more

under the direct control of the organization. Exist-

ing compliance approaches applicable to distributed

SECRYPT 2010 - International Conference on Security and Cryptography

214

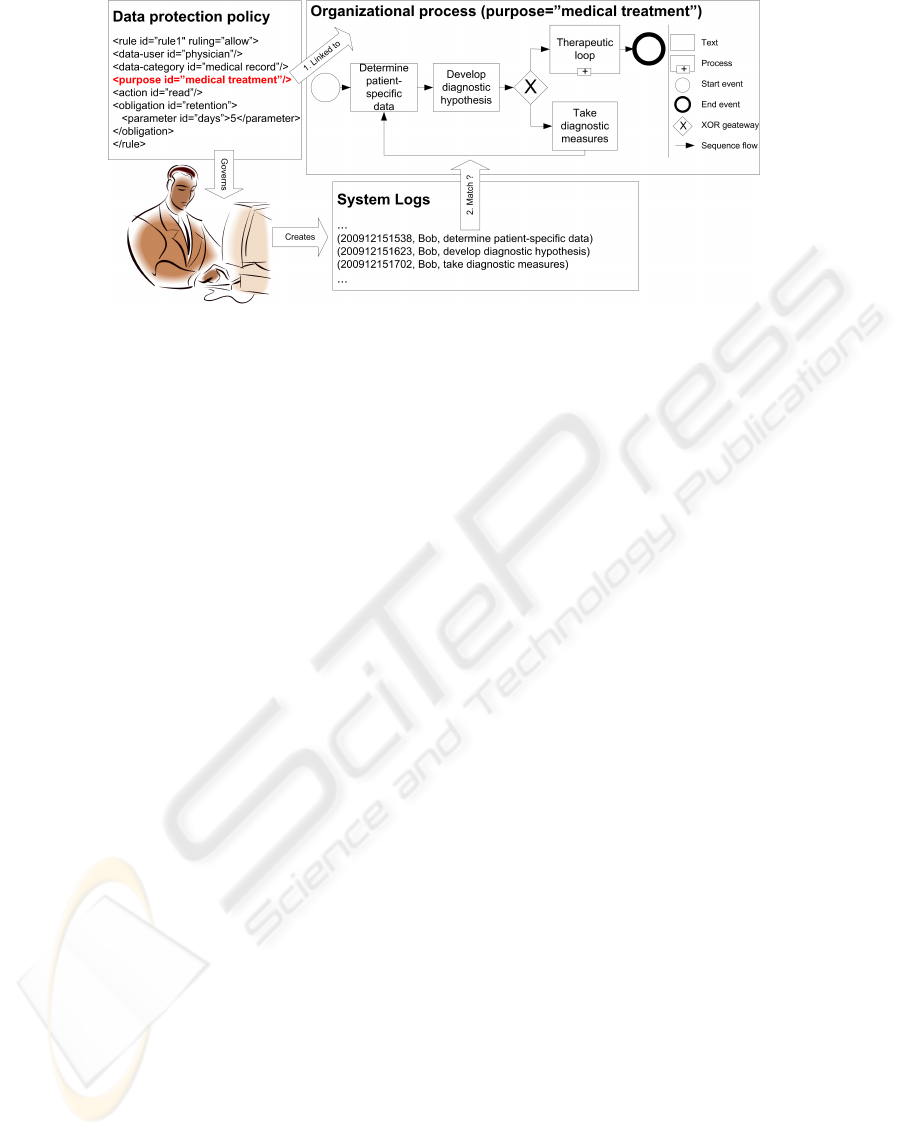

Figure 1: Linking organizational processes to data protection policies.

systems can be classiﬁed in three categories: (1) so-

lutions that impose the responsibility of providing ev-

idences to the data recipient, (2) solutions that allow

the data controller to monitor data recipient’s IT sys-

tem, (3) solutions that limit possible executions to

prevent policy infringements using mechanisms like

DRM. None of these approaches is ﬂexible enough to

address the requirements of modern distributed sys-

tems mentioned in the introduction. The ﬁrst ap-

proach relies on the assumption that the data recipi-

ent provided all the evidence necessary to prove his

correct behavior. This implies a trust relationship be-

tween the data controller and the data recipient. The

second approach is invasive and may not be accepted

by the data recipient. The last approach is too restric-

tive to support exceptions.

3 APPROACH

We propose a method to verify the compliance of user

behavior with data protection policies. The proposed

approach uses and interlinks the following three com-

ponents (Fig. 1):

1. Data protection policies deﬁne who can access

the data and for which purpose. Policies can also

specify the actions that should be taken once an

authorization is granted (i.e., obligations).

2. System logs record the sequence of actions per-

formed by users (i.e., the actual user behavior).

3. Organizational processes describe the business

processes and procedures of an organization. Or-

ganizational processes represent the actions that

users are expected to take in order to accomplish

a certain goal.

The basic idea is to link the purpose speciﬁed in

data protection policies to the goal of organizational

processes (arrow 1 in Fig. 1). Intuitively, if a user re-

quires access to some data for a certain purpose, we

can determine whether the data are used for that pur-

pose by verifying if the system log corresponds to a

valid executionof the process associated with the pur-

pose (arrow 2 in Fig. 1).

Organizations often describe their processes and

procedures using graphical languages like BPMN.

Unfortunately, those languages are informal and leave

room for ambiguity (Dijkman et al., 2008). More-

over, they are not suitable for formal analysis. To ad-

dress these issues, we can take advantage of methods

that provide a translation of BPMN into formal frame-

works for the analysis of business processes (Dijkman

et al., 2008; Prandi et al., 2008). This allows the de-

velopment of tools that automatically detect the in-

fringement of data protection policies.

Besides providing effective and tool-supported

methods to verify the compliance with data protection

policies, deﬁning the purpose using business process

models has a number of advantages: (1) organizations

can reuse the knowledge they already have without

further efforts; and (2) it allows for the management

of purpose and data protection policies.

The proposed approach alone may not be sufﬁ-

cient when we consider the human component in or-

ganizational processes. Procedures may contain hu-

man actions that cannot be logged by the IT system.

Because of missing information about user behavior

we cannot ensure that data have been processed wrt

the intended purpose. Therefore, we have to extend

our initial approach with a method that veriﬁes if sys-

tem logs correspond to a valid sequence of observable

actions of the workﬂow. In addition, qualitative rea-

soning on business processes (Prandi et al., 2008) can

be used to obtain evidence of possible misbehavior.

Many application domains like healthcare require

dealing with exceptions. For instance, a physician can

take actions that diverge from the procedures adopted

TOWARDS DATA PROTECTION COMPLIANCE

215

by the hospital to face emergency situations. Pre-

venting such actions may be critical for the life of

the patient. To address this problem, we need to de-

ﬁne acceptable infringements and metrics for assess-

ing privacy risks by performing real-time risk analy-

sis. This make it possible to narrow down the number

of situations where rightful data usage is under inves-

tigation by considering only situations whose privacy

risks cannot be tolerated by the data subject.

Outsourcing is becoming a common business

practice of many organizations. This business strat-

egy is adopted to reduce costs, but it involves trans-

fer of business activities and data to an external sup-

plier. Suppose that the hospital outsources some ther-

apeutic activities to a subcontractor together with the

data needed for its execution. The hospital is no

more in control of such data. Therefore, it needs ev-

idence that the subcontractor has used the informa-

tion only for providing therapeutic treatments. To

address those requirements for data protection policy

compliance in distributed systems, we need an infras-

tructure that supports different security mechanisms

as well as infringement management. The infrastruc-

ture should allow seamless interoperability of differ-

ent enforcement mechanism, such as DRM, and on

the other hand deterring security mechanism such as

audit logic. This also requires real-time risk analy-

sis models that make it possible to deﬁne at run-time

ﬂexible boundaries between preventive and deterring

mechanisms (i.e., dynamically select the most proper

mechanism for a certain situation based on the risks it

involves).

4 CONCLUSIONS

This paper has deﬁned the basis for the development

of more trustworthy and privacy-awareIT systems. In

particular, this work intends

• support organizations in ensuring compliance

with data protection policies as the ability of iden-

tifying policy infringements will provide a con-

crete way to ensure organizations that they are

meeting their privacy promises;

• make users more accountable for their actions as

user behavior will be analyzed and possible mis-

conducts detected;

• be more ﬂexible to deal with exceptions as the a-

posteriori policy compliance would make it pos-

sible to continue operations and account users for

eventual misconduct afterwards;

• provide more usable and scalable tools which will

automate many operations that are currently per-

formed by humans.

REFERENCES

Backes, M., Karjoth, G., Bagga, W., and Schunter, M.

(2004). Efﬁcient comparison of enterprise privacy

policies. In Proc. of SAC’04, pages 375–382. ACM.

Byun, J.-W. and Li, N. (2008). Purpose based access control

for privacy protection in relational database systems.

VLDBJ, 17(4):603–619.

Cederquist, J. G., Corin, R. J., Dekker, M. A. C., Etalle,

S., den Hartog, J. I., and Lenzini, G. (2007). Audit-

based compliance control. International Journal of

Information Security, 6(2-3):133–151.

Chapin, P. C., Skalka, C., and Wang, X. S. (2008). Au-

thorization in trust management: Features and foun-

dations. ACM Comput. Surv., 40(3):1–48.

Dijkman, R. M., Dumas, M., and Ouyang, C. (2008).

Semantics and analysis of business process models

in BPMN. Information and Software Technology,

50(12):1281–1294.

Guarda, P. and Zannone, N. (2009). Towards the Devel-

opment of Privacy-Aware Systems. Information and

Software Technology, 51(2):337–350.

Hamlen, K. W., Morrisett, G., and Schneider, F. B. (2006).

Computability classes for enforcement mechanisms.

ACM Trans. Program. Lang. Syst., 28(1):175–205.

Hilty, M., Basin, D. A., and Pretschner, A. (2005). On Obli-

gations. In Proc. of ESORICS’05, LNCS 3679, pages

98–117. Springer.

Karjoth, G., Schunter, M., and Waidner, M. (2002).

Platform for Enterprise Privacy Practices: Privacy-

enabled Management of Customer Data. In Proc. of

PET’02, LNCS 2482, pages 69–84. Springer.

Ligatti, J., Bauer, L., and Walker, D. (2009). Run-time en-

forcement of nonsafety policies. TISSEC, 12(3):1–41.

Park, J. and Sandhu, R. (2004). The UCON

ABC

usage con-

trol model. TISSEC, 7(1):128–174.

Prandi, D., Quaglia, P., and Zannone, N. (2008). Formal

analysis of BPMN via a translation into COWS. In

Proc. of COORDINATION 2008, LNCS 5052, pages

249–263. Springer.

Rosenblatt, W., Mooney, S., and Trippe, W. (2001). Digital

Rights Management: Business and Technology. John

Wiley & Sons, Inc., New York, NY, USA.

Samarati, P. and di Vimercati, S. D. C. (2001). Access Con-

trol: Policies, Models, and Mechanisms. In FOSAD

2001/2002, LNCS 2946, pages 137–196. Springer.

SECRYPT 2010 - International Conference on Security and Cryptography

216
