RAPID BEHAVIOUR MODELLING

FOR AN AGENT-BASED SIMULATION

Sascha A. Goldner

EADS Deutschland GmbH, Defence and Security, Landshuter Straße 26, Unterschleißheim, Germany

Keywords: Agent- based simulation, Behaviour, Business process, Case-based reasoning, Critical infrastructure, Expert

system, Human behaviour, PECS, Process modelling, Security, Simulation.

Abstract: Agent-based modelling and simulation has been applied to many different domains for studying highly

complex systems. Usually these contain many different entities with their own specific behaviour patterns.

The primary strength of agent-based simulation is to model and analyse human behaviour. In this context,

one of the most complex and time-consuming tasks is the implementation of behavioural models for the

human-like agents. In order to reduce this effort two additional methodologies are taken into consideration

and applied to the agent-based model. Business process modelling and case-based reasoning is used for a

rapid development of the behavioural part of an agent. This paper describes the scientific goals, ongoing

work and interim results of the approach using the security system of an airport as an example.

1 INTRODUCTION

One of the critical infrastructures of modern society

is air transport, with airports being both its

operational bases and potential targets of terrorist

attacks. Past and recent security incidents at

international airports show that new and innovative

methodologies are needed in order to improve

airport security. This task is often just tackled by the

implementation of new technology without assessing

the effectiveness of the security measures as a

whole. Besides security technologies (e.g. scanners,

CCTV, etc.), business rules and regulations also

have to be considered. Moreover, the many different

involved authorities work by experience and implicit

knowledge with regards to their organisation

specific guidelines for decision making. Especially

the process of decision making is highly influenced

by human factors and therefore the need arises to

consider these factors in detail. Our research focuses

on the modelling and simulation of an airport with

its entire infrastructure, users and business processes

with a special focus on the security relevant

procedures.

The first part of the paper will shortly introduce

the used methodologies which are agent-based

models, business process modelling and case-based

reasoning. The second part will describe how these

methodologies are used in the context of behaviour

creation for agent-based models.

2 AGENT-BASED MODELS

An agent can be seen as an entity that can perceive

its environment through sensors and (inter-) act

within the environment in a goal-oriented way by

effectors (Russell and Norvig, 2003). The most

important characteristics about agents are that they

consist of complex behavioural properties, such as:

(i) they are autonomous and not passive, and (ii)

able to interact through exchange of messages and

not by explicit task invocation (Wagner, 2003).

Because of these characteristics agents are widely

used for modelling real world behaviour and

especially human behaviour as they act as virtual

representatives of the real world entities. Agent-

based models are capable to represent the non-linear

effects triggered by the behaviour of individuals and

their influence on their environment, respectively on

other individuals.

A basic principle for the application of agent

technology and for valid agent models is to have a

structural and behavioural similarity with the

original system. The effect on the design of agents is

that they have to be constructed with respect to their

structure and behaviour in a way, which makes them

257

Goldner S..

RAPID BEHAVIOUR MODELLING FOR AN AGENT-BASED SIMULATION .

DOI: 10.5220/0003184402570262

In Proceedings of the 3rd International Conference on Agents and Artiﬁcial Intelligence (ICAART-2011), pages 257-262

ISBN: 978-989-8425-41-6

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

similar to their empirical counterparts. In case an

agent is used for modelling a human being, the agent

has to feature all the properties and behavioural

patterns of the real human which are relevant in the

given scenario. Human behaviour in agent-based

systems of social systems is often reduced to

cognitive abilities and cognitively controlled actions.

Human beings are often modelled as purely rational

decision makers. One of the most known and

commonly used approaches is the BDI methodology.

By using BDI modelling, the agent is provided three

mental states: belief, desire and intention. Rao and

Georgeff (1995) provide a very comprising and

descriptive introduction to the BDI methodology.

But one of the biggest weaknesses of the BDI

methodology is that it uses rational decision-making

in agents as an assumption. The view of human

beings as rational decision makers who are perfectly

informed and maximise an exogenously given utility

function turns out to be too restrictive.

With the increasing complexity of models for

human beings the demands made on the design

methodology for agent-based simulation models also

rise. There is a need for agents which are able to

consist of complex internal conditions as well as

provide interactions between physical and psychical

processes. The PECS (Physis, Emotion, Cognition,

Social Status) reference model (see

Figure 1) meets

this requirements and extends the concepts for the

construction of agents featuring a complex and

human-like behaviour.

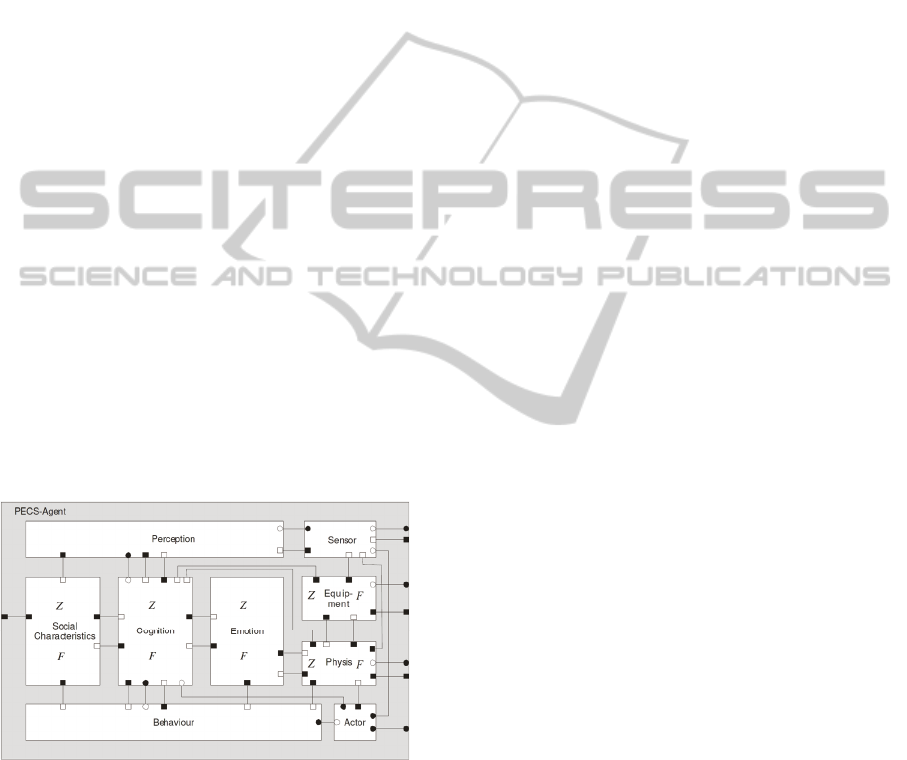

Figure 1: The PECS – agent reference model.

2.1 The PECS Reference Model

PECS is classified as an hybrid architecture (Urban,

2000). The meaning of an hybrid architecture is that

the architecture supports modelling of reactive and

deliberate agent modes as well. Thus, compared to

the aforementioned BDI method that only supports

static pre-programmed beliefs and desires, an agent

modelled with PECS is able to expand its knowledge

base while acting in the environment and pursue

agent created plans.

The PECS reference model complies with two

major design principles. The first one relates to the

structuring of models and is called component-

oriented, hierarchical modelling (Urban, 2000).

According to this principle it is possible to

functionally decompose complex models into a set

of smaller model components. Each model

component is responsible for modelling a special

part of the required functionality and may be

connected to other model components. Doing so

allows generating more complex components on a

higher level of abstraction. This principle leads to

modular, clearly structured and well understandable

models.

The second principle applies to the description of

attributes and model behaviour. PECS follows a

system-theoretic approach (Urban, 2000). Every

component is characterised by an internal state

which is defined by the current values for the given

set of model quantities at each calculated point in

time. This internal state may be influenced by a

time-dependent input and also an output may be

produced according to the given dynamic behaviour.

For the dynamic behaviour of a model component

time-continuous as well as time-discrete state

transitions may be specified. This system-theoretic

approach leads to a comfortable handling of

complex internal states and state transitions and is

therefore especially useful for the description of

agents which are strongly influenced by complex

internal processes. A complete description of the

PECS architecture can be found in Urban and

Schmidt (2001).

The next chapter focuses on a graphical notation

to describe processes. As mentioned before, the

behaviour component contains pre-defined rules to

trigger certain actions of the agent. Theses rules

represent mainly universal or nominal behaviour

patterns of an agent which indicate what "essential

tasks have to be executed in order to reach a specific

goal". Therefore a business process notation is used

in our approach to specify this pre-defined and

universal behaviour patterns.

3 BUSINESS PROCESS

MODELLING

Business process modelling can be considered as a

subset of the business process management discipli-

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

258

ne. Gadasch (2003) defines a business process as

"goal-oriented, chronological sequence of tasks

which can be executed by different organizations or

organizational units using information and

communications technologies". A business process

is used to produce certain results or services in order

to reach the process goals which comply to the

company's overall strategy. A very important aspect

in the context of business processes is the

consideration of legal framework requirements

because most of the processes have to comply with

regulatory constraints and are thereby significantly

determined by these statutory regulations.

In general, business processes are described

hierarchical in different levels of detail and from

different perspectives - depending on the use case

for example. A very abstract description of business

process usually gives a good overview and

impression what core processes exist at all, what

actors are involved, what strategic goals should be

reached and what different processes interact with

each other (Enterprise and strategic level). A very

detailed description instead shows a single process

in its elementary steps which can be executed by a

single actor to reach the elementary sub-goals and

thereby allows a deep analysis (operational process

model). Within our approach we decided upon four

levels of detail for the business process models (see

Figure 2). Each level is characterized by certain

syntactical requirements regarding for example the

number of tasks in a single process, the number of

actors or process lanes, communications and data

flows and so on.

In the context of airport security one of the first

tasks is to capture the core business processes of the

airport system with its actors, process goals,

interfaces and process interactions in order to create

an overall understanding of the system. For an

airport operator these are for example passenger,

baggage and cargo handling. One process step for

the airport operator within the passenger handling

process on strategic level is to ensure the

"Departure" of passengers.

During a next step these process descriptions are

detailed with focus on the security relevant aspects.

The activity "Departure" for example can be broken

down into security relevant activities like "Check-In

Counter", "Security Check Point" and "Boarding".

The operational level then describes the process

tasks with all the elementary steps and sub-goals that

have to be executed by a single user.

At this point it has to be decided which business

process modelling notation should be used in order

to operate most suitably along the given use case.

Strategic Process Model

Operational Process Model

Enterprise

process

model

Security-oriented Process Model

Strategic Process Model

Operational Process Model

Enterprise

process

model

Security-oriented Process Model

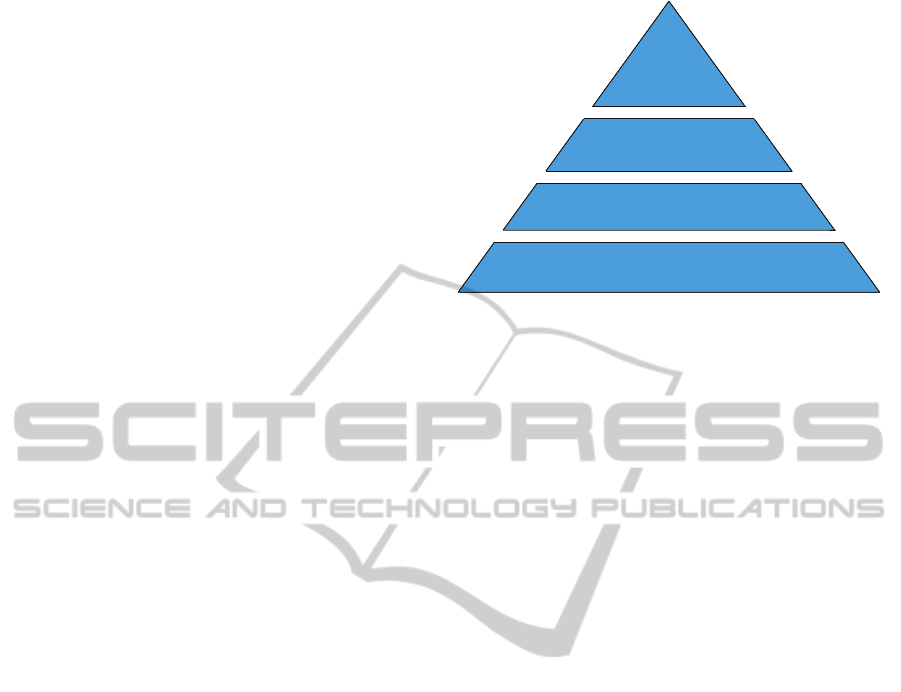

Figure 2: Business process hierarchy.

3.1 Visual Representation and

Modelling Language

One of the major requirements for a process

modelling notation in our relevant use case is the

capability of describing not only the activities of the

entities of the airport system but also their

interactions and communications. Hence the

modelling notation has to meet the following

requirements:

 Process execution dependency: processes can be

mutually dependent on each other. That is that the

execution of one process has to stop until the input

of the other process arrives and follow-up actions

can be triggered.

 Time- and event-triggered actions: actions

should be able to be triggered by events (process

results) or time.

 Actor-oriented perspective: the structure of a

process model should be defined by the number of

participating actors. If for example a process

consists of two actors then there should be two

process lanes each describing the internal process for

each actor. Between the two lanes the information

flow among the actors can be displayed. This

requirement is particularly important for the

combination of agent-based models with business

process models because of the identical point of

view.

 Modelling of tasks, communication and data

flow

The graphical representation of business process

information has proven effective for presenting it to

different types of users. After comparing different

graphical notations for business process modelling

(workflow nets, event-driven process chains, process

algebras, unified modelling language, petri nets) we

RAPID BEHAVIOUR MODELLING FOR AN AGENT-BASED SIMULATION

259

decided to use the Business Process Modelling

Notation (BPMN). The BPMN 2.0 standard provides

a graphical notation which is more expressive than

the other mentioned notations. Furthermore it meets

our specific requirements defined above. The

processes in the BPMN are created actor-oriented –

the process of every actor is described in a single

pool or lane. Further the perspective is nearly

identical with the perspective of creating agent-

based models. Each agent can be represented by a

single process lane. The process steps within a single

lane describe the internal behaviour of an agent. The

communication of the agent with other agents or the

environment is represented by message and data

flows to other lanes in the process model.

Also the business process hierarchy (see Figure

2) can be implemented due to the support of nested

processes in the BPMN. Processes on the strategic

level simply can be expanded until the level of detail

reaches the elementary level and vice versa.

The requirement for time- and event-triggered

actions is also covered by the support of different

types of events such as exceptions, error or time

events. Using these possibilities a business process

model that usually describes the "happy path" can

easily be enriched by special cases, for example a

breakdown of the IT system that causes all Check-In

processes to abort instantly.

BPMN offers an extensive syntax for modelling

communication and data flows between different

actors. Therefore it is sufficient to describe the

communication of the agents in the agent-based

model as well.

The two described methodologies, agent-based

models and business process modelling provide two

things so far. First, the business processes define all

available procedures that are defined for a system to

reach certain business goals. Second, the PECS-

architecture defines how the actors responsible for

executing the business processes can be simulated as

agents in a Multi-Agent-System. Yet, no mechanism

has been implemented that triggers certain behaviour

for a given specific situation. The individual and

autonomous behaviour of the agents is still missing

and will be realized by using the approach of case-

based reasoning.

4 INTERACTIVE CASE-BASED

REASONING

Agnar and Plaza define case-based reasoning (CBR)

as a problem solving paradigm that in many respects

is fundamentally different from other major artificial

intelligence approaches. Instead of relying solely on

general knowledge of a problem domain, or making

associations along generalized relationships between

problem descriptors and conclusions, CBR is able to

utilize the specific knowledge of previously

experienced, concrete problem situations (cases).

That means that a decision that is made in a concrete

situation is directly correlated with a huge number of

factors which define this particular moment. If this

situation with exactly the same influencing factors

appears again, the same decision will be made again

based on the previous retrieved knowledge

As stated in the previous chapter business

process models define the structure of a process and

thereby contain all possible paths a process can be

executed. However they do not contain the

behaviour of the process. No information for

decision making is given, meaning there are no rules

in the process models which indicate what path has

to be taken given a particular situation. That

information purely has to be defined in the

behavioural model.

One of the biggest problems in the modelling and

simulation domain is the gap between the model

developer and the domain expert. The developer

mostly only implements the model and ensures that

the model can be executed in the simulation

framework. The domain expert on the other hand has

a deep knowledge of the model's behaviour, e.g.

given a particular situation the domain expert

exactly can tell what decision at what point in the

model have to be made in order to create a well and

sound behaviour of the model. Finally, to implement

an effective simulation system, the knowledge of the

domain expert has to be integrated into the

simulation model. The reason that behaviour capture

is difficult is that the more complex the project, the

more tacit knowledge the users possess, and the

harder it is to make this knowledge explicit. Tacit

knowledge can be defined as knowledge that is not

made explicit because it is highly personal, not

easily visible or expressible, and usually requires

joint or shared activities to transmit it. Users cannot

express their tacit knowledge: they do not

consciously know all the behaviour that they apply

to a situation. What is written into the process

models are the commonly occurring rules, logical

processes and inevitabilities. Hidden in the user’s

tacit knowledge are the multitudes of exceptions that

need to be included for the process model to be

effective.

To overcome this problem we use an interactive

CBR-system. The system does not attempt to make a

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

260

user’s knowledge explicit; instead it captures tacit

knowledge in the same way that people learn. It is a

widely accepted observation in the area of

knowledge acquisition that while a user cannot

explain the rules that they use in advance, they can

always justify their conclusions when presented with

a situation. By asking the domain expert to tell the

system what should happen, then asking the domain

expert why this should occur, the system builds up

the behaviour needed. The domain expert uses the

interactive CBR-system to create behaviour,

entering conclusions and justifications for that

behaviour. When a new situation arises, new

behaviour can be added - the user simply tells the

CBR-system how to deal with it and justifies their

position. The mechanism when creating a rule is

called "conclusion and justification". The user not

only has to define what decision based on the input

data has to be made, but more he has to define why

it has to be made.. To justify a conclusion the

specific training situation has to be used and

therefore it has to be sufficient. The CBR-system

determines that the justification is acceptable by

checking that the new behaviour is not inconsistent

with the previous defined behaviour. The beauty of

this process is that the user simply continues to work

within their knowledge arena, on their usual tasks,

responding to the queries made by the CBR-system.

A complex system contains of many different

domains. To capture the overall system behaviour

the domain experts of each domain are used to train

the CBR-system with their specific knowledge.

Thereby the whole system's behaviour is gathered

eventually.

5 INTEGRATION

The first part of the paper introduced three separated

methodologies. This chapter will describe how

business process modelling and case-based

reasoning can be used in order to define the

behavioural model of the agent-based simulation

model. The explanation will use the example of a

boarding pass control which takes place at the

entrance of a passenger security check point at an

airport. To simplify matters we use the following

course of events:

 A passenger without carry-on baggage arrives at

the security check point.

 The passenger is requested to show the boarding

pass to the security employee.

 The security employee decides on the validity of

the boarding pass and denies or grants access to the

subsequent security procedures.

5.1 The Approach

The definition of the agents for the simulation

basically consists of three steps.

First of all the attributes of the PECS agents for

the different users at an airport have to be defined. In

the example two agents have to be specified. One for

the passenger and one for the security employee at

the entrance of the security check point performing

the boarding pass control. A required attribute in the

PECS component 'equipment' of the passenger agent

is the boarding pass containing corresponding

properties like the date of issue and flight number.

As a second step the business process models for

each of the agents have to be provided. The process

models describe the universal behaviour for an agent

that is the sequence of tasks to reach a specific goal.

In the context of the example, a simple process of

the security employee would contain the steps

"Request boarding pass", "Check boarding pass",

"Deny access" and "Grant access". As can be seen in

Figure 3, the process of the security employee is

triggered by an arriving passenger. Also a data flow

can be observer: the boarding pass is handled from

the passenger to the security employee and back in

case the access is granted.

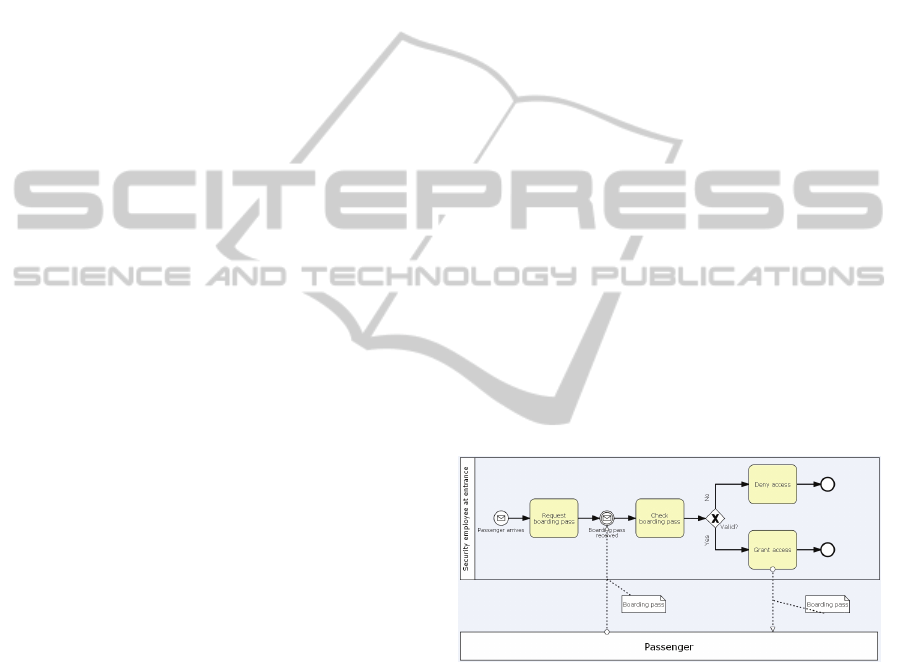

Figure 3: Business process model.

Once the agents and their business process

models have been created, the goal of the third step

is the definition of situation dependent behaviour for

each agent. The basis for this task is the business

process models. The process shown in Figure 3

describes the universal process of the security

employee. However, it does not contain any

information which process path has to be executed

given a certain situation or in other word, it does not

answer the question "Is the boarding pass of a

passenger valid or not?". In order to automatically

make a decision in this case, case-based reasoning

comes into play. The agents including their process

RAPID BEHAVIOUR MODELLING FOR AN AGENT-BASED SIMULATION

261

models are imported into the CBR-system. Sticking

to the example of the boarding pass control, the

behaviour of the security employee has to be

specified in more detail. The CBR-system has to be

taught by an expert in what situations the boarding

pass is considered to be valid or invalid. A required

attribute is for example the date on the boarding

pass. If this date is identically to today's date, the

boarding pass can be considered to be valid. A

corresponding rule is then created. If for example the

departure time is in four hours and passengers are

allow entering the security check point only two

hours before, the access has to be denied. Thus, a

rule has to be created stating that even the date on

the boarding pass is identical to today's date, the

access is denied because the departure is greater than

two hours.

Once all the necessary rule sets are defined to

specify the universal and reactive behaviour of the

agents, they can be incorporated into the agents

reference model (see Figure 4).

Business process models

Rule set

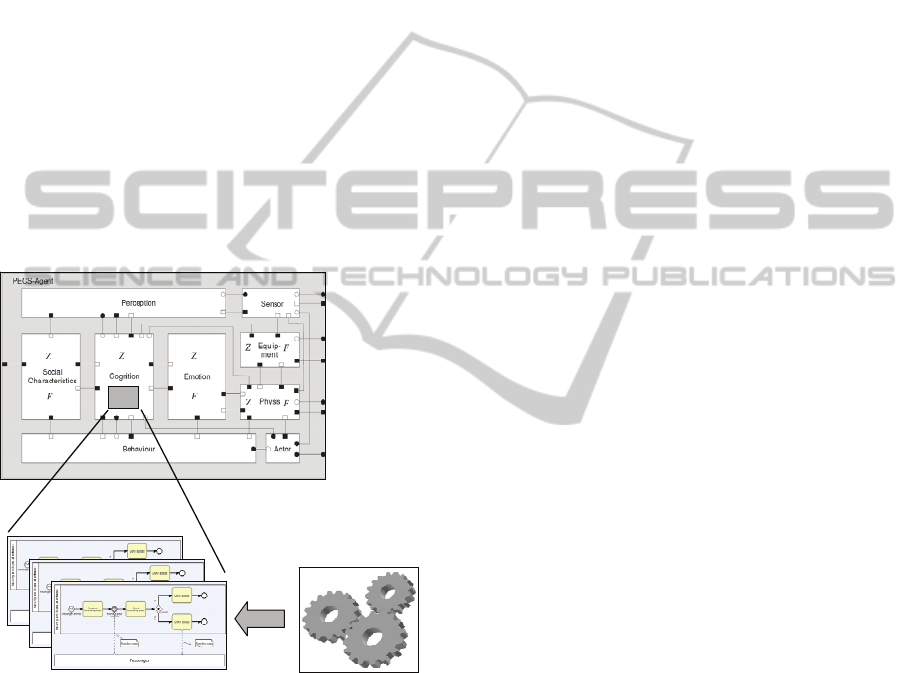

Figure 4: Extension of the PECS agent by business

process models and situational behaviour rules.

6 CONCLUSIONS

The combination of agent-based models, business

process modelling and case-based reasoning aims to

leverage the advantages of each methodology.

The PECS agent architecture provides a

structured framework for modelling human-

behaviour and contains several advantages compared

to the BDI architecture. The downside of current

implementations of this architecture is the time and

effort that has to be spent in order to implement the

behaviour models for the agents. Therefore we apply

business process modelling and case-based

reasoning that have proven to be very successful in

gathering and representing behavioural information.

Business process modelling and especially the

combination with agent-based models poses a very

interesting field of research because the creation of

even very general and universal behaviour patterns

in agent-based simulations can be quite complex and

time-consuming. Business process modelling instead

allows a rapid behaviour modelling due to its very

intuitive nature. The recently published BPMN 2.0

standard provides the user with an extensive syntax

for creating process models including in addition to

the classical task-oriented elements also

communication and data flows.

Case-based reasoning and in particular the CBR-

system we use has proven to be a very solid

approach in gathering expert knowledge – especially

the tacit part. This knowledge is interactively

gathered from the experts and encapsulated in a rule

set that can be accessed during the runtime of a

simulation.

These three methodologies are integrated into a

single approach in order to create agent-based

models with focus on human-behaviour. Our in-

house simulation framework shortly will be used to

execute these models.

REFERENCES

Agnar, A., Plaza, E., 1994. Case-Based Reasoning:

Foundational Issues, Methodological Variations, and

System Approaches. In Artificial Intelligence

Communications 7, no. 1 (1994): 39-52.

Rao, A. S., Georgeff, M. P., 1995. BDI Agents: From

Theory to Practice. In Proceedings of the First

International Conference on Multi-Agent Systems

(ICMAS). AAAI.

Russell, S. and Norvig, P., 2003. Artificial Intelligence: A

Modern Approach, Prentice Hall, Upper Saddle River,

3rd edition.

Urban, C., 2000. PECS – A Reference Model for the

Simulation of Multi–Agent Systems In. Suleiman R.,

Troitzsch K. G., G.N. (ed.): Tools and Techniques for

Social Science Simulation, Physica-Verlag.

Urban, C., Schmidt, B., 2001. PECS – Agent-based

models of Human Behaviour. In AAAI Technical

Report FS-01-02, AAAI.

Wagner, G., 2003. The Agent-Object-Relationship Meta-

Model: Towards a Unified View of State and

Behavior. In Information Systems, v. 28:5, pp. 475–

504.

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

262
