A UNIFIED MODEL DRIVEN METHODOLOGY FOR DATA

WAREHOUSES AND ETL DESIGN

Faten Atigui, Franck Ravat, Ronan Tournier and Gilles Zurfluh

IRIT (UMR 5505), Institut de Recherche en Informatique de Toulouse

118 route de Narbonne, F-31062, Toulouse, France

University Toulouse 1 Capitole, 2 rue G. Marty, F-31042, Toulouse Cedex 9, France

Keywords: Data Warehouse, Multidimensional modelling, ETL, MDA, QVT.

Abstract: During the last few years, several frameworks have dealt with Data Warehousing (DW) design issues. Most

of these frameworks provide partial answers that focus either on multidimensional (MD) modelling or on

Extraction-Transformation-Loading (ETL) modelling. However, less attention has been given neither to uni-

fying both modelling issues into a single structured framework nor to automating the warehousing process.

To overcome these limits, this paper provides a generic unified and semi-automated method that integrates

DW and ETL processes design. The framework is handled within the Model Driven Architecture (MDA). It

(i) first helps the designer in modelling the decision-makers requirements and then (ii) generates the MD

model as well as (ii) the logical and the physical models and finally (iv) generates the source code. In this

approach, the transformation rules are formalized using the Query/View/Transformation (QVT) language.

1 INTRODUCTION

A Data Warehouse (DW) is a huge amount of data,

often historical, used for supporting business

processes within an organization (Ravat et al.,

1999). The relevant data for the decision-making

process are collected from data sources by means of

software processes commonly known as Extraction-

Transformation-Loading (ETL) processes (Vassili-

adis, 2009). Extracted data are often structured ac-

cording to the multidimensional (MD) paradigm that

organizes information according to facts and dimen-

sions (Kimball, 1996); (Ravat et al., 2007).

It is well recognized that the warehousing task is

complex, tedious, time-consuming and often error-

prone (Kimball, 1996). When building a DW, the

designer deals with two major issues. The first issue

addresses DW design, whereas the second addresses

ETL processes design. Current frameworks provide

only partial solutions that focus either on MD struc-

tures or on ETL processes. Indeed, the whole ware-

housing process (in charge of creating MD structures

and loading data in the DW) requires combining the

two methods. The data integration problems must be

considered in order to select the appropriate meth-

ods. Besides, most of existing approaches -apart

from industrial tools (Barateiro and Galhardas,

2005) do not provide means to automatically gener-

ate or document all the aspects of the warehousing

task.

Model Driven Architecture (MDA) is well

known as a framework that manages complexity, it

significantly reduces development costs, improves

software quality and accomplishes high levels of re-

use (Bettin, 2003), (Kleppe et al., 2003), (Object

Management Group, 2003). Therefore, we assume

that with the support of MDA, the warehousing task

will require less efforts and time. Besides, MDA

provides a support for integration, interoperability,

adaptability, portability and reusability of informa-

tion systems (Kleppe et al., 2003). Thus, providing a

complete and integrated model driven methodology

for DW and ETL design will be useful.

In this paper, we propose a unified, mixed and

semi-automated method for DW and ETL design.

This method has several advantages, specifically:

(i) it addresses both the DW’s and the ETL proc-

esses modelling, avoiding inconsistencies, inte-

gration and interoperability problems that may

arise when using separate methods;

247

Atigui F., Ravat F., Tournier R. and Zurﬂuh G..

A UNIFIED MODEL DRIVEN METHODOLOGY FOR DATA WAREHOUSES AND ETL DESIGN.

DOI: 10.5220/0003502002470252

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 247-252

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

(ii) it proposes a unified conceptual model that

defines MD concepts (structures and opera-

tions) that can be reused to define new DW

schemata;

(iii) it is a model driven approach that tackles the

warehousing process within an integrated and

well-structured way;

(iv) it automatically generates code by using a set

of formal transformations rules, thus saving

time and effort.

The remainder of this paper is organized as fol-

lows. Section 2 reviews related work. Section 3

introduces our approach. Section 4 details the con-

ceptual model. Section 5 presents the logical and

physical models as well as the transformation rules.

Section 6 concludes and lists some future work.

2 RELATED WORK

Several research deal with DW design problems. In

the literature, this issue has been tackled from two

complementary but different points of view (Rizzi et

al., 2006). The first deals with the MD modelling

and attempts to describe the DW MD structure (Ro-

mero and Abelló, 2009). The second aims at repre-

senting processes responsible for loading and

updating data in the warehouse (Vassiliadis, 2009).

Regarding the MD design, existing approaches

can be classified into three main categories (Rizzi et

al., 2006). Requirement-driven approaches (Tsois et

al., 2001), (Prat et al., 2006), provide MD schemas

based on a detailed analysis of decision-makers’

needs. Data-driven approaches (Golfarelli and Rizzi,

1998), (Hüsemann et al., 2000), start from an analy-

sis of data sources to identify the structure of the

MD schema and select relevant data for decision

making. Finally, mixed approaches (Zepeda et al.,

2008), (Mazón and Trujillo, 2009), (Romero et

Abelló, 2010), (Essaidi and Osmani, 2010), consider

both decision-makers requirements and data avail-

ability within operational sources. These approaches

provide MD schemata that both meet decision-

makers’ needs and fit with existing data sources.

Regarding ETL processes, several ways for their

design and development exist. Academic researches

offer either specific models or to reuse existing stan-

dards such as UML or the Business Process Model

Notation (BPMN).

In (Vassiliadis et al., 2002) a conceptual model is

defined that provides a specific graphical notation

allowing designers to formally define technical is-

sues often encountered in ETL processes. Then, the

authors complement their model by providing a

method for conceptual modelling (Simitsis et Vassi-

liadis, 2003). (Simitsis, 2005) provide a set of rules

to map a conceptual model to logical one whereas

(Simitsis et al., 2010) suggest using semantic web

technologies to ease the selection of relevant data

sources to be transformed and loaded.

Some Authors extend UML notations to describe

ETL workflows. In (Trujillo et Luján-Mora, 2003)

the authors define a set of ETL activities through

stereotyped classes. (Luján-Mora et al., 2004) extend

UML using a mapping diagram to represent the

transformation rules between sources attributes and

MD attributes. (Muñoz et al., 2008) use the UML

activity diagrams to design the ETL process. (Mu-

ñoz et al., 2009) provide a model driven approach to

generate the ETL process. (El Akkaoui et Zimanyi,

2009) propose a conceptual model for ETL proc-

esses based on the BPMN standard.

Besides, there are tools for designing or running

ETL workflows (Barateiro and Galhardas, 2005),

e.g. Oracle Warehouse Builder and Microsoft Inte-

gration Services. However, these tools use specific

notations and languages, thus decreasing the integra-

tion and the interoperability levels of the system.

Compared to existing approaches, the advantages

of our approach lie on merging the description of

MD data structures and ETL operations within a

unified model. This solution inherits the advantages

of mixed approaches. Moreover, using a unified

model avoids costly and redundant steps, as linking

data sources. This model also avoids problems of

inconsistencies, integration and interoperability

encountered when using separate models and/or

methods. Besides, the fact and the dimensions de-

fined within a unified MD model are complete

(structures and operations) and ready to be used in

other DW’s schemata. Moreover, our approach has

the advantage of reusing and adapting existing mod-

els and language such as UML.

3 OVERVIEW OF OUR

APPROACH

Our framework is tackled with MDA -an Object

Management Group (OMG) standard- that aims at

covering the software development life cycle. With

MDA, the software development process is based on

the use of models and automatic transformations

between these models (Kleppe et al., 2003), (Object

Management Group, 2003). The designer builds a

unified conceptual model (PIM: Platform Independ-

ent Model) that describes the MD schema and the

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

248

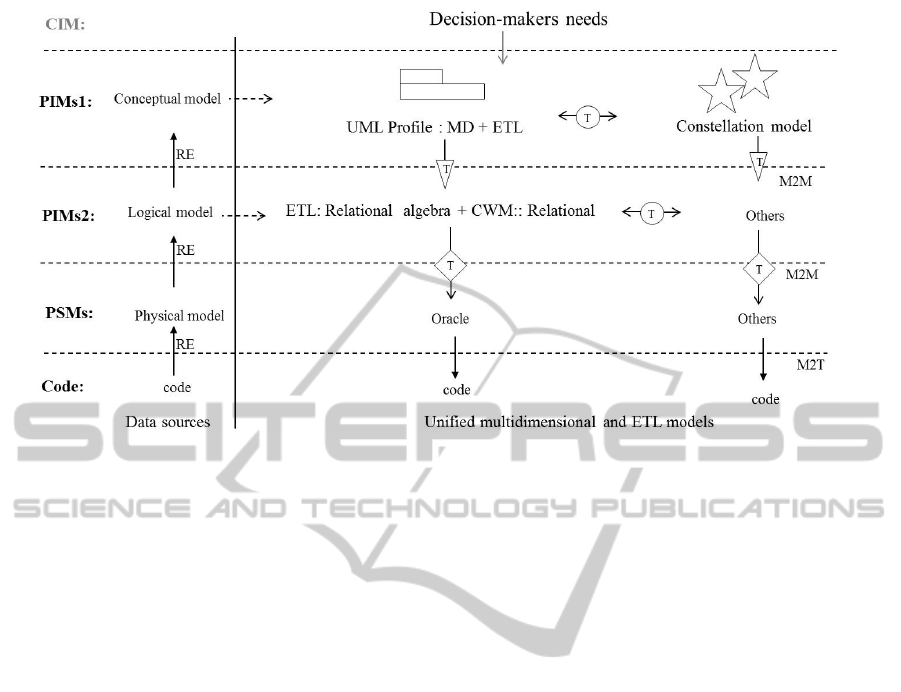

Figure 1: Model driven framework for DW and ETL design.

related ETL processes. The automatic transforma-

tions translate it into a successive set of models in

order to get the code tailor-made to the chosen plat-

form. The conceptual model represents the MD

schema that considers the decision maker’s needs

and the data sources. Afterwards, the PIM is mapped

into several logical models (PIMs2)

(CWM::Relational, CWM::XML, etc.) depending on

a chosen deployment platform (Oracle, Mondrian,

etc.). Finally, the framework provides the appropri-

ate code that will create the MD structure and the

ETL workflow. The data sources modelling levels

are generated by reverse engineering (RE) from

physical models. An overview of our framework is

shown in figure 1.

In next sections we focus on the conceptual and

logical PIMs as well as the PSM. Moreover, we

present the inter-levels and merging transformations

rules. However, we do not present the requirements

formalization (or decision-makers needs). Indeed,

the CIM can be modelled by applying a requirement

engineering framework, e.g. CADWA (Computer

Aide Data Warehouse Analysis) method mentioned

in (Salinesi and Gam, 2006), and then a set of trans-

formation rules can be applied as in (Mazón and

Trujillo, 2009) in order to automatically derive the

conceptual schema.

4 UNIFIED MD AND ETL UML

PROFILE

Conceptual modelling provides a high level of

abstraction and aims at achieving the independence

of deployment problems (Rizzi, 2008). We propose

a conceptual model based on the Unified Modelling

Language (UML). UML is a well-known standard

modelling language and supported by many tools. It

has the major advantage of adapting and reusing

existing technologies.

A UML profile is a set of mechanisms and tech-

niques that attempts to adapt UML to a specific

application domain. From a technical view, a UML

profile is a set of stereotypes that can be defined as

domain-specific concepts (Kleppe et al., 2003).

Since the proposed framework is based on unifying

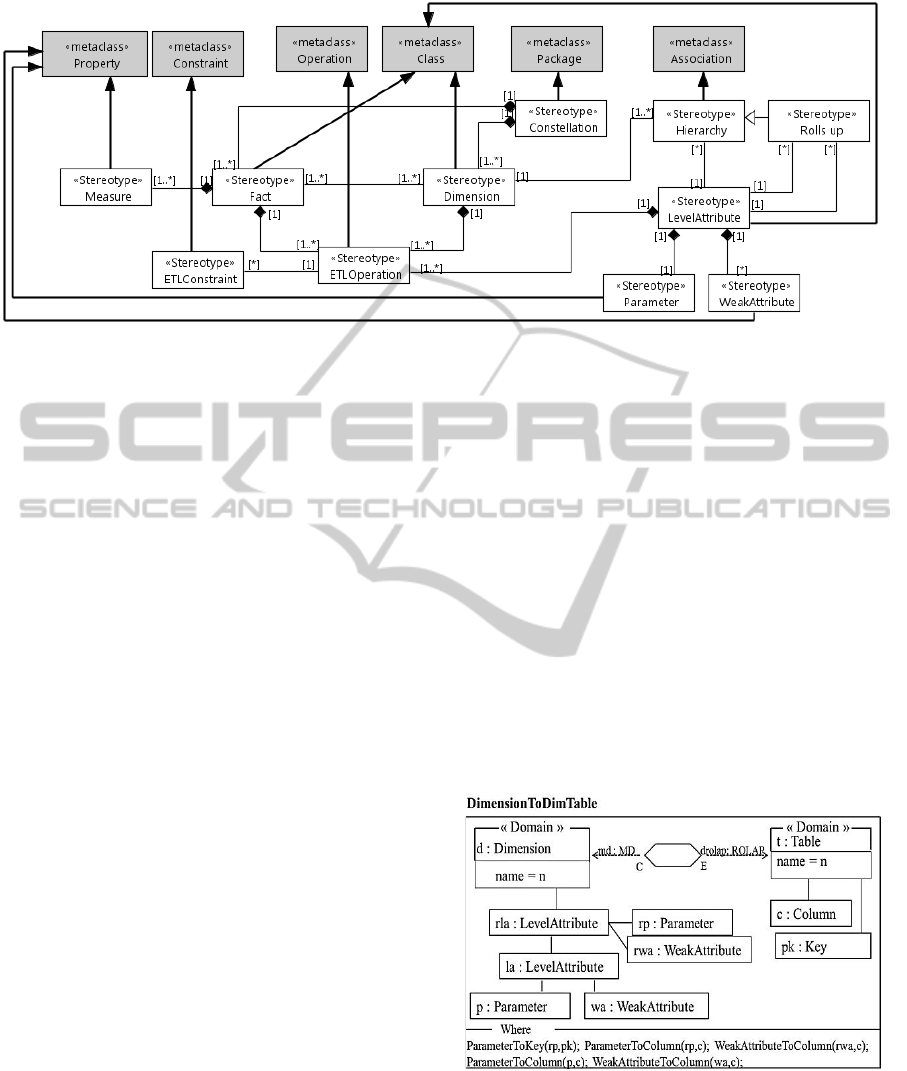

the DW and ETL design, the profile illustrated in

figure 2 considers concepts related to both design

issues. It describes basic MD concepts such as

“Constellation” which extends the metaclass “Pack-

age”. A constellation is composed of three types of

classes namely “Fact”, “Dimension” and “LevelAt-

tributes”. A dimension can be related to one or more

“LevelAttribute” by means of a specific type of

composition association named “Hierarchy”. Also,

“LevelAttributes” that belong to the same hierarchy

are related with a specific composition association

called “Rolls up”. A UML class is composed of

static properties and a set of dynamic operations. In

the DW context, static properties define fact meas-

ures and dimension attributes. Dimension attributes

may be parameters (that specify data aggregation

levels) or weak attributes (that complement parame-

ter semantics). While, operations represent the ETL

processes modelled by the stereotype “ETLOpera-

tion” that extends the metaclass “Operation”. All the

A UNIFIED MODEL DRIVEN METHODOLOGY FOR DATA WAREHOUSES AND ETL DESIGN

249

Figure 2: UML profile for multidimensional and ETL modelling.

stereotypes have a public visibility except for ETL

operations that must be hidden to the decision-

makers.

5 AUTOMATIC GENERATION

FOR LOGICAL PIM AND

PHYSICAL PSM

In this section we first present how to obtain a logi-

cal PIM from the conceptual PIM. Second, we pre-

sent how conceptual and logical PIMs are then

mapped into physical PSMs. We particularly focus

on the static properties transformations. The trans-

formation rules are formalized by QVT (Object

Management Group, 2009). QVT is the OMG stan-

dard language for model-to-model transformations.

It is a declarative language and offers both graphical

and textual syntaxes. Besides, QVT allows multi-

directional transformations as well as merging mod-

els (two or more models are mapped into one or

more model). A QVT transformation between two

candidate models is specified by a set of relations.

Relations are defined by two or more domains which

specify a candidate model and a set of corresponding

elements to be matched as well as a pair of “when”

(pre-conditions) and “where” (post-conditions)

predicates.

In the next subsections, we detail the logical PIM

and the PSM, as well as the model-to-model trans-

formation rules that we formalized using QVT

graphical syntax. Due to limited space, we present

only the dimension transformation relations.

5.1 Logical Design

Logical models are automatically generated from

conceptual models by applying a set of rules. In

order to cover as much as possible of warehousing

application, our approach provides a set of logical

models. The designer can choose the most suitable

one with the application he is developing such as the

normalized ROLAP (Relational On-Line Analytical

Processing), the denormalized or the optimized ones

(that define views for calculating pre-aggregates),

OOLAP (Object On-Line Analytical Processing),

XML schemata, etc. To illustrate our framework, we

chose to define transformation rules for denormal-

ized ROLAP (Kimball, 1996) often used for MD

schemata. In order to automatically derive this

model, we define a set of QVT rules to generate a

denormalized logical PIM. Formal definitions of

these rules contain several QVT relations, we pre-

sent only the dimension-to-table rule.

Figure 3: Dimension to dimension table relation.

DimensionToTable Relation. Each dimension of the

constellation model (source model shown on the left

side of the following figure) is mapped into a

ROLAP table (target model shown on the right side)

that have the same name. The “Where” clause speci-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

250

fies that all the parameters and weak attributes are

transformed into columns of the table by applying,

respectively, ParameterToColumn and WeakAttrib-

uteToColumn relations. Moreover, the root parame-

ter is mapped into the table’s primary key through

the relation ParameterToKey.

5.2 Physical Design

Physical models are dependent on a specific plat-

form; we choose to detail transformations rules gen-

erating Oracle materialized view. The use of

materialized views is significantly advantageous

since calculating, storing, loading, and refreshing are

performed automatically by the database.

Oracle physical schema is structured within ma-

terialized views and dimensions. The materialized

view definition is based on ROLAP tables (PIM2);

however dimensions depend on the hierarchies of

the dimensions (PIM1). Therefore, the physical

model is generated by merging both conceptual and

logical models.

We have formalized these rules using QVT

graphical notations (we expose only the dimension

transformation relations).

DimTableToMaterializedView relation. Each

ROLAP dimension table is mapped to a materialized

view with the same name. The “Where” clause iden-

tifies relations mapping source and target columns as

well as source and target primary key.

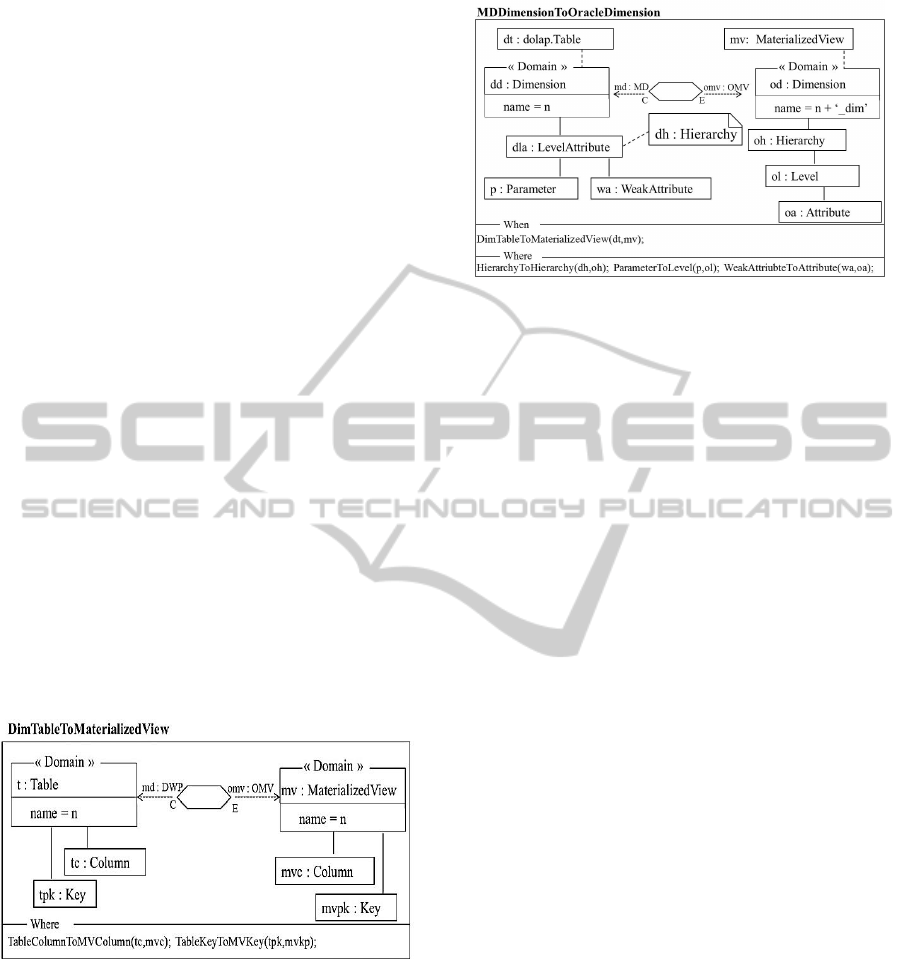

Figure 4: Dimension table to materialized view relation.

MDDimensionToOracleDimension Relation. This

relation maps each conceptual dimension to an Ora-

cle dimension with the same name prefixed by

‘_dim’. The “When” clause specifies that the appro-

priate ROLAP table must be already mapped to a

materialized view. The “Where” clause specifies that

hierarchies, parameters and weak attributes are

mapped to Oracle hierarchies, levels and attributes

respectively.

Figure 5: MD dimension to Oracle dimension relation.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a model driven approach

for DW and ETL design. With the support of the

MDA, our framework semi-automates the warehous-

ing task. Indeed, each modelling phase (require-

ment’s analysis, conceptual, logical and physical

design) is specified by one or more models. The

method applies a series of QVT transformations in

order to automatically generate the code.

For conceptual design, the method provides an

UML profile that provides a unified description of

MD structure and ETL processes. Logical and

physical models are also generated by applying QVT

transformations. We have detailed the transforma-

tion rules from MD PIM to the denormalized

ROLAP PIM and then from these PIMs to Oracle

materialized views and dimensions.

As future work, we plan to focus on the require-

ments formalization phase (CIM) and on automating

the transition between the CIM and the conceptual

PIMs by defining a set of QVT rules. Besides, we

intend to focus on the behavioural properties trans-

formations by providing a specific model and trans-

formation rules for the ETL processes. We also

intend to develop our method by considering others

platforms. Moreover, we plan to apply our approach

on real-world case studies and to evaluate it by dif-

ferent users.

REFERENCES

Barateiro, J., Galhardas, H., 2005. A survey of data quality

tools. Datenbank-Spektrum 14, 48.

Bettin, J., 2003. Model-Driven Architecture Implementa-

tion & Metrics. SoftMetaWare, Ltd., Version 1.

A UNIFIED MODEL DRIVEN METHODOLOGY FOR DATA WAREHOUSES AND ETL DESIGN

251

El Akkaoui, Z., Zimanyi, E., 2009. Defining ETL

worfklows using BPMN and BPEL,12th international

workshop on Data warehousing and OLAP. p. 41–48.

Essaidi, M., Osmani, A., 2010. Model driven data ware-

house using MDA and 2TUP. Journal of Computa-

tional Methods in Science and Engineering 10, 119–

134.

Golfarelli, M., Rizzi, S., 1998. A methodological frame-

work for data warehouse design, 1st international

workshop on Data warehousing and OLAP. p. 3–9.

Hüsemann, B., Lechtenbörger, J., Vossen, G., 2000. Con-

ceptual data warehouse design. Citeseer.

Kimball, R., 1996. The data warehouse toolkit: practical

techniques for building dimensional data warehouses.

John Wiley & Sons, Inc. New York, NY, USA.

Kleppe, A.G., Warmer, J., Bast, W., 2003. MDA ex-

plained: the model driven architecture: practice and

promise. Addison-Wesley Longman Publishing Co.

Boston, MA, USA.

Luján-Mora, S., Vassiliadis, P., Trujillo, J., 2004. Data

mapping diagrams for data warehouse design with

UML. Conceptual Modeling–ER 2004 191–204.

Mazón, J.-N., Trujillo, J., 2009. A hybrid model driven

development framework for the multidimensional

modeling of data warehouses. SIGMOD Rec. vol. 38,

12.

Muñoz, L., Mazón, J.N., Pardillo, J., Trujillo, J., 2008.

Modelling ETL processes of data warehouses with

uml activity diagrams, On the Move to Meaningful

Internet Systems: OTM 2008 Workshops. p. 44–53.

Muñoz, L., Mazón, J.-N., Trujillo, J., 2009. Automatic

generation of ETL processes from conceptual models,

12th international workshop on Data warehousing and

OLAP - 21 th international workshop, Hong Kong,

China, p. 33.

Object Management Group, 2003. OMG Document --

omg/03-06-01 (MDA Guide V1.0.1)

Object Management Group, 2009.

Query/View/Transformation.

Prat, N., Akoka, J., Comyn-Wattiau, I., 2006. A UML-

based data warehouse design method. Decision Sup-

port Systems 42, 1449–1473.

Ravat, F., Teste, O., Tournier, R., Zurfluh, G., 2007.

Graphical querying of multidimensional databases,

Advances in Databases and Information Systems. p.

298–313.

Ravat, F., Teste, O., Zurfluh, G., 1999. Towards data

warehouse design, 8th international conference on In-

formation and knowledge management. p. 359–366.

Rizzi, S., 2008. Conceptual modeling solutions for the

data warehouse. Data Warehousing and Mining: Con-

cepts, Methodologies, Tools, and Applications 208–

227.

Rizzi, S., Abelló, A., Lechtenbörger, J., Trujillo, J., 2006.

Research in data warehouse modeling and design:

dead or alive?, 9th intern. workshop on Data ware-

housing and OLAP. p. 3-10.

Romero, O., Abelló, A., 2009. A survey of multidimen-

sional modeling methodologies. International Journal

of Data Warehousing and Mining 5, 1–23.

Romero, O., Abelló, A., 2010. Automatic validation of

requirements to support multidimensional design.

Data & Knowledge Engineering.

Salinesi, C., Gam, I., 2006. A Requirement-driven Ap-

proach for Designing Data Warehouses. In Require-

ments Engineering :Foundation for Software Quality

(REFSQ).

Simitsis, A., 2005. Mapping conceptual to logical models

for ETL processes, 8th International workshop on

Data warehousing and OLAP. p. 67–76.

Simitsis, A., Skoutas, D., Castellanos, M., 2010. Repre-

sentation of conceptual ETL designs in natural lan-

guage using Semantic Web technology. Data &

Knowledge Engineering 69, 96–115.

Simitsis, A., Vassiliadis, P., 2003. A methodology for the

conceptual modeling of ETL processes, CAiSE work-

shops.

Trujillo, J., Luján-Mora, S., 2003. A UML based approach

for modeling ETL processes in data warehouses. Con-

ceptual Modeling-ER 2003 307–320.

Tsois, A., Karayannidis, N., Sellis, T., 2001. MAC: Con-

ceptual data modeling for OLAP, the International

Workshop on DMDW. p. 28–55.

Vassiliadis, P., 2009. A Survey of Extract–Transform–

Load Technology. International Journal of Data

Warehousing and Mining 5, 1-27.

Vassiliadis, P., Simitsis, A., Skiadopoulos, S., 2002. Con-

ceptual modeling for ETL processes, dans: Proceed-

ings of the 5th international workshop on Data

Warehousing and OLAP. p. 14–21.

Zepeda, L., Celma, M., Zatarain, R., 2008. A mixed ap-

proach for data warehouse conceptual design with

MDA. Computational Science and Its Applications–

ICCSA 2008 1204–1217.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

252
