GRAPHICAL SIMULATION OF NUMERICAL ALGORITHMS

An Aproach based on Code Instrumentation and Java Technologies

Carlos Balsa, Luís Alves, Maria J. Pereira, Pedro J. Rodrigues and Rui P. Lopes

Polytechnic Institute of Bragança, Campus de Sta. Apolónia, Apartado 1134, Bragança, Portugal

Keywords: E-Learning Tool, Numerical Methods, Octave, Code Instrumentation, Inspector Functions, XML, OpenGL,

Website, Servlet, Open Source.

Abstract: We want to create a working tool for mathematics teachers and a corresponding learning tool for students,

namely a graphical simulator of mathematical algorithms (GraSMa). To achieve it we try two different

strategies. We started by annotating manually the original algorithm with inspector functions. Now we are

testing a new approach that aims at automatically annotating the original code with inspector functions. To

achieve this we are developing a language translator module that enables us to comment automatically on

any code written in Octave language. The run of the annotated code gated by one of these two ways, records

in a XML (eXtensible Markup Language) file everything that happened during the execution. Subsequently,

the XML file is parsed by a Java application that graphically represents the mathematic objects and their

behaviour during execution. The final application will be accessed on-line through a website (WebGraSMa)

which is currently under development. In this paper we report and discuss about the procedures followed

and present some intermediate results.

1 INTRODUCTION

The human visual system constitutes a massively

parallel processor that provides the highest

bandwidth channel into human cognitive centers.

Considering this fact, we can easily assume that

visual representations of data amplify cognition,

leveraging perception and understanding of complex

ideas with clarity, precision, and efficiency. As an

extension to this concept, it is clear that geometric

representation of mathematical concepts will provide

a valuable method to help interpret and understand

them. From this perspective, numerical methods can

no longer be seen as a sequence of lines of code, but

a rich set of moving graphical objects.

In this context, we are developing an open source

tool (Graphical Simulator of Mathematical

Algorithms - GraSMA) that can be used by teachers

and students in different mathematical classes.

GraSMA will help to understand concepts as

approximated solution, iteration, convergence, error,

etc.

Currently there are several software modules in

the field of mathematics education. Some are

commercial and other free. Most of them focus on

secondary education. Subjects taught in graduate

education, particularly on the subject of numerical

methods, are scarce. In these series, we highlight the

"Interactive Educational Modules in Scientific

Computing," available online at the site

http://www.cse.illinois.edu/iem/. In this software,

each module is a Java applet that is accessible

through a web browser. For each applet, we can

select, from a list, problem data and algorithm

choices interactively and then receive immediate

feedback on the results, both numerically and

graphically. Our approach differs from this because

it is open source and generic, open to the inclusion

of new mathematical methods that can be illustrated

graphically

In previous work (Balsa et al, 2010), we put out

several important questions namely: How to retrieve

the information about the sequence of algorithm

iterations (data flow and control flow)? How to

represent internally that information? Is the

representation in XML pretty generic? Which

technology should be used to visualize graphically a

mathematical algorithm (Java and OpenGL)?

We begin by addressing these questions in

sections 2, where we describe the main steps that led

to the current GraSMA implementation. After that,

in sections 3, we illustrate the GraSMA utilization

164

Balsa C., Alves L., J. Pereira M., J. Rodrigues P. and P. Lopes R..

GRAPHICAL SIMULATION OF NUMERICAL ALGORITHMS - An Aproach based on Code Instrumentation and Java Technologies.

DOI: 10.5220/0003917601640169

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 164-169

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

with the Newton Raphson’s method. In section 4 we

discuss about GraSMA improvements currently

under development.

2 GRASMA IMPLEMENTATION

To build the information essential to animate

algorithm iterations we choose to instrument the

code (Code Instrumentation). This technique is well

known in the area of program comprehension, see

for instance (Berón et al, 2007) and (Cruz et al,

2009), and usually is adopted when the objective is

to visualize programs written in a specific language.

The main idea is to annotate the source code with

inspector functions. This will allow retrieving static

and dynamic information of the program execution.

To store this information, a Document Type

Definition (DTD) was created in order to generate

an intermediate representation in XML - eXtensible

Markup Language (Ramalho and Henriques, 2002).

That DTD describe how to represent information

about the algorithm execution. One of the first

challenges of this work is to determine the schema

appropriate to describe a large number of different

algorithms.

Finally, in order to visualize the algorithms, the

Java programming language (Cadenhead and

Lemay, 2007) and OpenGL (Shreiner, 2009) are

used.

The software, based on Java and OpenGL, relies

on the GNU Octave engine for numerical

calculations. The visualization section is based on

two predominant classes: the GLRenderer2D and the

GLRenderer3D.

On the other side, the class OctaveCaller

generates the XML file, based on the execution of

the algorithm in Octave. The “Renderer” classes

process and display on screen a series of

mathematical object representing a step or iteration

of a numerical method.

The algorithm is represented, in Java, by the

class Algorithm, which describes the Octave

algorithm through a list of iterations (each iteration

is itself a list of mathematical objects to be

displayed). This information is stored in a list of

iterations and is obtained via the Parser class that

can process an XML file to retrieve the iterations

data and thus place them in the corresponding field

in the instance of the Algorithm class.

To visualize the algorithm execution two

different panels are displayed: the first displays

some standard elements that are always on the

screen (named the “global” elements). The second

draws some elements that are visible only for the

iteration that is currently on display. These elements

will be replaced at the next iteration. That is why

one is able to see on the class diagram that the

Algorithm class is linked to the MathObject

interface by two different links: an iterationList (that

is to mean a list of iteration where an iteration is a

list of MathObject), and a global list is just a list of

MathObject. A generic schema of all software

components can be seen in Fig. 1.

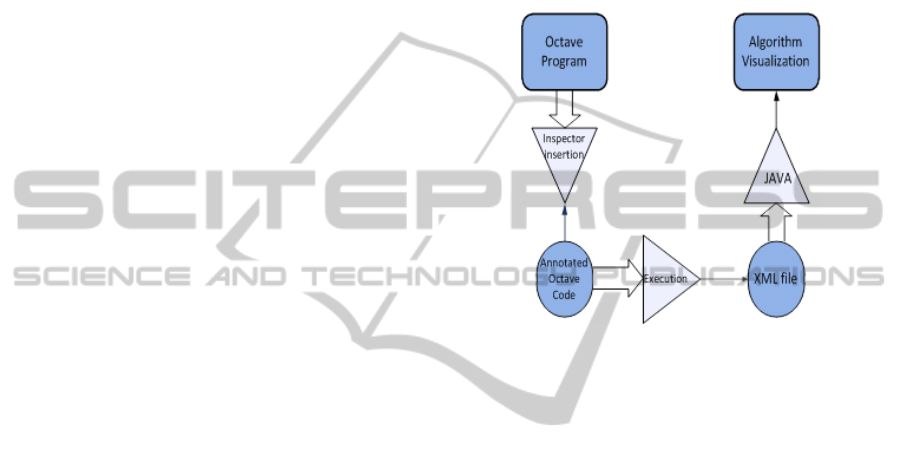

Figure 1: Generic scheme of all software components.

2.1 Annotation with Inspector

Functions

The software can display on the screen any type of

mathematical algorithm that uses some type of

mathematical objects that will be detailed in section

2.3. For this, the algorithm coded in Octave

language, must be changed a second time to allow

record data by each iteration. This data is

encapsulated in an XML file.

Two Octave functions, already defined, are

added to the Octave code:

init_global() and

end_global()

These functions are to generate the early part of

“global” algorithm, i.e., all elements that appear on

the screen from iteration to iteration. For each

iteration, other functions are used:

init_data(),

end_data(), init_iteration(),

init_iteration_with_information(),

end_iteration() and end_data().

The

init_data is called on the beginning of a

list of iterations. This function will be followed by a

series of successive calls of

init_iteration

function (with or without information) to declare the

beginning of a new iteration and a call of

end_iteration function to complete the

annotation. When all the iterations have been

reported with their mathematical objects inside, we

GRAPHICALSIMULATIONOFNUMERICALALGORITHMS-AnAproachbasedonCodeInstrumentationandJava

Technologies

165

can call the

end_data function to close the

iterations list.

Finishing the iteration annotation it is time to

declare the mathematical objects that appear in this

iteration. To do this, the following functions are

available in Octave:

new_curve

new_ellipse

new_circle

new_curve_with_parameters

new_integral

new_integral with parameters

new_parameter

new_point2d

new_point3d

new_vector

end_curve_with_parameters

end_integral_with_parameters

The Octave basic function should be amended to

bring up a parameter

file_id as the first parameter

of the function. This

file_id is the file identifier

for the XML backup of the execution of the

algorithm. This file identifier is created

automatically by GraSMA that will itself launch

Octave script with this parameter.

The Octave basic function should be amended to

bring up a parameter file_id as the first parameter of

the function. This file_id is the file identifier for the

XML backup of the execution of the algorithm. This

file identifier is created automatically by GraSMA

that will itself launch Octave script with this

parameter.

If we wish to run the script manually in Octave,

you must have an identifier file.

All these Octave functions simply write lines of

XML in a file. Finally the XML file follows the

document type definition (DTD), allowing a valid

XML file to be correctly parsed by the Java code.

2.1.1 Example of Code Instrumentation

We present below the sequence of procedures done

for the graphical representation of the Newton-

Raphson’s method.

The end users (students and teachers) are not

concerned with code annotation; they just chose the

algorithm and watch the generated visualizations.

In this approach, code instrumentation is

performed by us in each Octave algorithm. It occurs

only once throughout the software lifetime. Octave

inspector function calls are added to code in order to

We start first by changing the header function to

add a new argument

file_id.

As an example, we are going to present the basic

Newton-Raphson in Octave. The original

implementation of this method is:

function[x, res,

nbit]=nle_newtraph(f, df, x0, itmax,

tol, varargin)

x=x0;

nbit = 0;

err=tol+1;

fx= feval(f,x,varargin{ : });

if fx==0;

x=x0; res=0; nbit=0;

return

end

while err > tol & nbit <= itmax

aux = x;

fx = feval(f,x,varargin{ : });

dfx = feval(df,x,varargin{ : });

x = x−fx/dfx;

err = abs(aux−x);

nbit = nbit+1;

end

res = feval(f,x,varargin{ : });

if nbit > itmax

printf( [”nle_newtraph stopped

without converging, maximum number of

iteration was reached .\n”] );

end

endfunction

The programming user must decide what he

wants to display on the screen. Let’s imagine that he

wants to show the target function

()

x and to

display different tangent lines representing the

evolution of the algorithm in each iteration.

Then, before the first iteration of the algorithm,

we declare the elements that will be global, i.e. the

mathematical elements that will be continuously

displayed on the screen. The functions

init_global and end_global must imperatively

be called even if the list of elements inside is empty:

After the declaration of global elements,

init_data function is called in order to prepare the

annotation of the iterations. Next, at each iteration

we will find at first the

init_iteration call (or

init_iteration_with_parameter, which can

also take a string that represents the additional

information to be displayed by the application) and,

at the end, the

end_iteration function call.

All these functions (which records data in an

XML file) have always as first parameter

file_id.

After the end of the list of iterations, a call to

end_data function is necessary.

Finally, it remains only to make a call to

init_error and end_error before closing the data

tag (

end_data). One can put a list of errors

(

new_error_point) after the call to init_error.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

166

2.2 Document Type Definition

Document Type Definition (DTD) is a structure of

mark-up declarations that defines a document type

for SGML-family languages (SGML, XML,

HTML). A DTD is a kind of XML schema.

DTDs use a brief formal syntax that declares the

structure and the elements and its attributes of one

type of document. Each case of the DTD will follow

the same organization and it has the same elements.

2.3 Plotting Mathematical Objects

The fundamental mathematical objects that we can

visualize are: vectors, lines, curves (functions),

integrals, circles, ellipses and 3D surfaces. Each of

these objects corresponds to a Java class that

implements the interface MathObject.

For instance, the semantic representation in the

XML file that matches with the mathematical object

Integral is:

<integral value=”@(x) sin(x)”

color=”green” lowerbound=”−2”

upperbound=”8”> </integral>

The display of integrals was necessary to see the

evolution of the Simpson method (Fig. 2), used in

numerical analysis, for numerical integration. The

first attempt to draw the integrals was based on

polygons (because the polygons are one of the basic

designs of OpenGL). This was not conclusive

because the full draw on the basis of a polygon is

possible only if, on the interval over which the

integral is calculated, the function does not change

its sign. So we used even more basic integrals: using

only lines, and different colours that work in all

cases. Use 15-point type for the title, aligned to the

center, linespace exactly at 17-point with a bold font

style and all letters capitalized. No formulas or

special characters of any form or language are

allowed in the title.

Figure 2: Visualization of the Simpson’s method.

3 GRASMA UTILIZATION

At the opening of GraSMA system we select Files,

then New, and it simply shows the steps on a new

window. In step 1 we must choose an annotated

Octave algorithm a give it a name in step 2. Finally,

in step 3 we indicate the input parameters of the

numerical method. If we need to refer a function, we

must think about writing this function in Octave

format (for example @(x) sin(x) for the sinus

function).

The Fig. 3 illustrates the case of the call to

Newton-Raphson’s method to find the zero of the

function

() 1fx x

− , with initial approximation

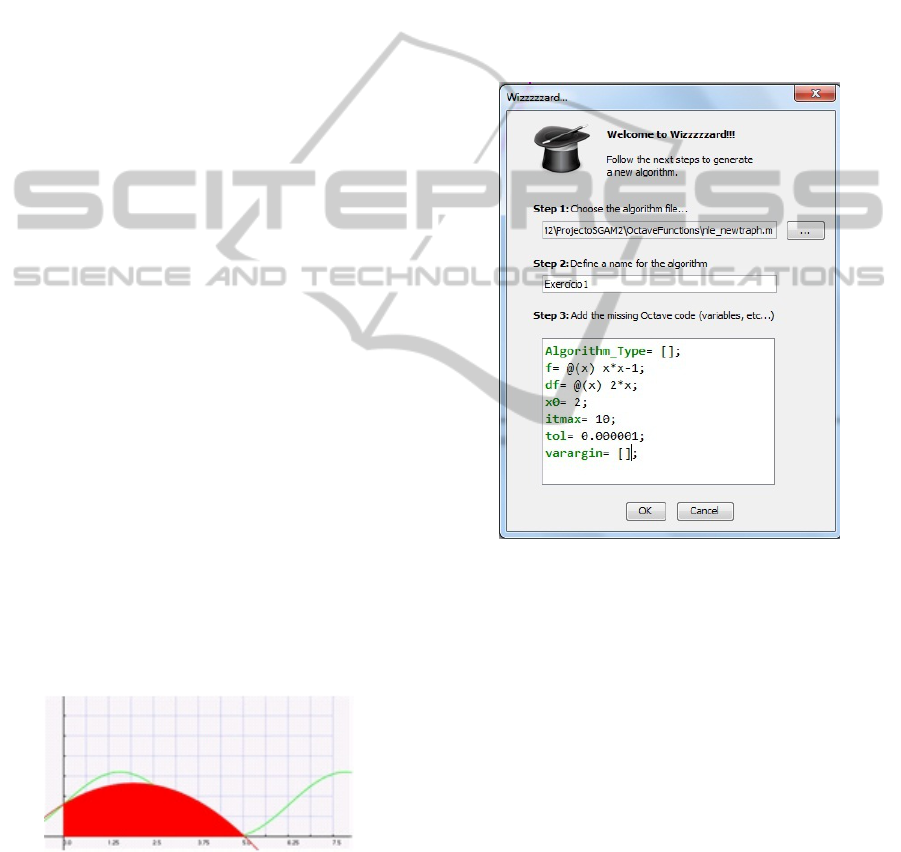

Figure 3: Example of a call to Newton-Raphson method.

Once this information is supplied, the algorithm

visual representation appears on the application left

side.

The user interface is very simple with icons for:

-Go to the next iteration

-Go to the previous iteration

-Make the animation of the algorithm

The progression of the algorithm is shown on the

application right frame and if any information has

been filled for a particular iteration in the modified

Octave file, then it will be displayed on the list box.

Fig. 4 and Fig. 5 correspond to the two first

iterations of the Newton-Raphson method with setup

parameters shown in Fig. 3. The dashed line corres-

ponds to the approximate solution obtained by the

tangent function (straight pink) in the previous

iteration.

GRAPHICALSIMULATIONOFNUMERICALALGORITHMS-AnAproachbasedonCodeInstrumentationandJava

Technologies

167

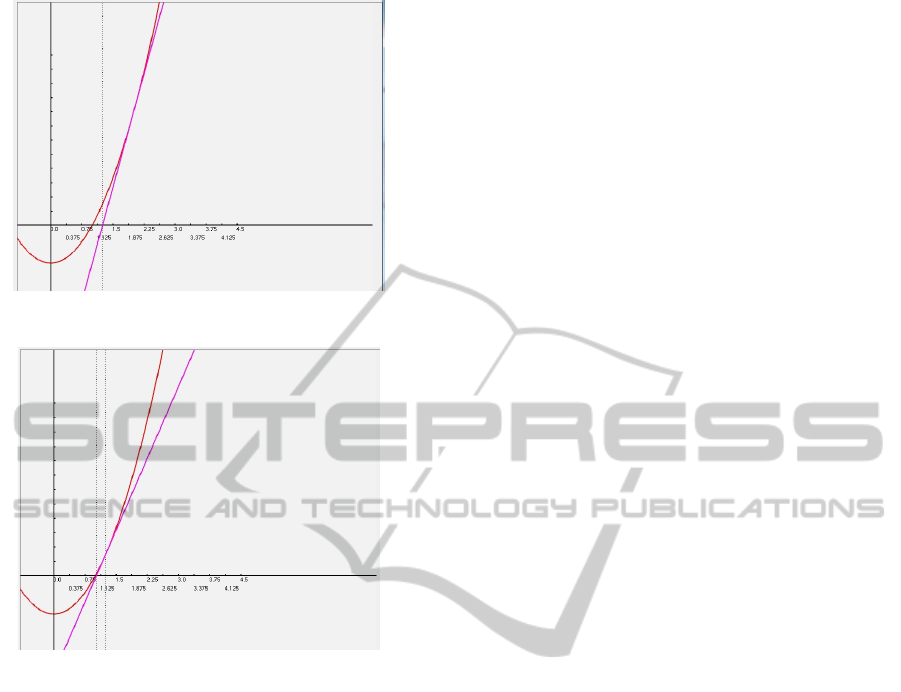

Figure 4: First iteration of Newton-Raphson method.

Figure 5: Second iteration of Newton-Raphson method.

We can increase or decrease the zoom level of

the visualization by clicking with the left button of

the mouse.

4 GRASMA IMPROVEMENTS

We are planning to add new functionalities to

GrasSMa. Currently we are working in the

automatic annotation of Octave code by means of a

compiler that generates annotated code. Other

current issue is the development of a website that

enables the online access to GrasSMa.

4.1 Automatic Code Instrumentation

The main idea is to turn GrasSMa easily adaptable to

other algorithms. As these algorithms are

implemented in Octave language and we can extract

information in run-time in order to visualize the

execution process. For that, a language processor

will be used to automatically annotate Octave

programs with inspector functions. Until now, this

task was performed manually for each algorithm but

with this new frontend, GrasSMa can generate

visualizations of any algorithm coded in Octave

without modifying manually the source code.

To implement code instrumentation (Cruz et al,

2009) we insert inspection functions (or inspectors)

in strategic places of a program to capture its

execution flow. The information extracted along this

inspection can be used to show different views to

help understanding program behaviour. This is a

well known technique for Program Comprehension.

To define a strategy to annotate the source code

we have to know: which information we need to

extract; and what are the strategic points in the

source code.

To answer these questions we conceptualize the

program execution process as a state machine (SM).

The input values represent the initial state and the

final state can be represented by the variable values

after execution. The intermediate states are

represented by the variable values reached during

the program execution.

The transition between states is carried out

through the Octave program functions. The values

reached in each algorithm step with be saved

internally to produce evolution graphical

visualizations.

To implement this strategy we are building a

parser for the source language extended with

semantic actions. These actions insert into the

program new statements that will allow tracing the

state and the transitions.

The parser relies on several compiler

constructions (Aho et al, 1986) tools: Lex&Yacc

(

Levine et al, 1992), AntLR (Parr, 1999) or LISA

(Henriques et al, 2005).

These tools are based on the language grammar

and they allow specifying the automatic recognition

and transformation of the program written in that

language. In our case the language to be recognized

is Octave and the transformation consists in adding

the inspector functions.

4.2 WebGRASMA

The GrasSMa prototype is a desktop application,

running in a Java Virtual Machine installed in the

user workstation. This approach limits the possibility

to update the existing algorithms as well as the

possibility to deploy new algorithms. Moreover, the

use of the software requires that each student installs

the software on his own PC or laptop, making the

tool unpractical to use in lectures.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

168

To deal with these limitations, we are developing

a Web based application able of displaying the

algorithms directly on a web browser.

The web application is structured in two main

sections: the server and the client. We are making

the effort to use standard HTML, to allow using

regular web browsers as the client.

The server side concentrates the application

logic, responsible for storing the algorithms, execut-

ing them on demand on the Octave engine,

retrieving the execution resulting XML file and

producing the visualization, which will be sent to the

client.

In the desktop version, a single instance of the

Octave engine is sufficient to respond to the user

operation. However, in the Web based version, each

user has, potentially, allocated a different instance.

This can pose scalability and stability issues.

To prevent, as much as possible, these problems,

we are considering a server side cache mechanism,

to allow responding to user operations without

requiring on-the-fly interpretation of algorithms.

To leverage the code already developed for the

desktop operation, we are building the Web

application in Java Servlets, for the “hardcore” logic,

and JSF (Java Server Faces) and HTML for the

complementary website structure, such as forms and

documentation pages.

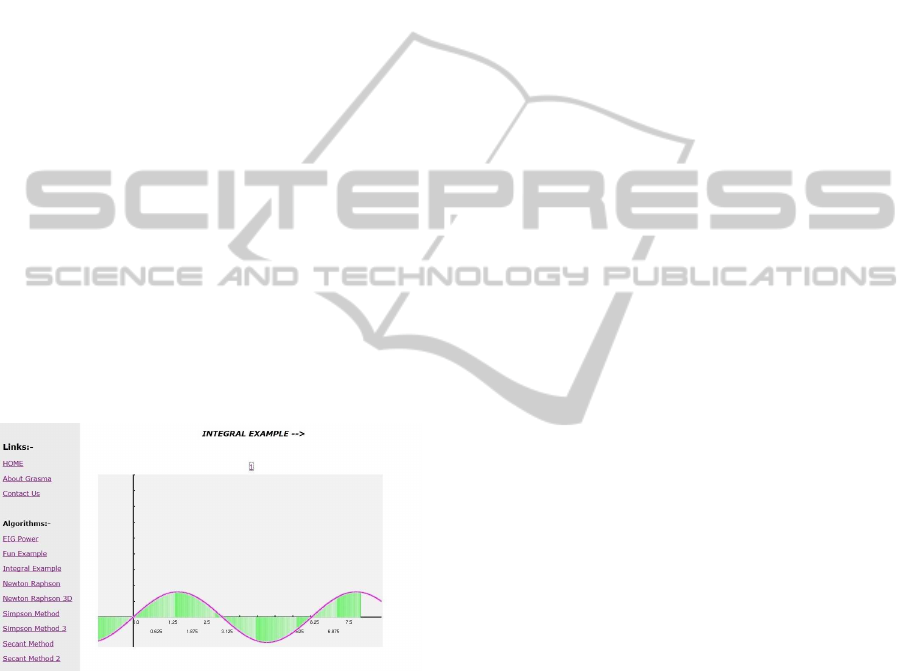

Figure 6: Snapshot of the web-based GraSMa.

5 CONCLUSIONS

This paper described GRASMA implementation.

The approach followed by this graphical simulation

tool was semi-automatic because it implied the

manual insertion of code inspector functions.

Here a big improvement is presented: the

numerical algorithm is automatically instrumented

and the algorithm visualization is generated with any

effort from the user.

The process is based in language processing

techniques and it allows simultaneously the

generation of XML code for further application

domains.

REFERENCES

Balsa, C., Alves, L., Pereira, M. J., Rodrigues, P.J. 2010.

Graphical Simulator of Mathematical Algorithm

(GraSMA). In Teaching and Learning 2010, Advances

in Teaching and Learning Research. IASK.

Berón M., Henriques P. R., Pereira M. J. V., Uzal R.,

2007. Static and Dynamic Strategies to Understand C

Programs by Code Annotation, In OpenCert'07, 1st

Int. Workshop on Fundations and Techniques for

Open Source Software Certification.

Cruz D., Béron M., Henriques P. R, Pereira M. J. V.,2009.

In Code Inspection Approaches for Program

Visualization, Editor Linus Michaeli, Faculty of

Electrical Engineering and Informatics, Technical

University of Kosice.

Ramalho J. C, Henriques P. R, 2002. XML & XSL: da

teoria à prática. FCA Editor. Lisbon, 1st Ed.

Cadenhead R. and Lemay L., 2007. Teach Yourself Java 6

in 21 Days. Sams, 5th Edition.

Shreiner D., 2009. OpenGL Programming Guide: The

Official Guide to Learning OpenGL, Versions 3.0 and

3.1. Addison-Wesley Professional, 7th Edition.

Aho A. V., Sethi R., and Ullman J. D., 1986. Compilers

Principles, Techniques and Tools. Addison-Wesley.

Levine J. R., Mason T., and Brown D., 1992. Lex & Yacc.

Ed. Dale Dougherty. O’Reilly & Associates Inc.

Parr T., 1999. Practical computer language recognition

and translation – a guide for building source-to-

source translators with antlr and java. http://

www.antlr.org/ book/index.html.

Henriques P., Varanda M. J., Mernik M., Lenic M., Gray

J., and Wu H., 2005. Automatic generation of

language-based tools using lisa system. IEE Software

Journal, 152(2):54–70, ISSN: 1462-5970.

GRAPHICALSIMULATIONOFNUMERICALALGORITHMS-AnAproachbasedonCodeInstrumentationandJava

Technologies

169
