Algorithmic Surface Extraction from MRI Data

Modelling the Human Vocal Tract

D. Aalto

1,2

, J. Helle

, A. Huhtala

, A. Kivelä

, J. Malinen

, J. Saunavaara

and T. Ronkka

Inst. of Behavioural Sciences (SigMe Group), University of Helsinki, Helsinki, Finland

Dept. of Signal Processing and Acoustics, Aalto University, P.O. BOX 13000, FI-00076 Aalto, Finland

Media Factory, Aalto University, P.O. BOX 31000, FI-00076 Aalto, Finland

Dept. of Mathematics and Systems Analysis, Aalto University, P.O. BOX 11100, FI-00076 Aalto, Finland

Dept. of Radiology, Medical Imaging Centre of Southwest Finland, University of Turku, Turku, Finland

Aalto Design Factory, P.O. BOX 17700, FI-00076 Aalto, Finland

Keywords:

MRI, 3D Image Processing, Automatic Surface Extraction, FEM Meshing, Physical Modelling.

Abstract:

A procedure for the vectorisation and feature extraction of the human vocal tract is proposed. The raw data

is obtained by high resolution 3D MRI. Because the amount of manual work in the data processing has been

minimised, large datasets can be treated. The vectorised data can be used for both numerical as well as physical

modelling of the vocal tract biophysics, including speech and applications in medicine.

1 INTRODUCTION

We present techniques, algorithms, and results for

automatic vectorisation and feature extraction of

grayscale voxel image ﬁles, produced by Magnetic

Resonance Imaging (MRI). Our particular interest is

in the extraction of the human vocal tract (VT) geom-

etry. Numerous test subjects and large datasets are of-

ten involved, and manual data processing must there-

fore be minimised. This is the main motivation for de-

veloping custom software for VT extraction. Applica-

tions of anatomically accurate VT models range from

computational modelling (see (Aalto et al., 2011; De-

douch et al., 2002; Hannukainen et al., 2007; Lu et al.,

1993; Lacis, 2012) and the references therein) to fast

prototyping of physical models for measurements that

are impossible to carry out non-invasively using test

subjects (see (Hirtum et al., 2011; Horá

cek et al.,

2011; Šidlof et al., 2012; Takemoto et al., 2010)).

There is wide literature in image processing and

feature extraction methods that have been applied in

medical imaging; see, e.g., (Gonzalez and Woods,

2001; Criminisi et al., 2011). Several software so-

lutions for processing of medical images exist such

as the Vascular Modelling Toolkit (Vascular Model-

ing Toolkit, 2012) and MIMICS (Materialise, 2012)

which was used in (Takemoto et al., 2010) for proces-

(a) (b)

Figure 1: (a) A mid-sagittal section of a male subject while

pronouncing vowel [œ]. (b) A plastic printout of the same

vowel geometry, consisting of 24 sagittal planes of which

14 is shown here.

sing a small dataset of VT geometries. However,

practical applications require speciﬁcally reﬁned cus-

tom procedures that scale with the increasing size of

the dataset.

Compared to cardiovascular modelling and mod-

elling of most internal organs, the extraction of the

VT geometry has complications of its own. Teeth are

missing from raw MRI data because osseous struc-

tures cannot be isolated from air volumes due to their

low hydrogen content. This results in holes and other

artefacts in vectorised images which must be cor-

rected. As discussed below, the highly variable rel-

ative position of the mandible and the maxilla in dif-

ferent VT conﬁgurations must be taken into account

257

Aalto D., Helle J., Huhtala A., Kivelä A., Malinen J., Saunavaara J. and Ronkka T..

Algorithmic Surface Extraction from MRI Data - Modelling the Human Vocal Tract.

DOI: 10.5220/0004233302570260

In Proceedings of the International Conference on Biomedical Electronics and Devices (BIODEVICES-2013), pages 257-260

ISBN: 978-989-8565-34-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

in automated artefact removal. Separate imaging of

teeth and their alignment with the soft tissue geome-

tries from MRI is a difﬁcult problem which is not dis-

cussed in this article.

2 SURFACE MODELS

In traditional medical imaging, it is sufﬁcient to pro-

duce visualisations for inspection by trained radiolo-

gists. Numerical modelling methods require discrete

representations such as tetrahedral meshes for FEM.

We generate the mesh from a solid triangular repre-

sentation of the desired surface which requires more

data processing than surface extraction for visualiza-

tion purposes only.

We propose a novel algorithm and software for

surface and feature extraction of the 3D VT air vol-

ume Ω. The algorithm comprises the following steps:

1. Pre-processing: The voxel data is smoothed to

remove noise.

2. Initial Surface Extraction: is carried out by ex-

tracting an isosurface corresponding to approxi-

mated air-tissue interface. An isosurface is a level

set corresponding to a constant gray value, and it

consists of triangular elements.

3. Producing the Artefact Prior Model: “Unde-

sired artefacts”, such as vertebrae and maxillae,

are manually identiﬁed from the initial surface to

produce two prior models of the artefacts, one for

each maxilla.

4. Removing Artefacts: Artefact models are

aligned with the initial surface using algorithms

provided by PCL (Rusu and Cousins, 2011).

Based on the location information thus obtained,

the undesired artefacts are masked from the origi-

nal voxel data.

5. Final Surface Extraction: An improved isosur-

face Γ is extracted from the artefact free, masked

voxel data.

6. Locating Boundaries: The glottis, the velar port,

and the mouth opening positions are located from

Γ. These openings are covered, and they can be

joined with Γ to produce a triangulated model for

the full boundary ∂Ω.

The raw data consists of MRI sequences that are

stored as a DICOM ﬁles that comprising of 44 sagittal

plane images: each image contains 128 ×128 pixels

that are of size d = 1.8mm

. These planar images are

aligned and stacked using the location data produced

The pixel number is always the same when using this

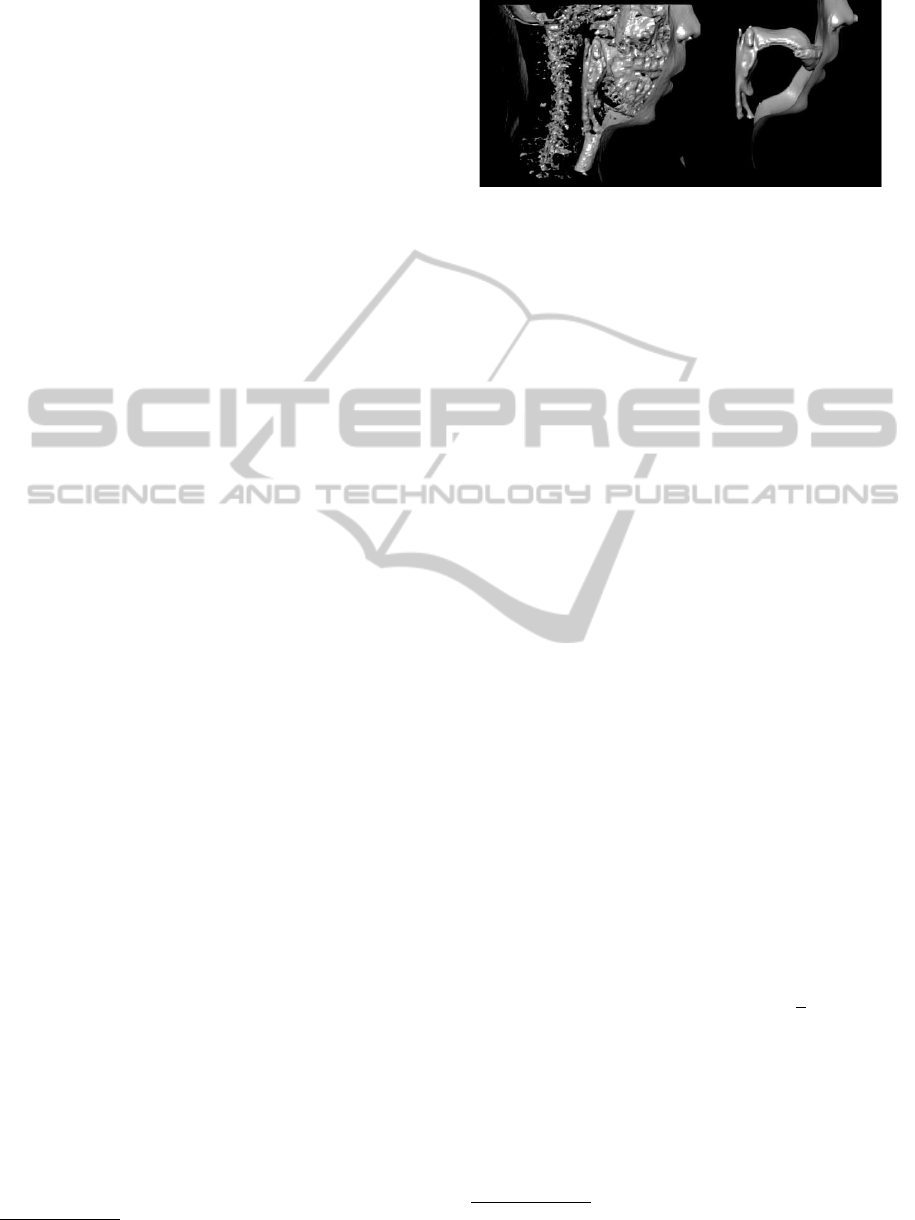

Figure 2: Shaded visualisation of the initial (left) and the

ﬁnal isosurfaces. The face is not part of the ﬁnal computa-

tional geometry boundary ∂Ω.

by the MRI machine. The stacked images form a 3D

matrix of voxel data that represents the VT through

grayscale values. The measurement setup for obtain-

ing this data has been documented in (Aalto et al.,

2011, Section 2.3).

The isosurface extraction requires a threshold gray

value that is determined from 2D bitmaps by estimat-

ing the VT boundary intersection heuristically. Since

the air-tissue interface has a steep gray value gradi-

ent in the MRI voxel data, the extracted surface is not

sensitive to small variations in the threshold value.

2.0.1 Artefact Modelling and Mesh Quality

The initial surface has a lot of artefacts as can be seen

in Fig. 2. The alignment of the artefact models is car-

ried out using the Point Cloud Library (PCL) (Rusu

and Cousins, 2011). The information provided by

PCL gives, in particular, the relative positions of the

mandible and the maxilla which amounts to most of

the positional variation between different VT conﬁg-

urations of the same test subject.

The production of the prior artefact models re-

mains the most laborious piece of manual work where

tools such as MeshLab (MeshLab, 2012) or Blender

(Blender, 2012) can used. It takes about one hour to

model the artefacts for one test subject but then the

same artefact model can be used for all VT conﬁgura-

tions, albeit only from the same test subject.

As the ﬁnal result, an artefact free surface model

of the VT geometry is obtained. One such geome-

try is shown in Fig. 2. The side lengths of the sur-

face triangles are bounded above by d

√

3 where d is

the voxel resolution of the MRI data. As reported in

(Aalto et al., 2012, Section 4), the geometric error of

the surface mesh is of order 0.5mm except in those

parts of the model where MRI transparent teeth or the

possibly open velar port cause crude error.

sequence but the pixel size varies according to the physical

dimension of the test subject.

BIODEVICES2013-InternationalConferenceonBiomedicalElectronicsandDevices

258

3 CENTRELINE EXTRACTION

Many simpliﬁed computational physics models in

tubular anatomic regions (such as ﬂow mechanics in

vascular structures and the acoustics of the VT) refer

to centrelines and intersectional areas instead of the

full 3D geometry. Our interest in centrelines and area

functions of the VT stems from the generalised Web-

ster’s horn model (see, e.g., (Lukkari and Malinen,

2011), (Story et al., 1996)) which is a low frequency

1D approximation of the 3D wave equation on a tubu-

lar domain. For a discussion on hemodynamics mod-

els, see (Antiga, 2003) and the references therein.

Since centrelines are not uniquely deﬁned on ge-

ometric grounds except in very simple cases, we ﬁrst

produce a candidate centreline for Ω. However, the

“true” centreline depends on the application and the

model of interest in a possibly intractable way. So as

to Webster’s model, we improve the model accuracy

by choosing optimally from a family of centrelines

that are normal to a ﬁxed set of planar intersections as

can be seen in Fig. 3.

Voronoi diagrams are used for the centreline ex-

traction in Vascular Modelling Toolkit. Our approach

is based on numerically solving the steady state heat

equation with unit source ∆u = 1 in Ω where u = 0 on

VT walls, and

∂u

∂ν

= 0 at mouth and glottis. In our set-

ting, this can be done without much extra effort since

FEM discretisation of Ω has already been produced

for modelling VT acoustics, and a similar approach

has been studied in (Vesom et al., 2008). The solu-

tion of the steady state heat equation can be obtained

in linear time respect to the number n of nodes in the

discretisation. The candidate centreline is, by deﬁni-

tion, the ridge in the solution u. Finding the ridge is a

pathﬁnding problem that can be solved in O(nlogn)

time.

4 PHYSICAL MODELS

We have produced pilot plastic models of the VT in

1:1 scale. We use these models for acoustic and ﬂow

measurements in order to augment and validate the

numerical results from mathematical models.

We have experimented with hard plastic print-

outs only. Trials were performed using a 3D printer

3DTouch by Bits from Bytes, Ltd. The printing time

for the full VT in 1:1 scale in PLA plastic was in ex-

cess of 12 hours when using a layer height of 0.25mm.

The long printing time combined with the tendency

of PVA to clog the extruder nozzle resulted in a dis-

appointing print quality and a success rate of less

than 25%. Stereolithography as in (Takemoto et al.,

γ(s)

{Γ(s)}

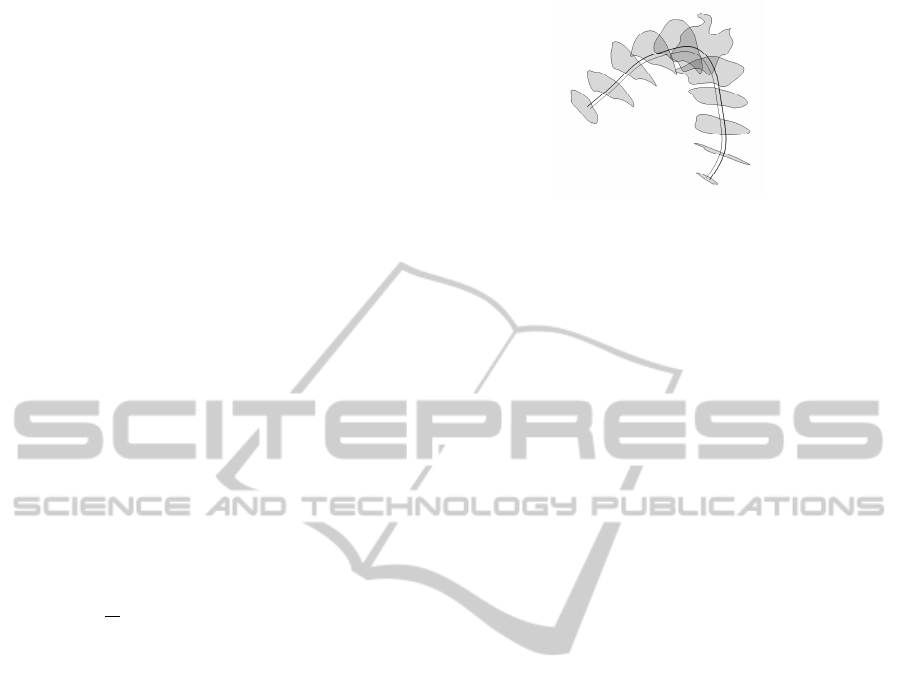

Figure 3: A subset of {Γ(s)} and two centrelines γ(s) and

γ(s) corresponding to the chosen set of area functions.

2010) or selective laser sintering is expected to pro-

duce higher quality models with better success rate

than fused deposition methods.

The prototype model shown in Fig. 1(b) was pro-

duced by cutting sagittal intersection contours from

3 mm thick acrylic plate. We used Legend 36ext by

Epilog Laser (http://www.epiloglaser.com) which is a

laser cutter with P = 60W and two degrees of

freedom. The cutting of all 24 sheets took under 2

hours.

The cutting angle of the sheets is always 90

◦

the model of Fig. 1(b), and this results in signiﬁcant

“stepping” of the VT boundary surface. The stepping

can be reduced either by using thinner acrylic plate or,

preferably, by varying the cutting angle so as to make

the adjacent sheets ﬁt to each other without steps. The

variable cutting angle requires a CNC mill or a more

advanced cutter.

Optically transparent models for Particle Image

Velocimetry studies as in (Horá

cek et al., 2011) can-

not be created simply by stacking transparent acrylic

sheets but moulds for casting such models can.

5 CONCLUSIONS

We have developed algorithms for automatic surface

detection and vectorisation of MR images of the head

and neck area, especially concentrating on the vocal

tract. A very large number of MR images are re-

quired for numerical model validation as well as med-

ical applications. Hence, the amount of manual work

must be minimised without sacriﬁcing the data qual-

ity. Apart from some tasks related to manual arte-

fact detection (see Step 3 in Section 2) and remaining

open problems with efﬁcient teeth modelling, the data

processing can be carried out by a fully computerised

procedure described in this work.

In addition to modelling purposes, physical print-

outs of vocal tract geometries may have future appli-

cations in reconstructive surgery and tissue engineer-

ing. Tissue grafts are produced by seeding and at-

tachment of human cells into a scaffold. Scaffolds

AlgorithmicSurfaceExtractionfromMRIData-ModellingtheHumanVocalTract

259

must satisfy many material requirements due to biol-

ogy (Sachlos and Czernuszka, 2003) as well as have

the correct geometric shape, too.

ACKNOWLEDGEMENTS

The authors were supported by the Finnish Academy

grant Lastu 135005, European Union grant Sim-

ple4All, Aalto Starting Grant, and Åbo Akademi In-

stitute of Mathematics.

The current version of the software described in

this paper can be obtained from the authors by re-

quest.

REFERENCES

Aalto, D., Aaltonen, O., Happonen, R.-P., Malinen, J.,

Palo, P., Parkkola, R., Saunavaara, J., and Vainio, M.

(2011). Recording speech sound and articulation in

MRI. In Proceedings of BIODEVICES 2011, Rome,

Italy.

Aalto, D., Huhtala, A., Kivelä, A., Malinen, J., Palo, P.,

Saunavaara, J., and Vainio, M. (2012). How far

are vowel formants from computed vocal tract reso-

nances? arXiv:1208.5963, 13 pp.

Antiga, L. (2003). Patient-Speciﬁc Modeling of Geometry

and Blood Flow in Large Arteries. PhD thesis, Po-

litecnico di Milano.

Blender (2012). http://www.blender.org. Ac-

cessed Nov. 7th, 2012.

Criminisi, A., Shotton, J., and Konukoglu, E. (2011). Deci-

sion forests for classiﬁcation, regression, density esti-

mation, manifold learning and semi-supervised learn-

ing. Technical Report MSR-TR-2011-114, Microsoft

Research.

Dedouch, K., Horá

cek, J., Vampola, T., and

Cerný, L.

(2002). Finite element modelling of a male vocal tract

with consideration of cleft palate. In Forum Acus-

ticum, Sevilla, Spain.

Gonzalez, R. C. and Woods, R. E. (2001). Digital Image

Processing, 2nd Ed. Addison-Wesley Longman Pub-

lishing Co., Inc., Boston, MA.

Hannukainen, A., Lukkari, T., Malinen, J., and Palo, P.

(2007). Vowel formants from the wave equation. J.

Acoust. Soc. Am. Express Letters, 122(1):EL1–EL7.

Hirtum, A. V., Pelorson, X., and Estienne, O. (2011). Ex-

perimental validation of ﬂow models for a rigid vocal

tract replica. J. Acoust. Soc. Am., 130(4):2128–2138.

Horá

cek, J., Uruba, V., Radolf, V., Veselý, J., and Bula, V.

(2011). Airﬂow visualization in a model of human

glottis near the self-oscillating vocal folds model. Ap-

plied and Computational Mechanics, 5:21–28.

Lacis, U. (2012). Modelling air ﬂow in larynx. Master’s

thesis, Umeå University.

Lu, C., Nakai, T., and Suzuki, H. (1993). Finite element

simulation of sound transmission in vocal tract. J.

Acoust. Soc. Jpn. (E), 92:2577 – 2585.

Lukkari, T. and Malinen, J. (2011). Webster’s equation with

curvature and dissipation. arXiv:1204.4075, 22 pp. +

5 pp. appendix.

Materialise (2012). Mimics. http://biomedical. materi-

alise.com/mimics. Accessed Nov. 7th, 2012.

MeshLab (2012). Visual Computing Lab ISTI -

CNR. http://meshlab.sourceforge.net/. Ac-

cessed Nov. 7th, 2012.

Rusu, R. B. and Cousins, S. (2011). 3D is here: Point Cloud

Library (PCL). In IEEE International Conference on

Robotics and Automation (ICRA), Shanghai, China.

Sachlos, E. and Czernuszka, J. T. (2003). Making tissue en-

gineering scaffolds work. Review: the application of

solid freeform fabrication technology to the produc-

tion of tissue engineering scaffolds. Eur Cell Mater,

5:29–39; discussion 39–40.

Story, B., Titze, I., and Hoffman, E. (1996). Vocal area func-

tions from magnetic resonance imaging. J. Acoust.

Soc. Am., 100(1):537–554.

Takemoto, H., Mokhtari, P., and Kitamura, T. (2010).

Acoustic analysis of the vocal tract during vowel pro-

ductions by ﬁnite-difference time-domain method. J.

Acoust. Soc. Am., 128(6):3724–3738.

Vascular Modeling Toolkit (2012). http://www.vmtk.org.

Accessed Nov. 7th, 2012.

Vesom, G., Cahill, N. D., Gorelick, L., and Noble, J. A.

(2008). Characterization of anatomical shape based

on random walk hitting times. In In Proceed-

ings of Mathematical Foundations of Computational

Anatomy (MFCA 2008), New York.

Šidlof, P., Horá

cek, J., and

Ridký, V. (2012). Parallel CFD

simulation of ﬂow in a 3D model of vibrating human

vocal folds. Computers and Fluids. In press.

BIODEVICES2013-InternationalConferenceonBiomedicalElectronicsandDevices

260
