A Model-based Tool for Generating Software Process Model

Tailoring Transformations

Luis Silvestre, María Cecilia Bastarrica and Sergio F. Ochoa

Computer Science Department, Universidad de Chile, Santiago, Chile

Keywords: Software Process Tailoring, Model Transformation, Generative Approach, Model-based Tool.

Abstract: Tailoring is the mechanism of adapting a software process to the needs of a project. Model-Driven

Engineering (MDE) provides a formal basis and tools infrastructure for automatic software process

tailoring. However, the use of a MDE approach can become awkward for most process engineers, because it

requires knowledge of MDE concepts and formalisms to implement the required models and tailoring

transformations. Proposals trying to address this problem should balance the formality required by MDE

and the usability needed by the users. This paper presents a model-based tool and its associated procedure

that allow process engineers to automatically generate tailoring transformation rules using a graphical user-

interface, obtaining the desired balance. The proposal is illustrated with a running example.

1 INTRODUCTION

Software process tailoring is the adaptation of a

software process so that it is adjusted to the needs of

a particular project. There are a variety of

approaches to address tailoring, ranging from self-

emerging processes as in XP (Beck, 1999), to

template-based tailoring as in Crystal methodologies

(Cockburn, 2000), and ultimately automatic software

process tailoring based on MDE techniques

(Bendraou et al., 2010) (De Oliveira Barros et al.,

2002) (Hurtado et al., 2013).

MDE promotes building software by defining

software models and successively refining them

through formal model transformations (Schmidt,

2006). In this way, this approach has allowed

software modeling at different abstraction levels and

addressing different application domains (Kleppe et

al., 2003). However, all this power requires

mastering new concepts and formalisms relating

model definition and writing model transformations

in specific languages. These complexity issues have

sometimes prevented these techniques to be applied

in industrial settings.

MDE-based tailoring considers software

processes as models, and process tailoring as model

transformations. Model transformations are

programs that generate one or more output models

from one or more input models. Transformations

may be written in general purpose languages such as

Java or C++, but transformation-specific languages

such as ATL (AtlanMod Group, 2006) or QVT

(OMG, 2001) provide higher abstraction level

constructs for writing transformations.

For software process tailoring, the tailoring

transformation takes the organizational process

model including its variability, and the project

context model as input, and generates the project

adapted process model. For each variable process

element in the process model, there will be a rule in

the transformation that determines if it is to be

included or not (for optional elements), or which

realization of the process element should be included

(for alternative elements), according to the values of

the project context model attributes.

Generating appropriate tailoring transformations

requires two different kinds of knowledge. On the

one hand, the process engineer, who is in charge of

this activity, should know precisely how the context

attribute values impact the process variation. On the

other hand, she/he should be able to write the model

transformation, mastering the syntax and semantics

of the transformation language used to implement

the tailoring rules. The company's process engineer

usually has the first kind of knowledge (i.e., how to

tailor the process), but she/he is almost never

experienced in the use of transformation languages

and MDE concepts. While it has been shown that it

is technically feasible to apply MDE to tailor

software process models, the complexity of this

533

Silvestre L., Bastarrica M. and Ochoa S..

A Model-based Tool for Generating Software Process Model Tailoring Transformations.

DOI: 10.5220/0004715805330540

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 533-540

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

solution limits its use in the software industry.

To address this challenge, we present a model-

based tool to automatically generate tailoring

transformation rules through a generative approach.

This tool, that we have called Architect of Tailoring

Rules (ATR), allows process engineers to

interactively define rules using a graphical user

interface, taking advantage of the formality provided

by MDE but hiding its inherent complexity.

Therefore, the process engineer can define

transformation rules to tailor the organizational

software process, only by selecting on a graphical

user interface the values of project context attributes

that impact variable process elements.

The rest of the paper is structured as follows.

Next section presents and discusses the related work.

Section 3 presents the general strategy used to tailor

software processes, and shows how the proposed

tool contributes to such an activity. The proposed

model-based tool is described in Sect. 4, along with

its main components. Finally, conclusions and future

work are presented in Sect. 5.

2 RELATED WORK

There are several kinds of model transformations

according to different criteria: declarative or

imperative; in-place or new-target; deterministic,

non-deterministic, or interactive (Czarnecki et al.

2006). However, building the appropriate model

transformation requires expertise for choosing the

right kind of transformation, and also for mastering

the transformation language syntax and semantics.

These knowledge-gap barriers are partly addressed

by transformation-by-example techniques (Kappel et

al. 2012). Writing model transformations is usually

difficult, and the required knowledge for writing any

kind of transformation is not generally available for

process engineers, that are the people in charge of

process design and tailoring.

MOLA (Kalnins et al., 2004) allows specifying

transformation rules through visual mapping

patterns. Similar to GREaT (Balasuramanian et al.,

2006), MOLA specifies rules and mappings using

class diagrams, but considering an environment

inspired in activity diagrams. Both works define the

possibility of establishing relationships between

metamodel attributes and elements. A limitation of

MOLA and GREaT is that they need the user to

directly interact with metamodels and class

diagrams, which still represents a strong restriction

for process engineers in terms of usability.

Varró and Balogh, through the VIATRA

framework (Varró et al., 2002), provide a text-based

rule editor. Although this proposal is supported by

Eclipse, it does not provide an easy-to-use

environment that can be used by process engineers

for defining tailoring rules.

There are also some recent proposals such as

MTBE (Model Transformations By Example)

(Wimmer et al., 2007) (Varró and Balogh, 2007) and

MTBD (Model Transformation By Demonstration)

(Sun et al., 2009) that present innovative solutions

for simplifying the implementation of model

transformations, by using strategies and patterns

with a visual support. These strategies generate part

of the code required for the model transformations,

however, the process engineer still needs to

understand and complete such a code. Therefore,

this represents a semi-automatic process to generate

model transformation rules.

Hurtado et al. (Hurtado et al., 2013) present a

proposal that generates an adapted process model

from a general process model, which is tailored

according to a context model that specifies the

characteristics of a particular project. The tailoring

transformation is written in ATL (AtlanMod Group,

2006) and its rules consider information from the

project context model to decide the elimination or

not, or the choice of variable elements in the general

software process model. This proposal demonstrates

the feasibility of the MDE-based tailoring approach,

but rules still need to be directly written.

These proposals highlight the need for

developing new solutions for simplifying rule

definition while still providing all the expressive

power required for software process model tailoring.

Software process tailoring is only an example of the

application scenarios that are not well supported by

the current way of developing model

transformations. This knowledge gap has lately been

addressed by new proposals such as Domain-

specific transformation languages (Rumpe et al.,

2011).

3 SOFTWARE PROCESS

TAILORING STRATEGY

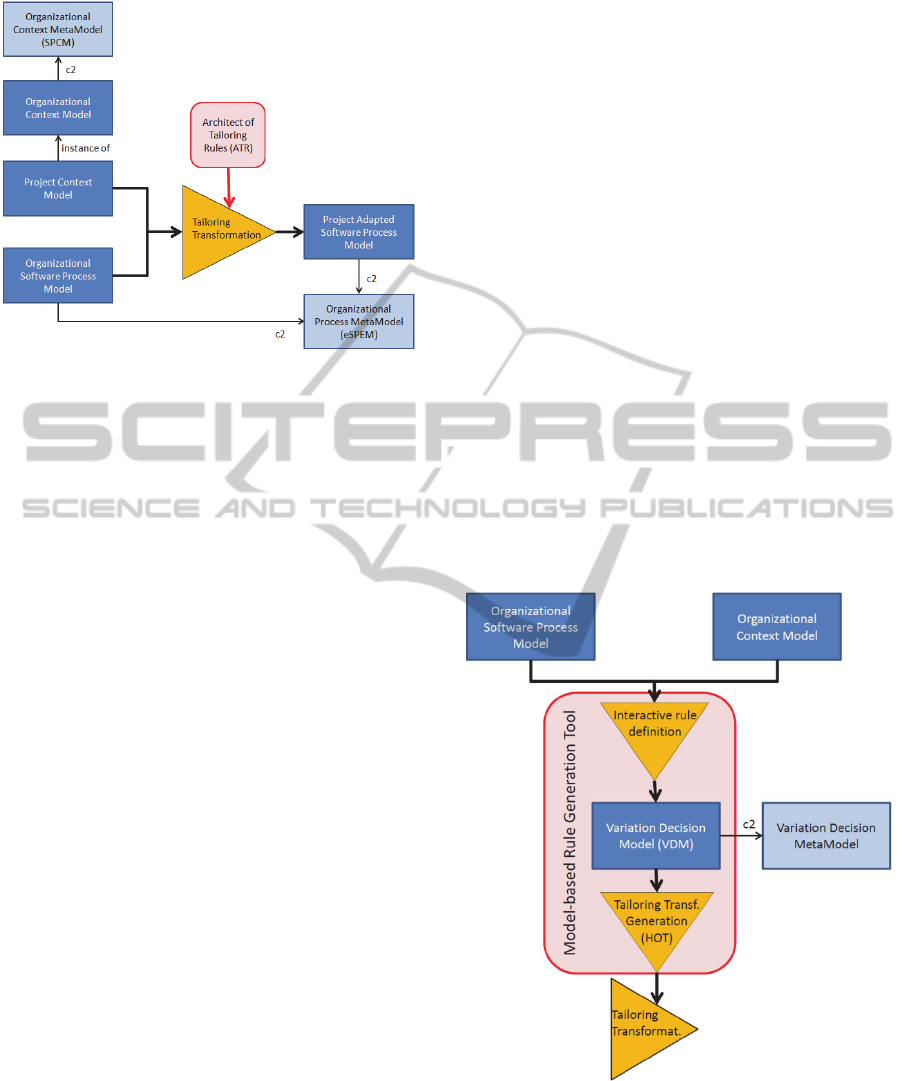

Figure 1 shows the general architecture of the MDE-

based process tailoring. This approach requires two

input models: an organizational software process

model that conforms to the eSPEM (experimental

SPEM) metamodel that is a subset of SPEM

(Software Process Engineering Metamodel) (OMG,

2008a) and a project context model that is an

instance of the Organizational Context Model.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

534

Figure 1: MDE-based software process tailoring.

This proposal uses a model-to-model transformation

to generate a project adapted software process

model as output. The resulting process model also

conforms to eSPEM.

The organizational software process model has

been defined using the Eclipse Process Framework

Composer (EPFC), along with its variabilities

(Simmonds et al., 2013). This tool has been well

received by software companies' process engineers.

However, the process, as specified in EPFC,

conforms to the UMA (Unified Method

Architecture) metamodel in its internal

representation, and therefore the tool exports an xml

file that cannot be directly used as input for the

tailoring transformation. Therefore, an injector has

been built for converting the process representation

between formats obtaining an organizational

software process model in xmi format and

conforming to eSPEM as needed.

The organizational context model indicates the

project attributes that may influence the process

tailoring along with their potential values. A project

context model is an instance of this organizational

context model. The organizational context model is

defined using Eclipse Modeling Framework (EMF)

and conforming to the SPCM (Software Process

Context Metamodel) metamodel (Hurtado et al.,

2013).

The tailoring transformation in this proposal is

written in ATL. For each variable element identified

as part of the organizational process, there is a rule

included in the transformation. For optional process

elements, the rule decides, according to the values in

the project context model attributes, if it should be

included or not in the adapted process. For process

elements defined with alternatives, the rule decides

which of them will realize the process element in the

adapted process. Even though this strategy seems

quite clear, translating it into ATL rules is a

challenging task.

Although this tailoring proposal has shown to be

technically feasible in real scenarios, it clearly has

important limitations when process engineers have

to use it. For that reason we have developed the

Architect of Tailoring Rules (ATR), a tool that

allows process engineers to interactively define the

process tailoring rules using a graphical user

interface. The tool’s output is the tailoring

transformation that can be used to adapt the

organizational software process (Fig. 1). The

following section describes the proposed model-

based ATR tool, along with is associated procedure.

4 MODEL-BASED TOOL FOR

GENERATING TAILORING

TRANSFORMATIONS

Figure 2 presents the architecture of ATR, the

model-based tool that allows the automatic

generation of the tailoring transformation.

Figure 2: Architecture of the proposed heuristic.

The ATR tool uses the organizational software

process model as an input because such a model

contains the information about the variable process

elements for which the process engineer must define

tailoring rules. The tool also uses the organizational

AModel-basedToolforGeneratingSoftwareProcessModelTailoringTransformations

535

context model as an input, because the conditions of

the tailoring rules are defined according to the

values of the attributes in this context model.

The process engineer uses a visual interface to

indicate the models that will be used in the definition

of tailoring rules (Fig. 3). After that, she/he can

define tailoring rules for each process variation

point. This activity involves two steps: the

interactive definition of a decision model (using the

visual user interface) and the automatic generation

of the tailoring transformation, based on the

previously built decision model.

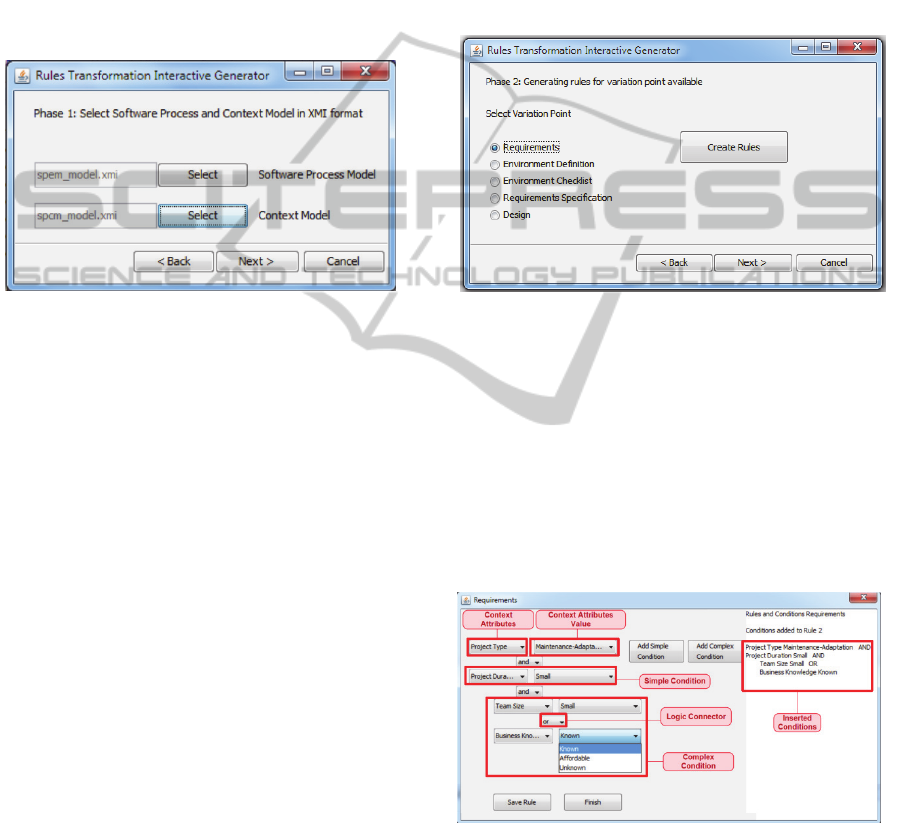

Figure 3: Interface for input models selection.

During the first step, the process engineer uses the

ATR tool to interactively define the relationships

between the context attribute values and process

variable elements yielding a Variation Decision

Model (VDM). This VDM is a high-level

representation of the transformation rules. The VDM

is then used as input for a Higher Order

Transformation (HOT) to automatically generate the

tailoring transformation that will be used to adapt

the organizational software process model.

Thus, the proposed tool allows process engineers

to apply MDE concepts to generate tailoring

transformations, hiding the inherent complexity of

such concepts. Their complexity is encapsulated

mainly in the VDM and the HOT.

Next sections describe each component of the

tool. In order to illustrate its capabilities, we will

use, as a running example, the generation of the

tailoring rules for Rhiscom’s process. Rhiscom is a

medium-sized software company that develops

software for the retail industry. It has around 70

employees and offices in four Latin-American

countries. This company has a software process

formalized in SPEM 2.0.

4.1 Interactive Definition

of the Variation Decision Model

Once the process engineer has specified the models

that will be used as input, she/he can start with the

interactive definition of the variation decision

model. Figure 4 shows five variation points for

Rhiscom’s process: requirements, environment

definition, environment checklist, requirement

specification and design. If the user selects a

variation point (e.g. requirements) and clicks on the

“Create Rules” button, she/he can define the rules

that will be used to tailor the organizational process

in such a point, depending on the values of the

context attributes of a specific project.

Figure 4: Selection of process variation points.

Figure 5 shows the interactive interface that allows

the process engineer to define the decision model.

Each decision has a condition and a conclusion. The

condition is a predicate that could be simple or

complex. Simple predicates are typically a list of

context attributes linked to particular values through

a logical operator. Complex conditions consider the

use of predicates connected through logical

connectors. In the right part of the figure we can see

the conditions defined so far.

Figure 5: Interactive Interface.

In this example, the engineer defines that the

Requirements activity should not be included when

the project type is “Maintenance-Adaptation”, when

the project duration is “Small” and also when the

team size is “Small” or business knowledge is

“Known”. These decisions are part of the

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

536

adaptations defined by Rhiscom for its

organizational process. Table 1 shows other

adaptations also considered for such a process.

Table 1: Rules for Rhiscom’s tailoring transformation.

Context

Attribute

Context Attribute

Value

Conclusion

Decision

Project type Maintenance-

Correction

Remove:

Environment

Definition

Project

duration

Small

Decision

Project type Maintenance-

Adaptation

Remove:

Requirements

Project

duration

Small

(Team size = Small) or

(Business Knowledge = Known)

Decision

Project type Incidents Remove:

Environment

Checklist

Team size Small

In the “context attribute” column of Table 1, we can

see four context attributes that influence the process

tailoring. For optional process elements, the decision

establishes, according to the values in the “context

attribute value” column, if it should be included or

not in the adapted software process model. We can

also see in the “conclusion” column the process

element to be removed according to each decision.

We will use decision 2 as an example to show how

to derive a transformation rule from it.

Next section describes the variation decision

model in detail.

4.2 Variation Decision Model

The variation decision model is generated by the

interactive rule definition of the ATR tool. The tool

establishes relationships between context attribute-

values and variable process elements. Then, ATR

automatically builds a VDM, which is used as an

input for the HOT that actually generates the

tailoring transformation.

Decision models have been used in software

product lines for establishing the conditions for

configuring particular products of the line. There is

no standard formalization for these models. In this

work we provide a formal metamodel: the Variation

Decision MetaModel (VDMM), as shown in Fig. 6.

VDMM organizes a VDM in two main parts:

configuration content and configuration rule, similar

to the work of Weiss on Decision Models (Weiss et

al., 2008) and the work on Semantics of Business.

Vocabulary and Business Rules (SMVB), used

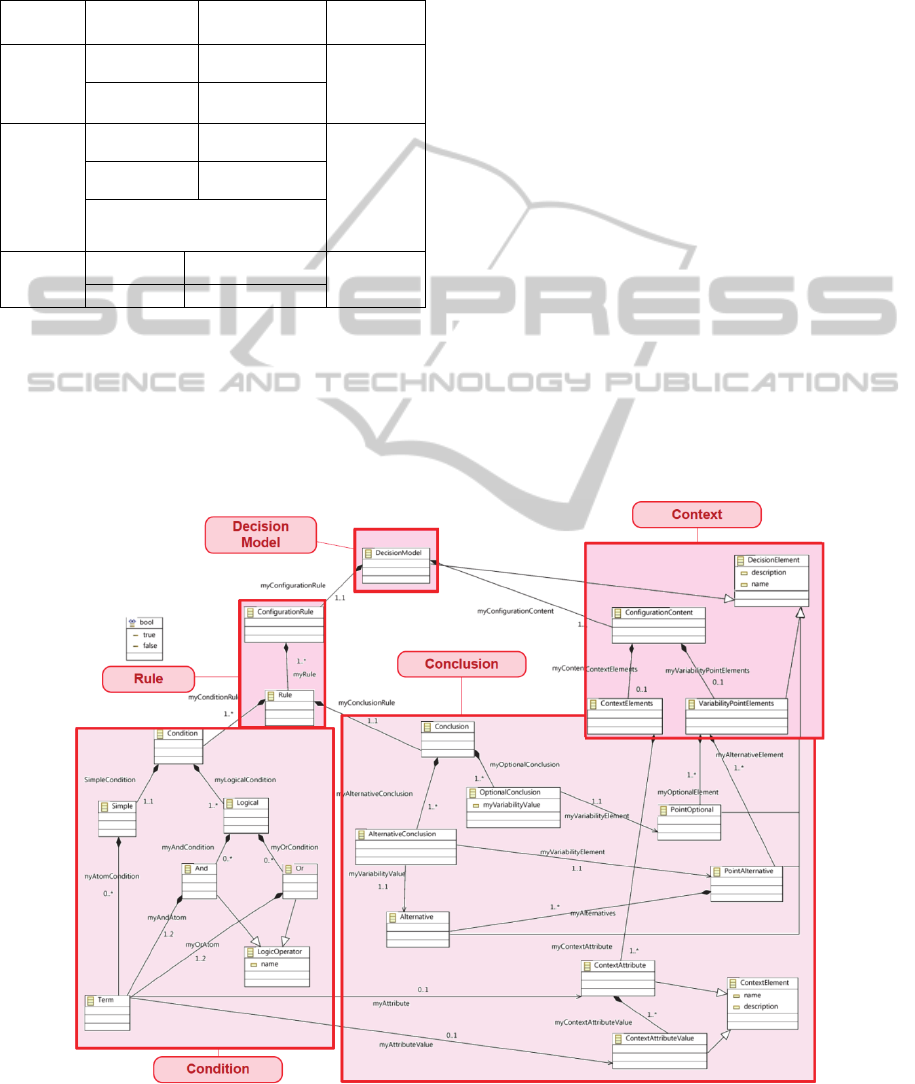

Figure 6: Variation Decision MetaModel.

AModel-basedToolforGeneratingSoftwareProcessModelTailoringTransformations

537

for building decision rules (OMG, 2008). The

configuration content’s goal is to incorporate

specific information that will be needed for

modeling decisions including ContextElements and

VariabilityPointElements. The configuration rule

defines the tailoring rules using domain concepts.

They have two subcomponents: Condition and

Conclusion. Conditions may be simple (just one

condition), or complex (several conditions with

logical connectors). According to the literature on

decision models, conditions should have a left and a

right side that in our case are called myAttribute

(left) and myAttributeValue (right). Similarly, the

conclusion must also have a left and a right side; in

our case they are myVariabilityElement (left) and

myVariabilityValue (right).

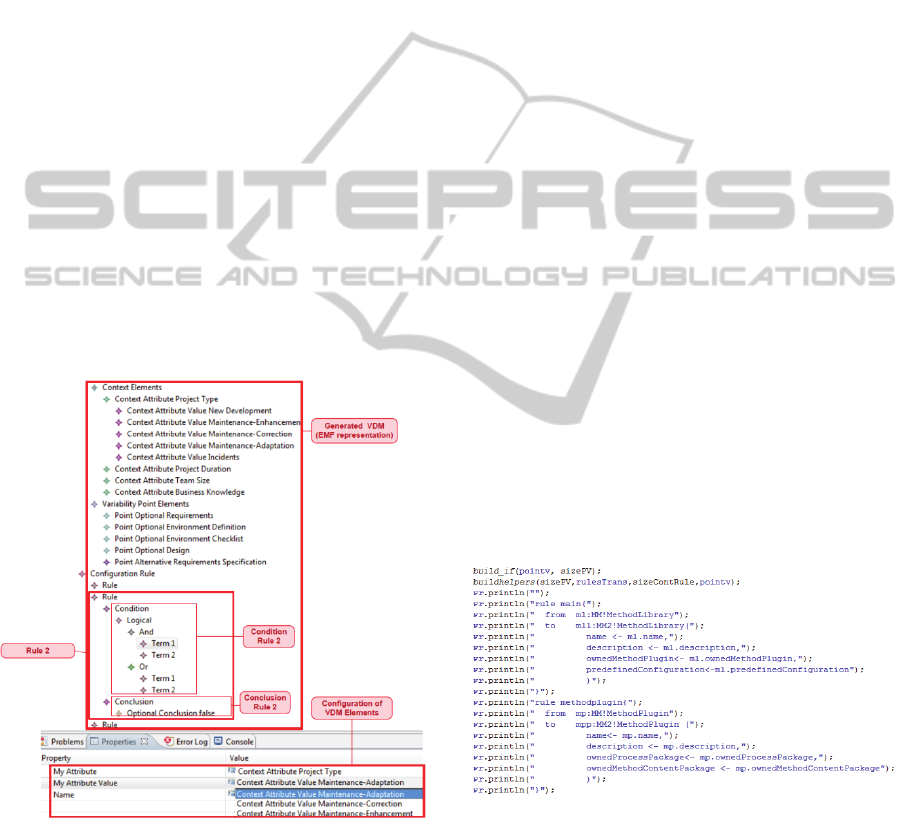

Figure 7 shows the VDM generated through the

interactive interface. We can see that the

Configuration Content is formed by the Context

Elements and the Process Variability Point

Elements. On the other hand, in the Configuration

Rule we can see that Term 1 is highlighted and in

the lower part we can see that the Project Type

attribute has been assigned the Maintenance-

Adaptation value, as stated in Fig. 5. As part of this

rule conclusion, Requirements is set to False.

Figure 7: Variation Decision Model Instance.

4.3 HOT for Generating Tailoring

Transformations

Provided that model transformations can also be

considered as models conforming to their language

metamodel (Bézivin et al., 2006), a Higher-Order

Transformation (HOT) is a transformation in itself,

but it either takes a transformation model as input or

generates a transformation model as output (Tisi et

al., 2010). We use a HOT to generate the tailoring

transformation, thus avoiding writing it directly. Our

HOT takes the VDM previously built as input, and

its output is the desired process tailoring

transformation.

There are two approaches for building HOTs:

model-to-model (M2M) and model-to-text (M2T)

transformations. We choose M2T and therefore the

output is the ATL source code of the tailoring

transformation.

To build a M2T transformation it is possible to

use transformation-specific or general-purpose

languages. Transformation-specific languages for

this task like ATL, Acceleo and MOFScript provide

transformation-specific abstractions. However, we

have decided to use a general purpose language such

as Java to build the HOT, at least for the first

version, because it is a mature language that is easily

mastered by developers (Silvestre et al., 2013). A

final version of the HOT will be probably

implemented in a transformation-specific language.

The M2T transformation built in Java has two

aspects: its fixed and its variable parts. The fixed

parts are instructions that do not change and that will

be present in all tailoring transformations created,

e.g., the head of the input metamodels and code to

build the output transformation model. The variable

parts are statements that make use of libraries to read

the information and statements that recursively

create the tailoring transformation according to the

VDM.

Figure 8: HOT implemented in Java.

Figure 8 shows an excerpt of the Java code that

builds the body of the tailoring transformation and

recursively generates the transformation rules

considering the information in the VDM. After

executing the HOT, the process tailoring

transformation is obtained in text format (i.e., ATL

source code).

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

538

4.4 Resulting Tailoring

Transformation

Once we have the process and the context models, as

well as the generated tailoring transformation, it is

possible to encapsulate them into an interactive tool:

ATR. This tool includes building the VDM and the

HOT that takes this model as input and

automatically generates the tailoring transformation.

Figure 9 shows the transformation automatically

generated for tailoring Rhiscom’s process. As stated

in Figure 5, Requirements is optional, and it has an

associated rule in the tailoring transformation.

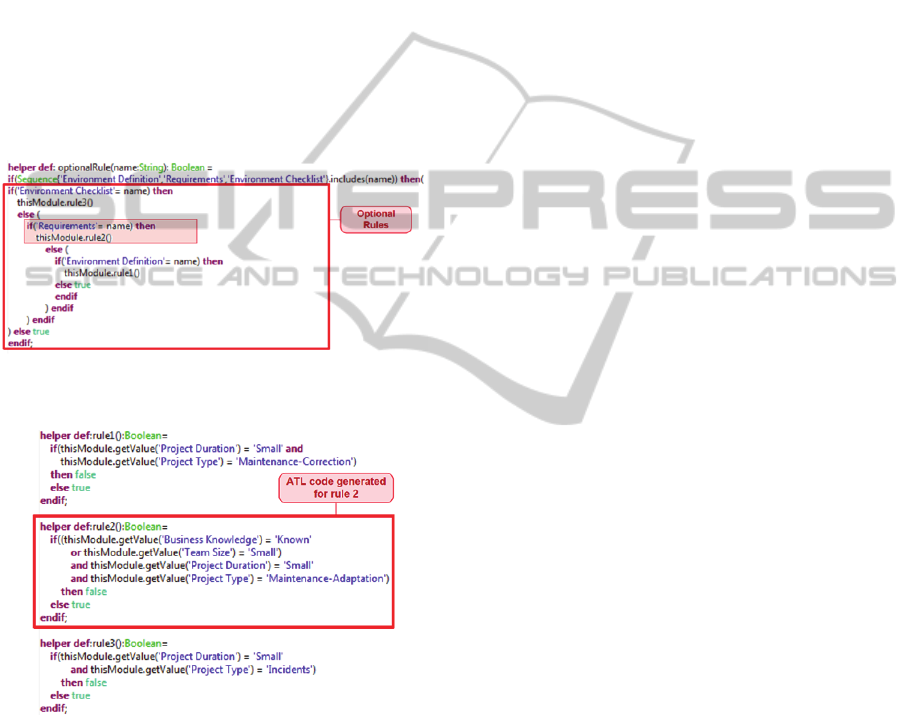

Figure 10 highlights the helper called by rule 2 for

deciding about the deletion of the Requirements

activity.

Figure 9: Tailoring transformation. “Requirements” is

optional so a decision is made with respect to its inclusion.

Figure 10: Tailoring transformation excerpt. Decision

about deleting the “Requirements” activity is highlighted.

5 CONCLUSIONS

We have presented ATR, a model-based tool for

interactively defining and automatically generating

process tailoring transformations. ATR combines

MDE and generative programming aspects. We have

also described the implemented user interface, the

underlying VDM model and the involved HOT. The

resulting tool is powerful enough to generate the

tailoring transformation for a real world company's

process.

The main purpose of building an interactive tool

was aiding the process engineer tailoring her/his

process. We provided a running example that shows

how to apply MDE concepts without interacting

with the code or knowledge about transformation

languages. Transformations in general could be quite

complex. However, we have shown that building

process tailoring transformations requires only a few

types of rules that may be automatically generated

from a VDM. Although we have been able to

generate transformations automatically, this kind of

tool is only applicable for software process domain,

but this experience can be the starting point to be

extended to other domains.

ATR generates complex rules using simple

conditions, logical operators and complex conditions

(with logical operators). In this sense, if there are

rules with different conclusions on the same

variability point, ATR still does not solve it; this can

be addressed adding constraint definitions. Future

work is necessary to extend the VDM to support

constraints definition between software process

elements and complex rules.

Finally, we need empirical evidence that help us

validate the tool usability for real world process

engineers.

ACKNOWLEDGEMENTS

This work is partly funded by Project Fondef

D09I1171, Conicyt, Chile. The work of Luis

Silvestre was supported by PhD Scholarship

Program of Conicyt-AGCI (Chile), “Doctorado

Nacional para Estudiantes sin Permanencia

Definitiva- Convocatoria 2013”.

REFERENCES

AtlanMod Group (2006). Atlas Transformation Language.

ATL Eclipse Project. Online http://www.eclipse.org/

atl/.

Balasubramanian, D., Narayanan, A., vanBuskirk, C., and

Karsai, G. (2006). The graph rewriting and

transformation language: GReAT. In Proceedings of

the Third International Workshop on Graph Based

Tools, pp. 1–8.

Beck, K. (1999). Embracing Change with Extreme

Programming. IEEE Computer 32(10): 70-77.

Bendraou, R., Jezequel, J., Gervais, M.P., and Blanc, X.

(2010). A Comparison of Six UML-Based Languages

AModel-basedToolforGeneratingSoftwareProcessModelTailoringTransformations

539

for Software Process Modeling. Software Engineering,

IEEE Transactions on, 36(5):662–675.

Bézivin, J., Büttner, F., Gogolla, M., Jouault, F., Kurtev,

I., and Lindow, A. (2006). Model transformations?

transformation models! In MoDELS’06, LNCS 4199,

pp. 440–453. Springer.

Cockburn, A. (2000) Selecting a Project's Methodology.

IEEE Software 17(4): 64-71.

Czarnecki, K., Helsen, S. (2006). Feature-based survey of

model transformation approaches, IBM Systems

Journal 45(3): 621-645.

De Oliveira Barros, M., Werner, C. M. L., and Travassos,

G. H. (2002). A system dynamics metamodel for

software process modeling. Software Process:

Improvement and Practice, 7(3-4):161–172.

Hurtado, J.A., Bastarrica, M.C., Quispe, A., Ochoa, S.F.

(2013). MDE-Based Process Tailoring Strategy.

Journal of Software: Evolution and Process, in press.

DOI: 10.1002/smr.1576.

Kalnins, A., Barzdins, J., and Celms, D. (2004). Model

Transformation Language MOLA. In Aßmann, U.,

Aksit, M., and Rensink, A., (Eds), Model-Driven

Architecture: European MDA Workshops:

Foundations and Applications, LNCS 3599, pp. 62–76.

Kappel, G., Langer, P., Retschitzegger, W., Schwinger,

W., Wimmer, M. (2012). Model Transformation By-

Example: A Survey of the First Wave. In the

Conceptual Modeling and Its Theoretical

Foundations, LNCS 7260, pp. 197-215.

Kleppe, A. G., Warmer, J., and Bast, W. (2003). MDA

Explained: The Model Driven Architecture: Practice

and Promise. Addison-Wesley Longman Publishing

Co., Inc., Boston, MA, USA.

OMG (2001). Meta Object Facility (MOF) 2.0

Query/View/Transformation V1.1. Object

Management Group. OMG doc. formal/2011-01-01.

OMG (2008). Semantics of Business Vocabulary and

Business Rules (SBVR), Version 1.0. Object

Management Group. OMG dtc/07-09-04.

OMG (2008a). Software Process Engineering Metamodel

SPEM 2.0 OMG Specification. Object Management

Group. OMG Technical Report ptc/07-11-01.

Rumpe, B., and Weisemöller, I. (2011). A Domain

Speciﬁc Transformation Language. In Proceedings of

the ME’11 - Models and Evolution, Wellington, New

Zealand, Oct. 2011.

Schmidt, D.C. (2006). Guest Editor’s Introduction: Model

Driven Engineering. IEEE Computer, 39(2):25-31.

Silvestre, L., Bastarrica, M.C., and Ochoa, S.F. (2013):

Implementing HOT’s that Generate Transformations

with Two Input Models. Accepted in XXXII

International Conference of the Chilean Computer

Science Society (SCCC’13), Temuco, Chile.

Simmonds, J., Bastarrica, M.C., Silvestre, L., and Quispe,

A. (2013). Variability in Software Process Models:

Requirements for Adoption in Industrial Settings. In

International Workshop on Product line

Approaches in Software Engineering (PLEASE’13),

San Francisco, California, USA.

Sun, Y., White, J., and Gray, J. (2009). Model

Transformation by Demonstration. In MoDELS’09,

pp. 712–726.

Tisi, M., Cabot, J., and Jouault, F. (2010). Improving

Higher-Order Transformations Support in ATL. In

Tratt, L. and Gogolla, M. (Eds), ICMT, LNCS vol.

6142, pp. 215–229. Springer.

Varró, D. and Balogh, Z. (2007). Automating model

transformation by example using inductive logic

programming. In Proc. of the 2007 ACM Symposium

on Applied Computing (SAC’07), Seoul, Korea.

Varró, D., Varró, G., and Pataricza, A. (2002). Designing

the automatic transformation of visual languages.

Science of Computer Programming, 44(2):205–227.

Weiss, D. M., Li, J., Slye, H., Dinh-Trong, T., and Sun, H.

(2008). Decision-Model-Based Code Generation for

SPLE. In 12th International Software Product Line

Conference (SPLC’08), pp. 129–138.

Wimmer, M., Strommer, M., Kargl, H., and Kramler, G.

(2007). Towards Model Transformation Generation

By-Example. In HICSS’07, IEEE Computer Society:

285-294.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

540
