Strategy-planned Q-learning Approach for Multi-robot Task
Allocation
H. Hilal Ezercan Kayır and Osman Parlaktuna
Electrical and Electronics Engineering Department, Engineering and Architecture Faculty, Eskişehir Osmangazi
University, Eskişehir, Turkey
Keywords: Multi-robot Task Allocation, Q-learning, Multi-agent Q-learning, Strategy-planned Distributed Q-learning.
Abstract: In market-based task allocation mechanism, a robot bids for the announced task if it has the ability to
perform the task and is not busy with another task. Sometimes a high-priority task may not be performed
because all the robots are occupied with low-priority tasks. If the robots have an expectation about future
task sequence based-on their past experiences, they may not bid for the low-priority tasks and wait for the
high-priority tasks. In this study, a Q-learning-based approach is proposed to estimate the time-interval
between high-priority tasks in a multi-robot multi-type task allocation problem. Depending on this estimate,
robots decide to bid for a low-priority task or wait for a high-priority task. Application of traditional Q-
learning for multi-robot systems is problematic due to non-stationary nature of working environment. In this
paper, a new approach, Strategy-Planned Distributed Q-Learning algorithm which combines the advantages
of centralized and distributed Q-learning approaches in literature is proposed. The effectiveness of the
proposed algorithm is demonstrated by simulations on task allocation problem in a heterogeneous multi-
robot system.
1 INTRODUCTION
In most real-life robotic applications, multi-robot
systems (MRS) are preferred instead of single robots
to get desired system performance. The missions
that cannot be accomplished by a single robot can
easily be executed by a group of robots. Advantages
such as faster task execution and robust system
architecture are some of the reasons why MRS is
frequently used in complex environments.
The major drawback of MRS is coordination
requirements. Efficient system performance is
directly related to accurate and precise coordination.
Working environment of an MRS is generally
dynamic and partially observable in nature. When
designing an MRS, estimation of all possible
situations that robots can face with is not possible.
To overcome the problems encountered during
system execution, robots have to adopt themselves
and adjust their behaviours to changing
environmental conditions. Consequently, the robots
which have learning ability may play an important
role to provide required group coordination and
results in a more reliable system performance. The
MRS with learning robots are more robust systems
against the uncertainities and problems (Mataric,
1997).
In this study, a learning-based multi-robot task
allocation approach is proposed to increase the
system performance. If the robots carry their past
task allocation experiences to a helpful knowledge
that can be used for future task allocation process, it
may be possible to enhance the system performance.
For this purpose Q-learning algorithm is used. Q-
learning algorithm is mainly used in environments
that satisfy Markov Decision Process (MDP)
properties (Yang ve Gu, 2004). Whereas, most MRS
environments are not MDP. So, in this study, a new
approach, Strategy-Planned Distributed Q-learning
algorithm, is proposed to overcome the problems
that appear in the application of Q-learning to multi
robot systems.
The paper is organized as follows: In Section 2, a
brief description of market-based multi-robot task
allocation problem is given. In Section 3, the theory
of Q-learning algorithm for both single-agent and
multi-agent cases is presented. The proposed
algorithms, learning-based multi-robot task
allocation and Strategy-Planned Distributed Q-
learning algorithms, are given in detail in Section 4
410
Hilal Ezercan Kayir H. and Parlaktuna O..
Strategy-planned Q-learning Approach for Multi-robot Task Allocation.
DOI: 10.5220/0005052504100416
In Proceedings of the 11th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2014), pages 410-416
ISBN: 978-989-758-040-6
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
and 5, respectively. Section 6 explains the
experimental environment. In The experimental
results are given in Section 7. Lastly, conclusion is
given in Section 8.
2 MULTI-ROBOT TASK
ALLOCATION
Multi-robot task allocation (MRTA) is defined as the
problem of deciding which robot should perform
which task in an appropriate order (Gerkey and
Mataric, 2004). In multi-robot systems, robots and
robot’s task executing abilities are specified as
system resources. In most cases, because of the
scarcity of resources, it is not possible to complete
all tasks (Jones et. al., 2007). This situation
emphasizes the importance of efficient task
allocation to get desired system performance. Task
allocation process should be realized to provide an
effective use of system resources by maximization
of overall system gain or by minimization of system
cost.
Market-based approaches present efficient
solutions for coordination problems in multi-robot
systems (Dias et al., 2006). In these approaches,
each robot has its own decision-making mechanism
but system coordination is realized by participation
of all robots. Auction protocols are widely-used
market-based task allocation methods (Gerkey and
Mataric, 2002). Their major advantage is that they
provide robust system architecture against system
fault. In auction-based MRTA, task announcing unit
acts as auctioneer and robots behaves as bidders.
Tasks are also used as the items offered in auction
process. The auction process is executed in the
manner that the auctioneer announces the tasks,
robots determine and send the bid values for tasks
and the auctioneer decides the winner robot. In
mobile robot applications, the bid values are
calculated in terms of travelled distance, required
time (Mosteo and Montano, 2007) or needed energy
(Kaleci et al., 2010). The assignment of tasks to the
robots is defined as the Optimal Assignment
Problem (OAP) widely-used in operations research
(Gerkey and Mataric, 2004). Hungarian Algorithm
provides successful solutions for the OAP problem
(Hatime, 2013). The auction process is completed
when the winner robots are informed.
3 REINFORCEMENT LEARNING
Reinforcement learning methods are the machine
learning approaches that do not require any input-
output data sets or a supervisor (Russel and Norvig,
2003). In reinforcement learning, the agents are
directly related to the environment by their
perception and action units. The state transition of
the environment results from the action of the agent.
Agent is informed by a feedback signal called
reward which indicates the effect of the action on the
environment. Learning process is performed only
through trial-and-error by using this reward value.
No requirement of any supervisor, structural
simplicity of the algorithms and the possibility of
using it in partially observable and dynamic
environments are the reasons why reinforcement
learning is preferred especially in multi-agent
system applications (Yang and Gu, 2004).
3.1 Single-agent Case
Markov Decision Proecess (MDP) is a tuple of
,,,, where is finite and discrete set of
environment states, is finite and discrete set of
agent actions, :→
:0,1 is state
transition function for each state-action pair and
:→ is reward function of the agent
(Buşoniu et al., 2008). In standard reinforcement
learning approaches, the environment is defined as
an MDP.
For any discrete step , the environment state
changes from ∈ to 1∈ by the
action ∈ of the agent. The reward value of
,
,1, which the agent
receives as the result of a
k
, represents the
instantaneous effect of action on the environment
(Buşoniu et al., 2008). The agent determines which
action should do through its action policy . The
agent in an MDP aims to maximize the expected
value of the overall reward for each step. Action-
value function is defined as the expected total gain
of each action-state pair and it is given in equation
(1).
Q
s,
Eγ
r
k
i
s
k
s,
k
,h
(1)
This equation is discounted sum of all future
rewards where is the discount factor. Q-function is
expressed as the optimal action-value function.
Q
∗
s,a
Q
s,
(2)
A learning agent should determine the optimal Q-
Strategy-plannedQ-learningApproachforMulti-robotTaskAllocation
411
value,
∗
firstly and then should find required action
by using action policy providing
∗
(Buşoniu et al.,
2008).
Q-learning, is proposed by Watkins (Watkins,
1989), is a widely-used value function-based model-
free reinforcement learning algorithm (Sutton and
Barto, 1998). According to Q-learning algorithm, the
optimal Q-value for each state-action pair is
calculated by the following recursive equation:
,
,
∈
1
,
,
(3)
This equation does not require environment model
and state-transition function. is the learning rate
and is the discount factor. If each state-action pair
is repeated infinitely many and is decreased in
each step , learned Q-values converges the optimal
Q-values with the probability ‘1’ (Watkins and
Dayan, 1992).
3.2 Multi-agent Case
Stochastic Game (SG) is the extended form of MDP
to multi-agent case. An SG is defined as the tuple of
,,,
, where is the set of finite and
discrete environment states,
….
is the generalized action set for all agents, is the
number of agents, P:→
:0,1 is the
state transition function for each state-action pair
and
:→,1… is reward
function for each agent (Buşoniu et al., 2008). For
an SG, the state transitions are realized by joint
actions of all agents.
One solution approach in an SG is to get the
Nash equilibrium (Buşoniu et al., 2008). The Nash
equilibrium is defined as the joint action policy such
that each agent’s action policy provides maximum
total reward value against others’ action policy
(Yang and Gu, 2004). In the Nash equilibrium, it is
not possible to increase the total reward by changing
one agent’s action policy while all other agents’
action policies remain same.
Hu and Wellman are developed Nash-Q-learning
algorithm which is based on reaching the Nash
equilibrium (Hu and Wellman, 1998). It is shown
that the optimal solutions are acquired under some
certain conditions (Hu and Wellman, 2003). For
each agent , the Q-values are updated by equation
(4).
,
,…,
,…,
,
,…,
,
,…,
,
,…,
(4)
If
⋯
condition is valid, all agents aim
to maximize the common goal and SG is called fully
cooperative. In this case, the Nash equilibrium is
expressed as follows.
,
,..,
,..,
∈
…
∈
,
,..,
(5)
It is shown that a fully cooperative SG is assumed as
an MDP (Boutlier, 1996). However, there exist more
than one Nash equilibrium in an SG. It is very
difficult problem to find joint actions which result in
the common Nash equilibrium because all agents
have independent decision making ability.
4 LEARNING-BASED MRTA
In a prior knowledge about the time sequence of
tasks, it would be possible to optimize system
performance by planning the order of tasks
performed by each robot. But, such knowledge is not
accessible for most multi-robot systems applications.
Tasks appearing in an unpredictable time steps in
random sequence affect the system performance in a
negative manner. Especially, if there is a hierarchical
order among the tasks in terms of priority or
emergency, the tasks which must be completed
primarily and unconditionally could not be done if
the robots are busy with the low-priority tasks. As an
example, consider a two-robot system
and
,
which perform low-priority tasks
and
,
respectively. If a high-priority task
is announced
before one of the robots finishes its task,
will not
be performed. This decreases the utility of the team,
since
is a high-priority task whereas
and
are
low-priority tasks.
Generally in auction-based MRTA approaches,
the robots bid for the announced tasks if they have
the ability to do such a task and they are not busy at
that time. These approaches have no mechanism for
reasoning about future task sequence. It is clear that
a precise estimation for future tasks is impossible.
However, robots may have some expectations on the
future task sequence when they use past experiences.
For the above example, if one of the robots had a
prediction about high-priority task sequence, this
robot would not bid for the low-priority task and
would wait for
task.
Having such information about future task
sequence is possible if robots have learning ability
which transforms past experiences to a useful
advice.
In this study, a learning-based task allocation
approach is proposed to overcome the problem
explained above. By the proposed method, robots
ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics
412
learn about the sequence relation between low-
priority and high-priority tasks. The knowledge
obtained in learning process is used to make
decision about whether they attend the auction for an
announced low-priority task or wait for a high-
priority task.
5 STRATEGY-PLANNED
DISTRIBUTED Q-LEARNING
Aim of the proposed approach in Section 4 is to
enhance the system performance by means of past
task allocation experiences. For this purpose, Q-
learning algorithm is used.
The major difference between single-agent and
multi-agent systems in terms of Q-learning is that
for a single-agent the environment can be defined as
MDP. However, in multi-agent case, the
environment is no longer stationary because of the
unpredictable changes which result from
independent decision making and acting
mechanisms of the agents. This is a contradiction to
the essential assumption of MDP environment in Q-
learning theory. Whereas the traditional Q-learning
algorithm is successfully applied in single-agent
systems, convergence to an optimal solution is not
guaranteed in multi-agent case (Matignon et al.,
2007).
In literature, there exist two fundamental
approaches about the application of Q-learning in
multi-agent systems. In this section, these two
approaches are explained and a third approach,
strategy-planned distributed Q-learning, which
combines the advantages of these approaches, is
proposed.
5.1 Centralized Q-Learning
In centralized Q-learning, the robots cooperatively
learn common Q-values by considering joint actions.
Q-values are updated by the following equation.
∈
….
∈
,
,…,
,
,…,
,
,…,
,
,…,
(6)
In this approach, learning process is realized
either by each agent by observing all environmental
changes or by a central unit communicating with all
agents. It is noted that the environment is considered
as MDP and optimal solutions can be converged
because learning is executed using joint actions of
all agents (Matignon et al., 2007). However, the
dimension of the learning space which is defined as
state space dimension times action space dimension
becomes larger. For a fully cooperative SG with
agents, dimension of the learning space is given as
follows:
|
||
|
…
|
|
|
||
|
(7)
Thus, the dimension of the learning space which
increases exponentially depending on the number of
agents results in huge computational load (Hu and
Wellman, 2003).
Another disadvantage of the centralized Q-
learning approach is the requirement of a central
learning unit or explicit communication among
robots (Wang and de Silva, 2006).
5.2 Distributed Q-Learning
Distributed Q-learning is the direct application of
single-agent Q-learning to multi-agent case. In this
approach, each individual agent learns its own Q-
values as a result of its state and actions which is
independent of other agents’ actions. For each agent
Q-values are updated by the following equation.
∈
,
,
,
,
(8)
The dimension of the learning space for each
agent is given as follows:
(9)
The advantages of the distributed Q-learning are
small learning space and no requirement of inter-
robot communication. The major disadvantage of
distributed Q-learning approach is conflicting robot
behaviours because of independent learning
(Matignon et al., 2007).
5.3 Strategy-planned Distributed Q-
Learning
In this study, to combine the advantages of
centralized and distributed Q-learning approaches, a
new Q-learning approach, Strategy-Planned
Distributed Q-Learning method, is proposed. This
method is also distributed in nature but it aims to
remove behaviour conflicts of traditional distributed
learning approaches. For this purpose, each
cooperative robot is assigned a different learning
strategy. For simplicity, the proposed algorithm is
explained using a two- robot system as follows.
Definition 1. Let
and
be two robot s of a
multi-robot system and
and
be the task sets of
Strategy-plannedQ-learningApproachforMulti-robotTaskAllocation
413
these robots, respectively. If there exists a
cooperative-task set such that
∩
∅
(10)
and
are said cooperative robots.
Definition 2. For any task
, the base learning
strategy,
, is defined as:
≔
(11)
and complementary learning strategy is defined as:
≔
(12)
Definition 3. If
|
Γ
|
Γ
condition holds for
∈
task, the learning strategy of
and
robots are assigned as follows.
≔
(13)
≔
(14)
The proposed approach has the advantage of
small learning space because of its distributed
structure. And also it prevents behaviour conflicts
between agents through agents’ different learning
strategy unlike in traditional distributed learning
approaches.
6 APPLICATION
To show the effectiveness of the proposed approach,
an experimental environment on which the
applications are realized is prepared. This
environment has dimensions of 15x14 m, has eight
rooms, corridors between rooms and a charging unit
(Figure 1). The travelling paths between rooms are
shown with dashed lines.

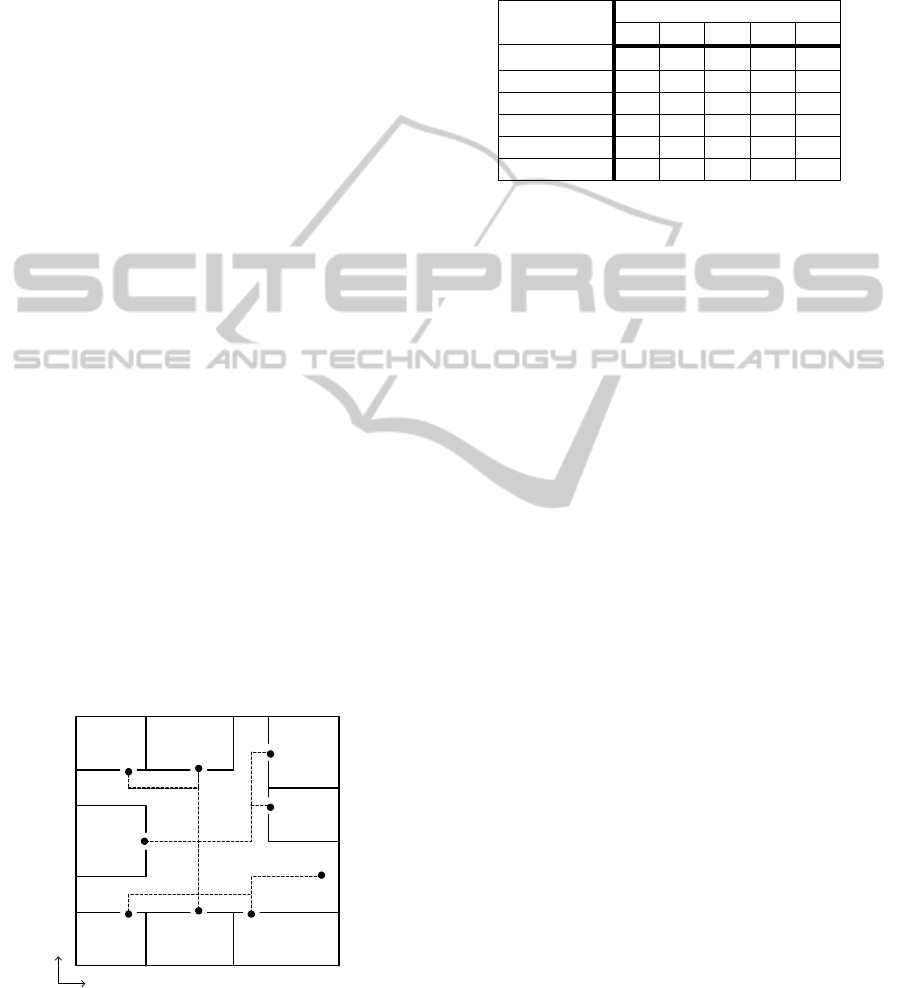

Figure 1: The map of experimental environment.
The multi-robot system used in applications
consists of six robots,
,
,
,
,
, and
.
The robots have different skills. Thus, the system is
fully heterogeneous. There exist five different type
of tasks
,
,
,
, and
. The robots and the
tasks which the robots are capable of doing are given
in Table 1.
Table 1: Tasks that can be performed by robots.
Robots
Tasks
Tasks are generated randomly and with equal
probability. The number of tasks announced at any
time could be between two and five. Each task has
two different priority degrees, low-priority and high-
priority. Low-priority tasks and high-priority tasks
are 65% and 35% of all tasks, respectively.
The applications are realized by using 45
experimental sets, each having nearly 50 tasks. First
30 sets are used for learning process and last 30 sets
are used for test purpose. It is assumed that all the
tasks allocated robots will be completed. None of the
allocated tasks is left unfinished.
7 EXPERIMENTAL RESULTS
The purpose of the proposed approach is to increase
system performance by using learning-based
MRTA. The essential goal of the proposed approach
is to increase the number of completed high-priority
tasks. To show the effectiveness of the proposed
approaches, the applications are realized in the
experimental environment whose details are given in
the previous section and the results are compared in
terms of the task completion ratio. The task
completion ratio is defined as the ratio of tasks
assigned to any robot to the total number of tasks
announced. Applications are executed for three
learning approaches, centralized Q-learning,
distributed Q-learning and strategy-planned
distributed Q-learning, and the results are compared
with the results when there is no learning. For each
task type, the results for low-priority and high-
priority tasks are given separately in Figure 2.
The graphs in Figure 2 show that the completion
ratios of high-priority tasks for all task types are
increased when any of the learning algorithms is
used. This general result indicates that the robots are
successfully benefited from the past task-allocation
B1 B2
B3
B4
B5
B6 B7 B8
H
x
y
ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics
414
experiences by their learning ability. However, the
completion ratios of the low-priority tasks are
decreased or remain nearly the same. In general, the
number of total tasks to be completed is limited
because of the limited system resources. Because of
this, the results are acceptable.
The centralized Q-learning approach is the
learning algorithm that provides the highest task
completion ratio for all high-priority and low-
priority tasks because all joint actions of all robots
are considered together in the learning process.
Especially for the tasks that can be performed by
more than one robot, while some of the robots wait
for high-priority tasks, the others execute low-
priority tasks.
(a)
(b)
(c)

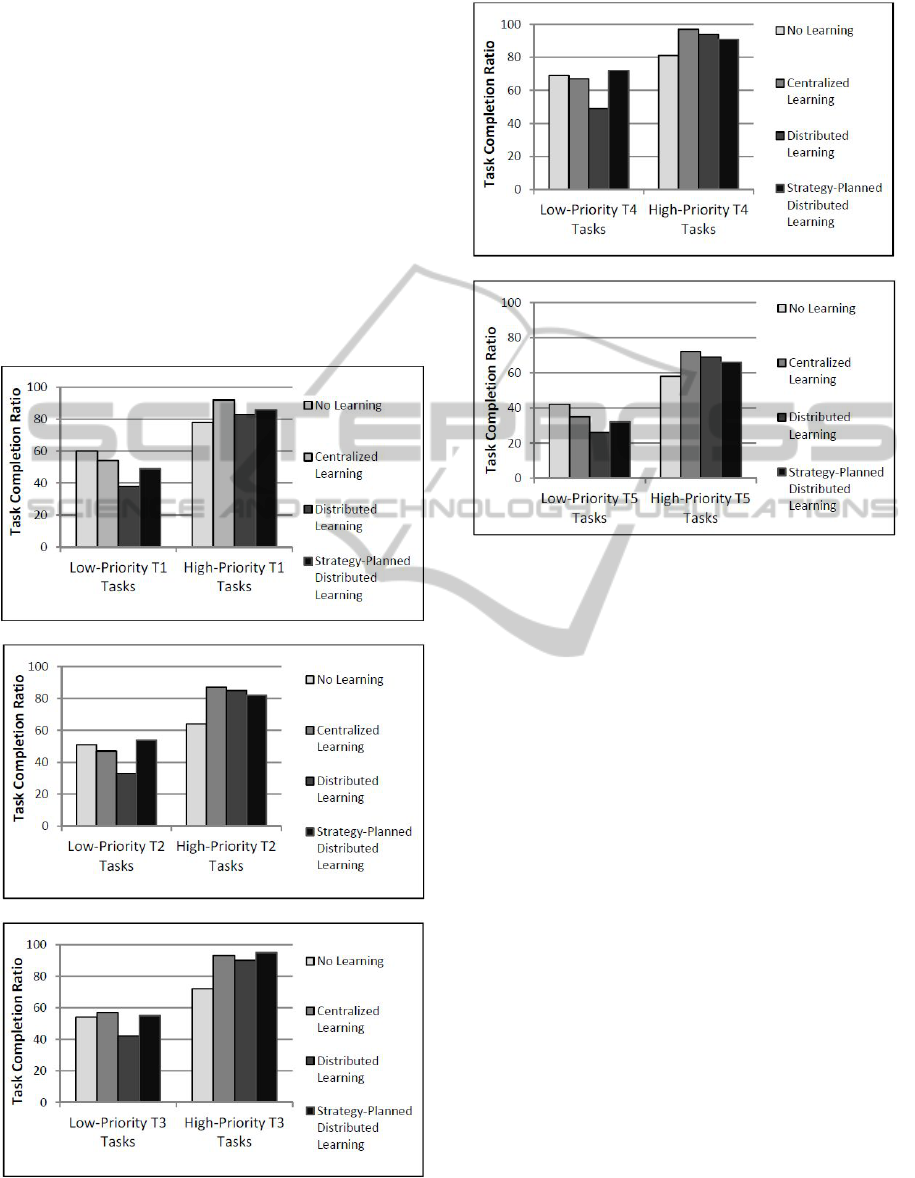

Figure 2: Task completion ratios of all task types a-e) T
to
T
.
(d)
(e)
Figure 2: Task completion ratios of all task types a-e) T
to
T
(cont.).
In distributed Q-learning approach, each robot
learns its state-action pairs without regarding the
others’ actions. Because all robots aim to perform
high-priority tasks, task completion ratio gets higher
for high-priority tasks whereas task completion ratio
for low-priority tasks significantly decreases. The
behaviour conflict that is the major disadvantage of
distributed learning explains these results.
Results of the strategy-planned distributed Q-
learning are not good as the results of centralized Q-
learning but reasonably better than distributed Q-
learning and no-learning cases. While task
completion ratios of high-priority tasks for almost all
task types are a bit less than the ones for other
learning approaches, task completion ratios of low-
priority tasks are significantly higher than that of the
others.
As seen from the graphs, the best results are
obtained in centralized Q-learning approach and the
worst results are observed in distributed Q-learning
as it is expected. From the point of view of learning
space dimensions and computational load, the
centralized approach has great disadvantage. For the
system evaluated in this study, the dimension of
learning space for distributed Q-learning and
strategy-planned Q-learning is found as 102,
whereas it is 1856 for centralized Q-learning. The
Strategy-plannedQ-learningApproachforMulti-robotTaskAllocation
415
significant difference between these values is clear
although the system considered here can be specified
as a simple system. So, by taking into account the
task completion ratios and computational loads, it is
evident that the proposed approach, strategy-planned
distributed Q-learning, yields appropriate and useful
results.
8 CONCLUSIONS
In this paper, a new learning-based task allocation
approach, Strategy-Planned Distributed Q-Learning,
is proposed. Traditional Q-learning algorithm is
defined in MDP environments. But MRS
environments are no longer Markovian because of
unpredicted behaviours of other robots and presence
of uncertainties. There are two major approaches
about Q-learning for multi-agent systems,
distributed and centralized approaches. The
proposed algorithm combines the advantages of
distributed and centralized approaches. It is a
distributed learning approach in nature but it assigns
to robots different learning strategies in a centralized
manner. Experimental results show that task
completion ratio of high-priority tasks gets higher
for all three learning approaches because the robots
make use of their past task allocation experiences for
future task execution through their learning ability.
The experimental results show that the centralized
learning approach produces the best solutions about
task completion ratios of both high-priority and low-
priority tasks. The proposed approach results in a bit
less task completion ratios than centralized
approach. However, it is indicated that the proposed
algorithm provides reasonable solutions with its low
learning space dimension and computational load.
REFERENCES
Boutlier C., 1996, Planning, learning and coordination in
multiagent decision processes, Proceedings of the 6th
Conference on Theoretical Aspects of Rationality and
Knowledge, TARK '96, pp. 195-210.
Buşoniu L., Babuška R., Schutter B., 2008, A
comprehensive survey of multiagent reinforcement
learning, IEEE Transactions on Systems, Man, and
Cybernetics – Part C: Applications and Reviews,
vol.38, no.2, pp. 156-172.
Dias M. B., Zlot R. M., Kaltra N., Stentz A., 2006,
Market-based multirobot coordination: a survey and
analysis, Proceedings of the IEEE, vol. 94, no.7, pp.
1257-1270.
Gerkey B. P., Mataric M. J., 2002, Sold!: Auction methods
for multi robot coordination, IEEE Transactions on
Robotics and Automation, vol. 18, no. 5, pp. 758-768.
Gerkey B. P., Mataric M. J., 2004, A formal analysis and
taxonomy of task allocation in multi-robot systems,
International Journal of Robotics Research, 23(9), pp.
939-954.
Hatime H., Pendse R., Watkins J. M., 2013, A
comparative study of task allocation strategies in
multi-robot systems, IEEE Sensors Journal, vol. 13,
no. 1, 253-262.
Hu J., Wellman M. P., 1998, Multiagent reinforcement
learning: theoretical framework and an algorithm,
Proceedings of the Fifteenth International Conference
on Machine Learning ICML’98, pp. 242-250.
Hu J., Wellman M. P., 2003, Nash Q-learning for general
sum games, Journal of Machine Learning Research, 4,
pp. 1039-1069.
Jones E. G., Dias M. B., Stentz A., 2007, Learning-
enhanced market-based task allocation for
oversubscribed domains, Proceedings of the 2007
IEEE/RSJ International Conference on Intelligent
Robots and Systems, San Diego, CA, USA, pp. 2308-
2313.
Kaleci B., Parlaktuna O., Ozkan M., Kırlık G., 2010,
Market-based task allocation by using assignment
problem, IEEE International Conference on Systems,
Man, and Cybernetics, pp. 135-14.
Mataric M. J., 1997, Reinforcement learning in multi-
robot domain, Autonomous Robots, 4(1), pp. 73-83.
Matignon L., Laurent G. J., Le Fort-Piat N., 2007,
Hysteretic Q-learning: an algorithm for decentralized
reinforcement learning in cooperative multi-agent
teams, Proceedings of the 2007 IEEE/RSJ
International Conference on Intelligent Robots and
Systems, San Diego, CA, USA, pp. 64-69.
Mosteo A. R., Montano L., 2007, Comparative
experiments on optimization criteria and algorithms
for auction based multi-robot task allocation,
Proceedings of the IEEE International. Conference on
Robotics and Automation, pp. 3345-3350.
Russel S., Norvig P., 2003, Artificial intelligence a
modern approach, Prentice Hall, New Jersey.
Sutton R. S., Barto A. G., 1998, Reinforcement learning:
an introduction, MIT Press, Cambridge.
Wang Y., de Silva C. W., 2006, Multi-robot box-pushing:
single-agent Q-learning vs. team Q-learning,
Proceedings of the 2006 IEEE/RSJ International
Conference on Intelligent Robots and Systems
,
Beijing, China, pp. 3694–3699.
Watkins C. J., 1989, Learning from delayed rewards,
University of Cambridge, UK, PhD Thesis.
Watkins C. J., Dayan P., 1992, Q-learning, Machine
Learning, vol. 8.
Yang E., Gu D., 2004, Multiagent reinforcement learning
for multi-robot systems: a survey, CSM-404,
Technical Reports of the Department of Computer
Science, University of Essex.
ICINCO2014-11thInternationalConferenceonInformaticsinControl,AutomationandRobotics
416
