On the Validation of Computerised Lung Auscultation

Guilherme Campos

1,2

and João Quintas

Departmento de Electrónica, Telecomunicações e Informática (DETI) – Universidade de Aveiro (UA),

Campus de Santiago, 3810-193 Aveiro, Portugal

Instituto de Engenharia Electrónica e Informática de Aveiro (IEETA) – Universidade de Aveiro (UA),

Campus de Santiago, 3810-193 Aveiro, Portugal

Instituto de Sistemas e Robótica (ISR) – Instituto Superior Técnico (IST),

Avenida Rovisco Pais 1, 1049-001 Lisboa, Portugal

Keywords: Adventitious Lung Sounds, Automatic Detection Algorithms, Annotation, Agreement, Performance Metrics,

Validation.

Abstract: The development of computerised diagnosis tools based on lung auscultation necessitates appropriate

validation. So far, this work front has received insufficient attention from researchers; validation studies found

in the literature are largely flawed. We believe that building open-access crowd-sourced information systems

based on large-scale repositories of respiratory sound files is an essential task and should be urgently

addressed. Most diagnosis tools are based on automatic adventitious lung sound (ALS) detection algorithms.

The gold standards required to assess their performance can only be obtained by human expert annotation of

a statistically significant set of respiratory sound files; given the inevitable subjectivity of the process,

statistical agreement criteria must be applied to multiple independent annotations obtained for each file. For

these reasons, the information systems we propose should provide simple, efficient annotation tools; facilitate

the formation of credible annotation panels; apply appropriate agreement criteria and metrics to generate gold-

standard ALS annotation files and, based on them, allow easy quantitative assessment of detection algorithm

performance.

1 INTRODUCTION

Easy, inexpensive and non-invasive, auscultation is

an age-old medical diagnosis method. The

stethoscope is a tribute to its paramount importance:

invented by Laënnec in 1816, it has become the most

universal symbol of the medical profession.

Diagnosing respiratory conditions through lung

auscultation is a skill healthcare practitioners acquire

by training. As shown in the diagram of Figure 1, the

process can be decomposed into two steps.

The first is a sound analysis stage, based on the

notion of normal respiratory sounds and the ability to

identify abnormal features superimposed on them,

also called adventitious lung sounds (ALS). ALSs are

classified into various types according to their

acoustic characteristics. Classification criteria and

nomenclatures adopted in the literature may differ

slightly, as there is no universal standardisation; for

instance, Bohadana et al. (2014) list stridors,

wheezes, rhonchi, fine crackles, coarse crackles,

pleural friction rubs and squawks. Different sets of

clinical correlations have been established for each

ALS type.

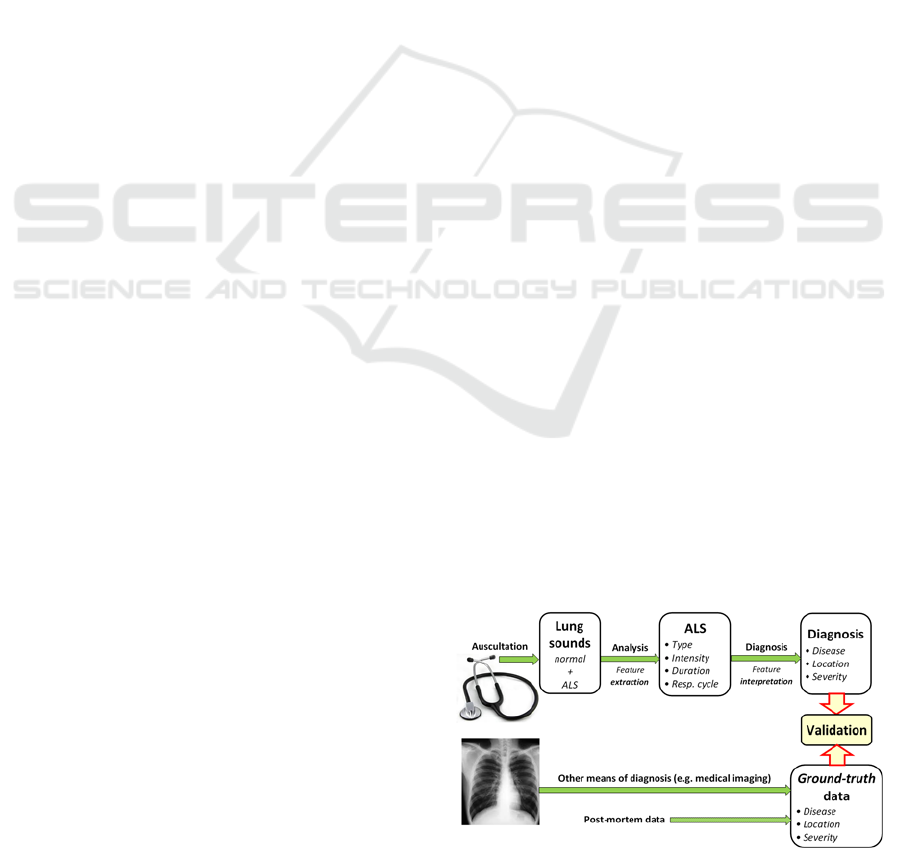

Figure 1: Lung disease diagnosis based on auscultation.

Based on this accumulated knowledge, the second

step – diagnosis proper – consists in interpreting the

characteristics (type, intensity, duration, instant of

occurrence within the respiratory cycle…) of the ALS

observed in different auscultation points in order to

654

Campos G. and Quintas J..

On the Validation of Computerised Lung Auscultation.

DOI: 10.5220/0005293406540658

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2015), pages 654-658

ISBN: 978-989-758-068-0

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

establish the disease, its severity and area affected. As

Figure 1 suggests, the results can only be validated

against ground-truth data obtained through more

reliable diagnosis means (e.g. medical imaging) or

post-mortem examination.

2 AUTOMATIC ALS DETECTION

Carried out in the traditional guise (i.e. by humans),

and despite constant progress towards standardisation

and sophistication of auscultation training methods

and technology (see, for instance, Ward and Wattier’s

2011 review), the signal analysis process depicted in

Figure 1 is rather subjective; obviously, it is also

restricted to the human audible frequency range.

Computer-aided auscultation is potentially much

more objective, reliable and efficient. With the advent

of digital stethoscopy, its development became a real

prospect (reflected, for example, in the 1997 review

by Pasterkamp et al.). The EU-funded project

Computerised Respiratory Sound Analysis (CORSA),

involving a multinational task force of the European

Respiratory Society (Sovijärvi et al. 2000), marked a

research boom in this area. Naturally inspired by the

human auscultation process, depicted in Figure 1,

research efforts were primarily directed at automating

its first step – ALS detection.

The literature evidences intense work on the

development of algorithms applying pattern

recognition techniques to detect and classify the

various ALS types. Taking the example of crackle

detection (arguably the most important and certainly

one of the most challenging, given the discontinuous,

non-stationary nature of crackles), a wide variety of

signal processing techniques have been proposed,

including digital filters (Ono et al. 1989), spectrogram

analysis (Kaisla et al. 1991), auto-regressive models

(Hadjileontiadis 1996), time-domain analysis

(Vannuccini et al. 1998), fuzzy filters (Mastorocostas

et al. 2000), wavelet and wavelet-packet transform

methods (Kahya et al. 2001; Hadjileontiadis 2005; Lu

and Bahoura 2006; Lu and Bahoura 2008), fractal

dimension (FD) filtering (Hadjileontiadis and

Rekanos 2003), Hilbert transform analysis (Li and Du

2005) and empirical mode decomposition (EMD)

(Charleston-Villalobos et al. 2007; Hadjileontiadis

2007). This list is by no means exhaustive and similar

efforts have gone into the development of detection

algorithms for other ALS types, especially wheezes.

However, by and large, research publications in

this area reveal serious imbalance between

development and validation work, with insufficient

attention paid to the latter. To better characterise this

problem and support the practical solution proposed

for it in section 4, the next section discusses ALS

detection algorithm validation and its specific

requirements.

3 VA L I D AT I O N I S S U E S

ALS waveforms can be characterised qualitatively,

but establishing completely objective definitions is

not possible (if it were, developing an algorithm with

100% detection accuracy would be a simple task).

The performance of automatic ALS detection

algorithms can thus only be assessed by comparing

the annotations they generate with human expert

annotations of the same sound files, as illustrated in

Figure 2. In this context, the term annotation refers to

a complete record of the ALS of a given type

occurring in the sound file under analysis.

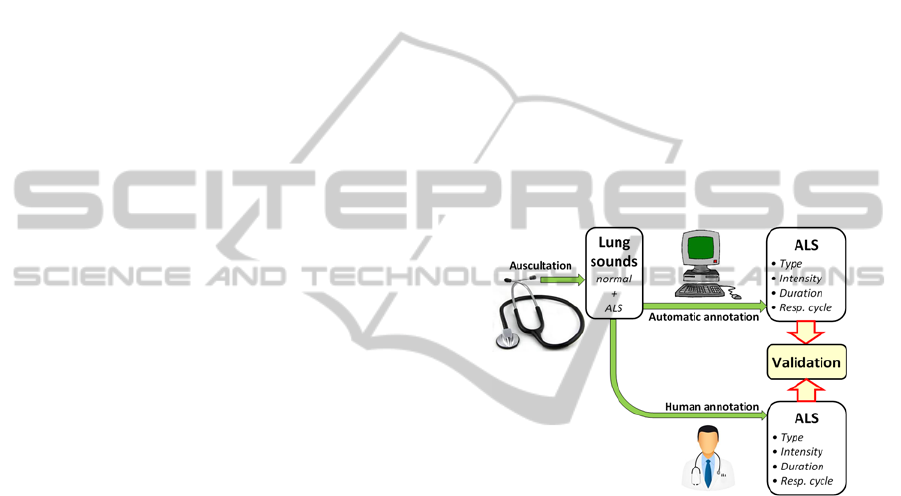

Figure 2: Validation of automatic ALS detection algorithm.

Given the subjectivity of human annotation, pointed

out in the previous section, it is essential to take

measures to minimise bias. For this reason, validation

references should be obtained by combining multiple

annotations of the same sound file, each carried out

independently by a different human expert, into a

single gold-standard annotation. The criteria

governing this combination or agreement process

must be explicit. For instance, the pilot study by

Quintas et al. (2013) used agreement by majority, but

other approaches can and should be explored.

Performance tests reported in the literature are

very often based on annotations by a single expert,

thus lacking credibility. In the rare instances of multi-

annotation, the criteria used for generating gold

standards are normally not clarified.

For statistical significance, both the panels of

expert annotators and the sets of annotated sound files

should be as large and diverse as possible. The

development of pattern recognition algorithms often

OntheValidationofComputerisedLungAuscultation

655

relies on training; obviously, training and test sets

must be separate i.e. performance tests cannot be

based on the same files used for training. This

constitutes an additional argument in favour of

building large, diverse repositories of sound files and

corresponding gold-standard annotations, but the

repositories actually used in practice tend to be very

small and relatively homogeneous.

It is clear from the previous discussion that the

availability of complete, reliable and user-friendly

computational tools for respiratory sound annotation

is essential. The use of open annotation file formats is

desirable. The crackle, wheeze and respiratory cycle

annotation application RSAS (Dinis et al., 2012) was

an effort in this direction. Regrettably, making this

kind of tools publicly available is not yet the rule.

In general, replicating the detection algorithm

tests described in the literature is virtually impossible,

as there is no easy access to the relevant data (sound

files and reference annotations). Any performance

claims under these circumstances would lack

credibility. Since absolute agreement between the

annotations used to build a gold standard is extremely

unlikely (the small pilot study on multi-annotation

presented in Dinis et al. (2012) strongly supports this

idea), some extreme performance claims found in the

literature may be signs of methodological flaws

related to the use of single-annotator data, artificially

homogeneous sound repositories (Quintas et al. 2013)

or even performance indices measured on training set

files.

The creation of a Web-based open information

system to stimulate the development and sharing of

respiratory sound data and annotation repositories,

annotation tools, gold standards, agreement metrics

and criteria, as well as detection algorithms, is

essential to solve the difficulties discussed and

advance research in this area.

4 ALS INFORMATION SYSTEM

The information system we propose is outlined in

Figure 3. The idea is to base it on an Internet platform

and feed it through crowdsourcing i.e. by attracting

contributions from the respiratory healthcare

community worldwide. This point is emphasised in

the figure by the association of the various functional

modules with user classes, loosely labelled managers,

practitioners, annotators, developers and trainees.

At the core of this information system lies a

repository of lung auscultation sound files obtained

through digital stethoscopy. The aim is to make it as

expanded and diversified as possible. The online

sound file submission module must therefore be

versatile and user-friendly. It must accommodate

multi-channel stethoscopy data.

The records associated with the submitted sound

files should be as complete as possible (without

compromising patient anonymity), since successful

data-mining using the system will depend crucially on

access to data on the patient (age, gender, ethnicity,

weight, clinical antecedents,…), auscultation

conditions (location, equipment, procedures,…) and

results from other means of diagnosis (e.g. medical

imaging).

Academic research projects may be particularly

valuable in building a repository of this kind,

inasmuch as they can contribute large-scale data-sets

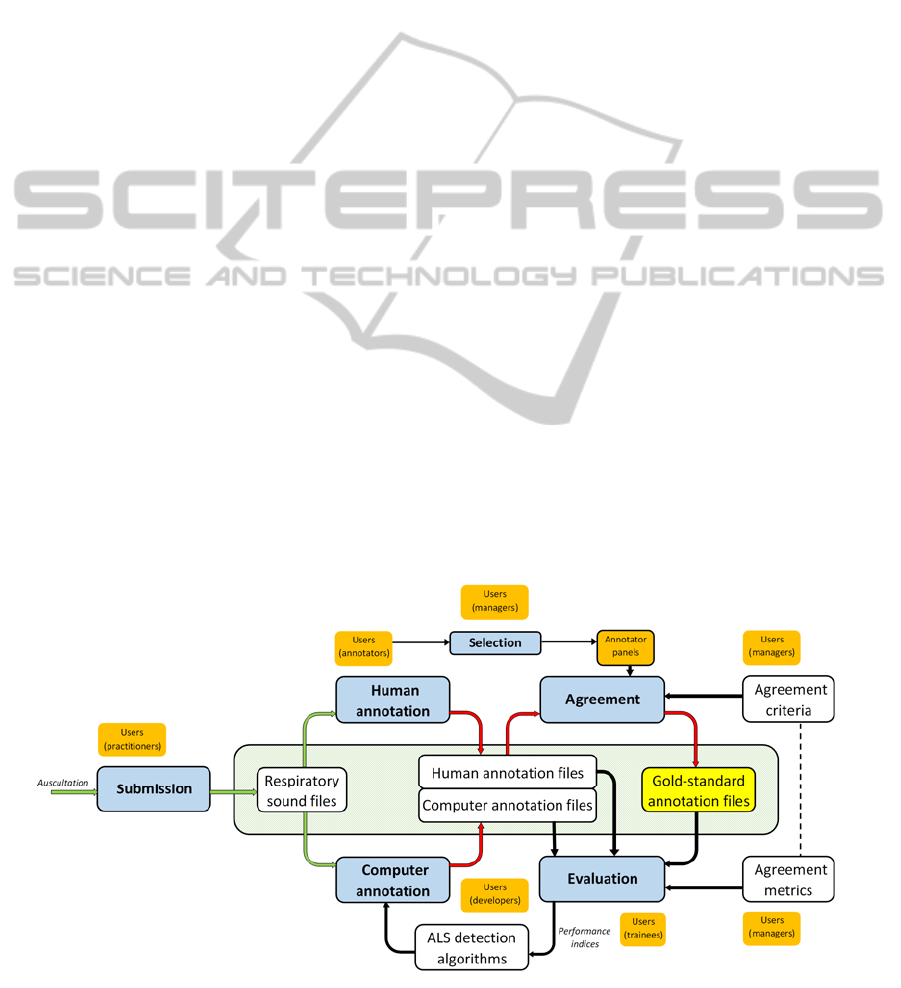

Figure 3: Web-based respiratory sound information system.

HEALTHINF2015-InternationalConferenceonHealthInformatics

656

obtained under controlled conditions.

It must be possible to define and label sets of

sound files within the repository, for the purposes of

generating gold standards, training detection

algorithms and testing their performance.

An essential tool of this system is the human

annotation module: a graphical user interface (GUI)

along the lines of RSAS (Dinis et al. 2012). It should

allow simple, intuitive annotation of any respiratory

sound file stored in the repository, the result being a

new file (annotation file) tagged to the corresponding

sound file/annotator pair and stored in a repository of

annotation files. Dinis et al. (2012) propose formats

for crackle, wheeze and respiratory cycle annotation

files.

Annotating files may be of interest to users of very

different levels. For example, the system can assist

non-experts (trainees) practice and assess their

performance. For the purpose of generating gold-

standards, however, it is important to select expert

annotator panels from the pool of annotators. As seen

in the previous section, the gold standards, generated

by the agreement module, combine multiple

annotations of the same sound file (one per panel

member) according to explicit agreement criteria.

The system must, of course, support computer

annotation through an interface to automatic ALS

detection algorithms; these must be able to collect

sound files (from test sets or training sets) and submit

their corresponding annotations, which must be

tagged accordingly and stored in the repository as any

other annotation.

The evaluation module applies appropriate

agreement metrics, consistent with the criteria used

for generating the gold standard annotations, to

compute detection performance indices. This can be

used both on computer annotations (to assist the

process of ALS detection algorithm training and

validation) and human annotations (to assist the

training and assessment of healthcare practitioners).

5 MACHINE LEARNING

ALS detection algorithms are intended to automate

the first step of the process outlined in Figure 1,

assuming that diagnosis proper will remain a human

task. However, with the unceasing progress of

computing, signal processing and communication

technologies, it is possible to envisage fully

automated respiratory disease diagnosis and

monitoring systems. This involves automating both

the feature extraction and the interpretation steps.

In this scenario, adventitious lung sounds lose

importance. Pattern recognition can be applied with

no a priori restrictions on which features to be

considered. This may prove a significant advantage

with machine learning techniques such as genetic

algorithms, support vector machines or neural

networks, as different features (for example in the

ultrasound frequency range, completely disregarded

by ALS) may contribute to more accurate diagnosis

results. In this regard, an analogy may be drawn with

music genre classification algorithms, whose

performance has improved significantly with the

increasing use of machine-selected low-level features

with no obvious musical meaning and seemingly

unrelated to the human process of musical style

identification.

The difficulty of this approach, in this case, is the

long validation loop. The intermediate validation of

the feature extraction step (see Figure 2) is no longer

applicable; the performance of automatic diagnosis

algorithms must be directly compared with ground-

truth results from other means of diagnosis, as shown

in Figure 4.

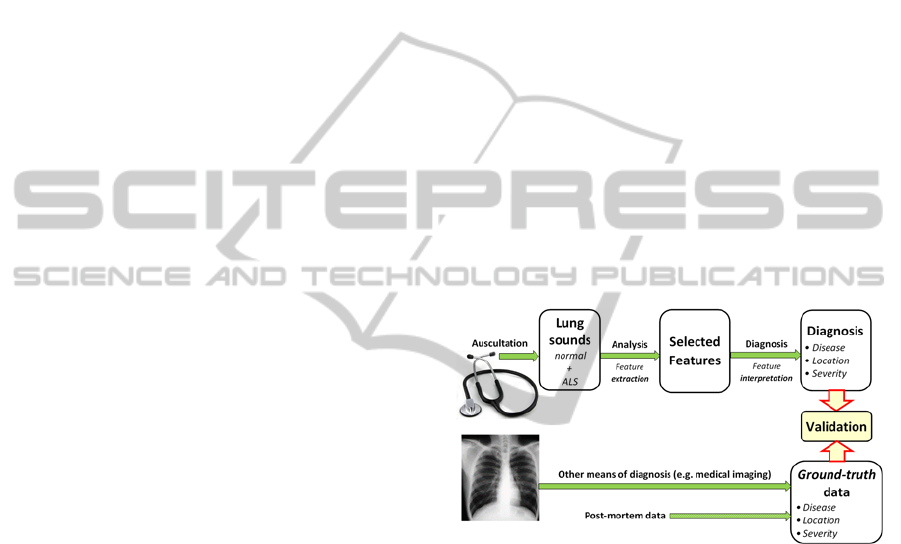

Figure 4: Automatic respiratory disease diagnosis.

This makes it even more indispensable to create an

information system with an extensive lung sound

repository fed by crowd-sourcing, as described in the

previous section; naturally, the modules related to

ALS annotation would not be necessary in this

approach.

REFERENCES

Bohadana A, Izbicki G, Kraman SS (2014) “Fundamentals

of lung auscultation.” The New England Journal of

Medicine, 370(8): 744-751.

Charleston-Villalobos S, González-Camarena R, Chi-Lem

G, Aljama-Corrales T (2007) "Crackle sounds analysis

by empirical mode decomposition. Nonlinear and

nonstationary signal analysis for distinction of crackles

OntheValidationofComputerisedLungAuscultation

657

in lung sounds." IEEE Engineering in Med. and

Biology Magazine 26(1): 40-47.

Dinis J, Campos G, Rodrigues J, Marques, A (2012)

“Respiratory sound annotation software.” Int. Conf. on

Health Informatics (HEALTHINF’12), 183-188.

Vilamoura, Portugal, February 1-4.

Hadjileontiadis LJ (1996) "Nonlinear separation of crackles

and squawks from vesicular sounds using third-order

statistics." 18

Annual Int. Conf. of the IEEE

Engineering in Medicine and Biology Society 5: 2217-

2219.

Hadjileontiadis LJ (2005) "Wavelet-based enhancement of

lung and bowel sounds using fractal dimension

thresholding-part I: methodology.” IEEE Trans. on

Biomedical Engineering 52(6): 1143-1148.

Hadjileontiadis LJ (2007) "Empirical mode decomposition

and fractal dimension filter. A novel technique for

denoising explosive lung sounds." IEEE Engineering in

Med. and Biology Magazine 26(1): 30-39.

Hadjileontiadis LJ, Rekanos T (2003) "Detection of

explosive lung and bowel sounds by means of fractal

dimension." IEEE Signal Processing Letters 10(10):

311-14.

Kahya YP, Yerer S, Cerid O (2001) “A wavelet-based

instrument for detection of crackles in pulmonary

sounds.” 23

Annual Int. Conf. of the IEEE

Engineering in Med. and Biology Society, 2001. 4:

3175-3178.

Kaisla T, Sovijärvi ARA, Piirilä P, Rajala HM, Haltsonen

S, Rosqvist T (1991) "Validated method for automatic

detection of lung sound crackles." Medical & biological

engineering & computing 29(5): 517-521.

Li Z, Du M (2005) “HHT based lung sound crackle

detection and classification.” 2005 Int. Symposium on

Intelligent Signal Processing and Communication

Systems 385-388.

Lu X, Bahoura M (2006) "Separation of crackles form

vesicular sounds using wavelet packet transform." Int.

Conf. on Acoustics, Speech and Signal Processing

(ICASSP 2006).

Lu X, Bahoura M (2008) "An integrated automated system

for crackles extraction and classification." Biomedical

Signal Processing and Control 3(3): 244-254.

Mastorocostas PA, Tolias YA, Theocaris JB,

Hadjileontiadis LJ, Panas SM (2000). "An orthogonal

least squares-based fuzzy filter for real-time analysis of

lung sounds." IEEE Transactions on Bio-medical

Engineering 47(9): 1165-76.

Ono M, Arakawa K, Mori M, Sugimoto T, Harashima H

(1989). "Separation of fine crackles from vesicular

sounds by a nonlinear digital filter." IEEE transactions

on bio-medical engineering 36(2): 286-291.

Pasterkamp H, Kraman SS, Wodicka G (1997) "Respiratory

Sounds. Advances Beyond the Stethoscope." American

Journal of Respiratory and Critical Care Medicine

156(3): 974-87.

Quintas J, Campos G, Marques A (2013) “Multi-algorithm

respiratory crackle detection.” Int. Conf. on Health

Informatics (HEALTHINF’13), 239-244. Barcelona,

Spain, February 11-14.

Sovijärvi ARA, Vanderschoot J, Earis J E (2000)

“Standardization of computerized respiratory sound

analysis”. European Respiratory Review 10:77, 585.

Vannuccini L, Rossi M, Pasquali G (1998) "A new method

to detect crackles in respiratory sounds." Technology

and Health Care 6(1): 75-79.

Ward JJ, Wattier BA (2011) “Technology for enhancing

chest auscultation in clinical simulation”. Respiratory

Care 56(6): 834-845.

HEALTHINF2015-InternationalConferenceonHealthInformatics

658
