Using Software Categories for the Development of Generative Software

Pedram Mir Seyed Nazari and Bernhard Rumpe

Software Engineering, RWTH Aachen University, Aachen, Germany

Keywords:

Model-driven Development, Code Generators, Software Categories.

Abstract:

In model-driven development (MDD) software emerges by systematically transforming abstract models to

concrete source code. Ideally, performing those transformations is to a large extent the task of code generators.

One approach for developing a new code generator is to write a reference implementation and separate it into

handwritten and generatable code. Typically, the generator developer manually performs this separation —

a process that is often time-consuming, labor-intensive, difﬁcult to maintain and may produce more code

than necessary. Software categories provide a way for separating code into designated parts with deﬁned

dependencies, for example, “Business Logic” code that may not directly use “Technical” code. This paper

presents an approach that uses the concept of software categories to semi-automatically determine candidates

for generated code. The main idea is to iteratively derive the categories for uncategorized code from the

dependencies of categorized code. The candidates for generated or handwritten code ﬁnally are code parts

belonging to speciﬁc (previously deﬁned) categories. This approach helps the generator developer in ﬁnding

candidates for generated code more easily and systematically than searching by hand and is a step towards

tool-supported development of generative software.

1 INTRODUCTION

Models are at the center of the model-driven devel-

opment (MDD) approach. They abstract from tech-

nical details, facilitating a more problem-oriented de-

velopment of software. In contrast to conventional

general-purpose languages (GPL, such as Java or C),

the language of models is limited to concepts of a

speciﬁc domain, namely, a domain-speciﬁc language

(DSL). To obtain an exectuable software application,

code generators systematically transform the abstract

models to instances of a GPL (e.g., classes of Java).

However, code generators are software themselves

and need to be developed as well. There are different

development processes for code generators. One that

is often suggested (e.g., (Kelly and Tolvanen, 2008)

and (Schindler, 2012)) is shown in Fig. 1.

The approach includes four steps. First, a refer-

ence model is created, which ultimately serves as in-

put for the generator. Depending on this reference

Creation of

Reference Model

Creation of

Reference Impl.

Separation of

HW and Gen Code

Creation of

Transformations

Reference

Model

Reference

Impl.

Handwritten

Code

Generated

Code

result result result result

Templates

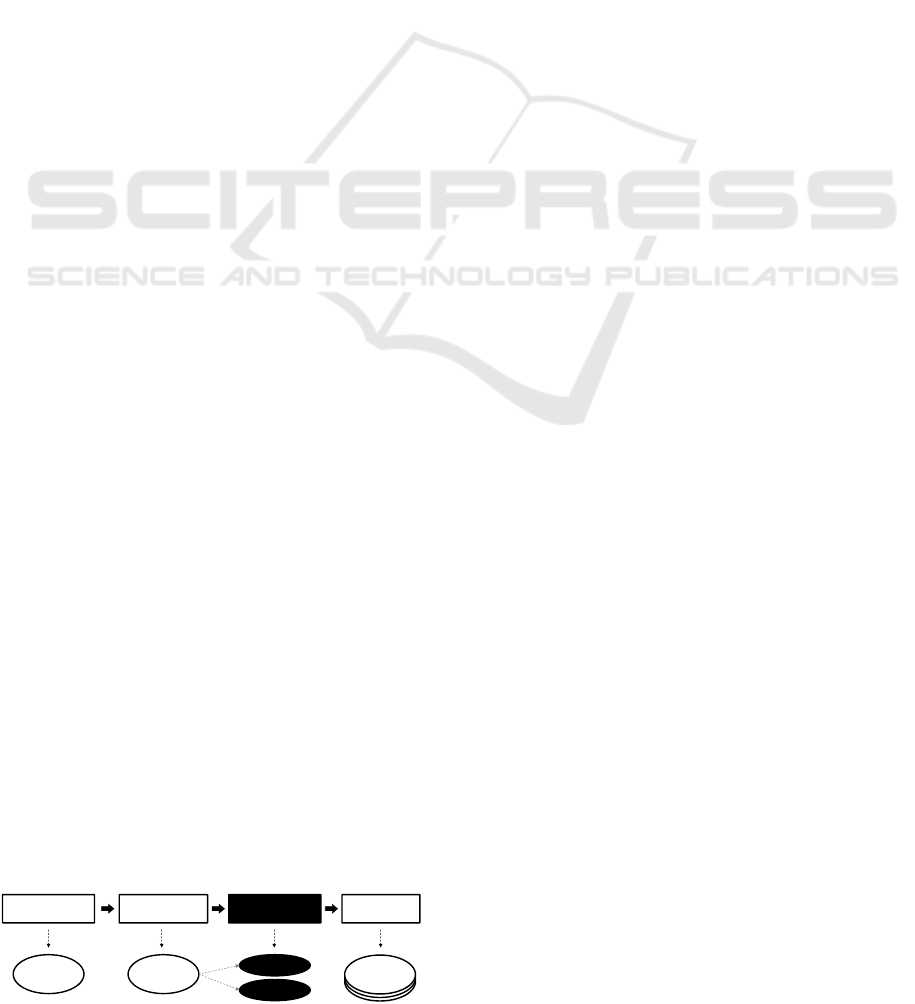

Figure 1: Typical development steps of a code generator.

model, the generator developer creates the reference

implementation. Next, it has to be determined which

code parts need to be or can be generated and which

ones should remain handwritten. Finally, the transfor-

mations are deﬁned to transform the reference model

to the aforementioned generated code.

Often, the third step, i.e., ’separation of hand-

written and generated code’ is not explicitly men-

tioned in the literature. This separation is implicit

part of the last step, i.e., ’creation of transformations’,

since the transformations are only created for code

that ought to be generated. However, the separation

of handwritten and generated code ought to be distin-

guished as a step on its own, since it is not always

obvious which classes need to be generated.

In general, every class can be generated, espe-

cially when using template-based generators. In an

extreme case, a class can be fully copied into a tem-

plate containing only static template code (and, thus,

is independent of the input model). This is not de-

sired, following the guideline that only as much code

should be generated as necessary (Stahl et al., 2006),

(Kelly and Tolvanen, 2008), (Fowler, 2010). Opti-

mally, most code is put into the domain framework

(or domain platform), increasing the understandabil-

ity and maintainability of the software. The gener-

ated code then only conﬁgurates the domain frame-

498

Mir Seyed Nazari P. and Rumpe B..

Using Software Categories for the Development of Generative Software.

DOI: 10.5220/0005328204980503

In Proceedings of the 3rd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2015), pages 498-503

ISBN: 978-989-758-083-3

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

work for speciﬁc purposes (Rumpe, 2012).

One important criterion for a code generator to be

reasonable is the existence of similar code parts, ei-

ther in the same software product or in different prod-

ucts (e.g., software product lines). Typically, genera-

tion candidates are similar code parts that are also re-

lated to the domain. For example, in a domain about

cars, the classes Wheel and Brake would be more

likely generation candidates than the domain indepen-

dent and thus unchanged class File. This, of course,

is the case, since the information for the generated

code is obtained by the input model which, in turn,

is an instance of a DSL that by deﬁnition describes

elements of a speciﬁc domain. Of course, the logi-

cal relation to the domain is not a necessary criterion,

because if the DSL is not expressive enough, the gen-

erated code is additionally integrated with handwrit-

ten code. Nevertheless, the generated code often has

some bearing on the domain.

In most cases, the generator developer manually

separates handwritten code from generated code. This

process can be time-consuming, labor-intensive and

may impede maintenance. Furthermore, when using

a domain framework, this separation is insufﬁcient,

since the handwritten code needs to be separated into

handwritten code for a speciﬁc project and handwrit-

ten code concerning the whole domain. This sepa-

ration also impacts the maintenance of the software

(Stahl et al., 2006). To address this problem, software

categories, as presented in (Siedersleben, 2004), are

suited.

The aim of this paper is to show how soft-

ware categories can be exploited to categorize semi-

automatically classes and interfaces of an object-

oriented software system. The resulting categoriza-

tion can be used for determining candidates for gen-

erated code, supporting the developer performing this

separation task.

This paper is structured as follows: Sec. 2 intro-

duces software categories and the used terminology.

In Sec. 3, these software categories are adjusted for

generative software. Sec. 4 presents the allowed de-

pendencies derived by the previously deﬁned software

categories. The general categorization approach is ex-

plained in Sec. 5 and exempliﬁed in Sec. 6. Sec. 7

outlines further possible dependencies. Finally, Sec.

8 concludes the paper.

2 SOFTWARE CATEGORIES

Software systems, especially larger ones, consist of a

number of components that interact with each other.

The components usually belong to different kinds of

Swing

CardGame

SheepsHead

CardGameGUI

CardGameGUISwing

refines

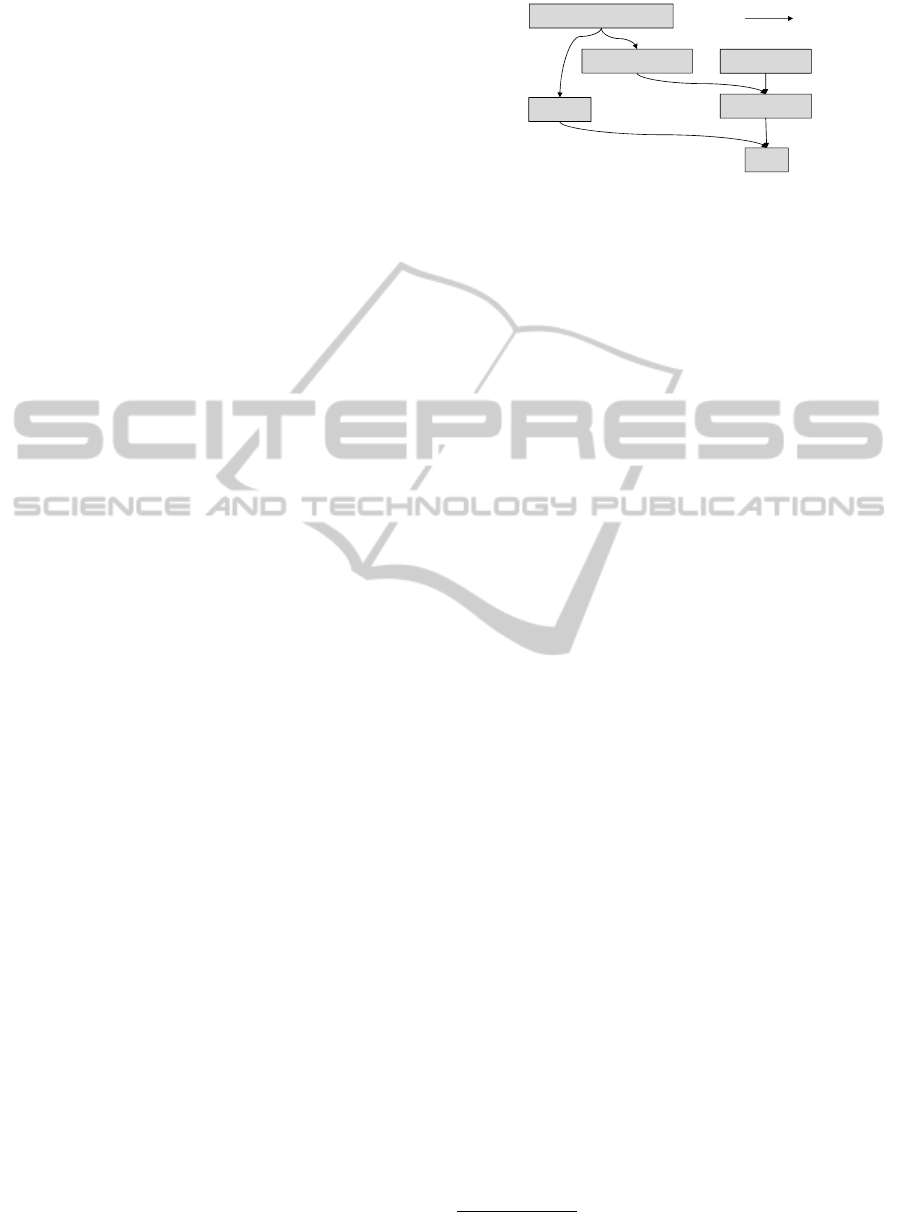

Figure 2: Software categories for virtual SheepsHead

(Siedersleben, 2004) (shortened).

categories, such as persistence, gui and application.

Therefore, (Siedersleben, 2004) suggests using soft-

ware categories for ﬁnding appropriate components.

In the following this idea is demonstrated by an ex-

ample.

Suppose that a software system for the card game

Sheepshead should be developed. The following cat-

egories then could be created (see Fig. 2):

• 0 (Zero): contains only global software that is

well-tested, e.g., java.lang and java.util of

the JDK.

• CardGame: contains fundamental knowledge

about card games in general. Hence, it can be used

for different card games.

• SheepsHead: Contains rules for the the

Sheepshead game, e.g., whether a card can

be drawn.

• CardGameGUI: determines the design of the card

game, independent of the used library, e.g., that

the cards should be in the middle of the screen.

• CardGameGUISwing: extends Swing by illustra-

tion facilities for cards.

• Swing: contains fundamental knowledge about

Java Swing.

An arrow in Fig. 2 represents a reﬁnement rela-

tion between two categories. Classes that are in a cat-

egory C1 that reﬁnes another category C2 may use

classes of this category C2. The other way around

is not allowed. Every category - directly or indi-

rectly - reﬁnes the category 0 (arrows in Fig. 2).

Hence, software in 0 can be used in every cate-

gory without any problems. CardGame is reﬁned

by SheepsHead and CardGameGUI which means

that code in these categories can also use code in

CardGame. Note that a communication between

CardGameGUI and SheepsHead is not allowed di-

rectly, but rather by using CardGame or 0 interfaces.

Since the category CardGameGUISwing reﬁnes both

The example is taken from (Siedersleben, 2004) and re-

duced to only the aspects required to explain our approach.

UsingSoftwareCategoriesfortheDevelopmentofGenerativeSoftware

499

0‘

D T

A T

(a) (b)

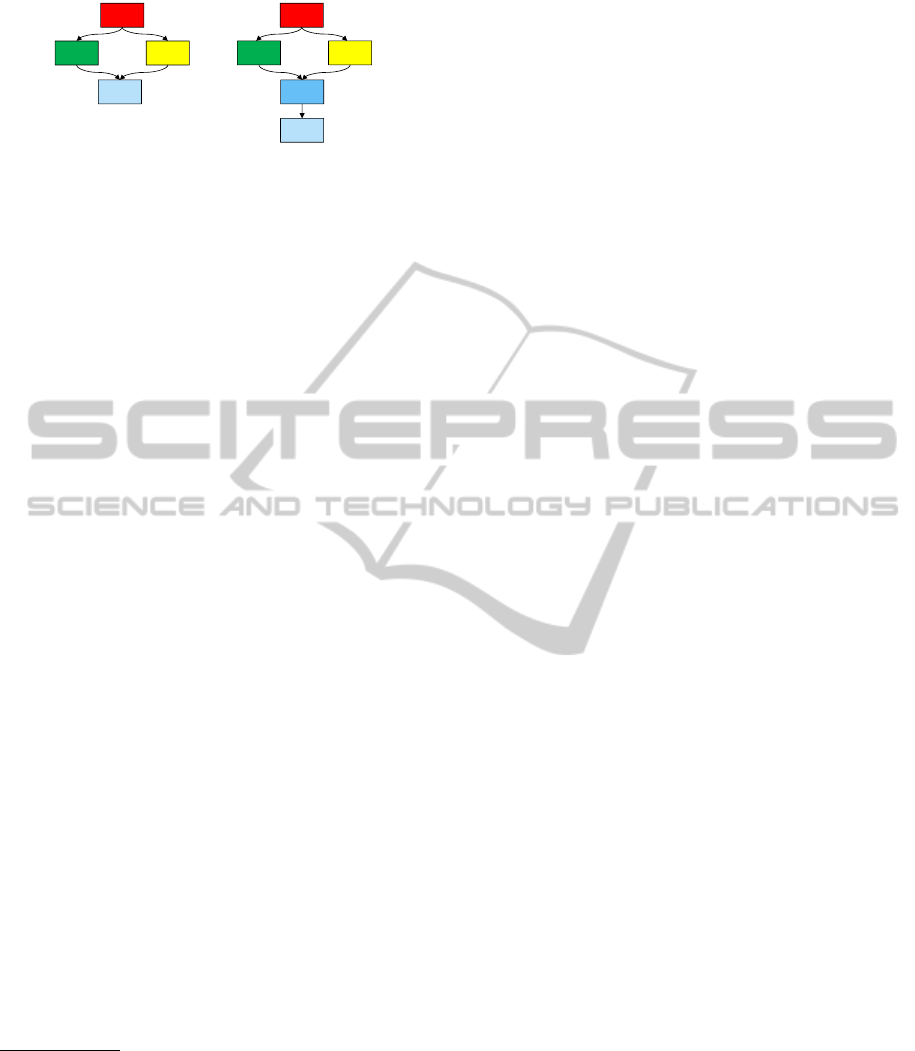

Figure 3: Software categories (a) in general (Siedersleben,

2004) and (b) adjusted for generative software.

CardGameGUI and Swing, it is a mixed form of these

two categories.

Now, having these categories, appropriate com-

ponents can be found. For example, a compo-

nent SheepsHeadRules in the category SheepsHead,

CardGameInfo and VirtualPlayer in CardGame,

CardGameInfoPresentation for CardGameGUI.

Considering this example, it can be seen that be-

side the 0 category, three other categories can be iden-

tiﬁed that exist in most software systems (see Fig. 3a):

• Application (A): containing only application

software, i.e., CardGame, SheepsHead and

CardGameGUI

• Technical (T): containing only technical software,

e.g. Java Swing classes.

• Combination of A and T (AT): e.g.

CardGameGUI-Swing because it reﬁnes both an

A (CardGameGUI) and a T (Swing) category.

(Siedersleben, 2004) summarizes the characteris-

tics and rules for the software categories as follows:

the categories are partially ordered, i.e., every cate-

gory can reﬁne one or more categories. The emerging

category graph is acyclic. The category 0 (Zero) is

the root category, containing global software. A cat-

egory C is pure, if there is only one path from C to

0. Otherwise, the category is impure. In Fig. 3a only

the category AT is impure, because it reﬁnes the two

categories A and T. All other categories are pure.

Terminology

We call a class that has the category C a C-class. Fol-

lowing from the category graph in Fig. 2 there are:

AT-classes, A-classes, T-classes and 0-classes. For

Note that Swing classes are global (belonging to the

JDK) and well-tested; hence meet the criteria of the cat-

egory 0. But –as usually the user-interface should be

exchangeable– Swing classes are not necessarily global in a

speciﬁc software system.

In (Siedersleben, 2004) also the Representation (R) cat-

egory is presented. This category contains only software for

transforming A category software to T and vice versa. It is a

kind of cleaner version of AT. To demonstrate our approach,

the R category can be neglected.

the sake of readability, we do not explicitly mention

interfaces, albeit what applies to classes applies to in-

terfaces as well.

3 CATEGORIES FOR

GENERATIVE SOFTWARE

While (Siedersleben, 2004) aims for ﬁnding compo-

nents from the deﬁned software categories, the goal

of this paper is to determine whether a speciﬁc class

should be generated or not by analyzing its depen-

dencies to other classes.

To illustrate this, consider the following example.

When having a class Book and a class Jupiter, which

of these classes are generation candidates? Of course,

it depends on the domain. If the domain is about plan-

ets, probably Jupiter is a candidate. In a carrier

media domain, Book would be a candidate. So, we

can say, that a generation candidate somehow relates

to the domain. But this condition is not enough. In

a library domain where different books exist, Book

would rather be general for the whole domain and

should probably not be generated at all. Hence, addi-

tionally to the domain afﬁliation, a generation candi-

date is not general for the whole domain. Technically

speaking, the class or interface should depend on a

speciﬁc model (or model element). Consequently, a

change in the model can imply the change of the gen-

erated class. Usually, classes that are global for the

whole domain are not affected by changes in a model.

We adjusted the category model in Fig. 3a to bet-

ter ﬁt in with the domain. Fig. 3b shows the modiﬁed

category model.

The category A from Fig. 3a is renamed to D (Do-

main), to emphasize the domain. Consequently, the

mixed form AT (Application and Technical) becomes

DT (Domain and Technical). Category T remains un-

changed. The new category DG (domain global) indi-

cates software that is global for the whole domain and

helps to differentiate from D-classes that are speciﬁc

to the domain (a particular book, e.g., CookBook).

Because of the introduction of DG, the character-

istic of the 0 category changes somewhat. It contains

only global software that is well-tested and indepen-

dent of the domain, e.g., java.lang and java.util

of the JDK. To highlight the difference to the initial 0

deﬁnition, 0’ is used.

With the above objective in mind and upon search-

ing for generation candidates, in particular, classes of

the category D are interesting, i.e., D itself and DT,

reﬁning the category of both D and T (see Fig. 3b).

The matrix in Fig. 4a underscores which software

category results if two categories are combined. A

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

500

DT D T DG 0‘

DT DT DT DT DT DT

D D DT D D

T T T T

DG DG DG

0‘ 0‘

→

DT D T DG 0‘

DT     

    

T     

    

0‘

    

(a) (b)

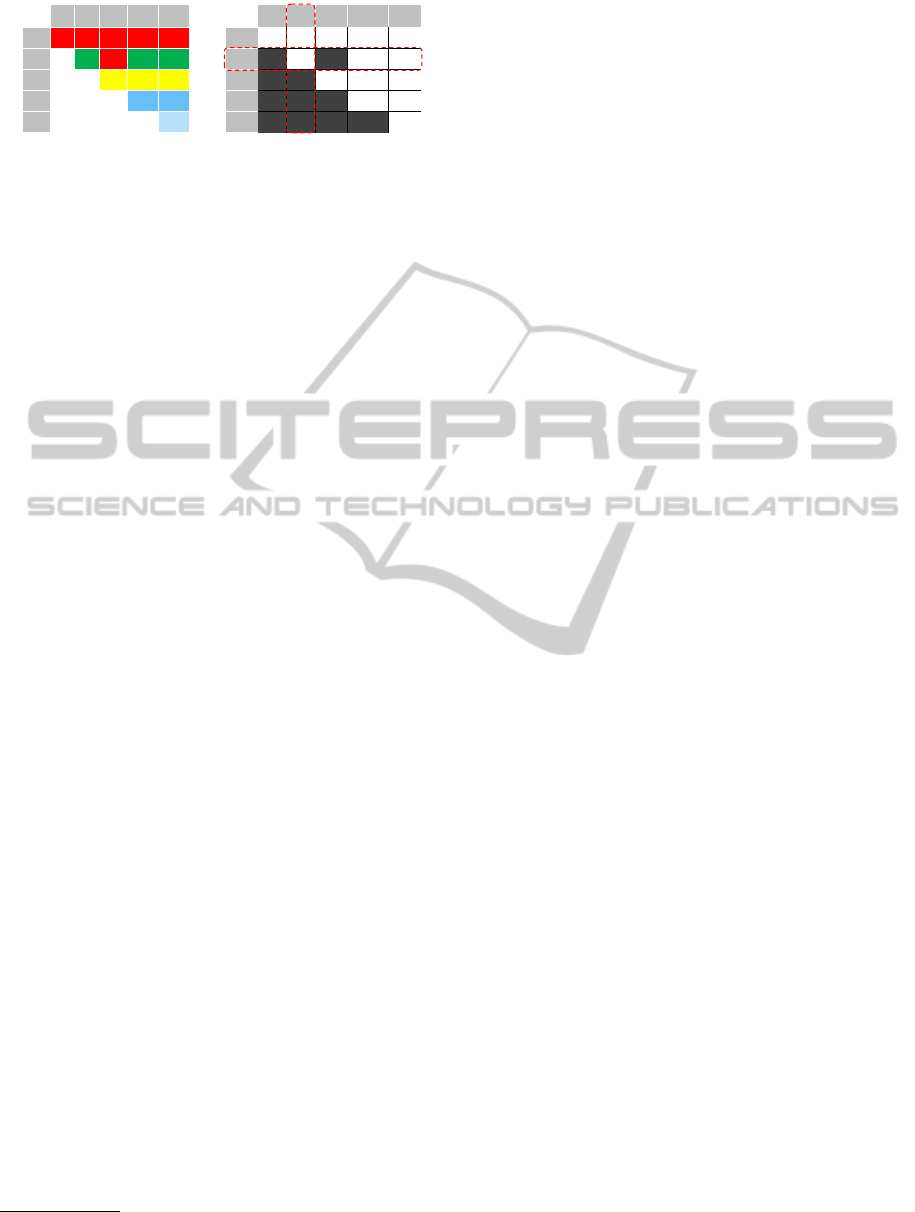

Figure 4: (a) Addition of software categories (b) Allowed

dependencies between categories.

usage of 0’ has no effect, e.g., D + 0’ = D. The same

is true for DG, as we deﬁned it to be like 0’ (global for

the whole domain). Hence, D + DG = D, e.g., if the

D-class CookBook extends the DG-class Book it still

remains a D-class. Only the combination of D and T

leads to an (impure) mixed form, concretely DT. Any

combination with DT results in DT, i.e., * + DT = DT.

4 DEPENDENCY RULES FOR

CATEGORIES

A total of four categories (plus the mixed form DT)

have been suggested for a general classiﬁcation of

code in generative software (Fig. 3b). Classes of

a particular category are only allowed to depend on

classes of the same category and classes that are on

the same path to 0’. Consequently, based on these

categories, the table in Fig. 4b can be derived auto-

matically.

The table can be read in two ways: line-by-line

or column-by-column. The former shows the allowed

dependencies of a category, whereas the latter shows

the categories that may depend on a category. The

ﬁrst row in Fig. 4b shows that a DT-class may depend

on classes of any of the categories. A D-class can

only depend on D-, DG- and 0’-classes

(Fig. 4b, sec-

ond row). A D-class must not depend on a DT-class.

Only the other direction is allowed. Analogous to D-

classes, a T- class may only depend on T-, DG- and

0’-classes. A class from category DG cannot depend

on any of the categories but DG and 0’; otherwise

it would contradict the deﬁnition of DG being global

for the whole domain. For example, in the library do-

main, the (abstract) class Book (DG) would not know

anything about the single books (such as CookBook,

D) or MDDBook (D)). Of course, 0’-classes can only

communicate among each other. For instance, classes

in the java.lang package (0’) do not have any de-

pendencies to a class of any of the other categories.

As mentioned before, the columns in Fig. 4b show

those categories that can depend on a speciﬁc cate-

gory. It can be seen that this is somehow antisymmet-

Note that a D-class that depends on a T-class is rather

a DT-class.

ric to the previously described allowed dependencies

of a category.

Dependencies in Java

Up to now, we included the term dependency, but we

did not deﬁne it so far. This is mainly because what

a dependency ultimately is, depends on the (target)

programming language. Java, for example, provides

different kinds of dependencies between classes and

interfaces. The following shows one possible classi-

ﬁcation, where the class A depends on the class B and

the interface I, respectively:

• Inheritance: class A extends B

• Implementation: A implements I

• Import: import B

• Instantiation: new B()

• ExceptionThrowing: throws B

• Usage: ﬁeld access (e.g., b.fieldOfB), method

call (e.g., b.methodOfB(), declaration (e.g., B

b), use as method parameter (e.g., void meth(B

b)), etc.

These are dependencies in Java that are mostly

manifested in keywords (e.g., extends and throws),

and hence, hold for any Java software project. How-

ever, not all of these dependencies are always desired.

It is important to determine ﬁrst of all what a depen-

dency ultimately is. For example, an unused import,

i.e., a class that imports another class without using it,

is not necessarily a dependency.

5 CATEGORIZATION

APPROACH

The suggested approach for the categorization of the

source code is demonstrated in Fig. 5. Three inputs

are needed for the categorization: the source code to

be categorized (from which a dependency graph is de-

rived), the category graph (such as in Fig. 3b) and an

initial categorization of some of the classes and inter-

faces (usually done by hand). Using these inputs, a

categorization tool analyzes the dependencies of the

uncategorized classes and interfaces to the already

categorized ones. With the information obtained from

the category graph some of the uncategorized classes

and interfaces can be categorized automatically. For

example, if a class C depends on a D- and a T-class

and the category graph in Fig. 3b is given, the cate-

gory of class C is deﬁnitively DT, because only this

category reﬁnes both D and T.

UsingSoftwareCategoriesfortheDevelopmentofGenerativeSoftware

501

Categorization

categorize

manually?

[changed]

categorization

changed?

[not changed]

further categ.

needed?

Manual

Categorization

[yes]

[no]

[yes]

Source Code

Categorization i

Categ. i+1

Categ. i+1‘

Final Categorization

Category Graph

performed

automatically

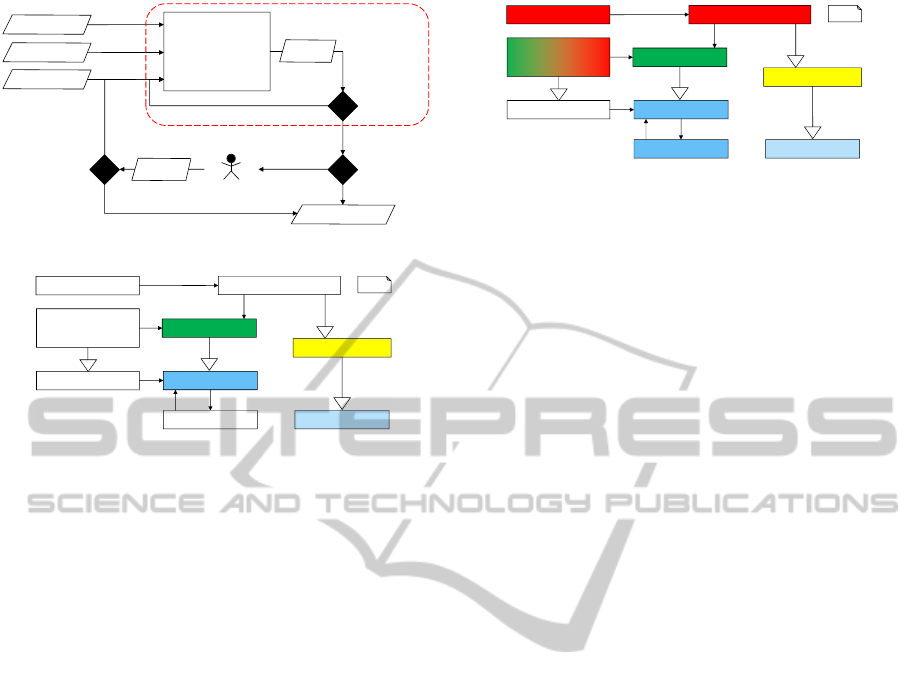

Figure 5: Overview of the categorization approach.

CookBook (D)

AbstractPanel (T)

CookBookPanel (?)

JPanel (0’)

Book (DG)

Reader (?)

Author (?)

1..*1..*

CookBookReader

(?)

! (?)

Figure 6: Initially categorized classes.

In some cases the order of the categorization pro-

cess matters. For example, if a class A only depends

on a class B (and no categorized class depends on

A), A will not be categorized until B is categorized.

To prevent that the order has an effect on the ﬁnal

categorization, the categorization is performed itera-

tively. The output of iteration i serves as input for

the next iteration i+1. This is repeated until a ﬁx-

point is reached, that means, no further classes and

interfaces could be categorized. These iteration steps

can be conducted fully automatically. If there are still

uncategorized classes left, some of them can be cate-

gorized by hand (Sec. 6 illustrates this case by an ex-

ample). This updated categorization, again can serve

as input. The process can be repeated until the whole

source code is categorized or no further categoriza-

tion is needed. Finally, classes and interfaces with a

speciﬁc categorization serve as candidates for code to

be generated. Here, this applies to the categories D

and DT. The user now can decide which of these can-

didates will become generated code.

6 EXAMPLE

Now, with the help of the allowed dependencies de-

ﬁned in Sec. 4, given some classes, the category of

each of the classes can be derived semi-automatically,

following the approach presented in the previous sec-

tion.

Consider the case in Fig. 6. The ﬁgure depicts

overall ten classes, whereby four are pre-categorized

(CookBook, AbstractPanel, Book and JPanel) and

CookBook (D)

AbstractPanel (T)

CookBookPanel (DT)

JPanel (0’)

Book (DG)

Reader (?)

Author (DG)

1..*1..*

CookBookReader

(D/DT)

" (DT)

Figure 7: Categorized classes after the ﬁrst iteration.

six are not. The category is in parentheses beside the

class name. Uncategorized classes are marked with a

question mark (?). Let us assume that the four cate-

gorized classes already exist and are categorized (e.g.,

manually by an expert) and the six other classes are

newly created. This situation can arise, for instance,

when software evolves. In the following, the catego-

rization process is illustrated.

The class CookBookPanel communicates

with both a D-class (CookBook) and a T-class

(AbstractPanel). Following Fig. 4b, only a

DT-class may communicate with a D as well as with

a T class (marked by a check mark in the D and

T column). Thus, CookBookPanel is deﬁnitively a

DT-class. Moreover, any other class depending on

CookBookPanel (represented by the three dots), is

also a DT-class. In the column DT in Fig. 4b there is

only a check mark for DT.

Next, CookBookReader depends on the D-class

CookBook and the not yet categorized class Reader.

If Reader is a DT- or T-class, CookBookReader will

be deﬁnitive a DT-class, for it would depend on a D-

class and either a DT- or T-class. With regard to Fig.

4b, this only ﬁts for DT-classes. If Reader is of any

of the other categories, CookBookReader will be a D-

class. However, when trying to categorize Reader,

we encounter a problem. Reader only depends on

Book, a DG-class. According to Fig. 4b this can ap-

ply to any category except 0’. So, in this iteration,

Reader cannot be categorized automatically. Conse-

quently, the exact categorization of CookBookReader

cannot be determined.

Analogous to the class Reader, the class Author

only depends on the DG-class Book. So, except 0’,

it can be of any category. Unlike the previous case,

Book also has a dependency to Author, which means

that Author is either DG or 0’. We have already ex-

cluded 0’; hence, only DG remains as a possible cat-

egory for Author. Fig. 7 shows the extended catego-

rization after this iteration.

Two classes could not be categorized exactly af-

ter the ﬁrst iteration: CookBookReader and Reader.

Recalling that our goal is to ﬁnd generation candi-

dates, we are above all interested in classes of the

category D. So, the approximate categorization of

MODELSWARD2015-3rdInternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

502

CookBookReader (D or DT) is sufﬁcient, because

both D and DT are of the category D. In contrast,

Reader is still completely uncategorized which ham-

pers the categorization of classes depending on it.

There are two options to categorize Reader in the

next iteration: either manually by the expert or au-

tomatically by adding new classes and dependencies

limiting the possible categories of Reader.

Note that the order of the categorization of

CookBookPanel and the classes depending on it

(marked by “. . . ”) is important for the ﬁrst iteration.

The “. . . ” classes could not be categorized if they

were considered before CookBookPanel. However,

the order has no impact on the ﬁnal result, because

after the ﬁrst iteration CookBookPanel is surely cate-

gorized, and thus, the “. . . ” classes can be categorized

in the next iteration.

Finally, three candidates (plus the “. . . ” classes)

for generated code are identiﬁed: CookBook (D),

CookBookReader (D/DT) and CookBookPanel (DT).

All of these classes belong to the category D di-

rectly or indirectly (i.e., DT), and hence, are some-

how related to the domain. Having these candidates,

the generator developer has to decide which of these

classes in the end need to be generated and which

remain handwritten. Of course, this decision is re-

stricted above all by the information content of the

input model. The generator developer must be aware

of this restriction.

7 FURTHER DEPENDENCIES

Up to now, only the technical dependencies of the

code are considered for ﬁnding generation candidate

classes (see Sec. 4). There can be further dependen-

cies, such as naming dependencies. If, for example,

the CookBookPanel in Fig. 6 had no association to

CookBook, then, it would only depend on the T-class

AbstractPanel and be a T-class.

But, CookBookPanel contains the name of

CookBook as preﬁx in its class name. Considering

this naming dependency, CookBookPanel has also a

dependency to the D-class CookBook. Consequently,

CookBookPanel is a DT-class and a generation candi-

date. Note that from the architecture’s point of view a

(technical) dependency between CookBookPanel and

CookBook might be forbidden. Hence, deriving the

dependency rules from the architecture (and not from

software category graph) would limit the kinds of pos-

sible dependencies.

In sum, what a dependency ﬁnally is, depends on

the software system and its conventions. This affects

the emerging dependency graph of the source code

and can also lead to a different candidate list. How-

ever, the procedure as described in Sec. 5 and Sec. 6

remains unchanged.

8 CONCLUSION

Code generators are crucial to MDD, transforming

abstract models to executable source code. The gener-

ated source code often depends on handwritten code,

e.g., code from the domain framework. When a code

generator is developed or evolved, the generator de-

veloper manually decides which classes need to be

generated and which remain handwritten. This task

can be time-consuming, labor-intensive and may gen-

erate more code than is necessary, hampering the

maintenance of the software.

This paper has introduced an approach that can aid

the generator developer in ﬁnding candidates for gen-

erated code. First, a software category graph is de-

ﬁned. From this graph the allowed dependencies be-

tween the corresponding classes (and interfaces) are

derived automatically. After an initial categorization

of some classes, further classes can be categorized

automatically, by analyzing their dependencies. This

procedure is conducted iteratively until all classes are

categorized or no more categorization is needed. Fi-

nally, generation candidates are all classes belonging

to the domain categories.

REFERENCES

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-Speciﬁc Mod-

eling: Enabling Full Code Generation. Wiley.

Rumpe, B. (2012). Agile Modellierung mit UML.

Xpert.press. Springer Berlin, 2nd edition edition.

Schindler, M. (2012). Eine Werkzeuginfrastruktur zur Ag-

ilen Entwicklung mit der UML/P. Aachener Infor-

matik Berichte, Software Engineering. Shaker Verlag.

Siedersleben, J. (2004). Moderne Software-Architektur:

Umsichtig planen, robust bauen mit Quasar.

Dpunkt.Verlag GmbH.

Stahl, T., Voelter, M., and Czarnecki, K. (2006). Model-

Driven Software Development: Technology, Engineer-

ing, Management. John Wiley & Sons.

UsingSoftwareCategoriesfortheDevelopmentofGenerativeSoftware

503
