GEML: Evolutionary Unsupervised and Semi-Supervised Learning of

Multi-class Classiﬁcation with Grammatical Evolution

Jeannie M. Fitzgerald, R. Muhammad Atif Azad and Conor Ryan

Biocomputing and Developmental Systems Group, University of Limerick, Limerick, Ireland

Keywords:

Unsupervised Learning, Semi-supervised Learning, Multi-class Classiﬁcation, Grammatical Evolution,

Evolutionary Computation, Machine Learning.

Abstract:

This paper introduces a novel evolutionary approach which can be applied to supervised, semi-supervised and

unsupervised learning tasks. The method, Grammatical Evolution Machine Learning (GEML) adapts machine

learning concepts from decision tree learning and clustering methods, and integrates these into a Grammatical

Evolution framework. With minor adaptations to the objective function the system can be trivially modiﬁed

to work with the conceptually different paradigms of supervised, semi-supervised and unsupervised learning.

The framework generates human readable solutions which explain the mechanics behind the classiﬁcation de-

cisions, offering a signiﬁcant advantage over existing paradigms for unsupervised and semi-supervised learn-

ing. GEML is studied on a range of multi-class classiﬁcation problems and is shown to be competitive with

several state of the art multi-class classiﬁcation algorithms.

1 INTRODUCTION

Evolutionary algorithms (EAs) are a collection of al-

gorithms which to varying extents emulate aspects of

biological evolution. One of these, Genetic Program-

ming (GP) (Koza, 1990) has been successful on a

wide range of different problems from several diverse

domains (Fogel, 2000), achieving many human com-

petitive results (Banzhaf, 2013). However, it is proba-

bly fair to say that a signiﬁcant proportion of previous

work has concentrated on supervised learning tasks

and, aside from some notable exceptions, studies on

unsupervised and semi-supervised learning have been

left to the wider machine learning (ML) community.

Two of the most important tasks tackled by ML

techniques are regression and classiﬁcation, and GP

has proven itself as an effective learner on each of

these: GP has achieved competitive results partic-

ularly on symbolic regression and binary classiﬁca-

tion tasks. Although many multi-class classiﬁca-

tion (MCC) studies have been undertaken, it remains

a problem which is considered challenging for tradi-

tional tree based GP (Castelli et al., 2013). This paper

takes up a triple challenge: it investigates MCC in a

semi-supervised as well as in an unsupervised con-

text.

This study is the ﬁrst step in a larger investiga-

tion for which the motivation is the requirement for

an unsupervised algorithm which can be applied to

grouping/categorisation tasks involving unlabelled in-

puts from the medical domain, and where the unsu-

pervised algorithm can supply human interpretable

justiﬁcation for categorisation decisions. The ulti-

mate objective is to go beyond labelling – we want

to see which patterns of input data group together, or

whether categories so arising can become a teaching

aid for training.

Clustering is a natural choice for such tasks, how-

ever standard clustering algorithms lack the ability to

provide the reasoning behind cluster allocations in a

human readable form. In the medical domain, it is

usually important that the learner has the capability

to provide human understandable explanations of its

decisions so that human experts can have conﬁdence

in the system. In this respect, decision trees (DTs)

have the nice property that the induced DT itself pro-

vides an easily comprehensible explanation of all de-

cisions. Unfortunately, traditional DTs rely on ground

truth information to make decisions and use of this in-

formation is not permissible in an unsupervised con-

text. For these reasons, although each of these meth-

ods have attractive properties, we conclude that nei-

ther DTs nor clustering approaches are, in their nor-

mal mode of use, appropriate for unsupervised cat-

egorisation tasks which require an explanation from

the learner.

Fitzgerald, J., Azad, R. and Ryan, C..

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution.

In Proceedings of the 7th International Joint Conference on Computational Intelligence (IJCCI 2015) - Volume 1: ECTA, pages 83-94

ISBN: 978-989-758-157-1

Although there is some important existing work

in the area of unsupervised classiﬁcation in the medi-

cal domain, see for example (Mojsilovi

c et al., 1997;

Greene et al., 2004; Belhassen and Zaidi, 2010), the

topic remains relatively unexplored. This study is

the ﬁrst step of a larger exploration of somewhat un-

charted waters.

We hypothesise that it may be possible to com-

bine the desirable qualities of both algorithms by tak-

ing the underlying concepts and wrapping them in an

evolutionary framework – speciﬁcally a grammatical

evolution (GE) (O’Neill and Ryan, 1999) framework.

This design is attractive due to its symbiotic nature:

a GE grammar is used to generate human readable

decision tree like solutions and the evolutionary pro-

cess is applied to the task of optimising the resulting

cluster assignments – thus emulating both the deci-

sion making behaviour of DTs and the iterative oper-

ation of traditional clustering approaches. Not only

does GE produce human readable solutions, but it has

been shown (Azad and Ryan, 2014) that the paradigm

seems to be able to avoid bloated, over-complex ones.

While we can hypothesise that this hybrid ap-

proach might be a good idea, objective evaluation of

algorithm performance is required before concluding

that the resulting models are likely to be of any prac-

tical use. One way of accomplishing this is to com-

pare results with other unsupervised algorithms using

some common metric of cluster performance. How-

ever, it could be argued that without ground truth in-

formation any method of comparison is ﬂawed. An-

other possible approach for evaluating the effective-

ness of the proposed method would be to apply it to

data about which something is already known, where

that knowledge is not used in the learning process –

merely to evaluate and compare performance after-

wards.

Considering our original objective, we were also

interested in learning what sort of performance gaps

we could expect between our unsupervised method

and, supervised and semi-supervised approaches us-

ing the same data. Thus, we choose to construct this

study such that it would be possible to compare the

performance and behaviour of the hybrid unsuper-

vised learner with another state of the art unsuper-

vised algorithm as well as with supervised and semi-

supervised learners on the same data. Rather than

using our original medical dataset at this point, we

chose to carry out this ﬁrst study using controllable

synthetic data as outlined in section 4.2, with the in-

tention of returning to the medical dataset if these pre-

liminary experiments prove successful.

We set out to investigate the hypothesis that com-

bining ML concepts with GE might facilitate the de-

velopment of a new hybrid algorithm with two impor-

tant properties: the ability to learn in an unsupervised

way, and the capability of producing human readable

results. However, due to the way in which we have

designed the experiments – so that meaningful eval-

uation of the proposed algorithm would be possible,

the resulting system delivers much more than initially

planned.

In summary, we propose a novel hybrid GE sys-

tem which incorporates ideas from two popular ML

techniques: decision tree learning which is often

applied to supervised tasks, and clustering methods

which are commonly used for unsupervised learning

tasks. The proposed system which we call GEML

is applied to supervised, unsupervised and semi-

supervised MCC problems. Its performance is com-

pared with several state of the art algorithms and is

shown to outperform its ML counterparts and to be

competitive with the best performing ML algorithm,

on the datasets studied.

In the remainder of this section we will brieﬂy ex-

plain some of the concepts employed.

1.1 Decision Tree Learning

A decision tree is a hierarchical model that can be

used for decision-making. The tree is composed of

internal decision nodes and terminal leaf nodes. In

the case of classiﬁcation for example, internal deci-

sion nodes represent attributes, whereas the leaf nodes

represent an assigned class label. Directed edges con-

nect the various nodes forming a hierarchical, tree-

like structure. Each outgoing edge from an internal

node corresponds to a value or a range of values of

the attribute represented by that particular node. Tree

construction is a ﬁltering and reﬁning process which

aims to gradually separate samples into the various

classes with possibly multiple routes through the de-

cision process for a particular class assignment.

1.2 Clustering

Clustering involves the categorisation of a set of sam-

ples into groups or subsets called clusters such that

samples allocated to the same cluster are similar in

some way. There are various types of clustering algo-

rithms capable of generating different types of clus-

ter arrangements, such as ﬂat or hierarchical cluster-

ing. One of the best known clustering algorithms is

K-means clustering which works in an iterative fash-

ion by creating a number of centroids (aspirationally

cluster centres). The algorithm groups samples de-

pending on their proximity to these centres and then

measuring the distance between the data and the near-

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

est centroids – K-means iteratively minimises the sum

of squared distances by changing the centroid in each

iteration and reassigning samples to possibly differ-

ent groups. Of the EC work in the existing literature

which combines GP or GE with unsupervised meth-

ods, K-means is the most popular of those used, as is

outlined in Section 2.

1.3 Unsupervised, Semi-supervised and

Supervised Learning

In simple terms, supervised, semi-supervised and un-

supervised learning methods are differentiated by the

amount of ground truth information that is available

to the learning system: in supervised learning sys-

tems the ‘answer’ which may, for example, be a target

variable or a class label is known to the system; semi-

supervised systems may have access to such informa-

tion for a limited number of samples or may involve

revalidation of the automated prediction with expert

knowledge; and unsupervised learners do not have

any ground truth information with which to guide the

learning process.

Although classiﬁcation and clustering are con-

ceptually similar, in practice the techniques are usu-

ally used in fundamentally different ways: clustering

methods are generally applied to unsupervised tasks

and do not require either training data or ground truth

label information, whereas classiﬁcation is usually a

supervised task which requires both. At a basic level

the goal of clustering is to group similar things to-

gether without reference to the name of the group or

what membership of a group represents, other than

the fact that the members are similar in some way,

whereas the objective of classiﬁcation is to learn,

from examples, relationships in the data which facili-

tate the mapping of training instances to class labels,

such that when presented with a new unseen instance

the classiﬁcation system may assign a class label to

that instance based on rules/relationships learned in

the training phase

2 PREVIOUS WORK

An in-depth review of the application of EAs to both

clustering methods and decision tree induction is be-

yond the scope of this paper. Here we have chosen to

focus on the most recent work and that which we de-

termined to be most relevant to the current study. For

a comprehensive survey of EAs applied to clustering,

the interested reader is directed to (Hruschka et al.,

2009), whereas a detailed review of EAs applied to

decision tree induction can be found in (Barros et al.,

2012).

Relative to the volume of existing research on su-

pervised learning in the ﬁeld of Evolutionary Compu-

tation (EC), unsupervised and semi-supervised learn-

ing have received little attention. Of the existing

work, a signiﬁcant proportion in the area of unsu-

pervised learning recommends the use of clustering

methods for feature selection (Kim et al., 2000; Mier-

swa and Wurst, 2006; Morita et al., 2003), and much

of this utilises a traditional K-means approach.

Clustering was used in a novel way in (Omran

et al., 2005) which proposed a Differential Evolu-

tion (DE) algorithm with built-in clustering function-

ality. They investigated its effectiveness on an image

classiﬁcation task, and compared their approach with

several well known algorithms such as K-means – re-

porting statistically indistinct results.

Another interesting application of K-means was

proposed by (Kattan et al., 2010) who integrated it

into GP and used this hybrid approach for problem

decomposition – grouping ﬁtness cases into subsets.

They applied their strategy to several symbolic regres-

sion problems and reported superior results to those

achieved using standard GP. They later developed a

similar approach (Kattan et al., 2015) for time series

prediction.

A different unsupervised GP approach was pro-

posed in (Neshatian and Zhang, 2009) where a novel

ﬁtness function was used in feature selection for the

purpose of identifying redundant features. The au-

thors reported superior results when performance was

compared with several state of the art algorithms. GP

was again employed in (Fu et al., 2014) where it was

used to develop low level thin edge detectors. In

that work the authors demonstrated that edge detec-

tors trained on a single image (without ground truth)

could outperform a popular edge detector on the task

of detecting thin lines in unseen images.

With regard to multi-class classiﬁcation problems,

there have been several interesting approaches us-

ing tree based GP including strategies for decom-

posing the task into multiple binary ones (Smart and

Zhang, 2005), treating MCC problems as regression

tasks (Castelli et al., 2013) and experimenting with

various thresholding schemes such as (Zhang and

Smart, 2004). Other interesting methods have been

proposed which utilise GP variants including multi

level GP (MLGP) (Wu and Banzhaf, 2011), Parallel

linear GP (Downey et al., 2012) and probability based

GP (Smart and Zhang, 2004) to name a few.

There have been several other evolutionary ap-

proaches to MCC including self-organising swarm

(SOSwarm) which was described in (O’Neill and

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution

Brabazon, 2006b). There, particle swarm optimisa-

tion (PSO) was used to generate a mapping which had

some similarities to a type of artiﬁcial neural network

known as a self organising map. SOSwarm was stud-

ied on several well known classiﬁcation problems and

while the average performance seemed to degrade as

the number of classes increased – the best performing

solutions were competitive with the state of the art.

Clustering methods have also been applied to

MCC problems. A hybrid method which combined

a GA with local search and clustering was suggested

in (Pan et al., 2003), where it was applied to a multi-

class problem on gene expression data. The results

of that investigation showed that their method (HGA-

CLUS) delivered a competitive performance when

compared with K-means and several earlier GA ap-

proaches described in (Cowgill et al., 1999) and

(Maulik and Bandyopadhyay, 2000). GP was again

combined with K-means clustering for MCC in (Al-

Madi and Ludwig, 2013) where the researchers used

the K-means algorithm to cluster the GP program se-

mantics in order to determine the predicted class la-

bels.

DTs have previously been combined with GE

in (Deodhar and Motsinger-Reif, 2010). The algo-

rithm was applied to the binary classiﬁcation task of

detecting gene-gene interactions in genetic associa-

tion studies. The researchers reported good results

when their GE with DT (GEDT) system was com-

pared with the C.45 DT algorithm. Our proposed

approach has some similarities to this work. How-

ever, that research focused on a supervised binary task

where attribute values were restricted to a common set

of 3 items.

Competitive results were also reported in (Munoz

et al., 2015) in which K-Means clustering was again

used with GP for MCC. There, clustering was com-

bined with a multigenic GP approach in which each

individual was composed of several solution parse

trees having a common root node.

Concerning DTs, (Barros et al., 2012) concluded

that good performance of EAs for decision tree induc-

tion in terms of predictive accuracy had been empiri-

cally established. They recommended that investiga-

tion of these algorithms on synthetic data should be

pursued and also the possibility of using evolution-

ary computation for the evolution of decision tree in-

duction algorithms. In this paper we address the ﬁrst

of these recommendations. The candidate solutions

evolved by GE are computer programs which emu-

late decision trees, and these computer programs are

produced using a grammar template capable of gener-

ating a multitude of different solutions. Thus, it could

be argued that the proposed approach does, at least

in some sense, also meet the second objective – the

evolution of DT induction algorithms.

The novel contributions of this study are the pro-

posal of a technique for unsupervised learning using

an EA where the evolved learning hypotheses are in

human readable form, and the extension of this to

the development of a hybrid GE framework which

can also be used for supervised and semi-supervised

learning. The new system which we call GEML

is successfully applied to the problem of multi-class

classiﬁcation. This is a proof of concept investigation

and given the encouraging results, we anticipate that

this approach may be reﬁned to produce even better

results on MCC problems but also modiﬁed and ex-

tended to combine other ML algorithms with GE and

also to tackle different tasks such as symbolic regres-

sion.

3 PROPOSED METHOD

In ML DTs often use the concept of information gain

to make branching decisions when constructing a de-

cision tree and the measure of information gain used

relies on knowledge of the ground truth labels. Thus,

it is not appropriate to use the same mechanism for

our semi-supervised and unsupervised methods. In-

stead, we make use of an if then else structure where

the if component may be used to test various condi-

tions pertaining to the data, whereby the learning sys-

tem has access to both the attribute values and also

to the variance of each attribute on the training data.

For the supervised learner it is acceptable to make

use of the ground truth information available in the

training data, and so we could, for example, use the

within class variance for each class. However, in this

initial investigation we chose to use the same gram-

mar for all tasks so that potential differences in be-

haviour and performance may be more easily under-

stood. Thus, by design our system does not currently

implement DTs according to a strict deﬁnition of the

algorithm, as using label information precludes unsu-

pervised learning.

3.1 Grammatical Evolution

Grammatical Evolution (GE) (O’Neill and Ryan,

1999) is a ﬂexible EC paradigm which has several ad-

vantages over other evolutionary methods including

standard GP. In common with its traditional GP rel-

ative, GE involves the generation of candidate solu-

tions in the form of executable computer programs.

The difference is that GE does this using powerful

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

grammars whereas GP operates with a much more

limited tool-set.

A key aspect of the GE approach is genotype

phenotype separation whereby the genotype is usu-

ally (but not necessarily) encoded as a vector of in-

teger codons, some or all of which are mapped to

production rules deﬁned in a user speciﬁed gram-

mar (usually in Backus-Naur-Form). This mapping

results in a phenotype executable program (candidate

solution). GE facilitates focused search through the

encoding of domain knowledge into the grammar and

the separation of search and solution space such that

the search component is independent of the represen-

tation and may, in principle, be carried out using any

suitable algorithm – a genetic algorithm is often used

but other search algorithms such as PSO (O’Neill

et al., 2006) and DE (O’Neill and Brabazon, 2006a)

have also been used to good effect.

The role of the user-deﬁned grammar is key to guid-

ing the evolutionary search towards desirable solu-

tions. The grammar is essentially a speciﬁcation of

what can be evolved and it is up to the evolutionary

system to determine which of the many possible so-

lutions which can be generated using the speciﬁca-

tion should be evolved (Ryan and O’Neill, 2002). A

simple change in a grammar may induce drastically

different behaviour. In this work we have speciﬁed a

grammar, shown in Figure 1, which facilitates the al-

location of data instances to clusters based on the re-

sults of applying simple ‘if then else’ decision rules.

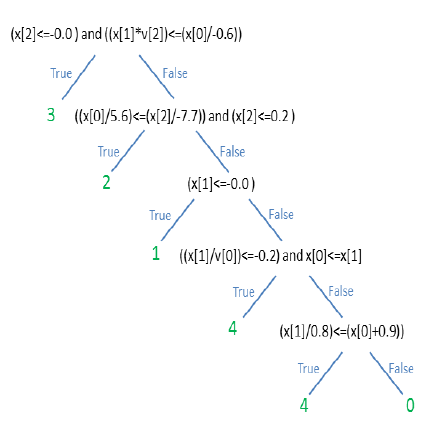

Although the rules are simple, the grammar allows for

the construction of rich expressions which may be ca-

pable of representing both simple and complex rela-

tionships between attributes as seen in Figure 3.

3.2 Objective Functions

For each learning task: supervised, unsupervised

and semi-supervised, we employ a different objec-

tive function to drive evolutionary progress. In the

supervised case we use classiﬁcation accuracy which

is simply the proportion of instances correctly clas-

siﬁed by the system. Since this study uses balanced

data sets, we simply use the number of correct pre-

dictions to measure system performance. Accuracy

values range between 0 and 1 where 1 represents per-

fect classiﬁcation. The system is conﬁgured with an

objective function designed to maximise ﬁtness .

For the unsupervised task we have chosen to use a

metric of clustering performance known as a silhou-

ette co-efﬁcient or silhouette score (SC) as the objec-

tive function. The SC is a metric which does not re-

quire knowledge of the ground truth which makes it

suitable for use in an unsupervised context. For each

| <label>if<cond>else<expr>

| <label>if<cond>and<cond>else <expr>

| <label>if<cond>or<cond>else<expr>

| <expr> if <cond> else <expr>

| <expr> | <label>

<label> ::= 0 | 1 | 2 | 3 | 4

| <subExpr><relop><const>

| <subExpr><relop><subExpr>

| <var><relop><var>

| <attr><relop><attr>

| <attr><op><var>

| <attr><op><attr>

<op> ::= + | - | * | /

<relop> ::= <=

| -<digit>.<digit>

<digit> ::= 0 | 1 | 2 | 3 | 4

| 5 | 6 | 7 | 8 | 9

<attr> ::= x[0] | x[1] | x[2]

<var> ::= v[0] | v[1] | v[2]

Figure 1: Example grammar for ﬁve class problem with

three attributes (< attr >). The < var > entries represent

the variance in the training data across each attribute. The

’then if else’ format is designed to simplify the syntax re-

quired in a python environment – as the system evolves

python expressions. The division operation is protected in

the implementation.

data point two measures are calculated: a. the average

distance (according to some distance metric) between

it and every other point in the same cluster and b. the

mean distance between it an all of the points in the

nearest cluster that is not it’s own cluster.

The silhouette score over all points is calculated

according to the formula shown in equation 1. Our

system tries to maximise this value during the evolu-

tionary process. Note that this approach, which aims

at optimising the SC rather than cluster centroids, is

quite different from the other EC methods outlined in

section 2 where the K-means algorithm was generally

used for clustering tasks.

(b − a)/max(a,b) (1)

The resulting value ranges between −1 and 1 where a

negative value suggests that samples are in the wrong

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution

clusters, a value near 0 indicates that there are over-

lapping clusters and a score close to 1 means that clus-

ters are cohesive and well separated.

In order to calculate the silhouette scores it is ﬁrst

necessary to choose an appropriate distance metric

from the many and varied options available in the

literature. In this work we have used cosine dis-

tance also known as cosine similarity as it is suitable

for determining the similarity between vectors of fea-

tures and obviates the need for data normalisation.

Also, we experimented with several metrics includ-

ing euclidean and mahalanobis distance before choos-

ing cosine distance – as its use resulted in the best

results over a range of synthetic classiﬁcation prob-

lems. The results for cosine distance were better in

terms of classiﬁcation accuracy when cluster assign-

ments were converted to class labels using a standard

approach.

Semi-supervised learning is suitable for classiﬁ-

cation situations where some but not all ground truth

labels are available. It may be the case, for example,

that scarce or expensive human expertise is required

to determine the labels. In these cases, it is usu-

ally possible to improve unsupervised performance by

adding a small number of labelled examples to the

system. Although, our synthetic data is fully labelled,

we simulate partial labelling by only considering a

random subset of training data (20% of the full data

set) to be labelled; the rest of the data set is treated

as unlabelled. We compute prediction accuracy on

the labelled data and the silhouette score on the un-

labelled set. We then add the two measures to get a

ﬁnal score and strive to maximise this score during

evolution.

To summarise, candidate solutions are generated

using a speciﬁcation described in a grammar such as

the one shown in Figure 1, where the same grammar is

used for all of the GEML setups. Next, using the de-

cision rules deﬁned in the grammar problem instances

are assigned to clusters as illustrated in Figure 2 and

then depending on whether the task is supervised, un-

supervised, or semi-supervised the system tries to op-

timise the classiﬁcation accuracy, the silhouette score

or a combination of the two. The key point here, is

that the same grammar is used for each type of learn-

ing – only the objective function is different.

Figure 2 illustrates the expression tree of an example

solution for a ﬁve-class task. Similar to a DT, the in-

ternal nodes of the tree represent branching decision

points and the terminal nodes represent cluster assign-

ments.

Figure 2: Example Expression Tree.

4 EXPERIMENTS

In this section we outline the construction of our

experiments including the parameters, datasets and

benchmarks used. We also detail the results of these

experiments together with the results achieved on

the same problems with our chosen benchmark algo-

rithms. Details of the naming convention for the vari-

ous experimental conﬁgurations are shown in Table 1.

4.1 Benchmark Algorithms

As we incorporate ideas from DT learning and clus-

tering methods into our hybrid GEML approach, it

is appropriate that we benchmark the proposed ap-

proach against Decision Trees (Breiman et al., 1984)

as a supervised method and against the K-means clus-

tering algorithm (Steinhaus, 1957) as an unsupervised

paradigm. For semi-supervised learning we compare

with a label propagation (LP) (Raghavan et al., 2007)

algorithm. The idea behind LP is similar to k-Nearest

Neighbours (k-NN) (Altman, 1992) and was origi-

nally proposed for detecting community structures in

networks.

We also compare with support vector ma-

chines (SVMs) (Boser et al., 1992) for supervised

learning as the method may provide a useful bench-

mark as it is known to achieve good results with bal-

anced datasets, which is the case here, and while

SVMs are inherently binary classiﬁers they can per-

form multi-class classiﬁcation in various ways, most

commonly using a “one versus all” strategy.

For comparison purposes we choose simple classi-

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

2 if x[0]*v[1]<=-0.2 and v[2]<=v[1] else 1 if (x[1]*v[0])<=(x[0]*-0.8)

else 0 if x[2]/v[2]<= x[0]*-2.0 or x[2]<=x[1] else 1 if x[1]<=x[0]

else 1 if x[0]*x[2]<=x[1]/x[0] and x[1]/v[2]<=-0.3) else 2

if x[2]/v[2]<=x[0]*2.9 or x[2]<=x[1] else 1 if x[0]<=-0.1 else 0

Figure 3: Example expression generated for a three class, three attribute classiﬁcation task.

ﬁcation accuracy as a performance metric. It has been

empirically established in the GP literature that sim-

ple classiﬁcation accuracy is not a reliable measure of

classiﬁcation on unbalanced datasets (Bhowan et al.,

2012), and that other measures such as average ac-

curacy or Matthews Correlation Co-efﬁcient might be

more appropriate especially if combined with a sam-

pling approach (Fitzgerald and Ryan, 2013). How-

ever, in this preliminary investigation, the classes are

balanced which allows us to consider simple classiﬁ-

cation accuracy as a reasonable measure, particularly

as we want to be able to observe differences in perfor-

mance across the various levels of learning.

Table 1: Experimental Conﬁgurations.

Conﬁguration Explanation

GEML-SUP Supervised GEML

GEML-SEMI Semi-Supervised

GEML-UN Unsupervised GEML

DT Decision Tree Learning

LP Label Propagation

KM K-means Clustering

SVM Support Vector Machine

We adopt a popular mechanism to determine which

predicted label represents which a priori class label:

the predicted class is mapped to the a priori class

which has the majority of instances assigned to it, e.g

for a binary task with 1000 training instances, if pre-

dicted class 1 has 333 members of ground truth class

1 assigned to it and 667 instances of class 0, then pre-

dicted class 1 is determined to represent the a priori

class 0. It is important to note that this method is used

to calculate the accuracy metric and used only for re-

porting and comparison purposes across all tasks and

methodologies. The measure (classiﬁcation accuracy)

is of course used to drive the evolutionary process in

the supervised tasks, and applies to only a percent-

age of the training instances in the semi-supervised

case. In all cases, the same mapping from cluster as-

signment to class label determined during the training

phase also applies when evaluating performance on

test data.

For each of the GEML methods the evolved solu-

tions look something like the example shown in Fig-

ure 3 which is essentially a python expression that

can be evaluated for each training and each test in-

stance. The result of evaluating the expression on a

given instance is an integer which is converted into

ﬁrst a cluster assignment and then a class label, using

the method already described. Although the objective

functions used to determine ﬁtness and drive evolu-

tion differ according to the type of learning model as

detailed in section 3.2, we calculate the classiﬁcation

accuracy for each unevaluated individual at each gen-

eration on training and test data. At no time is the test

data used in the learning process.

In each case, the algorithm was run ﬁfty times us-

ing the same synthetic datasets and train/test splits as

the GEML experiments. A different random seed was

used for each run of the same algorithm and these

same random seeds were used for the corresponding

run of each algorithm. The popular scikit-learn (Pe-

dregosa et al., 2011) python library for machine learn-

ing was used for all of these ML experiments.

4.2 Datasets

The various algorithms were tested on several syn-

thetic multi-class datasets which were produced using

the scikit-learn library (Pedregosa et al., 2011) which

provides functionality for the generation of datasets

with the aid of various conﬁgurable parameters. For

this initial study we investigate balanced multi-class

problems of two, three, four and ﬁve classes each.

The library facilitates user control of the number, type

and nature of features selected for experiments. For

example, features can be informative, duplicate or re-

dundant. We have chosen to use informative features

only for the current work.

Given a problem conﬁguration (number of

classes), for each run of each algorithm a dataset of

1000 instances was generated and then split into train-

ing and test sets of 700 and 300 instances respectively.

Identical random seeds were used for the correspond-

ing run for each conﬁguration, such that the same

dataset was generated for each setup for a particular

run number.

As this is very much a proof of concept investi-

gation we have chosen to use synthetic datasets: we

generated a reasonable number of instances, without

added noise, and with few features, each of which is

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution

Table 2: Evolutionary Parameters.

Parameter Value

Population Size 500

Replacement Strategy Generational

Number of Generations 100

Crossover Probability 0.9

Mutation Probability 0.01

informative. Employing synthetic datasets allows us

to conﬁgure the data to have informative features such

that it is, as far as possible, amenable to being clus-

tered or classiﬁed. We have made these choices in an

effort to ensure that the data is not biased to favour any

particular algorithm or learning paradigm. For exam-

ple, DTs are known to over-ﬁt and not generalise well

where there are a large number of features and few

instances.

We note also that the decision to use synthetic

datasets also delivers on the recommendation of (Bar-

ros et al., 2012) to use synthetic data for decision tree

induction, as described in section 2.

4.3 EC Parameters

Important parameters used in these experiments are

outlined in Table 2. Evolutionary search operators in

GE are applied at the genotypic level, and in this work

each individual’s genotype is a linear genome repre-

sented by a vector of integers. The mutation operator

operates by replacing a single integer with a new one

randomly generated within a predeﬁned range. One

point crossover is used, whereby a single crossover

point is randomly and independently selected from

each of the two parents (that is, the two points are

likely to correspond to different locations) and two

new offspring are created by splicing parental seg-

ments together. In both cases, these operations take

place in the effective portion of the individual, i.e the

segment of the integer vector that was used in the

genotype to phenotype mapping process – sometimes

a complete phenotype is generated before requiring

the full integer vector.

4.4 Results

Results for average and best training and test accu-

racy can be seen in Table 3, where for convenience the

best result in each category is in bold text. For com-

parison purposes we are interested in comparing the

supervised methods with each other and the unsuper-

vised approaches with the other unsupervised meth-

ods etc. Thus we compare GEML-SUP with both DT

and SVM, GEML-UNS with KM and GEML-SEMI

with LP. However, we are also interested in observing

the relative performances of the three different levels

of learning.

Looking ﬁrst at the supervised approaches, we can

see that the SVM approach performs well across all of

the problems studied with regard to average classiﬁca-

tion accuracy on both training and test data. Encour-

agingly, the GEML-SUP conﬁguration is very com-

petitive with SVM on the ﬁrst three problems and out-

performs DT on each of those tasks.

On the semi-supervised experiments GEML-

SEMI outperforms LP on all problems for both train-

ing and test data in terms of average classiﬁcation ac-

curacy.

Finally, with regard to the unsupervised setups

GEML-UN outperforms KM for average accuracy on

training and test data on all problems.

In all cases, the performance of the various conﬁg-

urations degrades as the number of classes increases

which is not surprising as adding more classes in-

creases the difﬁculty of the problem to be solved.

Overall, the SVM algorithm suffered less from this

issue, which is again not surprising given that the im-

plementation used here (Pedregosa et al., 2011) solves

MCC problems using a binary decomposition strat-

egy.

Looking again at the results in Table 3, we note

that values for best overall training and test accuracy

on the binary and three class tasks for each of the

GEML methods are not competitive with the other ap-

proaches. For example, on the three class task, the av-

erage test accuracy for K-means is 0.74 whereas the

best result is 0.99 compared with GEML-UN which

has an average test accuracy of 0.75 and a best result

of 0.86 and the GEML-SUP which has an average test

accuracy of 0.92 and a best result of 0.95. The results

for each of the GEML setups show that the reported

standard deviation is lower than for the other algo-

rithms.

It is unclear to us at this stage whether this

phenomenon is associated associated with the GE

paradigm or related to the MCC problem or some-

thing else. However, it could be argued that the be-

haviour is not necessarily a bad thing, as having a

larger standard deviation with a higher extreme value

can also mean that the algorithm is unreliable. After

all, a good test set performance is only useful if it is

consistently achieved, not as an exceptional case.

Due to the stochastic nature of GE one might hy-

pothesise that there is a higher probability of many

individuals achieving good results across many runs

on the easier one and two class problems than on

the more difﬁcult problems where individuals have to

learn to incorporate a larger number of class labels:

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

due to the added complexity there are likely to be

fewer ﬁt solutions early in the evolutionary process

and thus fewer opportunities to improve through the

application of genetic operators. One can easily imag-

ine that there could be signiﬁcant variability across

runs depending on the quality of the initial population,

and the existence of fewer highly ﬁt solutions reduces

the probability of truly excellent ones emerging.

Looking at the generalisation performance of each

method in terms of the variance component, we adopt

a simple measure whereby the variance error is simply

the difference in performance of the various learning

hypothesis between training and test data. In this re-

spect, of the algorithms studied only the LP approach

exhibits high variance. The various GEML methods

all produce good generalisation performance. This is

quite interesting as its close relation GP is known to

exhibit a low bias high variance behaviour (Keijzer

and Babovic, 2000). We can hypothesise that possi-

ble contributing factor to this contrast in behaviour

is due to the grammar used, even if it contains re-

cursive rules it is likely to constrain the size of the

evolved programs. (Azad and Ryan, 2014) demon-

strated empirically that while program size tends to

increase steadily during GP runs, the average size of

GE genomes remains roughly static after an initial pe-

riod of growth or shrinkage. In those experiments, GP

genomes were consistently larger than GE genomes

after only ﬁfty generations. It may be the case that

these effects are preventing the evolved models from

becoming over complex. It would be informative to

apply the system to some regression problems where

the required grammar would be fundamentally differ-

ent, to see if the lack of over-ﬁtting observed in the

current experiments would also be seen there. The re-

cent results shown in (Azad and Ryan, 2014) would

suggest that GE does not over-ﬁt on those problems

either.

If we analyse the difference in performance be-

tween the various supervised, semi-supervised and

unsupervised algorithms, it is not surprising that in

all cases the supervised algorithms produced the best

results and that the semi-supervised algorithms per-

formed better than the unsupervised ones. Of course,

the unsupervised and semi-supervised methods are

not usually evaluated in the same way as supervised

classiﬁcation approaches: using accuracy as a perfor-

mance metric. We have chosen to do so here as a con-

venient and practical way to gain some insight into the

likely relative performance of our hybrid technique

when it is applied to the three learning approaches.

The results suggest that while the performance of

all of the algorithms deteriorates as the number of

classes increases, this effect is even more evident for

Table 3: Average and Best Classiﬁcation Accuracy on

Training and Test Data.

Task

Method

Avg. Training Accuracy

StdDev

Best Training Accuracy

Avg, Test Accuracy

StdDev

Best Test Accuracy

GEML-SUP 0.96 0.01 0.98 0.96 0.01 0.97

DT 0.93 0.04 0.99 0.93 0.04 0.99

SVM 0.95 0.03 0.99 0.95 0.03 0.99

GEML-SEMI 0.90 0.01 0.93 0.91 0.01 0.92

LP 0.90 0.06 0.99 0.88 0.07 0.99

GEML-UN 0.90 0.01 0.92 0.91 0.01 0.93

KM 0.84 0.08 0.99 0.84 0.08 0.99

GEML-SUP 0.93 0.01 0.94 0.92 0.02 0.95

DT 0.87 0.04 0.97 0.88 0.05 0.99

SVM 0.92 0.03 0.98 0.92 0.04 0.99

GEML-SEMI 0.88 0.04 0.94 0.87 0.04 0.92

LP 0.83 0.05 0.96 0.79 0.08 0.93

GEML-UN 0.76 0.04 0.87 0.75 0.04 0.86

KM 0.75 0.07 0.91 0.74 0.08 0.99

GEML-SUP 0.86 0.01 0.88 0.86 0.02 0.89

DT 0.82 0.04 0.94 0.83 0.04 0.93

SVM 0.88 0.03 0.94 0.88 0.03 0.96

GEML-SEMI 0.78 0.05 0.84 0.78 0.05 0.85

LP 0.77 0.05 0.88 0.71 0.07 0.85

GEML-UN 0.71 0.04 0.79 0.71 0.04 0.81

KM 0.65 0.06 0.83 0.67 0.07 0.84

GEML-SUP 0.77 0.06 0.85 0.75 0.04 0.83

DT 0.77 0.04 0.88 0.79 0.05 0.89

SVM 0.85 0.03 0.93 0.86 0.03 0.94

GEML-SEMI 0.72 0.04 0.76 0.75 0.06 0.82

LP 0.71 0.05 0.84 0.65 0.07 0.83

GEML-UN 0.66 0.06 0.77 0.69 0.07 0 .82

KM 0.63 0.05 0.78 0.63 0.06 0.79

the unsupervised and semi-supervised methods where

the performance of GEML-UN drops from 90% on

the binary task to 66% for the ﬁve class problem, al-

though this is still better than the corresponding LP al-

gorithm. Again, we can hypothesis that while adopt-

ing a binary decomposition approach may seem at-

tractive, this would be very challenging in an unsu-

pervised context. However, there may be some scope

for the strategy in the semi-supervised paradigm.

We carried out tests for statistical signiﬁcance on the

test results using the non-parametric Mann-Whitney

U-Test. This revealed that statistical signiﬁcance of

results sometimes varied depending on the problem.

Comparing SUP against SVM any differences were

not signiﬁcant for the two and three class problems

but for the four and ﬁve 5 ones SVM is signiﬁcantly

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution

better with 99% conﬁdence. Comparing SUP against

DT, the differences are signiﬁcant at the 95%, 99%

and 99% conﬁdence levels for the two, three and

four class problems respectively (SUP is better), but

not signiﬁcant for the ﬁve class ones. For the semi-

supervised tasks, any differences are not signiﬁcant

for the binary task but the GEML-SEMI results are

signiﬁcantly better, at the 99% conﬁdence level for

the other three problems. Finally, the analysis com-

paring GEML-UNS with K-Means appears similar,

where GEML-UNS is signiﬁcantly better on the two,

four and ﬁve class tasks having conﬁdence levels of

99%, 95% and 95% respectively, and with a p-value

of 0.58 there was no signiﬁcant difference of the three

class task.

4.5 Discussion

This is a simple study into the potential of the GEML

system to perform effectively in unsupervised and

semi-supervised tasks. Although the results are quite

encouraging we feel that there is potential for im-

provement in the existing system. The obvious place

to look for improvement is the all-important grammar.

Our next steps will be to examine this to see how we

can make it more effective. As a ﬁrst move in that di-

rection we will analyse the best individuals from our

existing runs to determine which rules are contribut-

ing most and which are not performing. We will then

modify the system applying this new information and

use it to tackle a large, potentially noisy real-world

medical dataset.

In the results section of this paper we have com-

pared with several multi-class classiﬁcation algo-

rithms, and the reported results demonstrate that the

most successful supervised technique is SVM. How-

ever, it is perhaps fair to point out that SVMs are

not inherently multi-class, rather the algorithm usu-

ally (but not always) implements multi-class prob-

lems in either a “one versus one” or a “one versus

all” approach, which in fact was how SVMs were

implemented in this study. Thus, the performance

of GEML and SVMs are, in one sense, not directly

comparable. Given that the average performance of

GEML on the two and three class problems is very

competitive with that of the SVM, it is reasonable

to hypothesise that equivalent performance to SVMs

which use binary decomposition, might be expected

on problems with greater numbers of classes if the

GEML method were adapted to also perform multi-

classiﬁcation by way of binary decomposition. It

may also be worth re-iterating that unlike SVMs the

GEML setups all provide human readable solutions,

which is an important consideration in many problem

domains.

We have seen in this investigation that the GEML

system which incorporates ideas from decision tree

and cluster based learning has produced some statis-

tically signiﬁcant results. As GE is such a ﬂexible

paradigm there is no reason why alternative ML al-

gorithms could not be incorporated instead. Once the

candidate ML algorithm has some aspect which re-

quires optimisation it should be suitable for an evolu-

tionary approach.

Memetic algorithms (MA) are one of the inter-

esting research topics in evolutionary computation at

present, where the term MA is generally used to de-

scribe a synergistic algorithm which combines evo-

lutionary approaches with population-based methods

that use local search techniques or facilitate separate

individual learning for problem search. It has been

shown recently in the literature (Fitzgerald and Ryan,

2014) that individualised techniques can be effective

when applied to GP generally. It may be illuminating

to examine the effects of similar techniques in GE.

5 CONCLUSIONS

In this paper we introduced a prototypical, novel GE

system which we call GEML which incorporates ML

techniques commonly used for supervised and unsu-

pervised learning into a ﬂexible evolutionary frame-

work which although designed primarily to perform

unsupervised learning while providing human read-

able results, can also be used with minor modiﬁcation

for supervised and semi-supervised learning. We pro-

vided a brief description of important existing work

in the areas of unsupervised learning and multi-class

classiﬁcation in both GP and GE and we brieﬂy out-

lined how our novel approach may contribute to the

existing literature. Following this, we described our

algorithm in some detail together with some neces-

sary background information about GE and other rel-

evant concepts. Next, we described a set of experi-

ments undertaken using GEML together with several

other state of the art comparative ML algorithms. We

presented and discussed the results of these experi-

ments noting the promising performance of the new

system which delivered competitive, statistically sig-

niﬁcant accuracy and good generalisation on all of the

problems studied. Finally, we ended by suggesting

some possible improvements to the existing system

as well as proposing some potentially interesting new

directions for GEML.

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications

REFERENCES

Al-Madi, N. and Ludwig, S. A. (2013). Improving ge-

netic programming classiﬁcation for binary and multi-

class datasets. In Hammer, B., Zhou, Z.-H., Wang, L.,

and Chawla, N., editors, IEEE Symposium on Compu-

tational Intelligence and Data Mining, CIDM 2013,

pages 166–173, Singapore.

Altman, N. S. (1992). An introduction to kernel and nearest-

neighbor nonparametric regression. The American

Statistician, 46(3):175–185.

Azad, R. M. A. and Ryan, C. (2014). The best things dont

always come in small packages: Constant creation

in grammatical evolution. In Genetic Programming,

pages 186–197. Springer.

Banzhaf, W. (2013). Evolutionary computation and ge-

netic programming. In Lakhtakia, A. and Martin-

Palma, R. J., editors, Engineered Biomimicry, chap-

ter 17, pages 429–447. Elsevier, Boston.

Barros, R. C., Basgalupp, M. P., De Carvalho, A. C., Fre-

itas, A., et al. (2012). A survey of evolutionary algo-

rithms for decision-tree induction. Systems, Man, and

Cybernetics, Part C: Applications and Reviews, IEEE

Transactions on, 42(3):291–312.

Belhassen, S. and Zaidi, H. (2010). A novel fuzzy c-means

algorithm for unsupervised heterogeneous tumor

quantiﬁcation in pet. Medical physics, 37(3):1309–

1324.

Bhowan, U., Johnston, M., and Zhang, M. (2012). Develop-

ing new ﬁtness functions in genetic programming for

classiﬁcation with unbalanced data. IEEE Transac-

tions on Systems, Man, and Cybernetics, Part B: Cy-

bernetics, 42(2):406–421.

Boser, B. E., Guyon, I. M., and Vapnik, V. N. (1992). A

training algorithm for optimal margin classiﬁers. In

Proceedings of the ﬁfth annual workshop on Compu-

tational learning theory, pages 144–152. ACM.

Breiman, L., Friedman, J., Stone, C. J., and Olshen, R. A.

(1984). Classiﬁcation and regression trees. CRC

press.

Castelli, M., Silva, S., Vanneschi, L., Cabral, A., Vascon-

celos, M. J., Catarino, L., and Carreiras, J. M. B.

(2013). Land cover/land use multiclass classiﬁca-

tion using GP with geometric semantic operators. In

Esparcia-Alcazar, A. I., Cioppa, A. D., De Falco,

I., Tarantino, E., Cotta, C., Schaefer, R., Diwold,

K., Glette, K., Tettamanzi, A., Agapitos, A., Bur-

relli, P., Merelo, J. J., Cagnoni, S., Zhang, M.,

Urquhart, N., Sim, K., Ekart, A., Fernandez de Vega,

F., Silva, S., Haasdijk, E., Eiben, G., Simoes, A.,

and Rohlfshagen, P., editors, Applications of Evo-

lutionary Computing, EvoApplications 2013: Evo-

COMNET, EvoCOMPLEX, EvoENERGY, EvoFIN,

EvoGAMES, EvoIASP, EvoINDUSTRY, EvoNUM,

EvoPAR, EvoRISK, EvoROBOT, EvoSTOC, volume

7835 of LNCS, pages 334–343, Vienna. Springer Ver-

lag.

Cowgill, M. C., Harvey, R. J., and Watson, L. T. (1999). A

genetic algorithm approach to cluster analysis. Com-

puters & Mathematics with Applications, 37(7):99–

108.

Deodhar, S. and Motsinger-Reif, A. A. (2010). Grammat-

ical evolution decision trees for detecting gene-gene

interactions. In Pizzuti, C., Ritchie, M. D., and Gia-

cobini, M., editors, 8th European Conference on Evo-

lutionary Computation, Machine Learning and Data

Mining in Bioinformatics (EvoBIO 2010), volume

6023 of Lecture Notes in Computer Science, pages

98–109, Istanbul, Turkey. Springer.

Downey, C., Zhang, M., and Liu, J. (2012). Parallel lin-

ear genetic programming for multi-class classiﬁca-

tion. Genetic Programming and Evolvable Machines,

13(3):275–304. Special issue on selected papers from

the 2011 European conference on genetic program-

ming.

Fitzgerald, J. and Ryan, C. (2013). A hybrid approach to

the problem of class imbalance. In Matousek, R., edi-

tor, 19th International Conference on Soft Computing,

MENDEL 2013, pages 129–137, Brno, Czech Repub-

lic.

Fitzgerald, J. and Ryan, C. (2014). Balancing exploration

and exploitation in genetic programming using inver-

sion with individualized self-adaptation. International

Journal of Hybrid Intelligent Systems, 11(4):273–285.

Fogel, D. B. (2000). What is evolutionary computation?

Spectrum, IEEE, 37(2):26–28.

Fu, W., Johnston, M., and Zhang, M. (2014). Unsupervised

learning for edge detection using genetic program-

ming. In Coello Coello, C. A., editor, Proceedings

of the 2014 IEEE Congress on Evolutionary Compu-

tation, pages 117–124, Beijing, China.

Greene, D., Tsymbal, A., Bolshakova, N., and Cunning-

ham, P. (2004). Ensemble clustering in medical diag-

nostics. In Computer-Based Medical Systems, 2004.

CBMS 2004. Proceedings. 17th IEEE Symposium on,

pages 576–581. IEEE.

Hruschka, E. R., Campello, R. J., Freitas, A., De Carvalho,

A. C., et al. (2009). A survey of evolutionary algo-

rithms for clustering. Systems, Man, and Cybernetics,

Part C: Applications and Reviews, IEEE Transactions

on, 39(2):133–155.

Kattan, A., Agapitos, A., and Poli, R. (2010). Unsuper-

vised problem decomposition using genetic program-

ming. In Esparcia-Alcazar, A. I., Ekart, A., Silva, S.,

Dignum, S., and Uyar, A. S., editors, Proceedings of

the 13th European Conference on Genetic Program-

ming, EuroGP 2010, volume 6021 of LNCS, pages

122–133, Istanbul. Springer.

Kattan, A., Fatima, S., and Arif, M. (2015). Time-

series event-based prediction: An unsupervised learn-

ing framework based on genetic programming. Infor-

mation Sciences, 301:99–123.

Keijzer, M. and Babovic, V. (2000). Genetic programming,

ensemble methods and the bias/variance tradeoff - in-

troductory investigations. In Poli, R., Banzhaf, W.,

Langdon, W. B., Miller, J. F., Nordin, P., and Fogarty,

T. C., editors, Genetic Programming, Proceedings of

EuroGP’2000, volume 1802 of LNCS, pages 76–90,

Edinburgh. Springer-Verlag.

Kim, Y., Street, W. N., and Menczer, F. (2000). Feature

selection in unsupervised learning via evolutionary

GEML: Evolutionary Unsupervised and Semi-Supervised Learning of Multi-class Classiﬁcation with Grammatical Evolution

search. In Proceedings of the sixth ACM SIGKDD in-

ternational conference on Knowledge discovery and

data mining, pages 365–369. ACM.

Koza, J. R. (1990). Genetic programming: A paradigm

for genetically breeding populations of computer pro-

grams to solve problems. Technical report.

Maulik, U. and Bandyopadhyay, S. (2000). Genetic

algorithm-based clustering technique. Pattern recog-

nition, 33(9):1455–1465.

Mierswa, I. and Wurst, M. (2006). Information preserv-

ing multi-objective feature selection for unsupervised

learning. In Proceedings of the 8th annual confer-

ence on Genetic and evolutionary computation, pages

1545–1552. ACM.

Mojsilovi

c, A., Popovi

c, M. V., Ne

skovi

c, A. N., and

Popovi

c, A. D. (1997). Wavelet image extension for

analysis and classiﬁcation of infarcted myocardial tis-

sue. Biomedical Engineering, IEEE Transactions on,

44(9):856–866.

Morita, M., Sabourin, R., Bortolozzi, F., and Suen, C. Y.

(2003). Unsupervised feature selection using multi-

objective genetic algorithms for handwritten word

recognition. In 2013 12th International Conference on

Document Analysis and Recognition, volume 2, pages

666–666. IEEE Computer Society.

Munoz, L., Silva, S., and Trujillo, L. (2015). M3GP: mul-

ticlass classiﬁcation with GP. In Machado, P., Hey-

wood, M. I., McDermott, J., Castelli, M., Garcia-

Sanchez, P., Burelli, P., Risi, S., and Sim, K., edi-

tors, 18th European Conference on Genetic Program-

ming, volume 9025 of LNCS, pages 78–91, Copen-

hagen. Springer.

Neshatian, K. and Zhang, M. (2009). Unsupervised elim-

ination of redundant features using genetic program-

ming. In Nicholson, A. E. and Li, X., editors, Pro-

ceedings of the 22nd Australasian Joint Conference

on Artiﬁcial Intelligence (AI’09), volume 5866 of Lec-

ture Notes in Computer Science, pages 432–442, Mel-

bourne, Australia. Springer.

Omran, M. G., Engelbrecht, A. P., and Salman, A. (2005).

Differential evolution methods for unsupervised im-

age classiﬁcation. In Evolutionary Computation,

2005. The 2005 IEEE Congress on, volume 2, pages

966–973. IEEE.

O’Neill, M. and Brabazon, A. (2006a). Grammatical differ-

ential evolution. In Arabnia, H. R., editor, Proceed-

ings of the 2006 International Conference on Artiﬁ-

cial Intelligence, ICAI 2006, volume 1, pages 231–

236, Las Vegas, Nevada, USA. CSREA Press.

O’Neill, M. and Brabazon, A. (2006b). Self-organizing

swarm (soswarm): a particle swarm algorithm for un-

supervised learning. In Evolutionary Computation,

2006. CEC 2006. IEEE Congress on, pages 634–639.

IEEE.

O’Neill, M., Leahy, F., and Brabazon, A. (2006). Grammat-

ical swarm: A variable-length particle swarm algo-

rithm. In Nedjah, N. and de Macedo Mourelle, L., edi-

tors, Swarm Intelligent Systems, volume 26 of Studies

in Computational Intelligence, chapter 5, pages 59–

74. Springer.

O’Neill, M. and Ryan, C. (1999). Automatic generation

of programs with grammatical evolution. In Bridge,

D., Byrne, R., O’Sullivan, B., Prestwich, S., and

Sorensen, H., editors, Artiﬁcial Intelligence and Cog-

nitive Science AICS 1999, number 10 in , University

College Cork, Ireland.

Pan, H., Zhu, J., and Han, D. (2003). Genetic algo-

rithms applied to multi-class clustering for gene ex-

pression data. Genomics, Proteomics, Bioinformatics,

1(4):279–287.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Raghavan, U. N., Albert, R., and Kumara, S. (2007).

Near linear time algorithm to detect community struc-

tures in large-scale networks. Physical Review E,

76(3):036106.

Ryan, C. and O’Neill, M. (2002). How to do anything

with grammars. In Barry, A. M., editor, GECCO

2002: Proceedings of the Bird of a Feather Work-

shops, Genetic and Evolutionary Computation Con-

ference, pages 116–119, New York. AAAI.

Smart, W. and Zhang, M. (2004). Probability based ge-

netic programming for multiclass object classiﬁca-

tion. Technical Report CS-TR-04-7, Computer Sci-

ence, Victoria University of Wellington, New Zealand.

Smart, W. and Zhang, M. (2005). Using genetic program-

ming for multiclass classiﬁcation by simultaneously

solving component binary classiﬁcation problems. In

Genetic Programming, pages 227–239. Springer.

Steinhaus, H. (1957). Sur la division des corps mat

eriels en

parties. Bull. Acad. Pol. Sci., Cl. III, 4:801–804.

Wu, S. X. and Banzhaf, W. (2011). Rethinking multilevel

selection in genetic programming. In Krasnogor, N.,

Lanzi, P. L. et al., editors, GECCO ’11: Proceedings

of the 13th annual conference on Genetic and evolu-

tionary computation, pages 1403–1410, Dublin, Ire-

land. ACM. Best paper.

Zhang, M. and Smart, W. (2004). Multiclass object classiﬁ-

cation using genetic programming. In Applications of

Evolutionary Computing, pages 369–378. Springer.

ECTA 2015 - 7th International Conference on Evolutionary Computation Theory and Applications
