Multi-layer Method for Data Center Cooling Control and System

Integration

Winston Garcia-Gabin and Xiaojing Zhang

ABB, Corporate Research, SE72178, V¨aster˚as, Sweden

Keywords:

Data Center, Energy Efﬁciency, Cooling Control, System Integration.

Abstract:

This paper describes an integral management hierarchical structure for data center server room ventilation and

IT equipment cooling based on multi-layer approach. The approach contains two hierarchical layers, the lower

layer is responsible to assure the right cooling power of each server-rack avoiding overcooling and waste of

energy. The upper layer is responsible to perform the tasks of optimization, supervision and coordination of

all subsystems in the lower layer for holistic control. The approach aim is to make data centers more energy

efﬁcient, here we focus on proposing a general approach to improve the efﬁciency of their thermal cooling

systems.

1 INTRODUCTION

Due to rapid growth of large data centers worldwide,

data centers become energy intensive processes ac-

counting for over 1% of the worlds electricity usage

(Koomey, 2011). Energy efﬁciency becomes even

more important for these data centers. IT equip-

ment and cooling infrastructure are the two major

power consumers. Investigation showed that energy

consumption by cooling data center IT equipment is

between 30% and 55% of data center total opera-

tion energy consumption (Song et al., 2015). Sev-

eral data center cooling and cooling control have been

investigated. Data center Power Usage Effectiveness

(PUE) were well deﬁned (Patterson, 2012). PUE is

one of most used data center matrices. The distribu-

tion of airﬂow and resulting cooling in a data center

was studied with using computational ﬂuid dynamics

(CFD) to ﬁnd out various factors affecting the airﬂow

(Patankar, 2010). Cooling control for data center op-

eration with higher ambient temperature was studied

by Ahuja et al. (Ahuja et al., 2011). A platform-

assisted thermal management approach was applied

to use new sensors providing server airﬂow and server

outlet temperature to improve control of the data cen-

ters cooling solution. An online control algorithm of

data center power supply under uncertain demand and

renewable energy was developed by applying two-

stage Lyapunov optimization techniques to make on-

line decisions on fully utilizing renewable energy and

two-timescale power purchasing and uninterruptible

power source (UPS) charging/discharging in a com-

plementary manner to minimize operation cost (Deng

et al., 2013). A comprehensive model of the data

center cooling power consumption was developed by

Zhang, et al. (Zhang et al., 2016). In this model,

power consumptions of servers, racks, CRAH, chiller,

cooling tower, UPS and PDU were modeled to cover

data center design and operation scenarios. The mod-

els was intended to be used for the data center cool-

ing simulation and control. Optimal fan speed control

for data center servers was investigated by Wang, et

al. (Wang et al., 2009). A multi-input multi-output

fan controller that utilizes thermal models was devel-

oped from ﬁrst-principles to manipulate the operation

of fans. The controller tunes the speeds of individ-

ual fans proactively based on prediction of the sever

temperatures. Controlling the temperature rise dur-

ing the power failure is crucial issue for data center

availability. In order to analyze the temperature rise

characteristics, a real-time transient thermal model to

demonstrate the heating of a data center following the

loss of utility power was developed by Lin et al. (Lin

et al., 2014). Strategies of placing critical cooling

equipment on backup power, maintaining adequate

reserve cooling capacity, and employing thermal stor-

age, are provided and checked whether they can han-

dle the power outages in a predictable means using

this model. Control strategies were recommended

to achieve the desired temperature control during the

power outages. A three-level data center control ar-

chitecture with server level, zone level and data cen-

562

Garcia-Gabin, W. and Zhang, X.

Multi-layer Method for Data Center Cooling Control and System Integration.

DOI: 10.5220/0006424405620567

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 2, pages 562-567

ISBN: Not Available

ter level was proposed by Parolini (Parolini, 2012).

At the data center level, a single controller directs

the lower level controllers and the set points for the

computer room air conditioning (CRAC) or computer

room air handler (CRAH) units are deﬁned, it deﬁnes

the values of the reference temperature vector at every

time. At the zone level, multiple controllers operate

and manage those controllers and systems related to

zones. A framework integrating online learning and

optimal decision is proposed to make real-time con-

trol of the airﬂow and temperature distribution (Xiong

and Zhang, 2016). By online learning, the model is

updated in run time according to newly arrived sam-

ples. At the same time, control actions are decided

based on the current process model to ﬁgure out the

best values of control variables to optimize the con-

trol performance. Data center thermal management

with ﬂexible humidity control was studied by Bere-

zovskaya et al. (Berezovskaya et al., 2016). Com-

bined cooling and humidity control strategy showed

signiﬁcant energy consumption reduction. Cyber-

physical design of data center cooling systems was

investigated by Mousavi et al. (Mousavi et al., 2015).

Distributed adaptive automation architecture was de-

signed to improve energy efﬁciency, ﬂexibility, bet-

ter decision-making ability and controlling the cool-

ing systems In the conventional data center with hot

aisle/cold aisle, cold air generated by the cooling sys-

tem is supplied through a plenum under the ﬂoor and

perforated air ﬂow panels. The cold air ﬂows up hori-

zontally entering server rack from front side and leav-

ing from back side. The classical way to control it is

to consider all server racks as an entire cooling load

and the cooling system control this load as a whole.

This paper proposes an integrated approach, where

individual control for each server is performance in

coordination with a global control of the overall cool-

ing equipment of the data center. The paper has the

following structure: This section has presented the

introduction and relevant previous works. Section 2

describes the multi-layer structure for decisions and

control. Section 3 presents functions of the proposed

multi-layer methodology for data center cooling con-

trol. Finally, conclusions are summarized in section

2 MULTI-LAYER STRUCTURE

FOR DECISIONS AND

CONTROL

In order to obtain the holistic control of a data center

power, IT and cooling system, it is proposed a hier-

archical structure for decisions and control, where the

information about the process has a different accuracy

and complexity, and the amount of exchanged infor-

mation and its update frequency changes according

to the layer. At the upper layer the control strategy

manages a big amount of complex information. In

the upper layer each subsystems have different fre-

quency updates, for example, optimization and CFD

subsystems may require hours, a failure detected in an

equipment can be monthly or bimonthly, but others

subsystems are able to exchange information faster.

On the other hand, at the lowest level the control

strategy is based on the principle of increasing accu-

racy and decreasing intelligence and complexity, but

its frequency increases to the range required for the

equipment, for example, seconds for cooling units,

milliseconds for power devices. The way to achieve

the control implementation is to perform the control

of each server-rack using local control devices in the

lower control layer and data center coordination in the

upper control layer. This model establishes the differ-

ent functional layers used for controlling a data center.

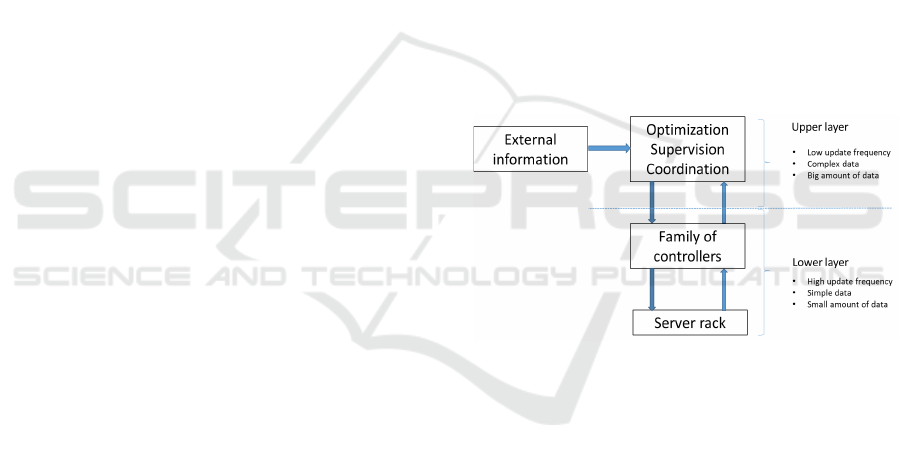

Figure 1 shows the control scheme.

Figure 1: Multi-layer method for server-rack cooling con-

trol.

The method proposes system integration, since

this ensures the control of the processes in their nat-

ural form. Then, coordination in the upper layer is

achieved through the reception of information about

the states of the processes (ascending path to the up-

per layer) and the transmission of commands to the

processes (descending path to the lower layer). The

exchange of information is performed between dif-

ferent actors in the upper layer and local controllers

in the lower layer. The existence of communication

devices and computer networks that ensures commu-

nication among the control equipment is a fundamen-

tal factor to achieve integration. The lower layer is

responsible for the local continuous control of each

server rack. Each one is controlled by local control

schemes, and they represent the direct controllers over

the controlled variables. In upper layer the tasks of

optimization, supervision and coordination for server

racks to achieve a coherent operation among data cen-

Multi-layer Method for Data Center Cooling Control and System Integration

563

ter are accomplished. The operation of server rack

and its direct controller is described as the opera-

tion regions, in which the parameters and rates stay

constant for an undeﬁned time until there appears a

change of the operation state. The upper layer de-

termines the operation region for the lower layer and

generates the parameters for the direct control level.

Signals coming into this layer allow determination of

the state of the process units as well as the production

objectives that have been ﬁxed in the superior layer.

At this level, local supervisors for each subsystem are

deﬁned. They determine the operation mode of each

unit, and the changes of the parameters or local rules

in the lower layer. With a superior hierarchy, a global

coordinator is responsible to ﬁx the directives for each

one of the local cooling controllers, as a function of

the joint operation mode of the entire data center.

2.1 Layer Functionalities

This approach provides a method for data center cool-

ing control. The method includes at least two cool-

ing control layers, a lower layer and an upper layer.

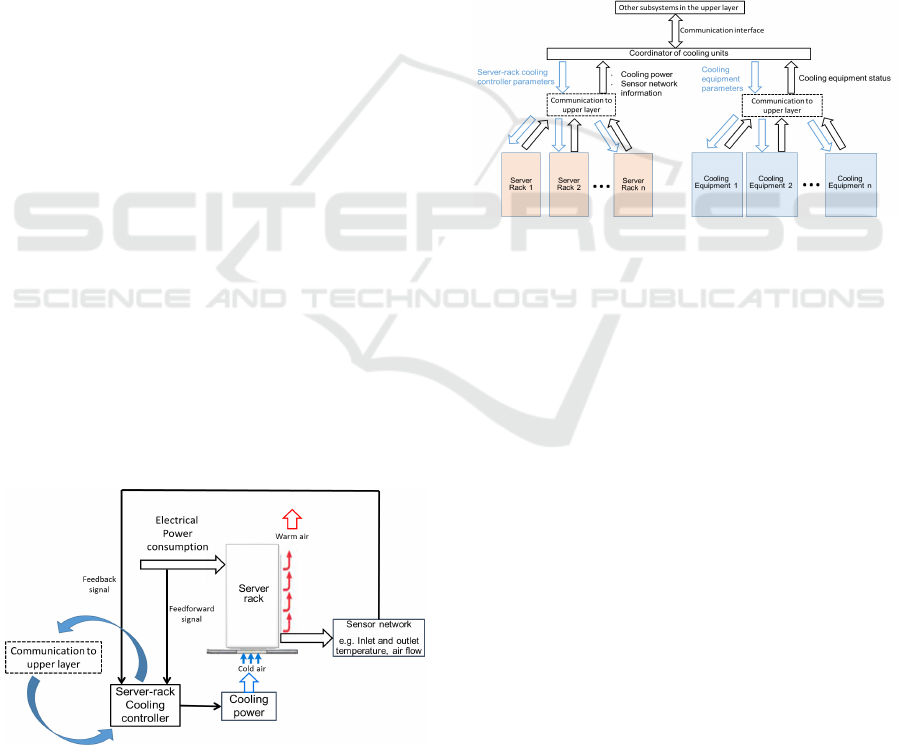

In the lower layer, see ﬁgure 2, electrical power de-

mand of each server or IT load is used as feedforward

signal for estimating the cooling power required for

each rack. Basic temperature sensor network and air

ﬂow sensors are required to measure each server rack.

Humidity sensors do not need to be installed at each

server rack, but with one or two in each server row.

Information about temperatures and air ﬂow of each

server rack are used as feedback signal to achieve the

right dose of power cooling on the server. In the low

layer a network of humidity, temperature and airﬂow

sensors are used for controlling the humidity, temper-

ature and air ﬂow distribution on the room. Tempera-

ture of server rack, outlet temperature or inlet temper-

ature and air ﬂow can be used as feedback signal.

Figure 2: Lower layer.

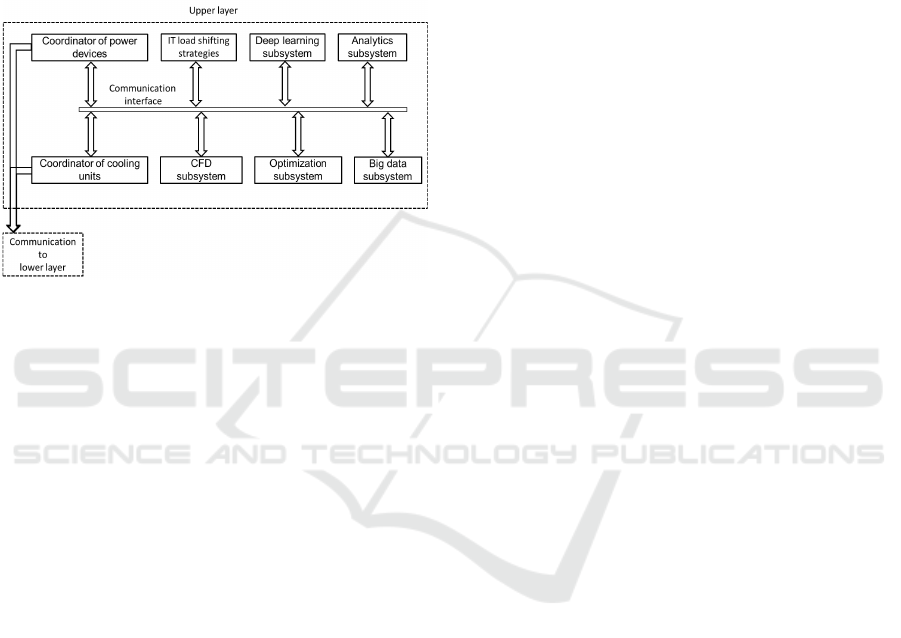

The upper cooling control layer is responsible for

supervising and coordinating local controller in the

lower layer and optimizing the total cooling power

and the distribution of cooling power required for

each server rack. Figure 3 shows the diagram of a

coordinator, in this case, it gets information about

cooling power of each server rack, sensor network

and cooling equipment status. Using this informa-

tion the coordinator manage all data and send to the

lower layer parameters and conﬁgurations for each

single cooling equipment and server-rack controllers.

A similar scheme can be used to coordinate the power

devices e.g. uninterruptible power source (UPS),

power distribution unit (PDU) and batteries. Coordi-

nators manage the communication to the lower layer

at the frequency required for the lower layer units, but

also, can get updated information for other subsys-

tems of the upper layer at low frequency of the range

of hours e.g CFD subsystem or optimization subsys-

tem.

Figure 3: Coordinator on the upper layer.

In this upper layer tools are used, which manage

a big amount of complex data with low update fre-

quency for achieving the optimal distribution of cool-

ing power, which means air ﬂow, temperature and hu-

midity distribution and patterns and generate param-

eters for the lower layer cooling control. The upper

layer can be used or combined many different tools,

including, but not limited to CFD simulations, ma-

chine learning, artiﬁcial intelligence and so on which

are all less time critical compared to the operations

in the lower layer. These tools optimize the global

demand of cooling power of the data center taking

into account complex data e.g. actual operating con-

ditions and future expectations of IT load, electric-

ity price, power availability, and data center operat-

ing conditions related to electrical and cooling power

consumption. The upper layer provides to the lower

layer, operational information for the cooling units,

for example, CRAC/CRAH fan speed, air temperature

and humidity references for the equipment. A general

diagram of the upper layer is illustrated in ﬁgure 4. It

shows how subsystems exchange information in the

upper layer through a common communication infras-

tructure. For example, if the analytic subsystem pre-

dicts an imminent failure on a cooling equipment, this

information can be sent to the coordinator of cooling

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

564

units. This coordinator turns off the corresponding

cooling equipment and sends a new set of parameters

for the other server-rack cooling controllers and cool-

ing equipment. Coordinators exchange information

with the lower layer at the frequency required for the

lower layer, but it is based on information obtained

from other subsystem which can exchange informa-

tion at low frequency, hours in the case of CFD simu-

lations and electricity price changes or monthly when

a failure is detected.

Figure 4: General diagram of the upper layer.

The upper layer provides also recommendations

for operational information for IT load, for exam-

ple, the servers that must be turn off according to the

probability of being used in the near future, placing

and moving IT loads into proper locations can make

the cooling infrastructure operate more efﬁciently and

hence can result in substantial reduction in cooling

power. This methodology aims a holistic manage-

ment of the data center for avoiding waste of energy

due to for example overcooling.

3 FUNCTION DEFINITION AND

METHOD DISCUSSION

A number of functions have been deﬁned in the upper

layer of the developed method include the following,

• CFD generated data for cooling control. Param-

eterized CFD simulation tool is required to be

able to simulate a data center air ﬂow as well as

temperature, humidity distributions and patterns

in order to generate parameters for cooling con-

trol. This CFD tool is also able to simulate air ﬂow

pattern and temperature distribution in air plenum

and identify correlations among each cooling unit

and individual server rack with a degree of in-

ﬂuence, see Figure 5. Since CFD will take a

long time to generate results, the CFD simulations

should be pre-run in order to be used for real time

control.

• Use of operation historical data. Based on pre-

stored operation historical data and the above

described CFD simulated data, ofﬂine machine

learning, deep learning, fuzzy logic, and neural

network modeling will provide sufﬁcient data and

information for advanced control and can even

be used for failure detection. (Machine learning

itself is limited by operation parameter ranges,

for example, rack supply air temperature is nor-

mally between 18 to 27C, however, CFD simu-

lated data are not limited in such a range, there-

fore, combined CFD and machine learning will

provide complete information for cooing control).

• Ventilation and air ﬂow control method. To reach

data center rack-level cooling control, cooling air

needs to be adjusted or controlled to individual

server rack. In this approach the distributed air

ﬂow control method is extended to include under

ﬂoor (air plenum) adjustable air separation and

adjustable ventilation shutters in server racks. The

design of the adjustable air separation is based on

CFD simulation for a speciﬁc data center layout.

Even in cases where many cables are laid in the air

plenum, the air separation can be installed. For

each blade server, one adjustable shutter will be

installed.

• Power consumption data of power devices. Each

power devices, e.g., UPS, PDU, and battery are

monitored with online power consumption.

• IT load and load shifting strategies for cooling

control. The upper layer can simulate load shift-

ing strategies while all customer service level

agreements are fulﬁlled. Furthermore, the system

can simulate the arrival of new IT loads corre-

sponding to IT load predictions which are learnt

from historical data. Both, the arrival of new IT

jobs and the analysis of possible IT load migra-

tions can support the cooling control of the whole

data center.

• Climate data and electrical price. These data will

be used for upper layer to decide which cooling

strategies to apply, free air cooling or mechanic

cooling. The upper layer will take care of energy

source optimization based on electrical price and

other available energy sources.

Provided main cooling parameters will be as fol-

lowing,

• Supply cooling air temperature in rack-level,

• Air ﬂow ﬂowrate in rack-level,

• Humidity in row or rack level,

Multi-layer Method for Data Center Cooling Control and System Integration

565

• Flow control through adjust the air separation an-

gle, close/open or through ventilation ducks,

• CRAC/CRAH fan speed, air temperature,

• Cooling water ﬂow and temperature in mechani-

cal cooling system.

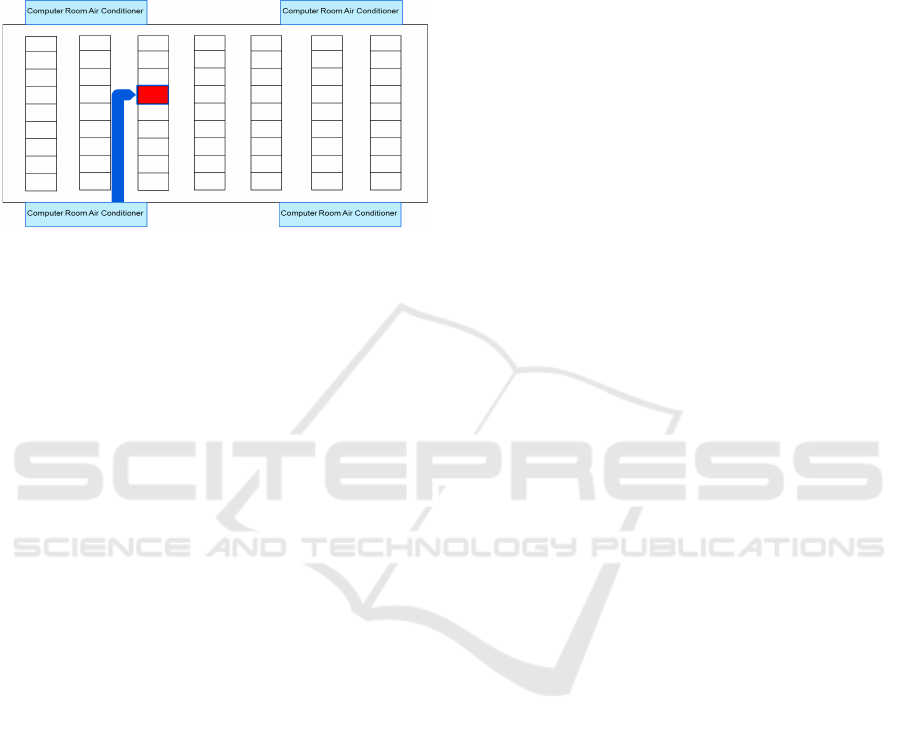

Figure 5: CFD simulation of cooling air ﬂow patterns from

CRAC/CRAH.

Modern data centers are equipped with Data Cen-

ter Infrastructure Management (DCIM), for example,

ABB Decathlon for data center. DCIM is a software

platform to manage data center IT facilities, cool-

ing system and power supply system with a number

of functions including process monitoring and con-

trol. The methodology developed in this work can

be implemented to DCIM to solve the problem of hot

spots and over cooling, which are common problems

in data centers. This approach can be used for data

center zone-level, rack-level and server-level cooling

control. The principal advantage of the proposed ap-

proach is the capacity of holistic control, where de-

cisions are taken based on integrated information of

different subsystems, for example power devices, IT

load, deep learning subsystems, Computational ﬂuid

dynamics simulations, optimization routines, big data

algorithms. All this abstract information in the upper

layer is translated to the server-rack cooling controller

in the lower layer, through a coordinator of the cool-

ing units, which is responsible for providing the pa-

rameters for the server-rack cooling controller. Thus,

the right dosage of cooling power suits the particular

needs of each server-rack. This is another beneﬁt of

this methodology as opposed to the classical control

way, which is to consider all server racks as an en-

tire cooling load and the control scheme manages the

entire load as a whole.

4 CONCLUSIONS

This paper proposed a cross layer methodology for

facing the global cooling control of data center. The

multi-layer approach includes two layers. A lower

layer which is responsible of the cooling control at

rack and the server level. It uses the electrical power

consumption of the servers and information provided

by the sensor network e.g. inlet and outlet temper-

ature, air ﬂow. And an upper layer which incorpo-

rates Computational ﬂuid dynamics simulations, ma-

chine learning, and artiﬁcial intelligence (all upfront

to the real operation of the data center) to provide

control parameters and conﬁgurations to the lower

layer. The upper layer integrated management of all

the variables that have inﬂuence on the cooling per-

formance of the data center air ﬂow, temperature, and

humidity and provides recommendations for turning

off servers, placing, and moving the IT load according

to thermal distribution of the data center and customer

service level agreements. In the future, we will im-

plement developed method and structure to ABB De-

cathlon software platform to extend Decathlon func-

tionalities and capacity.

REFERENCES

Ahuja, N., Rego, C., Ahuja, S., Warner, M., and Docca,

A. (2011). Data center efﬁciency with higher ambi-

ent temperatures and optimized cooling control. In

Semiconductor Thermal Measurement and Manage-

ment Symposium (SEMI-THERM), 2011 27th Annual

IEEE, pages 105–109.

Berezovskaya, Y., Mousavi, A., Vyatkin, V., Zhang, X., and

Minde, T. B. (2016). Improvement of energy efﬁ-

ciency in data centers via ﬂexible humidity control.

In Industrial Electronics Society, IECON 2016-42nd

Annual Conference of the IEEE, pages 5585–5590.

Deng, W., Liu, F., Jin, H., and Liao, X. (2013). Online

control of datacenter power supply under uncertain

demand and renewable energy. In Communications

(ICC), 2013 IEEE International Conference on, pages

4228–4232.

Koomey, J. (2011). Growth in data center electricity use

2005 to 2010. A report by Analytical Press, completed

at the request of The New York Times, 9.

Lin, M., Shao, S., Zhang, X. S., VanGilder, J. W., Avelar, V.,

and Hu, X. (2014). Strategies for data center temper-

ature control during a cooling system outage. Energy

and Buildings, 73:146–152.

Mousavi, A., Vyatkin, V., Berezovskaya, Y., and Zhang, X.

(2015). Cyber-physical design of data centers cooling

systems automation. In Trustcom/BigDataSE/ISPA,

2015 IEEE, volume 3, pages 254–260.

Parolini, L. (2012). Models and control strategies for data

center energy efﬁciency. PhD thesis, Carnegie Mellon

University Pittsburgh, PA.

Patankar, S. V. (2010). Airﬂow and cooling in a data center.

Journal of Heat Transfer, 132(7):1–17.

Patterson, M. K. (2012). Energy efﬁciency metrics. In

Joshi, Y. and Kumar, P., editors, Energy Efﬁcient Ther-

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

566

mal Management of Data Centers, pages 237–271.

Springer.

Song, Z., Zhang, X., and Eriksson, C. (2015). Data center

energy and cost saving evaluation. Energy Procedia,

75:1255–1260.

Wang, Z., Bash, C., Tolia, N., Marwah, M., Zhu, X., and

Ranganathan, P. (2009). Optimal fan speed control

for thermal management of servers. In ASME 2009 In-

terPACK Conference collocated with the ASME 2009

Summer Heat Transfer Conference and the ASME

2009 3rd International Conference on Energy Sustain-

ability, pages 709–719.

Xiong, N. and Zhang, X. (2016). Towards a framework for

online modeling and optimization of airﬂow and tem-

perature distribution in server rooms of data centers.

In Industrial Electronics Society, IECON 2016-42nd

Annual Conference of the IEEE, pages 5597–5602.

Zhang, X., Lindberg, T., Svensson, K., Vyatkin, V., and

Mousavi, A. (2016). Power consumption modeling of

data center it room with distributed air ﬂow. Interna-

tional Journal of Modeling and Optimization, 6(1):33.

Multi-layer Method for Data Center Cooling Control and System Integration

567
