Searchitect - A Developer Framework for Hybrid Searchable Encryption

(Position Paper)

Ulrich Hab

ock, Manuel Koschuch, Ines Kramer, Silvie Schmidt and Mathias Tausig

Competence Centre for IT Security, University of Applied Sciences, FH Campus Wien, Vienna, Austria

Keywords:

Symmetric Searchable Encryption, Hybrid Encryption, Privacy Enhancing Technologies, Developer Frame-

work.

Abstract:

In light of the trend towards cloud-based applications, privacy enhancing technologies are becoming increa-

singly important. Searchable encryption (SE) allows to outsource data to the cloud in a secure way, whilst

permitting search functionality on that encrypted data: the host is able to perform search queries on behalf of

the user, but without having access to the encryption keys. We propose Searchitect, a developer framework

which allows to enhance existing cloud-based applications with searchable encryption. Searchitect provides

a ready-to-use client-server infrastructure, which is expandable by custom SE schemes, the server being a

conﬁgurable webservice offering searchable encryption as a service (SEaaS). Unlike other searchable encryp-

tion frameworks our approach is hybrid: Searchitect separates the index component from the data encryption

scheme, leaving the application’s own speciﬁc encryption paradigm and access control untouched. In this way,

we hope to ease the integration of searchable encryption into already existing cloud-based applications, requi-

ring only the client code to be modiﬁed. Further, as searchable encryption is a very active ﬁeld of research,

we emphasize the experimental character of Searchitect’s framework. It aims at developers keeping track of

recent SE developments, providing an easy deployable solution for testing in public and private clouds.

1 INTRODUCTION

Supported by the trend towards mobile and web appli-

cations, outsourcing data to the cloud is becoming an

increasingly popular solution to provide access from

and to multiple devices or users. In respect of data

breaches reported by the news on an almost daily ba-

sis, e.g. Anthem’s 80 Million (The Guardian, 2015),

Yahoo’s 1 Billion (New York Times, 2016), or the

more recent Equifax breach (Cision PR Newswire,

2017), securing cloud resources from unauthorized

access poses a serious challenge. As a primary coun-

termeasure, many cloud-based services encrypt user’s

data not only in transit but also at rest, hosted in the

cloud. In general, data does not allow to perform me-

aningful operations on it while encrypted. Whenever

a user wants to beneﬁt from services which operate on

her data, providing access to her encryption keys (or

having the cloud-storage provider decrypt the data) is

the only convenient solution to most current approa-

ches. However, such a step has to be considered ca-

refully: on the one hand with respect to the provi-

der’s capability to meet certain security requirements

(i.e., server trust), and on the other hand concerning

privacy issues in case of key leakage or third-party

access.

Searchable encryption (SE) is a privacy enhancing

technology which allows a server to search on encryp-

ted data without having access to plaintext informa-

tion or the encryption key itself. The server knows

what it does, i.e. processing an encrypted search

query over encrypted data (mostly an index) resulting

in an encrypted outcome, but does not learn anything

valuable about neither the query’s nor the document’s

content. Since the pioneering work of Song, Wagner

and Perrig (Song et al., 2000), dozens of SE sche-

mes have been designed trying to balance usability,

security, efﬁciency, and scalability, see (B

osch et al.,

2014) or the more recent position paper (Asghar et al.,

2017) for a comparative overview. In spite of the

special attention received by academic research, re-

ception of these schemes in real world applications

is still poor. All SE schemes providing multi user

access are at least of linear complexity in the num-

ber of encrypted items, hence being impracticable at

large scale. Also Searchable Symmetric Encryption

(SSE) schemes, which cover the single user setting,

vary largely with respect to efﬁciency and compact-

Haböck, U., Koschuch, M., Kramer, I., Schmidt, S. and Tausig, M.

Searchitect - A Developer Framework for Hybrid Searchable Encryption (Position Paper).

DOI: 10.5220/0006789402910298

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 291-298

ISBN: 978-989-758-296-7

291

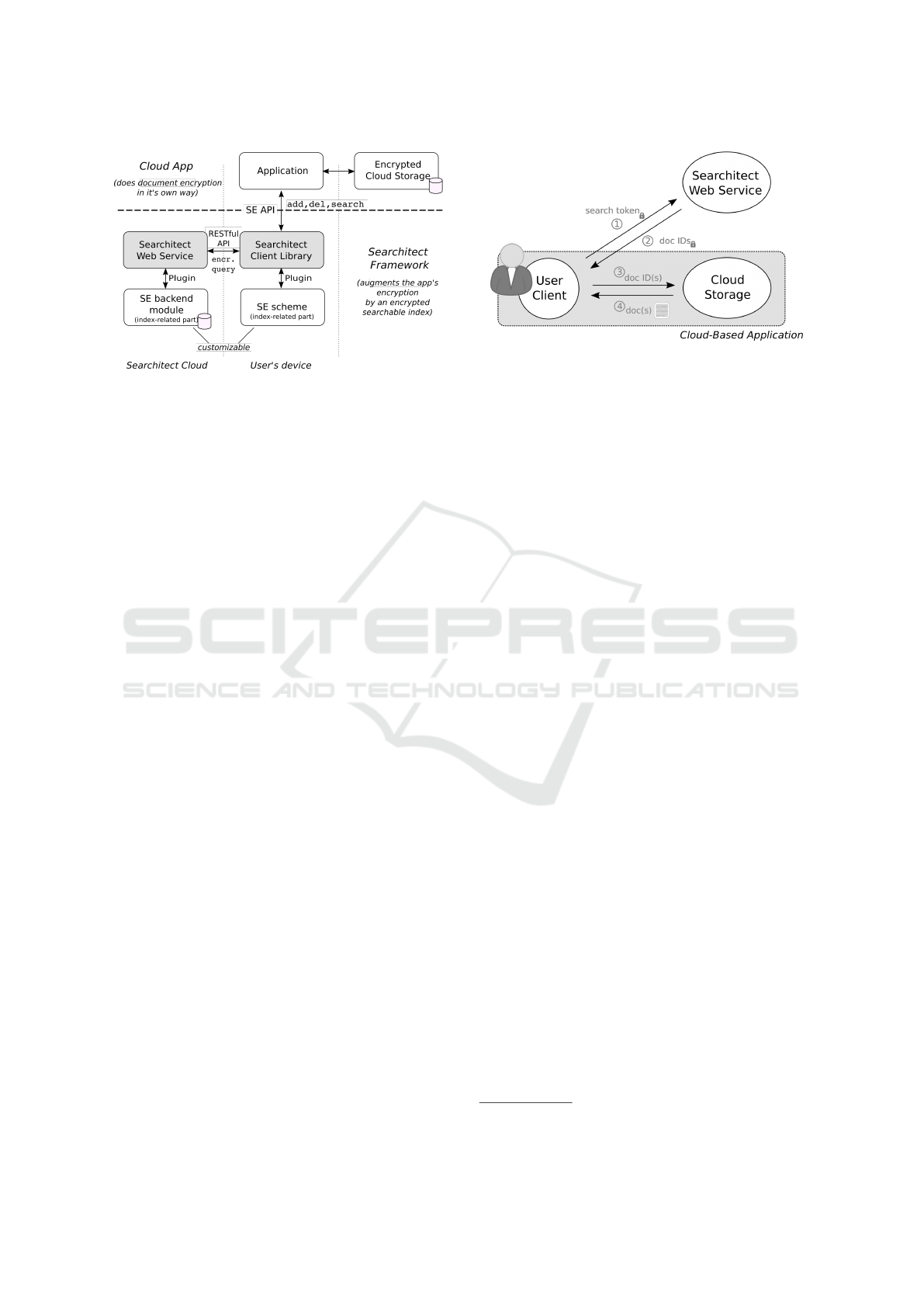

Figure 1: The Searchitect framework, integrated in an ar-

bitrary end-to-end secured cloud application. Searchitect

acts as an abstraction layer between the application and (the

index-related components of) the custom SE scheme. In

this hybrid way the cloud application is complemented by

search functionality, leaving it’s own way to handle docu-

ment encryption untouched.

ness. Furthermore, many published schemes are in a

rather experimental state and should be used with cau-

tion: although supplied by rigorous security proofs,

the threat model considered is often too restrictive

to capture all consequences of information leakage

as shown by (Zhang et al., 2016), (Liu et al., 2014),

(Naveed et al., 2015), (Cash et al., 2015), (Liu et al.,

2014), and (Grubbs et al., 2016). From the viewpoint

of software developers, the situation is even less sa-

tisfactory. Among sufﬁciently versatile schemes with

proven security, only few publications report concrete

performance numbers or make their prototype code

accessible to the public. To the best of our knowlegde,

the only open source software libraries implementing

state of the art single user schemes are

• the Clusion Library (Encrypted Systems Lab,

2017), an SSE Java library which provides va-

riations of the schemes from (Cash et al., 2014)

and (Kamara and Moataz, 2017), including a dis-

tributed version of the former based on MapRe-

duce/HADOOP for Amazon AWS,

• the Open SSE library (Bost, 2017), a C++ library

which implements forward and backward secure

SSE schemes from (Bost, 2016) and (Bost et al.,

2017).

Altough there exist experimental SE frameworks

such as Mylar (Popa et al., 2014a), CryptDB (Popa

et al., 2011a), or CloudCryptoSearch (Ferreira and

Domingos, 2013), they either aim at the integration

of searchable encryption into speciﬁc environments,

are not designed to be ﬂexible in their SE backend,

or do not provide comprehensive documentation. In

this position paper, we propose Searchitect, a develo-

Figure 2: Searchitect’s system model for searches. The se-

arch over encrypted indexes is separated from the applica-

tion’s own way to encrypt and host the data collection. Se-

architect’s web service can be either hosted independently

or outsourced to our Searchitect cloud.

per framework which provides a ready-to-use client-

server architecture for index-based searchable sym-

metric encryption.

1. As a hybrid solution, cf. Figure 1 and 2, Sear-

chitect integrates search functionality by not in-

terfering with the application’s own way to handle

end-to-end encryption and access control of plain-

text documents. Instead, Searchitect complements

the application by a customizable infrastructure

for searchable index encryption, the server-side

part of which can (but not necessarily has to)

be entirely separated from the application’s cloud

storage. This allows to apply our framework

to environments with restricted access to server-

side code, e.g. a cloud backup (or any other)

program that just utilizes (arbitrary) cloud stora-

ges. Whenever such separation is desired, Sear-

chitect’s server-side part can be outsourced to our

proposed Searchitect cloud, offering search over

encrypted data as a service.

2. As an extensible solution, Searchitect is not re-

stricted to any speciﬁc index-based schemes.

Instead, we foster developers to implement sche-

mes of their own choice and provide testing and

evaluation features within our framework.

3. As an open source solution, client and server-side

code will be made available under an Open Source

Initiative (OSI

) approved open source license.

Searchitect will be supplemented by a compre-

hensive documentation, including guidelines and

implementation examples to serve the needs of

application developers, who do not have speciﬁc

knowledge of cryptography.

Due to the experimental state of searchable encryp-

tion in general, we strongly emphasize that our (as

https://opensource.org/

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

292

any other) SE framework should be used in prototype

software projects only. Until current reasearch has

converged, Searchitect might help developers keeping

track of recent SE developments, providing an easily

deployable solution for testing in public and private

clouds.

The remainder of this paper is organized as fol-

lows. In Section 2 we shortly discuss related fra-

meworks and clarify how our approach differs from

them. Section 3 surveys fundamental notions and pro-

perties of searchable encryption. Section 4 forms the

core of our proposal: it provides a detailed description

of the Searchitect framework, including implementa-

tion details. Finally, we shortly discuss application

use cases and future work in our summary Section 5.

2 RELATED WORK

CryptDB (Popa et al., 2011a), (Popa et al., 2011b), is

a multi-user system that provides an SQL-aware en-

cryption layer on top of SQL databases. To enable

SQL queries over encrypted data, the authors combine

several cryptosystems, each covering a different set

of SQL requirements. In particular, keyword search

is achieved by the word-based SSE scheme of (Song

et al., 2000). However, CryptDB is not under active

development anymore and considered to be broken:

Due to the deterministic character of CryptDB’s en-

cryption (Naveed et al., 2015) were able to recover

more than 60% of patient records from electronic me-

dical databases based on static frequency analysis.

Mylar (Popa et al., 2014a), (Popa et al., 2014b),

is an experimental framework that allows almost se-

amless integration of SSE into web applications that

are built on Meteor (Meteor Development Group Inc.,

2014), a full-stack JavaScript development platform

for web and mobile applications. As an experimental

framework, Mylar is open source and is well docu-

mented, including implementation examples. Howe-

ver, Mylar uses its own multikey SE scheme which is

vulnerable to client-server collusion: (Grubbs et al.,

2016) show that under such a collusion, the server can

perform brute-force dictionary attacks on any past,

present, or future search queries. However, this attack

is disputed by the Mylar research team, (Popa et al.,

2014b).

CloudCryptoSearch (Ferreira and Domingos,

2013) is a less recognized encryption middle-ware

for cloud-based data storage. Though being gene-

ric in its architecture, CloudCryptoSearch comes with

its own SE scheme composed of homomorphic en-

cryption techniques combined with dynamic indexing

mechanisms. The follow-up frameworks IES-CBIR

(Ferreira et al., 2015) and MIE (Ferreira et al., 2017)

concentrate on searchable encryption of images. Ho-

wever, these three frameworks lack rigorous security

proofs of their encryption schemes, as well as a tho-

rough documentation that helps to ease the integration

into software projects.

All above mentioned frameworks follow the ca-

nonical system design, in which searches are served

by the same (cloud) entity that holds the encrypted

data collection. Searchitect’s paradigm is different,

as explained in Section 1, separating the search over

encrypted indexes entirely from the application’s own

way to encrypt and access plaintext documents. This

allows an easy integration of searchable encryption

into environments with restricted access to server-side

source code, for example a cloud backup/storage pro-

gram that only utilizes cloud storages, cf. Section

5. Further, Searchitect is designed to be extensible

in its cryptographic backend, and its web service co-

mes with several logging and measurement features,

cf. Section 4.1. In this way we hope to support de-

velopers with testing and evaluating SSE schemes of

their choice under real-world circumstances.

3 BASICS OF SEARCHABLE

ENCRYPTION

Searchable encryption (SE) is a cryptographic techni-

que that allows to outsource searching over a private

document base to an untrusted proxy in such a way

that as little information as possible is leaked. In its

most restrictive setting a single user, the owner of the

document base, is allowed to write the outsourced

document storage, perform (encrypted) search que-

ries and access requested documents (all of which we

summarize by read). Depending on the access pro-

ﬁle of the scheme, deﬁning which entity is allowed

to write and/or read, the scheme uses either symme-

tric or public key primitives, dividing SE in the two

classes

• Searchable Symmetric Encryption (SSE), and

• Public Key Encryption with Keyword Search

(PEKS).

As in (B

osch et al., 2014), we distinguish between the

basic access proﬁles

• single writer / single reader (S/S),

• single writer / multiple readers (S/M),

• multiple writer / single reader (M/S), and

• multiple writers / multiple readers (M/M).

Access proﬁles are interpreted with respect to the

number of involved keys rather than users: A single

Searchitect - A Developer Framework for Hybrid Searchable Encryption (Position Paper)

293

user (S/S) scheme provides a single key for the gene-

ration of search tokens, even if the latter is distributed

among several clients and/or users (with all the as-

sociated consequences for security). A multi-reader

scheme provides several keys for generating search

tokens, one for each user, supplemented by efﬁcient

mechanism for key revokation. Multi-writer schemes

are typically PEKS schemes, distributing ownership

among several users which are allowed to modify the

document base. Searchitect concentrates on symme-

tric schemes, covering the S/S and S/M scenarios, alt-

hough not necessarily restricted to those. However,

and as mentioned in Section 1, Searchitect’s approach

is hybrid. It separates the encrypted search structure

(i.e. the index) from encryption and access mange-

ment of the plaintext database, which is done by the

application utilizing our framework in its own favored

way.

3.1 Common SE Functions

Although some SE schemes such as (Song et al.,

2000), (Shen et al., 2009) or (Boneh et al., 2004) en-

code searchable information into the ciphertext itself,

most of the schemes are index-based. Based on a set

of chosen keywords W = {w

,...,w

}, the document

base D is indexed, either in a forward or backward

manner. Using the owner’s, i.e. writer’s, key, this in-

formation is mapped to an ‘encrypted’ index J , hiding

information on the keywords in a still searchable way.

Generally, every index-based SE scheme provides at

least the following functionality.

• For initialisation, or setup:

– Keygen(1

): A probabilistic algorithm that, gi-

ven a security parameter λ, generates the key

material needed by a user, in symmetric S/S and

S/M schemes a single key k.

– BuildIndex(k, D,W ): builds the encrypted in-

dex J over the entire document base D with re-

spect to the keywords in W .

• After setup, during operational phase:

– Trapdoor(k, w): Creates an (encrypted) search

query q for a keyword w. This is done locally

on the user’s client, using her key k, and subse-

quently forwarded to the server.

– Search(q,J ): The search algorithm for an en-

crypted trapdoor q over the (encrypted) Index

J . This procedure returns encrypted represen-

tations of the matching document identiﬁers.

Some SE schemes are static, i.e. they do not allow to

modify the encrypted index J in an efﬁcient manner.

Such schemes force the owner of the document base

to rebuild the encrypted index from scratch after every

change and are therefore impractical for most real-

world applications. Dynamic SE schemes, i.e. those

which allow for an efﬁcient modiﬁcation of J after

setup, also provide

– UpdateIndex(k,op,id

,{w

}): The update

function with respect to a certain scheme-

speciﬁc set of operations. For example, op =

add/del adds/removes a document D with iden-

tiﬁer id

and keywords {w

} to/from the en-

crypted index.

3.2 Security of SE Schemes

Informally speaking, an SE scheme is secure if it re-

veals no sensitive information to the untrusted server,

keeping plaintext content of the encrypted documents

and search queries private. However, trading off ef-

ﬁciency against security almost all practical schemes

leak information to the server: Either the number of

documents matching a query (i.e. the size pattern)

or other partial information on the access pattern (i.e.

the ids of the matching documents) which might be

used to infer the user’s search pattern. Hiding access

and search pattern is a subtle issue. Although there

exist several formal notions to reﬂect trapdoor, index

and update security, many of them do not capture all

threats that result from the minimal information le-

akage on the above mentioned patterns. Hence the

majority of schemes backed by security proofs are ne-

vertheless vulnerable to ﬁle injection attacks (Zhang

et al., 2016), or statistical inference by counting at-

tacks (Naveed et al., 2015),(Cash et al., 2015), or such

attacks which exploit prior knowledge on the user’s

search habit (Liu et al., 2014).

Dynamic schemes are particularly vulnerable to

ﬁle injection if they are not forward and backward

secure. Forward security means that previously sent

search token cannot be applied to newly added data,

and backward security prohibits the application of ne-

wly generated search queries to former states of the

document collection. At the time of writing, (Chang

and Mitzenmacher, 2005), (Bost, 2016), (Bost et al.,

2016) and (Stefanov et al., 2014) are the only publis-

hed forward secure schemes, and only (Bost et al.,

2017) supports both forward and backward security.

4 SEARCHITECT FRAMEWORK

Searchitect is a complementary infrastructure to pro-

vide search functionality to existing encrypted web-

applications. Operating on indexes only, Searchitect

separates the search functionality entirely from the

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

294

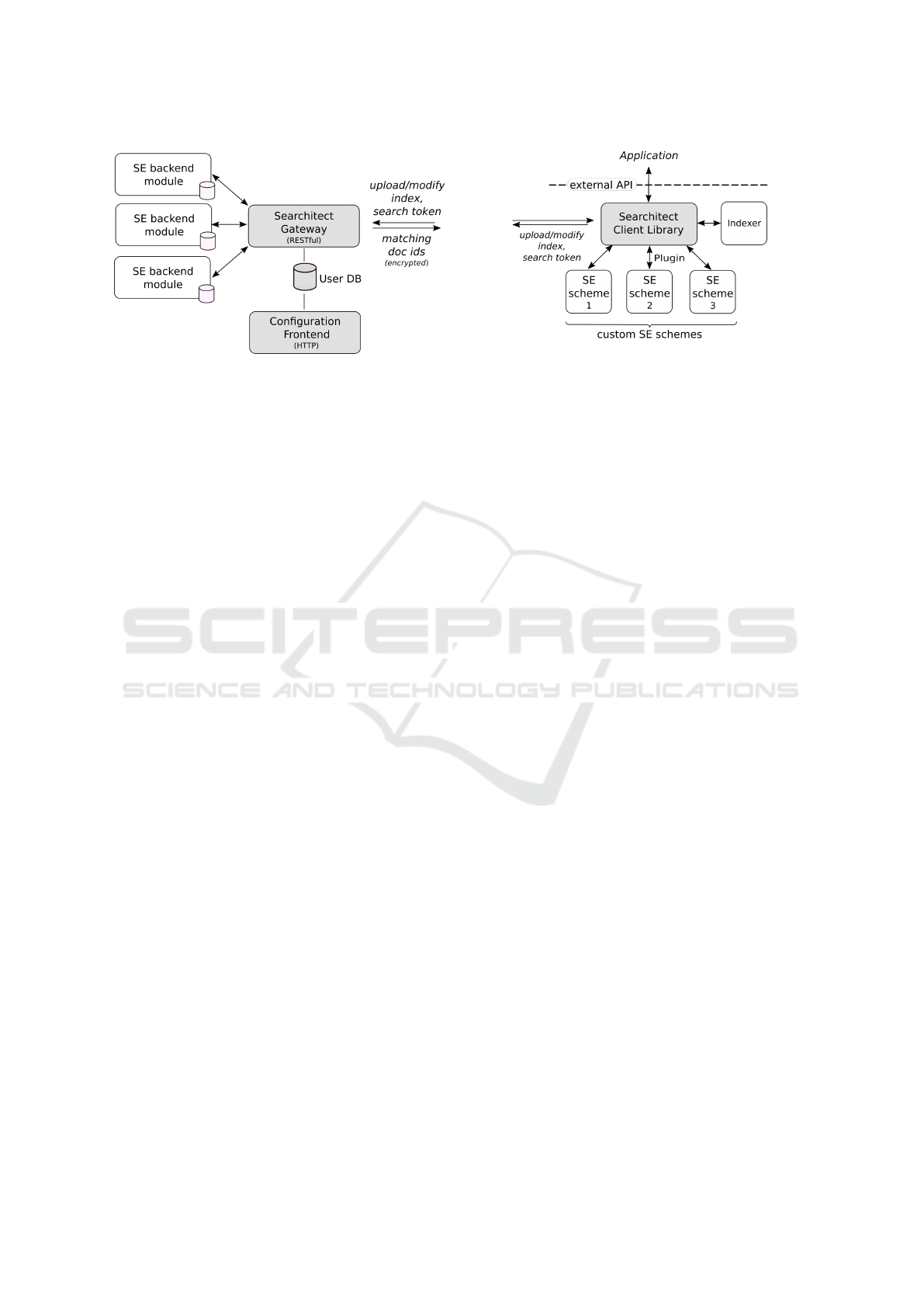

Figure 3: The Searchitect server comprises a RESTful gate-

way, which forwards authenticated requests to its backend

searchable encryption modules.

document storage itself, and serves as an abstraction

layer for the index part of arbitrary SE schemes (cf.

Figure 1). Searchitect consists of two main compo-

nents:

• The Searchitect server, offering a RESTful web-

service which handles the search on the outsour-

ced index, and

• the Searchitect client, which is integrated into the

client software on the user’s device, and which

provides the interface for search queries, index se-

tup and modiﬁcation.

4.1 The Searchitect Server

Searchitect’s webservice, cf. Figure 3, hosts several

customized Searchitect instances, i.e. SE backend

modules comprised of the scheme speciﬁc algorithms

and the encrypted indexes. Besides its web-based

conﬁguration frontend it provides a RESTful gateway

for the client-server interaction, which handles client

authentication and forwarding of the client requests to

their respective backend. Conﬁguration and manage-

ment of a Searchitect instance is done by the owner

via the web frontend: An owner might choose to ap-

ply several copies of the same SE backend module

to experiment with load balancing, or select different

SE schemes to compare their performance. Besides

a certain set of pre-deﬁned SE schemes, as described

in Section 4.4, Searchitect allows to use user-speciﬁc

SE modules, and provides a simple access manage-

ment (user addition and revocation) both for single

and multi-user schemes. The Searchitect server offers

logging of server/client activities at different levels of

granularity to facilitate administration and evaluation:

• Basic: Reports access from clients, including the

type of operation (search / update) and size of the

encrypted index over time.

Figure 4: The Searchitect client serves as an abstraction

layer to the custom cryptographic SE schemes.

• Advanced: Extends the basic log by timing me-

asurements of server side update and search re-

quest, including the communication cost.

• Complete: Supplements the server side measure-

ments by timing measurements collected from the

clients. This mode allows to identify equivalent

requests over separate SE instances to compare

different SE schemes, if desired.

Besides that, the Searchitect server may also be used

for key distribution of various multiuser SSE sche-

mes, see Section 4.3.

4.2 The Searchitect Client

The Searchitect client, as shown in Figure 4, is a thin

abstraction layer between the application and cryp-

tographic SE schemes. It provides a simple generic

API, which covers basic setup, search and edit com-

mands (Table 1), and handles the communication be-

tween the application, its SE plugins, and the Sear-

chitect webservice. While the client undertakes all

non-speciﬁc tasks such as user authentication, log-

ging, indexing plaintext documents and caching chan-

ges, the SE plugins are responsible for the actual cryp-

tographic operations. They implement the scheme-

speciﬁc algorithms such as BuildIndex, UpdateIndex

and Trapdoor, and translate the generic SE com-

mands into appropriate procedures.

The Searchitect client holds a password-locked

master key, which is encrypted in a semantically se-

cure way to prevent ofﬂine dictionary attacks. The

master key is used to unlock the actual key material

for the SE scheme(s) and to authenticate at the ser-

ver. When performing a search, the communication

ﬂow is as follows: The application hands over a se-

arch query to the Searchitect client, which utilizes its

chosen backend SE-plugin to transform the query via

Trapdoor into a search token. If already authentica-

ted, the Client sends the search token along with its

Searchitect - A Developer Framework for Hybrid Searchable Encryption (Position Paper)

295

Table 1: API commands of the Searchitect client (draft).

get/setURL() retrieves or sets the URL of the Searchitect webservice.

setPwd() sets the user’s client password, which is used to secure locally stored

key material.

setLog() controls the client’s logging functions, including distribution of collected

log data to the server.

add/rmDoc(), updateDoc() adds, removes or updates the index locally, by handing over one or more

plaintext documents.

pushChanges() uploads the locally gathered changes to the Searchitect server.

searchIndex(query) The actual search function. Creates the keyed search token, sends it to

the server and extracts the document identiﬁers from its response.

(previously received) access token to the Searchitect

webservice. The server processes the request (again,

using the selected SE backend) and returns the reply

to the client. The client uses its key material to ex-

tract the plaintext list of matching document ids from

the encrypted search reply, handing it over to the ap-

plication. Subquent steps are outside the scope of the

Searchitect framework. E.g., the application might se-

lect some, or all of the document ids to receive either

metadata or the full documents from the cloud storage

and decrypt them with a key that is only known to the

application.

4.3 Security Considerations

To prevent passive eavesdropping and active attacks

on the client-server channel, communication between

the client and the server needs to be secured. We pro-

pose to use Transport Layer Security (TLS) with ser-

ver certiﬁcate to establish a secure and authenticated

channel. Subsequent client authentication is done in-

side that secured channel, using a zero-knowlege pro-

tocol such as HMQV (Krawczyk, 2005) and the user’s

master key as client secret. A PKI-free alternative is

to perform a TLS-SRP handshake, (Wu, 1998), using

the user’s password, whitened by the master key, as

SRP’s client credential. Whitening is essential to pre-

vent a curious server from dictionary attacks on the

SRP client veriﬁer.

Symmetric multi-reader schemes require key dis-

tribution. As any other conﬁguration of the Searchi-

tect instance, this can be done via Searchitect’s web

frontend: for instance, the owner’s browser receives

the user’s HMQV public key (or SRP veriﬁer) from

the Searchitect server, and uses this public key to

(EC)-ElGamal-encrypt the symmetric key to be de-

livered. This encrypted key is then returned to the

Searchitect server, which hands it over to the client

when logged in.

One may expand any single user SE scheme to a

multi-user setting, distributing the same trapdoor key

among all users. Once a user is revoked by the ow-

ner of the Searchitect instance, the server blocks furt-

her access from that user. As all other client-server

communication remains secure, a revoked user can-

not learn anything about the requests of the others.

However, such a construction should not be confused

with a real single-writer/multi-reader (S/M) scheme:

it does not prevent a malicious server colluding with a

user, revoked or not, henceforth decrypting the search

token of all others by a dictionary attack.

4.4 Implementation

As can be seen in Figures 3 and 4, the implementation

will consist of at least 4 separate parts:

• The gateway service, which handles client reque-

sts and proxies the search requests to its backends.

• The server backends, implementing one SE

scheme each. They are responsible for actually

storing the search index and acting upon it.

• The client library, acting as a facade for the appli-

cation developers exposing the functionality des-

cribed in Table 1.

• The client backends, which are called by the client

library to create the actual trapdoors for the server.

The SE implementations have to match those of

the server backends.

Our ﬁrst server and client prototypes will be in Java,

backed by the Clusion Library’s implementation of

a forward-secure variant of Dyn2Lev (Cash et al.,

2014). Extensions to support the schemes from (Bost,

2017) are desirable and translations of the client code

to other languages like C, C++ or Python are plan-

ned thereafter. It should be noted that the modular

construction of Searchitect and the HTTP based com-

munication will allow an interaction between imple-

mentations done in different programming languages

on the server and the client.

To support an easy deployment and testing of the

server part, the microservices architecture will be

provided in a containerized solution using Doc-

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

296

ker

technology. The source code will be made avai-

lable to the public under an OSI approved open source

license.

5 SUMMARY AND OUTLOOK

The main point of Searchitect is to be easily integra-

ted into software products, without requiring a deeper

understanding of the chosen SE schemes by the appli-

cation developer or complex modiﬁcations of already

existing programs. Therefore Searchitect focuses on:

1. a comprehesible and easy to use API and docu-

mentation for developers,

2. an expandable framework to new schemes, and

3. an easily deployable and testable solution for pri-

vate and public clouds.

Our ﬁrst steps will be, as already discussed in more

detail in Section 4.4, the development of the gateway

service and a dummy SE scheme for testing purpo-

ses. Subsequently, we will implement the entire ser-

ver and client architecture, as well as a fully functio-

nal SE scheme in order to provide a proof-of-concept

for evaluation. Searchitect’s approach is generic, and

so is its scope of application. However, due to its hy-

brid design, the typical use cases we are considering

are:

• cloud backup programs, allowing the restoration

of a single ﬁle,

• cloud storage programs, allowing retrieval of a

speciﬁc ﬁle on devices with a constrained network

connection,

• mail user agents, allowing searching for a speciﬁc

message while keeping the e-mails encrypted on

the IMAP server,

• stacked ﬁlesystem encryption tools, also allowing

retrieval of a speciﬁc ﬁle on devices with a con-

strained network connection.

We once more emphasize the experimental cha-

racter of our framework. As searchable encryption is

a very active ﬁeld of research, Searchitect (as any ot-

her SE framework) should be used in prototype soft-

ware projects only.

ACKNOWLEDGEMENTS

Part of our work on the Searchitect project is funded

by Netidee

(Internet Privatstiftung Austria), grant

https://www.docker.com

https://www.netidee.at

no. 2099.

REFERENCES

Asghar, S. C. M. R., Galbraith, S. D., and Russello, G.

(2017). Secure and practical searchable encryption:

A position paper. In Australasian Conference on In-

formation Security and Privacy (ACISP 2017), LNCS

10342, pages 266 – 281. Springer Verlag.

Boneh, D., Crescenzo, G. D., Ostrovsky, R., and Persiano,

G. (2004). Public key encryption with keyword se-

arch. In EUROCRYPT 2004, LNCS 3027, pages 506

– 522. Springer Verlag.

osch, C., Hartel, P., Jonker, W., and Peter, A. (2014). A

survey of provably secure searchable encryption. In

ACM Computing Surveys, 47(2), pages 18:1–18:51.

ACM.

Bost, R. (2016). Σoφoς – Forward secure searchable en-

cryption. In 23rd ACM Conference on Computer

and Communications Security (CCS’16), pages 1143

– 1154. ACM.

Bost, R. (2017). Open symmetric searchable encryption.

https://github.com/OpenSSE.

Bost, R., Fouque, P.-A., and Pointcheval, D. (2016). Veri-

ﬁable dynamic symmetric searchable encryption op-

timality and forward security. In 23rd ACM Con-

ference on Computer and Communications Security

(CCS’16), pages 1143 – 1154. ACM.

Bost, R., Minaud, B., and Ohrimenko, O. (2017). Forward

and backward private searchable encryption from con-

strained cryptographic primitives. In 24rd ACM Con-

ference on Computer and Communications Security

(CCS’17), pages 1465 – 1482. ACM.

Cash, D., Grubbs, P., Perry, J., and Ristenpart, T. (2015).

Leakage-abuse attacks against searchable encryption.

In 22rd ACM Conference on Computer and Commu-

nications Security (CCS’15), pages 668 – 679. ACM.

Cash, D., Jaeger, J., Jarecki, S., Jutla, C., Krawczyk, H.,

Rou, M.-C., and Steiner, M. (2014). Dynamic sear-

chable encryption in very-large databases: Data struc-

tures and implementation. In Network and Distributed

System Security (NDSS) Symposium 2014, pages 1 –

16. Internet Society.

Chang, Y.-C. and Mitzenmacher, M. (2005). Searchable

symmetric encryption: Improved deﬁnitions and ef-

ﬁcient constructions. In Proceedings of the Third

International Conference on Applied Cryptography

and Network Security (ACNS’05), pages 7442 – 455.

Springer Verlag.

Cision PR Newswire (2017). Equifax announces cyber-

security incident involving consumer information.

Sep. 07, 2017. https://www.prnewswire.com/news-

releases/equifax-announces-cybersecurity-incident-

involving-consumer-information-300515960.html.

Searchitect - A Developer Framework for Hybrid Searchable Encryption (Position Paper)

297

Encrypted Systems Lab (2017). Clusion v0.2.0.

https://github.com/encryptedsystems/Clusion.

Ferreira, B. and Domingos, H. (2013). Searching private

data in a cloud encrypted domain. In Proceedings of

the 10th Conference on Open Research Areas in Infor-

mation Retrieval (OAIR’13), pages 165 – 172. Centre

de Hautes Etudes Interantionales D’Informatique Do-

cumentaire (CID).

Ferreira, B., Leit

ao, J., and Domingos, H. (2017). Mul-

timodal indexable encryption for mobile cloud-based

applications. In 47th Annual IEEE/IFIP International

Conference on Dependable Systems and Networks,

pages 213 – 224. IEEE.

Ferreira, B., Rodrigues, J., Leit

ao, J., and Domingos, H.

(2015). Privacy-preserving content-based image re-

trieval in the cloud. In IEEE 34th Symposium on Reli-

able Distributed Systems, pages 11 – 20. IEEE.

Grubbs, P., McPherson, R., Naveed, M., Ristenpart, T., and

Shmatikov, V. (2016). Breaking web applications built

on top of encrypted data. In 23rd ACM Conference on

Computer and Communications Security (CCS’16),

pages 1353 – 1364. ACM.

Kamara, S. and Moataz, T. (2017). Boolean searcha-

ble symmetric encryption with worst-case sub-linear

complexity. In EUROCRYPT 2017, Part III, LNCS

10212, pages 94 – 124. IACR.

Krawczyk, H. (2005). Hmqv: A high-performance secure

difﬁe-hellman protocol. In Advances in Cryptology –

CRYPTO 2005, LNCS 3621, pages 546 – 566. Sprin-

ger.

Liu, C., Zhu, L., Wang, M., and Tan, Y.-A. (2014). Search

pattern leakage in searchable encryption: Attacks and

new construction. Information Sciences, 265:176 –

188.

Meteor Development Group Inc. (2014). Me-

teor: The fastest way to build javascript apps.

https://www.meteor.com.

Naveed, M., Kamara, S., and Wright, C. V. (2015). In-

ference attacks on property-preserving encrypted da-

tabases. In 22rd ACM Conference on Computer and

Communications Security (CCS’15), pages 644 – 655.

ACM.

New York Times (2016). Yahoo says 1 billion user accounts

were hacked. Dec. 14, 2016. https://www.nytimes.

com/2016/12/14/technology/yahoo-hack.html.

Popa, R., Redﬁeld, C., Zeldovich, N., and Balakrishnan, H.

(2011a). CryptDB: Protecting conﬁdentiality with en-

crypted query processing. In Twenty-Third ACM Sym-

posium on Operating Systems Principles (SOSP’11).

ACM.

Popa, R., Stark, E., Helfer, J., Valdez, S., Zeldovich, N.,

Kaashoek, M., and Balakrishnan, H. (2014a). Buil-

ding web applications on top of encrypted data using

Mylar. In 11th USENIX Conference on Networked Sy-

stems Design and Implementation (NSDI’14), pages

157 – 172. USENIX Association.

Popa, R. A., Redﬁeld, C., Tu, S., Balakrishnan, H., Kaas-

hoek, F., Madden, S., Zeldovich, N., and Burrow, A.

(2011b). CryptDB. https://css.csail.mit. edu/cryptdb.

Popa, R. A., Stark, E., Valdez, S., Helfer, J., Zeldovich, N.,

Kaashoek, F., and Balakrishnan, H. (2014b). Mylar

research platform. https://css.csail.mit.edu/mylar/.

Shen, E., Shi, E., and Waters, B. (2009). Predicate privacy

in encryption systems. In Sixth IACR Thery of Cryp-

tography Conference (TCC 2009), LNCS 5444, pages

457 – 473. Springer Verlag.

Song, D. X., Wagner, D., and Perrig, A. (2000). Practical

techniques for searches on encrypted data. In 2000

IEEE Symposium on Security and Privacy (SP’00),

pages 44 – 55. IEEE.

Stefanov, E., Papamanthou, C., and Shi, E. (2014). Practical

dynamic searchable encryption with small leakage.

In Network and Distributed System Security (NDSS)

Symposium 2014. Internet Society.

The Guardian (2015). Massive anthem health insu-

rance hack exposes millions of customers’ details.

Feb. 05, 2015. https://www.theguardian.com/us-

news/2015/feb/05/millions-of-customers-health-

insurance-details-stolen-in-anthem-hack-attack.

Wu, T. (1998). The secure remote password protocol. In

Proceedings of the 1998 Internet Society Symposium

on Network and Distributed Systems Security, pages

97 – 111.

Zhang, Y., Katz, J., and Papamanthou, C. (2016). All your

queries are belong to us: The power of ﬁle-injection

attacks on searchable encryption. In 25th USENIX

Security Symposium (USENIX 16), pages 707 – 720.

USENIX.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

298
