Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems

Applied to an Internet of Things Application

M. Jeroen Van Der Donckt

, Danny Weyns

1,2

, M. Usman Iftikhar

1,2

and Ritesh Kumar Singh

Department of Computer Science, KU Leuven, Belgium

Department of Computer Science, Linnaeus University, V

axj

o, Sweden

Keywords:

Self-adaptation, MAPE, Models at Runtime, Statistical Model Checking, Cost-Beneﬁt Analysis Method,

CBAM, Internet-of-Things, IoT.

Abstract:

Ensuring the qualities of modern software systems, such as the Internet of Things, is challenging due to various

uncertainties, such as dynamics in availability of resources or changes in the environment. Self-adaptation is an

established approach to deal with such uncertainties. Self-adaptation equips a software system with a feedback

loop that tracks changes and adapts the system accordingly to ensure its quality goals. Current research in this

area has primarily focussed on the beneﬁts that self-adaptation can offer. However, realising adaption can also

incur costs. Ignoring these costs may invalidate the expected beneﬁts. We start with demonstrating that the

costs for adaptation can be signiﬁcant. To that end, we apply a state-of-the-art approach for self-adaptation

to an Internet of Things (IoT) application. We then present CB@R (Cost-Beneﬁt analysis @ Runtime), a

novel model-based approach for runtime decision-making in self-adaptive systems. CB@R is inspired by the

Cost-Beneﬁt Analysis Method (CBAM), which is an established approach for analysing costs and beneﬁts of

architectural decisions. We evaluate CB@R for a real world deployed IoT application and compare it with the

conservative approach applied in practice and a state-of-the-art self-adaptation approach.

1 INTRODUCTION

Modern software systems often operate in very dyna-

mic environments. Examples are IoT systems, such as

unmanned underwater vehicles (UUVs) that are used

for oceanic surveillance to monitor pollution levels

(Gerasimou et al., 2017), and supply chain systems

that ensure sufﬁcient, safe, and nutritious food to the

global population (Bennaceur et al., 2016). The dyna-

mics of such systems introduce uncertainties that may

be difﬁcult or even impossible to anticipate before de-

ployment. Hence, these systems need to resolve the

uncertainties during operation.

A common technique to deal with uncertainties in

modern software systems is self-adaptation (Salehie,

2009; Cheng et al., 2009; De Lemos et al., 2013;

Weyns, 2018; de Lemos et al., 2017) that equips a

system with one or more feedback loops. The aim

of self-adaptation is to let the system collect additi-

onal knowledge about itself and its environment, and

adapt itself to satisfy its goals under the changing con-

ditions, or if necessary degrade gracefully.

Current self-adaptation approaches tend only to

look at the beneﬁts that can be gained by adaptation

(Weyns and Ahmad, 2013). These beneﬁts are typi-

cally improvements in terms of system qualities (self-

optimisation, self-healing, etc. (Kephart and Chess,

2003)). However, applying adaptations to a system

may also incur costs. These costs are domain speci-

ﬁc and may be expressed in terms of the extra use of

resources or the time or energy that it takes to apply

the adaptation actions. For example, in an IoT system

with battery-powered motes, the cost may be expres-

sed as the energy required to communicate adaptation

actions to the motes that need to adapt their network

settings.

Examples of initial work in this direction are (Ber-

tolli et al., 2010) that uses an adaptation cost model

for quantifying the overhead introduced by autono-

mic behaviour in an adaptive parallel application, and

(Cailliau and van Lamsweerde, 2017) that performs

a tradeoff analysis in a runtime adaptation approach

to increase the satisfaction rate of system goals. Ho-

wever, to the best of our knowledge, no systematic

approach exists today that considers both the beneﬁts

and costs for adaptation as ﬁrst-class citizens in the

decision-making for self-adaptation. Hence, the rese-

arch problem tackled in this paper is:

478

Van Der Donckt, M., Weyns, D., Iftikhar, M. and Kumar Singh, R.

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application.

DOI: 10.5220/0006815404780490

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 478-490

ISBN: 978-989-758-300-1

How to enable decision-making in self-

adaptive systems that considers both the be-

neﬁts of adaptation and the costs for realising

adaptation as ﬁrst-class concerns?

To underpin the relevance of the research ques-

tion, we start with demonstrating that the costs for

adaptation can be signiﬁcant. To that end, we ap-

ply a state-of-the-art approach for self-adaptation (If-

tikhar and Weyns, 2014) to DeltaIoT, an Internet of

Things (IoT) application that has been proposed as an

exemplar for research in the ﬁeld of engineering self-

adaptive systems (Iftikhar et al., 2017).

To tackle the research problem of this paper,

we then introduce CB@R (Cost-Beneﬁt analysis @

Runtime), a new cost-beneﬁt analysis method for

decision-making in self-adaptive systems that exploits

models at runtime (Blair et al., 2009). CB@R le-

verages on the principles of the Cost-Beneﬁt Analy-

sis Method (CBAM), which is an established appro-

ach for analysing costs and beneﬁts of decisions in ar-

chitectural design (CBAM, 2018). CB@R considers

both the expected beneﬁts produced by adaptation and

the expected cost implied to realise adaptation as ﬁrst

class concerns when selecting a conﬁguration to adapt

the system and realise the adaptation goals.

We evaluate CB@R with a real world setup of

an IoT application, called DeltaIoT (Iftikhar et al.,

2017), and compare it both with a conservative ap-

proach that is applied in practice and a state-of-the-art

adaptation approach.

The remainder of this paper is structured as fol-

lows. Section 2 provides background on CBAM, the

basics of self-adaptation, and DeltaIoT. In Section 3,

we illustrate the relevance of costs for adaptation with

a state-of-the-art self-adaptation approach applied to

DeltaIoT. Section 4 introduces CB@R, the novel cost

beneﬁt analysis approach for decision-making at run-

time in self-adaptive systems. In Section 5, we evalu-

ate CB@R and compare it with two other approaches.

Section 6 discusses related work. Finally, Section 7

draws conclusions and outlines ideas for future work.

2 BACKGROUND

2.1 CBAM

The Cost Beneﬁt Analysis Method (CBAM) is an es-

tablished method for analysing the costs and bene-

ﬁts of architectural designs of software-intensive sy-

stems (CBAM, 2018). CBAM takes into account the

uncertainty factors regarding costs and beneﬁts, pro-

viding a basis for informed decision-making about

architectural design or upgrade. The concepts of

CBAM are used as inspiration for CB@R.

Given that the resources for building and main-

taining a software-intensive system are ﬁnite, soft-

ware architects require a rational process to help them

choose among architectural options. An architectu-

ral option refers to a candidate design of a software-

intensive system that is based on applying a particu-

lar architectural approach (for example a peer-to-peer

style or a client-server style). Different architectu-

ral options will have different technical and econo-

mic implications. Technical implications are the va-

rious implemented features and the qualities associa-

ted with them, each of which brings some beneﬁt to

the organisation. A direct economic implication is the

cost of implementing the system.

Business'Goals

Architectural'

Decisions

Costs

Beneﬁts

CBMAS’s'Goal:'Elicit'

these'and'maximize'

the'diﬀerence

Performance

Availability

Security

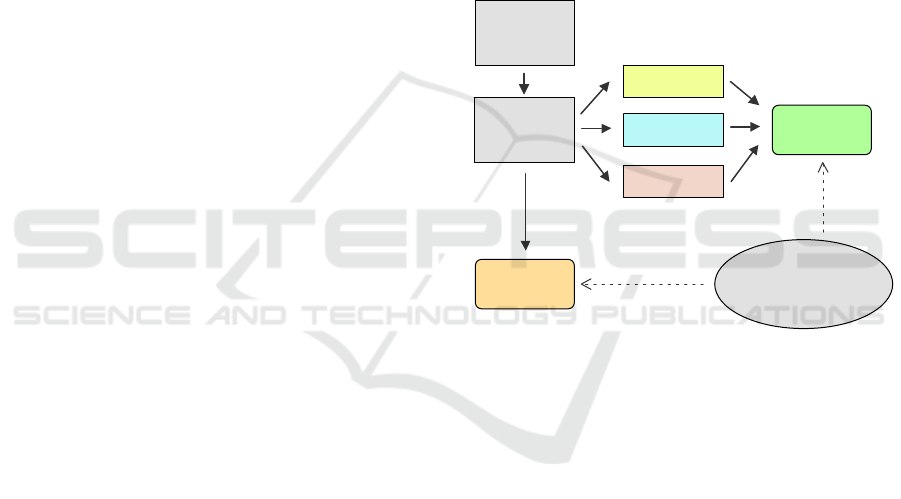

Figure 1: Context for CBAM process.

CBAM models the beneﬁts and costs of architec-

tural design decisions providing a mean for optimi-

sing such decisions. We illustrate CBAM functiona-

lity by using Figure 1. In the example, the relevant

qualities may be performance, availability and secu-

rity, each with a particular importance. Each archi-

tectural design (resulting from a set of architectural

decisions) will yield different values for these quali-

ties, resulting in some beneﬁt for the system stakehol-

ders. Each architectural design will also incur a cost.

For example, using redundant hardware to achieve a

desired level of availability has a cost, while check

pointing to a disk ﬁle has a different cost. As shown

in the ﬁgure, the goal of CBAM is to maximise the

difference between the beneﬁt derived by the system

design and the cost of implementing the design.

Using the beneﬁt and cost of each architectural de-

sign, CBAM allows the stakeholders choosing among

architectural designs based on their Value For Cost

(VFC), the ratio of utility to cost:

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

479

V FC =

TotalBene f it

Cost

(1)

TotalBeneﬁt stands for the overall utility produced

by an architectural design. This total beneﬁt is deﬁned

as the weighted sum of the utility values for the exa-

minated quality attributes. The VFC values are used

to rank the architectural designs (and thus design de-

cision), from which the stakeholders can choose.

2.2 Self-adaptation

In this research, we apply architecture-based self-

adaptation (see Figure 2), where a self-adaptive sy-

stem consists of a Managed System that operates in

an Environment providing the domain functionality to

users of the system and a Managing System that mo-

nitors and adapt the Managed System realising some

Adaptation Goals (Oreizy et al., 1998; Garlan et al.,

2004; Kramer and Magee, 2007; Weyns et al., 2012).

At a given time, the Managed System has a parti-

cular conﬁguration that is determined by the arrange-

ment and settings of its running components. We re-

fer to the different choices for adaptation from a given

conﬁguration as the adaptation options. Adapting the

managed system means selecting an adaptation option

and changing the current conﬁguration accordingly.

The Environment in which the system operates can be

the physical world or computing elements that are not

under control of the system. The Environment and the

Managed System may expose stochastic behaviour.

A common approach to realise the Managing Sy-

stem is by means of a MAPE-K feedback loop (Kep-

Environment

Adaptation

Goals

Managing

System

Managed System

effect

adapt

sense

read

Self-Adaptive System

Figure 2: Basic conceptual model of self-adaptive system

(Weyns, 2018).

hart and Chess, 2003; Dobson et al., 2006; Salehie,

2009; Weyns et al., 2013) that comprises four compo-

nents: Monitor, Analyse, Plan, and Execute that share

common Knowledge. Knowledge comprises models

of the managed system referring to its structure, beha-

viour, goals, and other relevant aspects of the system

or its adaptation (Weyns et al., 2012). The Monitor

collects runtime data from the Environment and the

Managed system to keep the models up to date. The

Analyser analyses the qualities of the different adap-

tation options and compares these with the qualities of

the current conﬁguration to determine whether adap-

tation is required. If so, the Planner select the best

adaptation option based on the adaptation goals and

composes a plan to adapt the system. Finally, the Exe-

cuter executes the plan.

2.3 DeltaIoT

DeltaIoT is a reference Internet of Things application

(IoT) that has been developed to evaluate new appro-

aches to self-adaptation and compare their effective-

ness with other solutions (Iftikhar et al., 2017). Del-

taIoT compromises both a simulator for ofﬂine expe-

rimentation as well as real physical setup.

DeltaIoT has been set up by VersaSense, a

provider of industrial IoT products and services

(www.versasense.com/). The network consists of 15

Long-Range IoT motes (LoRa) that are deployed at

the campus of KU Leuven as shown in Figure 3. The

motes are strategically placed to provide access con-

trol to labs (via RFID sensor), to monitor the mo-

vements and occupancy status (via passive infrared

sensor) and to sense the temperature (via heat sensor).

Each mote in the network relays its sensor data to

the gateway using wireless multi-hop communication.

Communication in the network is time-synchronised

and organised in cycles. Each cycle comprises a ﬁxed

number of communication slots. Each slot deﬁnes a

sender mote and a receiver mote that can communi-

cate with one another. The communication slots are

fairly divided among the motes. For example, the sy-

stem can be conﬁgured with a cycle time of 570 se-

conds (9.5 minutes), each cycle comprising 285 slots,

each of 2 seconds. For each link, 40 slots are allocated

for communication between the motes.

Two key qualities of DeltaIoT are energy con-

sumption and reliability. Since motes are battery po-

wered and sending messages is the dominant energy

cost, it is crucial for the system to optimise commu-

nication. Two factors determine the critical quality

properties: the transmission power settings used by

the motes for communication (ranging from 1 for min

power to 15 for max power) and the distribution of

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

480

Gateway

RFID sensor

Passive

Infrared sensor

Heat sensor

Wireless link

[id]

Mote ID

[2]

[4]

[6]

[10]

[5]

[9]

[8]

[1]

[3]

[7]

[11]

[13]

[14]

[12]

[15]

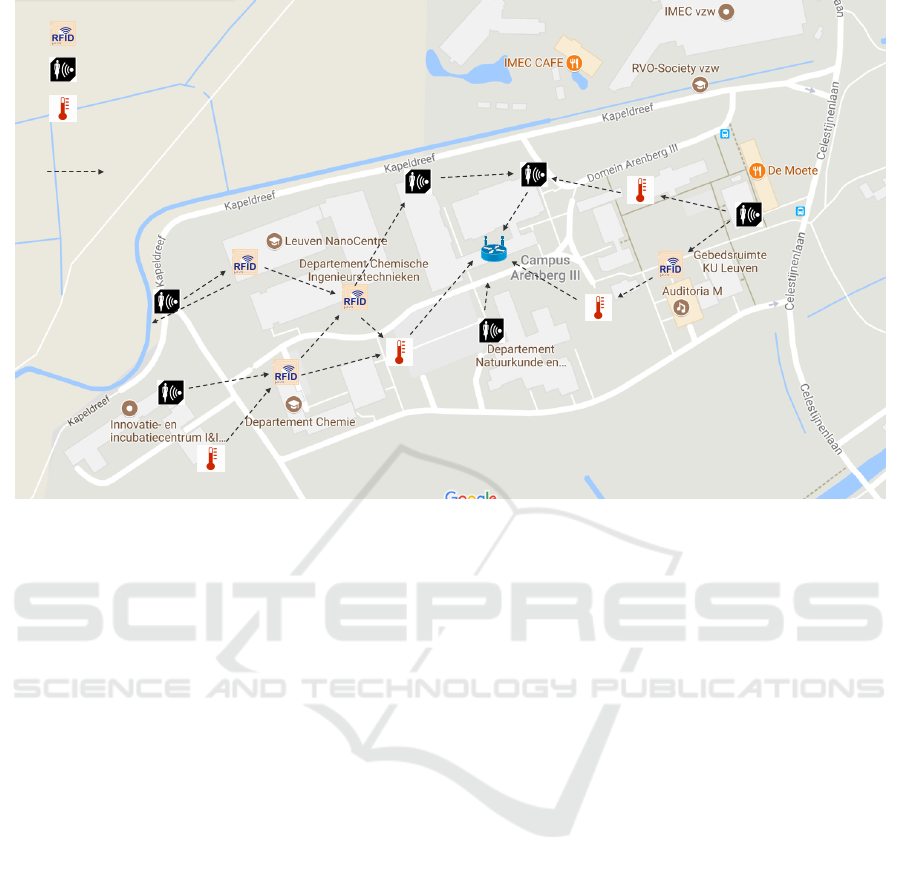

Figure 3: DeltaIoT deployment at KU Leuven Campus.

the messages sent by each mote over the links to its

parents (e.g., for motes with two parents: 0% to one

parent and 100% to the other, 20/80, 40/60, 60/40,

80/20 and 100/0). DeltaIoT offers a user interface for

operators to set both the power settings of the motes

and the distribution of messages in the network. This

interface shows the status of user deﬁned properties.

The DeltaIoT network is subject to various uncer-

tainties. We consider in this paper two types of uncer-

tainties: network interference (e.g. due to activities of

neighbouring computing systems, or due to changing

whether conditions) and ﬂuctuating load of messages

(the load of messages generated by motes may depend

on various factors, such as the presence of people).

These uncertainties make guaranteeing the system re-

quired properties a complex problem. To deal with

these uncertainties, current practice typically applies a

conservative approach, where the transmission power

is set to maximum and all messages are forwarded to

all parents. Operators may tune some of the settings

based on experiences. This approach guarantees high

reliability, but implies high energy consumption and

thus reduced lifetime of the network.

For the evaluation with DeltaIoT, we deﬁne two

concrete quality requirements that need to be realised

regardless of possible network interference and ﬂuc-

tuating load of messages generated in the network:

R1: The average packet loss over 15 hours should not

exceed 10%.

R2: The average energy consumption over 15 hours

should be minimized.

When self-adaptation is applied, these two quality

requirements become the adaptation goals.

3 RELEVANCE OF COSTS FOR

ADAPTATION

First we demonstrate the relevance of the cost for

adaptation using an example. Concretely, we ap-

ply ActivFORMS (Active FORmal Models for Self-

adaptation) (Iftikhar and Weyns, 2014), a formally

founded-model driven approach for self-adaptation,

to the DeltaIoT exemplar. ActivFORMS applies

architecture-based self-adaptation, where the mana-

ging system is realised with a MAPE-K feedback

loop. The Knowledge compromises a runtime model

for each quality property that is subject of adaptation

(corresponding to the adaptation goals). Each quality

model is speciﬁed as a stochastic timed automaton (or

network of these). The monitor updates variables in

these models that represent uncertainties using data

collected at runtime. The Analyzer dynamically com-

putes the adaptation options based on the variability

in transmission power settings of the motes and the

distribution factors for the links in the network (see

Section 2.3). For each adaptation option, the Analyser

estimates the expected qualities by running a number

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

481

of simulations on the quality models. The results for

the qualities of the adaptation options are used as se-

lection criteria in the Planner. In particular, the Plan-

ner selects the best option by applying rules that ex-

press the system quality requirements for DeltaIoT.

For the best option a plan is composed. This plan de-

ﬁnes the adaptation actions per mote (change power

setting and/or distributed factor) that are required to

adapt the current conﬁguration to the conﬁguration of

the selected best adaptation option. The Executor then

executes the actions of the plan.

When applied to DeltaIoT, the approach descri-

bed above only considers the beneﬁts of adaptation

(i.e. the contribution of adaptation to the adaptation

goals). To determine the importance of the cost for

realising adaptations, we start with deﬁning this cost.

In DeltaIoT, there is an upstream communication of

messages with data from the motes to the gateway.

The beneﬁts are deﬁned for this upstream communi-

cation. The adaptation actions are sent downstream,

from the gateway to the motes. We deﬁne the cost as

the energy that is consumed for sending and receiving

the adaptation message downstream. Default, Acti-

vFORMS does not take into account this cost when

selecting adaptation options. We study the impact of

the cost based on two deﬁnitions:

CostV 1 =

∑

pLenA(x) ∗ R + (pLenA(x) − 1) ∗ S (2)

CostV 2 =

∑

pLenL(y) ∗ R + (pLenL(y) − 1) ∗ S (3)

With x referring to a distinct adaptation action

(e.g. change the power setting of mote m

along the

link to m

to 6), while y refers to all the adaptation

actions of a link (e.g. change the power of mote m

along the link to mote m

to a setting of 6, and change

the distribution factor of this link to 40%). R and S

refer to the energy consumption of receiving or sen-

ding a message respectively. pLenA() and pLenL() re-

turn the length of the path from the gateway to the

source mote of the link that is subject of adaptation.

Since the gateway is directly connected to the elec-

tricity net, the cost of downstream communication of

the ﬁrst link is not relevant; this explains the minus

symbol in both deﬁnitions. In the ﬁrst version of the

cost, the information for each adaptation is (naively)

sent as a separate message; in the second deﬁnition,

adaptations per link are sent in one message.

To determine the impact of the cost for adaptation,

we compute the total energy cost as follows:

TotEnergyConsV

= EnergyCons +CostV

(4)

Where i can be either 1 or 2 referring to one of

the cost functions. EnergyCons refers to the energy

Reference EnergyConsump TotEnergyV1 TotEnergyV2

13 14 15 16 17 18

Energy Consumption Comparison

Energy Consumption (mC)

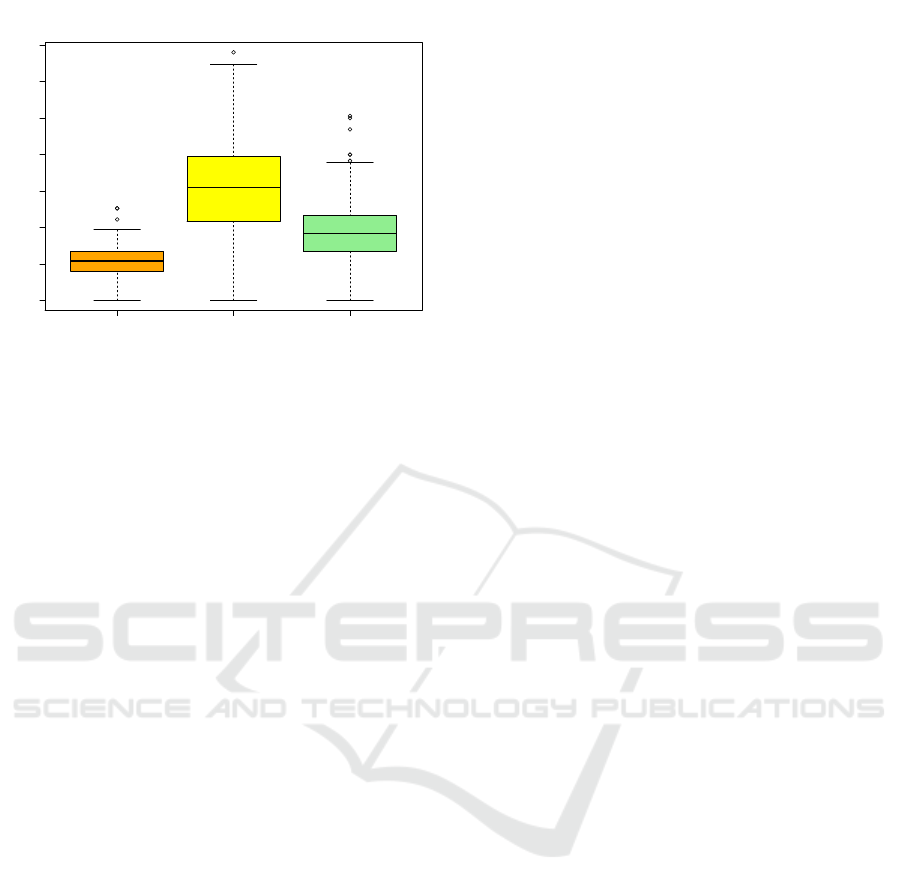

Figure 4: Impact of cost for ActivFORMS on DeltaIoT.

consumption for downstream messages, while CostV

refers to the energy required for transmitting the adap-

tation actions upstream. Hence, the total energy con-

sumption is deﬁned as the sum of both.

To determine the impact of the cost for adaptation,

we test the following hypothesis:

: The total energy cost for communication, inclu-

ding up- and downstream, is higher as the cost to

transmit the message with data to the gateway.

We used a setup with 15 motes (as shown in Fi-

gure 4) and 256 adaptation options. The IoT net-

work was initialised using the reference conﬁguration

(max. power settings and duplication of messages sent

to all parent motes). We performed four runs of 96 cy-

cles on the simulator. Figure 4 shows the results.

When comparing the energy consumption using

plain ActivFORMS (EnergyCons) with the approa-

ches that take into account the cost for adaptation

(TotEnergyConsV

), we observed a statistically sig-

niﬁcance difference (p-values smaller as 2.2 ∗ 10

−16

using Wilcox rangsum test). For the ﬁrst deﬁnition

of cost the average reduction of energy consumption

is 5.60% (mean 14.07 compared to 12.98 for plain

ActivFORMS), while for the second deﬁnition the

average reduction of energy consumption is 7.75%

(mean 13.75). In practice, the increase of the life-

time of the network may be smaller as not all motes

consume the same amount of energy over time, but of

course this applies to all evaluated approaches. Since

the total cost for V

is lower as for V

, we use the V

deﬁnition for the evaluation in Section 5.

To conclude, we can accept hypothesis H

. For

ActivFORMS, a state-of-the-art adaptation approach,

applied to the DeltaIoT exemplar, realising adaptation

has a signiﬁcant cost and cannot be ignored.

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

482

4 CB@R

We now present a novel method, called CB@R (Cost-

Beneﬁt analysis @ Runtime). CB@R enables runtime

decision-making in self-adaptive systems that expli-

citly considers beneﬁts and costs. The approach is

inspired by CBAM. However, in contrast to CBAM,

CB@R is an automated approach that makes (archi-

tectural) reconﬁguration decisions of the system at

runtime to deal with uncertainties. Hence, CB@R

can be considered as a runtime extension of CBAM,

where reconﬁguration of the system is necessary du-

ring operation to guarantee the best Value For Cost

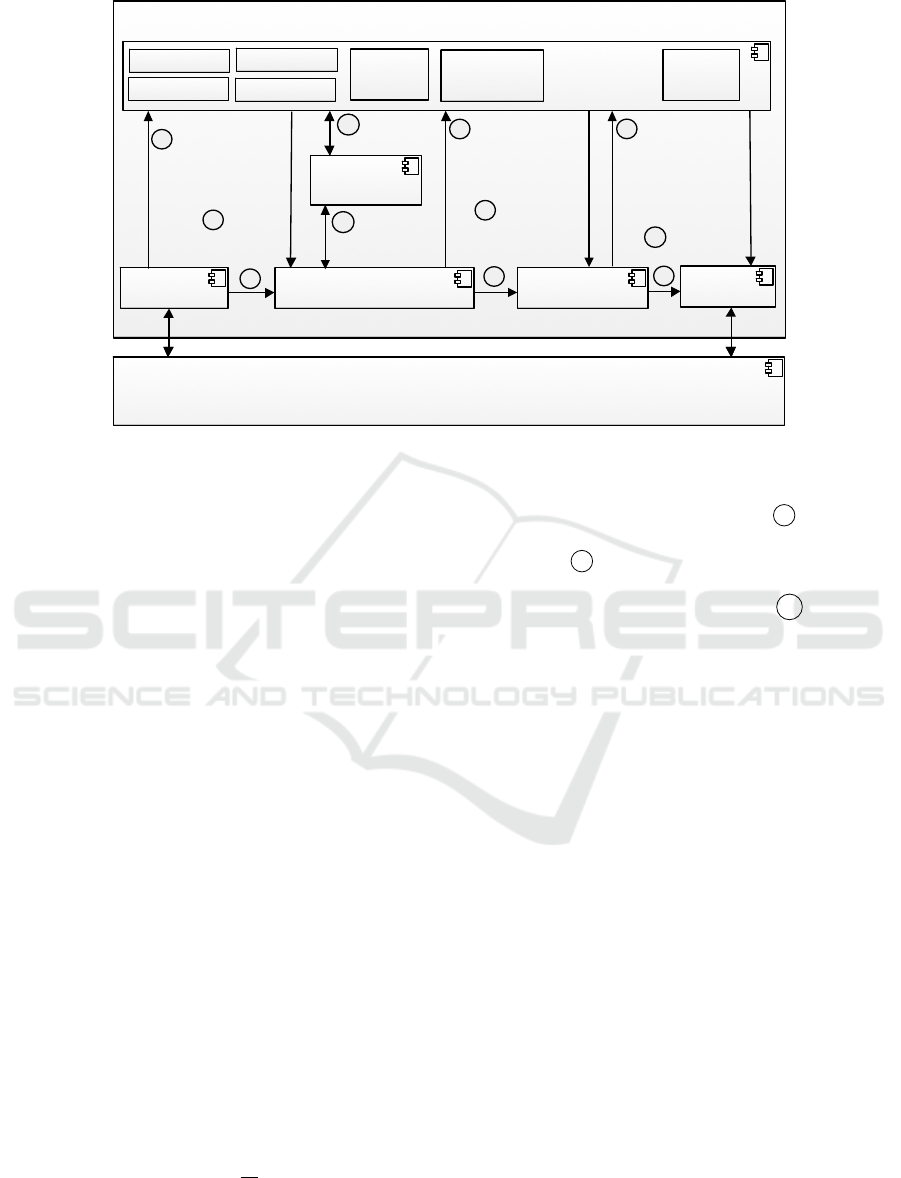

(VFC). Figure 5 shows how CB@R is integrated in a

MAPE feedback loop.

Knowledge Runtime Models. Central to the realisa-

tion of CB@R are a set of runtime models maintained

in the Knowledge repository of the MAPE feedback

loop. The models include a system model that provi-

des an abstraction of the managed system relevant to

realise the adaptation goals, and a context model that

provides an abstraction of the relevant parts of the en-

vironment in which the system operates.

Next, the Knowledge repository contains a qua-

lity model for each quality property that is subject to

adaptation. These quality models (possibly combined

with a system model and/or a context model) allow a

runtime veriﬁer to estimate the quality properties for

a particular conﬁguration of the managed system (i.e.,

an adaptation option as explained next).

To make an adaptation decision, CB@R requires a

set of adaptation options. Each adaptation option de-

ﬁnes a particular conﬁguration of the system that can

be reached through adaptation from the current con-

ﬁguration. The set of adaptation options deﬁnes all

such possible conﬁgurations of the managed system.

In this research, we assume that the managed system

has a limited, potentially high number of adaptation

options. This set may dynamically change over time.

This implies that system parameters with a continuous

domain that determine conﬁgurations need to be dis-

cretised. Heuristics can be applied to select the adap-

tation options in case of a very large set, but this is

out of scope of this paper. Note that this assumption

is not a restriction of CB@R in itself.

To determine the beneﬁts of adaptation with

CB@R, a set of runtime utility response curve mo-

dels are required, one for each quality property that is

subject of adaptation. A utility response curve model

(Len et al., 2013) for a particular quality expresses the

utility for the range of possible values of that quality

property. In a response curve model, the utility va-

lues can range from 0 to 100, while the values for the

qualities range from relevant minimum to maximum

values of the quality property. The utility response

curve models are deﬁned in consultation with the sta-

keholders and express how the utility for different va-

lues of the quality property changes as valued by the

stakeholders. Hence, capturing the utilities of alter-

native responses of adaption options enables CB@R

to make trade-off decisions in relation to the different

quality properties. Utility response curves can vary

linearly, nonlinearly, as a step function, or combinati-

ons of these.

To determine the cost of adaptation with CB@R,

the approach requires a cost model. Cost models

are domain speciﬁc and may represent various im-

plications of realising adaptation, such as delay cau-

sed through adaptation, resources required to realise

adaptation, etc. The cost model should allow to de-

termine the cost for each adaptation option, so that

CB@R can perform a cost-beneﬁt analysis for the dif-

ferent adaptation options.

Finally, the Knowledge repository contains a plan

that is produced by the Planner after an adaptation de-

cision is made. A plan consists of the adaptation acti-

ons that are required to adapt the system as required.

Realisation of CB@R. The MAPE elements exploit

the runtime models to realise CB@R as follows. The

Monitor tracks quality properties and uncertainty pa-

rameters of the managed system and the environ-

ment. The collected data is used to update the system

model, the context model, and the different quality

models 1 . When the Analyzer is triggered 2 it de-

termines the adaptation options 3 , i.e., all relevant

conﬁgurations of the managed system that can be re-

ached through adaptation from the current conﬁgura-

tion. For each adaptation option, the Analyzer deter-

mines the expected qualities that are relevant for adap-

tation using the Runtime Veriﬁer 4.1 . To that end, the

veriﬁer uses the runtime models of the different qua-

lities, possibly combined with the system and context

models, and computes estimates for the different qua-

lities of each adaptation option 4.2 . The veriﬁcation

results, i.e., the expected values of the quality proper-

ties associated with the different adaption options, are

then updated in the Knowledge repository 5 .

Next 6 , the Planner determines the Value For

Cost (VFC) for each adaptation option 7 . To calcu-

late the total beneﬁt of an adaptation option the Plan-

ner ﬁrst computes the utility for each quality. To that

end, the Planner uses the estimates for each quality as

determined by the Analyzer. The Planner determines

the utility for each estimated quality property using

the utility response curves model for the quality. This

is repeated for each quality that is subject of adapta-

tion. As different quality attributes will have different

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

483

Runtime

Verifier

Executor

Planner

Analyzer

Monitor

Managed System

Managing System

1: update models

quality model_2

quality model_1

adaptation

options

plan

utility response

curve models

3: determine

adaptation options

4.1:determine

qualities per

adaptation option

5: update

adaptation options

7: determine VFC

per adaptation

option

8: generate plan for

best adaptation

option

10: execute plan

context model

system model

Knowledge

4.2: verify

models

4.1

4.2

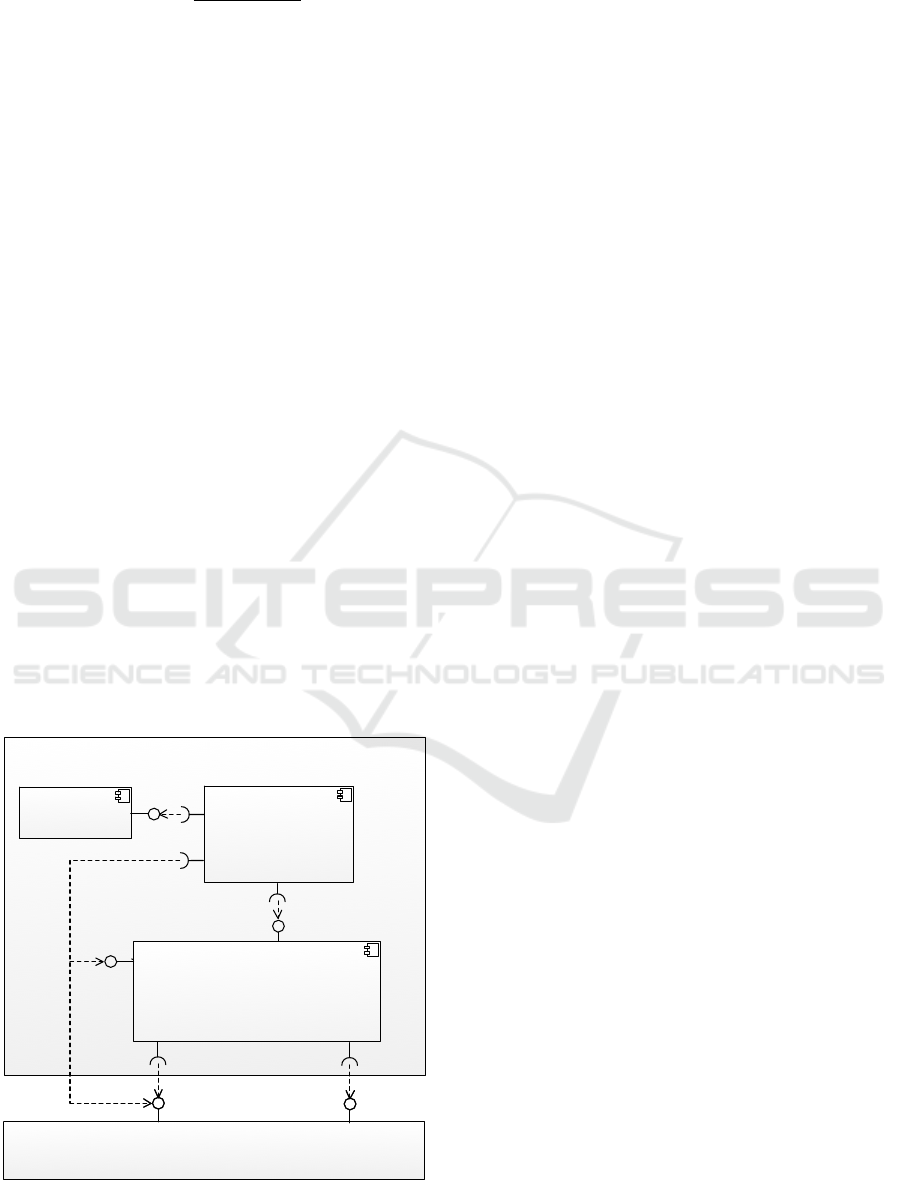

Figure 5: MAPE feedback loop with runtime decision-making using CB@R.

importance to the stakeholders, each quality is assig-

ned a weight (the weights express the relative impor-

tance of a qualities, so the sum of the weights should

be equal to one). The Planner determines the expected

overall beneﬁt B

for each adaptation option i by sum-

ming the utility associated with each quality weighted

by the importance of that quality attribute as follows:

∑

(i, j)

) −U

)) ∗W

(5)

Where the Planner takes the sum over each quality

j, with x

i, j

the value for the j

quality of the i

adap-

tation option and U

(i, j)

) the expected utility for this

quality (determined by the utility response curve mo-

del). C

is the value for the j

quality in the current

conﬁguration and U

) the corresponding utility. W

is the weight for the quality. To determine the ex-

pected beneﬁt for an adaptation option, the Planner

takes the sum of the difference between the expected

utility and the current utility for each quality taking

into account the respective weights.

Next, the Planner uses the domain-speciﬁc cost

model to determine the expected cost for each adap-

tation option. With the estimates for the beneﬁts and

the costs for each adaptation option, the Planner can

ﬁnally calculate the VFC. As introduced in Section 2,

for each adaptation option, VFC is deﬁned as the ratio

beneﬁt B

, to cost C

V FC

(6)

The values for VFC are then used to rank the adap-

tation options under consideration. CB@R selects the

adaptation option with the highest VFC value. For this

option, the Planner generates a plan 8 and updates

the Knowledge repository. Finally, when the Executor

is triggered 9 , it starts executing the plan produced

by the Planner, adapting the managed system accor-

ding to the selected adaptation option 10 .

Example − We illustrate the principles of CB@R by

applying them to the DeltaIoT exemplar.

The two adaptation goals in DeltaIoT correspond

with the two requirements: energy consumption and

packet loss. Figure 6 shows the runtime model that

the Analyzer uses to estimate energy consumption.

The veriﬁer uses this model to estimate the energy

consumption for the different adaptation options. In

DeltaIoT the adaptation options are determined by

the power settings used by the motes to communicate

messages and the distribution of messages sent to pa-

rent motes (see Section 2.3). Hence, the parameters

of the models are conﬁgured for each adaptation op-

tion accordingly. Furthermore, the values of the pa-

rameters that represent uncertainties tracked by the

Monitor are set; e.g., the values of pTrafﬁc(moteID)

represents the trafﬁc that a mote with a given id is

expected to generate. Once the settings for an adap-

tation option are set, the estimated energy consump-

tion is determined. To that end, the System automaton

activates the motes one by one moteId = nextTurn().

Each Mote can then send messages to its parents in the

time slots dedicated to it (sendPackets(packets)). The

energy required to send the messages is then compu-

ted (calcSendEnergy(packets)). When the Gateway

gets its turn, it computes the total energy consumed

by the motes both to send and receive messages. This

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

484

(a) Mote

(b) Gateway

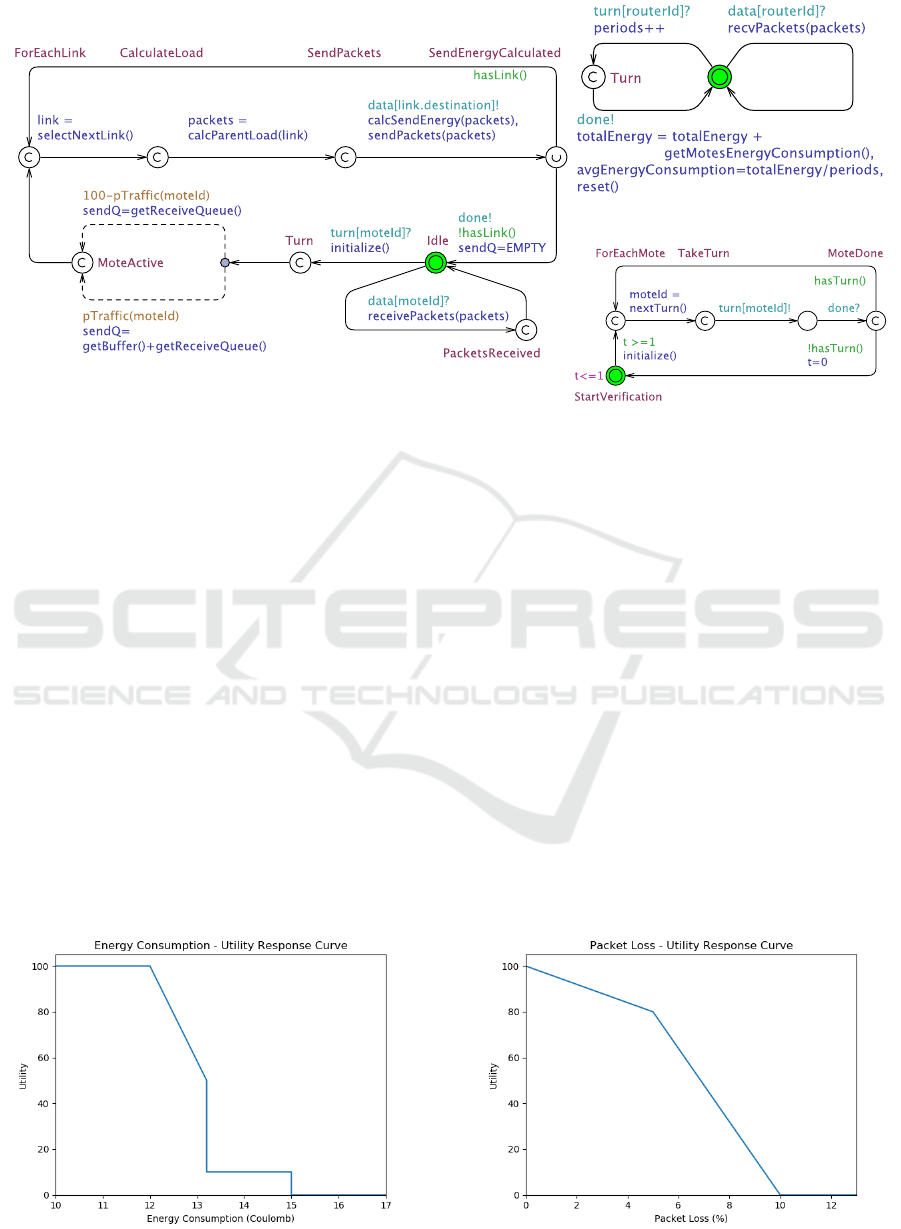

Figure 6: Runtime model to estimate energy consumption for different adaptation options.

process is repeated for 30 times to compute and es-

timated average energy consumption with a required

accuracy. For each simulation run the veriﬁer assigns

uncertainty values for pTrafﬁc(moteId) per mote.

The adaptation goals are deﬁned with two utility-

response curve models, one for each quality of inte-

rest as shown in Figure 7 and Figure 8.

The utility response curve model for energy con-

sumption was deﬁned in consultation with engineers

of VersaSense based on the results of the self-adaptive

solution presented in the previous section. From the

simulation runs on DeltaIoT we know that the mean

value of the energy consumption is around 13mC.

This explains the ﬁrst vertical drop on the graph. Va-

lues between 13mC and 12mC are progressively con-

sidered better, while any value below 12mC is consi-

der excellent. Values between 13mC and 15mC are

acceptable, but poor. Any value above 15mC is con-

sidered inferior. The utility response curve model for

Figure 7: Utility response curve for energy consumption.

the packet loss was deﬁned in a similar way with the

VersaSense staff. The utility slowly decreases bet-

ween 0% and 5% packet loss. From 5% onwards, the

utility decreases faster and values above 10% are con-

sidered inferior.

The cost model in DeltaIoT is determined by the

energy that is required to send the adaptation mes-

sages from the gateway to the respective motes. We

explained this in detail in Section 3.

To illustrate the computation VFC, consider that

we have two adaptation options, one with 2% as es-

timated value for the packet loss and one with 9%,

both satisfying the ﬁrst quality requirement of Del-

taIoT. Let us assume that the estimated energy con-

sumption for both options are about the same. In

CB@R, the expected utility induced by the 2% packet

loss (around 90% see Figure 8) will have a substantial

inﬂuence on the total beneﬁt of the adaptation option

being considered (for packet loss 9% the expected uti-

Figure 8: Utility response curve model for packet loss.

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

485

Gateway

Statistical

Model

Checker

Executor

Planner

Analyzer

Monitor

Probes

Effectors

Managed System (IoT System)

Managing

System

Mote

Client

Network

Engine

…

Virtual Machine

Knowledge

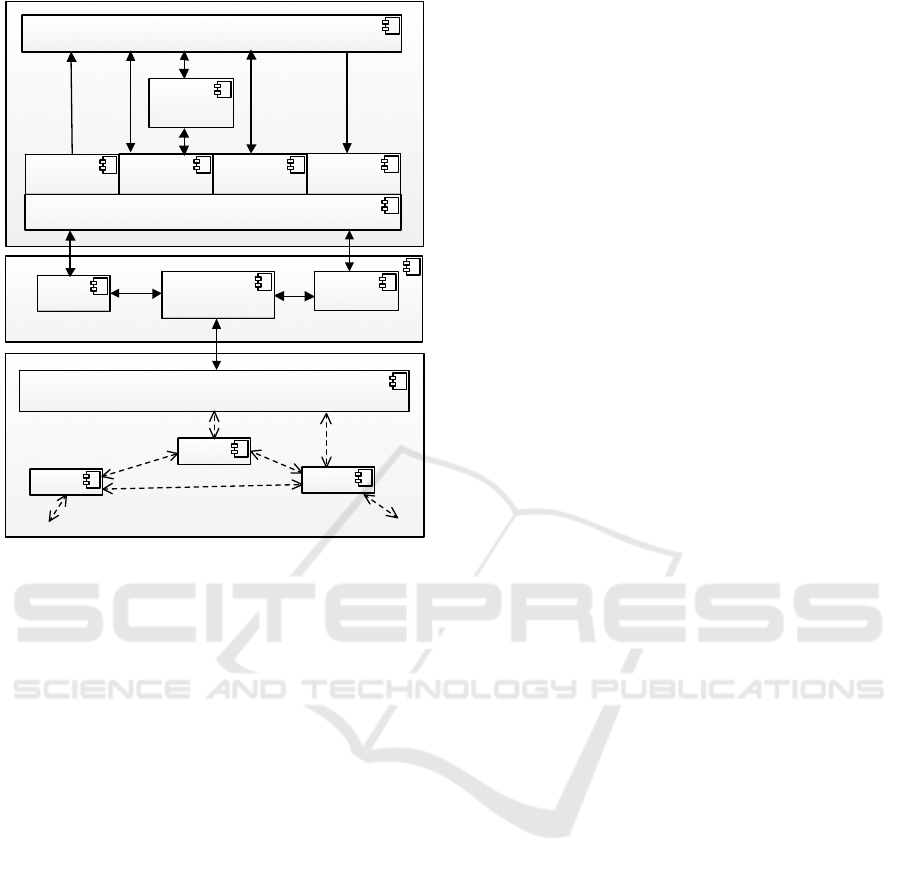

Figure 9: CB@R applied to DeltaIoT.

lity will be around 10%). In case the adaptation costs

for both options are similar, this will lead to a higher

VFC value for the option with 2% packet loss, and

consequently this conﬁguration will be higher ranked

than the 9% option. However, in case the cost for

adaptation of the 2% option would be substantially

higher, this option may not be selected. Compared to

rule-based approaches this offers signiﬁcant ﬂexibi-

lity for decision-making.

Prototype realisation − Figure 9 shows the architec-

ture of the self-adaptive DeltaIoT system realisation.

The Managed System that consists of the network

of motes connected to the gateway is connected to a

Client that provides an interface to the system. The

client offers an interface to the IoT system to monitor

various parameters and perform adaptations.

The Managing System is deployed on top of the

client. For the realisation of CB@R we have used

networks of timed automata (TA) for the speciﬁcation

of MAPE feedback loop. We used a set of model tem-

plates for the speciﬁcation and the veriﬁcation of the

correctness of the MAPE feedback loop models (Igle-

sia and Weyns, 2015). We applied the approach pre-

sented in (Iftikhar and Weyns, 2014) that allows de-

ploying and directly executing these models to realise

self-adaptation at runtime using a virtual machine, as

shown in Figure 9. The Analyzer in the DeltaIoT

realisation uses a Statistical Model Checker as veri-

ﬁer to make estimates for the different qualities of the

adaption options. Figure 10 shows the planner mo-

del used in the realisation. The planner waits in the

Waiting state to be triggered by the analyser (plan?).

It then selects the best adaptation option (selectBestA-

daptationOption()). The pseudo code of this function,

which is at the heart of the CB@R method, is shown

in Figure 1. If a valid adaptation option is found a

plan is created (per link of the DeltaIoT network a

set of ChangePower and ChangeDistribution actions

are composed). If no valid option is found a fails-

afe strategy is applied. When the plan is ready, the

executer model is triggered to execute the plan (exe-

cute!). We provide all the models, veriﬁcation proper-

ties and results, the implementation and the evalua-

tion here: https://people.cs.kuleuven.be/danny.weyns/

software/ActivFORMS/.

5 EVALUATION

For the evaluation of CB@R we used the physical se-

tup of the DeltaIoT network deployed at the KU Leu-

ven Campus, which is remotely accessible for use (If-

tikhar et al., 2017). We used a standard setting with 15

motes as shown in Figure 3 with communication cy-

cles of 9.5 minutes. We compared three approaches:

a conservative approach applied by VersaSense in si-

milar application domains (referred to as reference

approach), a rule based approach (that takes into ac-

count cost for adaptation similar to what we discussed

in Section 3), and CB@R (we applied equal weights

for the quality properties). Each approach ran for 15

hours on the physical network, i.e., 90 communication

cycles. In each cycle, the network can be adapted. As

mentioned in the previous section, the two quality re-

quirements are used as adaptation goals: (1) keep the

average packet loss under 10% and (2) minimise the

average energy consumption, both over 15 hours. We

test the following hypothesis:

: The adaptation approaches outperform the refe-

rence approach for energy consumption

: The rule-based approach achieves the packet

loss requirement

: CB@R achieves the packet loss requirement

: CB@R has signiﬁcantly better results than a

rule-based approach for the average energy con-

sumption

: CB@R has signiﬁcantly better results than a

rule-based approach for average packet loss.

First, we look at energy consumption. Figure 11

shows the results of the three approaches. The mean

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

486

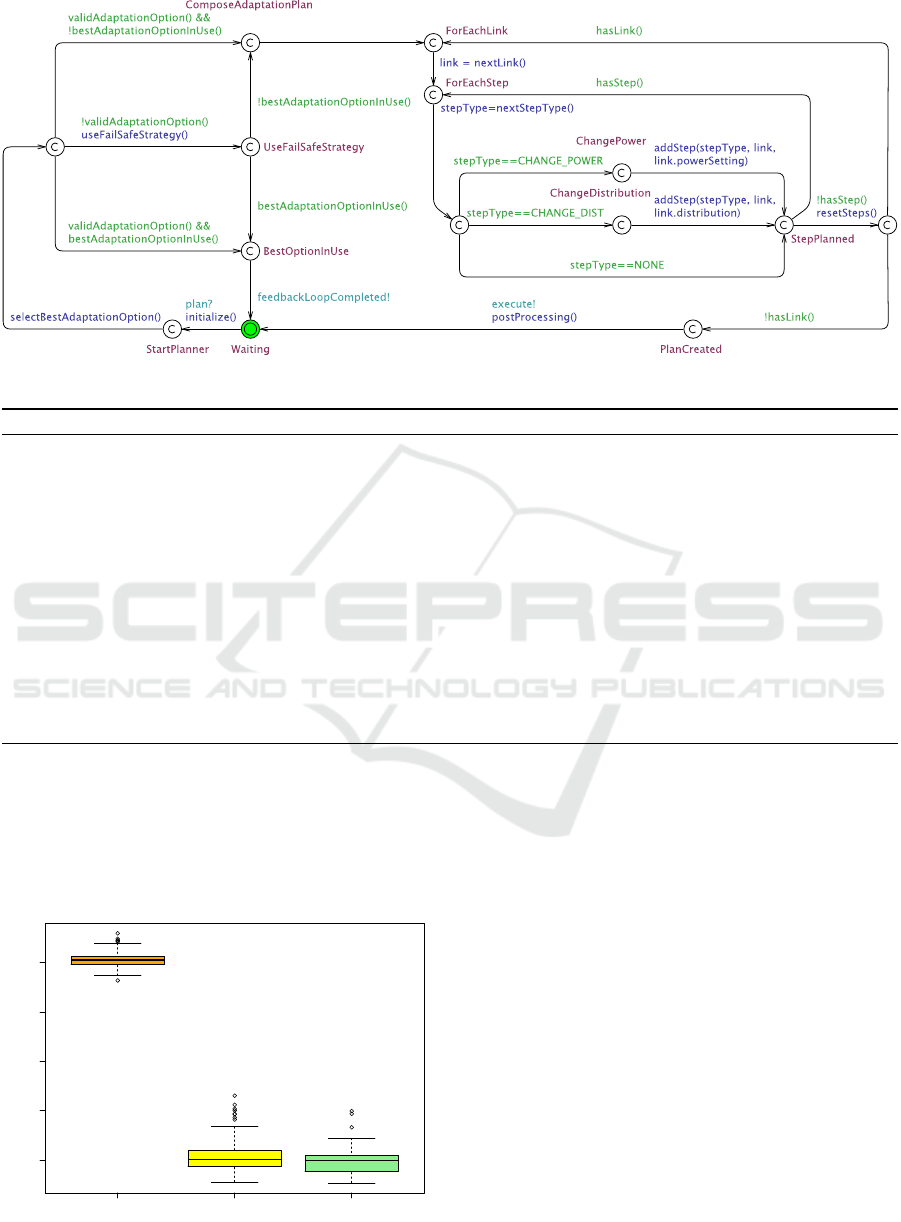

Figure 10: Planner model for CB@R used in prototype realisation.

Algorithm 1: Selection procedure of CB@R used in the planner model.

1: procedure SELECTBESTADAPTATIONOPTION

2: bestAdaptationOption ← EMPTY

3: bestV FC ← −MAXVALUE

4: for each x ∈ Knowledge.AdaptationOptions do

5: bene f it ← calculateBene f it(x)  Knowledge

6: cost ← calculateCost(x) + 1  Knowledge

7: V FC ← bene f it/cost

8: if V FC > bestV FC then

9: bestV FC ← V FC

10: bestAdaptationOption ← x

11: end if

12: end for

13: end procedure

value for the average energy consumption of the re-

ference approach is 17.07mC, while the value for

the rule-based approach is 13.10mC and for CB@R

12.98mC. Clearly, both adaptation approaches out-

perform the reference approach (p-value 2.2e

−16

Wil-

Reference Rule_Based CBatR

13 14 15 16 17

Energy Consumption Comparison

Energy Consumption (mC)

Figure 11: Evaluation results for energy consumption.

cox rangsum test). Hence, we can accept hypothesis

H1.

The mean values for energy consumption of the

rule based approach and CB@R are similar. Although

there is a signiﬁcant difference of the data distribution

in favour of the rule-based approach (p-value 0.044

with Wilcox rangsum test), from a practical point of

view the difference is irrelevant (the relative gain in

energy consumption of rule-based is versus CB@R is

0.8%). Hence, we have to reject hypothesis H31.

Let us now look at the packet loss. Figure 12

shows the results. The mean value for the average

packet loss for the reference approach is 5,39%. The

mean value for the rule-based approach is 15.32% and

for CB@R it is 9.96%. Given that the average packet

loss should be below 10%, we have to reject hypothe-

sis H21 (the rule-based approach achieves the packet

loss requirement) and we can accept hypothesis H22.

With a signiﬁcant difference between the results for

both approaches (p-value 6.258e

−6

with Wilcox rang-

sum test), we can also accept hypothesis H32 (packet

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

487

Reference Rule_Based CBatR

0.00 0.05 0.10 0.15 0.20 0.25 0.30 0.35

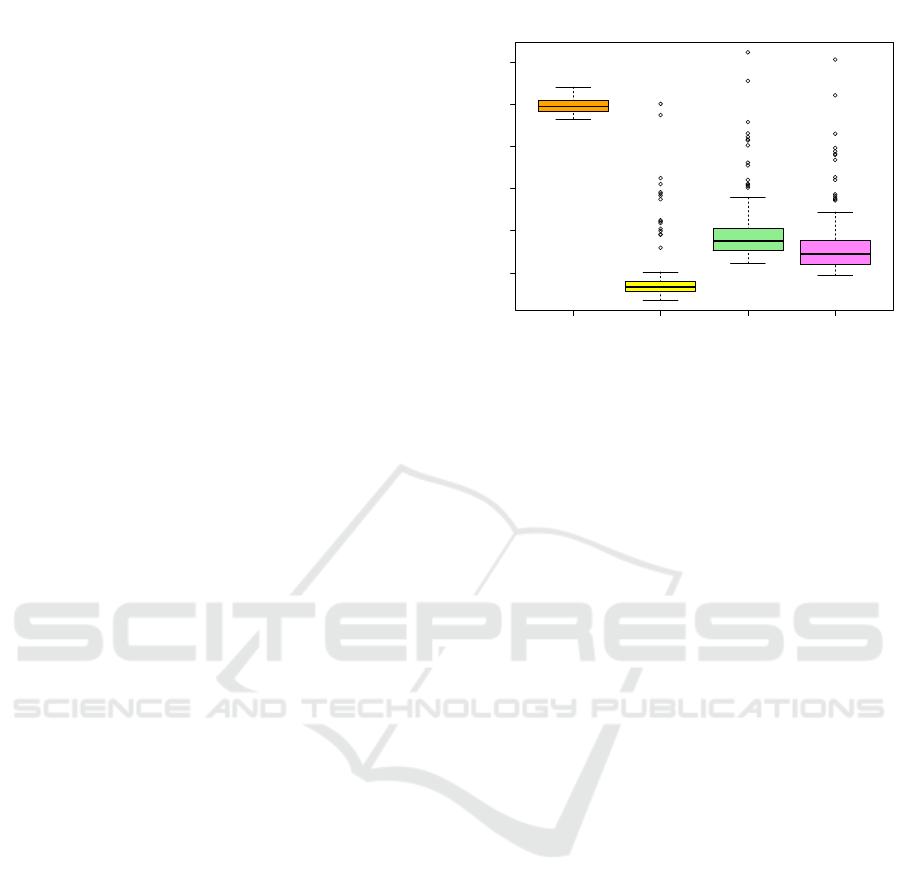

Packet Loss Comparison

Packet Loss (ratio)

Figure 12: Evaluation results for packet loss.

loss for CB@R is signiﬁcantly better as for the rule-

based approach).

Discussion. For energy consumption, both self-

adaptive approaches are signiﬁcantly better as the re-

ference approach. On the other hand, the rule-based

approach is not able to realise the packet-loss requi-

rement, while CB@R achieves the requirement alt-

hough with a small surplus. These results show that

substantial beneﬁts can be gained by applying CB@R

compared to the conservative approach. Note that dif-

ferentiations to the weights for the quality properties

and adjustments to the quality response curve models

may help to further enhance CB@R and help impro-

ving the results for packet loss, possibly at a small

extra cost of energy consumption.

Feedback from the VersaSense staff conﬁrmed

that the problem of ﬁnding and maintaining an opti-

mal conﬁguration of low-power wireless networks for

a given problem domain is notoriously difﬁcult and

that a self-adaptive solution that automates the ma-

nagement of the network is a major beneﬁt. On the

other hand, the staff highlights the potential risks of

automation in terms of ensuring stability during the

adaptation process as well as handling outlier events.

The staff also noticed the need for domain-speciﬁc

models, including for different quality properties, that

may not be easy to design. However, building up ex-

perience over time can mitigate such risks.

6 RELATED WORK

Until recently, most research on self-adaptation has

largely ignored the negative implications of adap-

tation as documented by surveys, see for exam-

ple (Weyns and Ahmad, 2013). In this section, we

point to work that is related to the CB@R approach.

We structure the discussion of related work in two

parts. We start with providing brief descriptions of

related approaches. Then we position CB@R in the

landscape of existing work.

Bertolli et al. deﬁne a cost model for quantifying

the overhead introduced by autonomic behaviour in

an adaptive parallel application, in particular a ﬂood

emergency management (Bertolli et al., 2010). The

application is realised using components that are spe-

ciﬁed in multiple versions. Each component is dyn-

amically selected according to an adaptation strategy

to achieve the required quality of service levels. The

adaptation cost model is used to estimate the over-

head for reconﬁguring a component when switching

between different versions.

Camara et al. propose a latency-aware adaptation

approach focusing on the interval between the time

when an adaptation is applied and the time when

the effects of the adaptation are observed (C

amara

et al., 2016). At design time, the approach uses model

checking of Stochastic Multiplayer Games models to

quantify the maximum improvement a latency-aware

strategy is able to obtain. At runtime, a latency-aware

adaptation algorithm is applied that uses simulation to

support the adaptation decisions.

Cailliau and van Lamsweerde apply tradeoff ana-

lysis in an obstacle-driven runtime adaptation appro-

ach to increase the satisfaction rate of probabilistic sy-

stem goals (Cailliau and van Lamsweerde, 2017). The

approach uses obstacle/goal reﬁnement trees. Leaf

obstacles are monitored at runtime to determine the

satisfaction rate of high-level goals. When the satis-

faction rate is below a threshold, a tradeoff analysis

guides the selection of alternatives to maximise satis-

faction rates under cost constraints.

Poladian et al. propose ‘anticipatory conﬁgura-

tion” to predict future resource availability to improve

the utility of concurrent adaptive applications (Pola-

dian et al., 2007). The approach is compared with re-

active conﬁguration that reacts to changes in resource

availability as they occur. The results demonstrate

that anticipatory conﬁguration provides better utility

to users when there is a cost (e.g., reconﬁguration

cost) associated to certain adaptation operations.

There are a number of related approaches that use

elastic controllers in cloud-based applications to ad-

just the allocation of resources with awareness of the

cost of adaptation. Jamshidi et al. use an elastic con-

troller to handle unpredictable workloads in cloud ap-

plications (Jamshidi et al., 2014). The elastic control-

ler aims at reducing the cost of ownership of the ser-

vice level agreements, while auto-scaling the dynamic

resources. The approach uses fuzzy logic to specify

elasticity rules and handle conﬂicting requirements.

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

488

Gambi et al. propose a framework that explicitly ta-

kes into account the time each control action takes to

complete, called actuation delay (Gambi et al., 2013).

The proposed framework estimates actuation delay

using change point detection algorithms. Fokaefs et

al. use a business ecosystem of cloud computing as

an economy of scale in a set of experiments (Fokaefs

et al., 2016). The goal is to take into the account cost

of infrastructure with revenue from service delivery

and the proﬁt of the service provider. The experiment

results show that the economic-driven resource scala-

bility is applicable on real cloud environments with

satisfying results during elasticity operations. Finally,

Jung et al. present a holistic controller framework cal-

led Mistral that uses a utility-based model to predict

power consumption, cost of the adaptation, and wor-

kload prediction to maximise overall utility in cloud

applications (Jung et al., 2010).

In summary, a variety of approaches have been

devised to deal with the implications and costs of

self-adaptation. Contrary to existing approaches that

do not clearly distinguish between costs and beneﬁts,

CB@R treats cost and beneﬁts as ﬁrst-class citizens

in the decision-making of adaptation. Furthermore,

most of the existing approaches focus on speciﬁc ty-

pes of cost for self-adaptation, ranging from over-

head, latency, required resources, time for adaptation,

and cost of infrastructure. CB@R does not focus on

any particular type of cost, but provides a reusable

framework that considers the cost for adaptation as

a ﬁrst-class concern that can be instantiated for the

domain and problem at hand.

7 CONCLUSIONS AND FUTURE

WORK

Applying self-adaptation may incur costs, which are

often ignored. We applied a state-of-the-art approach

for self-adaptation to a community exemplar showing

that the cost for realising adaptation can be signiﬁ-

cant. This observation demonstrates that it is impor-

tant for any self-adaptation solution to reﬂect on the

cost for realising adaptation and take this into account

when the cost is signiﬁcant.

This paper presents CcB@R − Cost-Beneﬁt @

Runtime − a reusable approach for decision-making

in self-adaptive systems that considers both the bene-

ﬁts of adaptation and the cost to realise the adapta-

tion actions as ﬁrst-class citizens. The approach takes

inspiration from CBAM, an established approach to

deal with the economics of beneﬁts and costs in archi-

tectural design. CB@R deﬁnes the beneﬁts of adap-

tation options as the weighted utility of the qualities

that the options can provide to the stakeholders. The

approach deﬁnes cost as a domain-speciﬁc property

that needs to be deﬁned for the problem at hand.

We applied CB@R to a real world deployment

of an IoT application. The results show that CB@R

outperforms a conservative approach that is currently

used by an industry partner. The results also show

that contrary to a rule-based approach, CB@R achie-

ves the adaptation goals under various uncertainties.

In future work, we plan to study different topics

on cost-beneﬁt analysis for self-adaptive systems. We

plan to study the inﬂuence of varying the utility re-

sponse curve models as well as the weights assig-

ned to the different quality properties on the Value

For Cost. We plan to look into methods that allow

to ﬁne tune the curves and the weights automatically

using learning algorithms combined with direct or in-

direct feedback from stakeholders. We plan to study

the scalability of the approach in terms of the number

of adaptation options and adaptation goals that can

be handled. In this context, we plan to study online

learning techniques to select adaptation options from

large sets. As for the cost of adaptation, we plan to

study more systematically the types of costs that ap-

ply to self-adaptation, derive a classiﬁcation for these

costs, and apply this knowledge to deﬁne methods to

support different types of costs in self-adaptation.

REFERENCES

Bennaceur, A., McCormick, C., Garc

ıa-Gal

an, J., Pe-

rera, C., Smith, A., Zisman, A., and Nuseibeh, B.

(2016). Feed me, feed me: An exemplar for engineer-

ing adaptive software. In Software Engineering for

Adaptive and Self-Managing Systems (SEAMS), 2016

IEEE/ACM 11th International Symposium on. IEEE.

Bertolli, C., Mencagli, G., and Vanneschi, M. (2010). A

cost model for autonomic reconﬁgurations in high-

performance pervasive applications. In Proceedings

of the 4th ACM International Workshop on Context-

Awareness for Self-Managing Systems, page 3. ACM.

Blair, G., Bencomo, N., and France, R. B. (2009). Models@

run. time. Computer, 42(10).

Cailliau, A. and van Lamsweerde, A. (2017). Runtime mo-

nitoring and resolution of probabilistic obstacles to sy-

stem goals. In 2017 IEEE/ACM 12th International

Symposium on Software Engineering for Adaptive and

Self-Managing Systems (SEAMS), pages 1–11.

amara, J., Moreno, G. A., Garlan, D., and Schmerl,

B. (2016). Analyzing latency-aware self-adaptation

using stochastic games and simulations. ACM

Transactions on Autonomous and Adaptive Systems

(TAAS), 10(4):23.

CBAM (2018). Cost Beneﬁt Analysis Method, SEI,

CMU https://www.sei.cmu.edu/architecture/tools/

evaluate/cbam.cfm.

Cost-Beneﬁt Analysis at Runtime for Self-adaptive Systems Applied to an Internet of Things Application

489

Cheng, B., de Lemos, R., Giese, H., Inverardi, P., Magee,

J., Andersson, J., Becker, B., Bencomo, N., Brun, Y.,

Cukic, B., Di Marzo Serugendo, G., Dustdar, S., Fin-

kelstein, A., Gacek, C., Geihs, K., Grassi, V., Karsai,

G., Kienle, H., Kramer, J., Litoiu, M., Malek, S., Mi-

randola, R., M

uller, H., Park, S., Shaw, M., Tichy, M.,

Tivoli, M., Weyns, D., and Whittle, J. (2009). Soft-

ware Engineering for Self-Adaptive Systems: A Rese-

arch Roadmap. Springer Berlin Heidelberg, Lecture

Notes in Computer Science vol. 5525.

de Lemos, R., Garlan, D., Ghezzi, C., Giese, H., Anders-

son, J., Litoiu, M., Schmerl, B., Weyns, D., Baresi,

L., Bencomo, N., Brun, Y., Camara, J., Calinescu, R.,

Chohen, M., Gorla, A., Grassi, V., Grunske, L., Inver-

ardi, P., Jezequel, J., Malek, S., Mirandola, R., Mori,

M., M

uller, H., Rouvoy, R., Rubira, C., Rutten, E.,

Shaw, M., Tamburrelli, G., Tamura, G., Villegas, N.,

Vogel, T., and Zambonelli, F. (2017). Software Engi-

neering for Self-adaptive Systems: Research Challen-

ges in the Provision of Assurances. Springer Berlin

Heidelberg, Lecture Notes in Computer Science vol.

9640.

De Lemos, R., Giese, H., M

uller, H. A., Shaw, M., An-

dersson, J., Litoiu, M., Schmerl, B., Tamura, G., Vil-

legas, N. M., Vogel, T., et al. (2013). Software engi-

neering for self-adaptive systems: A second research

roadmap. In Software Engineering for Self-Adaptive

Systems II, pages 1–32. Springer.

Dobson, S., Denazis, S., Fern

andez, A., Ga

ıti, D., Gelenbe,

E., Massacci, F., Nixon, P., Saffre, F., Schmidt, N.,

and Zambonelli, F. (2006). A survey of autonomic

communications. ACM Transactions on Autonomous

and Adaptive Systems, 1(2):223–259.

Fokaefs, M., Barna, C., and Litoiu, M. (2016). Economics-

driven resource scalability on the cloud. In Internatio-

nal Symposium on Software Engineering for Adaptive

and Self-Managing Systems (SEAMS). ACM.

Gambi, A., Moldovan, D., Copil, G., Truong, H.-L., and

Dustdar, S. (2013). On estimating actuation delays in

elastic computing systems. In Software Engineering

for Adaptive and Self-Managing Systems (SEAMS).

IEEE.

Garlan, D., Cheng, S., Huang, A., Schmerl, B., and Steen-

kiste, P. (2004). Rainbow: Architecture-Based Self-

Adaptation with Reusable Infrastructure. Computer,

37(10):46–54.

Gerasimou, S., Calinescu, R., Shevtsov, S., and Weyns, D.

(2017). Undersea: an exemplar for engineering self-

adaptive unmanned underwater vehicles. In Procee-

dings of the 12th International Symposium on Soft-

ware Engineering for Adaptive and Self-Managing Sy-

stems (SEAMS). IEEE Press.

Iftikhar, M. U., Ramachandran, G. S., Bollans

ee, P., Weyns,

D., and Hughes, D. (2017). Deltaiot: a self-adaptive

internet of things exemplar. In Software Engineering

for Adaptive and Self-Managing Systems (SEAMS),

2017 IEEE/ACM 12th International Symposium on,

pages 76–82. IEEE.

Iftikhar, M. U. and Weyns, D. (2014). ActivFORMS: Active

formal models for self-adaptation. In International

Symposium on Software Engineering for Adaptive and

Self-Managing Systems (SEAMS). ACM.

Iglesia, D. G. D. L. and Weyns, D. (2015). Mape-k for-

mal templates to rigorously design behaviors for self-

adaptive systems. ACM Transactions on Autonomous

and Adaptive Systems (TAAS), 10(3):15.

Jamshidi, P., Ahmad, A., and Pahl, C. (2014). Autono-

mic resource provisioning for cloud-based software.

In International Symposium on Software Engineering

for Adaptive and Self-Managing Systems (SEAMS).

ACM.

Jung, G., Hiltunen, M. A., Joshi, K. R., Schlichting, R. D.,

and Pu, C. (2010). Mistral: Dynamically managing

power, performance, and adaptation cost in cloud in-

frastructures. In International Conference onDistribu-

ted Computing Systems (ICDCS). IEEE.

Kephart, J. O. and Chess, D. M. (2003). The vision of auto-

nomic computing. Computer, 36(1):41–50.

Kramer, J. and Magee, J. (2007). Self-Managed Systems:

An Architectural Challenge. In Future of Software En-

gineering, (FOSE). IEEE Computer Society.

Len, B., Paul, C., and Rick, K. (2013). Software architec-

ture in practice. Addison-Wesley.

Oreizy, P., Medvidovic, N., and Taylor, R. (1998).

Architecture-based Runtime Software Evolution. In

International Conference on Software Engineering,

(ICSE). IEEE Computer Society.

Poladian, V., Garlan, D., Shaw, M., Satyanarayanan, M.,

Schmerl, B., and Sousa, J. (2007). Leveraging re-

source prediction for anticipatory dynamic conﬁgu-

ration. In International Conference on Self-Adaptive

and Self-Organizing Systems (SASO). IEEE.

Salehie, Mazeiar, T. L. (2009). Self-adaptive software:

Landscape & research challenges. ACM transactions

on autonomous and adaptive systems (TAAS), 4(2).

Weyns, D. (2018). Software engineering of self-adaptive

systems: an organised tour and future challenges. In

Software Engineering Handbook. Springer. (Eds.)

Taylor, R. and Kang, K. C. and Cha, S.

Weyns, D. and Ahmad, T. (2013). Claims and evidence for

architecture-based self-adaptation: A systematic lite-

rature review. In European Conference on Software

Architecture, pages 249–265. Springer.

Weyns, D., Iftikhar, M. U., and S

oderlund, J. (2013). Do

external feedback loops improve the design of self-

adaptive systems? a controlled experiment. In In-

ternational Symposium on Software Engineering for

Adaptive and Self-Managing Systems, (SEAMS).

Weyns, D., Malek, S., and Andersson, J. (2012). FORMS:

Unifying reference model for formal speciﬁcation of

distributed self-adaptive systems. ACM Transactions

on Autonomous and Adaptive Systems (TAAS), 7(1):8.

MDI4SE 2018 - Special Session on Model-Driven Innovations for Software Engineering

490
