Combining Design by Contract and Inference Rules of

Programming Logic towards Software Reliability

Nuha Aldausari*, Cui Zhang and Jun Dai

Department of Computer Science, California State University, Sacramento, CA 95819, U.S.A.

Keywords: Software Security, Software Reliability, Program Specifications, Error Detection, Design by Contract,

Programming Logic.

Abstract: Detecting errors in software products is very important to software reliability because many security

vulnerabilities are caused by the defects in software. Design by contract (DBC) is an effective methodology

that dynamically checks whether a program meets its specifications, which are also called design contracts,

and whether there are errors in the program. The contracts for object-oriented programs are defined in

terms of preconditions and postconditions for methods as well as invariants for classes. However, if there is

an error in a large piece of code that has a design contract, it is still difficult to identify the exact location of

that error. To address this issue, a tool named Subcontractor has been developed. Subcontractor is

implemented in Eclipse environment using libraries such as Java Development Tools (JDT), Plugin

Development Environment (PDE), and JFace. The tool Subcontractor is built upon an open source DBC

tool, OpenJML Runtime Assertion Checking (RAC), which is a tool that verifies specifications at runtime.

Subcontractor combines this DBC tool with inference rules of program logic for if-statements and loop-

statements to automatically generate subcontracts for programs. When the programs, with subcontracts

automatically generated and inserted by Subcontractor, are verified using OpenJML Runtime Assertion

Checking (RAC), identification of errors in the code can be facilitated.

1 INTRODUCTION

A plethora of applications are created every day;

however, 64% of developers are not confident in

their applications’ security according to Bill Gates at

RSA conference in 2005 (Gates, 2005). Design

flaws and coding defects cause applications to be

vulnerable to attacks or incorrect entry of data. Since

Design By Contract (DBC) (Meyer, 1992) is an

effective methodology that dynamically checks

whether a program meets its specifications and

whether there are errors in the program, introducing

DBC in software development processes and

providing DBC support in the programming

environment can improve robustness and reliability

of produced software, which is important to software

security. There are multiple tools that support DBC

for Java programming language such as Java

Modeling Language (JML) (Leavens, 2013), Jass

Nuha received scholarship from Princess Nourah bint

Abdulrahman University to complete MS in Computer Science

at California State University, Sacramento.

(University of Oldenburg, 2001), and Contracts for

Java (C4J) (Bergström, 2012). In these tools, DBC

assists in improving the quality of the code.

However, one main limitation in these DBC tools is

that when the code is lengthy, it is still difficult to

identify errors. For example, if the precondition of a

large piece of code is valid, but the postcondition is

not valid, the programmer needs to search the whole

code to find the errors. If inference rules of

programming logic (Finkel, 1996) can be used to

automatically generate subcontracts, and if the

subcontracts can be automatically inserted into the

large source code for if-statements and/or loop-

statements, the large verification task can be

automatically partitioned into smaller ones.

Therefore, automating the generation of sub

assertion statements aid in spotting the errors and

tracing the program.

For this purpose, we have developed a tool called

Subcontractor which was built upon an open source

DBC tool called OpenJML (Cok, 2015).

Subcontractor is a developed Eclipse plugin that

provides the benefit of automatically generating and

364

Aldausari, N., Zhang, C. and Dai, J.

Combining Design by Contract and Inference Rules of Programming Logic towards Software Reliability.

DOI: 10.5220/0006849603640371

In Proceedings of the 15th Inter national Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 364-371

ISBN: 978-989-758-319-3

adding into code subcontracts based on inference

rules for if-statements and/or loop-statements.

Subcontractor combines DBC, dynamic program

analysis technique, with inference rules of

programming logic, which are originally for static

program verification. When these rules are

integrated with DBC tools, they can help locate

defects in the code to improve software reliability.

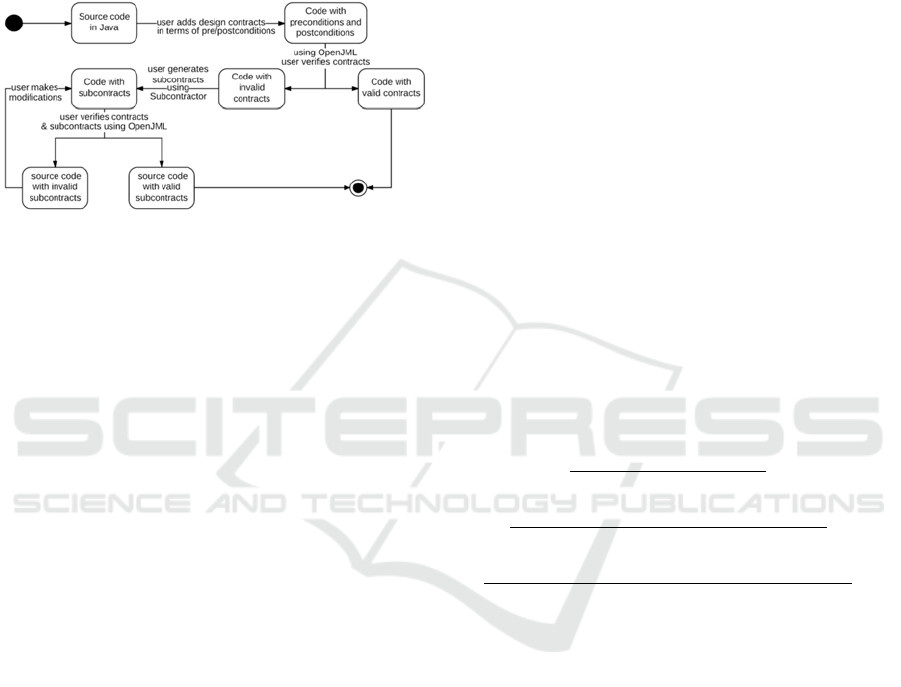

Figure 1: State diagram of the programming code in

Subcontractor.

Figure 1 illustrates the life cycle of the

programing code in response to different events with

the support of Subcontractor. First, the programmer

provides the source code and design contracts in

terms of preconditions and postconditions. Then,

OpenJML Runtime Assertion Checking (RAC) can

be used to verify the preconditions, postconditions.

If the contracts are valid, there is no need to add

subcontracts. However, if the contracts are not valid,

Subcontractor can be used to automatically generate

and insert subcontracts for the programmer-selected

if-statements and/or loop-statements. Again,

OpenJML Runtime Assertion Checking (RAC) can

be used to verify the preconditions, postconditions,

and JML assert statements. The output after running

OpenJML can facilitate finding the locations of the

errors. Afterwards, the programmer can modify the

code, and then uses OpenJML and Subcontractor to

check the contracts again until the errors are fixed.

The rest of the paper is structured as follows:

Section 2 discusses important concepts that are used

to construct the tool Subcontractor. Section 3

describes the design and implementation of

Subcontractor including how this tool is built upon

Java libraries and Eclipse plugins. Section 4 presents

an example using Subcontractor. Section 5

summarizes the purpose of Subcontractor and

suggests multiple future enhancements.

2 BACKGROUND AND RELATED

WORK

2.1 Programming Logic

Axiomatic semantics for a programming language is

specified as programing logic, which has both

axioms and inference rules. The axioms and

inference rules are used for program verification, a

static approach to reasoning about program

correctness (Finkel, 1996). The axioms and

inference rules are defined in the format of Hoare

logic triple {P} C {Q} (Meyer, 1992), where P is the

precondition, Q is the postcondition, and C is the

implementation code. A Hoare triple for a program

specification is valid if the precondition P is satisfied

and the code C is executed. In this case, the

postcondition Q is guaranteed to be true. When the

precondition is false, the postcondition might be true

or false (Hoare and Antony, 1969). This means the

program does not have to guarantee anything when

preconditions is not satisfied. While the axioms are

for primitive statements, the inference rules are for

compound statements. The inference rule for any

sequence of statements is as in )) while the inference

rules for if-statements and loop-statements are as in

(2) and (3) respectively (Finkel, 1996).

{

}

{

}

{

}

{

}

(1)

{

}

S1;S2

{

}

{

P & B

}

{

}

{

P & (not B)

}

{

}

(2)

{P} if B then S1 else S2 {Q}

P=>Inv,

{

Inv & B

}

{

Inv

}

,Inv & (not B)=>Q

(3)

{

}

while B do S

{

}

Taking into consideration that Inv is the loop

invariant. The loop invariant should be true before

and after each execution of the loop body, but the

loop invariant does not have to be always satisfied in

the middle of each execution of the loop body

(Hoare and Antony, 1969).

2.2 Design by Contract

DBC was first introduced by Bertrand Meyer, and

was first implemented in Eiffel programming

language (Meyer, 1992). DBC is a dynamic

approach. A design contract for a class consists of

preconditions and postconditions for methods, and

class invariants. Preconditions, postconditions, and

invariants are written as Boolean assertions that are

evaluated at runtime. Preconditions are checked

before entering the functions, while the

postconditions are checked after the function

Combining Design by Contract and Inference Rules of Programming Logic towards Software Reliability

365

execution. In the case of class invariants, the

conditions must be satisfied when the class instances

are created, as well as before and after functions are

executed (Meyer, 1992).

DBC adds a great value to the software

development process, especially it improves the test

phase by automatically checking the DBC

assertions. As stated by Dijkstra (1970), “Program

testing can be used to show the presence of bugs, but

never to show their absence!” According to Meyer,

using proper contracts help in validating against the

program specifications defined in terms of its

preconditions and postconditions, which leads to

program correctness (Meyer, 1992). DBC also

promotes the program robustness which means that

programs can handle abnormal behaviour.

Correctness and robustness together lead to software

reliability, which is important to software security.

A commonly cited example to understand DBC

is the client-supplier example (Meyer, 1992). Both

parties have some obligations and they are expecting

benefits in return. In DBC, function call serves as

the client while the implemented function serves as

the supplier. A precondition and a postcondition

form a contract for a method between the caller and

the callee. The function call, the client, needs to

fulfil a precondition to expect the postcondition that

needs to be guaranteed by the function, the supplier.

For example, these obligations and benefits of a

method that calculates the factorial of a number can

be expressed in Table 1. Once the precondition is

violated, the method should not be executed and an

exception should be raised. However, if the

precondition is satisfied, but the postcondition is not

fulfilled, there are most likely errors in the

implemented function.

Table 1: Client-supplier example of design by contract.

Party Obligations Benefits

Function Call

(Client)

Provide numbers

that are greater

than or equal zero.

Get the factorial

of the number

that is provided.

Function

Implementation

(Supplier)

Compute the

factorial of the

number that is

provided.

Do not need to

calculate the

factorial of the

numbers that are

less than zero.

DBC is not exclusively for constructing

assertions for methods and classes. In general, DBC

is a vital programming methodology that facilitates

verification, testing, and debugging. Moreover, it is

also a way to document the responsibilities of each

method or routine. A design contract is an

abstraction of the semantic of the code being

developed. This documentation can help users

understand the functionality of the code without

seeing the implementation details.

2.3 Java Modelling Language

As other programming languages, Java does not

support DBC as a built-in feature. Java has the basic

assertion facility using the assert keyword. Since the

simple assert facility is not sufficient to support

DBC, there are different third party tools that

support DBC for Java programing language, such as

Java Modeling Language (JML) (Leavens, 2013),

Jass (University of Oldenburg, 2001), and Contracts

for Java (C4J) (Bergström, 2012). JML is chosen for

the design and implementation of our tool

Subcontractor for the following reasons: (1) JML is

an open source DBC tool (Leavens, 2013). (2) Its

implementation uses the preprocessor approach

which supports the process of automatically

generating and inserting subcontracts using

inference rules. (3) JML is available as an Eclipse

plugin. Eclipse is one of the most popular IDEs for

Java programming language, and it offers a library

that facilitates accessing and editing the source code

(Eclipse, 2017).

JML is a specification language that addresses

both the behavioral and the syntactic aspect of Java

programming language. JML tools assist different

fields such as static checking, DBC, JML compiler,

and documentations (Leavens, 2013). As for DBC,

JML expresses contracts using special annotation

comments, /*@ ... @*/, for multiple lines. For a

single line specification, the annotation starts with

//@. Contracts are written in the form of comments

to be ignored by Java compiler in case the

specifications affect the performance negatively.

When contracts are taken into consideration, JML

compiler evaluates the contracts as Boolean

expressions. The keyword requires specifies the

precondition, while ensures clause determines the

postconditions. To verify a contract at a specific

point in the code, JML assert keyword can be used.

If the preconditions of a method are not satisfied, the

method will not be executed. On the other hand, if

the preconditions are satisfied, the program will be

in a proper pre-state. In this case, if the

postconditions are satisfied, the program will be in a

normal post-state, however if there is an exception in

the code and the program does not terminate

normally, the program will be in an exception post-

state (Leavens, 2013).

OpenJML is the current version of the basic JML

for the current Java. There are efforts to include

SECRYPT 2018 - International Conference on Security and Cryptography

366

different features in this version. According to the

official page of OpenJML (Cok, 2015), such features

include Eclipse support, static and dynamic

checking, and auto testing cases. OpenJML extends

JML by introducing new expressions and more

flexibility in the contracts for methods.

One advantage of JML is usability, since it

extends Java programming language with more

quantifiers. As mentioned earlier, there are a lot of

efforts that are devoted to build tools that support

different aspects of this specification language.

These tools are for verifications, parsing, runtime

checking, and testing (Leavens, 2013). Since JML

has continuous progress and attention, this counts as

another advantage.

JML deals with specifications using two

different ways. Extended Static Checking (ESC) is a

way to check specifications at compile time. ESC

can be used to prove the correctness of the

specifications (Burdy et al., 2005). First ESC checks

the programming errors such as uninitialized

variables and out-of-bounds index. Afterwards, ESC

executes the specification of the code by the

automated theorem prover (Zimmerman and Kiniry,

2009). Another method for checking the program

contracts is Runtime Assertion Checking (RAC).

RAC tests the correctness of the program at runtime.

RAC converts the program specifications into assert

statements. These assert statements are inserted into

the program to form an instrumented program that

can be used to check whether the contracts are

violated during runtime (Nelson, 2004).

OpenJML (RAC) plugin is chosen for

Subcontractor due to the following two

considerations: (1) the dynamic checking approach

is more practical for many programmers. (2) The

dynamic checking approach is a direct support to

DBC. Subcontractor uses OpenJML (RAC) to check

the contracts originally provided by programmers

and the subcontracts automatically generated by

Subcontractor.

3 DESIGN AND

IMPLEMENTATION

3.1 Flow Chart of Subcontractor

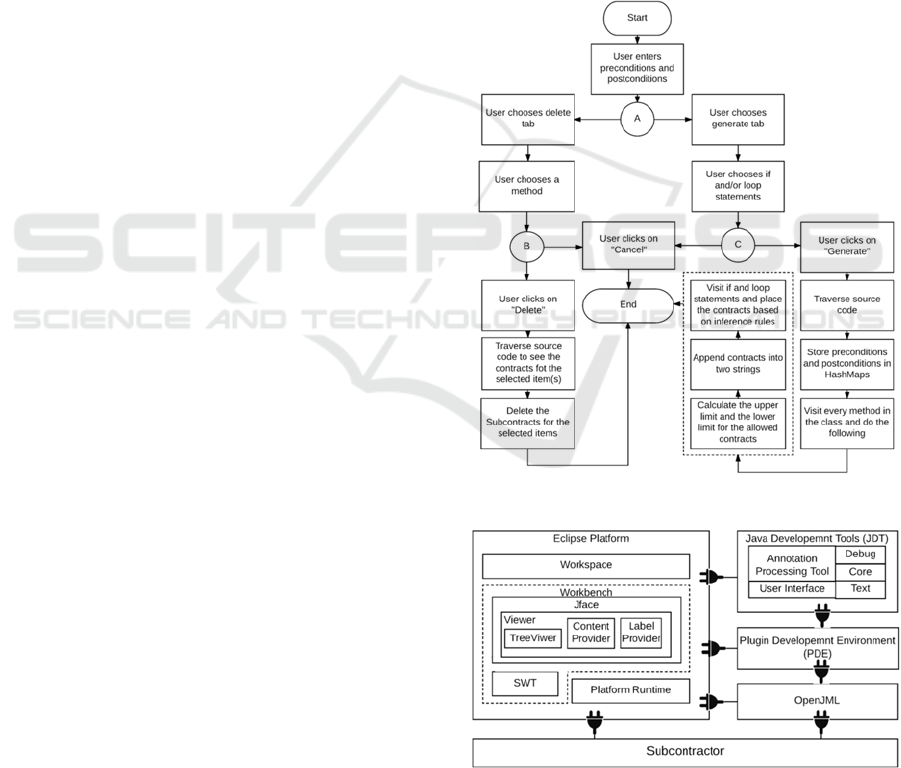

Figure 2 shows the flow chart of Subcontractor.

There are two main functionalities in Subcontractor,

which are respectively generation and deletion of

subcontracts. When the user wants to generate

subcontracts for selected parts in the programming

code, the system traverses the code and stores the

preconditions and postconditions along with the line

numbers into HashMaps. Afterwards, every method

in the code is visited to know the allowed line

numbers that the contracts might appear in. The

contracts in the corresponding allowed line numbers

in the HashMaps are combined to form the

subcontracts based on the inference rules of the

selected parts in the code. Then, every selected loop-

statement and if-statement is visited to insert the

generated subcontracts.

When the user wants to delete the inserted

subcontracts, there is a need to specify the methods

that the user wants to delete the subcontracts from.

The system traverses the code and deleted the

subcontracts in the selected methods.

Figure 2: The flow chart of Subcontractor.

Figure 3: Subcontractor in Eclipse architecture.

Combining Design by Contract and Inference Rules of Programming Logic towards Software Reliability

367

3.2 Eclipse Components Used in

Subcontractor

Eclipse is a popular Integrated Development

Environment (IDE) with graphical user interfaces

that facilitates the development process. The main

language that is supported in Eclipse is Java, but

there are other languages such as C++, C#, Perl,

PHP, and JavaScript that can be supplemented using

plugins (Eclipse, 2017).

One reason for choosing Eclipse is that it is an

open source application that is built upon plugins.

Thus, it is more straightforward to extend an IDE

with a plugin than establishing a new IDE

implementing the functionality of Subcontractor. In

addition, according to RebelLabs’ report in 2012

(ZeroTurnaround, 2012), Eclipse is the most used

IDE for Java programming. Eclipse provides libraries

that have the benefit of accessing and modifying the

source code.

Figure 3 demonstrates the Eclipse architecture

and the relationships between the plugin

Subcontractor and Eclipse elements, which are

presented in the following subsections. Figure 3 is

based on the diagram that is presented in (Eclipse,

2017) with modification and extension to cover the

scope of Subcontractor.

3.2.1 Plugin Development Environment

One of the neat functionalities in Eclipse is

expandability. The user can add/extend a feature in

Eclipse by adding a plugin. The Plugin Development

Environment (PDE) is a plugin that can facilitate

building other plugins, features, and Rich Client

Platform (RCP) applications. When PDE is installed

in the Eclipse platform, new functionalities can be

added to support the plugin life cycle, such as

establishing, debugging, running, maintaining, and

publishing a plugin. As shown in Figure 3, PDE

extends the functionalities of JDT, and the

developed Subcontractor tool extends the

capabilities of PDE, JDT, and OpenJML. Plugins

can provide a variety of functional and non-

functional requirements such as testing,

diagramming, compiling, and more (Eclipse, 2017).

The Eclipse marketplace website (Eclipse

marketplace, 2017) has a myriad of plugins. The

main advantage of having plugins is that it makes

the component of this environment loosely coupled.

Moreover, it maintains lightweight core application,

since the user has the choice to install only the

needed plugins.

3.2.2 Java Development Tools

Subcontractor uses the core of Java Development

Tools (JDT) library to access and modify source

code. In JDT core, the source code is represented by

two different forms, a Java model or abstract syntax

tree (AST). AST is an alternative to the Document

Object Model (DOM) tree of an XML file. AST is

more informative than a Java model. As a result, it

takes longer to be created than the Java model

(Eclipse JDT, 2017). Subcontractor handles the

source code using AST because the other approach,

the Java model, does not contain enough details

about the source code. For example, in the Java

model, the name, signature, and return type of a

method can be retrieved. However, the content of

that method cannot be provided, which is an

important component for Subcontractor to analyze

and to find the if-statements and loop-statements.

In Subcontractor, the AST of the source code can

be traversed by extending ASTVisitor. Afterwards,

an ASTNode can be accessed using a visit() method.

Visitor pattern is one of the popular design patterns

in software engineering. The visitor pattern can be

used to represent an operation for different elements

instead of representing the same operation for every

element. One advantage of this pattern is that the

operation can be extended without changing the

elements. Another benefit of using the visitor pattern

is that the operation is separated from the structure

(Barclay and Savage, 2003).

Subcontractor uses OpenJML preconditions,

postconditions, and assert statements that reside in

comments. Comment, Expression, Statement and

VariableDeclaration are different types of an

ASTNode. According to Eclipse documentation

(Eclipse AST, 2004), the nodes in AST could be any

part of the code except the whitespaces and the

comments. In Subcontractor, it is problematic to deal

with comments since the AST is not preserving

information about the comments. This issue can be

addressed through calling accept() method for each

comment in the list that is returned from

getCommentList().

In Subcontractor, after forming the subcontracts,

the code needs to be edited to insert these

subcontracts. One approach to editing the abstract

syntax tree is prettyprinting, which is simple and

easy to implement, as it does not maintain the

locations of the comment and the source code in the

modification process. The second approach uses

textual edits. In this approach, each node has a

corresponding offset and length. When changes are

made, the modifications are applied to the AST

SECRYPT 2018 - International Conference on Security and Cryptography

368

directly, or into ASTRewrite and then to the AST.

This approach is more complicated to implement,

but it preserves the code formatting (Overbey and

Johnson, 2008). Subcontractor uses textual edits

since it is important to preserve the locations of the

comments in the source code.

3.2.3 JFace

Subcontractor uses the JFace library to create user

interface components such as a TreeViewer and a

button. JFace supports having dynamic content for

the TreeViewer. A TreeViewer needs to be assigned

to a data model (JFace, 2010). When the

subcontracts need to be generated in Subcontractor,

the TreeViewer dynamically presents the locations

of if-statements and/or loop-statements within a

method. In other words, for each method in the

source code, TreeViewer displays the name of the

method, and a list of if-statements and loop-

statements in the order that they appear in the source

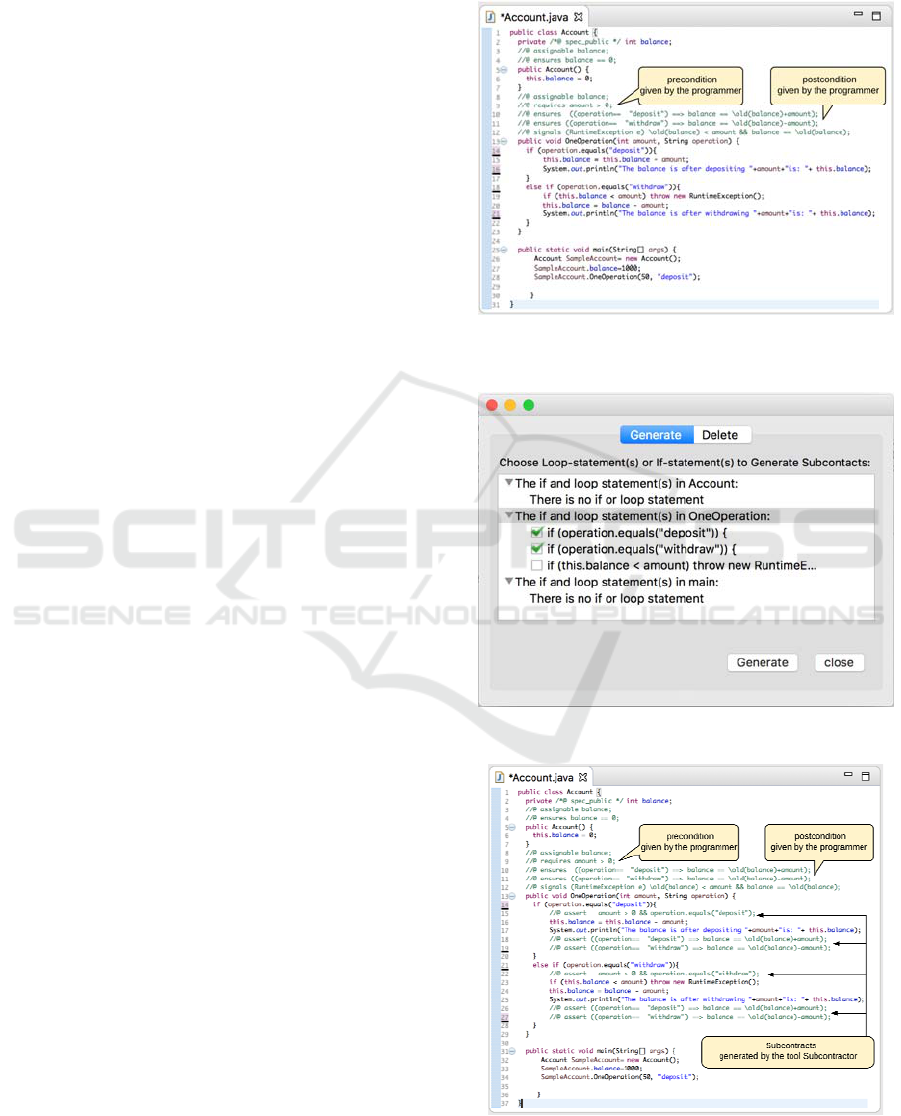

code. The dialog box in Figure 5 is the

corresponding TreeViewer for the source code in

Figure 4. On the other hand, if the user chooses to

delete the subcontracts, the TreeViewer illustrates

the different methods.

For each TreeViewer, there is a need to assign a

content provider to it. The content provider is

responsible for traversing the data model and

specifying the elements in parent/child structure for

displaying purposes (Gast, 2015). After retrieving

the content of the tree from the content provider, the

label provider is called for each element to provide a

string and icon, if there are any, then display the

value in the tree. In other words, the label provider

simply converts the content/data to image/text.

4 EXAMPLE USING

SUBCONTRACTOR

Figure 4 shows an example of source code with

preconditions and postconditions. This program does

a simple withdraw or deposit operation for a bank

account. The precondition is (amount > 0) while the

postconditions are ((operation == "deposit") ==>

balance == \old(balance) + amount) or ((operation

== "withdraw") ==> balance == \old(balance)-

amount ). There is an intentional error for testing in

code line 15 which is: this.balance = this.balance –

amount. The statement should be this.balance =

this.balance + amount.

The output of OpenJML (RAC), as shown in

Figure 7, indicates that the postcondition is not

satisfied.

Figure 4: Source code of Account example with a

precondition and postconditions.

Figure 5: Dialog box that shows the chosen if-statements.

Figure 6: Source code of Account example after

generating subcontracts.

Combining Design by Contract and Inference Rules of Programming Logic towards Software Reliability

369

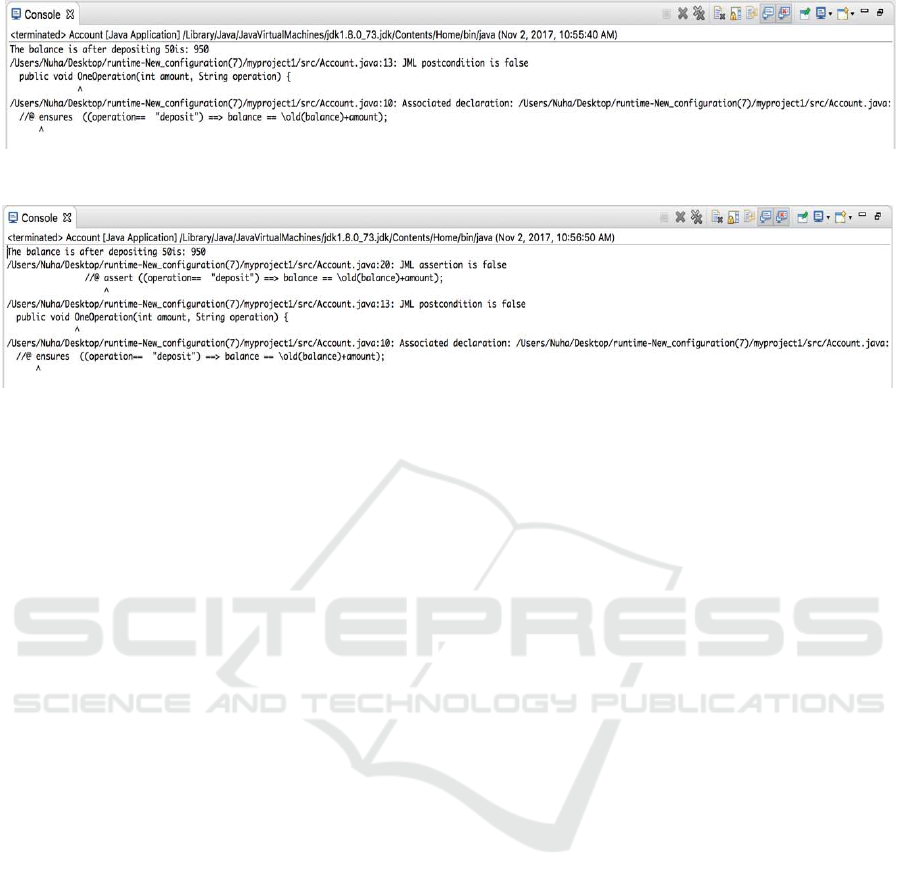

Figure 7: The output of OpenJML shows invalid postcondition.

Figure 8: The output of OpenJML shows invalid postcondition and assert statement.

As shown in Figure 5, a dialog box will pop up

after choosing to generate subcontracts. This action

is triggered by right-clicking on the Java file. The

TreeViewer represents three methods. Inside the

second method, there is an if-else-if-statement that

has a nested if-statement in the else-if part. It is

important to note that ASTVisitor interface deals

with the else-if part as a separate if-statement.

Therefore, the viewer shows three if-statements. In

this example, the user chose the first two if-

statements.

Figure 6 shows the code after inserting the

subcontracts automatically using the inference rules

for if-statement. When comparing to Figure 4, there

are four inserted subcontracts, or smaller verification

tasks. The first one is amount > 0 &&

operation.equals("deposit") which is an instance of

{P and B} in the inference rule for if-statement, see

the inference rule as in (2) in Subsection 2.1. The

third verification task is amount > 0 &&

operation.equals("withdraw") which is an instance

of {P and (not B)} in the inference rule for if-

statement, see also the inference rule as in (2) in

Subsection 2.1. The second and last verification

tasks are ((operation == "deposit") ==> balance

== \old(balance) + amount) or ((operation ==

"withdraw") ==> balance == \old(balance)-

amount) which are instances of {Q} in the inference

rule for if-statement, see also the inference rule as in

(1) in Subsection 2.1.

The output of OpenJML (RAC) is shown in

Figure 8. When comparing to Figure 7, before

subcontracts were automatically generated and

inserted, there is an extra assert statement that is

false. As a result, this assert statement facilitates

finding the location of the error. In Figure 7, since

there is a false contract that is at the beginning of the

source code, there is a need to search in the whole

program to find where the error is. On the other

hand, in Figure 8, since there is an additional assert

statement that is false, then the error should be

between these localized false contracts.

5 CONCLUSION AND FUTURE

WORK

Although DBC is a technique for improving the

reliability of software by ensuring the program

correctness and robustness, the effectiveness of DBC

diminishes with large blocks of code that has invalid

contracts. Subcontractor addresses this issue by

generating and inserting subcontracts using

inference rules for if-statements and loop-statements

in the large pieces of code. After that, the contracts

can be verified using the DBC open source tool

named OpenJML (RAC). In conclusion, by combing

design by contract and inference rules of

programming logic, Subcontractor can facilitate

error detection in code to improve program

reliability, important to software security. More

implementation details can be found in (Aldausari,

N., 2017).

A number of future enhancements can provide

additional features to Subcontractor. (1) Handling

nested structures is an important functionality that

can help the enhancement of the usability of

Subcontractor. For instance, if there is a loop-

statement that has if-statement inside it, there is a

SECRYPT 2018 - International Conference on Security and Cryptography

370

need to generate the subcontracts based on the

inference rule of the loop-statements first. Then,

there is a need to use the inference rules for if-

statement to further generate subcontracts. (2) The

inclusion of inference rules for sequence statements

would give additional subcontracts that facilitates

detecting the errors in code. (3) Additional future

enhancements can also include uploading the plugin

Subcontractor in the Microsoft website rise4fun

(Microsoft, 2017) to make Subcontractor accessible.

The website rise4fun has a collection of software

engineering tools. In this website, the user can

experiment the uploaded tools without diving into

the hassle of installing and configuring the tools.

The website is categorized based on the institute that

created the tools. The common factor of these tools

is that they can be used in verification, testing, or

security purposes. Examples of tools that are

existing in this website are z3 and OpenJML (ESC).

REFERENCES

Aldausari, N., 2017. Enhancing A Design By Contract

Tool Using Inference Rules of Programming Logic. In

Master Project, California State University,

Sacramento, 2017.

Barclay, K., Savage, J., 2003. Object-Oriented Design

with UML and Java. In Oxford: Elsevier Science,

2003.

Bergström, J., 2012. Design By Contract for Java.

http://c4j.sourceforge.net/.

Burdy, L., et al., 2005. An overview of JML tools and

applications. In International Journal on Software

Tools for Technology Transfer, vol. 7, no. 3, pp. 212-

232, 2005.

Cok, D., 2015. OpenJML. http://www.openjml.org/.

Dijkstra, E. W., 1970. Notes on structured programming,

Department of Mathematics, Technological

University, 1970.

Finkel, R. A., 1996. Advanced programming language

design. In Addison-Wesley Reading, 1996.

Gast, H., 2015. How to use objects: code and concepts. In

Addison-Wesley Professional, 2015.

Gates, B., 2005. Gates Highlights Progress on Security,

Outlines Next Steps for Continued Innovation.

https://news.microsoft.com/2005/02/15/gates-highligh

ts-progress-on-security-outlines-next-steps-for-

continued-innovation/.

Hoare, C., Antony, R., 1969. An axiomatic basis for

computer programming. In Communications of the

ACM, vol. 12, no. 10, pp. 576-580, 1969.

Leavens, G., 2013. The Java Modeling Language (JML).

http://www.eecs.ucf.edu/~leavens/JML//index.shtml.

Meyer, B., 1992. Applying design by contract. In

Computer, vol. 25, no. 10, pp. 40-51, 1992.

Microsoft, 2017. rise4fun. http://rise4fun.com/

Nelson, G., 2004. Extended static checking for java. In

Springer International Conference on Mathematics of

Program Construction, pp. 1-1, 2004.

Overbey L., J., E. Johnson, R., 2008. Generating

rewritable abstract syntax trees. In Springer

International Conference on Software Language

Engineering, pp. 114-133, 2008.

The Eclipse AST, 2014. Class AST.

http://help.eclipse.org/luna/index.jsp?topic=%2Forg.ec

lipse.jdt.doc.isv%2Freference%2Fapi%2Forg%2Fecli

pse%2Fjdt%2Fcore%2Fdom%2FAST.html

The Eclipse Foundation, 2017. https://eclipse.org/.

The Eclipse Foundation, 2017. What is Eclipse?

http://help.eclipse.org/neon/index.jsp?topic=%2Forg.e

clipse.platform.doc.isv%2Fguide%2Fint_eclipse.htm.

The Eclipse JDT, 2017. JDT Core Component.

https://eclipse.org/jdt/core/.

The Eclipse JFace, 2010. https://wiki.eclipse.org/JFace

The Eclipse marketplace, 2017. Eclipse marketplace.

https://marketplace.eclipse.org/.

University of Oldenburg, 2001. The Jass Page.

http://csd.informatik.uni-oldenburg.de/~jass/.

ZeroTurnaround, 2012. Developer Productivity Report

2012: Java Tools, Tech, Devs & Data.

https://zeroturnaround.com/rebellabs/developer-produ

ctivity-report-2012-java-tools-tech-devs-and-data/.

Zimmerman, D. M., R. Kiniry, J., 2009. A verification-

centric software development process for Java. In 9th

IEEE International Conference on Quality Software,

pp. 76-85.

Combining Design by Contract and Inference Rules of Programming Logic towards Software Reliability

371
