A RESPONSIBILITY-DRIVEN ARCHITECTURE FOR MOBILE

ENTERPRISE APPLICATIONS

Qusay H. Mahmoud

Department of Computing and Information Science, University of Guelph, Guelph, Ontario, Canada N1G 2W1

Keywords: Mobile enterprise, mobile arch

itecture, responsibility-driven, WAP, J2ME, mobile services, mobile agents

Abstract: This paper deals with wireless applications that get downloaded, over the air, on handheld wireless devices

(or mobile devices) and get executed there. Once running, they may need to interact with applications

residing on remote wired servers. The motivation for this work is provided in part by the characteristics of

the wireless computing environment. There are several implications of these characteristics that require a

software architecture that reduces the load on the wireless link and supports disconnected operations. We

present a responsibility-driven architecture that enables mobile thin-clients to interact with enterprise

servers. We extend this architecture with mobile agents to reduce the load on the wireless link and support

disconnected operations. The architecture is simple and easy to implement, but also effective, scalable, and

capable of supporting multiple devices.

1 INTRODUCTION

The nature of the wireless Internet will be different

from simply accessing the Internet wirelessly. Users

with mobile devices, being mostly mobile, have

different needs, motivations and capabilities from

wired users. Mobile enterprise applications are

mobile/wireless computing applications and services

that allow the user to access and use existing

enterprise applications from mobile devices. The

explosive growth of the handheld wireless devices

market, however, is stimulating the computing

research community to clone almost any technology

developed for desktop networked computers to

handheld wireless devices connected to a wireless

network. Wireless networks are, however, unreliable

and suffer from low bandwidth and have a greater

tendency for network errors. In addition, wireless

connections can be lost or degraded by mobility.

Several solutions have been proposed and

several

technologies have been developed to address

the constraints of mobile devices and the wireless

environment. The solutions and technologies that are

available can be classified into two categories

[Beaulieu, 2002 & Burkhardt et al, 2002]:

Browser-based

This is similar to the current desktop-browser

odel where the device is equipped with a browser.

The browser-based approach is used by the Wireless

plication Protocol (WAP).

Native applications

Compiled applications where the device has a

run

time environment to execute them. Sophisticated

wireless services are only possible with this model

Another category is the hybri

d application model

that aims to incorporate the best aspects of both

categories above. The browser is used to allow the

user to enter URLs to download native applications

from, and the runtime environment is used to let

these applications run on the device. In this paper we

are concerned with downloadable interactive

applications built using the fast growing Java 2

Micro Edition (J2ME) platform [Sun Microsystems,

2000].

The rest of this paper is organized as follows.

Sect

ion 2 provides an overview of the J2ME and its

Mobile Information Devices Profile (MIDP) that

targets cell phones and two-way pagers. Section 3

provides a solution on how J2ME and WAP can be

integrated together providing a useful environment

for the mobile enterprise. The details of the

responsibility-driven architecture are presented and

discussed in Section 4. Finally, concluding remarks

are presented in Section 5.

125

H. Mahmoud Q. (2004).

A RESPONSIBILITY-DRIVEN ARCHITECTURE FOR MOBILE ENTERPRISE APPLICATIONS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 125-129

DOI: 10.5220/0002641001250129

 SciTePress

2 J2ME

The Java 2 Micro Edition (J2ME) is aimed at the

consumer and embedded devices market. It

specifically addresses the rapidly growing consumer

space that covers commodities such as cellular

telephones, pagers, palm pilots, set-top boxes, and

other consumer electronics. The J2ME provides a

complete set of solutions for creating state-of-the-art

network applications for consumer and embedded

devices. It enables device manufacturer, service

providers, and application developers to deploy

compelling applications and services to their

customers. The J2ME platform is targeted at two

product groups:

1. Personal, mobile, connected, information

devices, such as cellular phones, two-way

pagers, and organizers.

2. Shared, fixed, connected, information devices,

such as set-top boxes, Internet TVs, and in-car

entertainment and navigation systems.

The Java 2 Micro Edition (J2ME) can be used to

enhance the user experience on mobile devices. It

provides a Java runtime environment for cell

phones, palmtops, and two-way pagers; also

includes libraries and APIs for:

– Programming user interfaces using the Mobile

Information Device Profile (MIDP) [Sun

Microsystems, 2000] user interface API. This

API provides high-level components offering

standard interactions such as lists and forms, and

low-level components for customized look-and-

feel (canvas). This API enables developers to

create highly interactive mobile applications and

flexible user interfaces.

– Storing data persistently on a device using RMS.

Such APIs also enable developers to write

applications (such as mobile games) that work

even when the device is not connected to a

wireless network.

– Establish network connections with remote

servers or other devices using the CLDC Generic

Connection Framework. This API enables

developers to write mobile network-aware thin-

clients that connect to enterprise services using

standard networking protocols such as HTTP.

MIDP implementers are required to provide

support for the HTTP protocol; this is mainly

because HTTP can be implemented on IP-enabled

and non IP-enabled devices. In addition, the HTTP

protocol is firewall-friendly and already has support

for error codes. The HTTP protocol can be easily

used to communicate between mobile clients and

enterprise applications.

3 WAP MIGHT BE DEAD, BUT

WHAT HAVE WE LEARNED?

WAP and MIDP solve similar problems but each

can learn a couple of things from the other. There

are special features that are available in WAP but

not in MIDP and vice versa. Here, we summarize the

important features:

– WAP has support for additional phone

functionality such as setup and integration with

address book. Despite the fact that not all WAP-

enabled devices support this feature, there are no

comparable APIs available for this in MIDP. It is

very likely that this will be possible in a future

version of MIDP.

– MIDP provides a low-level graphics APIs that

enable the programmer to have control over

every pixel of the device's display. This is

important for entertainment applications (such as

games) in a wireless environment. MIDP is the

ideal technology for mobile games. The very

nature of MIDlets (they exist on the device until

they are explicitly removed) allow users to run

them even when the server becomes unavailable

(support for disconnected operations).

– WAP’s Wireless Markup Language (WML)

provides the tags and the possible presentation

attributes, but it doesn't define an interaction

model. For example, WML defines a

SELECT

element for providing a list. Some WAP-enabled

devices interpret the

SELECT tag as a popup

menu list while others interpret it as a menu that

can be used for navigation. Therefore, there is no

standard interaction model defined for this

element. If a developer uses it, the application

may run well on some devices and poorly on

others. MIDlets, on the other hand, provide a

clearly defined standard for interaction using

commands.

3.1 But a Micro-Browser is Essential

MIDlets combine excellent online and offline

capabilities that are useful for the wireless

environment, which suffers from low bandwidth and

network disconnection. Integrating WAP and MIDP

opens up possibilities for new wireless applications

and over the air distribution models. Therefore,

WAP and MIDP shouldn't be viewed as competing

technologies but rather as complementing ones. If

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

126

you have any experience working with MIDlets, and

more importantly downloading MIDlets on real

physical devices (such as the Motorola/Nextel i85s

cellular phone) then you might be aware that

provisioned MIDlets over the air is still a work in

progress. In order to facilitate over the air

provisioning, there is a need for some kind of an

environment on the handset that allows the user to

enter a URL for a MIDlet Suite, for example. This

environment could very well be a WAP browser as

shown in Figure 2.

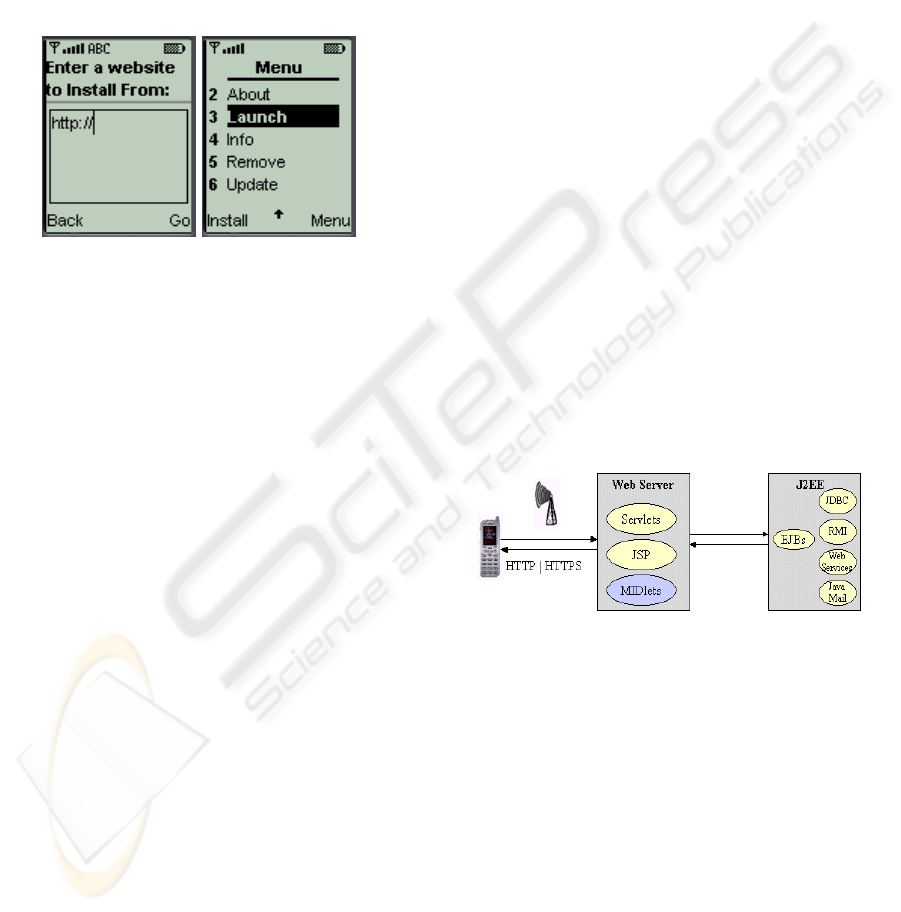

Figure 1: Integrating WAP and J2ME

Similar to Java Applets that are integrated in

HTML, MIDlets can be integrated into a WML

page. The WML page can then be called from a

WAP browser and the embedded MIDlet gets

installed on the device. In order to enable this, a

WAP browser (with support for over the air

provisioning) is needed on the device. Another

alternative approach for over the air provisioning of

MIDlets is the use of Short Message Service (SMS)

as has been done by Siemens where the installation

of MIDlets is accomplished by sending a

corresponding SMS. If the SMS message contains a

URL to a Java Descriptor (JAD) file specifying a

MIDlet Suite then the recipient can install the

application simply by confirming the SMS.

4 A RESPONSBILITY-DRIVEN

ARCHITECTURE

Responsibility-Driven design [Wirfs-Brook et al,

2002] is a design approach that emphasizes

behavioral modeling using objects, responsibilities

and collaborations. In a responsibility-based model,

objects play specific roles and occupy well-known

positions in the application architecture. Each object

is accountable for a specific portion of the work.

They collaborate in clearly defined ways,

contracting with each other to fulfil the larger goals

of the application. By creating a "community of

objects", assigning specific responsibilities to each,

we build a collaborative model of our application.

Here objects are service-providers, information

holders, controllers, and interfaces to the outside

world! Each must know and do its part.

The responsibility-driven architecture for wireless

applications makes applications easier to implement,

test, and maintain. This is mainly because each

object provides a specific service and therefore the

separation between responsibilities is clear.

Any architecture for wired/wireless integration

will consist of at least three-tiers. The WAP

architecture, for example, consists of 3-tiers: the

WAP User-Agent (or the client), the WAP Gateway,

and the Web Server that hosts the HTML, WML,

and other server-side scripts. The responsibility-

driven architecture that we propose here consists of

at least three-tiers; a high-level view is shown in

Figure 2. The architecture is simple but yet effective:

the client accesses and uses Java servlets that will in

turn communicate with Enterprise JavaBeans (EJBs)

to manipulate data on behalf of the client. In other

words, the responsibilities in this architecture are

divided as follows: clients (they want to use remote

enterprise applications); middle-tier Java servlets

that act on behalf of the user; and EJBs that

implement the business logic of enterprise

applications. This division of responsibilities makes

mobile applications easier to implement and

maintain. In addition, it would be easy to add other

plug-n-play components that support authentication,

for example.

Figure 2: High-level view of the architecture

Now, let’s look at the components of this

architecture in mode details:

– A mobile client application (based on WAP) or a

MIDlet that provides the user interface and

allows the user to interact with the application.

– The MIDlet communicates with a Java servlet or

JavaServer Page (JSP) over HTTP, or HTTPS if

necessary. Servlets and JSPs act as mediators

between the mobile thin-client and enterprise

applications. A mediator is a service that

functions simultaneously as a server on its front

end and as a client on its backend [Wiederhold,

1992]. It is much like a proxy; however, it

performs some useful processing on the request.

A RESPONSIBILITY-DRIVEN ARCHITECTURE FOR MOBILE ENTERPRISE APPLICATIONS

127

In this model, the client makes a request to the

mediator, which then contacts the original

enterprise service to satisfy a request or invoke a

remote method; the mediator may produce an

XML response which it serves to the client.

Mobile devices can benefit greatly from

mediators. All enterprise applications available

today can be made available to mobile users’

handheld devices through mediators that act as a

middleware between mobile devices and

enterprise applications.

– A servlet receives requests from MIDlets and act

as a client of an EJB component. Based on this

interaction, the servlet generates a response and

sends it back to the client (WAP browser or

MIDlet).

– An EJB component is the application’s business

logic. It provides standard services such as

transactions, security. It allows developers to

concentrate on implementing business logic.

– The servlet and EJB components may use

additional APIs to access enterprise information

and service.

This architecture supports multiple clients. The

client can either be a Java-based application

(MIDlet) running on a Java-enabled device, or an

application running on a browser-enabled device. In

this case, the servlet or JSP page would be able to

present the client with the appropriate reply (WML

content). This really means that while the MIDlet

and the WAP browser need to access different

Servlets and JSP, they would use the same EJB

components for business logic. As a result, this

architecture supports multiple clients without any

impact on the business logic of the application.

This architecture can be implemented using the

J2ME MIDP for the client-side and the J2EE for the

server side. The client-side application of this

architecture can use the classical Model View

Controller (MVC). The model would contain the

data for the application; the view would contain

code for managing data when interacting with the

user; and the controller would look after the logical

flow of the user interface. Figure 2 shows the

interaction between the mobile device and the

central server.

4.1 Client-Server Communication

As we have mentioned above, MIDP prefers the use

of the HTTP protocol for messaging over any other

communication mechanisms such as sockets or

datagrams. As a result, all MIDP-enabled devices

are required to support the HTTP protocol and

therefore any application that uses the HTTP

protocol for messaging would be portable across all

devices. The use of HTTP is actually a good thing

for mobile enterprise applications because many

enterprise servers are separated from mobile clients

by firewalls, and HTTP is a firewall friendly

protocol.

It may not be reasonable to assume that all

mobile clients within one enterprise will be using the

same servlet. For scalability issues as well as other

issues such as authentication, several servlets can be

deployed and some can be made location-aware so

that different mobile clients would access different

servlets that may be offering the same or different

services.

4.2 Disconnected Operations

The characteristics of the wireless environment,

namely: low bandwidth and greater tendency for

network errors and disconnection call for

mechanism that reduces the load on the wireless link

and supports disconnected operations. One way to

support disconnected operations is through the use

of Java Message Service (JMS), which can be easily

integrated into the architecture.

Mobile Agents [White, 1997] can aid in

providing a reliable technology for message

transport. Mobile agents are well suited for many

applications that are communications-centric such as

processing data over unreliable networks (such as

wireless networks). In such environments, the low

reliability network can be used to transfer agents,

rather than a chunk of data from place to place. In

this scenario, the agent can travel to the nodes on the

network, collect or process information, without the

risk of network disconnection, then return home.

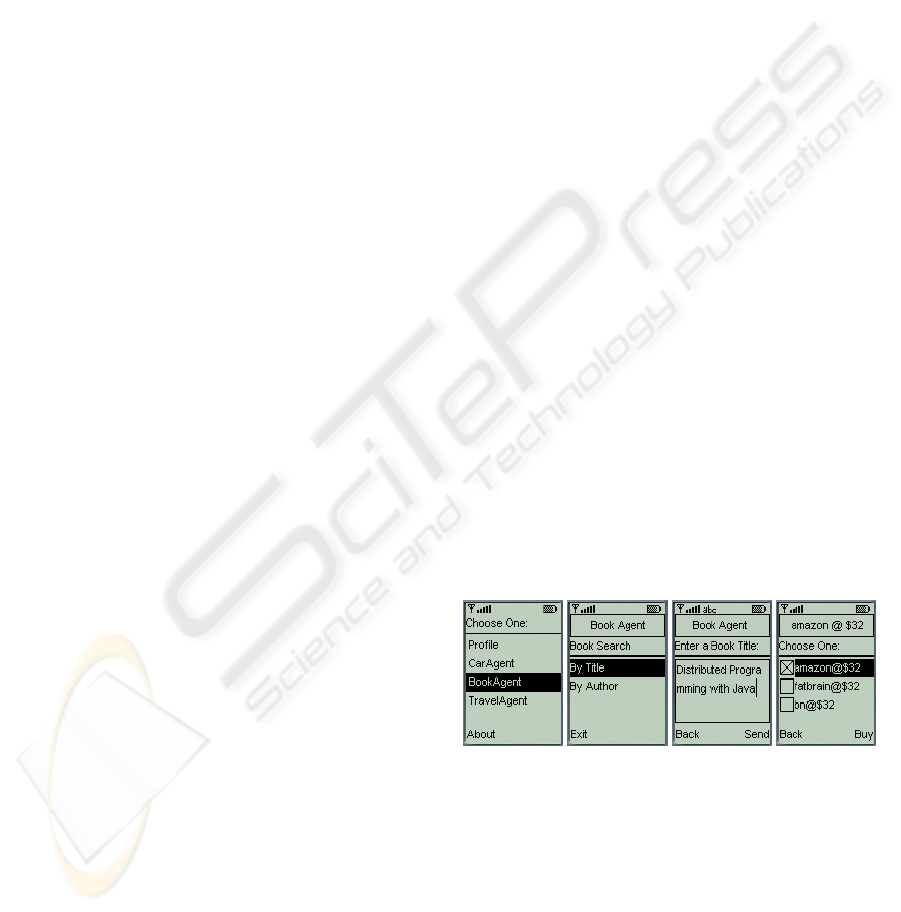

Figure 3: MobiAgent’s BookAgent service

Our responsibility-driven architecture can be

easily extended to support mobile agents as follows:

the mobile device would have an interface agent that

allows the user to access, configure, and dispatch

mobile agents. The interface agent communicates

with a servlet that is responsible for dispatching

mobile agents; such agents can be implemented

using Java Remote Method Invocation (RMI). When

the agent finishes its work, the results are sent back

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

128

to the mobile device (through the servlet); if the

device is disconnected from the network, the results

are saved in the user’s profile and an SMS message

is sent to the user informing her that the results are

available. This strategy has been implemented in the

MobiAgent [Mahmoud, 2002] system architecture.

Figure 3 shows a snapshot of how it works.

4.3 Personalization

In the responsibility-driven architecture, new

modules can be easily added to be responsible for

tasks such as location-awareness and

personalization. Personalization means that only

relevant information should be downloaded to the

mobile devices and then present that information

effectively taking into account the user’s preferences

and history along with the task at hand. In

personalization, however, data is persistent by nature

and therefore this is different from maintaining

session states where data is transient.

Personalization is important in mobile enterprise

applications; as an example consider a login screen

where the user needs to enter a valid user name and

password in order to use an application. Such screen

the user should be asked to enter the login

information only once.

Personalization is not without privacy and

security issues, however. An automatic login feature

is one way to improve the user experience and avoid

tedious authentication procedures. Personalization

may require storing data on the device and therefore

special care should be taken to protect its integrity

and confidentiality. As an example, consider the

case where a piece of sensitive information is stored

on the device. It should be ok to automatically send

the sensitive information to the server but not

display it on the screen. If the user wishes to view

such sensitive information, the operation should

require the user to enter a password. This is

important so that if the device is lost and someone

finds it, the sensitive information cannot be retrieved

out of the device.

4.4 Benefits of the Proposed

Architecture

The benefits of this responsibility-driven

architecture can be summarized as follows: First, it

is simple but yet quite effective and easy to

implement using existing technologies; it enables

multiple mobile clients to access enterprise services;

the architecture is transparent as the client is not

aware of the location of the enterprise services; it

provides anytime, anywhere access to enterprise

services; it is based on open industry standards, such

as HTTP and XML; it promotes loose coupling

between mobile thin-clients and enterprise servers; it

is inherently scalable since it is based on proven

scalable architectures such as Servlets; and finally it

is Web services ready: the latest release of the J2EE

(J2EE 1.4) enables developers to expose existing

J2EE enterprise applications as Web services that

would be ready to be consumed by mobile clients.

5 CONCLUSION

In this paper we have discussed the characteristics of

the wireless environment and the technologies that

are available for developing mobile applications. A

responsibility-driven architecture for mobile

enterprise applications was discussed. This

architecture provides a software infrastructure for

accessing enterprise applications from mobile

clients. The architecture is simple yet effective since

responsibilities are divided among its components;

such division makes it easier to develop, test, and

maintain mobile enterprise applications. The

architecture is scalable and capable of handling

growth since it is based on proven scalable server

solutions such as servlets and EJBs. Our future work

includes extending this architecture with mobile

middleware that will play a crucial role in mobile

enterprise computing and mobile commerce

systems.

REFERENCES

Beaulieu, M., 2002. Wireless Internet Applications and

Architecture. Addison-Wesley.

Burkhardt, J., Henn, H., Hepper, S., Rintdorff, K., 2002.

Pervasive Computing Technology and Architecture of

Mobile Internet Applications. Addison-Wesley.

Mahmoud, Q.H., 2002. An Agent-based Approach to the

Wireless Internet. In Journal of Internet Technology,

Vol. 3, No. 2, pp. 153 – 158.

Sun Microsystems Inc., (J2ME), 2000:

http://java.sun.com/j2me

White, J., 1997. Mobile Agents. In Bradshaw, J.M. (ed.),

Software Agents, AAAI/MIT Press, pp. 437-472.

Wiederhold, G., 1992. Mediators in the Architecture of

Future Information Systems. In IEEE Computer, 25(3),

pp. 38-48.

Wirfs-Brook, R., McKean, A., 2002. Object Design:

Roles, Responsibilities, and Collaborations. Addison-

Wesley.

A RESPONSIBILITY-DRIVEN ARCHITECTURE FOR MOBILE ENTERPRISE APPLICATIONS

129
