Mobile

Agent System for Web Services

Integration in Pervasive Networks

Fuyuki Ishikawa

, Nobukazu Yoshioka

, Yasuyuki Tahara

, Shinichi Honiden

2,1

Graduate School of Information Science and Technology

The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8654, Japan

National Institute of Informatics,

2-1-2 Hitotsubashi, Chiyoda-ku, Tokyo 101-8430, Japan

Abstract. Web Services integration using languages such as BPEL is to

b e applied not only on the Internet but also in pervasive networks using

wireless mobile devices. However, in such a network it is necessary to

deal with constraints in resources, typically the relative narrowness and

instability of network connections. Our study adopts the mobile agent

technology in response to this problem and presents a mobile agent sys-

tem for Web Services integration. In our system, the physical behaviors

of mobile agents, including migration and cloning, are separated from the

integration logic and are described as simple rules added to the BPEL

integration process description. This makes it possible to add or change

physical behaviors according to the environmental conditions without

mo diﬁcation of the BPEL description.

1 Introduction

Research on XML Web Service technologies for the dynamic integration of ser-

vices has recently commenced[1]. The goal of the Web Services eﬀort is to achieve

universal interoperability between applications by using Web standards. Web

Services use a loosely coupled integration model to allow ﬂexible integration

of heterogeneous systems. Starting from the basic speciﬁcations for messaging

and service description, the Web Service technologies now include languages for

specifying how to integrate existing services and compose a just-in-time service.

BPEL (Business Process Execution Language for Web Services)[2] is common

one of such languages and deﬁnes a notation of an integration process based on

interactions between the process and its partners (existing services or clients).

On the other hand, the rapid development of mobile devices and wireless

technologies is leading to new applications in pervasive networks. In pervasive

networks, both users and service providers utilize mobile computers/devices com-

municating with each other using wireless connections. For example, the user

accesses services in the wireless LAN to obtain information about the shops he

is about to visit, as he accesses services on the Internet using wired connections.

As the Web Services technologies provide the basis for interoperability and

dynamic discovery and integration of services, their beneﬁts exist not only on

Ishikawa F., Yoshioka N., Tahara Y. and Honiden S. (2004).

Mobile Agent System for Web Services Integration in Pervasive Networks.

In Proceedings of the 1st International Workshop on Ubiquitous Computing, pages 38-47

DOI: 10.5220/0002681900380047

 SciTePress

the Internet but also in the pervasive networks. Now Web Services can be imple-

mented on mobile devices[3]. However, since the Web Services eﬀort has mainly

targeted services on the Internet and the interaction models are heavily based

on remote messaging, they cannot be applied directly in pervasive networks, due

to the relative narrowness and instability of wireless connections. As a typical

example, it b ecomes inadequate in pervasive networks to exchange multimedia

data itself between distributed services in order to compose a multimedia infor-

mation collection service.

Our study adopts the mobile agent technology in response to this problem

and presents a mobile agent system for Web Services integration. A mobile agent

is a software component that has the ability to move from one host to another

while preserving its state. It has been utilized for adaptation to various environ-

ments, typically mobile computing environments[4, 5]. On realizing integration

by mobile agents, it is important to facilitate change of physical behaviors with-

out modiﬁcation of the integration logic, in order to adapt to changes in the

environments. Considering this requirement, in our system the physical behav-

iors of mobile agents, including migration and cloning, are separated from the

integration logic and described as simple rules added to the BPEL description.

This makes it possible to add or change physical behaviors according to the

environmental conditions without modiﬁcation of the BPEL description.

In Section 2 of this paper, we discuss the problems in Web Services integration

in pervasive networks and show our approach utilizing mobile agents. We present

our system model in Section 3 and discuss implementation issues in Section 4.

We present several considerations and the conclusion in Section 5 and 6.

2 Web Services Integration in Pervasive Networks

In this section, we present a brief introduction of the Web Services integration

using BPEL and discuss a problem in realizing it in pervasive networks. We then

describe how we apply the mobile agent technology to the problem.

2.1 Web Services Integration using BPEL

BPEL (Business Process Execution Language for Web Services)[2] is an XML

language used to describe an executable process that provides a new service by

integrating existing services.

Figure 1 illustrates an example of the structure of

such a process. This process ﬁrst receives a request from a client, concurrently

invokes two data services and then an analysis/search service for each obtained

data, and ﬁnally assigns the results to a variable and replies to the service con-

sumer. In BPEL each involved task is called an activity. The example shown in

Fig. 1 includes the basic activities of receive, invoke, assign, and reply. These

activities are nested in structured activities that represent activity control infor-

mation (sequence and ﬂow in the ﬁgure). A sequence activity indicates sequential

Interfaces of all these services are described using WSDL (Web Services Description

Language)[6].

execution of nested activities and a ﬂow activity indicates that control ﬂow of

nested activities is speciﬁed in a graph-oriented manner with link elements(the

arrows in the ﬁgure). In this way, BPEL deﬁnes a notation of an integration

process based on interactions between the process and its partners (existing ser-

vices or clients). BPEL includes many other activities for branch, iteration, fault

handling, event handling, and compensation.

receive

“receiveInput”

receive

“receiveInput”

invoke

“invokeShop1”

invoke

“invokeShop1”

invoke

“invokeShop2”

invoke

“invokeShop2”

invoke

“analyzeShop1”

invoke

“analyzeShop1”

invoke

“analyzeShop2”

invoke

“analyzeShop2”

assign

“resultSet”

assign

“resultSet”

receive

“receiveInput”

receive

“receiveInput”

invoke

“invokeShop1”

invoke

“invokeShop1”

“replyResult”

sequencesequence

flow

sequence

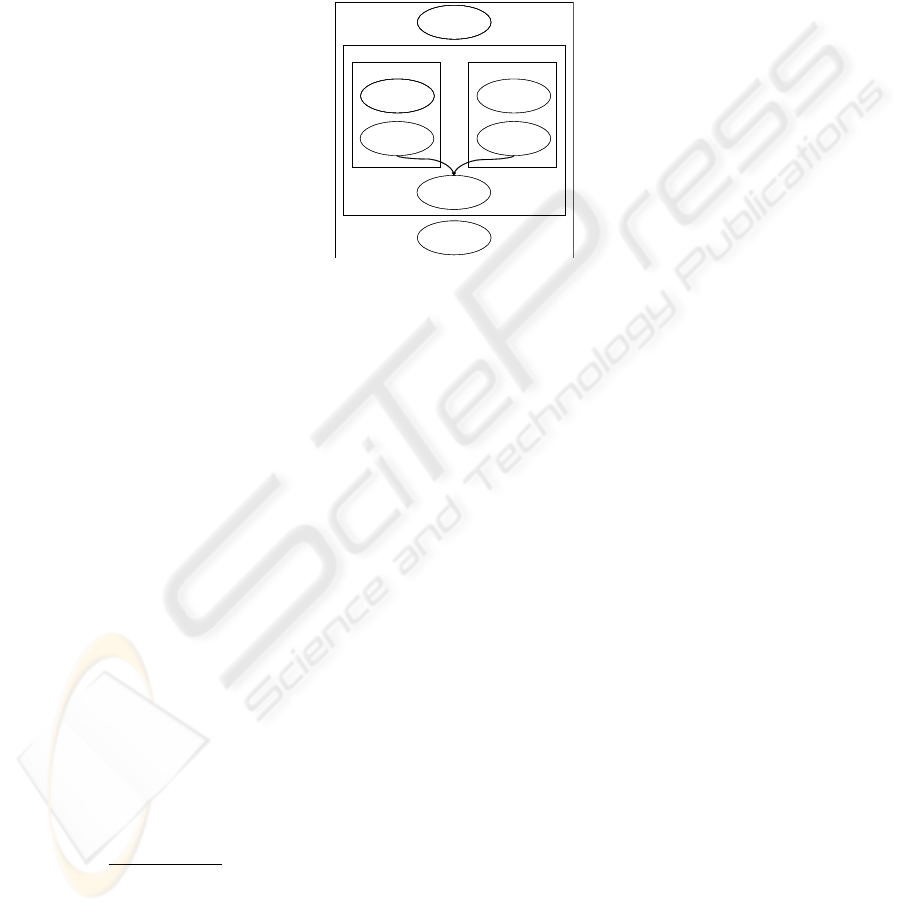

Fig. 1. Example of BPEL Process Structure

The BPEL process described here integrates two types of services: (1) ser-

vices providing multimedia information with a standardized general interface for

queries based on metadata, and (2) services providing methods for specialized,

sophisticated, or original analysis/search of the multimedia data itself. Like this,

BPEL and the underlying Web Service technologies promote the dynamic and

arbitrary combination of services, facilitating composition of an original just-in-

time service by selecting favorite service providers as partners.

2.2 Problems in Pervasive Networks

As the Web Services technologies provide the basis for interoperability and dy-

namic discovery and integration of services, their beneﬁts exist not only on the

Internet but also in pervasive networks. However, since the Web Services ef-

fort has mainly targeted services on the Internet and the interaction models are

heavily based on remote messaging, they cannot be applied directly to some ap-

plications in pervasive networks, due to the relative narrowness and instability

of network connections. For example, the composition of multimedia informa-

tion service shown in Section 2.1 becomes inadequate in pervasive networks with

limited communication resources, since this requires exchange of the multimedia

data itself b etween distributed services. This problem is signiﬁcant especially

when temp orary environments without suﬃcient resources are considered.

This selection is done by associating service bindings to a process instance, or speci-

fying a process that ﬁnds adequate service providers with directroy services by itself.

In the remainder of this paper, we consider adoption of the mobile agent

technology in response to this problem. Note that we limit our discussion in this

paper to this problem. We are not concerned with another problem of dynamic

discovery and selection of (possibly temporary) available services, assuming some

mechanisms are available such as directory services and multicast protocols.

2.3 Adoption of Mobile Agents

A mobile agent is a software component that has the ability to move from one

host to another while preserving its state[4, 5]. It has been utilized especially

for information retrieval applications and mobile computing, with its migration

ability facilitating the following typical behaviors.

Local Access A mobile agent can migrate to the host where the service stays so

that it enables fast local interaction with the service, at the cost of migration

overhead. In addition, it can reduce network traﬃc in information retrieval

applications, by carrying on the analysis/search method to the service host

and bringing (or sending) back only the necessary result.

Work Away from the User’s Device A mobile agent can select hosts on

which it achieves tasks so that it can interact with the user on his device and

achieve other tasks on other more stable hosts. This decreases the depen-

dence on an unstable connection of the moving user’s device while maintain-

ing fast responses during interactions with the user. Moreover, the user only

have to connect when needed, e.g. when launching and receiving agents.

Existing mobile agent systems also support cloning as well as migration[7, 8].

Cloning complements migration behaviors with additional abilities, for example,

concurrent local access to multiple services and reduction in migration cost by

dispatching a clone with only necessary data.

To realize Web Services integration by mobile agents, it is necessary to add

descriptions of these physical behaviors to the integration logic. It is important

to facilitate change of physical behaviors without modiﬁcation of the integration

logic, in order to adapt to changes in the environments. Taking this require-

ment into consideration, we propose a mobile agent system for Web Services

integration, where the descriptions of integration logic and physical behaviors

are separated. Our system aims to:

– Utilize the standard language, BPEL, to describe integration logic.

– Readily introduce typical physical behaviors to an integration process using

simple rule descriptions.

Our discussion in this paper thus targets how to describe the behaviors of a

mobile agent that integrates services.

3 Mobile Agent System for Web Services Integration

In this section, we present our mobile agent system for Web Services integration,

taking particular note of the descriptions of the agents’ behaviors.

3.1 System Model

Figure 2 shows our model for integration by mobile agents. In this system, a

mobile agent that achieves Web Services integration is deﬁned with three parts

of descriptions: (1) a BPEL process description expresses the integration

logic and is interpreted by the agent, (2) behavior rule descriptions decide

the physical behaviors of the agent, and (3) packed services are carried by the

agent and invoked locally in the BPEL process. The provider of an composed

service registers these to a platform that supports execution of agents.

BPEL Process

Mobile Integration Agent

Web Service

Migration / Clone Dispatch

and

Local Access

Remote Access

Host

Mobile Agent

Platform

Integration Services

Packed in Java

Behavior Rule Descriptions

launch

Host

Mobile Agent

Platform

Host

Mobile Agent

Platform

Web Service

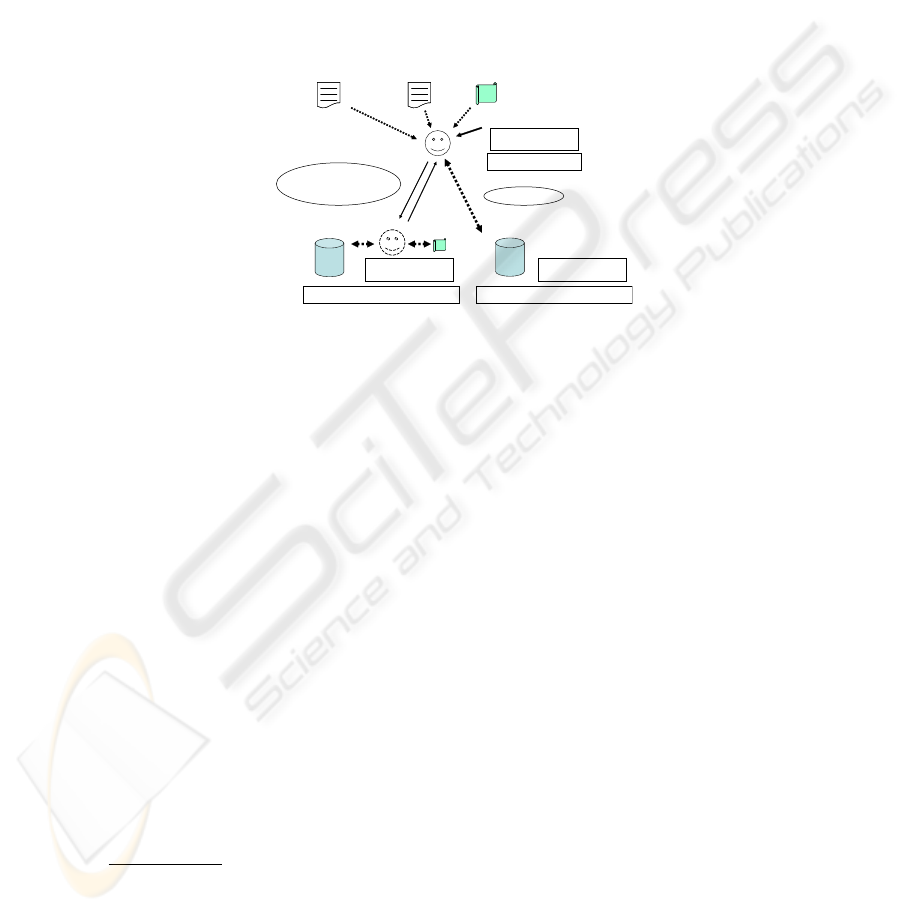

Fig. 2. Web Services Integration by Mobile Agents

The combination of a BPEL process and behavior rule descriptions decides

the behaviors of the agent. Behavior rule descriptions are explained in more detail

later in this section. Packed services are invoked in the same way as external

services, but the agent dynamically deploys them on the host where it stays. We

currently limit this to only Java classes referred by WSDL Java Extension. This

functionality to carry services is necessary, for example, in order to achieve local

access and analysis/search as mentioned in Section 2.3.

Note that this paper does not cover how to select partners from available

service providers and assumes that ordered lists for available service providers

are supplied when the agent is instantiated.

3.2 Overview of Behavior Rule Descriptions

In our behavior rule descriptions, each rule associates a physical behavior, i.e.

migration or cloning, to an execution block, that is, a set of activities to be exe-

cuted in succession. An execution block consists of any form of: (1) an activity,

(2) activities that are nested directly in a sequence activity and are to be exe-

cuted successively (subsequence), or (3) activities that are nested directly in a

ﬂow activity and make a connected graph starting from one activity (subﬂow).

This deﬁnition comes from the fact that only sequence and ﬂow activities can nest

multiple activities directly.

In all cases there is one activity that is to be executed ﬁrst in the block and we

call this the start activity of the block. We allow a block to nest in another block

recursively but not to cross the boundary of another block.

Here we explain two types of primitive rules with the example rules in Fig.

3. These rules are associated with the example BPEL process in Fig. 1.

Migration A migrate rule indicates that the agent migrates to a certain host

and executes the block on the host if the migration is successful, excluding

other possible occurrences of migration associated with concurrent blocks.

The purpose of asso ciating an execution block to a host, instead of indicating

a point where migration occurs, is to assure realization of successive local

interactions, e.g. local access and analysis/search mentioned in Section 2.3.

Conﬂicting migration of concurrent blocks are detected before execution.

The migrate rule in the ﬁgure indicates that the agent migrates to the host

where the information service stays (the keyword local) and on the host

it invokes the service (”invokeShop1”) and the carried service for analysis

(”analyzeShop1”). If it fails to migrate, it continues the trial until timeout

(the retry element). These options are described again later in this section.

Cloning A clone rule indicates that the agent creates a new clone agent and

allocates the execution block to it. Since BPEL is capable of describing

concurrency control with ﬂow activities such as join conditions, our clone

rule only describes which activities are to be executed by the created clone.

The clone rule in the ﬁgure indicates that the agent creates its clone and

makes it access another information service locally as indicated by the nested

migrate rule.

</migrate>

</migrate>

</clone>

Fig. 3. Example of Behavior Rule Description

Interpretation of the combined BPEL process and behavior rule descriptions

is done in almost the same way as the interpretation of a standard BPEL process.

The diﬀerence is that the controls of physical behaviors, such as migration ac-

tions and data exchange between agents, are inserted according to the behavior

rule descriptions, before and after execution of each activity. We are presently

investigating the formal deﬁnition of these behaviors. In our system, an agent

is an entity that is responsible for execution of a certain set of activities in the

BPEL process. Intuitively, migration changes the host which the agent belongs

to and cloning changes the agent which the activities in the execution block

belong to. These behaviors preserves the original semantic of BPEL, in terms of

control and data ﬂow between activities and actions associated to each activity.

3.3 Options for Migration Controls

Here, we brieﬂy describe some options for migration controls to facilitate realiz-

ing typical behaviors.

First of all, it is necessary to specify how to decide the target host of migra-

tion. Apart from specifying a host address directly, our system supports various

options for this. We show some characteristic ones below.

Ordered list of hosts The agent tries to migrate to hosts in the list one by

one until it succeeds or it fails all.

local keyword The agent migrates to the host where the service invoked in the

start activity stays. This allows programmers to realize local interactions

easily without being concerned about which service providers are actually

chosen possibly in runtime. This requires addressing support of platforms,

as we will discuss in the next section.

Reference to an allocation service The agent utilizes a provided allocation

service that returns a list of available hosts according to the environmental

conditions.

Secondly, it is necessary to handle migration failure as we are taking unstable

wireless connections into consideration. As shown in the example in Section 3.2,

behavior rule descriptions enable agents to continue the trial until timeout. In

addition, specifying a list of target hosts, as mentioned above, indicates migra-

tion retry changing the target host, and specifying a change keyword indicates

migration retry for local access by changing the service provider to interact with

according to the given list of available providers. When the agent still fails to

migrate after such retries it accesses services remotely as a stationary BPEL en-

gine by default. However, in cases where migration is very important, for example

when exchanging enormous amounts of data, the agent may give up execution of

the block, throwing an associated fault. Behavior rule descriptions also facilitate

such association of migration failure to fault throwing in the BPEL process.

4 Implementation

In this section, we show the current implementation status and discuss some

implementation issues particular to our system.

4.1 Current Status and Issues

We implemented a prototype system using the Bee-gent framework[7] and ex-

amined the eﬀectiveness of mobility in Web Services integration through several

experiments. In this paper we don’t present these experiments as space is limited

and the experiments are basic and traditional ones for evaluation of the mobile

agent paradigm.

Here, we brieﬂy discuss some implementation issues particular to our system.

Realization of Local Access As mentioned in Section 3.3, to allow program-

mers to realize local access to a service selected in runtime, the system should

support addressing of a platform that is on the same host as the service. Such

information should be embedded as part of the metadata of the service. In

the current implementation, directory services manage this information.

Data Exchange between Clones In our system, a clone is an agent that is

created to execute a set of activities according to a clone rule. To realize

such task assignment, it is necessary to send required data from one agent to

another. Although data dependency between activities can be easily obtained

from the BPEL process, each agent must know which agent is to execute the

activity that requires the agent’s data. The current implementation analyzes

the BPEL process and behavior rules, and prepares in advance a table that

associates an activity to the agent responsible for execution of the activity.

Minimization of Clones In Section 2.3 we mentioned reduction in migration

cost by cloning. This can be achieved by analyzing the BPEL process and

dispatching a clone with only the necessary data.

We are presently investigating more sophisticated implementation addressing

these issues. This implementation is based on the Web Services technologies,

intended to achieve the maximum platform-independence and interoperability.

5 Consideration

In this section we present several considerations about our system.

5.1 Eﬀectiveness of Mobile Agents in Web Services Integration

Generally, the mobile agent paradigm enables various types of access to resources

by combining (1) migration between hosts, (2) parallel execution by cloning, and

(3) remote communication, as mentioned in Section 2.3. Thus, it is considered

to be a general framework for mo deling and implementation in distributed envi-

ronments[4, 5]. It has been utilized for adaptation to various environments with

resource constraints[9, 10], though we only mentioned the problem of wireless

connections in this paper. The mobile agent paradigm will surely provide Web

Services with a powerful way to adapt to various environmental conditions.

However, the eﬀectiveness of a certain physical behavior, e.g. local access

to an information service mentioned in Section 2.3, depends on the various pa-

rameters in the environment: exchanged data amount, network bandwidth and

stability, computing resources, number of clients accessing the service simulta-

neously, and so on[11, 12]. Our future work is to conduct further experiments

and evaluation in order to explore eﬀectiveness of complex behaviors in vari-

ous situations. This will help us provide both description guidelines and further

high-level rule descriptions of complex behaviors.

5.2 Behavior Descriptions of Mobile Agents

In typical mobile agent systems, programmers describe both application logic

and physical behaviors together in procedural languages such as Java[8]. This

leads to very complex codes and makes it diﬃcult to change only physical be-

haviors according to changes in the environments.

In our system, the BPEL process description as integration logic and the

behavior rule descriptions for physical behaviors are separated, which is our

original objective. It is easy to see what the actual tasks for integration are and

to change only the physical behaviors in order to test which behaviors are the

most suitable for the environment or to adapt to changes of the environment.

The separation also enables step-by-step development styles: ﬁrst develop and

test only a BPEL process (or use an existing one), then add and test physical

behaviors according to the environment. Moreover, in our behavior rule descrip-

tions, it is not necessary to specify additional controls explicitly, such as remote

communication between agents, as they are performed according to the control

and data ﬂow described in BPEL.

5.3 Related Work

Much research has been conducted on services integration (not limited to XML

Web Services), some of which utilize mobile agents. However, none of them com-

bine the mobile agent technology with standards for Web Services integration

such as BPEL. From the point of view of mobility utilization, some approaches

adopt simple migration models such as “always local access”[13], which may be

ineﬃcient in some situations. Many other approaches adopt migration models

based on estimation and optimization of costs with dynamic resource manage-

ments[9, 10, 14] (including so-called “grid” approaches). Our work is intended to

facilitate selection and combination of such various models of physical behaviors,

for example, specifying target hosts of migration statically in some domains and

utilizing provided allocation services with their own allocation policies in oth-

ers. It is notable that in [10, 14], mobile agents provide “mobile services”, rather

than utilize other services as we have considered in this paper. It seems very

interesting to utilize our system to implement such mobile services, as a BPEL

process is both a service consumer and a service provider.

On the other hand, the need for separation of application logic and mobility

has been investigated in several studies. In [15], mobility is described as declara-

tive, event-driven policies. Although our current rules are very limited and don’t

handle event-based migration, the features of our system are that (1) it targets

Web Services, composing a mobile agent with exchangeable services to carry

and providing dedicated descriptions such as local, and (2) it also enables simple

control of cloning.

6 Conclusion

Our study proposes a mobile agent system for Web Services integration, where

physical behaviors of mobile agents, i.e. migration and cloning, are separated

from a BPEL integration process and described as simple rules. We are presently

investigating the formal deﬁnition of behavior descriptions. This research is to

ensure that our framework preserves the original semantic of BPEL and to fa-

cilitate tool support and validation. Starting with our work in this paper, our

objective is to facilitate ﬂexible behaviors of mobile agents in Web Service ap-

plications, to adapt to various environments such as pervasive networks.

References

1. Web services. http://www.w3.org/2002/ws/.

2. Satish Thatte et al. Business process execution language for web services, ver-

sion 1.1. http://www-106.ibm.com/developerworks/webservices/library/ws-bpel/,

2003.

3. alphaworks : Web services tool kit for mobile devices.

http://www.alphaworks.ibm.com/tech/wstkmd, 2002.

4. David Kotz and Robert S. Gray. Mobile agents and the future of the internet.

Operating Systems Review, 33(3):7–13, 1999.

5. Deja Milojicic. Mobile agent applications. IEEE Concurrency, 7(3):7–13, 1999.

6. Web service description language (WSDL) 1.1. http://www.w3.org/TR/wsdl,

2001.

7. Bee-gent multi agent framework. http://www2.toshiba.co.jp/beegent/.

8. Mitsuru Oshima, Guenter Karjoth, and Kouichi Ono. Aglets speciﬁcation.

http://www.trl.ibm.com/aglets/spec11.htm, 1998.

9. Munehiro Fukuda, Yuichiro Tanaka, Naoya Suzuki, Lubomir F. Bic, and Shinya

Kobayashi. A mobile-agent-based pc grid. In Autonomic Computing Workshop 5th

Annual International Workshop on Active Middleware Services (AMS’03), 2003.

10. C. Ragusa, A. Liotta, and G. Pavlou. Dynamic resource management for mobile

services. In The 5th International Workshop on Mobile Agents for Telecommuni-

cation Applications (MATA’03), 2003.

11. L. Ismail and D. Hagimont. A performance evaluation of the mobile agent

paradigm. In the Conference on Object-Oriented Programming, Systems, Lan-

guages, and Applications, pages 306–313, 1999.

12. Robert S. Gray et al. Mobile-agent versus client/server performance: Scalability

in an information-retrieval task. In The 5th International Conference on Mobile

Agents(MA2001), pages 229–243, 2001.

13. Amir Padovitz, Shonali Krishnaswamy, and Seng Wai Loke. Toward eﬃcient and

smart selection of web service. In AAMAS’2003 Workshop on Web Services and

Agent-based Engineering, 2003.

14. Zakaria Maamar, Quan Z. Sheng, and Boualem Benatallah. On composite web

services provisioning in an environment of ﬁxed and mobile computing resources.

Information Technology and Management, , Kulwar Academic Publishers,, 5(3),

2004.

15. R. Montanari and G. Tonti. A policy-based infrastructure for the dynamic con-

trol of agent mobility. In 3rd International Workshop on Policies for Distributed

Systems and Networks(POLICY’02), pages 206–209, 2002.
