ENSURING HIGH PERFORMANCE IN VALIDATING XML

PARSER

Donglei Cao, Shuang Yu, Beijie Dai and Beihong Jin

Technology Center of Software Engineering, Institute of Software

Chinese Academy of Sciences, Beijing 100080, China

Keywords: XML Parser, Validation, Performance Tuning.

Abstract: An XML parser is the fundamental software for analyzing and processing XML documents. This paper

presents the optimized validation algorithms in OnceXMLParser, a full-validating XML Parser.

OnceXMLParser adopts a lightweight architecture and implements several efficient algorithms for

validating. Since the element validating is a great challenge to the performance of a validating XML parser,

this paper focused on two key algorithms to resolve it. The first one involves in an optimized automaton

used to build these element validating rules efficiently. The second one is a statistical predictive algorithm

to reduce the name string recognizing process. For a valid document, this algorithm could make precise

prediction when the child elements are sequentially defined, and could fulfil the least cost prediction

according to the cost function when the child elements are optionally defined. Performance testing shows

OnceXMLParser after performance tuning has outstanding parsing efficiency.

1 INTRODUCTION

The Extensible Markup Language (XML) (W3C,

1998) has been widely used in electronic businesses,

web services and enterprise data exchanges and

integrations; it actually becomes a standard for data

representation and exchange over network. In

addition, as a meta-language, XML can be used to

define a wide range of markup languages, such as

Web Service Definition Language, Resource

Description Framework and Mathematical Markup

Language. However, text-based format of XML

sometimes leads to a large document. Moreover,

XML-based data exchange happens much frequently

in some scenarios, for example, in Web service

applications. Thus, XML parsing in those

applications will become a system bottleneck which

demands to improve the performance of XML

parsers.

This paper gives the optimization techniques of

validity checking in OnceXMLParser which is a

high-performance full-validating XML Parser

supporting Simple API for XML (SAX), Document

Object Model (DOM) and Streaming API for XML

(StAX). The paper is organized as follows. Section 2

introduces some popular XML parsers; section 3

gives the system architecture of OnceXMLParser;

section 4 presents key validity checking algorithms;

section 5 shows our test results, mainly in StAX, and

at last is the summary.

2 RELATED WORK

There are many popular XML parsers for Java, such

as Xerces (Apache, 2004), Crimson (Apache, 2001),

Piccolo (Oren, 2002), etc. Among these parsers,

Xerces is the most popular validating XML parser

supporting DOM and SAX, and it is also the default

parser since JDK 5.0. Crimson supports XML1.0,

SAX2, DOM Core 2 and JAXP1.1. Piccolo is a

validating SAX parser which is generated by parser

generator tools JFlex and BYACC/J. However,

Crimson is not perfect in parsing; for example, it

cannot recognize byte order mark in UTF-8 coding,

and invalid character references in attribute values.

Similarly, Piccolo also has defects in parsing and

validating, for instance, it cannot resolve relative

paths in entity references correctly, and does not

check the validity constraint (VC): Proper

Conditional Section/PE Nesting. In brief, Xerces is

excellent in SAX and DOM although it enters loop

after reading 10M-size comment or PI.

210

Cao D., Yu S., Dai B. and Jin B. (2007).

ENSURING HIGH PERFORMANCE IN VALIDATING XML PARSER.

In Proceedings of the Third International Conference on Web Information Systems and Technologies - Internet Technology, pages 210-215

DOI: 10.5220/0001276102100215

 SciTePress

Recently, StAX, a promising pull API for XML

processing, is implemented by some XML parsers,

for example BEA StAX RI (BEA, 2003), Sun Java

Streaming XML Parser (Sun, 2005), Oracle StAX

Pull Parser (Oracle, 2003) and Woodstox (Codehaus,

2006). But all of them have some fatal defects. For

example, BEA StAX RI cannot recognize invalid

characters in character data part of the document,

cannot parse entity references in the default attribute

values and cannot get the correct character text when

it reports a characters event; Sun Java Streaming

XML Parser cannot correctly deal with the external

parameter entity references in Document Type

Definition (DTD), cannot recognize legal characters

ranged from #x10000 to #x10FFFF and surrogate

pairs, and it doesn’t read attribute-list declarations in

the external subset; Oracle StAX Pull Parser is based

on the SAX Parser of Oracle XDK which leads to its

inefficient; Woodstox cannot fully support UTF-8,

especially the surrogate pairs, and it cannot

recognize some invalid names. As the only

validating parser among those StAX parsers,

Woodstox doesn’t report errors when it meets

invalid XML documents; instead it reports

exceptions and stops parsing.

Besides these common XML parsers, some

researches also focus on automatically generating

XML parsers from an XML Schema. XML

Screamer (Kostoulas et al, 2006) is such an

experimental system. Its parsing is integrated with

Schema-based validation and deserialization to

achieve high performance. But these automatically

generated parsers are not common XML parsers.

Each generated parser only fits those Schema-based

valid documents under a particular XML Schema.

OnceXMLParser is a common XML parser and

fully implements XML1.0/1.1 and Namespaces in

XML (W3C, 1999). It passes all the API tests for

StAX (Tatu, 2004), DOM (W3C, 2004) and SAX

(David, 2001) and all the XML conformance tests

(W3C, 2003), it also shows outstanding parsing

performance after adopting some efficient

performance tuning algorithms.

3 SYSTEM ARCHITECTURE

OnceXMLParser adopts a lightweight architecture

and consists of the following components shown in

Figure 1.

Like common lexical analysis used for traditional

programming language, Scanner is implemented as a

Deterministic Finite Automaton (DFA) to recognize

terminals from the input streams. Some well-

formedness constraints (WFCs), such as checking

valid name characters and valid attribute values, are

checked while recognizing those tokens. But before

regular lexical analysis, Scanner has to decode

characters denoted by encoding signature in the

scanning buffer and then put the decoded characters

into a pre-allocated character buffer. Considering

that the smaller size of character buffer needs more

filling buffer operations and more saving actions for

unparsed tokens at the end of character buffer, but

the larger size of character buffer increases costs for

normalization operations, we adjust the proper size

of character buffer in order to improve performance.

CoreParser is the core syntax processor, which

uses tokens got from Scanner and returns interested

information to applications through some standard

APIs. In addition, CoreParser checks most WFCs.

For example, in order to conform to WFC: Element

Type Match (W3C, 1998), CoreParser must check

whether these element names in start tags and

corresponding end tags are equal. CoreParser

resolves markups and characters according to their

statistical frequencies of occurrences, first for the

highest frequency.

DTDParser is a syntax analyzer for processing

declarations in DTD. It is also responsible for

building VC rules. In order to make the building

process efficiently, especially for those VC rules

about elements’ relations, DTDParser needs efficient

algorithms which will be discussed in the next

section. In addition, in order to facilitate the building

and checking processes of VC rules, efficient data

structures, such as light-weighed hash map, are

implemented.

Validation module checks VC rules collected by

DTDParser. The design of validation module is

crucial for performance, because these checking are

always burdensome tasks, for example, VC rules of

elements usually concern with the relationships

among elements and the content’s format of a

particular element; rules of attributes always concern

with the type and the default value of this attribute.

Moreover the efficient checking of VC: Element

Valid (W3C, 1998) is the largest challenge as we

will discuss soon, so we present some key

algorithms to solve it in the next section.

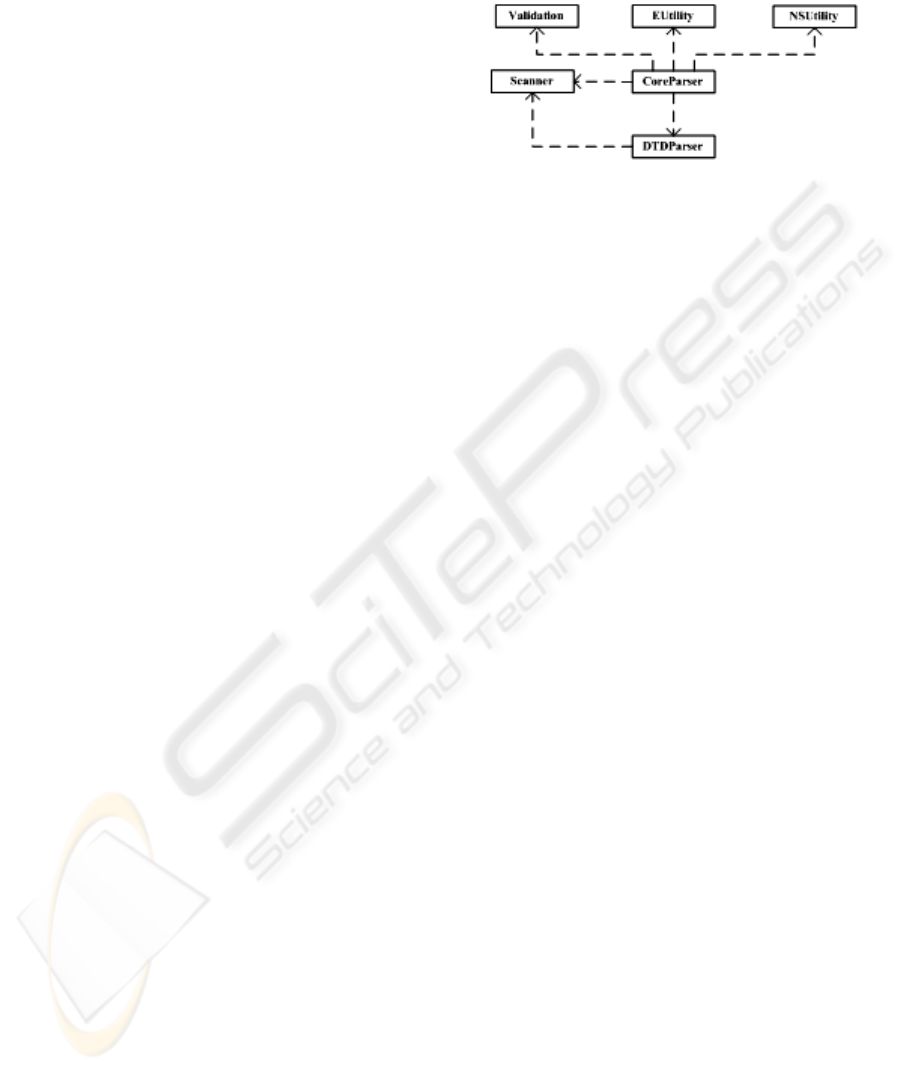

Figure 1: Architechture of OnceXMLParser.

ENSURING HIGH PERFORMANCE IN VALIDATING XML PARSER

211

NSUtility resolves namespace declarations and

manages namespace scopes and mappings. It also

takes charge of namespace constraints (NSC)

checking. For example, to conform to NSC: Prefix

Declared (W3C, 1999), NSUtility must check

whether the prefix xml is bound to

http://www.w3.org/XML/1998/namespace or not.

EUtility manages entities referenced in the

document. It also has to check some WFCs, such as

WFC: No Recursion (W3C, 1998).

4 ALGORITHMS FOR

VALIDATING

Checking VC: Element Valid (W3C, 1998) means

examining whether elements occurred in the

document can match the declarations in DTD.

Moreover, validity checking contains many

reiterating processing, such as comparing name

strings. The following algorithms aim to improve the

performance of validity checking.

4.1 Optimized Automaton for

Element Valid

According to (W3C, 1998), the element content,

which defines the relationship of elements, is

defined by a regular language with ε-operations such

as * and ?, so it is natural to build a

Nondeterministic Finite Automaton (NFA) to

represent and check these definitions. Of course, we

could build a DFA as Woodstox did. But DFA

usually has more states than NFA. Moreover, to

build a DFA must translate these definitions with ε-

operations to the equivalent forms containing no ε-

operations. This will cause additional costs. At last,

we should notice that the relations of elements

appeared in the document are usually quite simple,

though their definitions would be rather complex.

Each automaton, no matter DFA or NFA, takes

charge of checking all the child elements of one

element type declaration. Each automaton starts at

its initial state, and transforms the state according to

the state transition function. For a valid document,

the automaton stops when the last child defined in

the corresponding declaration is matched. In fact,

DFA and NFA will traversal element content from

the initial state to the final state. So an NFA with

less building costs usually performs better than a

DFA, while the checking costs of the two are

approximately equal due to the relatively simple

structure of an XML document.

In order to show the performance between

OnceXMLParser with built-in NFA and Woodstox

integrated with DFA, we choose dozens of XML

documents where DTD parts occupy most portions.

These DTDs only have element type declarations.

Each declaration contains ten child elements, and

16% of these child elements are defined to be

optional. We let the two parsers parse those

documents for 1000 times, and record the time (for

building NFA/DFA) they used respectively. We

tabulate these results in Table 1. The values of the

Count column denote the number of element type

declarations in DTD.

Count NFA

(OnceXMLParser)

DFA

(Woodstox)

1000 65188 ms 81141 ms

2000 124765 ms 163781 ms

5000 328110 ms 378297 ms

7000 373735 ms 578438 ms

10000 579203 ms 750407 ms

These data show that NFA can perform better than

DFA in those situations for about 32.7% on average

which supports our NFA solution in

OnceXMLParser.

4.2 Statistical Predictive Algorithm

Names, which are defined by P[5]: Name Product of

(W3C, 1998), occur much frequently in a normal

XML document. Moreover, name recognizing is an

exhaustive process, because parser must check all

the characters appeared in the name whether they are

in valid name characters set defined by (W3C, 1998).

Notice that in valid XML documents, all the element

names have firstly appeared in the DTD, and they

will then appear elsewhere in the document many

times. So a reasonable idea is that we only check

these names in DTD and cache all the checked

names in a buffer. Once a name appeared in the

document, we would look up in the buffer to find the

corresponding name. If we could find out one then

we can omit the valid name checking, otherwise the

document is invalid. This approach will introduce

new costs in looking each name up in the buffer

which should be controlled in a reasonable range. So

we try to reduce the name recognizing by predicting

the element name which is most likely to appear

next according to current element name and some

corresponding element type declarations. If we can

provide relatively precise prediction, we need not to

Table 1: Tests of NFA and DFA.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

212

look up through the buffer or we could only need to

look up in a small subset of the buffer.

Here is an example of element type declaration:

<!ELEMENT parentEle (seq1,seq2,(opt3|option))>

This declaration means the parent element

parentEle has three sequential children; they are

seq1, seq2 and one of the opt3 and option in order. It

is easy to know that after the element parentEle,

there must be an element seq1. Following seq1 there

must be seq2, because of the sequential definition.

After seq2 we have two choices, opt3 and option,

which are defined to appear optionally. We must get

the best prediction according to our cost function

(1), which takes the lengths of names as its

parameters.

()

ailure

success

Cname C C

=× + ×

∑

(1)

Where n is the number of options in the element

type declaration which is recorded by DTDParser —

in our example n equals 2. C

success

and C

failure

stand

for the costs of a successful prediction and a failed

prediction respectively. So C(name) is the

expectation of the cost of the prediction process.

Then we can evaluate each choice by the cost

function to decide the one cost least.

success

is only concerned with the length of the

predicted name. Considering Scanner will compare

current characters in the character buffer with those

in the given predicted name. C

success

denotes the cost

of the comparing. In the case of a successful

prediction, Scanner compares each character in

character buffer with corresponding characters in the

predicted name, liking string matching, till the end

of the predicted name. So the number of characters

read by Scanner is the length of the given name

exactly, therefore C

success

is only concerned with the

length of the given name without respect to what the

name is, namely C

success

= C

success

(name

predict

.length)

= C

success

(name

real

.length), where name

predict

means

the predicted name and name

real

means the real name

stored in the character buffer. On the other hand,

failure

does not only concern with the predicted name

only but is also concerns with the real name in the

character buffer. In the case of failed prediction,

there must be a character in the character buffer,

which does not match the corresponding character in

the predicted name. And this mismatch may happen

at any position during the comparing, so the cost of

this process also concerns with the real name,

namely C

failure =

failure

(name

real

.length ,

name

predict

.length). Notice that the real name must be

one of the options in the element type declaration,

since we assumed that the XML document is valid.

To evaluate the values of C

success

and C

failure

, we

compute the comparing costs of vast different name

strings with various lengths and get the statistical

values. We can also establish the statistical values of

the cost of processing a name in the normal way

(without prediction), that means the cost of reading

several characters from character buffer and looking

up them in the valid name character set. Remember

that, with prediction, Scanner compares each

character in character buffer with just one

corresponding character in the predicted name. But

without prediction, Scanner compares each character

with delimiters of the valid name character set.

Obviously, for each character, the later operation

costs more than the former operation. And it is easy

to know that the cost is only concerned with the

length of the name string analogous to C

success

. We

denote this as C

nonpredict

= C

nonpredict

(name

real

.length).

We choose words in Oxford Dictionary as our

name strings. So we got 34,840 names with lengths

ranged between 1 and 21, we could put names

longer than 21 characters to the group of length 21.

Let G

be the set of name strings whose length is

i, i<21, G

be the set of name strings whose length

is not less than 21. Let CountTime(process) be the

function to count the time used by the process, and

Sizeof(set) be the function to get the number of

elements of the set. Let getName(name

real

) be the

process of recognizing a name string name

real

by the

normal way (without prediction), skip(name

predict

) be

the process of trying to match a predicted name

name

predict

, this process may be failed when the

predicted name mismatch the real name in the

document. Then we can evaluate C

nonpredict

(i), C

success

(i) and C

failure

(i,j) as:

(())

()

real

name G

real i

nonpredict

CountTime getName name

Sizeof G

∈

∑

(( ))

() (2)

()

real

name G

real i

success

CountTime skip name

Sizeof G

∈

∑

(2)

(, )

(( ) ( ))

()

failure

redict real

name G name G

predict j real i

Cij

CountTime skip name getName name

Sizeof G

∈∀ ∈

∑

Notice that, when computing C

failure

(i,j), we

randomly select a name string name

real

from G

. If i

equals to j, we guarantee name

real

is different from

name

predict

. We implement this algorithm in Java, and

ENSURING HIGH PERFORMANCE IN VALIDATING XML PARSER

213

our experiment environment is a Pentium4 2.4GHz

PC with 512M DDR, Windows XP, and JDK 1.4.2.

We got the following statistical value tables, the unit

of cost is10

-4

millisecond. In Table 2, len denotes

name

real

.length, and in Table 3 value of the i

row

and the j

column denotes the value of C

failure

(i,j).

Table 2: Parts of the statistical values of C

success

and

nonpredict

success

nonpredict

len C

success

nonpre

dict

1 0.533 2.284 12 1.486 3.515

3 0.692 2.378 14 1.666 3.786

4 0.877 2.609 15 1.720 4.073

5 0.948 2.692 16 1.802 4.295

6 1.023 2.766 17 1.886 4.447

8 1.180 3.121 19 2.003 4.790

10 1.334 3.323 21 2.171 5.963

After the computation of C(name) comes into

available, we can compute C(opt3) and C(option) in

the former example respectively, and choose the one

costs least as the predicted name. In our example,

(3) (3. )

(.,3.)

( (4) (6,4)) 2.132

C opt C opt length

success

C option length opt length

failure

success failure

=×

+ ×

= × + =

() (.)

(3. , . )

( (6) (4,6)) 2.0835

cuccess

failure

cuccess failure

C option C option length

C opt length option length

=×

+ ×

= × + =

While

( 3. ) (4) 2.609 ( 3)

nonpredict nonpredict

C opt length C C opt==>

and

( . ) (6) 2.766 ( )

nonpredict nonpredict

C option length C C option==>.

So we decide option as the predicted name, as it has

the least cost according to our cost function ⑴.

But if the one costing least is still larger than the

corresponding C

nonpredict

, the predicted name should

be null, which means no prediction is the best way.

5 PERFORMANCE TESTING

We use Sun XMLMark (Sun, 2004) as benchmark to

compare the performance of OnceXMLParser with

other XML parsers. We modified it to make StAX

into use. To make the results stable, we repeat each

test for seven times and get the average results. Our

experiment environment is a Pentium4 2.8GHz PC

(with Hyper Thread) and 1G DDR (Duel Channel),

Window XP (SP2) and JDK 1.4.2_03. Details of

Test1—Test3 can be found in (Sun, 2004).

150

160

170

180

190

200

210

220

230

240

1234567

WoodSToX once WoodSToX( NS) once( NS)

(a)

100

105

110

115

120

1234567

WoodSToX once Wo od STo X( NS) once( NS)

(b)

1234567

WoodSToX once WoodSToX( NS) once( NS)

(c)

110

115

120

125

130

135

140

145

150

1234567

WoodSToX once WoodSToX( NS) once( NS)

(d)

1234567

WoodSToX once WoodSToX( NS) once( NS)

(e)

1234567

WoodSToX once WoodSToX( NS) once( NS)

(f)

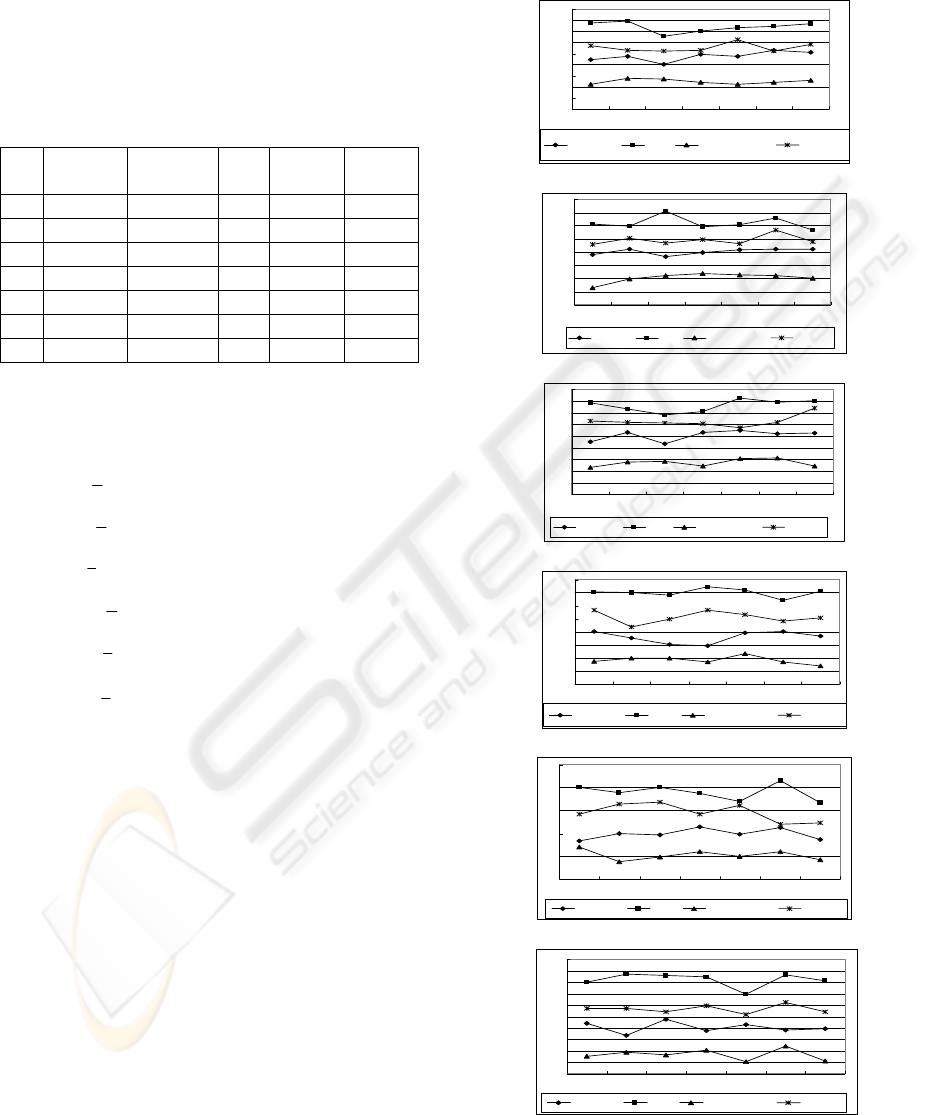

Figure 2: Results of XMLMark.

WEBIST 2007 - International Conference on Web Information Systems and Technologies

214

There are 24 groups of results, including 6

groups for SAX, 6 for StAX and 12 for DOM. Due

to the limitation of page number; we only list 6 of

them concerned with StAX here.

Testing results are shown in Figure 2. The

horizon axis means the number of tests and the

vertical axis means the number of finished

transactions per second defined by (Sun, 2004).

In Figure 2, (a)—(c) mean the results without

VC checking, while (d)—(f) mean the results with

VC checking. In the figure, (NS) denotes the parsers

support namespace.

For StAX, results show that OnceXMLParser

with VC checking performs 13.32% and 14.10%

better than Woodstox without and with namespace

supporting respectively. And OnceXMLParser

without VC checking performs 11.44% and 16.30%

better than Woodstox without and with namespace

supporting respectively. For SAX, results show that

OnceXMLParser with VC checking performs

19.08% and 34.56% better than Xerces without and

with namespace supporting respectively. And

OnceXMLParser without VC checking performs

18.62% and 31.47% better than Xerces without and

with namespace supporting respectively. For DOM,

results show that OnceXMLParser with VC

checking performs 38.04% and 31.41% better than

Xerces without and with namespace supporting

respectively. And OnceXMLParser without VC

checking performs 77.44% and 57.08% better than

Xerces without and with namespace supporting

respectively.

6 CONCLUSION

XML parser is an infrastructure for XML

processing. This paper studies some kinds of XML

parser implements DOM, SAX and StAX, and

provides a lightweight implementation—

OnceXMLParser. Through implementing some key

algorithms and some efficient optimizing

techniques, OnceXMLParser gains better

performance as we expected.

The future work includes supporting the XML

Schema.

REFERENCES

W3C, 1998. Extensible Markup Language (XML) 1.0.

http://www.w3.org/TR/1998/REC-xml-19980210

W3C, 2004. DOM Conformance Test Suites,

http://www.w3.org/DOM/Test/

W3C, 1999. Namespaces in XML.

http://www.w3.org/TR/1999/REC-xml-names-

19990114

W3C, 2003. Extensible Markup Language (XML)

Conformance Test Suites 20031210.

http://www.w3.org/XML/Test/

Tatu, S., 2004. StaxTest.

http://www.cowtowncoder.com/proj/staxtest

Sun Microsystems, 2004. XML Test v1.1.

http://java.sun.com/performance/reference/codesampl

David, B., 2001. SAX2Unit.

http://sourceforge.net/project/showfiles.php?group_id

=8114&package_id=32032

BEA, 2003. BEA RI.

http://ftpna2.bea.com/pub/downloads/jsr173.jar

Sun Microsystems, 2005. Sun Java streaming XML parser.

https://sjsxp.dev.java.net/files/documents/3071/12956/

sjsxp_20050505.class

Codehaus, 2006. Woodstox.http://woodstox.codehaus.org/

Oracle, 2003. Oracle StAX Pull Parser,

http://www.oracle.com/technology/tech/xml/xdk/staxpr

eview.html

Apache, 2004. Xerces2. http://xml.apache.org/xerces2-j/

Apache, 2001. Crimson. http://xml.apache.org/crimson/

Oren, Y., 2002. Piccolo. http://piccolo.sourceforge.net/

Kostoulas, G. M., Matsa, M., Mendelsohn, N., Perkins, E.,

Heifets, A., Mercaldi, M., 2006. XML screamer: an

integrated approach to high performance XML parsing,

validation and deserialization. In Proceedings of the

15th international conference on World Wide Web

WWW '06. ACM Press.

Table 3: Parts of the statistical values of C

failure

(i,j).

j=4 j=5 j=6 j=7 j=8 j=9 j=10 j=11 j=12 j=13 j=14

i=4 3.147 3.120 3.144 3.191 3.232 3.556 3.186 3.090 3.110 3.072 3.073

i=6 3.387 3.272 3.301 3.354 3.339 3.554 3.341 3.274 3.268 3.232 3.195

i=8 3.522 3.368 3.586 3.600 3.620 3.707 3.599 3.469 3.374 3.533 3.527

i=12 4.079 4.011 4.094 4.187 4.158 4.131 4.146 4.050 4.012 3.991 3.948

ENSURING HIGH PERFORMANCE IN VALIDATING XML PARSER

215
