A DISTRIBUTED SOFTWARE ENVIRONMENT FOR

COLLABORATIVE WEB COMPUTING

Antonio Pintus, Raffaella Sanna and Stefano Sanna

CRS4 - Center for Advanced Studies, Research and Development in Sardinia, Italy

Keywords: Distributed, DHT, DART, Web, mobile, collaboration, Web services.

Abstract: This paper describes an extensible core software element of a distributed, peer-to-peer system, which

provides several facilities in order to help the implementation of collaborative, Web-based, distributed

information storing and retrieval applications based on a decentralized P2P model. Moreover, after an

architectural introduction of the core distributed software module, the Core Node, this paper describes a real

application, named DART Node, based on it and designed and implemented within the DART (Distributed

Agent-based Retrieval Tools) project, which carries out the idea of the design and implementation of a

distributed, semantic and collaborative Web search engine, including mobile devices integration use cases.

1 INTRODUCTION

The Internet is evolving in many directions and what

is usually called “Web 2.0” summarizes only some

of them. While data providers have been

decentralized (users superseded traditional

publishers), infrastructure is still centralized, held

and controlled by a few companies.

Managing large amounts of data and supporting

collaborative participation at infrastructure level, are

two of the key concepts on which are been focused

the studies and investigations conducted during the

DART research project (Distributed Agent-based

Retrieval Tools, http://www.dart-project.org)

(Angioni et al., 2007).

The main goal of DART is to realize a flexible,

P2P, collaborative, scalable, fault-tolerant and self-

organized system, which achieves a collaborative

storage and retrieval of large volumes of resources,

for the implementation of a distributed, semantic and

collaborative search engine prototype.

This paper presents and describes the main

software components of this P2P distributed system.

2 THE CORE NODE GENERAL

ARCHITECTURE

The DART system can be viewed as a federation of

nodes called Core Nodes, whose modular

architecture is described in this section.

2.1 DHT Layer and DHT Abstraction

Layer (DAL)

Distributed Hash Tables (DHT) are considered state-

of-art approach to massively distributed and storage-

oriented systems (Balakrishnan, 2003). By means of

DHTs it's possible to realize networks of

cooperating nodes with a deterministic resource

localization and an efficient requests' routing.

The Core Node is mainly a DHT node, based on

and extending the PAST framework (Peer-to-Peer

Archival Storage, http://freepastry.org) (Druschel,

2001), a large-scale persistent and global storage

system based on the Pastry routing algorithm

(Rowstron et al., 2001), so it basically supports data

insert and lookup operations. Moreover, being a

Pastry node, it is also able to route messages with a

generic payload.

The DHT Abstraction Layer of the Core Node is

a Java API layer (Figure 1) that wraps all the low-

level DHT network operations and API provided by

PAST and FreePastry frameworks. It exposes an

interface which simplifies DHT operations and

263

Pintus A., Sanna R. and Sanna S. (2008).

A DISTRIBUTED SOFTWARE ENVIRONMENT FOR COLLABORATIVE WEB COMPUTING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - SAIC, pages 263-266

DOI: 10.5220/0001720902630266

 SciTePress

message sending over the network. All the higher

level layers in the Core Node architecture rely on

this API.

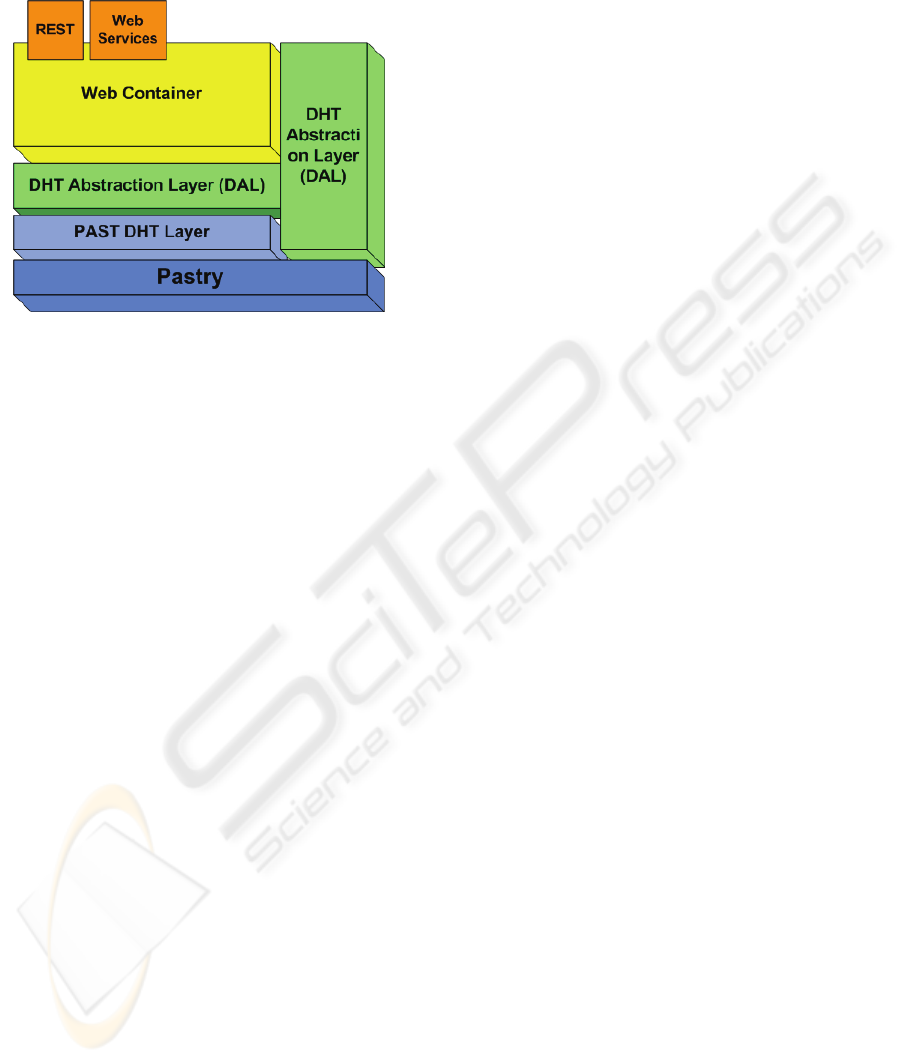

Figure 1: General Architecture of the Core Node.

2.2 Web Container

The Core Node is equipped with a full configurable

embedded Java Servlet Container, which allows to

fulfil HTTP requests for both static and dynamic

contents and applications, like Web Services. This

way, it is possible to create and deploy Web

applications in the node.

2.3 Services

The node API (Section 2.1) can be exploited in order

to design and implement more domain-focused

distributed software applications, as in the DART

scenario (Section 3). Anyway, in order to grant the

interoperability between the node and external

heterogeneous software systems, a services layer, or

another standard mechanism, become necessary.

Two types of services are provided in the node:

RESTful Services and Web Services (SOAP), which

wrap and use the underlying DHT Abstraction

Layer.

2.3.1 REST Services and Web Services

The Node provides RESTful Services, which expose

an interface for all the basic system functionalities,

like data storing and retrieval requests, or messages

sending.

REST interface is fundamental to allows an

access to DART network to mobile devices and

embedded systems. Moreover, REST interface

simplifies the design and implementation of RIA

using AJAX and standard web browsers.

Although REST can be successfully adopted for

fast integration of simple components, it is not

suitable for complex architectures. REST lacks in

formal descriptions of services interfaces and in

embedded security management. So, the Core Node,

also provides a more formal interface, using

standards like WSDL, SOAP and XML Schema, for

exposed services which are equivalent to RESTful

services mentioned in the previous section.

3 A SEARCH ENGINE

APPLICATION: THE DART

NODE

The DART research project is focused on studying,

developing and testing patterns and integrated tools

to improve the quality of search engines results with

the main objective to satisfy user needs. Among the

others, interesting research fields such semantic-

based indexing, P2P crawling, public Web resources

indexing, location-aware information retrieval and

virtual assistance, are exploited and merged

(Angioni et al., 2007).

Studies and investigations conducted in DART,

have led to the development of a software

application prototype: the DART Node.

3.1 The DART Node Architecture

The DART Node is based on the Core Node,

inheriting all the basic functionalities and extending

them. At run-time, the DART Node automatically

discovers other nodes and collaborates with them in

the P2P network, performing Web crawling tasks

and storing a portion of the content crawled by all

the nodes.

Semantic issues are faced by a Semantic Module

(Figure 2), which works on crawled data and

performs a semantic and geographical

categorization. To achieve this goal, a semantic

analysis process on structured and unstructured parts

of documents is performed (Angioni et al., 2007).

3.2 Collaborative Crawling System

The collaboration between nodes in crawling

activities, helps to crawl the Web in a more effective

manner, reducing network traffic and avoiding

duplication of tasks and nodes overload.

The DART Node adopts a simple policy for

distributed crawling, called “partition by URL”,

where the partitioning scheme is determined by the

ICEIS 2008 - International Conference on Enterprise Information Systems

264

way URLs are published into the DHT, hashing the

entire URL. Each node is responsible for crawling

the URLs published in its partition of the DHT. (Loo

et al., 2004). Crawling distribution is achieved

through a special messages exchange between

nodes.

Future work in DART collaborative crawling

system may consider the adoption of a topic oriented

collaborative crawling (Chung et al., 2002).

3.3 Indexer Module

This module (Figure 2) is capable to collect data

coming from (potentially) several data providers, for

example from Web crawlers, and to store them in

the DHT through the DHT Abstraction Layer.

The Indexer works using a queue with the

adoption of a producer-consumer paradigm. For

textual data types, the Indexer can use the Semantic

Module in order to perform a classification of data

before the storing step.

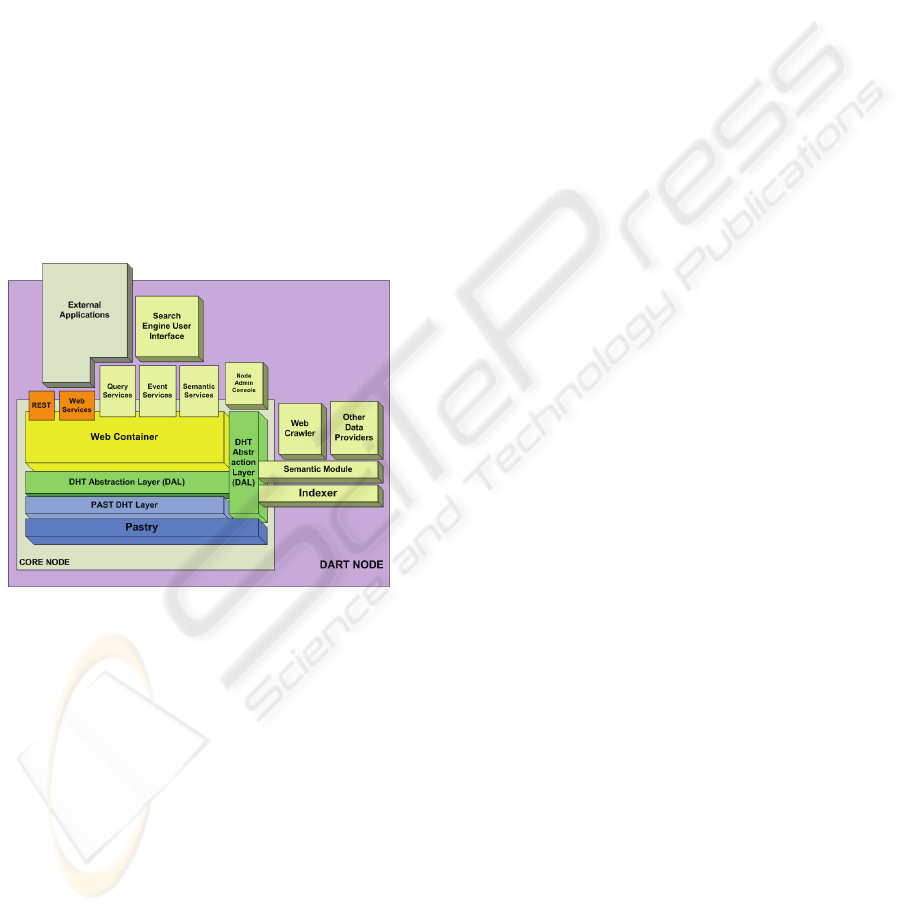

Figure 2: General Architecture of the DART Node.

3.4 DART Node Services

The DART Node exposes RESTful and Web

Services providing the following macro-

functionalities to potential remote clients:

• Query Services: provide an interface for full

life-cycle management of queries submitted to the

search engine;

• Semantic Services: by means of the Semantic

Module they provide operations to perform semantic

classifications of textual resources;

• Event Services: provide access to

functionalities related to the DART event delivering

and notification system, still under development (see

Section 4.1).

Services are implemented using JAX-WS 2.1

and Java Servlet frameworks.

3.5 Mobile Devices Applications

The network of DART nodes is able to store and

asynchronously retrieve any kind of data, taking

advantage of systematic and redundant distribution

provided by DHT. RESTful services have been

designed to be accessible through mobile phones and

embedded systems. These devices have two key

roles: data provisioner and data provider. As data

provisioner, a mobile device performs queries on the

DART network, to retrieve data and display it to the

user. As data provider, a device collects data using

sensors and readers and stores such information to

be afterwards searched and retrieved by data

provisioner. Consumer appliances, like cellular

phones, act as provisioner; same devices and

embedded systems act as data providers (the latter

are intended to collect and automatically publish

data through the DART Node without human

actions).

Although mobile browsers have been enhanced

to access seamlessly standard web sites, they are not

suitable to perform asynchronous background

operations, access local peripherals and storage.

Asynchronous access to services is crucial to

improve user experience and to avoid continuous

network operations over expensive cellular

networks. At the same time, the ability to read data

coming from sensors and surrounding appliances

(such as RFID readers, GPS and accelerometers) is

mandatory to implement mobile data providers.

Mobile DART Node is a stand alone application

for Java ME enabled mobile phones that connects to

one or more DART Nodes, submits queries, checks

for results and retries them asynchronously,

basically adopting a pull mechanism.

Mobile DART Node does not replace embedded

browser: it runs as a bridge between the DART

network and the browser, caching and sorting

results, performing auto-updates on queries. Once

results have been collected, it provides a summary of

them: when the user selects a result, its URL is

passed to the web browser for rendering.

Mobile phones equipped with RFID reader and

GPS can run Mobile DART Node Data Provider

(DP) variant, which allows to publish data through

the DART Node REST interface. The Mobile DART

Node DP populates the DART network with

association about objects (identified by radio tags)

and places.

A DISTRIBUTED SOFTWARE ENVIRONMENT FOR COLLABORATIVE WEB COMPUTING

265

4 WORK IN PROGRESS

4.1 Distributed Event Delivery System

The Core Node, thanks to its architecture can be

used in a profitable way to build a distributed,

collaborative and failure-resistant Event Delivery

System. At the moment, a so described system, is

under design and development, adopting a

publish/subscribe model and involving mobile

sensor-equipped devices.

4.2 The Node in a Service Oriented

Architecture (SOA) Context

The service layer of the Core Node, in particular the

exposed Web Services, points out the chance of an

inclusion of the Node and its derived applications in

a SOA context.

Moreover, the distributed system itself can also set

up a redundant Web Service Registry (also including

semantic issues) which can be used for service

publication aims.

5 CONCLUSIONS

The Internet has evolved to a collaborative basis,

where information is collected from multiple sources

and assembled by users. Collaboration at

infrastructure level is still to come. The DART

Project aims to propose and realize a flexible,

distributed, collaborative, scalable, fault tolerant and

self-organized system for a semantic search engine.

The proposed software architecture realizes the

abstraction layer to DHT framework and exposes

storage and retrieval functionalities through SOAP

and REST web services. DART network is suitable

for both text documents, multimedia content and

environmental data coming from distributed sensors.

Mobile integration interfaces are core parts of basic

architecture and extended prototypes are being

developed and tested in real environment.

ACKNOWLEDGEMENTS

The architecture and the prototypes described in this

paper belongs to the DART - Distributed Agent-

based Retrieval Tools Project at CRS4, partially

funded by the Italian Ministry of University and

Scientific Research (Contract grant n. 11582).

REFERENCES

Angioni, M., Demontis, R., Deriu, M., De Vita, E., Lai,

C., Marcialis, I., Paddeu, G., Pintus, A., Piras, A.,

Sanna, R., Soro, A., Tuveri, F., 2007. A Collaborative,

Semantic and Context-Aware Search Engine. In Proc.

of ICEIS 2007 – 9th International Conference on

Enterprise Information Systems.

Angioni, M., Demontis, R., Deriu, M., De Vita, E., Lai,

C., Marcialis, I., Pintus, A., Piras, A., Soro, A., Tuveri,

F., 2007. DART: The Distributed Agent-Based

Retrieval Toolkit. In Proc. of 2007 WSEAS

International Conference on Computer Engineering

and Applications (CEA07).

Angioni, M., Demontis, R., Deriu, M., De Vita, E., Lai,

C., Marcialis, I., Pintus, A., Piras, A., Soro, A., Tuveri,

F., 2007. User Oriented Information Retrieval in a

Collaborative and Context Aware Search Engine. In

WSEAS Transactions on Computer Research Journal.

Rowstron, A., Druschel, P., 2001. Pastry: Scalable,

distributed object location and routing for large-scale

peer-to-peer systems. In Proc. of IFIP/ACM

International Conference on Distributed Systems

Platforms (Middleware).

Druschel, P., Rowstron, A., 2001. PAST: A large-scale,

persistent peer-to-peer storage utility. In Proc. of The

8th Workshop on Hot Topics in Operating Systems

(HotOS-VIII).

Angioni, M., Demontis, R., Tuveri, F., 2007. Enriching

WordNet to Index and Retrieve Semantic Information.

In Proc. of 2nd International Conference on Metadata

and Semantics Research.

Loo, B. T., Cooper, O., Krishnamurthy, S., 2004.

Distributed Web Crawling over DHTs. In UCB/CSD-

04-1305, EECS Department, University of California,

Berkeley.

Chung, C., Clarke, C. L. A., 2002. Topic Oriented

Collaborative Crawling. In Proc. of CIKM’02,

Conference on Information and Knowledge

Management.

Balakrishnan, H., Kaashoek, M.F., Karger, D., Morris, R.,

Stoica, I., 2003. Looking up data in P2P systems. In

Communications of the ACM, February 2003.

ICEIS 2008 - International Conference on Enterprise Information Systems

266
