A DOCUMENT MANAGEMENT SYSTEM AND WORKFLOW TO

HELP AT THE DIAGNOSIS OF HYPERTROPHIC

CARDIOMYOPATHY

Lorenzo Montserrat

Departamento de Cardiolog´ıa, Hospital Juan Canalejo, A Coru˜na, Spain

Jose Antonio Cotelo-Lema, Miguel R. Luaces, Diego Seco

Database Lab., University of Coru˜na, Campus de Elvi˜na, S/N 15071, A Coru˜na, Spain

Keywords:

e-Health, Document Management System, Hypertrophic Cardiomyopathy.

Abstract:

We present in this paper the architecture and some implementation details of a Document Management System

and Workﬂow. This system is used to help in the diagnosis of the Hypertrophic Cardiomyopathy, one of the

most frequent genetic cardiovascular diseases. The system allows a gradual and collaborative creation of

a knowledge base about the mutations associated with this disease. The system manages both the original

documents of the scientiﬁc papers and the data extracted from this papers by the experts. Furthermore, a

semiautomatic report generation module exploits this knowledge base to create high quality informs about the

studied mutations.

1 INTRODUCTION

In the last decades, Document Management Systems

(DMS) have become indispensable for many organi-

zations. The majority of organizations need to access

and consult stored information frequently. Thus, efﬁ-

ciency requirements must be considered by the Docu-

ment Management Systems in order to provide a fast

access to the information. Furthermore, documents

need to pass from one person to another in many of

these organizations. Therefore, DMS must deﬁne a

set of rules for this process (a workﬂow process).

We present in this paper a Document Manage-

ment System and Workﬂow for a medical organiza-

tion (Health In Code

). This system allows the cre-

ation, management, and exploitation of a knowledge

base about genetic mutations associated with the Hy-

pertrophic Cardiomyopathy (HCM).

Health In Code is a medical company dedicated to

the identiﬁcation of health problems that can beneﬁt

from a genetic diagnosis. Family heart diseases are

the main ﬁeld of work at this organization. Usually,

these heart diseases have a genetic origin and they af-

fect to the myocardium. They usually have heteroge-

neous symptoms and a hard to predict clinical evolu-

http://www.healthincode.com

tion. HCM is one of the most important family heart

diseases. Furthermore, it is one of the most frequent

genetic cardiovascular diseases. It has a prevalence

of 1:500 in the general adult population (one of each

ﬁve hundred people suffer this disease). Moreover, it

is the most frequent cause of sudden death in young

adult people, adolescents, and sportsmen. Clinical di-

agnosis of this disease is very complex, and there are

many problems to determine a prediction and opti-

mum treatment because more than 400 different mu-

tations in more than 10 different genes can be the ori-

gin of the HCM.

The Document Management System that we

present in this paper makes possible a comprehen-

sive genetic diagnosis of all the mutations and genetic

variants associated with the HCM, where the differ-

ential diagnosis can be confuse. Furthermore, this

system makes possible to identify many genetic in-

teractions. Thousands of papers related to the HCM

are published each year, and many of these papers are

contradictory. Therefore, most of this information is

completely ignored by people in charge of the diag-

nosis of the disease. The system that we present can

help clinicians to take into account this information,

and thus, it can help to improve the clinical diagnosis.

There are a lot of people that can be beneﬁt from this

improvement:

Montserrat L., Cotelo-Lema J., Luaces M. and Seco D. (2009).

A DOCUMENT MANAGEMENT SYSTEM AND WORKFLOW TO HELP AT THE DIAGNOSIS OF HYPERTROPHIC CARDIOMYOPATHY.

In Proceedings of the International Conference on Health Informatics, pages 3-10

DOI: 10.5220/0001429400030010

 SciTePress

• Patients with a clinical diagnosis about HCM

(80000 people in Spain, more than 500000 peo-

ple in the EU, etc.).

• Relatives of these patients (a mean of 4 per pa-

tient).

• Patients with left ventricular hypertrophy with

doubts about the possibility of HCM. We consider

in this group hypertensive patients with moderate

to severe hypertrophy (5% of the hypertensives),

differential diagnosis with athlete’s heart, obese

patients with hypertrophy, etc.

• Patients with an abnormal electrocardiogram

(ECG) without apparent cause.

• Sudden death patients.

Figure 1 shows the operativeprocess supported by

the developed system. First, interesting scientiﬁc pa-

pers are collected by a group of documentalists from

different databases, conferences, journals, etc. After

that, the scientiﬁc committee evaluates these papers.

Selected papers that pass the quality controls are as-

signed to the experts who are in charge of reviewing

them. A critical reading of the paper is the ﬁrst task

that must be done by these experts. After that, they

have to analyze the data about patients described in

the paper and they have to type these data in the appli-

cation. An evaluation of the quality of the information

is done by the scientiﬁc committee at this stage of the

process. When the process passes these controls, the

information is marked as valid and it becomes part of

the knowledge base.

This operative process ends with an e-commerce

stage where clients provide samples about patients

DOCUMENTALISTS

SCIENTIFIC

COMMITTEE

EXPERT 1 E2

...

DATABASES

SCIENTIFIC

COMMITTEE

FINAL REPORT

CLIENT

REPORTS

DATABASE

FEEDBACK

Figure 1: Operative Process.

and the companyanalyzes these samples and provides

all the relevant clinical information available about

the identiﬁed mutations. A semi-automatic subsys-

tem to generate reports about mutations is the base of

the business model of the company. In this context,

a report is a set of pre-processed information from

the knowledge base or a meta-analysis of the infor-

mation about each mutation. These reports must be

reviewed and edited to elaborate the ﬁnal version of

them. These ﬁnal reports are elaborated for all the

mutations identiﬁed in the samples provided by the

clients. The company does not replace clinicians, but

it supplies them with the best tools to take the best

decisions based on the available knowledge of each

mutation. Furthermore, the operative process con-

templates a feedback offer where clients can provide

clinical information about new mutation carriers and

their relatives. This information is evaluated and in-

troduced in the knowledge base if it passes the qual-

ity controls. The company offers the possibility of

reinterpreting the mutation implications when clients

provide clinical details about these new mutation car-

riers.

Therefore, the operative process requires the or-

dered execution of a set of activities, with several peo-

ple participating in each of them. In such a complex

process, the lack of control on the workﬂow can re-

sult in dead times, errors in the obtained results, and

loss of data. In general, an unsatisfactory coordina-

tion of the people increases the overall cost and de-

creases the quality of the results. Because this process

requires signiﬁcant effort, the more automated tools

that can be built and used, the better the use of human

resources will be. The control of the workﬂow inside

this work team is a key factor in the success of the

process. This control can be achieved by the use of

a workﬂow management tool specially designed for

this process. That is, a system which allows to coordi-

nate and control all the involved people, monitor and

manage factors as the current state of each scientiﬁc

paper, store intermediate results, control the average

time to process each document, record all the people

who have worked in each scientiﬁc paper, etc.

The rest of the paper is organized as follows. First,

in Section 2 the architecture of the system and some

technical details are described. Then, in Section 3,

we present the user interface of the collaborativeweb-

based application to create the knowledge base. After

that, the interest of its use is emphasized in Section 4.

Finally, Section 5 presents the conclusions and some

ideas for future lines of work.

HEALTHINF 2009 - International Conference on Health Informatics

2 SYSTEM ARCHITECTURE

AND TECHNOLOGY

2.1 System Architecture

According to (Hollingsworth, 1995), workﬂow is con-

cerned with the automation of procedures where doc-

uments, information, or tasks are passed between par-

ticipants following a deﬁned set of rules to achieve

or contribute to an overall business goal; the com-

puterized facilitation or automation of a business pro-

cess, in whole or part. Workﬂow management sys-

tems can be classiﬁed in several types depending on

the nature and characteristics of the process (van der

Aalst and van Hee, 2002)(Fischer, 2003). Collabo-

rative workﬂow systems automate business processes

where a group of people participate to achieve a com-

mon goal. This type of business processes involves a

chain of activities where the documents, which hold

the information, are processed and transformed until

that goal is achieved. As the problematic of building a

repository about mutations associated with the Hyper-

trophic Cardiomyopathy (HCM) ﬁts perfectly in this

model we based the architecture of the system in this

model.

In general, we can differentiate three user proﬁles

involved in the repository building:

• Administrator. Administrators are the people re-

sponsible of the process as a whole. They are

the responsible of managing (add/delete/update)

users and controlling the state of the application.

• Supervisor Users. The supervisor users are the

people in charge of carrying out critical activities

such as the metadata storage, assigning tasks to

different workers (inspectors), or supervise their

work. They are members of the scientiﬁc com-

mittee and they are in charge of performing the

quality controls over the scientiﬁc papers and the

inspection process.

• Inspector Users. The inspector users are the work-

ers who carry out tasks such as inspecting scien-

tiﬁc papers. This task involves a critical reading of

the paper and typing relevant data in the system.

This role is played by users with some knowl-

edge in the mutations associated with the HCM

but without any responsibility on the management

of the system.

Supervisor and inspector users are the two user

proﬁles involved in the repository building process.

Therefore, a communication protocol between these

user proﬁles has been implemented. Supervisor users

can publish news, send messages to the inspector

users, and answer their questions.

Figure 2 shows the overall system architecture.

When we deﬁne it, we followed the recommenda-

tions of the Workﬂow Reference Model (van der Aalst

and van Hee, 2002), a commonly accepted framework

for the design and development of workﬂow manage-

ment systems, intended to accommodate the variety

of implementation techniques and operational envi-

ronments which characterize this technology. Thus,

although we used this architecture for the implemen-

tation of a speciﬁc system, it can be used in other en-

vironments and situations. Furthermore, design pat-

terns (Gamma et al., 1996)(Grand, 1998)(Alur et al.,

2003) were used in order to obtain a modular, robust,

and easily to extend architecture.

As we can see in the Figure 2, the authentication

and authorizing module is in charge of the authentica-

tion of the workers who want to access to the system.

Each user has a system role depending on the tasks

he/she is going to work on. In terms of this system

role, the authorizing module only provides the user

with access to the needed features. The system ar-

chitecture is composed of a module for each activity

carried out during the operative process.

• Scientiﬁc Papers Selection. As we noted in the

previous section, thousands of scientiﬁc papers re-

lated to the HCM are published each year. There-

fore, the scientiﬁc committee has to select the

most prominent papers. This subsystem provides

integration with software for publishing and man-

aging bibliographies such as EndNote

• Metadata Storage. This subsystem is in charge of

the introduction and storage of the metadata for

each scientiﬁc paper (title, author, year, source,

described mutations, etc.). Furthermore, each pa-

per must be assigned to the inspector user who

will be in charge of analyzing it. This task is

performed by the supervisor users of the system,

therefore only they have access to this module.

• Inspection Process. This module allows inspec-

tor users to access the scientiﬁc papers previously

assigned to them. They analyze these papers and

type relevant data in the application.

• Supervision process. It provides access to the sci-

entiﬁc papers and analyzed data introduced using

the previous module. This task is performed by

the supervisor users who are in charge of perform-

ing quality controls about the previous stage.

• Correction. If supervisor users detect some mis-

takes in the inspection process they can correct

them using this module. Moreover, supervisor

users can delegate this task to the inspector.

http://www.endnote.com

A DOCUMENT MANAGEMENT SYSTEM AND WORKFLOW TO HELP AT THE DIAGNOSIS OF

HYPERTROPHIC CARDIOMYOPATHY

Index

Document

Database

Workflow

Database

Reports

1 0

1 5

2 0

2 5

3 0

3 5

E n e F e b Ma r Ab r M a y Jun

Co mid a

T ran sp o rte

A loja mien to

Statistics

PublishingCorrectionSupervision

Process

Inspection

Process

Reports

Publishing

Workflow

Administration

module

Administrators

System users

(inspector, supervisor, and administrator users)

Scientific

Papers

Metadata

storage

Identification and authorizing module

Figure 2: System architecture.

• Publishing. Once the analysis process is accepted,

this module is in charge of committing its con-

tents.

• Reports Publishing. Reports about the mutations

associated with the HCM can be generated using

the data analyzed in previous stages of the work-

ﬂow. Supervisor users must review and edit these

reports in order to commercialize them. This sub-

system provides functionalities to generate, edit,

and store the reports in a database.

• Workﬂow Administration Module. This subsystem

is in charge of managing the workﬂow between all

these activities. It also providesreporting tools for

monitoring purposes.

2.2 Data Model

Figure 3 shows our proposal for the data model that

supports the architecture. This data model is orga-

nized around the entities Paper and Report. Both of

them constitute the core of this architecture because

the system is feeding with information from the pa-

pers, and the reports are generated by the system to

be commercialized.

As we noted before, both scientiﬁc papers ana-

lyzed by the experts and the resultant information

of this analysis are stored together by the Document

Management System (DMS). Therefore, the entity

paper (and the entities associated with it such as mu-

tation, gene, and patient) represents both the origi-

nal scientiﬁc paper (scanned PDF ﬁle, title, authors,

PATIENT

GENE MUTATION

* *

DEMOGRAPHIC

VARIABLES

GENOTYPE PHENOTYPE

USER

ADMIN SUPERVISOR INSPECTOR

PAPER

<<MANAGES>>

REPORT

* *

FAMILY

Figure 3: Data Model.

and other metadata) and the data obtained from the

analysis of this paper (mutations associated with each

paper, number and type of control cases, information

about described patients, etc.).

Furthermore, the workﬂow process described in

the previous section is contemplated, and therefore,

there are several entities in the data model to support

it. Admin, Supervisor, and Inspector represent the

three User proﬁles involved in the workﬂow process.

All the entities, and modules that manage these enti-

ties, are associated with a set of user proﬁles. There-

fore, only these user proﬁles have access to the infor-

mation stored in such entities.

The most important characteristic of a DMS is the

informationthat can be managed with it. As we noted,

Paper is one of the most important entities of the data

HEALTHINF 2009 - International Conference on Health Informatics

model. Metadata about original scientiﬁc papers are

directly stored in this entity. Data obtained from the

analysis of the papers are organized centred around

the entity patient. Therefore there are a relationship

between the entities paper and patient (a paper de-

scribes N patients and a patient is described in 1 pa-

per). Thousands of scientiﬁc papers about the muta-

tions associated with the Hypertrophic Cardiomyopa-

thy (HCM) have been published in journals, confer-

ences, etc. Moreover there are many internal docu-

ments in cardiology departments of the hospitals that

describe patients with these mutations. Both types of

data sources describe patients and information about

their relatives to a greater or lesser extent. Informa-

tion about these families can be entered in the system

in a very intuitive, progressive, and simple way (the

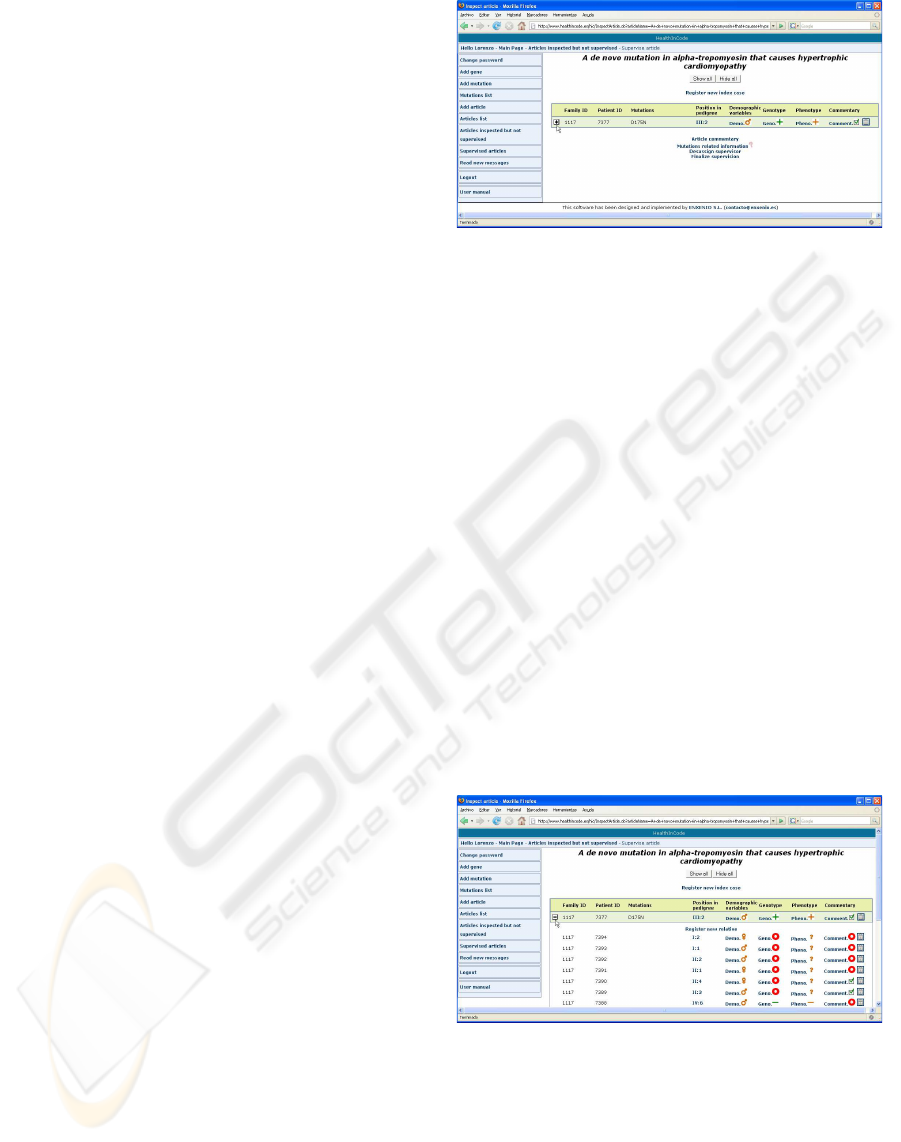

carefully designed user interfaces can be seen in Sec-

tion 3). Information about patients and their relatives

can be categorized in the following types:

• Identiﬁcation Data. Both application internal

identiﬁers (patient identiﬁer, family identiﬁer,

etc.) and external domain identiﬁers (position in

the pedigree) are included in this category.

• Demographic Variables. Data about the sex, eth-

nicity, age at the diagnosis of the disease, etc. are

included here.

• Genotype. This category includes the results of

the genotype study. These results present the re-

lationship between the patients and the mutations

associated with the paper where the patient is de-

scribed. Obligate carrier, homozygous carrier,

normal carrier, and not carrier are the possible

values for this relationship. However, not all the

scientiﬁc papers describe this relationship for all

the mutations and patients. Therefore, an un-

known value is available for the relationship. This

philosophy is applicable for most of the variables

managed by the system.

• Phenotype. This category includes the results of

the different clinical tests that can be done in or-

der to determine the appearance of a patient re-

sulting from the interaction of the genotype and

the environment. There are several subcategories

in accordance with its nature. First, results about

the clinical diagnosis are collected. These results

determine whether the patient is affected or not

by some phenotypes, which phenotypes, etc. The

second group includes environmental factors or

triggers (alcohol, hypertension, tobacco, obesity,

etc.). There are many variables that can be de-

termined in a echocardiography,MRI, or autopsy.

These variables constitute the third group. Hyper-

trophy, dilatation, systolic and diastolic dysfunc-

tions are some examples of these variables. The

fourth group includes symptoms and risk factors

(dyspnea, chest pain, abnormal blood pressure

response, etc.). Variables of the ECG (rhythm,

pre-excitation, abnormal voltage or repolariza-

tion) constitute the ﬁfth group. The sixth group

includes data about the electrophysiological study

(inducibility of malignant arrhythmias, conduc-

tion disturbance, etc.). Finally, the last two groups

include data about the treatment (medical treat-

ment, surgery, etc.) and the events (death, cere-

brovascular accident, etc.).

In brief, more than 200 variables are currently col-

lected about each patient. However, new variables of

interest can be easily introduced in the system.

2.3 Technology

This section brieﬂy describes the most important tech-

nologies used in the development of the system. First,

Java 2 Platform, Enterprise Edition (J2EE) (Perrone

and Chaganti, 2003)(Bodoff, 2004) was the selected

development platform. J2EE is a widely-used plat-

form for server programming. This platform allows

developers to create portable and scalable applica-

tions. J2EE provides a set of technologies that make

the development process easier. JDBC (an API to

access relational databases), JavaServer Pages (JSP,

a technology to dynamically generate HTML), or

JavaServer Pages Standard Tag Library (JSTL, a tag

library for JSP) are several examples of such tech-

nologies provided by J2EE and used in this project.

Furthermore, other technologies can be easily inte-

grated with this platform. For example, Jakarta Struts

(Holmes, 2006), a framework that allows software en-

gineers to develop applications following the archi-

tectural patterns Model-View-Controller and Layers,

has been used. CSS (Shafer, 2003) is the technology

used to enhance the user interface. Finally, we have

widely used JavaScript (Flanagan, 2006) to improve

the dynamism and interaction of the user interface.

Technologies employed in the development of the

reports generation module deserve special mention.

eXtensible Stylesheet Language Formatting Objects

(XSL-FO) (W3C Recommendation, 2006) is the most

important technology used in this module. XSL-FO

is a mark-up language for XML document format-

ting which is most often used to generate reports. An

XSL-FO document is an XML document where the

format of a dataset is deﬁned. This format deﬁnes the

presentation of these data in a paper, screen, or other

media. The XSL-FO document does not describe the

layout of the text on various pages. Instead, it de-

scribes what the pages look like and where the various

A DOCUMENT MANAGEMENT SYSTEM AND WORKFLOW TO HELP AT THE DIAGNOSIS OF

HYPERTROPHIC CARDIOMYOPATHY

contents go. However, the developed system does not

write XSL-FO documents. An XSLT transformation

is used to convert the semantic XML, generated from

data in the knowledge base of the system, into XSL-

FO documents. This issue is very important because it

provides independence between data and their output

format. Finally, Apache FOP (Apache FOP, 2007) is

used to render the XSL-FO document to a speciﬁed

output format. Output formats currently supported

by Apache FOP include PDF, PS, PCL, AFP, XML,

Print, AWT and PNG, RTF and TXT. The primary

output target is PDF. However, our system generates

RTF documents because the reports must be editable

by the experts.

3 USER INTERFACES

The usability of the system is a key factor to guar-

antee its acceptance. In this context, this term de-

notes the ease with which users employ the appli-

cation (Shneiderman, 1998). Therefore, in applica-

tion domains where users do not have the required

expertise level about computers, it is very important

to design the user interfaces in accordance with the

user preferences. For example, this system is used by

experts in Hypertrophic Myocardiopathy (HCM) but

they do not have to know the way typical web appli-

cations work. The main issues of the user interface

design are presented in this section.

Typing in the application the data resultant from

the analysis of the scientiﬁc papers is the most ex-

pensive task. An average time of 3 hours has been

estimated by the experts in charge of this task. There-

fore, the user interface has to allow doing this task

in several steps. Furthermore, scientiﬁc papers about

the HCM usually present a common format. Patients

and their relatives are described to a greater or lesser

extent. However, sometimes these descriptions are or-

ganized by family, other times they are organized by

type of data, etc. Therefore, the user interface has to

take this issue into account. Figure 4 shows the devel-

oped user interface for typing data resultant from this

process in the system.

The most important feature of this user interface is

that it can manage a lot of information in each screen.

As we noted before, each article can describe several

families and each of them could have tens of studied

cases. Moreover, more than 200 variables about each

studied case are collected in the system. The designed

interface provides the users with a centralized access

point where they can introduce, consult and update

all the data about the studied cases described in an

article. Furthermore, a requirement of ﬂexibility has

Figure 4: Screenshot of the user interface (I).

been considered in the design of this interface. The

experts that have to enter the data in the application

can do it following the same organization presented in

the original scientiﬁc paper. For example, they can in-

troduce the data that identify all the patients and their

relatives and, after that, they can complete other in-

formation such as genotype, phenotype, etc. But, they

could type all the data about a patient before introduc-

ing other one. Some graphical icons help the user to

know the state of each data category.

This design of the user interface implies that there

is a lot of information in the same screen. All this

information is organized and categorized in a natu-

ral way for the experts that have to use the system.

First, data about each patient are organized in cate-

gories (demographic variables, genotype, phenotype,

etc.). Moreover, these patients are grouped in fami-

lies. A dynamic technique has been used in the im-

plementation of the interface that allows the experts

to fold and unfold the families. Figure 5 presents the

same family of the previous screenshot unfolded.

Figure 5: Screenshot of the user interface (II).

These screenshots belong to a small example, with

just a few cases, to improve the quality of the ﬁg-

ures. However, there are scientiﬁc papers where more

than one thousand cases are described. These papers

would be unapproachable without the techniques pre-

sented in this work.

HEALTHINF 2009 - International Conference on Health Informatics

4 USE INTEREST

The main goal of this section is to emphasize the use-

fulness of the development system. As we noted in

previous sections, thousands of scientiﬁc papers about

the mutations related to the Hypertrophic Cardiomy-

opathy are published each year. Therefore, the task of

generating reports that summarize each of these muta-

tions would be unapproachable without a system like

the one presented in this paper. There are two key

factors in the design of the system. First, our system

deﬁnes a workﬂow process. The scientiﬁc document

repository building requires the ordered execution of

a set of activities on the documents, with several peo-

ple participating in each of them. In such a complex

process, the lack of control on the workﬂow can result

in dead times, errors in the obtained results and loss of

data. Second, our system is web-based. This allows

the users to collaborate all over the world in order to

keep the information constantly up to date.

Nowadays, there are 50 users registered in the sys-

tem. One of this users has the role of administrator,

20 users havethe role of supervisor, and 29 users have

the role of inspector. These users have collaborated in

the creation of a database with more than 300 GB of

information. More than 1080 mutations, categorized

in 71 genes, and more than 1030 scientiﬁc papers are

registered in the system database. Furthermore, data

about more than 9000 patients (or relatives) described

in these scientiﬁc papers are available to generate high

quality reports.

On the other hand, carefully designed user inter-

faces have a signiﬁcant reduction in the time that ex-

perts need to analyze a scientiﬁc paper and to type

relevant data in the application. This means a reduc-

tion of cost for the organization. But also, and much

important, information can be up to date easily with-

out expending a lot of money to hire more experts.

5 CONCLUSIONS AND FUTURE

WORK

We have presented in this paper the architecture and

some implementation details of a Document Manage-

ment System (DMS) to help at the diagnosis of the

Hypertrophic Cardiomyopathy. The creation of the

DMS repository is not a simple process. It requires

the coordination of people and tools to carry out ev-

ery activity that is part of the process. For all these

process to be correctly and efﬁciently made, it is nec-

essary the use of support tools that facilitate the work

of each participant and ensure the quality of the ob-

tained results.

The proposed workﬂow strategies and system ar-

chitecture support the control and coordination of

people and tasks involved in the whole process. The

use of this architecture automates the completion of

prone to error activities and optimizes the perfor-

mance of the process and the quality of the obtained

results. This architecture was deﬁned following the

recommendations of the Workﬂow Reference Model.

Furthermore, several architectural and design patterns

were used in order to obtain a modular, robust, and

easy to extend system. This system was built as a web

application which provides an integrated environment

for the execution of all the tasks.

As lines of future work, the developed system is

going to be applied to new projects of similar charac-

teristics involving other Cardiomyopathies (Dilated,

Restrictive, etc.) and Channelopathies (Brugrada syn-

drome, Long QT syndrome, Short QT syndrome,

etc.). In addition, we are working on different im-

plementations of the activities considered to optimize

the performance of the overall process. Another fu-

ture development could be the extension of the report

generation module in order to support reports about

several mutations. It could be very useful to analyze

some mutations that occur in nearby areas of the pro-

tein. Finally, a statistical module could be developed

to provide research capabilities inside the system. For

example, a study about the correlation between vari-

ables could improve the quality of the ﬁnal reports.

ACKNOWLEDGEMENTS

This work has been partially supported by “Minis-

terio de Educacin y Ciencia”(PGE y FEDER) ref.

TIN2006-16071-C03-03, and by “Xunta de Galicia”

ref. 2006/4 and ref. 08SIN008E.

REFERENCES

Alur, D., Crupi, J., and Malks, D. (2003). Core J2EE Pat-

terns. Prentice Hall.

Apache FOP (2007). Retrieved from http:// xmlgraph-

ics.apache.org/fop/ in october 2007.

Bodoff, S. (2004). The J2EE Tutorial. Addison-Wesley.

Fischer, L. (2003). Workﬂow handbook 2003. Future Strate-

gies Inc., USA.

Flanagan, D. (2006). JavaScript: The Deﬁnitive Guide, 5th

Edition. O’Reilly.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1996). Design Patterns: Elments of Reusable Object-

oriented Sofware. Addison-Wesley.

A DOCUMENT MANAGEMENT SYSTEM AND WORKFLOW TO HELP AT THE DIAGNOSIS OF

HYPERTROPHIC CARDIOMYOPATHY

Grand, M. (1998). Patterns in Java, volume 1. John Wiley

& Sons.

Hollingsworth, D. (1995). Workﬂow management coali-

tion - the workﬂow reference model. Technical report,

Workﬂow Management Coalition.

Holmes, J. (2006). Struts: The Complete Reference, 2nd

Edition. McGraw-Hill Osborne Media.

Perrone, P. J. and Chaganti, K. (2003). J2EE Developer’s

Handbook. Sam’s Publishing.

Shafer, D. (2003). HTML Utopia: Designing Without Ta-

bles Using CSS. Sitepoint Pty Ltd.

Shneiderman, B. (1998). Designing The user interface,

Strategies for effective Human-computer interaction.

Addison-wesley.

van der Aalst, W. and van Hee, K. (2002). Workﬂow man-

agement: Models, methods, and systems.

W3C Recommendation (2006). Extensible stylesheet lan-

guage (XSL) version 1.1. Technical report, W3C.

HEALTHINF 2009 - International Conference on Health Informatics
