Developing a Dynamic Usability Evaluation Framework

using an Aspect-Oriented Approach

Slava Shekh and Sue Tyerman

School of Computer and Information Science, University of South Australia, Australia

Abstract. Recent work in usability evaluation has focused on automatically

capturing and analysing user interface events. However, automated techniques

typically require modification of the underlying software, preventing non-

programmers from using these techniques. In addition, capturing events re-

quires each event source to be modified and since these sources may be spread

throughout the system, maintaining the event capture functionality can become

a very arduous task. Aspect-oriented programming (AOP) is a programming

paradigm that separates the concerns or behaviours of a system into discrete as-

pects, allowing all event capture to be contained within a single aspect. Conse-

quently, the use of AOP for usability evaluation is currently an area of research

interest, but there is a lack of a general framework. This paper describes the de-

velopment of an AOP-based usability evaluation framework that can be dynam-

ically configured to capture specific events. The configuration is controlled

through a frontend, which adds to the ease of use, and helps support non-

programmers in conducting automatic usability evaluation.

1 Introduction

Usability evaluation is a technique used in the area of human-computer interaction

(HCI) to assess how easily a user can interact with an interface. Software applications

generate user interface events as part of their operation, and these events are used to

assist in usability evaluation. Recent work in this area has examined techniques for

automating usability evaluation by automatically capturing and analysing user inter-

face events [4]. Automation allows the events to be captured with minimal human

intervention and the event capture is unobtrusive from the perspective of the user, so

the act of observation does not affect the activities being observed.

However, in order to automatically capture these events, the underlying software

needs to be modified, requiring further preparation time for the usability evaluation

and the involvement of a programmer to make the modifications. In comparison, a

non-automated method, such as heuristic evaluation, can be performed by a non-

programmer [6].

Additionally, user interface events occur in different components of the applica-

tion, making it necessary to modify the system in each of these places to facilitate

event capture. These modifications become increasingly difficult to manage in larger

systems and extending the software becomes a very arduous task, because the soft-

Shekh S. and Tyerman S. (2009).

Developing a Dynamic Usability Evaluation Framework using an Aspect-Oriented Approach.

In Proceedings of the 4th International Conference on Evaluation of Novel Approaches to Software Engineering - Evaluation of Novel Approaches to

Software Engineering, pages 203-214

DOI: 10.5220/0001860202030214

 SciTePress

ware developer needs to find and change each individual part. For instance, consider

a situation where the current system captures events by displaying them on the screen.

If the need arises for these events to also be stored in a database, then each compo-

nent of the system needs to be individually modified in order to implement the

change. If the system contains hundreds or thousands of components, then modifica-

tion can become infeasible.

Nonetheless, the limitations described can be overcome using aspect-oriented

programming (AOP). AOP is a programming paradigm that focuses on separating the

cross-cutting concerns of a system. A concern is a function or behaviour of the appli-

cation, and can be categorised as either a core concern or a cross-cutting concern. A

core concern is a primary behaviour, while a cross-cutting concern is a behaviour that

spreads across multiple parts of the system [8].

Consider a simple banking application, which supports three functions: withdraw

money, view balance and log event. An event is logged when either withdraw money

or view balance is executed. Withdraw money and view balance are core concerns,

because they provide the primary behaviour of the system, while log event is a cross-

cutting concern, as its functionality needs to be integrated into both withdraw money

and view balance in order for it to be able to log events generated by those compo-

nents.

Traditional paradigms, such as object-oriented programming (OOP) provide li-

mited support for separation of concerns. For example, developing a software system

with OOP is based on the idea of objects. A single object can be used to handle a

single core concern, such a system function, but is not able to encapsulate a cross-

cutting concern, such as event logging. Conversely, AOP addresses separation of

concerns using aspects, which are able to effectively encapsulate both core and cross-

cutting concerns. Each aspect is designed separately from the rest of the system and

all aspects are then integrated into the system using an aspect weaver. A weaver adds

the aspect code into the base code of the application at specific points that are defined

by the programmer, called join points (see Figure 1).

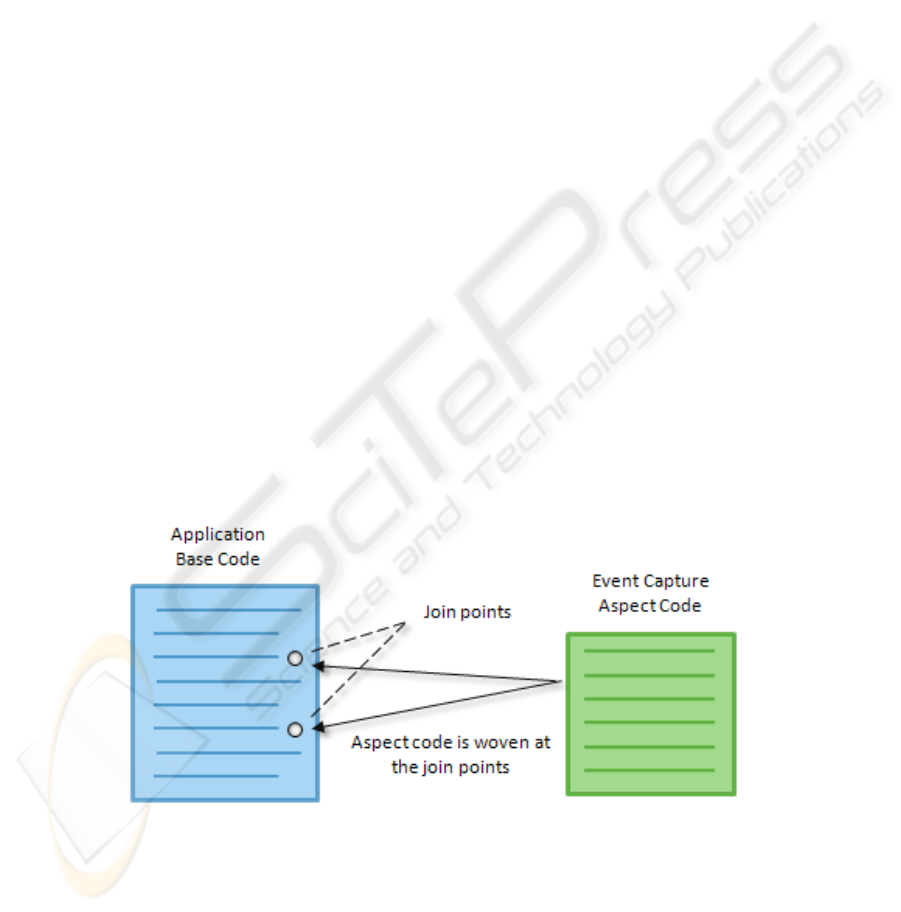

Fig. 1. Basic operation of an aspect weaver.

204

2 Related Work

AOP offers a number of opportunities that could benefit human-computer interaction.

2.1 Event Tracing

The use of AOP for event tracing was demonstrated by Low [7] in the development

of Toolkit for Aspect-oriented Tracing (TAST), which handles all trace-related activi-

ties in Java applications. TAST is a support tool for the Test and Monitoring Tool,

which had previously been developed at Siemens.

In addition to Low’s work on event tracing, AOP has been used in the develop-

ment of a trace monitor [2]; a tool that observes a system to detect sequences of

events and takes action when events occur in a particular pattern. The tool was devel-

oped using a combination of AspectJ (a popular Java-based implementation of AOP)

[1], and another language called Datalog. However, AspectJ can only trigger code at

the occurrence of a single event, so the authors introduced a new language feature to

AspectJ called “tracematches”, which allows code to be triggered when an event

sequence matches a pattern.

2.2 Event Capture

Hartman and Bass [3] described and implemented an event logging system for graph-

ical applications to capture additional event logging information at the architectural

boundaries of the application. The system was implemented using Java and Swing,

and cross-cutting concerns, such as logging, were handled by AspectJ. The system

was then applied to two applications and tested with a small user group. The results

showed that the new system addressed many of the log-related problems that were

described by earlier authors, including Hilbert and Redmiles [4], in their survey of

usability evaluation techniques.

Tao further explored AOP-based event capture by using AOP as a means of cap-

turing user interface events that occurred in different parts of the application [8], [9].

Aspects were added to the application, with the responsibility of capturing different

events, along with contextual information. The use of an aspect-oriented approach

allowed system-wide events to be captured in a single location.

2.3 Usability Evaluation

Extending on aspect-based event capture, Tarta and Moldovan [11] used AOP to

automate the process of usability evaluation by developing a usability evaluation

module, which captured events using an aspect-oriented approach. This module was

integrated as part of a working application and then tested with a small user group.

The testing showed promising results when compared to traditional usability evalua-

tion techniques, such as event log analysis. Their research also provides ample oppor-

205

tunities for future work, such as the need for a usability evaluation framework based

on AOP. The implementation of such a framework is the primary focus of this paper.

Although AOP is a suitable approach for conducting usability evaluation, there

are other techniques that may also be useful. One group of researchers compared two

approaches for conducting usability evaluation: aspect-oriented programming and

agent-based architecture [10]. The comparison described both techniques as being

effective for usability evaluation, and showed that AOP could support usability test-

ing without the need to modify the original application code. The comparison pro-

vides valuable insights into different techniques for conducting usability evaluation

and highlights the validity of an aspect-oriented approach.

3 Framework

The primary aim of the research presented in this paper was to develop a usability

evaluation framework using AOP, with no impact on the source code. If AOP was not

used, in the worst case scenario, twenty duplicate sets of logging code would be

needed to record mouse events alone, leading to potential mistakes and difficulties

with maintenance. With over 100 different events being observed, AOP has a clear

advantage over traditional approaches.

The main purpose of the framework is to capture user interface events and assist

in usability evaluation. At the same time, the framework aims to be as re-usable as

possible, so that it can be used in different applications, following the recommenda-

tions of Tarta and Moldovan [11].

In order to capture events, the framework needs a software application to act as a

source of events; an event being any change of state in the system. In this implemen-

tation, a Java-based application called the ACIE Player has been used as the event

source. The Player provides an integrated environment for viewing synchronised data

streams, including audio, video and transcribed text (see Figure 2).

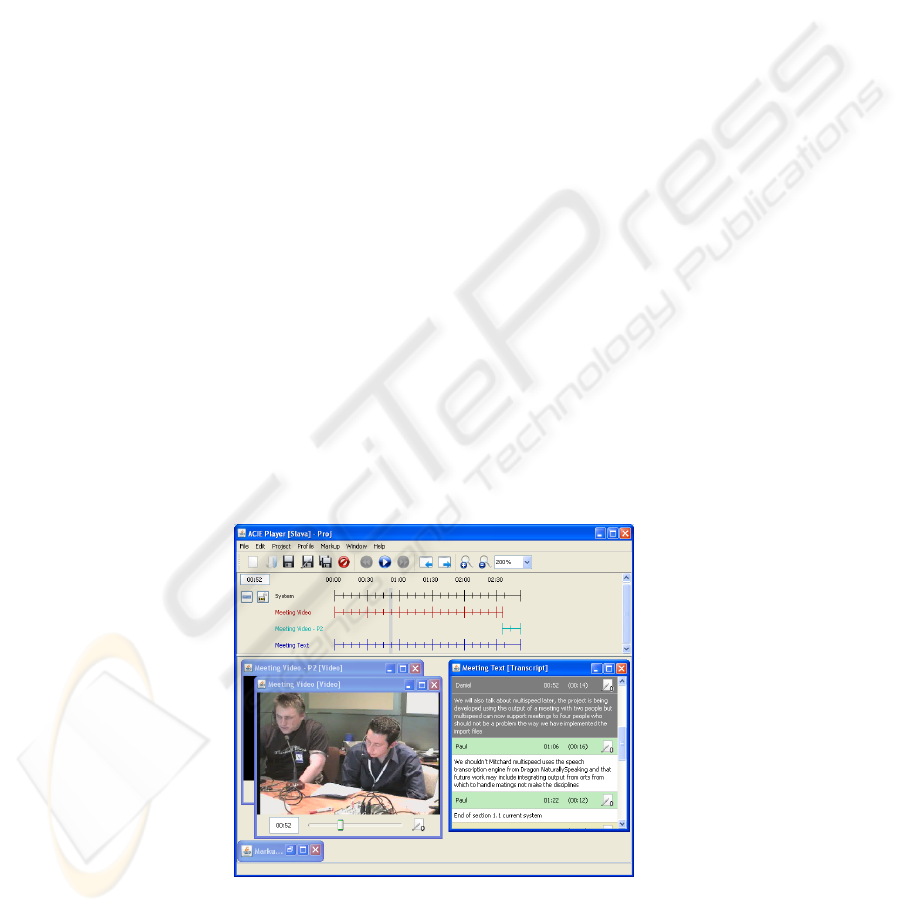

Fig. 2. Screenshot of the ACIE Player.

206

In addition to this playback environment, the Player also allows the user to modify

the transcribed text and annotate the different data streams. Since the ACIE Player is

a Java-based application, a popular Java AOP implementation called AspectJ has

been used for developing the framework.

The framework consists of four main components: aspect interface, event capture

module, framework frontend and output module. These components and their interac-

tions are shown in Figure 3, and described in more detail below.

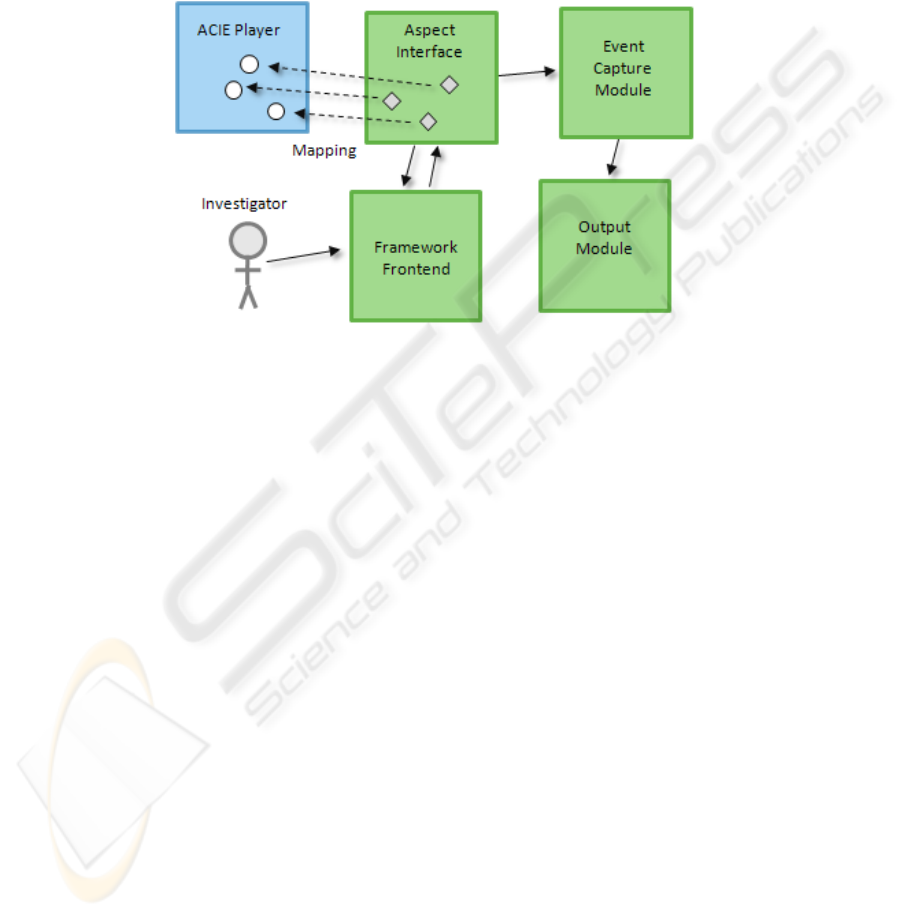

Fig. 3. Overview of the framework architecture.

3.1 Aspect Interface

The aspect interface is specific to the ACIE Player, while the other components can

be reused by other applications that adopt the framework. Initially, a programmer

needs to create the aspect interface for the target application. The aspect interface

contains a series of join points that map to GUI components in the target application.

For instance, the work area is a GUI component in the ACIE Player and contains a

method for cascading windows. The following join point in the aspect interface maps

to this method and thus, captures the event of the windows being cascaded:

after() : target(WorkArea) && execution(* cascadeWindows()) {

String action = "Windows Cascaded";

Event event = new Event(action);

CaptureModule.logEvent(event);

}

Although the joint point mapping needs to be done by a programmer, each unique

application only needs to be mapped once.

3.2 Framework Frontend

Once the programmer has created the aspect interface, an investigator can configure

the interface and perform a usability evaluation without any more input from the

207

programmer. In order to configure the interface, the investigator uses the framework

frontend. This component provides a GUI with a series of checkboxes (see Figure 4),

which are automatically generated based on the join points present in the aspect inter-

face. The investigator then selects checkboxes based on the GUI components and

specific events that they are interested in logging. In addition, the investigator can

select their preferred output formats, and their overall selection is saved to a configu-

ration file.

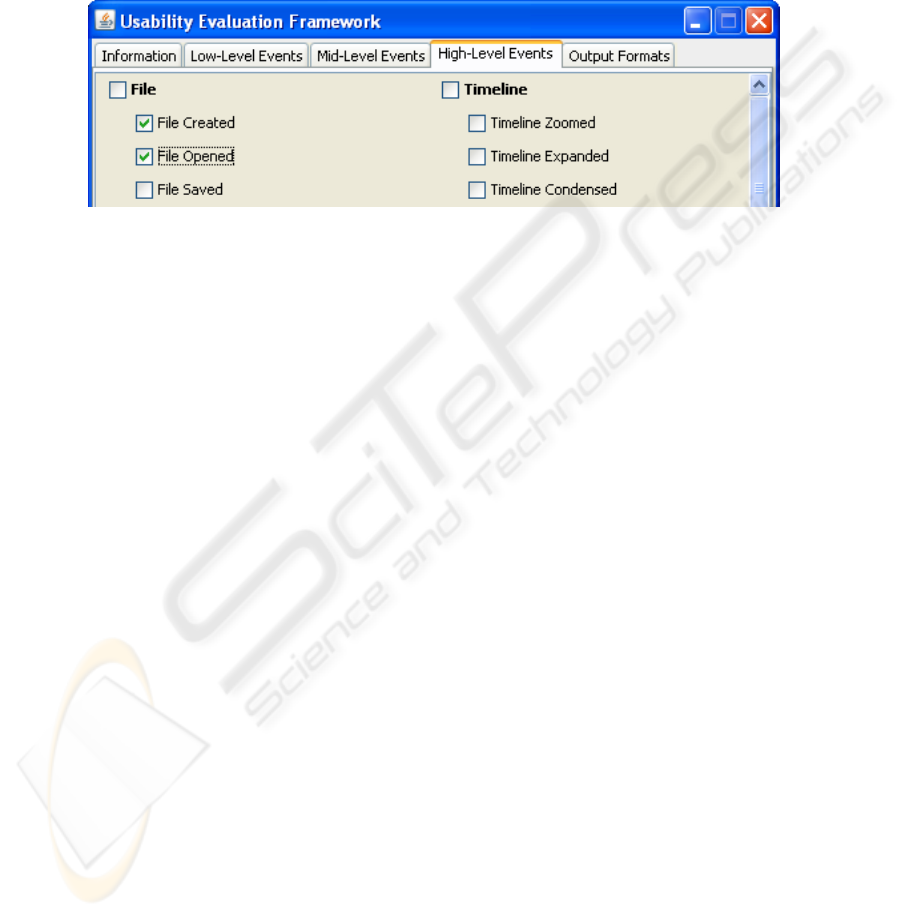

Fig. 4. Screenshot of part of the framework frontend.

3.3 Capture and Output Modules

Once the configuration file has been set up, the framework can begin logging events.

While a user is interacting with the ACIE Player, the framework runs in the back-

ground and records their actions. However, the framework only logs the events that

are specified in the configuration file, which is determined by the investigator’s selec-

tion in the framework frontend. For each of the logged events, the aspect interface

requests the event capture module to log the event. The event capture module then

stores the event and passes it on to the output module, which can process the event

into different output formats.

4 Case Study

The framework was tested and validated using a case study. The study was targeted at

the Information Systems Laboratory (InSyL) of the University of South Australia,

which is a specific user group of the ACIE Player [5]. The case study consisted of an

investigation experiment and a usability experiment. The investigation experiment

evaluated the use of the framework itself, while the usability experiment tested the

effect of AOP on system performance to identify whether AOP was a suitable driving

technology for the framework.

The participants selected for both experiments were a combination of programmers

and non-programmers, which helped evaluate the general effectiveness of the frame-

work for all user types. All participants completed the usability experiment first, and

thus, this was their initial point of contact with the ACIE Player and framework.

208

4.1 The Case

Consider the following scenario, which illustrates how the ACIE Player is used by

members of InSyL and is the target case for the study.

An analyst is interested in observing a recorded meeting and analysing the beha-

viour and interaction of the meeting participants. The analyst has access to the video

and audio streams of the recorded meeting, and a transcript that is automatically gen-

erated from the audio. The analyst observes the video and transcript in small sections

(i.e. 10 seconds at a time), and makes textual annotations based on the behaviour of

participants. The analyst records the annotations using a standard syntax to make the

information easier to categorise. For instance, if a participant stands up and says

something, the analyst might record “P1: stand, speak”.

Performing this task without an integrated tool is problematic, because the analyst

needs to run multiple applications concurrently, and manually synchronise them. For

example, they might run a video player to watch the meeting, a transcription program

to read the meeting transcript and a text editor to record their annotations. Since all of

these are separate applications, the analyst will have to constantly check that the data

from each application is synchronised.

The ACIE Player is preferable for performing the task, because it is able to provide

all of the required capabilities in an integrated and synchronised environment. Using

the ACIE Player minimises the cognitive overhead for the analyst in performing their

task, since the work is managed within a single application. This also reduces the

likelihood of errors and inconsistencies in the analysis, because the analyst no longer

needs to spend time managing and synchronising different media and software appli-

cations, and is able to focus more on their actual task.

4.2 Usability Experiment

In the usability experiment, all participants took on the role of a user. The main pur-

pose of this experiment was to evaluate whether or not users could detect any degra-

dation in system performance due to the presence of the framework. This helped to

identify whether AOP was a suitable technology for capturing events and running the

framework.

Each user carried out two simple tasks using the ACIE Player, based on a set of in-

structions. In both tasks, the overall flow of activities was as follows:

1. Launch the ACIE Player

2. Create a project (a project is simply a collection of related files)

3. Add some files to the project

4. Customise the work environment

5. Play the video

6. Edit the transcript

7. Create, edit and remove an annotation

8. Close the application

During one of the tasks, the participant used the ACIE Player by itself, while dur-

ing the other task they used the Player with the framework enabled. The presence of

209

the framework was randomised during each task to minimise the existence of bias,

and to prevent learning effects from affecting survey results. Participants were not

told whether the framework was enabled during a particular task, and care was taken

to ensure that there were no clues to reveal this information.

When enabled, the framework was configured to capture all available events in

three different output formats: plain text, CSV and XML. This produced a large

amount of event data and was therefore an accurate way of testing the user’s ability to

detect the framework.

Each user completed a short survey upon completing the first task of the experi-

ment and another survey at the end of the experiment. Each survey presented the user

with two questions:

Question 1 – were you aware of the presence of the framework?

Question 2 – did the framework interfere with your task?

It was assumed that the participants had basic computer skills and experience with

Window-based applications, but they were not required to have any prior experience

in using the ACIE Player or the framework. Each user was simply required to follow

a set of instructions as best as they could, without any practice or training.

4.3 Investigation Experiment

In the investigation experiment, participants were randomly divided into three groups,

where each group consisted of a user and an investigator. All participants had already

completed two tasks with the ACIE Player in the usability experiment, so each person

had the same amount of experience in using the Player and the framework.

The user of each group carried out the task from the first experiment, while the in-

vestigator observed the user and conducted a simple usability evaluation. The investi-

gator performed this evaluation by following a set of instructions and completing an

objective sheet – counting the occurrence of specific events and comparing this to

other events. For example, one of the objectives asked the investigator to identify

whether tile window events or cascade window events occurred more often.

The overall flow of activities during the investigation experiment was as follows:

1. Investigator receives an instruction sheet and an objective sheet

2. Investigator launches the usability evaluation framework

3. Investigator configures the framework to capture the events described on the

objective sheet

4. User launches the ACIE Player and performs the activities from the usability

experiment

5. User closes the ACIE Player

6. Investigator examines the event logs that were generated by the framework

7. Investigator completes the objective sheet

Upon completion of the experiment, the investigator completed a survey that was

answered by circling a number on a 7-point Likert scale. The number 1 represented a

very negative answer, while 7 represented a very positive answer. For instance, the

210

first question was “how would you rate your computer skill level?” The number 1

matched to the verbal answer of “beginner”, while 7 matched to “expert”.

Once again, participants were not required to have any prior experience in using

the ACIE Player or framework.

5 Experimental Results

The same group of six participants was involved in both experiments of the study. All

participants were members of the InSyL group.

5.1 Usability Experiment

All six participants took on the role of a user in the usability experiment. The primary

source of data in this experiment was the two surveys that users were required to

complete, in which they provided responses to the questions described in Section 4.2.

Almost all users indicated that they did not notice the presence of the framework, and

that it did not interfere with their task.

In one case, a user thought that they noticed the framework running during both of

their tasks, but it was only running during one task. This suggests that what the user

noticed was not actually the framework. Thus, the results indicate that AOP does not

affect software usability and is a suitable technology for driving the framework.

5.2 Investigation Experiment

In the investigation experiment, the six participants were divided into three groups. In

each group, one participant took on the role of a user and the other participant became

the investigator. At the end of the experiment, the investigator filled in a survey by

answering questions on a 7-point Likert scale.

The graph in Figure 5 shows the results obtained from the investigator survey. The

survey questions have been abbreviated to improve the readability of the graph. The

full questions are as follows:

• Computer Skill – how would you rate your computer skill level?

• Programming – how much experience have you had with computer program-

ming?

• Ease of Use – how easy was the framework to use?

• Information – did the framework provide you with the information you needed

to complete your objectives?

• Enjoyment – overall, did you enjoy using the framework?

• Usefulness – do you see the framework as something that you could use in

your own work?

211

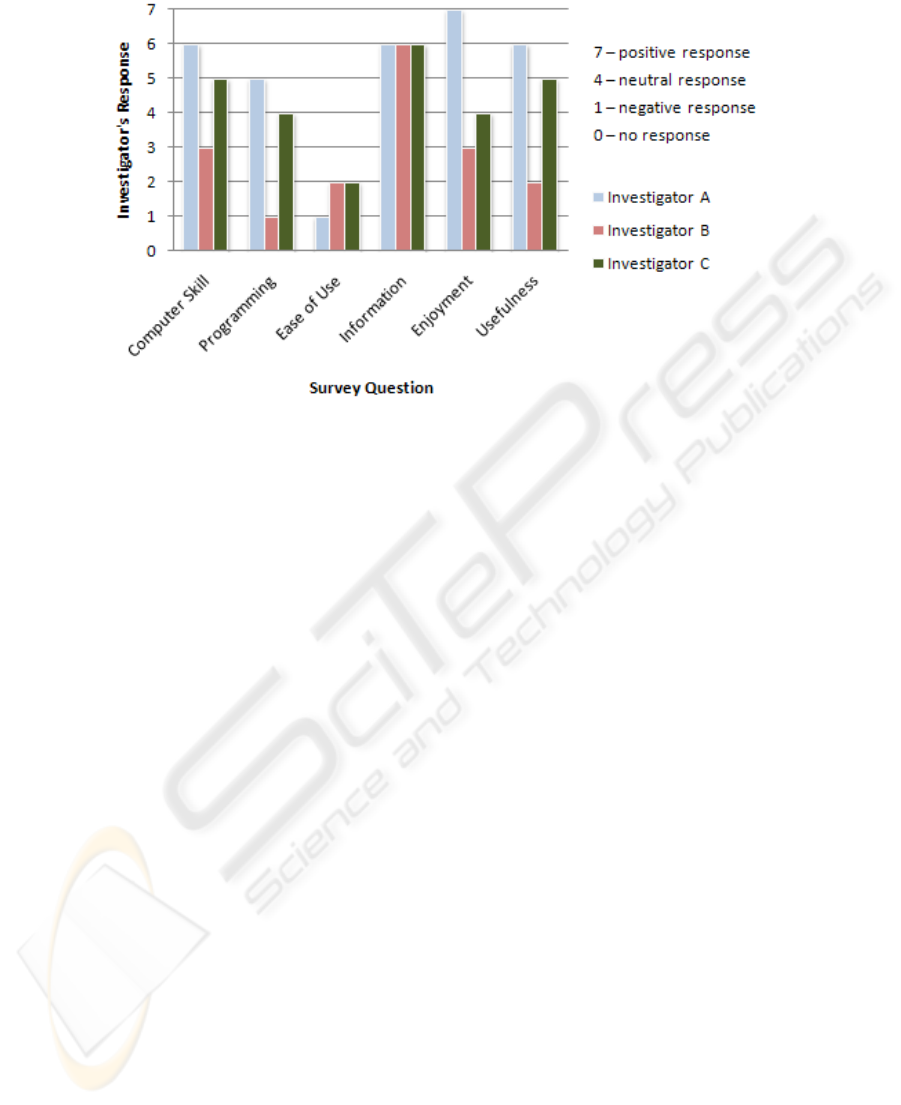

Fig. 5. Investigator survey results.

The graph shows that the investigators varied greatly in computer skill and pro-

gramming ability, based on their self-assessment. However, all of the investigators

found the framework difficult to use, even those with prior computer and program-

ming experience.

Investigators described that the main difficulty was encountered while configuring

the framework. The instruction sheet and the framework provided a large amount of

information, which was very overwhelming for the investigators. One user explained

that the framework GUI was “cramped” with information and that they were con-

fused about what they needed to do to meet the requirements of their task.

Nonetheless, after thoroughly explaining the task to the investigator and describing

how the framework should be configured, all investigators were able to complete the

task successfully, even those with limited computing / programming experience.

Although configuring the framework generally proved to be a difficult task, the fi-

nal task of interpreting the event data and completing the objective sheet was consi-

dered much easier. All investigators were able to fill in the objective sheet without

encountering any major problems, and all of their answers proved to be 100% correct,

when compared to the generated event data.

6 Future Work

The framework does not log every single event generated by the ACIE Player. Cur-

rently, only the user-initiated events are captured, but internal application events are

ignored. The framework could be extended to capture all events generated by an

application, which may prove to be useful. For example, the logging of internal

events could provide the programmer with a trace of program execution to assist in

debugging.

212

Some members of InSyL are not only interested in observing the participants of

recorded meetings, but also in observing those who are observing the meeting. Since

AOP has proven to be particularly useful in capturing a user’s actions as they interact

with an application, it may also be possible to capture and analyse the actions of an

observer.

One of the current limitations of the framework is that a programmer needs to

create an aspect interface for each unique application. This involves examining the

application source code, discovering the join points and adding these join points to

the aspect interface. The framework could be extended to automatically discover the

join points and generate the aspect interface, potentially saving time for the pro-

grammer.

The case study showed that investigators found the framework difficult to use.

One reason for the difficulties was the large amount of information presented in the

framework frontend. Therefore, further analysis needs to be done in improving the

GUI or creating a completely new one. For instance, the framework could run the

ACIE Player in a framework configuration mode, where the investigator clicks on

various GUI components in the Player and the framework then enables event logging

of those particular components. This approach may be more intuitive, because the

investigator would be clicking on the actual components and performing the actual

operations that they want to log, as opposed to selecting checkboxes with the names

of those operations.

Although the framework has been evaluated using a case study, the study only

examined a single scenario of usage and the framework has only been tested with a

single application (the ACIE Player). Since the framework is designed to be reusable,

it needs to be tested with other applications to evaluate its effectiveness in different

environments.

7 Conclusions

Aspect-oriented programming allows usability evaluation concerns, such as event

logging, to be separated from the rest of the system. Researchers have already begun

to explore this area, and in particular, Tarta and Moldovan [11] suggested the

development of an AOP-based usability evaluation framework. Implementing this

framework has been the accomplishment of this research project.

The framework was developed as an extension of the ACIE Player. The use of

AOP enables the framework to be dynamically configured to capture a specific subset

of all of the mapped events within the Player. The configuration is provided through a

frontend, making the framework accessible to both programmers and non-

programmers.

A case study, consisting of a usability and investigation experiment, was used to

evaluate the implementation. The results showed that an aspect-oriented approach

could assist in performing usability evaluation. Furthermore, the data from the

usability experiment revealed that AOP did not create any performance constraints on

the working environment, suggesting that AOP is a suitable technology for driving

the framework.

213

Acknowledgements

This research project was in part funded through the UniSA/DSTO Research Agree-

ment “Human Interaction Studies on the use of Speech Technology and Speaker

Localisation in support of LiveSpaces: 2006/1170285: ACIE Player v2.0 Develop-

ment Project – Honours Scholarship 2008”. We also thank Ahmad Hashemi-

Sakhtsari and Michael Coleman for their assistance.

References

1. AspectJ Team 2008, The AspectJ Project, The Eclipse Foundation, viewed 25 April 2008,

<http://www.eclipse.org/aspectj/>.

2. Avgustinov, P, Bodden, E, Hajiyev, E, Hendren, L, Lhotak, O, Moor, O, Ongkingco, N,

Sereni, D, Sittampalam, G, Tibble, J & Verbaere, M 2006, 'Aspects for Trace Monitoring',

FATES/RV '06: Proceedings of Formal Approaches to Testing and Runtime Verification,

Springer, Seattle, pp. 20-39.

3. Hartman, GS & Bass, L 2005, 'Logging Events Crossing Architectural Boundaries',

INTERACT 2005: Proceedings of the 11th International Conference on Human-Computer

Interaction, Springer, Las Vegas, pp. 823-834.

4. Hilbert, DM & Redmiles, DF 2000, 'Extracting Usability Information from User Interface

Events', ACM Computing Surveys, vol. 32, no. 4, pp. 384-421.

5. InSyL 2008, Information System Laboratory, University of South Australia, viewed 9

October 2008, <http://www.insyl.unisa.edu.au/>.

6. Ivory, MY & Hearst, MA 2001, 'The State of the Art in Automating Usability Evaluation

of User Interfaces', ACM Computing Surveys, vol. 33, no. 4, pp. 470-516.

7. Low, T 2002, 'Designing, Modelling and Implementing a Toolkit for Aspect-oriented Trac-

ing (TAST)', AOSD 2002 Workshop on Aspect-Oriented Modeling with UML, Enschede.

8. Tao, Y 2007a, 'Capturing User Interface Events with Aspects', HCII 2007: Proceedings of

the 12th International Conference on Human-Computer Interaction, Springer, Beijing, pp.

1170-1179.

9. Tao, Y 2007b, 'Toward Computer-Aided Usability Evaluation for Evolving Interactive

Software', RAM-SE '07: Proceedings of ECOOP 2007 Workshop on Reflection, AOP and

Meta-Data for Software Evolution, University of Magdeburg, Berlin.

10. Tarby, J, Ezzedine, H, Rouillard, J, Tran, CD, Laporte, P & Kolski, C 2007, 'Traces Using

Aspect Oriented Programming and Interactive Agent-Based Architecture for Early Usabili-

ty Evaluation: Basic Principles and Comparison', HCII 2007: Proceedings of the 12th In-

ternational Conference on Human-Computer Interaction, Springer, Beijing, pp. 632-641.

11. Tarta, AM & Moldovan, GS 2006, 'Automatic Usability Evaluation Using AOP', 2006

IEEE International Conference on Automation, Quality and Testing, Robotics, IEEE Com-

puter Society, Los Alamitos, pp. 84-89.

214
