A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR

COMPUTER AIDED ASSESSMENTS AND AUTOMATED MARKING

Michael Striewe, Moritz Balz and Michael Goedicke

Speciﬁcation of Software Systems, University of Duisburg-Essen, Essen, Germany

Keywords:

Computer-aided assessment, Self-training, Assessment framework, Automated grading.

Abstract:

In this paper we describe and discuss a ﬂexible and modular software architecture for computer aided

assessments and automated marking of exercise solutions. General requirements and problems are outlined

with respect to assessment and self-training scenarios. As the main research result based on these

requirements, an appropriate complete solution is presented by depicting a distributed, extendable, server-

based assessment environment. Both the requirements and the architecture are evaluated by means of an

actual system that is in use for assessments in Java programming for three years.

1 INTRODUCTION

Computer based exercises, e-learning, computer

aided assessments and automated marking of solu-

tions became important topics of research and dis-

cussion in recent years. Both increasing numbers of

students and steady progress in computer infrastruc-

tures made it desirable to offer computer based ex-

ercises and examinations. Main goals are increased

efﬁciency, reduced manpower needed for corrections

and possibilities to apply various media and modern

teaching techniques. Computer aided learning and

computer aided assessments can be treated as very

closely related in this context, because we are con-

vinced that a tool used for marking solutions should

be accurate enough to explain its marking decisions

in a way that improves the students’ learning pro-

cess. If tools can assure the necessary quality in aut-

mated grading, they are useful for both formative and

summative assessments. This applies to virtually any

learning scenario, independent from topics of an ac-

tual course or the methods typically used for assess-

ments on these topics.

Thus it is desirable to develop a software architec-

ture that is ﬂexible enough to serve for self-training

and exercises as well as for assessments and exams

and that can be used for various types of tasks in dif-

ferent topics. We especially don’t want to limit our-

selves to restricted question types like multiple-choice

questionnaires, where the number of possible wrong

and right solutions is known beforehand. Thus we try

to cope with the problem that cognitive skills and ap-

plication of methods cannot be assessed via multiple-

choice tests (Chalmers and McAusland, 2002).

We are going to explain some general require-

ments for a ﬂexible software architecture in section

2 and discuss an actual use case in section 3. A solu-

tion which is based on this use case and which fulﬁlls

the requirements follows in section 4. This solution

is evaluated in section 5, before we give some biblio-

graphic remarks in section 1.1 and conclude the paper

with section 6.

1.1 Related Work

Most similar to the use case and our system we

are going to described below is the web based tool

PRAKTOMAT (Krinke et al., 2002), which offers

almost the same features. It is capable of checking

code in Java, C++ and Haskell with static checks

and dynamic checks from an external test driver.

The system is available as an open source project

and under continuous development since 2001, but

written in Python and thus limited to UNIX server

environments. In addition, its architecture is not

explicitly designed to be extendable by other marking

components or to be used with completely different

types of exercises.

Another almost similar project is DUESIE

(Hoffmann et al., 2008), which is capable of checking

Java and SML exercises as well as UML diagrams.

The user interface is more limited without plug-

ins for ECLIPSE and the core system is realized

in PHP5, using external compilers, interpreters and

Striewe M., Balz M. and Goedicke M. (2009).

A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR COMPUTER AIDED ASSESSMENTS AND AUTOMATED MARKING.

In Proceedings of the First International Conference on Computer Supported Education, pages 54-61

DOI: 10.5220/0001966900540061

 SciTePress

build tools. The technological gap between the

scripting language PHP5 and external tools written in

other languages is obvious and might cause problems

regarding interoperability, security and comfort that

are solved in a much more convenient way in the

architecture proposed in this paper.

A platform for automated testing and assessment

without limitation to certain subjects is offered by

the web-based learning management system ILIAS

(ILIAS, 2008). Several tools for multiple-choice

questions in various forms are well discussed (e.g.

(Hendrich and von der Heide, 2005) and (Glowalla

et al., 2005)), but they are all not appropriate for

complex use cases like the one depicted in section 3.

A lot of more specialised tools for limited domains

exist as well. Different functional programming

languages can be checked with the LLSCHECKER

(Rösner et al., 2005) by comparing results from

students solutions with results from a sample

solution for given inputs. The tool EXORCISER

(Tscherter, 2004) can be used for self-training

without a server and offers exercises and automated

veriﬁcation for various topics in theoretic computer

science, i.e. languages, grammars and Markov

algorithms. Also in weakly structured domains like

law, intelligent systems for detecting weaknesses in

answers from students are used (Pinkwart et al.,

2006). Nevertheless, these systems are not designed

to be used both for self-training and exams and thus

do not fulﬁll all of the requirements named in section

2 REQUIREMENTS

A general assessment and training environment must

support the whole process of assessments, which

embraces the manual or automated management of

examinees, manual creation of tasks, automated

delivery of tasks, automated collection of solutions,

automated marking solutions and management of

manual reviews. Only slight variations of this process

are used in self-training scenarios, where in most

cases management of participants is less rigid and

manual reviews by teachers should be reduced to a

minimum in order to realize the expected increased

efﬁciency.

Since a general system should be used with

different kinds of tasks, we must expect users with

knowledge in different subjects, different complexity

of tasks and also different experiences regarding

computer aided assessment services. This leads

in every part of the overall process to advanced

requirements in terms of ﬂexibility and usability.

Additionally, since assessment systems are used in

potentially distributed environments and manage data

of possible judicial relevance, security issues are of

concern during the whole requirement analysis.

2.1 Examinee Management

The security issues to expect require ﬁrst an integrated

user management and strict permission policies. For

this purpose, examinees must be represented in the

system at all stages of the overall process. We expect

these user data to be speciﬁc: (1) Since the system

will be prepared for mass assessments, we must

handle large amounts of user accounts for each exam

which may stay in the system for just one exam; (2)

We cannot assume that we have an integrated access

to a user/student data base. So one of the requirements

for the system is that user/student data is easy to

import and afterwards easy to identify in the system to

allow a precise assignment of exercises. Additionally,

if user data remains in active use in the system for a

more than one exam, the personal data must be re-

usable and also changeable by administrators.

2.2 Task Creation

Tasks in the context of assessments can be deﬁned

at different levels of abstraction. We deﬁne an

exercise to be one task of a certain type, for example

a multiple-choice question, a programming task or

writing a short essay. An exercise consists of a task

description and – according to the type – attached

fragments. We distinguish internal fragments and

external fragments: Internal fragments are created by

the teacher and cannot be changed by the examinees.

They may be visible to the examinees like questions

in a multiple-choice exam or invisible like sample

solutions the submitted solutions are compared with.

In contrary, external fragments are created or at least

modiﬁed by the examinees. They can be provided by

the teacher as a starting point for a solution that has

to be modiﬁed, for example source code fragments

for programming solutions. They may also be created

by the students themselves. We require the system to

be able to handle any kind of fragments by offering

uniform methods for attaching them to exercises.

A set of single exercises constitute an exam

representing an academic record. Hence the

deﬁnition of an exam must include an arrangement

of exercises including premises, dependencies and

possible repetitions. It should especially be possible

to use a single exercise in different exams.

An important requirement for mass assessments

is the deﬁnition of possible exercise or exam variants

A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR COMPUTER AIDED ASSESSMENTS AND

AUTOMATED MARKING

that computer aided assessment systems can manage

easily. Since examinees are expected to be managed

by the same system and be unambiguously identiﬁed

during exams, the assignment of variants to certain

examinees can take place before the actual exam

begins. Based on the students’ data and the available

exam variants different strategies to assign a student

to a speciﬁc exam variant can be applied. In contrary,

in self-training scenarios no ﬁxed assignments are

required, so the system should also be able to offer

different exercises or exercise variants at once and

allow students to choose one of them.

2.3 Exercise Delivery and Solution

Submission

The requirement to cover different types of exercises

leads to another requirement: a high ﬂexibility of

tools for submitting solutions. The simplest case

of solutions types is multiple-choice, which requires

at least a web site that can run on the assessment

system’s server. However, restricted input methods

of web applications may not satisfy the needs of

complex input types such as programming texts,

graphics or the text of an essay. In such cases we need

rich clients that connect to the assessment system

in a secure way. Since special input methods like

programming tasks may be integrated into other tools

like integrated development environments (IDEs), we

also expect a wide range of task-speciﬁc tools and

thus need a ﬂexible interface at the server side.

This stage of the process is most likely the target

of fraudulentattempts by examineesand thus has high

security requirements. To provide consistent security

for exam situations, we identiﬁed the following issues

so far:

• We cannot expect to be able to use existing login

data as mentioned in subsection 2.1. Hence

it must be possible to generate login data for

imported user data.

• Login data must be easy to understand for

students, even if they are nervous in an exam

situation. Hence, we must deﬁne a minimum

input required to identify students and their

assigned exams.

• The login data usage must be restricted to avoid

fraud. This restriction should be made based on

time frames or locations by e.g. using one time

passwords.

• Each commit of solutions must be logged and

comprehensible afterwards to detect possible

defrauds. Since data loss is not acceptable,

solutions must be stored immediately and together

with meta-information about account, time and

location from where the solution was submitted.

• Traceability of student’s activities during the

exam can be an important issue, both for judicial

reasons and to enable recovery in the case of

a failed client. Data related to the students’

activities has to be collected and stored with the

related solution(s).

In terms of usability, each possible client is required

to provide a simple user interface to ask for login data

in a simple way, provide input for single exercises,

allow the creation or modiﬁcation of solutions and

commit (submit) the solutions to the assessment

system. When an exam is composed of more than

one exercise or one exercise contains more than

one external fragment, the client must ensure that a

student is given notice of all of them. In addition, the

client should inform the student if external fragments

are missing or have not been modiﬁed yet.

2.4 Marking Solutions

Different types of exercises need appropriate manual

or (semi) automated marking mechanisms. Addition-

ally, we require the system to be able to analyze one

exercise regarding multiple aspects. For example, if

students are asked to solve a task by submitting a di-

agram, one mechanism can check for the presence

or absence of required elements inside the diagram,

while another mechanism checks for conformance to

styling guidelines that were taught in the according

course.

Technically, our requirement is that the needed

type-speciﬁc marking components are easy to de-

velop, integrate and manage at run time. They also

must be able to run outside the actual assessment sys-

tem to allow load balancing: since the students’ ac-

cess to the assessment system must be as robust as

possible and the system resources needed for marking

are type-speciﬁc and not predictable, it is necessary to

loosely couple these tasks. Thus we also need a run

time system that executes arbitrary marking compo-

nents and connects to the assessment system for this

purpose. The assessment system is responsible for

delivering solutions on request of the marking pro-

cess until every single exam has been assessed and

marked.

Running marking components in a separate run

time system that connects to the assessment system

raises additional security issues. To prevent fraudu-

lent attempts, the assessment system has to make sure

that only valid marking run time systems may access

stored solution data and may deliver results for them.

CSEDU 2009 - International Conference on Computer Supported Education

2.5 Review Management

Teachers must be able to manage examinations

by manual marking of single exercises as well as

by review of automated results. Since automated

marking may not be trusted in all cases, teachers may

be required to validate automated results and override

them if necessary. To avoid fraudulent attempts,

all result changes have to be logged and be easily

(re)viewable afterwards and may not be undone.

In exam scenarios it should also be possible to let

examinees review their own solutions afterwards and

see a justiﬁcation of the results, both for educational

and judicial purposes. At last, the result data must

be exportable in different formats to be used as

public notices, certiﬁcates and input data for other

assessment management systems, for example those

of examination authorities.

In self-training scenarios result reviews by

students are even more important. If automated

marking systems are used to reduce the need for

manpower, students have to learn just by studying

the results from the marking components. Thus we

require each result to be visible for review and to

be clear enough to be understandable without further

explanation.

3 A SPECIAL USE CASE:

PROGRAMMING EXERCISES

The requirements depicted above exceed by far those

of average existing assessment systems. The reason

is that with the advancing use of assessment systems,

the need increases to cover more types of tasks than

just multiple-choice tasks. For example, in basic

lectures on computer science there is a strong need

for systems able to provide and check programming

exercises. We are using a system for automated

marking of programming exercises since three years

(Striewe et al., 2008). More than 8.500 exams

and an equivalent number of self-training sessions

have been conducted that shaped the proﬁle of an

existing programming course and clearly decreased

failed ﬁnal examinations according to our statistics.

We will describe this special use case in the following

to justify the requirements.

The user management is related to nearly

all requirements for user managements mentioned

above: The tool is used in a basic studies course

with about 600 students per year conducting each up

to 6 small exams during winter term. Before each

exam, login data is imported from another existing

tool managing registration and room assignment. The

assessment system is responsible to assure student

identity across several imports based on unique

attributes like the matriculation number. During

exams, no external network access is permitted to

protect the exam against network attacks, so that

all data must be completely contained inside the

system. We chose the approach to identify students

and their assigned exams by transaction numbers

(TANs) that are generated before the exams begin.

Since the user data import provides attributes from

the registration tool like time slot and room number,

we can assign exercise variants based on groups. In

self-training exercises, no variants are offered and

no assignments are made. The server used for self-

training has full network access, so students can

use their personal universal accounts. Without this

ﬂexibility in user management, the use of the same

assessment environment both for exams and self-

training would not be possible.

The exercise creation requires three kinds of

resources for programming exercises: First, external

fragments of source code are delivered that must be

ﬁlled by the students. Second, graph transformation

rules identifying instances of patterns contained in

the solution are provided as internal fragments.

Third, internal fragments of source code have to be

provided for black-box testing to generate input to

the submitted solutions and compare the output to

the expected values. Thus our system has to handle

fragments of completely different type inside one

exercise. In addition, it is independent from these

types, whether they are used as internal or external

fragments, as there are external code fragments as

well as internal code fragments.

The exercise delivery can happen in two ways.

The simple way is a web interface that allows

to download external fragments as far as they are

provided and upload source ﬁles and compiled ﬁles

afterwards. This ﬁrst approach is used without

problems in the self-training scenario, but has proven

to be inconvenient for exam situations. Hence we

built a plug-in for the ECLIPSE IDE (Eclipse, ) which

embraces the platform’s functionality regarding code

editors, project management and compilation in order

to display and upload all parts of the solution

automatically. Nevertheless, the web interface can be

used in exams as well, again stressing the beneﬁts of

our ﬂexibility requirements.

Independent from the interface being used, the

TAN is the only login data that must be supplied

by the student in exam situations. Since the TAN is

printed on a paper sheet handed out to each student,

all necessary data is available to the students without

requiring external knowledge about access data. This

A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR COMPUTER AIDED ASSESSMENTS AND

AUTOMATED MARKING

meets the requirements to make the login as fast

and as riskless as possible. Additionally, since time

and room information are available, we validate this

way that no access happens at invalid times. On the

contrary, in self-training students can use the web

interface and are hence not forced to use ECLIPSE.

The programming-speciﬁc automated marking

of solutions also relates to all the aforementioned

requirements. Each exercise is checked via dynamic

black-box tests as well as static source code analysis.

Since the black-box tests execute arbitrary code

deﬁned by the students we must be especially careful

to avoid malicious software attacks. The resource-

demanding nature of static source code analysis

required us to run multiple marking component

instances in parallel while ensuring in the assessment

system that marking of a speciﬁc solution happens

only once. Details about the techniques used for

dynamic and static checks are far beyond the scope

of this paper.

The source code analysis is based on heuristics

and cannot detect any possible correct solution, so

that a review by the teacher is necessary if black-box

test and source code analysis deliver contradicting

results. We also offer students the possibility to

review their own code and ask exercise-speciﬁc

questions after the exam. Especially in this case it

is of great beneﬁt if the same system is used for

exams and self-training, so students already know

how to interpret the results presented to them during

the review.

4 ARCHITECTURE

As speciﬁed in the requirements, the assessment

system is inherently distributed to separate concerns

and allow multiple access from a multitude of parallel

users. Because of this, one central component –

referred to as core system in the following – is

responsible for the coordination of the single parts

of the systems. To this core system we connect

different clients used by examinees, an administration

console for teachers and one or more marking

components, while the core system connects itself to

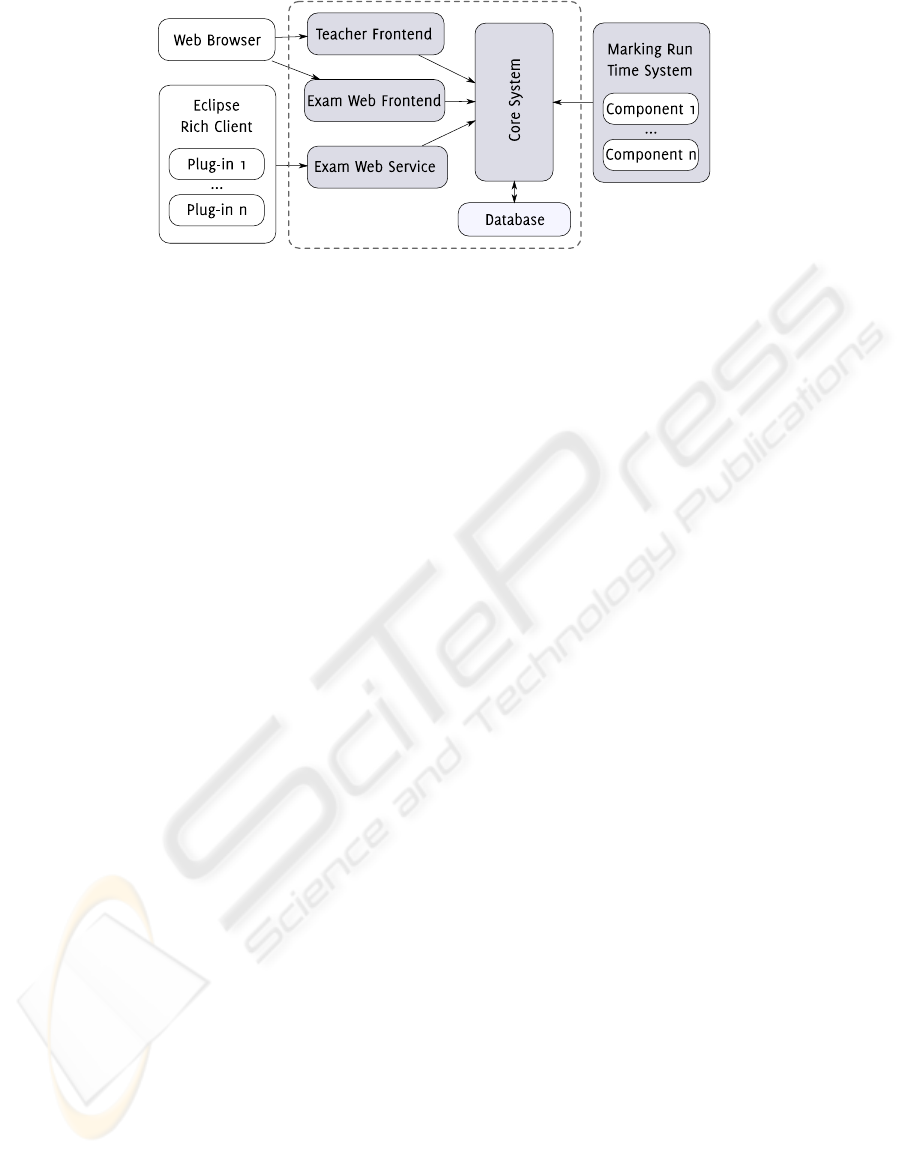

a database. Figure 1 gives an overview about this

general architecture. The shown ECLIPSE front end

for exams is only one sample rich client and in itself

extendable for different purposes.

In general, the whole assessment system is

designed and deployed as packages run on Java

Enterprise Edition application servers. The package

containing the core system is obligatory. Separate

packages exist for the server-side parts of web access

front ends used by examinees and teachers as well

as for web services communicating with rich clients.

Another package contains the marking run time

system. Each package can be deployed on the same

physical server or run distributed over the network.

The database server location is also independent and

can be connected via network access.

Our productive system is conﬁgured in a way we

consider the default design: All packages except the

marking run time system are hosted on the same

server as the database. The marking run time system

is separated for security reasons. Several security

requirements mentioned in section 2 are implemented

by using elaborated network and ﬁrewall settings

instead of developing additional software solutions.

4.1 Core System

The core system itself serves as a broker for all

information used in the assessment process, the main

tasks being: (1) Management of authentication; (2)

import and management of according student data;

(3) management of exercise deﬁnitions, creation of

exams and assignment to examinees; (4) delivery

of exams to students; (5) collection of results;

(6) delivery of solutions to marking components

depending on the type of the tasks and abilities of

available components; (7) management of reviews

and manual corrections if necessary. User activities

are recorded during the whole process using logging

mechanisms of the application server to make any

interaction with the system traceable.

All persistent data is stored in a single relational

database to avoid different storage locations like

separate ﬁles in the ﬁle system. By using a relational

database we can rely on database transaction

mechanisms to prevent critical data loss during

examinations. Additionally, it is easy to backup all

system data from this single storage location. Each

submitted solution to an exercise is stored with time

stamp, unique identiﬁcation number of the submitting

account and network address of the computer used for

submitting the solution, making them traceable even

without using the serverlogs. The business logic itself

uses object-relational mappings to represent data and

thus facilitates a structured development approach

regarding the data model.

4.2 Web Access for Students

The web-based front end for students provides

two perspectives on the system. The default

perspective is the self-training mode that can be

accessed by students with a personal account.

CSEDU 2009 - International Conference on Computer Supported Education

Figure 1: Architectural overview with possible clients (left), core system (center) and marking components (right).

This perspective utilizes login data deﬁned inside

the assessment system or connects to external

authentication services. Once logged in, students

can work with available self-training exercises and

are for this purpose free to submit multiple solutions

without any time restrictions. The personal account

also allows a review of existing results of self-training

exercises as well as exams. Since this user interface

is not appropriate for exam situations, we provide

a second, simpliﬁed perspective. This exam mode

uses the TANs to identify students and allows to

attend only one assigned exam. Students can thus

neither review results nor choose to attend different

exercises. Nevertheless they are allowed to submit

multiple solutions.

The general handling of exercises is similar in

both perspectives. Multiple-choice questions as a

simple type of exercises can be handled directly inside

the web browser, so students can directly tick their

answers and submit them to the server. More complex

types of exercises are handled by offering downloads

for external fragments. Students have to know how

to handle them properly, e.g. opening ﬁles in an

appropriate editor. Similarly, fragments have to be

uploaded again to the server in order to submit a

solution. Since all expected fragments of the solutions

are known beforehand, the system guides the user

through the upload process by specifying all expected

resources. This ensures that a solution can only be

submitted if all expected fragments are present.

The result review allows students to examine their

submitted data as well as all output from the marking

run time and possibly manual teacher comments. All

ﬁles attached to a solution are offered as downloads.

Solutions cannot be changed in any way in this view.

The tracking and tracing of student activities

is very limited when using web access since web

browsers submit data only if requested by the user.

If it is desirable to log mouse movements, clicks

or cancelled submission attempts it is currently

necessary to use a rich client with this capabilities.

In the future, we will also explore interactive web

sites with JavaScript to fulﬁll such requirements, but

do not expect the related tracking and tracing to be

reliably recorded since web browsers allow end users

to disable such interaction.

4.3 Rich Client Access for Students

Our solution of a plug-in for the widely used ECLIPSE

IDE is an example how arbitrary client software

for certain purposes can be integrated in the overall

system with lean communication layers. Rich clients

can be used to offer extended features to the students

that assist them in solving their task, to enable the use

of more complex exercises at all and to implement

additional tracing capabilities for student activities.

The communication between core system and rich

clients is realized with SOAP web services. The

according server-side communication layer allows to

deploy customized adapter components for different

types of clients that can be independently enabled and

disabled.

The client plug-in itself uses the provided

ECLIPSE platform, especially the Java Development

Tools (JDT, 2008), to accomplish programming

exercises. A dialog guides the student through the

the external fragments and opening a Java project

as well as all resources the student is expected to

edit. Additionally, the user interface is simpliﬁed by

closing all elements except a navigational view and

a view for console output. To identify source code

ﬁles and the according compiled binaries our plug-in

relies on unambiguous information provided by the

platform and avoids asking the user for additional

information.

It is possible and planned for the future to develop

other plug-ins for ECLIPSE in order to cover other

types of exercises than Java programming. Virtually

any kind of exercise can be handled this way,

be it text input or even graphical tasks that need

specialised editors. For simple tasks like multiple-

A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR COMPUTER AIDED ASSESSMENTS AND

AUTOMATED MARKING

choice questions that do not make use of particular

ECLIPSE features we also plan to develop plug-ins

in order to enable tracking and tracing of student

activities in exam situations.

4.4 Web Access for Teachers

In contrast to the student user interfaces that are

as simple as possible, the administrative access for

teachers must provide comprehensive and ﬂexible

tools to create, edit and analyze assessment data.

User accounts can be created by importing existing

user data via network services, spreadsheets or text

ﬁles with comma-separated values. Exams can be

assembled by using a repository of single exercises.

Exercises have for this purpose been deﬁned

independently by speciﬁcation of a description,

internal and external fragments and an assignment

to a marking component. Questions and answers

in multiple-choice exercises can directly be edited

in the web-browser, while source code fragments

for programming exercises have to be provided as

uploaded ﬁles.

The TAN creation process which joins login

and exam data relies on standard techniques for

generating random strings and explicit checks for

duplicates to produce unique values. TANs can be

grouped afterwards to allow manual or time-based

activation. Reviewing results includes the opportunity

to view or download the submitted solution fragments

and to override automated results from the marking

components. Detailed statistics for every exercise can

be exported for further processing in external tools.

4.5 Marking Components

Type-speciﬁc solution input tools lead to an architec-

ture enabling the integrationof different, type-speciﬁc

marking tools that can be dynamically conﬁgured re-

garding activation for exams, order of activation and

testing criteria input. This modular architecture pre-

vents any predictions of the capabilities the marking

process might need. In addition to the security re-

quirement to persist submitted solutions immediately,

this is a reason to decouple the marking of solutions

from their submission. Hence the marking compo-

nents are executed in a run time system that can op-

erate independently from all other parts of the system

forming a master-worker architecture. In this way dif-

ferent marking components may be distributed over

multiple physical servers for security or performance

reasons and thus perform their work in parallel. Since

marking and result submission is subject to security

concerns, we set up strict network access rules us-

ing ﬁrewalls to ensure that access to the core server

is only possible from valid marking components.

The marking run time systems themselves are able

to execute multiple marking components on one phys-

ical server by providing only an environment and a

network connection to the core system which is dy-

namically conﬁgurable. The core system is contacted

regularly to access upcoming marking tasks which are

then passed to an appropriate component. The re-

sult of the marking is submitted to the core system

including all error messages and hints like the con-

sole output from black-box tests for programming ex-

ercises. This architecture is to some degree fault tol-

erant because the core system is not affected by the

marking process. Thus marking components or the

related servers may be disabled, disconnected or even

crash without any consequences for the exam situa-

tion. Hence it would also be possible to design mark-

ing components connecting to different core systems,

but running on one ﬁxed physical machine, for ex-

ample because of specialized hardware resources not

available on all servers.

When checking programming exercises by exe-

cuting code submitted by examinees, this code is

started in a sandbox environment and not inside the

marking run time system. This allows to apply secu-

rity constraints to the sandbox, for example to prevent

ﬁle and network access, and to catch easily any kind

of runtime exception without affecting the marking

component itself.

5 EVALUATION

The general requirements listed in section 2 have

already been discussed and justiﬁed in section 3 by

mapping them to the actual requirements of our actual

assessment system. This system integrated well

into an existing environment regarding server and

client infrastructure, student registration systems and

examination authorities. During the three years of use

the chosen architecture has proven to be very robust.

For example, extending the system for using multiple-

choice exercises via web access in the second year

was possible without any complications. Updates of

the graph transformation component used for static

code checks could be deployed easily.

In the case that crashes or unhandled inﬁnite

loops made marking components unusable in the ﬁrst,

experimental year of use, a switchoff or restart of

the related faulty processes or physical servers was

possible without any affect on the exam. Hence, the

architecture fulﬁlled our requirements of undisturbed

operations even with the use of potential unstable

CSEDU 2009 - International Conference on Computer Supported Education

marking components.

Deployment and network setup was as easy as

expected and no serious crashes were reported. Two

virtual machines that were copies of our servers

have successfully been ported to another network

environment and have been used in other real-

world applications for university courses without

any problems. Only slight effort had to be

made for reconﬁguration of ﬁrewall and network

settings. Hence the teachers could concentrate on

the development of tasks and marking setup for high

quality exams and self-training offers.

The general approach to offer an architecture

that can be used both for formative and summative

assessments could be evaluated as well. In a survey

among 62 students, 48 students named the system to

be “useful” or “largely useful” for self-training and

40 students stated the same for the exams. Hence

we can state that automated grading is not only useful

for teachers in summative assessments to reduce the

amount of time needed for corrections, but the same

system can also be useful for formative assessments

with feedback directly to the students.

6 CONCLUSIONS

In this paper we depicted and evaluated an

architecture for computer aided assessments and

automated marking of solutions in a server-based

environment. We discussed general requirements as

well as an actual assessment system. The presented

system is not only a domain-speciﬁc implementation

of the requirements limited to certain topics or

kinds of exercises, but an extendable and ﬂexible

environment that can be used in various cases. The

shown use case and the evaluation pointed out that

the system is powerful enough to handle the complex

scenario of automated checks for Java programming

exercises both for exams and self-training scenarios.

More marking components for entirely different

types of exercises will be developed in the future.

Additionally, the concepts for access via web

browsers and rich clients will be reviewed in order

to make them even more ﬂexible for different ways of

submitting solutions.

REFERENCES

Chalmers, D. and McAusland, W. D. M. (2002). Computer-

assisted assessment. Technical report, Glasgow

Caledonian University.

Eclipse. ECLIPSE website.

http://www.eclipse.org/

Glowalla, U., Schneider, S., Siegert, M., Gotthardt, M., and

Koolman, J. (2005). Einsatz wissensdiagnostischer

Module in elektronischen Prüfungen. In (Haake et al.,

2005), pages 283–294.

Haake, J. M., Lucke, U., and Tavangarian, D., editors

(2005). DeLFI 2005: 3. Deutsche e-Learning Fachta-

gung Informatik, der Gesellschaft für Informatik e.V.

(GI) 13.-16. September 2005 in Rostock, volume 66 of

LNI. GI.

Hendrich, N. and von der Heide, K. (2005). Automatische

Überprüfung von Übungsaufgaben. In (Haake et al.,

2005), pages 295–305.

Hoffmann, A., Quast, A., and Wismüller, R.(2008). Online-

Übungssystem für die Programmierausbildung zur

Einführung in die Informatik. In Seehusen, S.,

Lucke, U., and Fischer, S., editors, DeLFI 2008, 6. e-

Learning Fachtagung Informatik, volume 132 of LNI,

pages 173–184. GI.

ILIAS (2008). ILIAS website.

http://www.ilias.de/

JDT (2008). Eclipse java development tools.

http://www.

eclipse.org/jdt/

Krinke, J., Störzer, M., and Zeller, A. (2002). Web-basierte

Programmierpraktika mit Praktomat. In Workshop

Neue Medien in der Informatik-Lehre, pages 48–56,

Dortmund, Germany.

Pinkwart, N., Aleven, V., Ashley, K. D., and Lynch,

C. (2006). Schwachstellenermittlung und Rückmel-

dungsprinzipen in einem intelligenten Tutorensystem

für juristische Argumentation. In Mühlhäuser, M.,

Rößling, G., and Steinmetz, R., editors, DeLFI 2006,

4. e-Learning Fachtagung Informatik, volume 87 of

LNI, pages 75–86. GI.

Rösner, D., Amelung, M., and Piotrowski, M. (2005).

LlsChecker, ein CAA-System für die Lehre im

Bereich Programmiersprachen. In (Haake et al.,

2005), pages 307–318.

Striewe, M., Goedicke, M., and Balz, M. (2008). Computer

Aided Assessments and Programming Exercises with

JACK. Technical Report 28, ICB, University of

Duisburg-Essen.

Tscherter, V. (2004). Exorciser: Automatic Generation

and Interactive Grading of Structured Excercises in

the Theory of Computation. PhD thesis, Swiss

Federal Institute of Technology Zurich, Switzerland.

Dissertation Nr. 15654.

A FLEXIBLE AND MODULAR SOFTWARE ARCHITECTURE FOR COMPUTER AIDED ASSESSMENTS AND

AUTOMATED MARKING
