SEQUENTIAL SYMBOL SYNCHRONIZERS BASED ON CLOCK

SAMPLING

Antonio D. Reis

1,2

, Jose F. Rocha

, Atilio S. Gameiro

and Jose P. Carvalho

Dep. de Electrónica e Telecomunicações / Instituto de Telecomunicações, Universidade de Aveiro, 3810 Aveiro, Portugal

Dep. de Fisica / U. D. Remota, Universidade da Beira Interior Covilhã, 6200 Covilhã, Portugal

Keywords: Synchronism, Telecommunications, Digital Communications.

Abstract: This work presents a sequential symbol synchronizer that was discovered by us, and is based on the clock

sampling by the input data transitions. This synchronizer has two types, namely the discrete and the

continuous. Each type has two versions which are the manual and the automatic. This synchronizer has an

own big advantage, because its manual version adjust hasn’t critical phase. The objective is to study the

synchronizers and to evaluate their output jitter UIRMS (Unit Interval Root Mean Square) versus input

SNR (Signal to Noise Ratio).

1 INTRODUCTION

This work studies the sequential symbol

synchronizer, based on clock sampling, by the input

data transitions.

The input data transitions sample the relative

phase of the clock negative transition (Imbeaux,

1983), (Rosenkranz, 1982), (Witte, 1983), (Hogge,

1985), (Simon and Lindsey, 1977).

If this transition clock is delayed then is applied

a positive pulse that advances it. However, if the

clock is advanced then is applied a negative pulse

that delays it (Carruthers, Falconer, Sandler and

Strawczynski, 1990), (Huber and Liu, 1992),

(D’Amico, D’Andrea and Regianni, 2001), (Dobkin,

Ginosar and Sotiriou, 2004), (Noels, Steendam and

Moeneclaey, 2006).

The clock positive transition samples the data at

the symbols center (maximum opening eye

diagram). We present two types/ variants of

synchronizers each one with two versions.

Fig.1 shows the functioning principle of the

referred synchronizers.

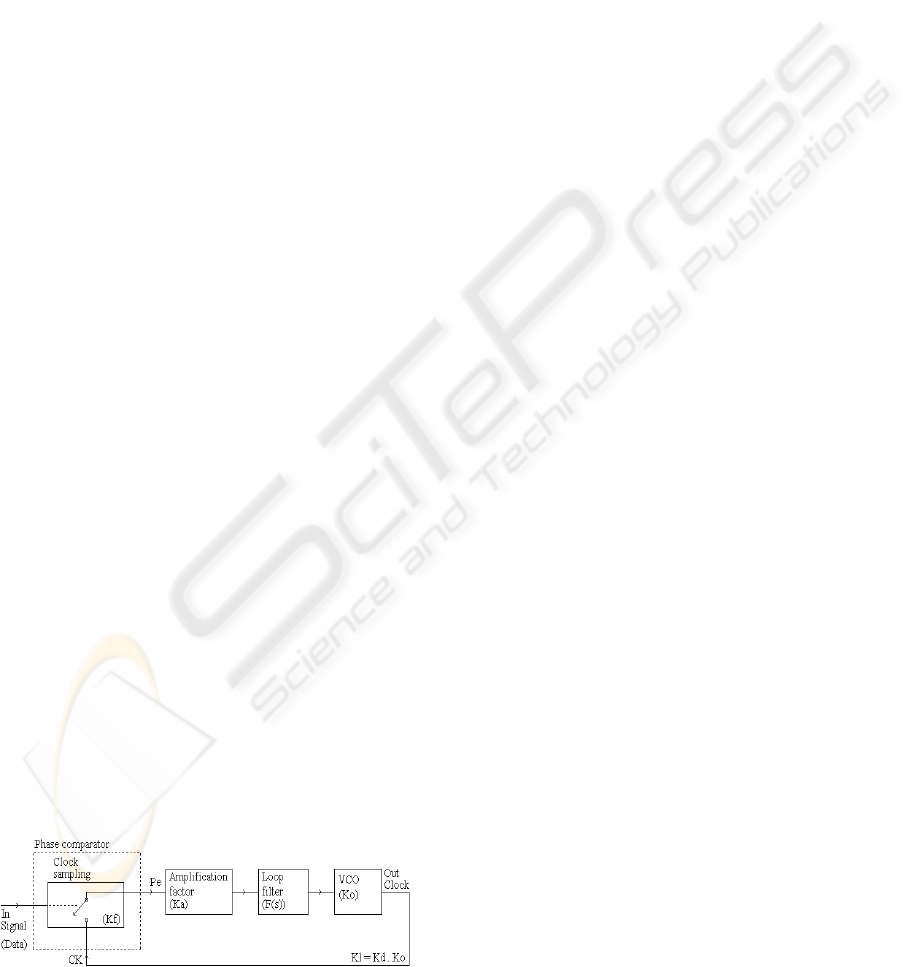

Figure 1: Aspect of the synchronizer based on clock

sampling.

Kf is the phase comparator gain, F(s) is the loop

filter, Ko is the VCO gain and Ka is the loop

amplification that controls the root locus and the

loop desired characteristics.

Following, we present the discrete synchronizer

with its versions manual and automatic.

Next, we present the continuous synchronizer

with its versions manual and automatic.

After, we present the design and tests.

Then, we present the results.

Finally, we present the conclusions.

2 DISCRETE SYNCHRONIZER

TYPES

The discrete type has a pulse error Pe that goes

discreetly to the equilibrium point, without to

disappear. This discrete type has the following

versions manual and automatic (Reis, Rocha,

Gameiro and Pacheco, 2008).

2.1 Discrete Type and Manual Version

The manual version is based on a delay line that

needs a previous human adjustment. This delay

determines the charge pulse area (Fig.2).

110

D. Reis A., F. Rocha J., S. Gameiro A. and P. Carvalho J. (2009).

SEQUENTIAL SYMBOL SYNCHRONIZERS BASED ON CLOCK SAMPLING.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 110-114

DOI: 10.5220/0002236801100114

 SciTePress

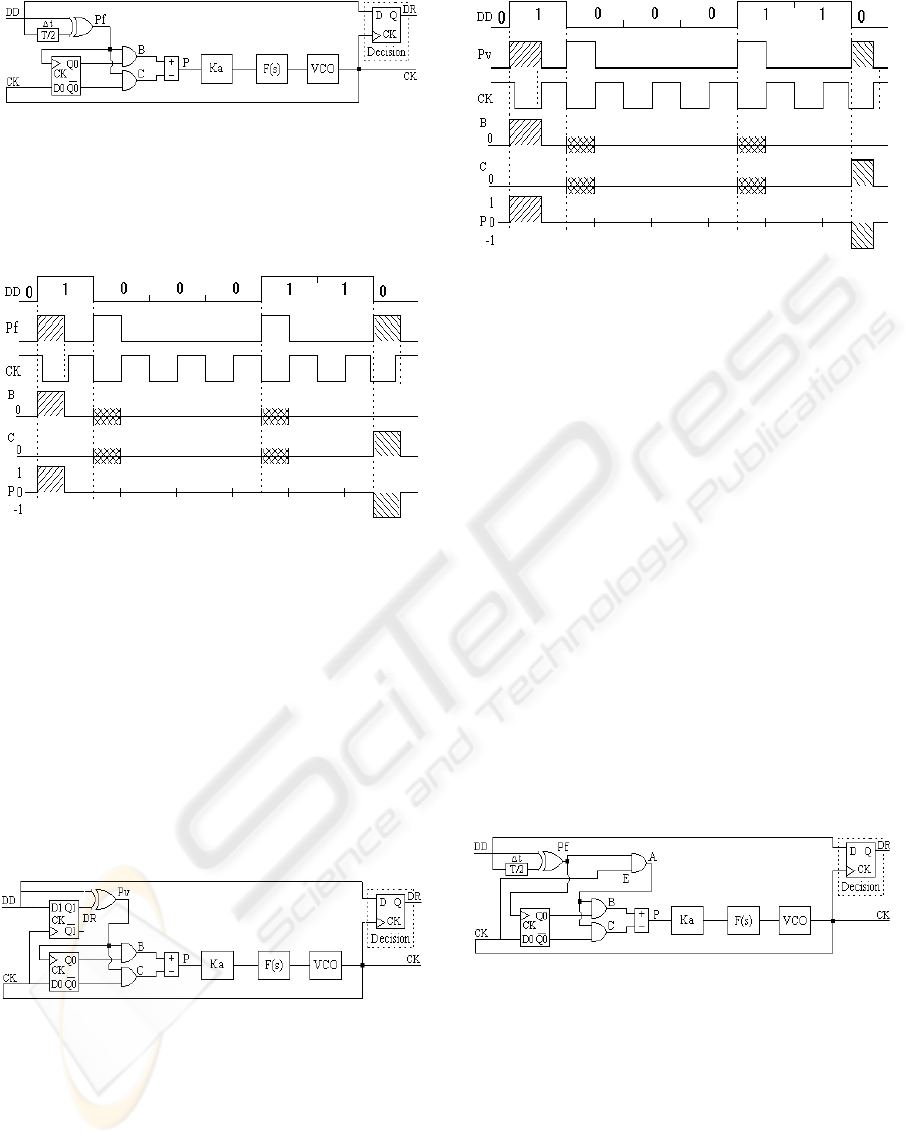

Figure 2: Synchronizer discrete and manual (d-m).

The exor with delay T/2 produces a fixed pulse

Pf that determines the charge rhythm .

Fig.3 shows the waveforms of the synchronizer

discrete and manual.

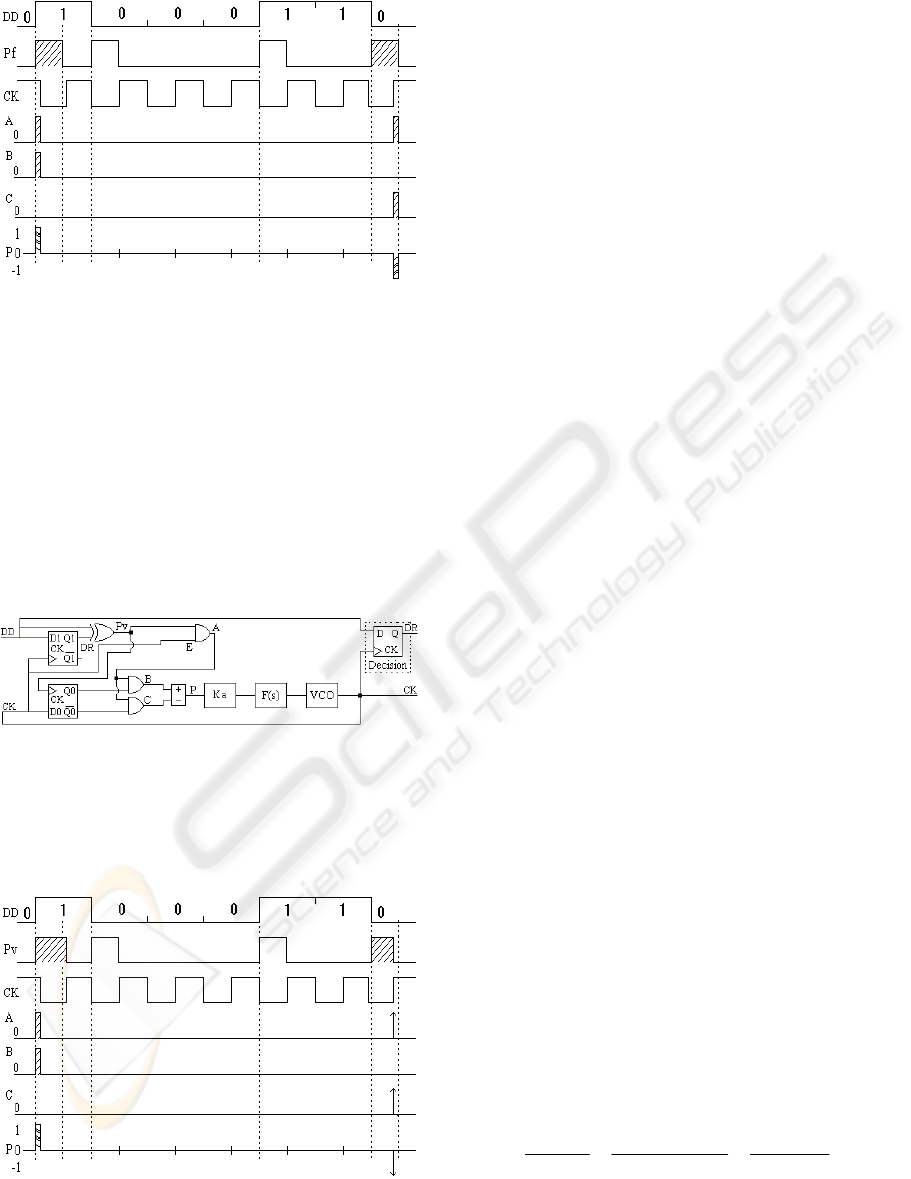

Figure 3: Waveforms of the synchronizer discrete and

manual.

The error pulse Pe maintains its area in

synchronization and remains constant at the

equilibrium point (Reis, Rocha, Gameiro and

Pacheco, 2008).

2.2 Discrete Type and Automatic

Version

The automatic version is based on a flip flop that

automatically provides the delay. This delay

determines the charge pulse area (Fig.4).

Figure 4: Synchronizer discrete and automatic (d-a).

The flip flop 1 with produces a variable pulse Pv

that determines the charge rhythm.

Fig.5 shows the waveforms of the synchronizer

discrete and automatic.

Figure 5: Waveforms of the synchronizer discrete and

automatic.

The error pulse Pe varies its area in

synchronization, but remains more or less constant

at the equilibrium point.

3 CONTINUOUS

SYNCHRONIZER TYPES

The continuous type has a pulse error that goes

continuously to the equilibrium point and disappear.

This continuous type has the following versions

manual and automatic (Reis, Rocha, Gameiro and

Pacheco, 2008).

3.1 Continuous Type and Manual

Version

The manual version is based on a delay line that

needs a previous human adjustment. This delay

determines the charge pulse area (Fig.6).

Figure 6: Synchronizer continuous and manual (c-m).

The exors with delay T/2 and AND A produces a

variable pulse A that determines the charge rhythm.

Fig.7 shows the waveforms of the synchronizer

continuous and manual.

SEQUENTIAL SYMBOL SYNCHRONIZERS BASED ON CLOCK SAMPLING

111

Figure 7: Waveforms of the synchronizer continuous and

manual.

The error pulse Pe diminishes its area in

synchronization and disappear at the equilibrium

point.

3.2 Continuous Type and Automatic

Version

The automatic version is based on a flip flop that

automatically provides the delay. This delay

determines the charge pulse area (Fig.8).

Figura 8: Synchronizer continuous and automatic (c-a).

The exors with delay T/2 and AND A produces a

variable pulse A that determines the charge rhythm.

Fig.9 shows the waveforms of the synchronizer

continuous and automatic.

Figure 9: Waveforms of the synchronizer continuous and

automatic.

The error pulse Pe diminishes its area in

synchronization and disappear at the equilibrium

point.

4 DESIGN, TESTS AND RESULTS

We will present the design, tests and results of the

referred synchronizers (Reis, Rocha, Gameiro and

Pacheco, 2001).

4.1 Design

To get guaranteed results, it is necessary to

dimension all the synchronizers with equal

conditions. Then it is necessary to design all the

loops with identical linearized transfer functions.

The general loop gain is Kl=Kd.Ko=Ka.Kf.Ko

where Kf is the phase comparator gain, Ko is the

VCO gain and Ka is the control amplification factor

that permits the desired characteristics.

For analysis facilities, we use a normalized

transmission rate tx=1baud, what implies also

normalized values for the others dependent

parameters. So, the normalized clock frequency is

fCK=1Hz.

We choose a normalized external noise

bandwidth Bn = 5Hz and a normalized loop noise

bandwidth Bl = 0.02Hz. Later, we can disnormalize

these values to the appropriated transmission rate tx.

Now, we will apply a signal with noise ratio

SNR given by the signal amplitude Aef, noise

spectral density No and external noise bandwidth

Bn, so the SNR = A

/(No.Bn). But, No can be

related with the noise variance σn and inverse

sampling Δτ=1/Samp, then No=2σn

.Δτ, so

SNR=A

/(2σn

.Δτ.Bn) = 0.5

/(2σn

*10

-3

*5)=

25/σn

After, we observe the output jitter UI as function

of the input signal with noise SNR. The dimension

of the loops is:

- 1

order loop:

The loop filter F(s)=1 with cutoff frequency

0.5Hz (Bp=0.5 Hz is 25 times bigger than

Bl=0.02Hz) eliminates only the high frequency, but

maintain the loop characteristics.

The transfer function is

H(s)=

KdKos

KdKo

sKdKoFs

sKdKoF

+ )(

)(

G(s)1

G(s)

(1)

the loop noise bandwidth is

WINSYS 2009 - International Conference on Wireless Information Networks and Systems

112

Bl =

KfKo

KdKo

= 0.02Hz (2)

Then, for the analog synchronizers, the loop

bandwidth is

Bl=0.02=

(Ka.Kf.Ko)/4 with (Km=1, A=1/2, B=1/2;

Ko=2π)

(Ka.Km.A.B.Ko)/4 = 0.02 -> Ka=0.08*2/

(3)

For the hybrid synchronizers, the loop bandwidth is

Bl=0.02=

(Ka.Kf.Ko)/4 with (Km=1, A=1/2, B=0.45;

Ko=2π)

(Ka.Km.A.B.Ko)/4 = 0.02 -> Ka=0.08*2.2/

(4)

For the combinational synchronizers, the loop

bandwidth is

Bl=0.02=(Ka.Kf.Ko)/4 with (Kf=1/π; Ko=2π)

(Ka*1/

)/4 = 0.02 -> Ka=0.04 (5)

For the sequential synchronizers, the loop

bandwidth is

Bl=0.02=(Ka.Kf.Ko)/4 with (Kf=1/2π; Ko=2π)

(Ka*1/2

)/4 =0.02 -> Ka=0.08 (6)

The jitter depends on the RMS signal Aef, on the

power spectral density No and on the loop noise

bandwidth Bl.

For analog PLL the jitter is:

σφ

=Bl.No/Aef

=Bl.2.σn

.Δτ=0.02*10

*2σn

/0.5

=16*10

-5

.σn

For the others PLLs the jitter formula is more

complicated.

- 2

order loop:

The second order loop is not shown here, but the

results are identical to the ones obtained above for

the first order loop.

4.2 Tests

The following figure (Fig.10) shows the setup that

was used to test the various synchronizers.

Figure 10: Block diagram of the test setup.

The receiver recovered clock with jitter is

compared with the emitter original clock without

jitter, the difference is the jitter of the received

clock.

4.3 Jitter Measurer (Meter)

The jitter measurer (Meter) consists of a RS flip

flop, which detects the random variable phase of the

recovered clock (CKR), relatively to the fixed phase

of the emitter clock (CKE). This relative random

phase variation is the recovered clock jitter (Fig.11).

Figure 11: The jitter measurer (Meter).

The other blocks convert this random phase

variation into a random amplitude variation, which

is the jitter histogram.

Then, the jitter histogram is sampled and

processed by an appropriate program, providing the

RMS jitter and the peak to peak jitter.

4.4 Results

We will present the results (output jitter UIRMS

versus input SNR) for the four synchronizers.

Fig.12 shows the jitter-SNR curves of the four

synchronizers: discrete and manual (d-m), discrete

and automatic (d-a), continuous and manual (c-m)

and continuous and automatic (c-a).

Figure 12: Jitter-SNR curves of the four synchronizers(d-

m,d-a,c-m,c-a).

We verify, that generally the output jitter

UIRMS diminishes gradually with the input SNR

increasing.

For high SNR, the four curves tend to be equals,

but with some disadvantage of the discrete

automatic (d-a). However, for low SNR the

continuous manual (c-m) is the best, followed of the

discrete manual (d-m). After is the discrete

automatic (d-a) and at last the continuous automatic

(c-a).

SEQUENTIAL SYMBOL SYNCHRONIZERS BASED ON CLOCK SAMPLING

113

5 CONCLUSIONS

We studied four synchronizers, namely the discrete

manual (d-m), the discrete automatic (d-a), the

continuous manual (c-m) and the continuous

automatic (c-a). Then, we tested their output jitter

UIRMS versus input SNR.

We observed that, generally, the jitter UIRMS

diminishes gradually with the SNR increasing.

We verified, that for high SNR, the jitter of the

four synchronizers is similar, but with a slight

disadvantage of the discrete automatic (d-a). This is

comprehensible since the error pulse Pe is variable

and don’t disappear at the equilibrium point.

However, for low SNR, the continuous manual

(c-m) is the best, this is comprehensible since the

error pulse Pe diminishes gradually and disappear at

the equilibrium point, also the additional AND is a

closed door to the noise. The discrete automatic (d-

a) and the discrete automatic (d-a) have an

intermedium performance since their error pulse u

don’t disappear at the equilibrium point. The

continuous automatic (c-a) has the worst jitter, since

its error pulse Pe has non symmetric positive and

negative pulse contributions that aggravates the

jitter.

ACKNOWLEDGEMENTS

The authors are grateful to the program FCT

(Foundation for sCience and Technology) /

POCI2010.

REFERENCES

Imbeaux, J. C., 1983. Performance of the delay-line

multiplier circuit for clock and carrier

synchronization. IEEE Journal on Selected Areas in

Communications p.82 Jan.

Rosenkranz, W., 1982. Phase Locked Loops with limiter

phase detectors in the presence of noise. IEEE Trans.

on Communications com-30 Nº10 pp.2297-2304. Oct.

Witte, H. H., 1983. A Simple Clock Extraction Circuit

Using a Self Sustaining Monostable Multivibrator

Output Signal. Electronics Letters, Vol.19, Is.21,

pp.897-898, Oct.

Hogge, C. R., 1985. A Self Correcting Clock Recovery

Circuit. IEEE Tran. Electron Devices p.2704 Dec.

Reis, A. D., Rocha, J. F., Gameiro, A. S., Carvalho, J. P.,

2001. A New Technique to Measure the Jitter. Proc.

III Conf. on Telecommunications pp.64-67 FFoz-PT

23-24 Apr.

Simon, M. K., Lindsey, W. C., 1977. Tracking

Performance of Symbol Synchronizers for Manchester

Coded Data. IEEE Transactions on Communications

Vol. com-2.5 Nº4, pp.393-408, April.

Carruthers, J., Falconer, D., Sandler, H., Strawczynski, L.,

1990. Bit Synchronization in the Presence of Co-

Channel Interference. Proc. Conf. on Electrical and

Computer Engineering pp.4.1.1-4.1.7, Ottawa-CA 3-6

Sep.

Huber, J., Liu, W., 1992. Data-Aided Synchronization of

Coherent CPM-Receivers. IEEE Transactions on

Communications Vol.40 Nº1, pp.178-189, Jan.

D’Amico, A., D’Andrea, A., Reggianni, 2001. Efficient

Non-Data-Aided Carrier and Clock Recovery for

Satellite DVB at Very Low SNR. IEEE Jou. on

Sattelite Areas in Comm. Vol.19 Nº12 pp.2320-2330,

Dec.

Dobkin, R., Ginosar, R., Sotiriou, C. P., 2004. Data

Synchronization Issues in GALS SoCs. Proc. 10th

International Symposium on Asynchronous Circuits

and Systems, pp.CD-Ed., Crete-Greece 19-23 Apr.

Noels, N., Steendam, H., Moeneclaey, M., 2006.

Effectiveness Study of Code-Aided and Non-Code-

Aided ML-Based Feedback Phase Synchronizers.

Proc. IEEE Int Conf. on Comm.(ICC’06) pp.2946-

2951, Ist.-TK, 11-15 Jun.

Reis, A. D., Rocha, J. F., Gameiro, A. S., Carvalho, J. P.,

2008. The Electromagnetic Wave and the Principle of

the Telecommunications. Proc. VI Sym. on Enabling

Optical Network and Sen. (SEONs 2008) p.87-88, Av-

PT 29-29 Jun.

WINSYS 2009 - International Conference on Wireless Information Networks and Systems

114
