3D POSE ESTIMATION FROM SILHOUETTES IN

CYCLIC ACTIVITIES ENCODED BY A DENSE

GAUSSIANS MIXTURE MODEL

S. Amin Dadgar, Jean-Christophe Nebel and Dimitrios Makris

Digital Imaging Research Centre, Kingston University, London, U.K.

Keywords: 3D Pose Estimation, Principle Component Analysis, Gaussian Mixture Model, Annealed Particle Filter.

Abstract: This paper presents a system for 3D Pose estimation of cyclic activities (e.g. walking, jogging). Principal

Component Analysis is used to compress the high dimensional space of poses. Human activities are

encoded by Hidden Markov Models, overlaid on Gaussian Mixture Models. A generative approach based on

the Annealed Particle Filter is used to estimate poses from silhouettes derived by a monocular camera.

Experimental results indicate the value of the proposed Dense Gaussian Mixture Model when initialised by

a gait cycle.

1 INTRODUCTION

Visual analysis of human motion is one of the most

active research fieldsin computer vision, because of

its promising applications in many areas such as

visual surveillance, perceptual user interface,

content-based image storage and retrieval, video

conferencing, athletic performance analysis, virtual

reality. Human body pose estimation,which is the

process of estimating the configuration of the human

body parts over time, is a prerequisite to human

motion analysis. While specialised Motion Capture

(MoCap) systems can produce satisfactory results,

their applicability is limited, because of their

intrusive character (i.e. requirement to attach

sensors/markers on the human body). Therefore,

non-intrusive visual-based systems seem to be the

attractive alternative that can be easily employed in

a variety of sites and applications.

In recent years, there has been a clear shift of

research from 2D image-plane (Kou, 2007) to 3D

articulated motion analysis (Balan, 2005), (Roth,

2004), (Sidenbladh, 2000) to overcome limitations

of specific angle-views and ambiguous depth

information in 2D representations. Since 3D pose

recovery from a 2D view is an ill-pose problem,

researchers attempt to use multiple views (Darby),

(Lee 2007), (Bhatia, 2004) and/or learnt models of

specific activities (Deutscher, 2005), (Hogg, 1983),

(Howe, 2004), (Howe, 2005), (Lakany, 1999) to

constraint poseestimation.

Assuming a specific cyclic activity such as

walking and joggingthis paper presents a system

which is capable of estimating a sequence of 3D

poses from a 2D image sequence (2D video)

captured by a monocular camera.

Sequences of 3D posesderived by a Motion

Capture system are used to train activity models.

Principal Component Analysis (PCA) is used to

reduce the dimensionality of the pose space and a

Hidden Markov Model (HMM) overlaid on a

Gaussian Mixture Model (GMM) encodes the

dynamics of the activity. In this work, we propose

the usage of a Dense GMM initialised by a gait

cycle as the base of the HMM.

Inferring the image data is constrained by the

learnt activity model. Specifically, an Annealed

Particle Filter (APF) (Balan, 2005), is used to

generate 3D pose hypotheses. Then, hypotheses are

assessed by comparing their 2D projection with the

input image silhouettes in a Bayesian Framework.

2 METHODOLOGY

Here we definethe estimation of a 3D Human Body

pose as the recovery of the configuration of a set of

body parts. Given a sequence of image observations

(i.e. sequence of 2D contour) 



,   1 … ,

492

Amin Dadgar S., Nebel J. and Makris D.

3D POSE ESTIMATION FROM SILHOUETTES IN CYCLIC ACTIVITIES ENCODED BY A DENSE GAUSSIANS MIXTURE MODEL.

DOI: 10.5220/0002896004920495

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISIGRAPP 2010), page

ISBN: 978-989-674-028-3

the proposed system aims at estimating the sequence

of state vectors









, which represent the

configuration of the 3D poses of the human body

within an specific cyclic activity (e.g. walking).

2.1 Learning

Training data is acquired from a MoCap device for a

specific cyclic activity. 3D Poses are represented by

the joint angles of a standard human model of 10

body parts. The space of unconstrained poses is

inevitably highly dimensional (32D). Sincesearching

in this space is not efficient, we reduce the

dimensionality of the solution space to 8D using

PCA.

The 8D samples of the training data are then

used to estimate a GMM that constrains the solution

space. In particular, two different solutions are

investigated:

a)A mixture of 4 Gaussians (equal to the number

of gait phases in walking/jogging) that is estimated

by Expectation Maximisation (EM).

b)A Dense GMM initialised by a gait cycle. This

implies that the number of Gaussian clusters is equal

to the number of pose samples in the initialising gait

cycle.

Finally, the dynamics of the activity are

modelled by a HMM overlaid on the GMM.

2.2 Testing

Poses are inferred from image data using a

generative approach. Specifically an APF is used to

generate particles in the 8D PCA space constrained

by the HMM. A reverse PCA transformation of

these particles results in 3D pose hypotheses.

3D pose hypotheses are projected on the image

plane using the camera calibration model, which is

assumed to be known. The projections of the 3D

hypotheses are then assessed using the following

formula:































,







·







,





(1)

where









is the posterior probability of a Gaussian

cluster according to the HMM formulation,









,







is the Chamfer distance between the

input image silhouette 



and the 2D projection of a

pose hypothesis 





, and 







,





is the

Mahalanobis distance between the pose hypothesis





and the Gaussian cluster.

3 EXPERIMENTS

3.1 Datasets

Two sequences from the HumanEva dataset (Sigal,

2007) were used for testing and training our

methodology:

1. Sequence of “walking in circle”. The data

for the subject 2 was used for training and testing

(S2W). This sequence consists of about two circular

paths where one circle (i.e. frames from 431 to 870)

has been chosen to train the walking activity and the

remaining frames (i.e. frames from 1 to 430) were

used for testing.

2. Sequence of “jogging in circle”. The data

for the subject 2 was used for training and testing

(S2J) too. This sequence consists of 5 circular

pathswhere three circles (i.e. frames from 301 to

790) were used for training, while the two other

circles (i.e. frames from 1 to 300) were used for

testing.

3.2 Results

A PCA transformation is applied to each of the two

training datasets (i.e. walking and jogging) to reduce

their dimensionality from 32D to 8D and at the same

time preserve more than 90% of the data variation

(Fig. 1)

Modelling of activities was based on either a

mixture of 4 Gaussians initialised according to the 4

phases of a gait cycle (Fig. 2) or a Dense-GMM

initialised by the samples of a gait cycle (Fig. 3).

Walking model consists of 84 clusters while jogging

consists of 48 clusters.

Pose hypotheses were generated by either an

exhaustive search constrained by either the GMM

model of the activity or APF. Hypotheses were

assessed against the image data, i.e. human

silhouettes segmented by a foreground/background

separation algorithm. The system solution for each

frame is selected according to the Maximum

Likelihood Estimation, where the likelihood is given

by Eq.1.

Table 1 summarises the results of our

experiments. They reveal that Dense-GMM based

modelling is more accurate than the one based on a

small number of Gaussian Clusters. Moreover,

Dense-GMM is more computationally efficient since

it requires about only 40% of the time that is

required by the mixture of 4 Gaussians.

Fig 4 shows in the PCA space the pose

estimation results against ground truth when

hypotheses are generated by exhaustive search

3D POSE ESTIMATION FROM SILHOUETTES IN CYCLIC ACTIVITIES ENCODED BY A DENSE GAUSSIANS

MIXTURE MODEL

493

constrained by the GMM model. Since the centres of

Gaussians have high likelihood, estimated poses

(blue) are concentrated on the Medial Axis of the

search space.

Higher accuracy is achieved by APF (Fig. 5). In

our implementation, we used 3 layers and 40

particles per layer. Higher number of particles may

improve the accuracy marginally but would increase

significantly the computational time. Annealed

Particle filtering produced the best results for both

walking and jogging activities withmean errors of

101 mm and 162 mm respectively.

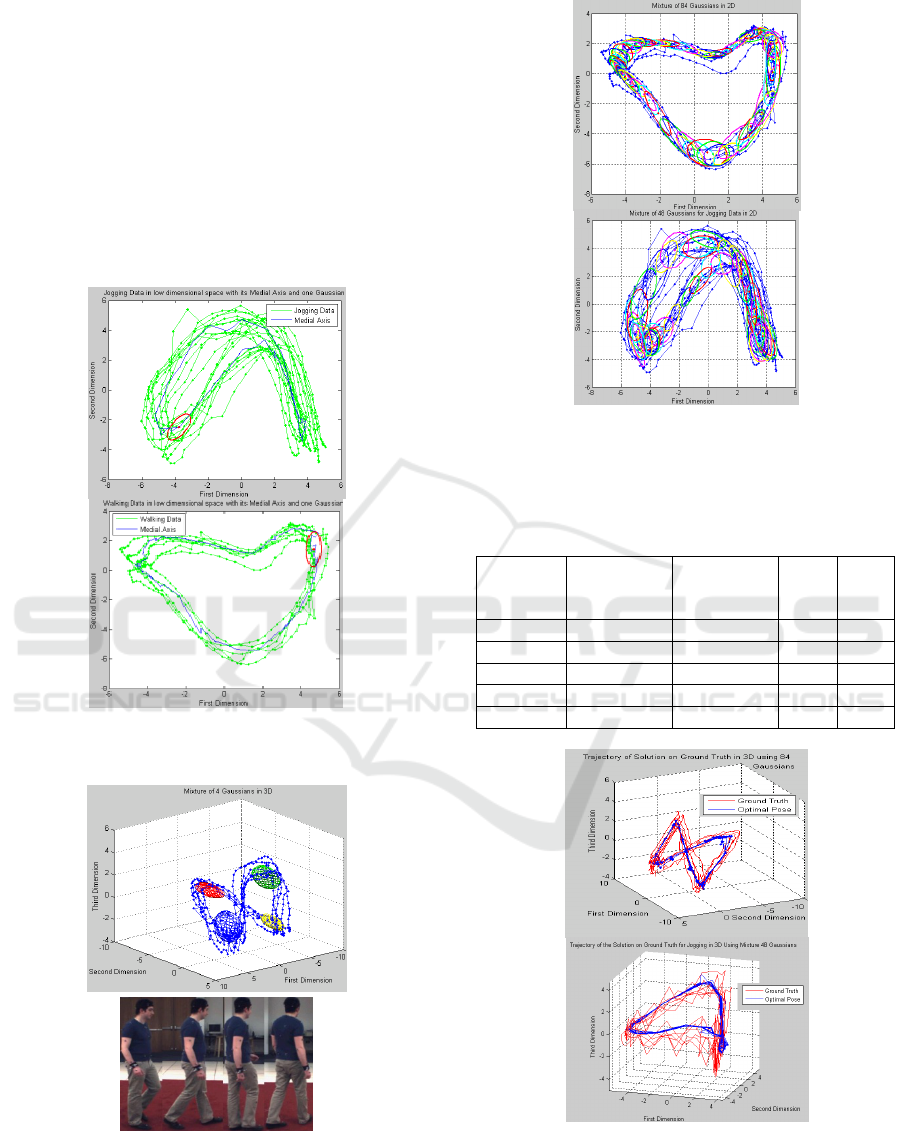

Figure 1: First three dimensions of the PCA space for the

walking (left) and jogging (right) datasets.

Figure 2: Modelling of walking poses (blue points) based

on a mixture of 4 Gaussians (coloured ellipsoids)

initialised by the 4 different phases of the walking cycle,

i.e. left leg passing right leg, left leg in front, right leg

passing left leg and right leg in front.

Figure 3: Modelling of walking (left) and jogging (right)

poses using Dense GMMs initialised by samples of a gait

cycle. Mixtures of 84 and 48 Gaussians areshown for

walking and jogging data respectively.

Table 1: Summary of pose estimation results.

Activity Modelling Search

Mean

Error

Std

Error

Walking

-GMM Exhaustive 211 58

Walking

enseGMM Exhaustive 129 50

Walking

enseGMM APF 101 17

Jogging

enseGMM Exhaustive 168 40

Jogging

enseGMM APF 163 44

Figure 4: Estimated poses (blue) against ground truth(red)

represented in the compressed PCA space for walking

(left) and jogging (right) activity. Modelling was based on

Dense GMM and hypotheses were generated by

exhaustive search.

VISAPP 2010 - International Conference on Computer Vision Theory and Applications

494

Figure 5: Estimated poses (blue) against ground truth(red),

represented in the compressed PCA space for walking

(left) and jogging (right) activity. Modelling was based on

Dense GMM and hypotheses were generated by APF.

4 CONCLUSIONS

We presented a pose estimation method for

monocular image sequences, where the human

object is assumed to perform a known cyclic activity

(e.g. walking, jogging). We demonstrated the value

of using a Dense GMM initialised by a gait cycle of

the activity as the base of a HMM-like dynamic

model. Such modelling improves the accuracy and

decreases the computational time of pose

estimationcompared to a mixture of few Gaussians.

Hypotheses were generated by APF and poses

were estimated according to the Maximum

Likelihood Estimation. APF improves accuracy

when compared to an exhaustive search of the PCA

space constrained by the GMM model.

Future work will focus on pose estimation in

complex scenarios consisting of more than one

activity.

REFERENCES

Balan, A. O., Sigal, L. and Black, M. J.,2005. A

quantitative evaluation of video-based 3D person

tracking, IEEE workshop on VPSETS, pp. 349-356.

Bhatia, S., Sigal, L., Isard, M. and Black, M. J., 2004. 3D

Human Limb Detection using Space Carving and

Multi-view Eigen Models, ANM workshop, pp. 17.

Darby, J., Li, B. and Costen, N. 2008, Human Activity

Tracking from Moving Camera Stereo Data, BMVC.

Deutscher, J., Reid, I., 2005. Articulated body motion

capture by stochastic search, International Journal of

Computer Vision, 61, 2, 185-205.

Hogg, D.,1983. Model-based vision: a program to see a

walking person, Image and Vision Computing, 1, 1, 5-

20.

Howe, N. R., 2005. Silhouette lookup for automatic pose

tracking, IEEE workshop on Articulated and Nonrigid

Motion, pp. 3

Howe, NR. Flow Lookup and Biological Motion

Perception, ICIP, 3, 1168-1171.

Kuo, P., Nebel, J-C., Makris, D., 2007. Camera Auto-

Calibration from Articulated Motion, AVSS.

Lakany, H. M., G.M. Haycs, M. Hazlewood, S.J. Hillman,

1999. Human walking: tracking and analysis,

Proceedings of the IEE Colloquium on Motion

Analysis and Tracking, pp. 5/1–5/14.

Lee, C. S., Elgammal, A., 2007, Modelling view and

posture manifolds for tracking, ICCV, 1-8.

Roth, S., Sigal, L. and Black, M. Gibbs, 2004. Likelihoods

for Bayesian tracking, CVPR, 1, 886-893.

Sidenbladh, H., Black, M. and Fleet, D., 2000. Stochastic

tracking of 3D human figures using 2D image motion,

Lecture Notes in Computer Vision, 1843, 702-718.

Sigal, L., Black, M. J., 2006.HumanEva: Synchronized

Video and Motion Capture Dataset for Evaluation of

Articulated Human Motion, Technical Report CS-06-

08.

(a) (b) (c) (d)

(e)

Figure 6: Indicative results for walking (first and second

row) and jogging (third and fourth row) sequences using

Dense GMM and APF. (a) input images, (b) silhouette

extracted by foreground/background separation, (c)

boundary of silhouette, (d) estimated pose, (e) estimated

pose overlaid on image silhouette.

3D POSE ESTIMATION FROM SILHOUETTES IN CYCLIC ACTIVITIES ENCODED BY A DENSE GAUSSIANS

MIXTURE MODEL

495
