DEFINING AN UNIFIED META MODELING ARCHITECTURE

FOR DEPLOYMENT OF DISTRIBUTED COMPONENTS-BASED

SOFTWARE APPLICATIONS

Mariam Dibo and Noureddine Belkhatir

Laboratoire d’Informatique de Grenoble, 681, Rue de la Passerelle, BP 72, 38402 St. Martin d'Hères, France

Keywords: Deployment, Components based Software Engineering, J2EE, CCM, NET, D&C, MDA, Deployment

Process.

Abstract: Deployment is a complex process gathering activities to make applications operational after development,

Today, the components approach and the distribution make deployment a very complex process. Many

deployment tools exist but they are often built in an ad hoc way; i.e. specific to a technology or to an

architecture and, covering partially the deployment life cycle. Hence there is an increased need for new

techniques and tools to manage these systems. In this work, we focus on the deployment process describing

a framework called UDeploy. UDeploy (Generic Deployment framework) is a framework based on a

generic engine which permits firstly the carrying out of the planning process from meta-information related

to the application and the infrastructure; secondly, the generation of specific deployment descriptors related

to the application and the environment (i.e. the machines connected to a network where a software system is

deployed); and finally the execution of a plan produced by means of deployment strategies. The work

presented in this paper is focused on the presentation of a generic deployment architecture driven by meta-

models and their transformations. In this respect, UDeploy is independent from any specific technology and,

also from any specific platform characteristic.

1 INTRODUCTION

An important issue of component-based software

(Szyperski et al., 2002) engineering is the

deployment of components in decentralized

locations, in an efficient, safe and consistent manner.

The deployment life cycle encompasses all the post-

development activities of an application which

makes the software useful. It is an important step in

the software life cycle, which for a long time has

been reduced to installation.

Today, the components approach and the

distribution make deployment a very complex

process. Many deployment tools exist but they are

often built in an ad hoc way; i.e. specific to a

technology or to an architecture and, covering

partially the deployment life cycle (using generally

the installation scripts).

For all these reasons, we think that it is necessary

to have a generic deployment framework which has

to distribute correctly application based-components,

however their implementation might be. Thus the

challenge is to develop a generic framework

encompassing a specific approach and supporting

the whole deployment process. This paper presents

this approach based on models and model

transformations. It is organized as follow: part 2

presents a classical overview; part 3 reviews related

works; our conceptual framework is described in

part 4; finally in part 5, we present the perspective

and conclusion of this work.

2 DEPLOYMENT SYSTEMS:

AN OVERVIEW

The three main notions occurring in the constitution

of a deployment system are the application, the

domain and the deployment descriptor.

– The domain notion covers all machines connected

to a network where a software system is deployed.

This infrastructure is seen as a set of distributed and

interconnected sites. Each site is associated with the

meta-information of the site characteristics descrip-

316

Dibo M. and Belkhatir N. (2010).

DEFINING AN UNIFIED META MODELING ARCHITECTURE FOR DEPLOYMENT OF DISTRIBUTED COMPONENTS-BASED SOFTWARE

APPLICATIONS.

In Proceedings of the 12th International Conference on Enterprise Information Systems - Databases and Information Systems Integration, pages

316-321

DOI: 10.5220/0002981403160321

 SciTePress

tions.

– The application notion covers all the application

components and the meta-information for their

descriptions.

– Each application is accompanied by a deployment

descriptor, specific to its implementation

technology. The deployment descriptor notion

establishes the software process for deploying an

application or a component of application according

to aimed strategies. This descriptor is in line with a

defined structure. For example for an application

J2EE / EJB, the descriptor has to conform to EJB-

Jar.dtd specification and equally for Corba / CCM,

the descriptors have to conform to the Corba

Component Descriptor, the Software Package

Descriptor and so on. The deployment descriptor is

manually built.

3 RELATED WORKS

We identified several deployment systems that can

be classified in two categories. In the first category,

there are all those more classics, developed for the

monolithic software systems which privilege mainly

the installation activity. This was one of our

concerns when we began to work on the deployment

aspects as shown in our work on Orya (Merle and

Belkhatir, 2004) in addition to other reference

works, in the domain, such as Software Dock (Hall

et al., 1999).

In the second category, there are all recent other

deployment systems that have emerged for the

software based-components. We identified three

types of systems: 1.) those developed by the industry

in an ad hoc manner and integrated into middleware

environment like EJB (Dochez, 2009), CCM (OMG,

2006a) and .Net (Troelsen, 2008a, Troelsen, 2008b);

2.) those projected by the OMG (industry) (OMG,

2006b) (Edwards et al., 2004)based on more generic

models and; 3.) the more formal systems projected

by the academic works in current component models

like Open Service Gateway Initiative (OSGI)

(Alliance, 2005), Web Services (Gustavo et al.,

2004), SOFA (Bures et al., 2006), Architecture

Description Languages (ADL) (Clements, 1996) and

UML 2.0 (OMG, 2007).

4 CONCEPTUEL FRAMEWORK

4.1 Principles

In view of these relevant elements and with regard

to the deployment process, we think that a good

deployment solution has to cover all of the

deployment life cycle, unlike installers; has to be

independent from any technology, unlike

deployment in middleware; and, independent from

any components-based philosophical approach. Such

solution should also offer an engine of distributed

deployment and supply a language specification of

deployment strategies.

4.2 Architecture

Fig. 1 represents the deployment process of

components-based software which is constituted by

several activities in correlation (Dibo and Belkhatir,

2009). Thus, deploying a components-based

software consist in distributing components on

specific places and in managing the constraints of

placement, dependence and configuration. Once

deployed, a software system is available for use.

Analysis of a deployment system shows self-

employment activities and technologies that could

be factorized. In this context, we suggest a

deployment architecture based on the model-driven

architecture (MDA) approach (OMG, 2005),

centralized with the use of model and their

transformation.

Analysis of a deployment system shows self-

employment activities and technologies that could

be factorized. In this context, we propose a

deployment architecture based on the model-driven

architecture (MDA) approach (OMG, 2005)

centralized with the use of models and their

transformation.

MDA approach (OMG, 2005) was suggested by

OMG to answer the issues caused by the manifold of

computer systems, languages and technologies. The

main idea of the MDA approach is the partition of

technical concerns and business concerns. Therefore,

the approach puts forward the following two models:

– PIM (Platform Independent Model), it describes

the system, but does not show details of the use of

its platform.

– PSM (Platform specific Model), is a similar, but

dependent model; it also specifies how a system

makes use of the chosen platform.

The conversion PIM to PSM or PSM to PIM is

DEFINING AN UNIFIED META MODELING ARCHITECTURE FOR DEPLOYMENT OF DISTRIBUTED

COMPONENTS-BASED SOFTWARE APPLICATIONS

317



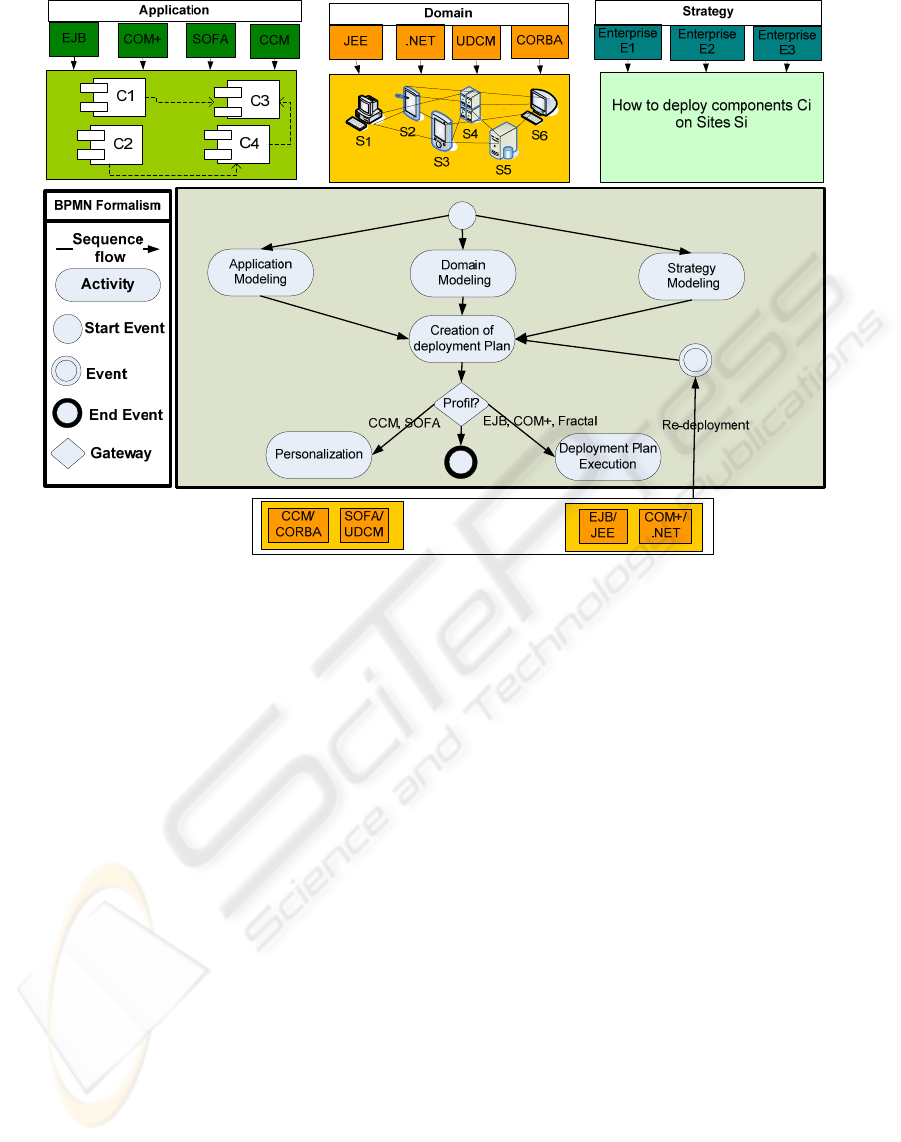

Figure 1: Architecture of UDeploy.

operated by models transformations. A model

transformation is defined by certain rules. These

rules can be described by using a transformation tool

such as Query View Transformation (QVT) or,

simply by implementing one’s own transformation

rules.

At deployment level, if we apply the MDA

approach, we identify clearly three different

metamodels: the application metamodel, the domain

metamodel and the deployment plan which are

common to most approaches studied. The quality of

metamodels provided in our framework entry

determines deployment success, safety (Parrish

et al., 2001) and automation. A success property

implies that the installed application works properly.

A safety property implies that existing applications

continue to work after the installation is applied. The

automation consists in making a deployment with

zero (or no) administrator.

The strategy modeling, the application modeling,

the domain modeling, the creation of deployment,

the personalization and the execution of the

deployment plan are described respectively in

section 4.2.3, 4.2.1, 4.2.2, 4.2.4, 4.2.5 and 4.2.6.

4.2.1 Application Modelling

Each application to be deployed is provided with a

descriptor described in a specific formalism. This

descriptor is called the specific application

descriptor. The specific application descriptor can

be more or less complete. Some specific application

descriptors describe basic information such as the

various components which compose an application

and, some others describe more elaborated

information such as the constraints in resources of

the components. The formalisms of specific

application descriptor are numerous; we

recommend an architecture description language

(ADL) to describe the software architectures. Our

ADL allows standardizing the application

description and, also allows the support of

components approaches which do not have strong

semantics of software architecture description. An

application descriptor will be an XML file that

conforms to our ADL and containing the following

information:

– the application producer,

– the list of the components which constitute the

application (immediate deployment) or the list of

some components which constitute the application

(progressive deployment),

– the compatibility between the various

implementations of components,

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

318

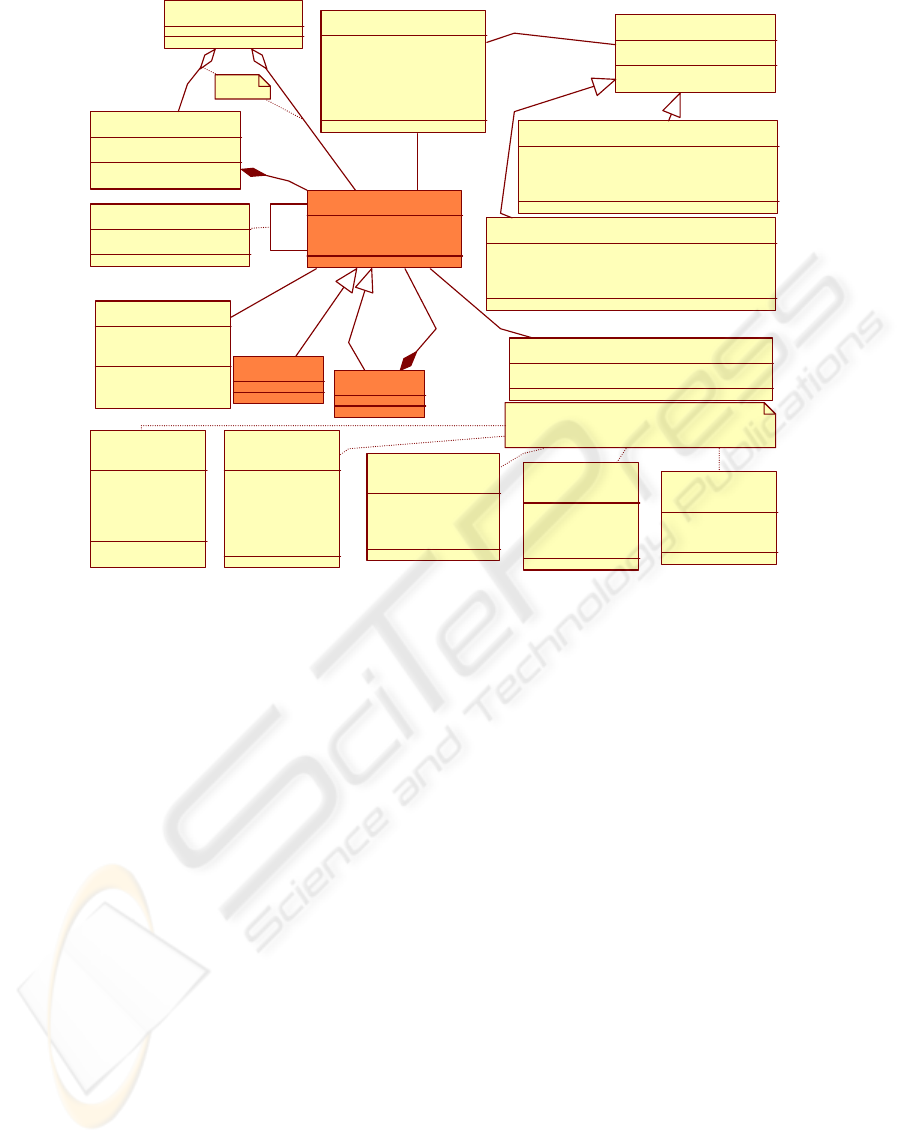

Application

+ApplicationName: String

Component

+ComponentId: Integer

+ComponentName: String

Leaf

Composite

Requirem ent

+RequirementId: String

Sofwar eRequire ment

+SofwareRequirementType: SRType

+SofwareRequirementOperator: SROperator

+SofwareRequirementValue: String

MaterialRequirement

+MaterialRequirementType: MRType

+MaterialRequirementOperator: MROperator

+MaterialRequirementValue: Integer

SRType

<<enumeration>>

+OS

+DBMS

+WebServer

+ApplicationServ er

MRType

<<enumeration>>

+MassStorageGO

+RAMGO

+CPUType

0..*

1..*

+parent

+child

0..*

1..*

SROperator

<<enumeration>>

+Anterior

+Equals

+Posterior

MROpe ra t or

<<enumeration>>

+Equals

+Less

+Lessorequals

+Greater

+Greaterorequals

Others enumerations type can be defined.

Dependence

+DependenceType: TypeD

0..*

TypeD

<<enumeration>>

+Installation

+Activ ation

Properties

+PropertyType: String

+Value: StringSet

0..*

BusinessComponentUsesDomain

+ComponentConcept: String

0..*

Implementation

+Imp le me n t a t io nI d : I nt e ge r

+Version: Integer

+TypeAssembly: String

+A s s e mbly Na me : S t r ing

+LocalAdressPath: String

+Imp le me n t a t io ns

0..*

Requirements

0..*

DeploymentUnit

0..*

0..1

0..*

XOR

Figure 2: Application Metamodel.

– the description of each implementation

(component standard EJB, CCM, .NET, Fractal,

Sofa, Darwin, Kaola, component type),

– the description of the implementation code

(archive name, localization in repository),

– the programming language of the implementation

(Java, C ++),

– the human language (de, en, fr, es, pt, it),

– the strong dependencies or the implementations

assertions which cannot be resolved during the

deployment process; they express themselves by

imposing values of attribute for the compiler, the

OS, the processor, the runtime and the middleware.

– the low dependencies which can be resolved

during the deployment process; they express

how to install the compiler, the runtime, the

middleware and the files (library and executable)

indispensable for the execution of the

implementation,

– the localization of configuration files.

4.2.2 Domain Modelling

The deployment tool owes to know the available

resources in the domain. The domain represents all

the interconnected sites given to the administrator

for the deployment. The domain can be a domestic

network or a grid computer. The resources available

on the domain can be known by using several tools

developed within the grid computing infrastructures;

Sun Grid Engine (Engine, 2009), Globus (Globus,

2009) and Condor (Condor, 2009) are some

examples. These infrastructures allow the discovery

of the domain resources – or the available and

unavailable sites or nodes. Our domain description

model is based on an architecture description

language. The specific domain description will be an

XML file, conform to our ADL. The information on

sites and their available resources are collected by

questioning the Sun Grid Engine tool which is

previously installed on the domain. The domain

description is updated every time an event takes

place on the domain. The descriptor will contain the

following information:

– the domain name,

– the list of sites which compose the domain,

– the list of the available sites of the domain,

the description of the software resources for each

site – i.e. the compiler, the OS, the processor,

– the runtime, the middleware and the files (library

and executable),

DEFINING AN UNIFIED META MODELING ARCHITECTURE FOR DEPLOYMENT OF DISTRIBUTED

COMPONENTS-BASED SOFTWARE APPLICATIONS

319

– the description of the physical resources – i.e. the

number of processors, cache, clock speed, bus speed,

number of cores and memory,

– the list of components installed on each site

during previous deployment activities.

– the description of the network links (interconnect)

between sites,

– the description of the network link (interconnect)

performance (bandwidth, latency),

– the description of the Bridge. A Bridge (OMG,

2006b) exists between interconnects to describe an

indirect communication path between nodes. If a

connection is to be deployed between components

that are instantiated on nodes that are not directly

connected, therefore requiring bridging, the

connection's requirements must be satisfied by the

resources of each interconnect and bridge in

between.

Net workDoma in

+IdDomain: Integer

+DomainName: String

No d e

+NodeId: String

+NodeName: String

+MacAdress: String

Resource

+ResourceId: Integer

+ResourceName: String

Mat e rialResource

+MaterialResourceType: MRType

+MaterialResourceValue: Integer

+DynamicMaterialResourceValue: Integer

SoftwareResource

+SoftwareResourceType: SRType

+SoftwareResourceValue: String

+SoftwareResourceState: SRState

0..*

1..*

SRType

<<enumeration>>

+OS

+SpecificSoftware

+Component

MRType

<<enumeration>>

+RAMGO

+MassStorageGO

+CPUType

Others enumerations

type can be defined.

+provideresources

0..*

+new

+old

0..*

Version

SRState

<<enumeration>>

+Installed

+Uninstalled

Interconnect

+IdInterconnect: String

0..*

1..*

Bridge

+IdBridge: String

0..*

1..*

+resource

0..*

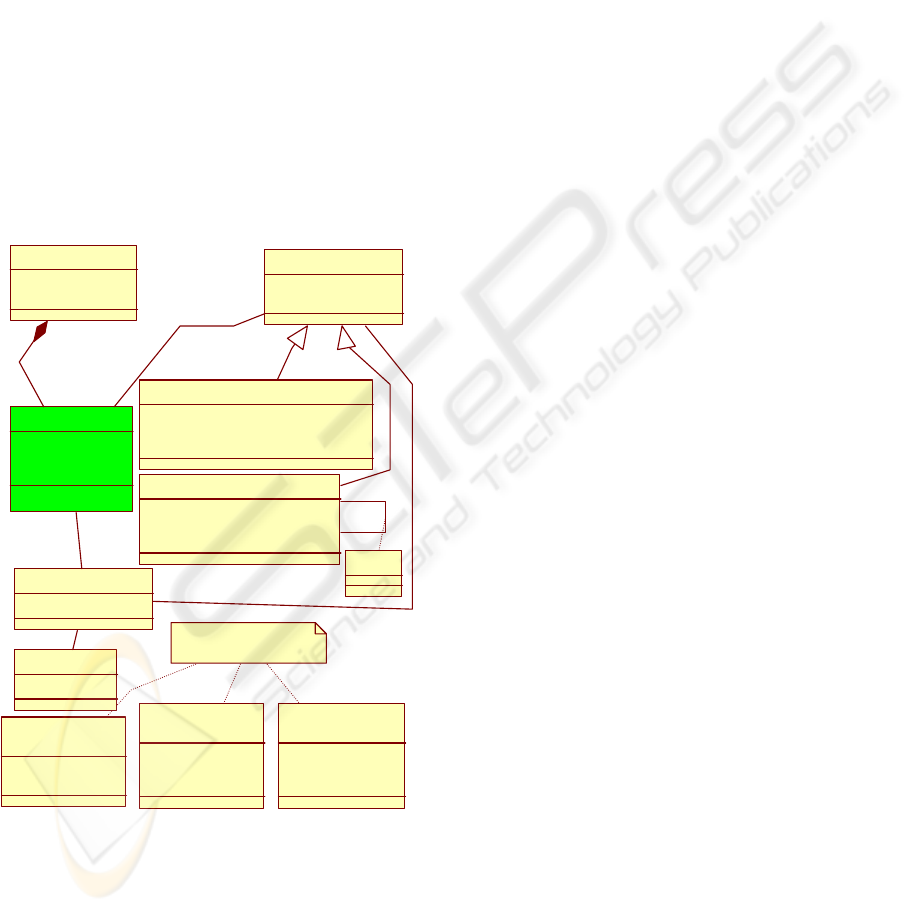

Figure 3: Domain Metamodel.

4.2.3 Strategy Modelling

The deployment strategies guide the creation of the

deployment plan. The deployment strategies allow

expressing the actions to be led to deploy a

component by assuring success and safety

properties.

4.2.4 Computing Plan (Creation of

Deployment Plan)

The deployment plan for an application A consists

of components C1 to Ci where i>= 1 and for a

domain D consisting of Sites S1 ti Sj where j> = 1 is

all valid placements (Ci, Sj). It is calculated from a

planner engine. This engine operates on a static

process which allows visualizing a state of the

system and the information remains motionless

during the plan computing or following a dynamic

process which allows visualizing the forecasts and to

supervise their realization; the information used is

variable during the computing plan. The planner

provides a graphical interface that is only at the PIM

(platform independent model) level. Thus, it

performs the calculations of inter-component

dependencies and verifies software and hardware

needs. Once the calculation ends, i.e. all constraints

are satisfied, the planner generates a deployment

plan independent of the hardware architecture and

the technology application to be deployed. The

deployment plan contains all data and all the

strategies needed to perform the deployment

properly.

4.2.5 Personalization

The deployment descriptor is an instantiation of the

deployment plan for a specific platform. It is

generally an XML file. At PIM level, we can

manipulate the concepts (component, site, resource,

constraint, dependency, and placement) and create

the instances. The persistence is processed under

Java for practical reasons. When the Java classes

were instanced, we use this data to generate the

deployment descriptor. However, the deployment

descriptor generated is conformed to specific

formalism. To assure the correspondence, we use

JDOM for the transcription of Java object in XML.

The deployment descriptor is not executed by

our framework UDeploy but by the target

middleware (Sofa runtime for SOFA profile and

StarCCM or OpenCCM for CCM profile).

4.2.6 Deployment Plan Execution

The components models as Fractal, EJB and COM+

do not offer a deployment descriptor which can be

executed afterward. Therefore, the calculus of the

deployment plan for this component model will be

executed by UDeploy_Executor. The execution of

the plan corresponds to: the starting up of servers,

the load of components in servers and the

establishment of the connections.

ICEIS 2010 - 12th International Conference on Enterprise Information Systems

320

5 PERSPECTIVE AND

CONCLUSIONS

In this paper we presented a generic framework for

deployment of component-based software

applications. The framework is composed of: the

application metamodel, the domain metamodel and

the deployment plan allowing to model, respectively

three main components of a deployment system (the

application, the domain and the deployment

descriptor). The framework is illustrate by

introducing a tool called Udeploy which ensures tree

main tasks: (i) it manages the planning process from

meta-information related to the application and the

infrastructure, (ii) it generates specific deployment

descriptors related to the application and the

environment (i.e. the machines connected to a

network where a software system is deployed), and

(iii) it executes a deployment plan.

In recent years, there have been many

development projects by academic works focusing

on a new generation of systems. These approaches

enhance technology transition. They have shown the

potential of using a model-driven approach such as

MDA. The defined models are based on expressive

and simple abstractions, so the application, the

location, the deployment process and its

orchestration can be built on top of that common

foundation. We hope that the deployment framework

we present is a valuable contribution to this new

generation of systems.

REFERENCES

Alliance, O., 2005. OSGi 4.0 release. Specification

available at http://www.osgi.org/.

Bures, T., Hnetynka, P., and Plasil, F., 2006. Sofa 2.0:

Balancing advanced features in a hierarchical

component model. In SERA, pages 40–48. IEEE

Computer Society.

Clements, P. C., 1996. A survey of architecture

description languages. In IWSSD ’96: Proceedings of

the 8th International Workshop on Software

Specification and Design, page 16, Washington, DC,

USA. IEEE Computer Society.

Condor, 2009. 7.4.1 release. Specification available at

http://www.cs.wisc.edu/condor/.

Dibo, M. and Belkhatir, N., 2009. Challenges and

perspectives in the deployment of distributed

components-based software. In ICEIS (3), pages 403–

406.

Dochez, J., 2009. Jsr 88: Java enterprise edition 5

deployment api specification. Available at

http://jcp.org/aboutJava/communityprocess/mrel/jsr08

8/index.html.

Edwards, G. T., Deng, G., Schmidt, D. C., Gokhale, A. S.,

and Natarajan, B., 2004. Model-driven configuration

and deployment of component middleware

publish/subscribe services. In GPCE, pages 337–360.

Engine, S. G., 2009. 6.2 release. Specification available at

http://www.sun.com/software/sge/.

Globus, 2009. 5.0.0 release. Specification available at

http://www.globus.org/.

Gustavo, A., Fabio, C., Harumi, K., and Vijay, M., 2004.

Web Services: Concepts, Architecture and

Applications.

Hall, R. S., Heimbigner, D., and Wolf, A. L., 1999. A

cooperative approach to support software deployment

using the software dock. In ICSE ’99: Proceedings of

the 21st international conference on Software

engineering, pages 174–183, New York, NY, USA.

ACM.

Merle, N. and Belkhatir, N., 2004. Une architecture

conceptuelle pour le déploiement d’applications à

grande échelle. In INFORSID, pages 461–476.

OMG, 2006a. Corba component model 4.0. Specification

available at http://www.omg.org/docs/formal/06-04-

01.pdf.

OMG, 2006b. Deployment and configuration of

component-based distributed application. Specification

available at http://www.omg.org.

OMG, T. O. M. G., 2005. Omg model driven architecture.

Available at http://www.omg.org.

OMG, T. O. M. G., 2007. Unified modeling language.

Available at http://www.omg.org.

Parrish, A., Dixon, B., and Cordes, D., 2001. A conceptual

foundation for component-based software deployment.

J. Syst. Softw., 57(3):193–200.

Szyperski, C., Gruntz, D., and Murer, S., 2002.

Component Software: Beyond Object-Oriented

Programming. Addison-Wesley Professional. 2nd

Edition, England.

Troelsen, A., 2008a. Chapter 1: The Philosophy of .NET,

volume Pro VB 2008 and the .NET 3.5 Platform.

APress.

Troelsen, A., 2008b. Chapter 15: Introducing .NET

Assemblies

, volume Pro VB 2008 and the .NET 3.5

Platform. APress.

DEFINING AN UNIFIED META MODELING ARCHITECTURE FOR DEPLOYMENT OF DISTRIBUTED

COMPONENTS-BASED SOFTWARE APPLICATIONS

321
