GENETIC EVOLUTION OF ‘SORTING’ PROGRAMS THROUGH

A NOVEL GENOTYPE-PHENOTYPE MAPPING

Daniela Xhemali, Christopher J. Hinde and Roger G. Stone

Department of Computer Science, Loughborough University, Loughborough, U.K.

Keywords: Genetic programming, Genotype-phenotype mapping, XML, Regular expressions, Software programs.

Abstract: This paper presents an adaptable genetic evolutionary system, which includes an innovative approach to

mapping genotypes to phenotypes through XML rules. The evolutionary system was originally created to

evolve Regular Expressions (REs) to automate the extraction of web information. However, the system has

been adapted to work with a completely different domain – Complete Software Programs – to demonstrate

the flexibility of this approach. Specifically, the paper concentrates on the evolution of ‘Sorting’ programs.

Experiments show that our evolutionary system is successful and can be adapted to work for challenging

domains with minimum effort.

1 INTRODUCTION

Genetic Programming (GP) can be defined as “a

systematic, domain-independent method for getting

computers to automatically solve problems starting

from a high-level statement of what needs to be

done” (Langdon et al., 2008). GP research has

attracted attention in various fields such as: game

strategies (Keaveney & O’Riordan, 2009), military

defence (Jackson, 2005), plant biology (Dyer &

Bentley, 2002), electronics (O’Neill et al., 2001),

railway platform allocation (Clarke et al., 2009),

spam filtering (Conrad, 2007), feature extraction

from media files (Hsu, 2007; Klank et al., 2008) etc.

An area that has also managed to secure the

attention of GP is the automation of Web

Information Extraction (WIE) (Atkinson-Abutridy et

al., 2004; Barrero et al., 2009; Xhemali et al., 2010-

b). The research presented in this paper was

originally set up to evolve Regular Expressions

(REs) to automate the extraction of web information,

specifically training course information such as:

course names, dates, locations and prices. The

details of this part of the research, including

experimental results, were covered previously

(Xhemali et al., 2010-b), thus they will not be

covered again in this paper.

This paper focuses on a specific part of GP – the

genotype to phenotype mapping. Previous work

(Xhemali et al., 2010-a) gave details of our

innovative approach in relation to its application to

REs and to Complete Software Statements (Withall

et al., 2008) such as FOR loops, IF statements etc.

This paper concentrates on the genotype to

phenotype mapping process in relation to Complete

Software Programs. Specifically, experiments are

carried out to test the complete GP process for the

evolution of ‘Sorting’ programs. ‘Sorting’ programs

were chosen in order to demonstrate the flexibility

of this approach, as such programs represent an

entirely different domain to REs and a challenging

problem for GP systems.

2 RELATED RESEARCH

The genotype-phenotype mapping relates to the way

individuals in a population are represented, as this

can have a significant effect on the performance of

GP. A genotype represents each individual in the

search space, whereas its phenotype represents the

individual in the solution space (Banzhaf, 1994).

Some research, particularly earlier GP research, does

not make a distinction between genotypes and

phenotypes (Koza, 1992; Whigham, 1995; Conrad,

2007, Snajder et al., 2008 etc.). Individuals in each

genetic population remain the same throughout the

evolution process. In these works the search space

and the solution space are identical.

In 1994, Banzhaf suggested the separation of the

two spaces and introduced his work on the

genotype-phenotype mapping. The separation

190

Xhemali D., Hinde C. and Stone R..

GENETIC EVOLUTION OF ‘SORTING’ PROGRAMS THROUGH A NOVEL GENOTYPE-PHENOTYPE MAPPING .

DOI: 10.5220/0003078401900198

In Proceedings of the International Conference on Evolutionary Computation (ICEC-2010), pages 190-198

ISBN: 978-989-8425-31-7

 2010 SCITEPRESS (Science and Technology Publications, Lda.)

involves the encoding of the individuals to a form

known as the genotype, which is later on decoded

back to the corresponding program, referred to as the

phenotype. Since then, many other researchers have

embraced the separation into genotypes and

phenotypes (Keller & Banzhaf, 1996; Withall et al.,

2008; Clarke et al., 2009 etc.). This separation

simplifies and increases the efficiency of certain

genetic operations such as: reproduction and

mutation, because these would no longer be

constrained by the parameters used in the program

being evolved. In genotype-phenotype based GP,

genetic operators such as Crossover and Mutation

would be performed on the genotype, whereas other

processes, such as the Fitness scoring, would be

performed on the phenotype. Sections 3.2 and 3.3

explain this concept further through examples.

On the downside, however, this adds an

additional step to the genetic evolution process – the

translation or mapping of the genotypes to their

corresponding phenotypes. This step occurs after the

genetic reproduction stage (i.e. the crossover and

mutation) and before the Fitness test can take place.

There are researchers who criticise the separation

into genotypes and phenotypes (Moore, 2000). The

main concern expressed is that the conversion

process of a mutated genotype into the phenotype

may result in anomalies that could potentially lead to

invalid solutions. A direct mapping between the

encoded program (genotype) and the actual program

(phenotype) is therefore vital to ensure the validity

of the solutions (Rothlauf, 2006; Withall et al.,

2008).

The following discusses different methods that

have been used to achieve the mapping process.

Banzhaf (1994; 2006) represented his genotypes

as linear binary strings. The mapping stage then

processed these genotypes from left to right in 5-bit

sections, where each 5-bit code mapped to a pre-

specified symbol. For example: 00000 mapped to

PLUS, 00100 mapped to POW, 11000 mapped to

variable X etc. The first bit indicated whether the

code represented a function (PLUS, POW etc.) or a

terminal (X, Y etc.). The research also discussed

their concern about generating constant numbers.

Koza (1992) had solved this problem by defining

“random ephemeral constants” where constants are

only generated once for a particular program and

then reused wherever they are needed within that

program.

Keller (1996) continued in the footsteps of

Banzhaf, concentrating on providing experimental

evidence for choosing the genotype-phenotype

approach instead of the normal GP approach. Keller

used the LALR (Look Ahead LR) parser for the

repairing stage of the genotype-phenotype mapping

process. LALR parsers scan the input from left to

right and construct a rightmost derivation in reverse

(Aho and Ullman, 1979).

There was a certain amount of redundancy in the

genetic coding in both Banzhaf’s and Keller’s

works. They both admitted that, in their works,

different binary strings could correspond to the same

symbol, which could lead to inconsistencies e.g. 000

and 100 both mapping to ‘a’.

A slightly different genotype representation is

seen in the work of Withall et al. (2008). In here

genotypes are represented as linear blocks of

integers. Each block consists of exactly four

integers, each integer representing a different gene.

Although both research works used fixed-length

genomes, in the work of Banzhaf (1994; 2006) the

resulting phenotypes could vary in length, whereas

in (Withall et al., 2008) they remained fixed.

However, Withall allowed for variable-length

genomes through padding, whereby shorter program

structures or statements ignored outstanding genes.

The first integer in Withall’s genotype always

determines the type of function that follows.

Grosan and Abraham (2009) worked with multi-

chromosome genotypes. The number of

chromosomes was varied. However, the number of

genes per chromosome was fixed. In this research,

each gene corresponded to either a terminal: T = {a,

b, c, d} or a function: F = {+, *}. A function gene

also included pointers towards the function

parameters to tell the system which terminals were

to be manipulated by the function. Also, the first

gene of the chromosome was always a terminal. This

was to ensure that only syntactically correct

programs are evolved. Very differently from above,

Yosif et al. (2010) introduced the novel approach of

adapting a support vector machine to predict

phenotypes from genotype data.

Similarly to Withall et al. (2008), the genotype in

our research is represented as a string of integers.

There are no fixed length genomes determined

however; instead the genotype can contain any

number of genes. The direct mapping of these

integers to the corresponding structures is a

chieved

through an innovative approach involving XML

rules. The first gene in the string determines the

XML rule to be followed, which in itself guides the

mapping of the rest of the genes into a valid

phenotype. This is explained in detail in section 3.2.

GENETIC EVOLUTION OF 'SORTING' PROGRAMS THROUGH A NOVEL GENOTYPE-PHENOTYPE MAPPING

191

3 GENOTYPES TO

PHENOTYPES

As previously mentioned, some details about this

research, including the GP representation chosen and

a thorough explanation of our novel genotype-

phenotype mapping approach used on the REs

domain, was published in a previous paper (Xhemali

et al., 2010-a), thus they will not be repeated here.

The rest of this paper concentrates on the application

of the genotype-phenotype approach to a completely

different domain – that of Software Programs,

specifically ‘Sorting’ programs – in order to

illustrate the flexibility of our approach.

Additionally, the fitness function for the ‘Sorting’

programs is presented and experimental results are

discussed.

The examples in this paper are based on the work

of Withall et al. (2008). They are kept as close to the

original as possible in order to ensure their integrity.

One main difference however, is that in Whithall’s

work the evolved programs were in Perl, whereas in

this paper their validity is ensured against VB script.

Although the evolutionary system is developed in

VB.NET with a MS SQL Server database backend,

VB Script was used in order to extend the

application to execute each evolved program, as

these are obviously not compiled into the

application. The .NET framework allows for the

execution of dynamic code through the

System.CodeDom.Compiler and the appropriate

namespaces, however, this is more complicated and

slower during execution than utilising the Microsoft

Script Control from VB.NET.

3.1 ‘Sorting’ Program

The ‘Sorting’ program was chosen, because it is a

popular, well known program and a standard

Computer Science problem due to its higher

complexity over other small software programs such

as: ‘Sum finder’, ‘Maximum value finder’ etc.

The aim of a ‘Sorting’ program is to order a list

of integers or characters in ascending order. The

output of a ‘Sorting’ program is therefore another

list, rather than a single value.

The ‘Sorting’ programs evolved in this research

are concerned with the sorting of lists of integers.

Figure 1 shows a specification of the ‘Sorting’

problem.

The following explains the general details behind

the genotype-phenotype mapping for software

structures, as well as the additional statements and

genes needed for the ‘Sorting’ program.

Figure 1: Specification of ‘Sort’ (Withall et al., 2008).

3.2 XML Mapping

Our genotype-phenotype mapping consists of two

main components: the XML rules, which guide the

system through the mapping process and the

Repairing function, which makes sure that the

evolved programs are syntactically correct. The

genotype-phenotype mapping process is as follows:

Pseudo-code: Genotype-Phenotype Mapping

1) Determine the XML rule to follow

2) Follow the chosen XML rule to the end

3) IF the Genotype has fewer genes than the rule

requires

a) Follow the rule for the number of genes

available

b) Repair outcome to create a valid partial

solution.

4) IF the Genotype has enough genes for the XML

rule

a) Follow all the components in the rule

b) Repair outcome (if necessary) to create a

valid and complete solution.

5) IF the Genotype has more genes than the rule

requires

a) Follow the same steps as above (4a and 4b)

b) Ignore the rest of the genes in the Genotype

Note that this is not a character by character

evolution, because this would increase the search

space and dramatically increase the execution time.

Instead, programs are divided into two collections:

Variables (e.g. “tmp1”, “tmp2”, “tmp3”) and

Comparisons (e.g. “>”, “<”, “!=” etc.). Each evolved

gene is translated to an element of one of these

collections. There is a separate XML rule for each

software structure (e.g. “FOR”, “IF ... THEN ...

ELSE”, “ADD”, “ASSIGN” etc.). Each rule is

ICEC 2010 - International Conference on Evolutionary Computation

192

composed of a number of components, which guide

the system through the translation of each gene to

the corresponding software structure (Figure 2). For

example, the IF ... THEN structure, of format (IF

variable

comparison variable

THEN), requires

three evolvable genes: two variables and one

comparison. Table 1, Table 2 and Figure 3 illustrate

this scenario by giving an example of the genotype-

phenotype mapping process.

Figure 2: Sample of XML Rules.

Each component refers to either the elements in

the above two collections, or to other predefined

elements that do not need to be evolved and as such

do not require the use of any extra genes, such as:

the different operators associated with each

programming structure (e.g. “+” is always associated

with “Add”; “=” is always associated with “Assign”,

thus these do not need to be evolved) or the

keywords required by the programming language

chosen – in this case VBScript – in order to create

syntactically correct code (e.g. “THEN”, “TO” etc).

The Repairing function is responsible for making

sure that all the different software structures are

combined correctly to create a syntactically correct

and complete software program. Figure 2 shows a

sample of the XML rules and components needed to

guide the genotype-phenotype stage of the genetic

evolution of software programs. Table 1 shows a

sample Genotype to be translated using the

information in Figure 2.

Note that the first gene in the genotype is

always associated with the XML rule choice. The

modulo function is used for this reason. In the above

example (Table 1), the value of the first gene is 10.

This represents the software structure to be used. In

this case, there are five different rules in the XML

file, so 10 mod 5 = 0 means that the structure chosen

is an ‘IF’. This structure contains four different

components (Figure 2). The first three components

require the use of a gene to choose from either the

‘variables’ or the ‘comparisons’ collections. The

‘variables’ collection has three elements, whereas

the ‘comparisons’ has four, therefore, 27 mod 3 = 0,

7 mod 4 = 3 and 13 mod 3 = 1 give elements ‘x’, ‘<’

and ‘y’ respectively.

The fourth component (id=“5”) tells the

Repairing function that the THEN keyword is

required next. The ‘THEN’ keyword is a mandatory

requirement for IF statements in VB.NET or

VBScript, thus this component does not need to be

evolved and as such does not require the use of an

extra gene from the genotype.

The nested = “true” attribute seen in Figure 2

indicates that the IF structure, differently from one-

line statements, such as ‘Add’ or ‘Multiply’, expects

other statement(s) inside. The following gene (gene

19) in the genotype is therefore used to determine

the statement type to be nested in this IF. Therefore,

19 mod 5 = 4 means that the next statement is ‘Add’.

The remaining components are dealt with in the

same manner (see Table 2).

Once all the required genes have been decoded,

the resulting phenotype is repaired to ensure it is

syntactically correct. The Repairing function is an

GENETIC EVOLUTION OF 'SORTING' PROGRAMS THROUGH A NOVEL GENOTYPE-PHENOTYPE MAPPING

193

independent function, which scrutinises the

phenotype created in order to guarantee the syntactic

validity of the solution. This function is in charge of

tasks like: closing software structures appropriately

(e.g. FOR loops in VB.NET need to end in NEXT

for them to be valid); adding the necessary

operators, which do not need to be evolved (e.g. the

‘Add’ (“+”) and the ‘Assign’ (“=”) operators);

tidying up the phenotype in cases when there are

fewer genes available than required by the XML

rule; adding header and footer information about a

solution such as: variable declaration or variable

return etc. All this is achieved through the use of a

STACK programming structure, which works in a

LIFO (Last In First Out) manner. Figure 3 shows the

complete software structure (phenotype) for the

above example. The additional symbols and

programming keywords added by the repairing

function are shown encircled.

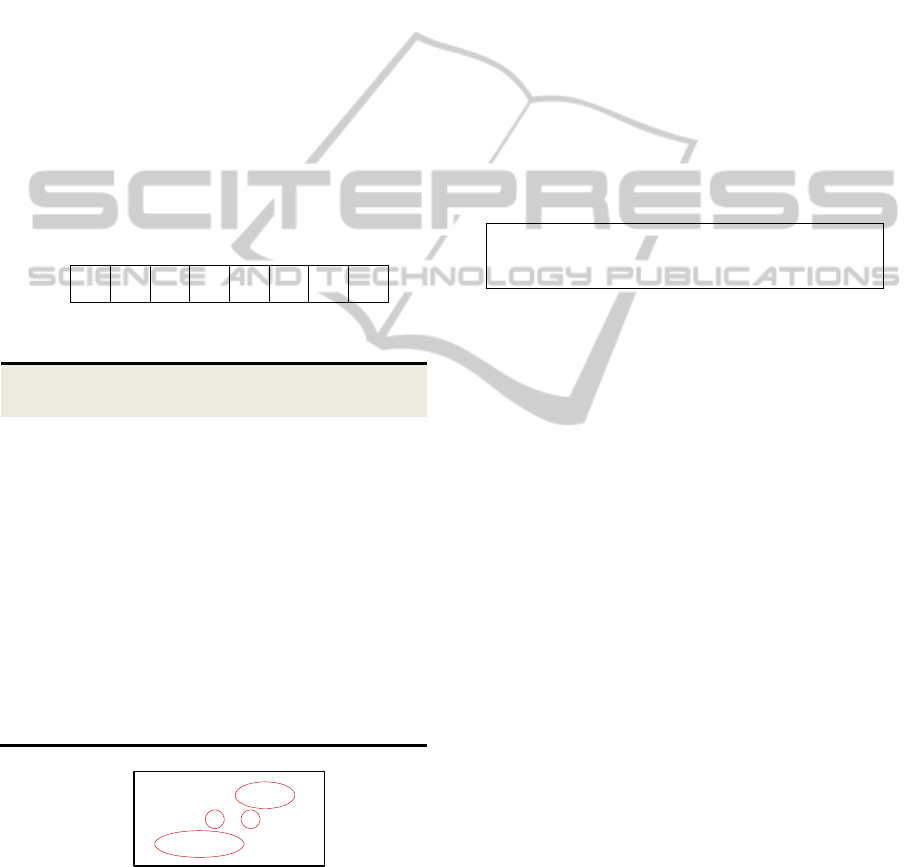

Table 1: Genotype.

10 27 7 13 19 9 63 4

Table 2: Genotype to Software Statement Mapping.

Comp.

No.

Component

Gene

Used

Modulo Translation

- - 10 0 If

1 Variable 27 0 x

2 Comparison 7 3 <

1 Variable 13 1 y

Then-

Keyword

- - Then

- - 19 4 Add

1 Variable 9 0 x

11 Assign - - =

1 Variable 63 0 x

7 Addition - - +

1 Variable 4 1 y



If x < y Then

x = x + y

End If

Figure 3: Phenotype.

Updating the XML rules, once written, would

require little effort, because software statements and

structures are rigid in the number of components

needed and the order in which they are needed. For

example, the Add statement mentioned above may

sum up more than two variables, however, there will

always be need for one variable to which this sum is

assigned, one ‘Assign’ operator and one or more

‘Addition’ operators. Adding new XML rules for

new statements or structures would be equally as

effortless, because it would only require the addition

of the different components for that structure to the

XML rules as well as any additional variables or

comparisons that may be required.

The changes that were made to our Genotype-

Phenotype mapping process for the ‘Sorting’

software programs involved the simple addition of

one more structure and a few more variables and

comparison values. Specifically, a special nested

FOR loop was added to the current software

structures, similarly to Withall et al. (2008), which

includes two nested FOR loops in the following

format:

FOR (var

= 0 TO var

)

FOR (var

var

+1 TO var

)

...

The above could have been achieved through the

existing FOR loop structure (Figure 2), however, we

chose to add the nested FOR loop, because this is a

standard structure used when comparing elements in

a list and it results in faster execution of the

evolution process.

Due to the ‘Sorting’ program dealing with lists or

arrays of integers, a few more variable types needed

to be added to distinguish between normal variables

and array variables (since a normal variable x is

entirely different from the variable array(x)). This is

to maintain the accuracy of the evolved solutions.

The Experimental Results section presents and

discusses the results of our experiment.

3.3 Fitness Function

Similarly to Withall et al. (2008), the fitness

function in this research has been simplified to only

compare adjacent items in the list of integers rather

than all the possible pairs in the list. This decision

was made in order to speed up the evolution process.

The code for the ‘Sorting’ program is presented

above to show its simplicity. Note that the necessary

header information such as variable declaration and

initialisation are left out for clarity. Also note that

this function is only called if the post-evolution list

of integers contains the same elements as the pre-

evolution list of integers.

ICEC 2010 - International Conference on Evolutionary Computation

194

Code: Fitness Function for ‘Sorting’

If list.Length > 0 Then

For i As Int32=0 To list.Length -

If list(i) <= list(i + 1) Then

fitness += 1

End If

If list.length > 1 Then

fitness = fitness/(list.Length-1)

Else ‘The list has only got one

integer

fitness = 1

End If

4 EXPERMIMENTAL RESULTS

Details about the evolutionary system used in this

research were discussed in a previous paper

(Xhemali et al., 2010-b) however, the main

parameters used by the system are summarised in

here to help the reader fully appreciate the

experimental results presented:

Figure 4: Complete ‘Sorting’ Solution: (1).

 Population size: 10



Tournament size: 40%



Fitness Target: 1



Uniform Crossover Rate: 50%



Mutation Rate: 1 gene per genotype



Initial Population: Random

The following gives the results from the

experiments set up for the evolution of ‘Sorting’

programs. In order to maintain the similarity with

the work of Withall et al. (2008), there were ten runs

of the experiment, each with a maximum number of

generations of 50,000. None of the experiments

needed this many generations however, and each run

produced a valid ‘Sorting’ program.

Figure 4 shows one of the ‘Sorting’ programs

produced by the system. Note that this example

shows the full VBScript code executed from within

VB.NET 2008. The header and footer of the solution

(shown in Figure 4 within the dotted rectangle) was

added to the solution by the Repairing function. The

part of the code shown within the solid rectangle

was evolved by the system (and tidied up by the

Repairing function, as described in section 3.2).

All experiments presented in this paper were

based on the sorting process of a fixed list of seven

integers – a(1, 3, 2, 4, 8, 5, 9) – however, further

experiments were carried out with different integer

lists to ensure that the results in this paper were not

somehow influenced by the integers chosen.

Table 3 gives information about five of the

‘Sorting’ solutions evolved (Fitness Score: 1), which

were also generated by Withall et al. (2008). The

information includes the number of generations

(Gens) taken for the solution to be generated and the

amount of time taken to arrive to this solution. The

remaining five solutions (6-10), also with a Fitness

Score of 1, refer to additional ‘Sorting’ solutions

evolved during the experiments for this paper.

Table 3: ‘Sorting’ Results.

Solution

No.

Gens

(Withall)

Time

(Withall)

1 35467 47975 57’33” 1h04’28”

2 16200 14189 25’25” 19’22”

3 8950 8219 12’08” 10’22”

4 15982 16312 23’12” 21’57”

5 762 5834 2’36” 8’00”

6 20050 - 27’31” -

7 739 - 2’19” -

8 1690 - 4’48” -

9 559 - 1’45” -

10 93 - 0’15” -

GENETIC EVOLUTION OF 'SORTING' PROGRAMS THROUGH A NOVEL GENOTYPE-PHENOTYPE MAPPING

195

The solutions themselves (without the header or

footer information), including the five that were

different from the solutions generated by Withall et

al. (2008) are listed in Appendix A.

In relation to the results in Table 3, it is

important to note that comparing the results of

different evolutionary systems is not straightforward

and by no means definitive. Despite experiments

being carried out on the same domain, a touch of

luck is also involved in getting to a perfect solution

quickly from evolutionary experiments. This is

because, depending on the crossover of the genes

and particularly on the (random) gene that gets

chosen for mutation and the outcome of the mutation

itself, a perfect solution may not be reached at the

same time by different systems. Furthermore, even

experiments carried out on the same system at

different times, may not arrive at the same solution

at the exact same generation. Keeping this in mind,

Table 3 shows that Withall et al. (2008) need fewer

generations than this research for two of the above

solutions (2 and 3). This research needs fewer

generations for solutions 1, 4 and 5.

One thing is evident however, that Withall’s

timings (time needed per generation) are lower than

those in this research. As previously mentioned

Withall’s genetic evolutionary system was all

written in Perl, thus there was no need for

converting the evolved code to a Scripting language

first to achieve dynamic execution, since Perl is

already a scripting language. The system in this

research however, was written in VB.NET and

includes the additional step of forcing the execution

of the solution as VBScript from within the VB.NET

application. This affects the overall execution speed.

Furthermore, it was observed during the experiment

that VBScript displayed a message box to the user

each time the script took longer than normal to

execute. The user was then asked to choose whether

to allow the script to continue running or end it and

allow the system to move onto the next script.

We managed to change the VBScript control to

make the decision by itself, without involving the

user. Although this has sped up the execution, it is

still an extra step that VBScript has to do behind the

scenes, which increases the overall execution time

for the evolutionary system.

A potential solution may be to change the system

to execute the dynamic programs in Perl instead of

VBScript and see if this makes a difference to the

above timing issue. Another solution may be to

allow .NET itself to execute the dynamic code

through the inbuilt System.CodeDom.Compiler,

however, this is a more complicated solution, which

may still result in time wastage due to the additional

manipulation that VB.NET will have to make to

itself to compile the dynamic code at runtime.

4 CONCLUSIONS

This paper has discussed an innovative approach to

mapping genotypes to phenotypes through XML

rules in relation to software statements and

structures as well as complete software programs.

Utilising XML gives this technique many

advantages including: improved readability,

compatibility with many programming languages,

portability and extendibility (XML is not restricted

to a limited set of keywords defined by the

proprietary vendors, which aids the process of

creating rules of different levels of complexity).

Experiments were set up to test the complete

evolutionary system on the evolution of ‘Sorting’

programs. The ‘Sorting’ program was chosen

because it represents a well known, standard

Computer Science problem, which is complex

enough to really test the evolutionary system.

Our evolutionary system was originally created

to deal with the evolution of Regular Expressions.

However, it was discovered, that it was easily

adaptable to other domains, including that of

Complete Software Structures. In fact, the only two

areas that needed to be changed to make the system

work for the new domain, were the XML rules and

the Fitness function.

The experimental results from the evolution of

‘Sorting’ programs highlight the efficacy and

flexibility of our system, despite the complexity of

the ‘Sorting’ problem for GP systems.

However, further testing needs to be done to

ensure the reliability of this approach for other

complex programs.

ACKNOWLEDGEMENTS

We would like to thank the team at ATM for their

support. Also, thank you to ATM, CICE and

Loughborough University for funding our work. We

would also like to thank Daniel Sills for his help

with some technical .NET concepts.

REFERENCES

Aho, A. V. & Ullman, J. D. 1979. Principles of Compiler

ICEC 2010 - International Conference on Evolutionary Computation

196

Design. Addison Wesley, ISBN 0-201-00022-9.

Atkinson-Abutridy, J., Mellish, C., Aitken, S. 2004.

Combining information extraction with genetic

algorithms for text mining. IEEE Intelligent Systems.

19(3), pp. 22-30.

Banzhaf, W. 1994. Genotype-Phenotype-Mapping and

Neutral Variation – A case study in Genetic

Programming. Proceedings of the International

Conference on Evolutionary Computation. Springer-

Verlag, pp.322-332.

Banzhaf, W. 2006. genotype-phenotype-mapping and

neutral variation – A case study in Genetic

Programming. Lecture Notes in Computer Science,

Springer Berlin, 866, pp. 322-332.

Barrero, D., Camacho, D. & R-Moreno, M. 2009.

Automatic Web Data Extraction Based on Genetic

Algorithms and Regular Expressions. Data Mining

and Multi-agent Integration. Springer-Verlag, pp. 143.

Clarke, M., Hinde, C. J., Withall, M. S., Jackson, T. W.,

Philips, I. W., Brown, S. & Watson, R. 2009.

Allocating Railway Platforms using a Genetic

Algorithm. Research and Development in Intelligent

Systems XXVI. Springer London, pp. 421-434.

Conrad, E. 2007. Detecting Spam with Genetic Regular

Expressions. SANS Institute Reading Room. Available:

http://www.giac.org/certified_professionals/practicals/

GCIA/00793.php.

Dyer, J. & Bentley, P. 2002. PLANTWORLD: Population

Dynamics in Contrasting Environments. In Cantu-Paz

E., GECCO, pp. 122-129.

Grosan, C. & Abraham, A. 2008. Evolving Computer

Programs for Knowledge Discovery. Social Science

Research Network (SSRN).

Hsu, P-H. 2007. Feature extraction of hyperspectral

images using wavelet and matching pursuit. ISPRS

Journal of Photogrammetry and Remote Sensing.

Elsevier Science, Amsterdam, 62 (2), pp. 78-92.

Jackson, D. 2005. Evolving Defence Strategies by Genetic

Programming. In Lecture Notes in Computer Science.

Springer Berlin, 3447, 281-290.

Keaveney, D. & O’Riordan, C. 2009. Evolving Robust

Strategies for an Abstract Real-time Strategy Game.

Proceedings of the 5

International Conference on

Computational Intelligence and Games. pp. 371-378.

Keller, R. E. & Banzhaf, W. 1996. Genetic Programming

using Genotype-Phenotype Mapping from Linear

Genomes into Linear Phenotypes. Proceedings of the

First Annual Conference on Genetic Programming,

California. pp. 116-122.

Klank, U., Padoy, N., Feussner, H. and Navab, N. 2008.

Automatic feature generation in endoscopic images.

International Journal of Computer Assisted Radiology

and Surgery. Springer, 3, pp. 331-339.

Koza, J. R. 1992. Genetic Programming: On the

Programming of Computers by Means of Natural

Selection. MIT Press.

Langdon, W., Poli, R., McPhee, N. & Koza, J. R. 2008.

Genetic Programming: An Introduction and Tutorial

with a Survey of Techniques and Applications. In

Studies in Computational Intelligence. Springer,

Berlin, 115, pp. 927-1028.

Moore, J. P. 2000. Exploring and Exploiting Models of the

Fitness Landscape: A Case against Evolutionary

Optimization. PhD Thesis, University of Plymouth.

O’Neill, M., Brabazon T., Ryan, C. & Collins J. J. 2001.

Developing a Market Timing System using

Grammatical Evolution. Proceedings of GECCO.

Rothlauf, F. 2006. Representations for Genetic and

Evolutionary Algorithms. Springer-Verlag New York.

Snajder, J., Basic, B. D., Petrovic, S. & Sikiric, I. 2008.

Evolving new lexical association measures using

genetic programming. Proceedings of the Association

for Computational Linguistics. Ohio, pp. 181-184.

Whigham, P. A. 1995. Grammatically-based Genetic

Programming. Workshop on Genetic Programming.

Withall, M. S., Hinde, C. J. & Stone, R. G. 2008. An

improved representation for evolving programs.

Journal of Genetic Programming and Evolvable

Machines. Springer Netherlands, 10(1), pp. 37-70.

Xhemali, D., Hinde, C. J. & Stone, R. G. 2009-a. Domain-

Independent Genotype to Phenotype Mapping through

XML Rules. International Journal of Computer

Science Issues, 7(3).

Xhemali, D., Hinde, C. J. & Stone, R. G. 2010-b. Genetic

Evolution of Regular Expressions for the Automated

Extraction of Course Names from the Web.

Proceedings of the International Conference on

Genetic and Evolutionary Methods. Las Vegas.

Yosif, N., Gramm, J., Wang, Q., Noble, W., Karp, R. &

Sharan, R. 2010. Prediction of Phenotype Information

from Genotype Data. Communications in Information

and systems. 10(2), pp. 99-114.

APPENDIX A

These are the ‘Sorting’ programs generated in this

research. Solution (1) was shown in

Figure 4.

Solutions (1-5) match those obtained by Withall et

al. (2008), whereas the remaining (6-10) are new.

Note that parts of the following programs may

look different to ‘hand written’ code for ‘Sorting’

programs. Solutions (3) and (9) are the closest to the

conventional ‘hand coded’ version.

‘Sorting’ Solution: (2)

GENETIC EVOLUTION OF 'SORTING' PROGRAMS THROUGH A NOVEL GENOTYPE-PHENOTYPE MAPPING

197

‘Sorting’ Solution: (3)

‘Sorting’ Solution: (4)

‘Sorting’ Solution: (5)

‘Sorting’ Solution: (6)

‘Sorting’ Solution: (7)

‘Sorting’ Solution: (8)

‘Sorting’ Solution: (9)

‘Sorting’ Solution: (10)

ICEC 2010 - International Conference on Evolutionary Computation

198
