MULTI-AGENT BASED SURVEILLANCE OF HUMAN

WORKFLOWS

Emmanuel Sardis, Vasileios Anagnostopoulos and Theodora Varvarigou

National Technical University of Athens - NTUA, Athens, Greece

Keywords: Multi-agent systems, Workflows, Recognition, Human workflows, JADE.

Abstract: Workflow recognition through processing of humans and objects in a camera sensor network, presents a

significant challenge recently. Human action recognition and sequence of actions manipulation, that

construct a workflow situation/rule, has many practical applications in many different real human

application environments. This article presents a multi agent based real time infrastructure, for recognizing

humans workflows, by evaluating and processing computer vision signals, from multiple cameras sensors.

The system architecture, the related agents’ infrastructure of the distributed environment of sensors, are

presented together with the algorithmic modules, that evaluate sensors signals into workflow events, and

related alarms’ outputs from the system. The article presents a full functional system that integrates the

distributed functionality of the multi agents’ infrastructure into real working environments, using the JADE

agents’ technologies. The evaluations of system simulation results are conclude this work, giving related

feedback for possible future architecture and implementation extensions.

1 INTRODUCTION

The problem of task recognition is of paramount

importance during industrial workflows. Accidents

and abnormal behavior happen very often and for

this reason it makes sense to develop automatic

visual surveillance systems that take advantage of

the recent progress of computer vision techniques to

monitor activity areas. Thus, increased safety of the

workers reduces operational costs and productivity

in some cases can also be improved. There is

generally a big gap between the perceived abnormal

behavior by humans, and the one perceived by

computer vision systems. The discrepancy is mainly

accounted for by the coarse information provided by

automatic systems. Moreover, a huge amount of

rules learned by experience helps humans identify

accidents and abnormal behavior.

Another big problem is the lack of flexibility.

Sub-tasks comprising a workflow do not happen in a

timely and a well-ordered manner. As a

consequence, we need relaxed rules that can define a

normal workflow execution. Instead of imposing

artificial constraints that could hinder the

productivity (like walking on a coloured line with a

tolerance of some centi-meters), which usually are

not well suited to the working environment and can

break down under unexpected circumstances, we

choose to construct generic systems that can encode

human experience in a high-level way. Such systems

are more amenable to be re-used, since application

specific systems are more expensive. By allowing

for high-level input we hope to decouple the

problem, from the requirement of specially trained

personnel with computer vision knowledge. Our

approach from a non-technical standpoint amounts

to partitioning the space in regions of interest and

monitor interesting activities there. The usage of a

multi-agent based architecture provides the required

infra-structure to achieve this goal. Its suitability

will be analyzed and proved in the following

sections.

Next sections present the status of the workflow

systems, section three suggests the decomposition in

micro-tasks and its justification, section four

analyzes the multi-agent underpinnings of the

proposed solution, and section five presents the main

system architecture and its technical analysis. In

section six we present the workbench environment

that was created in order to test our system with the

related results and evaluation notes. Finally, in

section seven, we conclude the article by discussing

future architecture extensions and research activities

for enhancing our proposed solution.

524

Sardis E., Anagnostopoulos V. and Varvarigou T..

MULTI-AGENT BASED SURVEILLANCE OF HUMAN WORKFLOWS.

DOI: 10.5220/0003305305240530

In Proceedings of the 3rd International Conference on Agents and Artiﬁcial Intelligence (ICAART-2011), pages 524-530

ISBN: 978-989-8425-40-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 STATUS OF WORKFLOW

SYSTEMS

A workflow is defined as the computerized

facilitation or automation of a business process

(WfMS, 1999). It is composed of tasks, each of

which corresponds to a unit business task or another

business sub–process. The main steps of a workflow

execution is a repletion of (a) scheduling tasks, (b)

assigning tasks, and (c) obtaining results from the

environment until the entre workflow process

completes. Related workflow works propose the

usage of agents and web services like (Purvis et al.,

2004), (Vital et al., 2004), (Fleurke et al., 2003),

(Savarimuthu et al., 2004) and Service Oriented

Architectures like (Poggi, et al., 2007), (Mok et al,

2006), (Buhler et al., 2005), (Negri et al. 2006),

where they present a solution by integrating agent

technologies and SOA technologies, that is Web

services, workflow, rule engine and semantic Web,

or Petri Nets. Workflows and Agents technologies

are complementary to each other, and although there

has been a lot of work on integrating the two, no real

time applications and systems have been

implemented yet. In our case study and proposed

system solution, we are using a multi agent based

architecture, implemented and simulated with real

time camera sensors and a workbench environment.

3 THE CONCEPT OF

WORKFLOW MICRO-TASKS

The lack of regular execution of a workflow due to

sub-task ordering or inclusion of unrelated sub-tasks

makes the problem of workflow identification an ill-

posed problem.

The first step is to split the workflow into more

elementary tasks that can be combined to create the

workflow. There can be a multitude of ways to split

a workflow into subtasks. However, a good rule of

thumb is that, since we usually recognize more than

one workflow, we generally select the minimum

subset of possible micro-tasks that can give the

whole workflow. Moreover, we require that a task

be atomic, in other words we require that it cannot

be executed in different ways.

We will see now that there can be other

constraints that must be taken into account. Take as

an example the workflow where a security officer

moves through a corridor. We can assume the whole

movement to be a micro-task with some fixed

duration and tolerances. If however an accident or an

abnormal behavior happens and intervention is to be

expected, we should allow for some granularity in

the micro task splitting for efficiency reasons.

Suppose that the corridor can be accessed from two

doors at the beginning or the end of the corridor. It

makes sense to split the micro-task in two smaller.

The first is the movement from the beginning to the

middle of the corridor, and the second is the

movement from the end to the middle of the

corridor. In this way, we allowed for ad hoc rules

that subdivide the workflow. We can re-formulate

the above procedure as the definition of three

checkpoints, one at the beginning, one in the middle,

and one at the end. For this reason, we allow the

following micro-tasks.

Now let us try to generalize our approach, when two

security officers are sweeping the corridor back and

forth into opposite directions. We can require a rule

table like the following

Table 1. We see that the

allowed tasks and micro-tasks are the same in

number. However a micro task of the form <O1

Approaching Ch1, O2 Approaching Ch1> during

execution of task 2 can happen (the two officers are

talking about sports), and triggers an abnormal

behavior alarm.

Table 1: Security Officer Workflow.

Task

Check

point

Micro-task

Timing

(sequence

number)

1 1

Approaching Check

point 1 (Ch1)

2 1 Leaving Ch1 1

2 2 Approaching Ch2 2

3 2 Leaving Ch2 1

3 3 Approaching Ch3 2

4 3 Leaving Ch3 1

We see that the allowed micro tasks are in reality 12,

6 per officer and for this reason the micro-tasks

should not only describe normal, but also abnormal

behavior.

In more complex environments, the number of

micro-tasks can become overwhelming. The big

number of micro-tasks hints towards a distributed

implementation, while the synergy in sequencing

them in order to infer task execution hints towards

an agent based approach.

The solution we described above can be scaled to

industrial environments as a coarse way to identify

useful workflows with the help of computer vision.

It is true though that there are limitations on the size

and type of objects that can be efficiently identified.

MULTI-AGENT BASED SURVEILLANCE OF HUMAN WORKFLOWS

525

Table 2: Workflow with two Security Officers.

Task

Check

point

Micro-task

Timing

(sequence

number)

1 1

O1 Approaching Ch1,

O2 Approaching Ch3

2 1

O1 Leaving Ch1,

O2 LeavingCh3

2 2

O1 Approaching Ch2,

O2 Approaching Ch2

3 2

O1 Leaving Ch2,

O2 LeavingCh2

3 3

O1 Approaching Ch3,

O2 Approaching Ch1

4 3

O1 Leaving Ch3,

O2 Leaving Ch1

For this reason, we expect that a real solution

would also need the input from various other

sensors. As a result, we offer a uniform approach.

This has the welcome side effect that our system is

decoupled by the inaccuracies injected by the

various sensors, especially the computer vision

provided information. It is our feeling, that these

inaccuracies can be improved by use of more inputs

(eg. more cameras and related sensors), something

that can be done in practice. In our approach, we

concentrate especially on the computer vision

sensory input provided by cameras and processed by

computer vision algorithms like (Zhu et al., 2006)

and (Viola and Jones, 2001). The resulting outputs

of the sensors are usually in the form of bounding

boxes and some ids. Our goal first is to create check

points which act as “visual traps”. We put visual

checkpoints in places that are relevant to the

workflow and the accidents. This listing strongly

depends on the workspace, but can be calibrated by

the administrator without having specific knowledge

of the computer vision algorithms used. Objects,

check points and the attitudes of the objects with

respect to checkpoints (Leave/Approach) are the

input to our multi-agent system.

4 MULTI-AGENT BASED

SOLUTION

As we argued previously, the problem at hand hints

towards a multi-agent based solution. The synergy

between checkpoints and their autonomy in making

inferences shows that they can be implemented by

multi-agents. Moreover, the structure of them is

clearly the same and from the software point of view

they are processes that can be created or deleted by

the administrator, they can be migrated to adapt to

the computational resources, but more importantly

they are identical. They run the same algorithm,

having the same memory but their decisions and

actions rely on the actions of the other processes and

their data. We cannot think of a better solution other

than one provided by multi-agent systems. One can

argue that the problem is generic and has no

particular relation to an industrial environment. This

could be true, however industrial environments are

more constrained, have clearer workflow definition

and the earnings of the approach translate to

significant operational cost reduction with increased

productivity. For this reason, though our approach

has not special industrial characteristics at first sight,

it is suited and could potentially be reliable.

But there is another reason why checkpoints

(agents) are particularly useful for industrial

environment. Usual approaches rely on scene

separation algorithms, in order to identify tasks

(Coros, 2009) or to improve human detection. This

separation is too coarse to be of any value in an

industrial environment where scene separation is

very tight and the system reliability depends on it.

Moreover, the checkpoints are visual points that can

be synchronized between cameras, in an offline

phase or online (Yun and Park, 2006), without

interference to workflow execution. Use of RFID

tags is usually not an option in an industrial

environment and excessive use of other types of

sensors can be dangerous. Finally, since they are

visual, the administrator can manage them easily

because they have better semantic content. So we

reformulate the problem to adapt to the industrial

environment and the new formulation translates

immediately to agent architecture.

5 SYSTEM ARCHITECTURE

As communication architecture, we select a

bidirectional ring (Figure 1), where agents can send

and receive information between them, in other

words the communication topology is a broadcast

medium. The filtering of the messages is based on

their content. The messages are of the form of Table

Table 3: Agent message format.

Field

Work-

flow Id

Check

point Id

Micro-

task Id

Alarm Dest.

Value

Integer

(Int)

Int Int Boolean Int

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

526

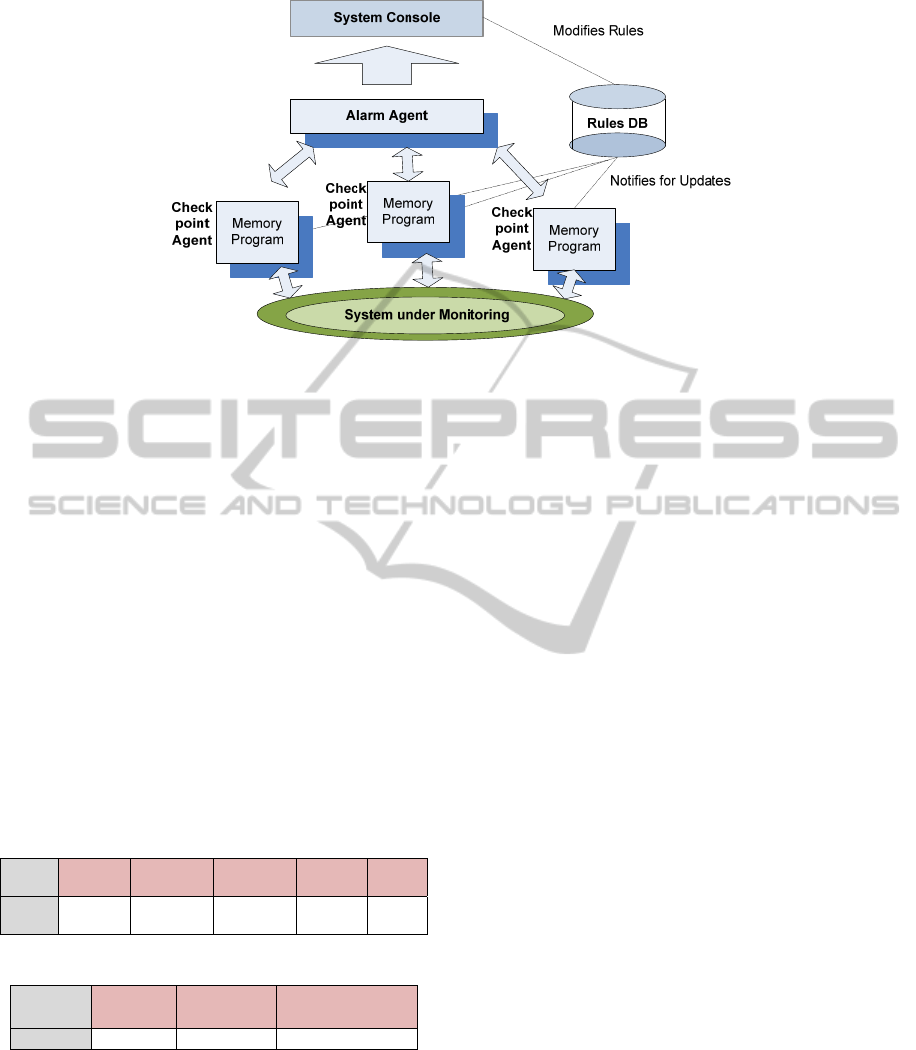

Figure 1: System Architecture.

It may happen that the workflow can have repeated

object motion with respect to the checkpoint. As we

can see from the above message, this can be dealt

because the micro-task id is the sequence number of

the micro-task in the workflow (see Table 4). This is

possible because the system has two designated

components (Figure 1).

The first is the workflow (rule) database that is

loaded to the agents at system startup/reset. This is

necessary since the administrator can create or

destroy checkpoints. For this reason, at system

startup or reset, cached agents are destroyed or new

one are created according to the surveillance

necessities. After the agent fixation process, each

one is loaded the rule table via broadcast.

The second designated component is the alarm

generator (Figure 1). We are now ready to describe

the agent algorithm and memory after initialization.

Table 4: Workflow entries in workflow list.

Field

Work-

flow Id

Sequence

number

Check-

point Id

Micro-

task Id

Time

out

Value

Integer

(Int)

Int Int Int Time

Table 5: Micro-task entry into rules.

Field

Micro-

task Id

Object Id Object Motion

Value Integer Integer Leave/Enter

A micro-task (Table 5) is a list of pairs of the form

(Object Id, Object Motion) with respect to

Checkpoint. Different objects can create different

micro-tasks, the role of the Object Id is to create a

binding of objects.

We say that O1/Leave-O2/Enter and O3/Leave-

O4/Enter realize the same micro-task, 1/Leave-

2/Enter with the binding (1:O1, 2:O2) and (1:O3,

2:O4). The binding happens at the first node which

activates the workflow for monitoring. The

algorithm description makes this clear (Figure 2). It

can be easily proved that this algorithm that

manipulates the workflow recognition system is

correct and its results are presented in the following

sections of the article through the simulation

screenshots of the Sniffer JADE tool.

Moreover, it encodes the intention of the

administrator to resume a workflow, if the alarm is

not fatal or to issue an alarm. We can observe that

the above algorithm does not interfere with disjoint

workflows, because of the aforementioned binding.

Also, it should be noticed that the algorithm takes

advantage of the synergistic nature of the agents to

solve the problem.

6 IMPLEMENTATION &

WORKBENCH

The algorithm we have presented is generic and

easily implementable using a standard agent

platform like JADE. However, we have to specialize

the micro-task description in the cases under

consideration. In constraint environments micro-

tasks can be comprised from lists of many people

since tasks are very specific. In other scenarios, like

market surveillance systems, multi-object micro-

tasks are more difficult to obtain, because there are

questions on bindings. This should be either

manually determined by the administrator, or

automatically by extra information. We decided to

emulate a scenario depicted in the well-known

Caviar dataset (EC Funded CAVIAR web site).

In specific, the scenario “Person stops outside

store, goes inside and out of store. Five groups of

MULTI-AGENT BASED SURVEILLANCE OF HUMAN WORKFLOWS

527

people walking along the corridor.” and “Person

goes inside and out of a store twice. Visible on

corridor view only: Group of 4 people comes out

store”. Since this scenario uses fixed cameras we

decided to implement it at our laboratory with

suitable camera placement. We also wanted to be

able to use as many people as possible, for future

experiments and extensive debugging. We used two

cameras like in the original scenario, and we

emulated the event of a human object entering the

shop, with the use of the laboratory door.

One camera faces the door from 5.5 meters, and

the other camera monitors the entering and leaving

the store events perpendicularly to the first. The

second camera was placed at distance 2 meters.

The workflow definition and the related points in the

working environment, where workflow triggers are

activated, are presented in the following Figure 3,

using the colored dots on the figure. We have used

two cameras that trigger the steps and the related

events in our multi agent platform, where the

recognized persons in scenes are giving input signals

to our algorithms, for evaluating and checking the

related workflow rules and the workflow recognition

label. Figure 3 shows the configured check points,

while Figure 4 shows an emulated customer entering

and leaving the store and micro-task events, while

passing the check points.

Figure 5 shows a sample of the exchanged

messages for this workflow, this is a normal

workflow. In order to decouple the problem from

computer vision, we used manual annotation of the

events. Our implementation is done in JAVA with

the JADE platform.

Algorithm (agent software)

Trigger: Agent N senses a realized micro-task.

Action: The agent searches the list of activated workflows to find those that wait on the

micro-task. Those found are now waiting for the next entry in their list if the

corresponding checkpoint is the same. Otherwise they are removed and create an active set.

For each member of the active set a message is sent with alarm false, workflow Id equal to

the member workflow Id, checkpoint and micro task id the next in the workflow. If the sensed

micro-task is not pending for some workflow, we activate the workflows that have it as a

first micro-task happening at this checkpoint. The workflow waits on the realized micro-

task. The agent is self-retriggered for this micro-task. If nothing is found a message is

sent to the alarm agent.

Trigger: Agent N senses a timeout for an active workflow.

Action: A message containing the corresponding workflow entries for the previous different

checkpoint in the workflow list and alarm true, is forwarded to the previous different

checkpoint. The workflow is deleted.

Trigger: Agent N receives a relevant message with alarm true from a check point.

Action: The agent searches the active sets for pending messages from the corresponding

checkpoint. The members are deleted. A message containing the corresponding workflow entries

for the previous different checkpoint in the workflow list and alarm true, is forwarded to

the previous different checkpoint. If deletion empties the active set an alarm is issued

towards the alarm agent.

Trigger: Agent N receives a relevant message with alarm false from a check point.

Action: The agent activates the workflow contained in the message and the activated workflow

waits for the entry in the message. The object binding is copied from the message.

Figure 2: Algorithm for manipulating workflow events.

Figure 3: Camera 205 (Trap point T4, red dot), Camera 206 (T1, blue dot), (T2, green dot), (T3, yellow dot).

Empty micro-task micro-task Empty micro-task Empty micro-task

Figure 4: Scene frames presenting related workflow micro-tasks per camera.

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

528

continues….

Figure 5: A normal workflow announcement to the Alarm

Agent using JADE Sniffer tool.

Figure 6 shows a typical sequence of events for four

people entering the shop. Of course, the applicability

and the related workbench tests can be performed in

any computer vision video, but for the paper

purposes and tests of our algorithms, the normal

enter – leave sequence of events in parallel with the

computer vision human/objects detection was used.

Enter Person1, 2

LeavePerson1, 2

Figure 6: Enter-Leave micro-tasks for two human objects

at checkpoint 1.

Figure 7 shows the message exchange. This is a

normal workflow. In the first part of

Figure

7 7, enter events are shown between the

Sensor agent which multiplexes sensor readings. In a

real life implementation there is no Sensor agent,

since it is part of the Checkpoint agent. In the second

part of

Figure

7 7, the checkpoint 1 detects a leave event

and forwards the request to checkpoint 4 (the

perpendicular camera) according to case 4 of our

algorithm.

For the purposes of display, we have

implemented a small set of rules part of them are

shown in Table 6. The xml file used as a rule engine,

was constructed based on a simple format of object

id plus object behaviour (enter or leave).

Table 6: Sample workflow rules.

<?xml version="1.0"?>

<?xml-stylesheet type="text/css"

href="nutrition.css"?>

<utask objectId="1"

objectBehavior="TRUE"/>

<utask objectId="1"

objectBehavior="FALSE"/></cluster>

<utask objectId="1"

objectBehavior="TRUE"/>

<utask objectId="1"

objectBehavior="FALSE"/></cluster>

...

Both Figure 5 and Figure 7 are presenting the agents

simulation results in JADE. The last message on the

agents simulation creates a ‘normal’ or ‘abnormal’

output, something that later can drive any extension

of our system for safety and security purposes using

multi agents implementations.

In the agents’ simulation windows used in this

article, we used four check points in our application

which are described as t1, t2, t3, t4. The alarming

agent is described as a1 and we describe the

emulated Sensor agent as s1 (it is only one since it

multiplexes the sensor readings). The scope of the

Sensor agent is to control and furthermore drive the

signals in system output or outputs according to the

connected on our system external modules. As we

have already explained above the system scope is to

drive safety and security external modules.

In the following figures, that describe message

exchanges between agents, we re-used existing

messages from JADE framework. Figure 8 shows

the scalability properties of our architecture. We plot

RAM consumption with increasing number of check

points (traps).

Continues…

Figure 7: A normal workflow with 4 human objects. First

part shows enter phase and second part leave phase with

message propagation to the next agent.

MULTI-AGENT BASED SURVEILLANCE OF HUMAN WORKFLOWS

529

As it is expected, it is almost linear which gives us

predictable performance in case we need a mapping

to the available resources. Our system was tested

using between 3-15 trap points in the related lab

videos. The system performance in multiple agents

usage (multi camera control) and under more trap

points per camera (agent) for a workflow of humans,

is an interesting test case.

Test case measurements are very complicated and

system performance is based on many different type

criteria. For our simple cases the system used for the

lab test followed the Figure 8 results.

Figure 8: Scalability of the proposed architecture.

7 CONCLUSIONS

Through this paper, we touched upon what seems to

be an appropriate framework for human workflow

analysis. We presented a few test cases where our

approach gives satisfactory answers using multi

agent systems architecture. We are in the start of

analyzing the challenges of workflow recognition

using “traps”. We see vast potential in recognising

single-object workflows by applying an agent for

controlling the related trap points. The multi-

object/human workflows are also common and they

are the main target of our current and future

research.

ACKNOWLEDGEMENTS

European Research project FP7 SCOVIS (ga.

216465).

REFERENCES

WfMS: Workflow Management Coalition Terminology

and Glossary – WfMS Specification, 1999.

Purvis, M. A.; Savarimuthu,; Purvis, 2004. A Multi-agent

Based Workflow System Embedded with Web

Services. In Proceedings of the second international

workshop on Collaboration Agents: Autonomous

Agents for Collaborative Environments (COLA 2004);

Ghorbani, A.; Marsh, S., Eds.; IEEE/WIC Press:

Beijing, China.

Vital, J., M., Buhler, P., and Stahl, C., 2004. Multiagent

systems with workflows. IEEE Internet Computing,

8(1): pp. 76-82, Jan/Feb 2004.

Fleurke, M., Ehrler, L., Purvis, M. A., 2003. JBees – An

Adaptive and Distributed Agent Based Workflow

System. In Proceedings of the International Workshop

on Collaboration Agents: Autonomous Agents for

Collaborative Environments (COLA 2003), Halifax,

Canada. IEEE/WIC Press. Ghorbani, A. and Marsh,

S., Ed.

Savarimuthu, B.T.R., Purvis, M.A., and Fleurke, M. 2004.

Monitoring and Controlling of a Multi-Agent Based

Workflow System. In Proceedings of the Australian

Workshop on Data Mining and Web Intelligence

(DMWI2004), Conferences in Research and Practice

in Information Technology, Vol. 32, Australian

Computer Society, Bedford Park, Australia, pp. 127-

132.

Poggi, A., Tomaiuolo, M., and Turci, P., 2007. An Agent-

Based Service Oriented Architecture. WOA 2007, pp.

157-165.

Mok, W.Y., Palvia, P., and Paper, D., 2006. On the

computability of agent-based workflows. In Decision

Support Systems, Volume 42 , Issue 3 (December

2006), pp. 1239 – 1253, Elsevier Publishers B. V.

Buhler, P.A., Vidal, J.M., 2005. Towards Adaptive

Workflow Enactment Using Multiagent Systems.

Information Technology Management 6(1), pp. 61-87.

Negri, A., Poggi, A., Tomaiuolo, M., Turci, P., 2006.

Agents for e-Business Applications, in Proc. AAMAS

2006, Hakodate, Japan.

Zhu Q., Yeh M.C,,Cheng K.T. and Avidan S. 2006 Fast

Human Detection Using a Cascade of Histograms of

Oriented Gradients. In Proceedings of the 2006 IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition (CVPR2006), Vol. 2, IEEE,

pp. 1491-1498.

Viola, P. and Jones, M. 2001 Rapid object detection using

a boosted cascade of simple features. In Proceedings

of the 2001 IEEE Computer Society Conference on

Computer Vision and Pattern Recognition

(CVPR2001), Vol. 1, IEEE, pp. 511-518.

Coros K. 2009 Video Shot Selection and Content-Based

Scene Detection for Automatic Classification of TV

Sports News, Advances in Soft Computing, Vol. 64,

Springer, pp. 73-80, 2009.

Yun J.H. and Park R.H. 2006 Self-Calibration with Two

Views Using the Scale-Invariant Feature Transform.

Lecture Notes in Computer Science Vol. 4291

Springer , pp. 589-598.

EC Funded CAVIAR project/IST 2001 37540,

http://homepages.inf.ed.ac.uk/rbf/CAVIAR/

681

682

683

684

685

686

0 5 10 15

RAMconsumption

Numberoftrappoints

Systemscalability

RAM

ICAART 2011 - 3rd International Conference on Agents and Artificial Intelligence

530
