A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE

AND COMPONENT INTEGRATION

Rodrigo García-Carmona, Félix Cuadrado, Juan C. Dueñas

Departamento de Ingeniería de Sistemas Telemáticos, ETSI Telecomunicación, Universidad Politécnica de Madrid

Madrid, Spain

Álvaro Navas

Cloud & Security Laboratory, HP Labs, Long Down Av., Stoke Gifford, Bristol, U.K.

Keywords: OSGi, Open source, Software integration, Component distribution.

Abstract: Open source is a software development paradigm that has seen a huge rise in recent years. It reduces IT

costs and time to market, while increasing security and reliability. However, the difficulty in integrating

developments from different communities and stakeholders prevents this model from reaching its full

potential. This is mainly due to the challenge of determining and locating the correct dependencies for a

given software artifact. To solve this problem we propose the development of an extensible software

component repository based upon models. This repository should be capable of solving the dependencies

between several components and work with already existing repositories to access the needed artifacts

transparently. This repository will also be easily expandable, enabling the creation of modules that support

new kinds of dependencies or other existing repository technologies. The proposed solution will work with

OSGi components and use OSGi itself.

1 INTRODUCTION

In recent years software development has been

undergoing a huge change, evolving from a closed

software paradigm to new processes that incorporate

open source software in products and services. The

number and relevance of software developments

based in the open source paradigm have experienced

an exponential growth (Deshpande and Riehle,

2008).

The reason for this lies in the particular strengths

that open source can bring into the table, like its

ability to reduce IT costs, deliver products faster and

improve the security and reliability of systems. This

situation has been also fostered by the numerous

success cases in industry that have followed this

model. In fact, sources like Forrester have described

2009 as “the year IT professionals realized that open

source runs their business”, and predict that this

trend is going to continue in the following years

(Evelson and Hammond, 2010).

Most of the strengths that open source provides

are the product of the open communities and the

development models that arise from them. At this

point it has become clear that the community efforts

are leveraged by the participating elements, with

everyone benefitting from the created ecosystem.

Example succesful communities are the Apache

Software Foundation, the Eclipse Foundation, the

ObjectWeb community and SourceForge.

Those communities have matured with different

collaboration and architecture models. As a

consequence, these communities are like isolated

islands which no communication between them.

Unfortunately, while they achieve a very high

internal consistency, there is a severe lack of

compatibility and integration among them. This

hampers one of the most important factors for the

success of open source; the reusability of code, since

the lack of integration complicates this process.

These integration challenges are also aggravated by

the multiplicity of tools used by different projects.

To further complicate this issue, most of these tools

are not concerned in working with other solutions.

The heart of this problem lies in evaluating the

interdependencies of software components. These

García-Carmona R., Cuadrado F., Dueñas J. and Navas Á..

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION.

DOI: 10.5220/0003507000760085

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 76-85

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

dependencies tend to form a complex mesh that can

span several projects and code bases and it is

difficult and costly to navigate. One of the most

severe problems of open source development is

figuring which already existing components one has

to use.

In addition to the technology impedance

mismatch, there are additional factors which must be

considered. An often overlooked factor with open

source usage is the existence of several software

licenses. While on first thought these elements

should not interfere, they do actually restrict the

potential uses, since some of these licenses are

incompatible between them or with commercial

ones.

It can be seen that the problem lies not only in

code interoperability but also in additional aspects,

such as legal license compatibility, or design

according to similar hardware capabilities. In

practice, all these problems tend to produce

fragmentation, complicating the use of what

software it is already available.

The meeting point for this integration is, in

almost every community, a software repository.

Since the repository act as a central hub for all

development efforts, the difficulties exposed here

are particularly evident in it.

In this article we present a comprehensive,

model-based component repository that provides

two features that ease the integration of software

elements: 1) An automatic dependency resolution

that can work with several types of concerns

(software, hardware, etc...) and 2) A federation

system that can aggregate the contents of other

repositories and in turn expose their own

components to the outside world.

This repository has been developed in the

context of the ITEA-OSAMI European project and

its objective is to act as a main hub in an Internet

federation of repositories, while being publicly

available. It integrates artifacts published by the

members of both the ITEA-OSAMI project itself

and external partners.

This article is structured as follows: The next

section gives a brief explanation of the most recent

developments in the topics that concern our work.

Section 3 explains our proposal in detail, and section

4 performs a validation of our work using an

implementation of the repository. Finally, the last

section outlines the conclusions we have reached

and shows how our work could be further developed

in the future.

2 STATE OF THE ART

In this section we provide a brief state of the art of

the technologies that are especially relevant for our

proposal: the OSGi component model and the

already existing software repository solutions.

2.1 The OSGi Component and Service

Model

OSGi is an open specification that defines a

component and service model for the Java platform.

The latest version of the specification is 4.2 (OSGi

Alliance, 2009), and is maintained by the OSGi

Alliance, a consortium formed by embedded and

enterprise companies, such as IBM, Oracle, Red Hat

or Siemens. It was originally designed for home

gateways and embedded systems, but its adoption

has greatly increased lately in desktop tools and

enterprise application servers.

The relevance of the OSGI specification has

increased mainly because it provides a modularity

layer that was missing in the Java platform. This is

enabled by the definition of OSGi bundles. Bundles

extend java libraries (JAR files), allowing them to

expose their functionality to the rest of the platform

in a controlled way. Bundles use the Java manifest

file to declare explicitly what does the component

provide to the rest of elements (in the form of java

packages) and what does it require in order to work

property (either java packages or complete bundles),

providing in both cases version compatibility

information. This directly addresses the ‘JAR hell’

problem of complex Java-based systems, greatly

easing the deployment and configuration of new

software.

Additionally, OSGi bundles collaborate through

a lightweight service mechanism, with services

being runtime Java objects that implement

interfaces. This enables effective decoupling

between collaborating components and simplifies

the development of extensible systems. The OSGi

framework provides an execution platform for OSGi

bundles, enabling dynamic deployment and

configuration of the components. These factors

make OSGi bundles an ideal specification for open,

composable service-based ecosystems, as it provides

simple mechanisms for effective interoperability and

modularization.

All in all, OSGi is the best solution in the Java

world for the design and implementation of modular

applications. It enables an even lower coupling and

brings the SOA principles to the virtual machine.

Our proposal will use OSGi for both the components

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION

it will manage and the actual repository itself.

2.2 Software Repository Standards

At this moment there are several repository

technologies that are popular in open source

communities. Every one of them has its own

component model and capabilities. We detail each in

this section, with a special focus in their support of

OSGi bundles and federation capabilities.

Maven (Massol et al., 2004) is one of these

solutions, a software project management and

comprehension tool. Maven has become the de facto

standard for managing Java projects, thanks mainly

to the support and its extended use inside the Apache

community. Maven uses a generic project

description model for describing software projects

named Project Object Model (POM). The POM file

of a project defines the project’s lifecycle as well as

its dependencies and configuration parameters.

However, this model has been defined as generic as

possible, in order to cover a wide range of software

projects. Hence, it does not accurately reflect the

special relationships of specific types of software

components, such as OSGi bundles. For example,

dependencies onto a particular software package can

be defined, but not onto a complete bundle. POM

cannot describe these kinds of dependencies, losing

information in going from manifest to POM. Despite

this disadvantage, Maven repositories provide other

interesting capabilities, such as being able to store

all the information concerning a project (source

code, documentation, etc) or the hierarchical

federation with other Maven repositories,

augmenting the Maven basic dependency resolution

mechanism. However, this mechanism does not

work with repositories implemented using other

technologies.

Another model used to describe bundles is the

OBR (OSGi Bundle Repository) project. This model

was presented as the draft OSGi RFC 112 (Hall,

2006). The RFC defines both an XML schema for

bundle description and the Java API for browsing

OBR repositories. An OBR repository is very simple

in its structure, providing just an XML file

describing the server contents. This eases the

creation of OBR repositories as only the bundles and

how to download them need to be described, leaving

plenty of freedom to design the architecture

supporting those operations. This simplicity has the

drawback that the clients are forced to carry out

most of the operations, a problem aggravated by the

fact that there is no standard definition of an OBR

client. The draft status of the OBR presents

additional disadvantages, such as the lack of

mechanisms for managing repository contents (e.g.

upload new bundle, update, or delete). and that the

federation mechanism between OBR repositories is

not well-defined.

In the 3.0 version of Eclipse, the Eclipse

architecture was changed to use OSGi as the project

core. This change pushed the Eclipse community to

develop their own bundle repository, named P2 (Le

Berre and Rapicault, 2009). The P2 repository is

widely used, since version 3.4 of the Eclipse

Platform uses it as the management mechanism for

its components (OSGi bundles). The P2

specification defines two repository types: metadata

and artifact. The metadata repository stores

Installable Units, which are the P2 representation of

an artifact. This means that almost anything can be

described as an Installable Unit (configuration files,

bundles, executables, etc). The metadata repository

also provides the P2 federation mechanism.

Complementing it is the artifact repository, which

stores the binary and description files associated to

the Installable Units. There is also a third

component, the Director, which is part of the

repository client. The Director is in charge of

resolving dependencies and installing and

uninstalling the artifacts. However, this solution has

an important drawback: Its component model is

concerned only with software direct dependencies,

being oblivious to other constraints that could affect

artifacts.

Also, the increasing success of the OSGi

platform has stimulated the creation of proprietary

bundle repositories especially dedicated to store this

type of software components. The Spring Bundle

Repository (Rubio, 2009) is the most notorious

example of this trend. This repository stores a

collection of bundles and library description files

ready for production use. A library description file is

a document describing a set of bundles that are

frequently used together. The access to the

repository is made through Maven, Ivy or a web

interface. The web interface shows information

related to the dependencies and exported resources

of a bundle, offering links to download them.

However, the proprietary nature of this solution

greatly limits its applicability and usefulness.

It can be seen that there are a lot of existing

solutions for a bundle repository. But with the

exception of the Spring repository (which supports

Maven), there are no federation mechanisms

between repositories of different types. On top of

that, different development communities have

chosen different repository solutions. This fact

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

makes implementing a dependency resolution

mechanism a difficult task.

Despite a previous attempt at creating standard-

complying repositories (Iyengar, 1998), this work

has not been followed up since its publication.

However, in the digital contents world there are

many studies (Kraan and Mason, 2005) and

proposals (Smith et al., 2003) (Van de Sompel et al.,

2006) on this topic. But none of them have been

applied to a software artifact repository. There are

huge differences in nature and needs between

software components and multimedia contents, and

the solution that works with one cannot be used with

the other without severe modifications.

3 PROPOSED SOLUTION

In this section we detail our proposed solution. For

this aim we have divided this chapter in several

subsections.

As we have already said in the introduction, our

aim was to provide an artifact repository that helps

to improve software integration. To achieve this, our

solution provides two main features: A faceted

dependency resolution, and a repository federation

engine. One subsection is devoted to each of them.

Also, to fully grasp how we propose to fulfill

both, first we introduce two basic topics needed for

the proper understanding of our proposed repository:

1) the characteristics of the model representation of

software artifacts, and 2) the architecture of the

repository itself.

3.1 Software Component Metamodel

To enable the correct processing of the components

the repository needs to manage, and the integration

of information to and from other solutions, it is

imperative to have a model representation of the

software elements. Therefore, we have defined a

metamodel with enough expressivity to capture all

the information that we need, but at the same time

hiding non needed data.

From this metamodel, a model instance

describing each software artifact, its capabilities and

its needs can be created. We have named these

model instances Deployment Descriptors.

Although the metamodel will be primarily used

to represent OSGi-related artifacts, it has been

designed to support without modifications other

elements, such as non-bundle JARs or additional

component/service models (such as EJBs, Spring

beans or Web Services). The metamodel aims to

capture all the relevant information of all types of

software elements. This is enabled by the concept of

Resource, which we have adopted from the OMG

Deployment & Configuration (Object Management

Group, 2006) standard.

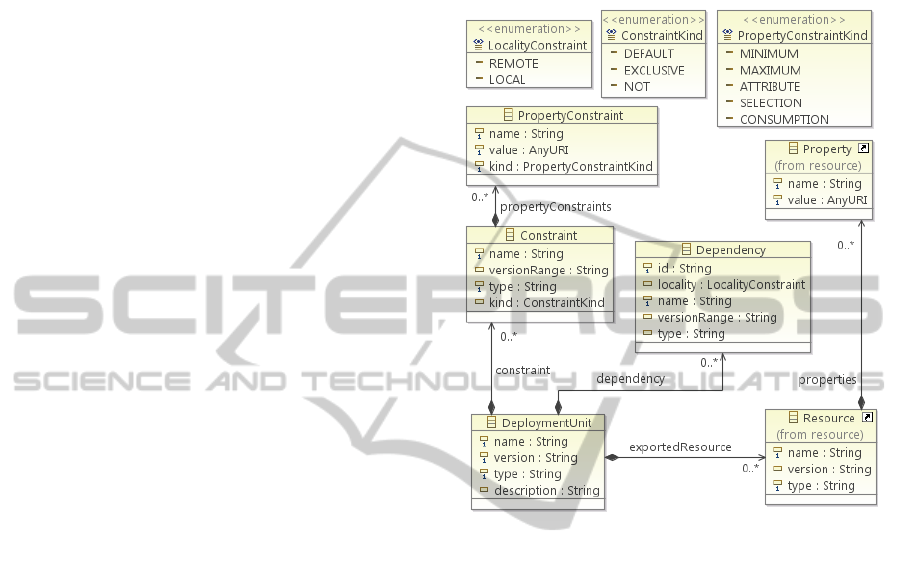

Figure 1: Software component metamodel.

Figure 1 depicts a subset of the metamodel. As can

be seen in it, Resources are the main building

blocks. A Resource represents any logical or

physical manageable system element, and it is

defined by three fixed parameters (name, version

and type) common to all Resources and an undefined

list of specific Properties for each Resource type.

The core element is the Deployment Unit.

Deployment Units represent the artifacts which can

be deployed over the environment containers. In an

OSGi context, Deployment Units represent OSGi

bundles. Conceptually, a Deployment Unit would be

the lowest abstraction level of our software model,

being the unit of software distribution. The

Deployment Unit is composed by a set of children

Resources, Dependencies and Constraints that

provide computable information about the

developer, software license, packaging type,

exported packages, logical dependencies and

hardware compatibility restrictions.

Dependencies represent the required physical

and logical dependencies needed in order to assure a

smooth running of the Deployment Unit. Two types

of elements can satisfy a Dependency: specific

Resources or whole Deployment Units. This

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION

represents the two main mechanisms defined in

OSGi: Require-Bundle and Import-Package. In

addition to this, the metamodel allows us to further

describe the type of Dependency, enabling to

differentiate requirements on remote resources such

as Web or REST Services from requirements that

must be satisfied by a unit in the same host (e.g. as it

provides a Java package). This aspect is identified

by a locality parameter that could be remote or local.

Finally, Constraints enable the expression of

requirements over the runtime execution

environment, each one requiring a specific Resource

to be present at (or absent from) the environment.

Following this definition, we have defined three

kinds of Constraints, depending on the required

behavior: default (to be present), exclusive (to be

present and not used more than once) and not (to not

be present). To further extend the Dependency and

Constraint models, Properties can be defined. Each

needed Property can be defined by a name, an

evaluation function and a threshold value.

As an example, a typical Constraint would

identify a Resource of type “hardware.processor”

with an additional Property “speed” of a kind

“minimum” and an expression value of “2000”. This

means that the Deployment Unit requires a

microprocessor with a minimum speed of 2 GHz.

Both Dependencies and Constraints are shown in

Figure 2.

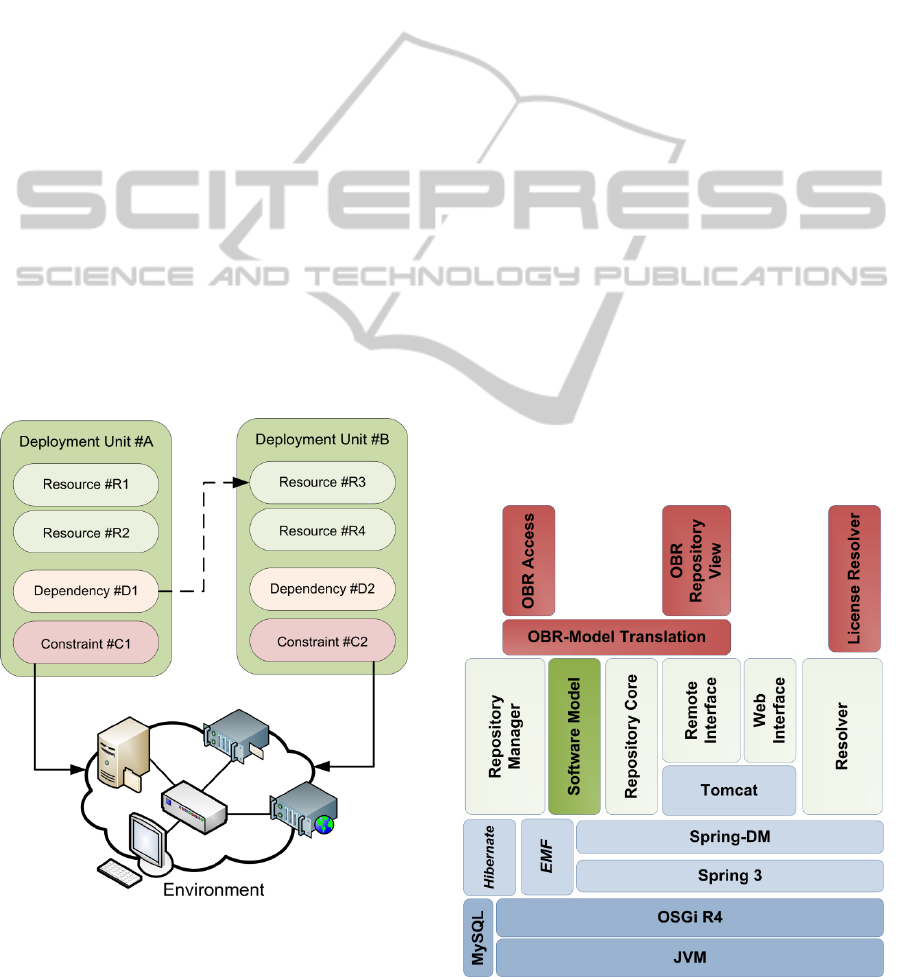

Figure 2: Dependencies and Constraints.

The metamodel allows us to represent all the OSGi-

specific mechanisms, as well as expressing

important information that is not contemplated on

the original format (the manifest file) or the

information models of other repository solutions.

This means that a conversion from one of those

solutions into our proposal would not result in the

loss of information, although the opposite would.

3.2 Repository Architecture

The need to federate with multiple types of

repositories, as well as evaluating component

dependency taking into account multiple factors

have motivated us to design the architecture of the

repository with a modular and extensible approach.

We have selected the OSGi platform as the base

technology to achieve those requirements, On a side

note, this allowed us to test the system from the

start, in order to check whether the repository was

able to host itself successfully. Figure 3 shows a

layered view of the repository components.

In the lower levels lie the Java Virtual Machine,

the OSGi framework, and a database solution for

storing the relevant information. On top of it are the

basic OSGi components from third parties that are

needed for the repository to work. The repository

uses Spring Dynamic Modules for structuring the

inter-bundle communications. The EMF (Eclipse

modeling Framework) components enable the

definition of the metamodel and provide the tools

needed to work with them programmatically.

Hibernate Provides an ORM (Object-Relational

Mapping) interface with the

Figure 3: Repository Architecture.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

database system. Finally, the Apache Tomcat

bundles embed a lightweight application server that

will host the remote access interfaces developed for

the repository.

The next layer contains the basic components of

the repository:

 Software Model: Provides the metamodel

defined at the previous section, as well as Java

bindings and marshalling mechanisms.

 Repository Core: The basic component of the

repository. Provides the main service

interfaces of the components and defines the

extension semantics.

 Repository Manager: This component

manages the physical artifacts and the

component information. It provides CRUD

(Create-Read-Update-Delete) operations over

the managed Deployment Units,

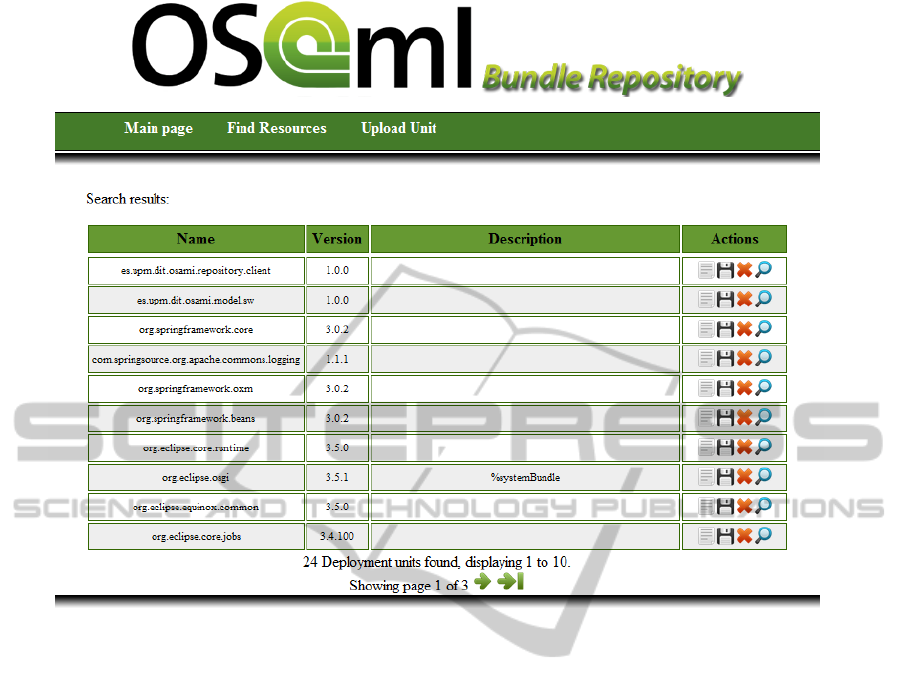

 Web Interface: Web-based graphical user

interface that allows human users to browse

the repository contents.

 Remote Interface: Exposes a REST interface

that enables the communication between the

repository and other software.

 Resolver: The component that processes and

resolves Deployment Unit dependencies,

obtaining unit closures that work correctly

together.

Finally, the topmost level of the diagram shows

some extensions to the repository that expand the

base functionality to federate with an additional type

of repositories (OBR), and apply additional criteria

for the dependency resolution. Over the next

sections we will present additional details on the

federation and resolution capabilities of the

repository.

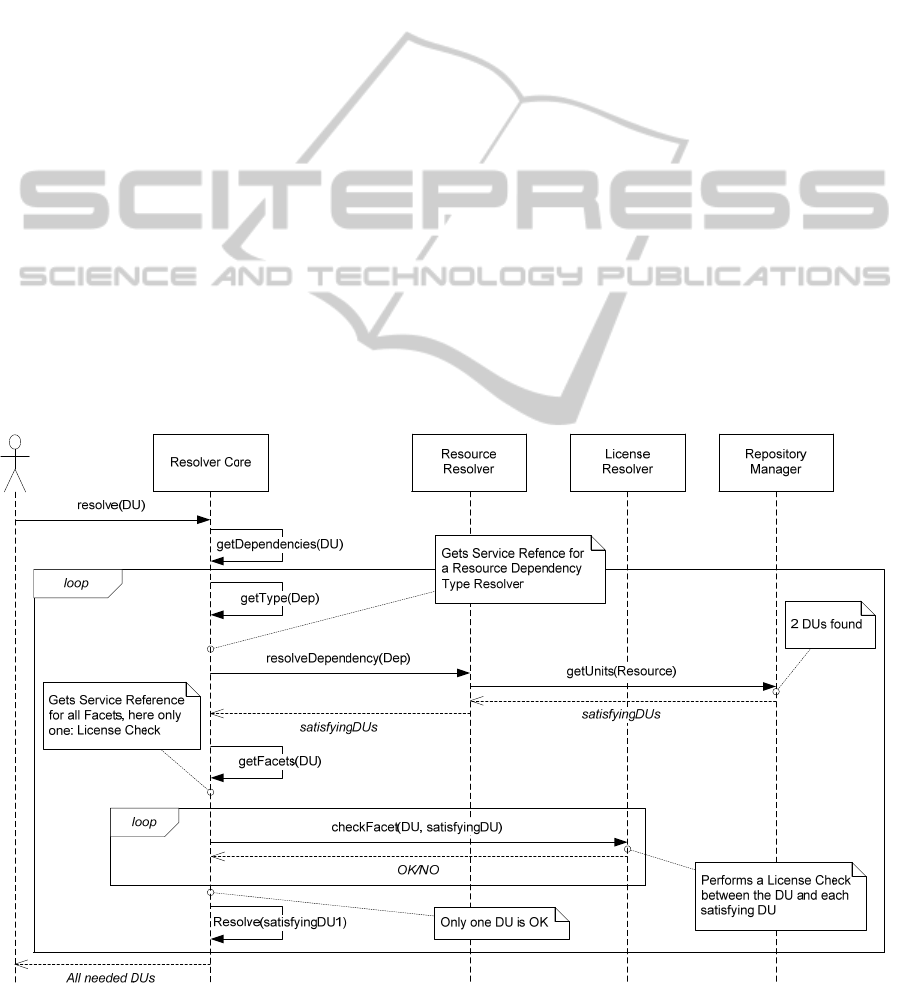

3.3 Faceted Dependency Resolution

This modular architecture makes possible the easy

expansion of the repository capabilities. This feature

is used to define different types of dependencies,

each one resolved by a different component.

Moreover, this structure enables the definition of a

faceted dependency resolution engine. In it, there are

not only several dependency types, but also

additional conditions that the candidates to satisfy

one need to comply. These conditions are called

Facets.

An example of a Facet is the license

compatibility. It is perfectly possible that a

Deployment Unit satisfies every dependency that

another has, but at the same time do not be valid

because their licenses are incompatible. Other Facets

could be security settings, packaging procedures or

execution requirements. Each Facet can be added to

Figure 4: Dependency Resolution.

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION

the resolution engine as an OSGi bundle, and it

offers its features as services that are called by the

resolution core component.

An example of this process that uses a License

Compatibility Facet we developed is shown in

Figure 4. In it a user calls the resolver with the

intention of knowing the dependencies needed for a

Deployment Unit (DU). The resolver processes

every Dependency, looking for other Deployment

Units that can satisfy it. After some of them have

been found, the resolver searches for Facets that

need to be checked and, after finding one (License

Compatibility), makes use of it. In this particular

example only one unit is valid after this check.

3.4 Repository Federation

To enable the integration between open source

components it is not enough to just resolve their

dependencies. It is also necessary to be able to

provide the artifacts that fulfill those requirements.

Since open source communities are fragmented and

each one uses different tools and techniques, the

repository needs to access and understand the

information that lies in other repositories. To

achieve this end, the federation capabilities allow

our repository to communicate with external types of

repositories currently available. Federation support

is designed with extensibility in mind, and each

technology extension can be federated just by

providing three services:

 Model transformation service between our

information model instances and the format

the target solution uses to represent software

artifacts.

 Remote manager service that accesses the

information contained in the external

federated repositories.

 Remote interface service that can be accessed

by the target solution repositories. This is only

possible if the target solution has some kind of

federation support for repositories of its own

type.

For a more detailed explanation of how these

features can be implemented we will use OBR as an

example of a target solution. An example of an

infrastructure that uses this two-way federation is

depicted in Figure 5.

3.4.1 Sample Integration: OBR

The OSGi Bundle Repository RFC is a draft

standard for providing a common interface to

distributed OSGi repositories. Its official nature,

alignment to OSGi concepts and the explicit

acknowledgement of federation requirements make

it an ideal candidate for testing our federation

approach. Here we present how we achieve two-way

integration between our repository instances and

federated OBR repositories.

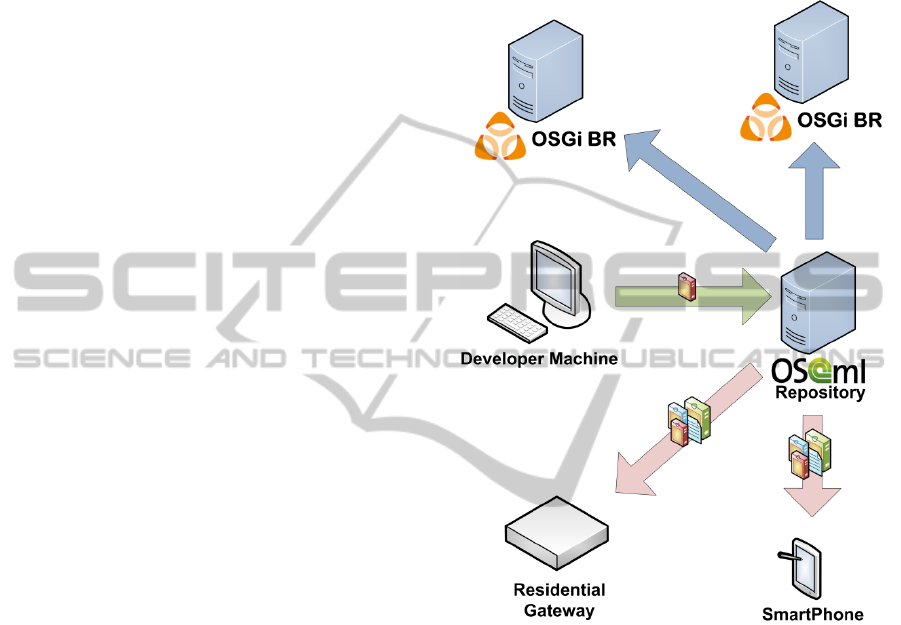

Figure 5: Repository Federation.

We talk about two-way federation, as we both

act as OBR providers and consumers. For external

OBR repositories, we offer an OBR view that can be

used by them in their standard federated dependency

resolution processes. Additionally, our repository

can handle a list of external OBR repositories, and

can delegate dependency resolution requests to the

distributed OBR instances. Both approaches of

federation are achieved though the same method:

Model transformation from our generic model to the

specific component model defined by OBR.

For maximizing extensibility, the OBR model

does not explicitly rely on OSGi concepts. The

repository works with resources, identified by a

symbolic name and a version. Additionally, a

download URL is provided for each element. Each

resource contains two types of declarations. First,

resources offer a list of capabilities to the

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

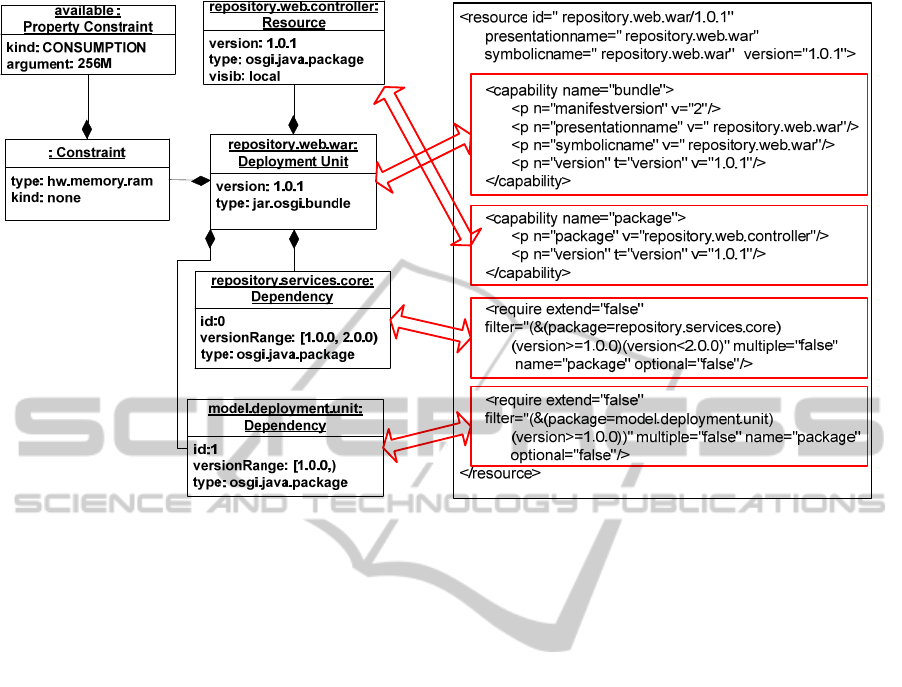

Figure 6: Model mapping between OBR and the presented model.

environment. They represent either the whole

element (named bundle), or a software element such

as a java package (named package). Each capability

is further refined through properties, which have a

name, value and value type (e.g. String or number).

The second kind of elements are requirement

statements, that demand the presence of resources in

the resolved configuration. They model logical

requirements that must be satisfied. This

specification’s concepts can be mapped to a subset

of the Deployment Unit model.

Figure 6 presents an example mapping between

both models. Every OBR concept has an equivalent

definition in our abstractions. The OBR resource

plus the bundle capability elements are mapped to

the base Deployment Unit concept (The definition of

units as resource subclasses allows this). Additional

capabilities are mapped to unit exported Resources,

such as the presented java package. Resource

visibility information is lost, which is not

problematic for OSGi-specific elements (all of them

are local), but presents the limitations of OBR for

reasoning over distributed physical environments.

Additionally, each OBR requirement is mapped into

a logical Dependency. All the information derived

from the Constraints from our model has no

equivalent. This bears no impact from the OBR

perspective, as our repository provides all the

required information. On the other hand, the use of

federated OBR repositories by our specific instance

can result in lesser-quality results, in cases when

physical concerns need to be evaluated.

4 VALIDATION

ITEA-OSAMI is an European project which is being

executed by 34 partners from both the academia and

enterprise. The objective of this project is to develop

open source common foundations for a distributed,

dynamic service-oriented platform.

Consortium partners come from multiple

domains (healthcare, personal, and mobile office),

follow different software development processes,

and depend on existing open source resources from

different communities. This created a need for a

centralized platform that eased partner integration.

The repository presented in this article has been

developed and deployed in order to address the

project requirements. It has widely succeeded at this

task, becoming the central point of the ITEA-

OSAMI ecosystem. ITEA-OSAMI’s running

instance of the repository can be publicly accessed

at: http://repository.osami-commons.org (Figure 7

shows the visual aspect of the web interface, whis is

listing several units already resolved).

After assessing partner concerns, we provided

two extensions to the repository. Regarding

federation, OBR support was developed, as it was

mandatory to support OBR-based deployment

clients as well as accessing open source bundles

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION

Figure 7: Screenshot.

developed at two third-party repositories.

Additionally, since the beginning of the project open

source license management was a potentially

conflicting aspect among partners. However, these

issues were addressed with the definition of a

license-aware dependency Facet, based on the

dependency compatibility analysis module from

another project partner.

In this context, we have validated the proposed

metamodel, as well as the defined architecture and

extensibility capabilities. It has successfully been

used by all the project partners, providing a common

integration point for the developed open source

software and services, both internally created and

from the main open source communities.

5 CONCLUSIONS AND FUTURE

WORK

In this article we have proposed an architecture of a

model-based repository for the integration of

software components, with a special focus on OSGi

bundles. This repository has been designed around

an information model for software components,

which manages to show all relevant data while

hiding the undesired complexities.

We have also shown how this architecture has

been designed to be extensible. Using this

modularity we have demonstrated how it can be

easily expanded to support two important features:

 Faceted dependency resolution: Offers support

for an unlimited number of conditions that

dependencies are forced to respect.

 Two-way federation: Enables our solution to

access contents available in other repositories

and at the same time expose itself to them.

We also have developed a license compatibility

Facet and the components needed to achieve

federation with OBR repositories.

Finally, our work has been validated in the

context of the ITEA-OSAMI European project,

where it has been subjected to an intensive use by

more than 30 partners from different countries and

sources (universities, research centers, software and

telecom companies, etc).

Concerning future developments, the most

straightforward way to improve the already existing

work is through the support of more repository

technologies for federation and new dependency

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

Facets. In the first field, federation with Eclipse P2

would be the most interesting repository to support,

since it sees wide use in several communities. About

dependency Facets, more of them could be

developed, taking as an example the license check

already created. These components are relatively

easy to implement thanks to the infrastructure of our

proposal.

Not directly related with this, but also

interesting, are the possibilities for the repository to

work in a cloud environment. This line of work is

concerned not only with the deployment of the

repository itself, but also with how it can manage the

software artifacts of several types of cloud solutions

(IaaS, PaaS or SaaS). To support features like these

the information model would probably need to be

extended and the architecture of the repository

revised.

ACKNOWLEDGEMENTS

The work presented in this article has been

performed in the context of the European project

ITEA-OSAMI, under grant by Spanish Ministerio de

Industria, Turismo y Comercio in the PROFIT

program.

REFERENCES

Deshpande, A., Riehle, D., 2008. The Total Growth of

Open Source. In: Proceedings of the Fourth

Conference on Open Source Systems. Springer Verlag.

Evelson, B., Hammond, J., 2010. The Forrester Wave:

Open Source Business Intelligence (BI), Q3 2010,

Forrester Research.

OSGi Alliance, OSGi Service Platform Release 4 Version

4.2 Specifications. June 2009.

Massol, V., Van Zyl, J., Porter, B., Casey, J., Sanchez, C.,

2006. Better builds with Maven. Mergere Inc.

Hall, R. S., OSGi RFC-0112 Bundle Repository. February

2006.

Le Berre, D., Rapicault, P., 2009. Dependency

management for the Eclipse ecosystem: Eclipse P2,

metadata and resolution. In: Proceedings of the 1

International Workshop on Open Components

Ecosystem. ACM.

Rubio, D., 2009. Pro Spring Dynamic Modules for

OSGi™ Service Platforms. Apress

Iyengar, S., 1998. A universal repository architecture

using the OMG UML and MOF. In Enterprise

Distributed Object Computing Workshop. EDOC '98.

Proceedings. Second International.

Kraan, W., Mason,J., 2005. Issues in Federating

Repositories, A Report on the First International

CORDRAtm Workshop. In: D-Lib Magazine, Vol. 11,

Num. 3.

Smith, M., Barton, M., Bass, M., Branschofsky, M.,

McClellan, G., Stuve, D., Tansley, R., Walker, J.H.,

2003. DSpace, An open Source Dynamic Digital

Repository. In D-Lib Magazine, Vol. 9 Num. 1.

Van de Sompel, H., Lagoze, C., Bekaert, J., Liu, X.,

Payette, S., Warner, S., 2006. An Interoperable Fabric

for Scholarly Value Chains. In D-Lib Magazine, Vol.

12, Num. 10.

Tansley, R., 2006. Building a Distributed, Standards-

based Repository Federation, The China Digital

Museum Project. In D-Lib Magazine, Vol. 12, Num.

7/8.Moore, R., Lopes, J., 1999. Paper templates. In:

TEMPLATE’06, 1st International Conference on

Template Production. SciTePress.

Van de Sompel, H., Chute, R., Hoschstenbach, P.. The

aDORe federation architecture: digital repositories at

scale. In: International Journal on Digital Libraries,

Vol. 9, Num 2.

Object Management Group. Deployment and

Configuration of Distributed Component-based

Applications Specification. Version 4.0. April 2006.

A MODEL-BASED REPOSITORY FOR OPEN SOURCE SERVICE AND COMPONENT INTEGRATION
