DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL

MODULARITY

Philip Huysmans

Department of Management Information Systems, University of Antwerp, Prinsstraat 13, Antwerp, Belgium

philip.huysmans@ua.ac.be

Keywords:

Enterprise Architectures, Business Innovation and Software Evolution, Business-IT Alignment and Traceabil-

ity.

Abstract:

In volatile and customer-driven markets, the ability to innovate is a key success factor. Innovations have to

be implemented at a steady pace to ensure business sustainability. However, the innovation process is only

poorly understood. Therefore, many organizations and governments have difﬁculties stimulating and manag-

ing innovation. Several authors have proposed organizational modularity as a theoretical basis to understand

and manage innovation. Their main argument is that a modular structure enables parallel evolution of different

organizational modules. Consequently, innovations can be implemented without being limited by implemen-

tation aspects of other organizational modules. Modularity has been applied by various authors on different

levels of the organization, such as products, processes, departments, and supporting IT systems. Moreover,

enterprise architecture frameworks allow the modeling of different viewpoints of an organization. However,

few organizations can be considered to have completely decoupled organizational layers. Consequently, de-

pendencies between organizational modules on different enterprise architecture layers can heavily impact the

ability to introduce innovations. In this paper, we demonstrate how modular dependencies impact enterprise

architecture projects in two case studies. We then present a case study to illustrate how a modular dependency

approach can be used to complement existing modeling approaches.

1 INTRODUCTION

Contemporary organizations are faced with rapidly

changing environments. As a result, innovations need

to be introduced in the organization in order to re-

main competitive in these markets. The introduction

of innovations often impacts many different aspects

of the organization. For example, Barjis and Wamba

describe the impact on organizations caused by the in-

troduction of RFID technology (Barjis and Wamba,

2010). Besides the adaptation of the business pro-

cesses through, for example, BPR, it can be expected

that other organizational artifacts need to be adapted

as well. Data management systems need to able to

handle “enormous” data volumes (Barjis and Wamba,

2010), hardware infrastructure and software applica-

tions need to be purchased to handle accurate track-

ing, and customer acceptance needs to be handled by

privacy commissions and marketing departments.

Enterprise architecture projects are frequently ini-

tiated to guide the change process needed to imple-

ment such innovations (Schekkerman, 2005). Enter-

prise architecture frameworks help to identify the dif-

ferent elements to which changes need to be applied.

In such frameworks, models are created from dif-

ferent perspectives or viewpoints. Complexity from

other viewpoints is abstracted away to be able to fo-

cus on the concerns of a speciﬁc viewpoint. While

this approach aids understandability of different as-

pects of the organization, it can lead to unexpected

results when artifacts from different viewpoints im-

pact each other. This can be observed in the case of

RFID, where changes to processes can be hindered by

the data structures on which they operate. When inno-

vative processes are designed using a BPR approach,

but data systems are unable to support the required

data types, implementation of the new processes will

be problematic. Possibly, the redesigned processes

will then need to be altered in order to be supportable.

Consequently, adapting processes can be impacted by

the concrete data implementation, which is not com-

pletely visible in the models which are created in a

Huysmans P.

DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL MODULARITY.

DOI: 10.5220/0004458500510060

In Proceedings of the First International Symposium on Business Modeling and Software Design (BMSD 2011), pages 51-60

ISBN: 978-989-8425-68-3

process viewpoint. While aspects of this implemen-

tation are not visible in these models, they do impact

the way these models can be used, and therefore need

to be considered.

In this paper, we argue that modular dependen-

cies can be used to explicitly identify such impacts.

This approach can be applied complementary to ex-

isting enterprise architecture modeling. We introduce

relevant literature for this approach concerning mod-

ularity and enterprise architecture frameworks in Sec-

tion 2. We then present three case studies to illus-

trate the application of modular dependencies in or-

ganizations which are faced with innovations which

require changes in several viewpoints. In Section 3,

we present two case studies to demonstrate the impor-

tance of modular dependencies between layers in the

enterprise architecture. In the ﬁrst case study, we de-

scribe how dependencies between enterprise architec-

ture layers limit the ability to react to market changes

in a public broadcasting company. In the second case,

we elaborate on a previously published case study to

show the importance of eliminating such dependen-

cies in order to design a structure which allows the im-

plementation of innovations. In Section 4, we demon-

strate in more detail how an approach using modu-

lar dependencies can be applied during an enterprise

architecture project. Finally, we present our conclu-

sions on these cases in Section 5.

2 RESEARCH BACKGROUND

In this section, we introduce a necessary background

of modularity and enterprise architecture research lit-

erature.

2.1 Modularity

Organizational modularity recently receives much at-

tention in both research and practice. Campagnolo

and Camuffo provide a literature overview of 125

management studies which use the modularity con-

cept (Campagnolo and Camuffo, 2010). They deﬁne

modularity as “an attribute of a complex system that

advocates designing structures based on minimizing

interdependence between modules and maximizing

interdependence within them” (Campagnolo and Ca-

muffo, 2010). They argue that organizational artifacts

such as products, production systems, and organiza-

tional structures can be regarded as modular struc-

tures. A characteristic of a perfect modular structure

is that it allows parallel evolution of different mod-

ules (Baldwin and Clark, 2000). However, dependen-

cies between the modules of such a structure limit

the autonomy of the individual modules. Baldwin

and Clark state that “[b]ecause of these dependencies,

there will be consequences and ramiﬁcations of any

choice” made during the design of the artifact (Bald-

win and Clark, 2000). A design choice for a given pa-

rameter can limit or affect the possible design choices

concerning other parameters. In traditional modular-

ity approaches (e.g., product modularity), dependen-

cies between and within modules are visualized by

Design Structure Matrices (DSM). In a DSM, an ar-

tifact is described by a set of design parameters. The

matrix is then ﬁlled by checking for each parameter

by which other parameters it is affected and which

parameters are affected by it. The result is a map of

dependencies that represent the detailed structure of

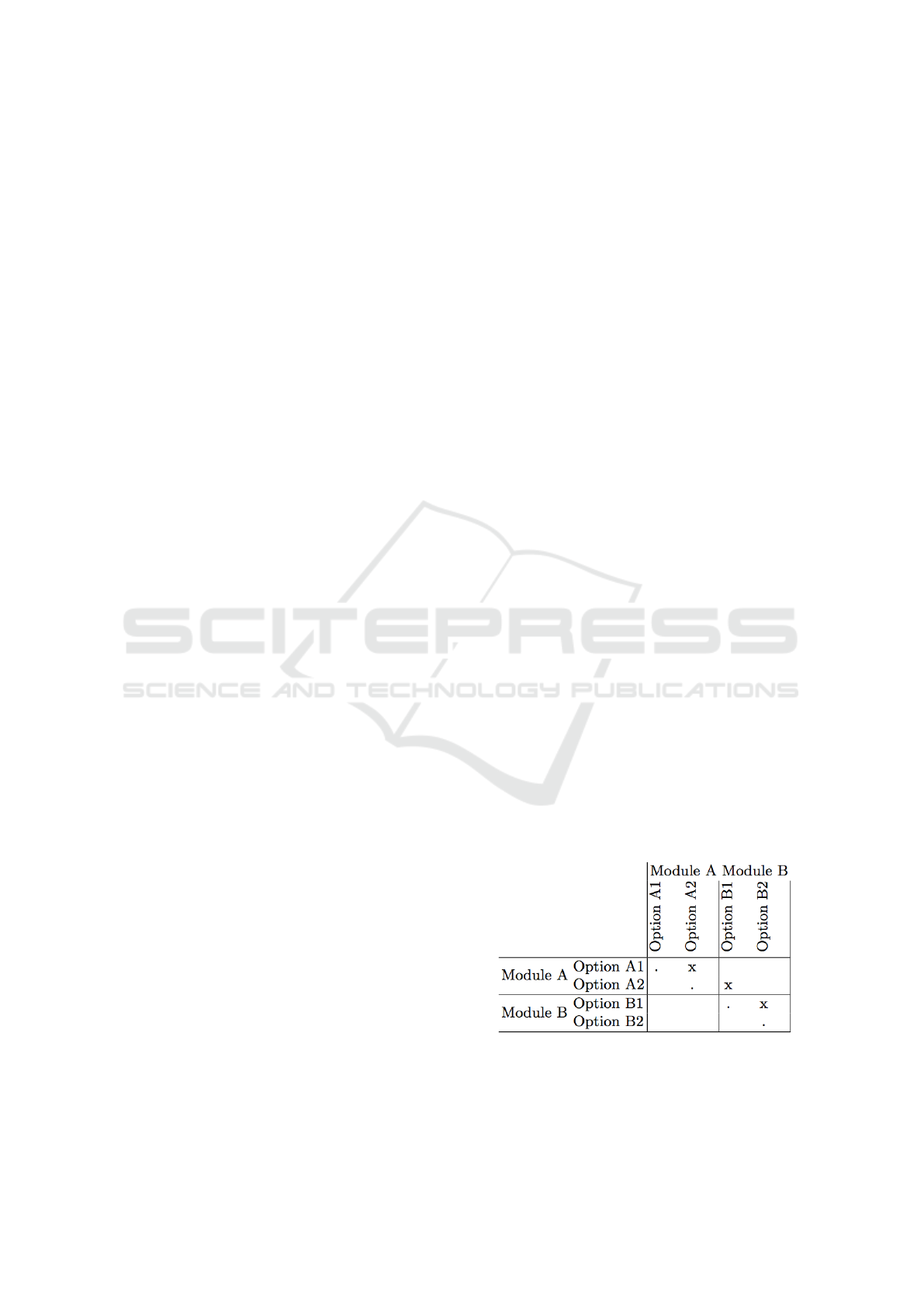

the artifact. An example design structure matrix is

shown in Figure 1. Dependencies are represented by

an “x”. The intersection of identical design options is

marked with a “.”. Consider the design dependency

which is represented by the “x” in the intersection of

the column of design option A2 and the row of de-

sign option A1. This signiﬁes that design option A2

inﬂuences design option A1: the design decision for

design option A1 will be dependent on the decision

taken for design option A2. This dependency does not

break the modular structure of the artifact, since de-

sign options A1 and A2 both belong to the same mod-

ule. Now consider the dependency of design option

B1 on design option A2. Since these design options

belong to different modules, it can be concluded that

these modules are directly dependent on each other.

Therefore, this dependency does violate the modular

structure. Indirect or chained dependencies can oc-

cur as well. While design option B2 does not seem to

affect any design options of module A, it does affect

design option B1. As we discussed before, design op-

tion B1 does affect design option A1. Therefore, a

so-called chained dependency exists between design

options B2 and A2.

Figure 1: An example Design Structure Matrix.

Originally, DSMs were used to model modular

products. In later publications, a DSM was also ap-

plied to model organizational departments (Baldwin

BMSD 2011 - First International Symposium on Business Modeling and Software Design

and Clark, 2003). This indicates that similar tools can

be used for analyzing modularity on various levels. In

this paper, we will focus on modularity on the orga-

nizational and software levels. Organizational modu-

larity focuses on other artifacts than product modular-

ity within the same organization. Research on this

level has been performed by, for example, Galunic

and Eisenhardt (Galunic and Eisenhardt, 2001). Galu-

nic and Eisenhardt consider organizational divisions

as modular organizational building blocks. These di-

visions, which have independent decision power, cost

structures and proﬁt responsibility, are a combination

of capabilities and charters. Charters represent the

task, market and customer a division is concerned

with. Charters need to be able to change as mar-

kets evolve. By dynamically attributing these charters

to organizational divisions, a ﬂexible organization is

created which can adapt to changing market condi-

tions. This kind of modularity therefore enables the

ﬂexibility required on a business level. On the soft-

ware level, modularity is used to achieve a ﬂexible

structure as well. For example, Parnas argued that

a modular decomposition in software systems should

be made to isolate the impact of changes (Parnas,

1972). When the impact of a change remains within

a module, changes can be applied to individual mod-

ules without requiring changes in the rest of the sys-

tem. While modularity is applied to both the orga-

nizational and IT level by various researchers, most

research project focus on a single level. However, in-

teractions between a modular approach on the orga-

nizational and the software level remain an important

issue. Given the high dependence on IT systems, it

is important that a change on the organizational level

(e.g., changing chapters) can be handled by the sup-

porting IT systems as well. Otherwise, the inability

to change the IT systems will restrict the ability to

change organizational modules. Indeed, modularity

needs to be considered as a relative attribute of com-

plex systems (such as organizations), meaning that

within a single artifact, different levels of modularity

can exist (Simon, 1962).

2.2 Enterprise Architecture

Enterprise Architecture (EA) frameworks provide in-

sight to the structure of organizational goals, divi-

sions, and supporting IT systems. By specifying

separated viewpoints on organizational artifacts, an

overview is provided of specialized models created

by different stakeholders (The Open Group, 2009).

Most enterprise architecture frameworks use a top-

down perspective. They start by deﬁning business

goals and a high-level artifacts to realize these goals

(e.g., an organizational structure). Based on these ar-

tifacts, lower-level artifacts are deﬁned which offer

services to support the business level. The following

architectural levels are usually identiﬁed (Sch

oenherr,

2008):

• Business layer

• Functional layer

• Information layer

• Infrastructure layer

For example, TOGAF suggests to use an iterative pro-

cess consisting of eight phases to develop an enter-

prise architecture. Based on the business goals which

are deﬁned in the ﬁrst phase, different architectures

need to be developed in the following order: business

architecture (second phase), information systems ar-

chitecture (third phase), and technology architecture

(fourth phase). These architecture correspond to the

deﬁned layers. The business architecture is deﬁned

on the business layer. The information systems ar-

chitecture consist of both the functional and informa-

tion layer. The technology architecture is addressed

on the infrastructure layer. This approach assumes

that supporting services can be created straightfor-

wardly based on business requirements. However,

when implementation-focused approaches are de-

scribed (e.g., Service-Oriented Architecture), the ex-

isting infrastructure is often an important restriction

on the services which can be provided. Consequently,

the focus of such approaches is often on subjects such

as legacy integration. Approaches which explicitly

integrate an implementation approach with business

goals (e.g., SOMA) therefore use a middle-out ap-

proach (Arsanjani et al., 2008). Such an approach

takes into account the possibilities of the supporting

systems, and attempts to ﬁnd the best solution for the

business requirements. Indeed, the use of additional

methods illustrates that a top-down approach in enter-

prise architectures needs complementary approaches

to deal with complex environments. In a literature re-

view on enterprise architectures, Lucke et al. identify

several issues which motivate this need (Lucke et al.,

2010). First, complexity is referred to as an under-

estimated issue. Not only the complexity of the mod-

els themselves, but also the dependencies between the

different layers remain problematic. Second, rapidly

changing conditions imply that a top-down speciﬁ-

cation of an enterprise-wide architecture can become

out-dated before it is even implemented. Third, a top-

down speciﬁcation of the architectural layers results

in issues regarding scoping of architecural descrip-

tions. Rather than being straightforward, the identiﬁ-

cation of organizational and technical services to sup-

port business requirements is often considered to be

DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL MODULARITY

problematic. Therefore, a complementary approach

is required to represent the impact of lower-level lay-

ers on higher-level layers.

2.3 Modularity in Enterprise

Architectures

Several authors link the explicit decomposition of

viewpoints in enterprise architecture frameworks to

the ability to independently change artifacts. This

indicates how enterprise architecture frameworks can

be linked to the modularization of organizations. For

example, business modularity is considered to be the

highest level of enterprise architecture maturity (Ross

and Beath, 2006). On this maturity level, the role of

IT in an enterprise architecture is to “provide seamless

linkages between business process modules” (Ross

and Beath, 2006). Such business process modules al-

low “strategic experiments that respond to changing

market conditions” (Ross and Beath, 2006). Based

on a practitioners survey, it seems that many business

users indeed expect an enterprise architecture to en-

able their ability to change in response to market con-

ditions (Schekkerman, 2005). A modularity perspec-

tive can aid to speciﬁcally focus on the issues speci-

ﬁed by Lucke et al. (Lucke et al., 2010), which have

been mentioned above: identifying modular depen-

dencies reveals how complexity is introduced when

modules are added; the parallel evolution of modules

limits the impact of rapidly changing conditions; the

explicit speciﬁcation of modules aids scoping archi-

tectural descriptions.

Consequently, independence between enterprise

architecture layers should be achieved by deﬁn-

ing business components and standardized interfaces

based on the artifacts modeled in the different lay-

ers. This shows that an explicit focus on the coupling

of artifacts from different enterprise architecture lay-

ers is required to gain insight in the kind of changes

which can be supported. In the case studies we per-

formed, dealing with this kind of coupling adequately

often seemed to be an important success factor. An

approach which explicitly shows these impacts can

therefore help to improve insight in the change pro-

cess.

3 CASE STUDY OBSERVATIONS

In this section, we illustrate the occurrence and im-

pact of modular dependencies between artifacts from

different levels in an enterprise architecture. The pre-

sented case studies are part of a larger group of case

studies which aim to apply insights from modularity

to enterprise architectures. These case studies have

been performed adhering to the case study method-

ology (Yin, 2003). Given the ambiguity of the deﬁ-

nition of enterprise architecture in both practice and

academic literature, and the large scope of enterprise

architecture frameworks, it is difﬁcult to clearly dis-

tinguish between the research subject itself and the

organizational environment. Therefore, we selected

an exploratory case study approach, since it is well

suited for research goals where the boundaries be-

tween phenomenon and context are not clearly de-

ﬁned (Yin, 2003). In the various cases, we have

used the key informant method to identify informants

who were highly knowledgeable about and involved

in the enterprise architecture projects. The primary

mode of data collection consisted of face-to-face in-

terviews. In preparation for these interviews, vari-

ous documents (e.g., documentation and presentation

materials, documents on the organizational structure)

have been consulted to gain an initial understanding

of the organization and the project itself. A case study

protocol was crafted, including an initial set of ques-

tions. These questions concerned various topics (e.g.,

architecture deﬁnition, expected beneﬁts and barri-

ers), in order to obtain a thorough description of the

project. Follow-up questions took place via e-mail.

During the interview, additional sources of evidence

were collected, such as articles and internal documen-

tation. The interview was digitally recorded and tran-

scribed for future reference.

3.1 Public Broadcasting Company

In a ﬁrst case study, we observe a public broadcasting

company (PBC) which is faced with changing cus-

tomer demands. We focus on the division which is

responsible for broadcasting news journals. Tradi-

tionally, this organization offers radio and television

transmissions, which follow a clearly deﬁned sched-

ule. The radio and television business units import

news items from different sources, such as feeds from

external agencies, or items made by reporters. Items

can be imported using physical tapes, digital ﬁles or

through satellite transfers. The items are then edited

and transmitted in the form of a news journal. How-

ever, since the introduction of the internet, customers

demand personalized and real-time access to trans-

missions. Therefore, the content of news journals

needs to be approached differently. The PBC decided

to create a dedicated business unit to create an online

channel, next to the existing radio and television units.

This new business unit could reuse content from both

the radio and television units, and create dedicated on-

line news items as well. Adding the online channel

BMSD 2011 - First International Symposium on Business Modeling and Software Design

was considered to be a necessary strategic move in

order to serve a changing market. For the PBC, the

radio, television and online business units are there-

fore situated on the business layer of their enterprise

architecture.

Adding this additional business unit posed serious

problems due to the supporting structure of the PBC

on the lower enterprise architecture levels. For ex-

ample, accessing existing radio and television items

proved to be complex, since they were stored in spe-

cialized applications. For every import channel (tape,

digital or satellite), different applications needed to be

used. This is a direct result of the principles used to

develop the application portfolio, which was located

on the functional layer in the enterprise architecture.

As a general principle, the organization always selects

best-in-class software solutions for specialized me-

dia editing. This principle ensured the most efﬁcient

editing process. However, this results in an applica-

tion portfolio which is not well integrated. Employees

with specialized competences are required to operate

these software packages. Therefore, in order to reuse

audio and video fragments for the online channel, em-

ployees with these competences needed to be made

available for the online business unit. This resulted

in a duplication of skill sets, which was not efﬁcient.

The inclusion of employees with the competence to

use the specialized software packages was not fore-

seen when the new business unit was deﬁned. How-

ever, the coupling between software packages and

employee competence on the information layer ne-

cessitates this inclusion. Put differently, the required

competences deﬁned on the business layer need to be

adapted to account for a dependency on the functional

level. It should be noted that coupling on the func-

tional layer is solved by adapting the artifacts which

are deﬁned on the business layer. Consequently, the

ability to take strategic decisions to serve an emerg-

ing market are impacted by decisions made on the

functional layer. While the principle to select best-in-

class applications may be justiﬁed for this sector and

the performance of the organization, the lack of inte-

gration which it causes and the restrictions it places

on business ﬂexibility need to be understood as well.

When considered as a modular structure, this depen-

dency can be represented using a DSM. The DSM

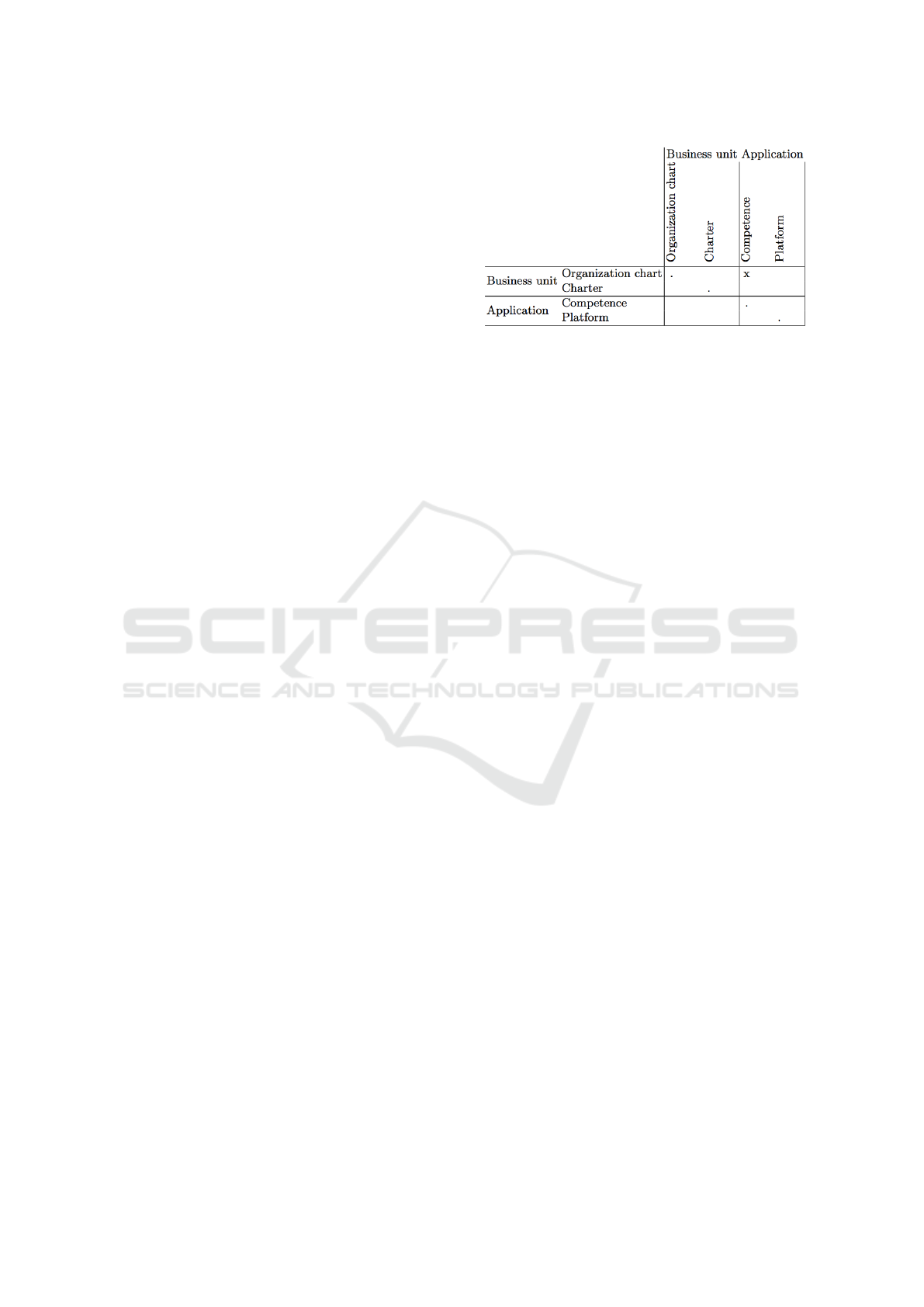

is presented in Figure 2. It shows how a design pa-

rameter from the applications, which are part of the

functional layer, affect the organization chart design

parameter of the business unit, which is part of the

business layer.

Since the PBC was unable to motivate the costs of

specialized employees for the new channel, a struc-

tural solution was proposed. The dependency on the

Figure 2: The DSM for PBC.

required application capabilities forces the the organi-

zation to deal with concerns from the functional layer

on the business layer, i.e., the different handling of

tape, digital and satellite items. This dependency was

removed by developing an abstraction layer on top of

the functional layer, which provided only the func-

tionality needed on the business layer. This abstrac-

tion layer was deﬁned based on concepts known in

the business layer: the basic entity on this abstrac-

tion layer was a news item. A news items entity ab-

stracts from the method which was used to import the

source material. Therefore, it served as a kind of in-

terface to the specialized software applications. For

every application, audio and video fragments can be

extracted, together with the required meta-data, in a

uniform way. The speciﬁc functionality of the edit-

ing programs is not available through this interface.

In order to use the editing functionalities, specialized

competences remain necessary. However, the need

for employees with these competences is now not im-

posed on the business layer, only on the functional

layer.

This introductory case shows that decisions taken

on the functional layer of enterprise architectures can

make changes to the business layer more complex.

By adequately encapsulating the complexity from the

functional layer, dependencies between the different

layers can be removed, and necessary services can

still be offered. As a result, decisions on the busi-

ness layer only need to deal with the inherent com-

plexity imposed by the business environment, instead

of dealing with complexity originating from the sup-

porting layers as well. In this case, the number of

modules is low and the dependency which limits the

business layer is clear. However, this case provides a

clear illustration of the issue we address in this paper.

3.2 Gas Flow Manager Company

In a second case study, we observed an enterprise

architecture project at a gas ﬂow manager company.

The company offers gas transport services to its cus-

DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL MODULARITY

tomers based on a grid consisting of entry points,

nodes, and pipelines connecting the nodes. The func-

tional and information layer of the enterprise architec-

ture had to be rebuilt after the company was separated

from a gas trading company. The legislation concern-

ing liberalization of the energy market demanded this

separation, as the company had to offer its gas trans-

port services to other gas trading companies as well.

Prior to the architectural redesign, IT was generally

considered to be a bottleneck during the implemen-

tation of changes by business users. The new archi-

tecture needed to be able to respond better and more

quickly to changing business requirements and had to

be understandable for business users, so they could

more realistically estimate the impact of the changes

they requested. Therefore, it was decided to clearly

align the functional architecture with a high-level en-

terprise architecture model on the business level. This

model needed to be constructed in such a way that the

stable operation and stakeholders of the organization

are represented. If the subsequent changes required

changes in the high-level model, it would not be use-

ful as a basis for the functional architecture. The issue

of rapidly changing conditions has indeed been ad-

dressed as an important enterprise architecture issue

by Lucke et al. (Lucke et al., 2010). Put differently,

business changes need to be attributed to the imple-

mentation of the model elements, not on the nature of

the elements itself. The model which was designed is

shown in Figure 3. The modeled activities represent

generic descriptions of the business-level construction

of the organization (e.g., Deﬁne commercial services).

In order to achieve a well-aligned business and func-

tional architecture, a separate application has been de-

veloped to support the scope of exactly one activity in

this model.

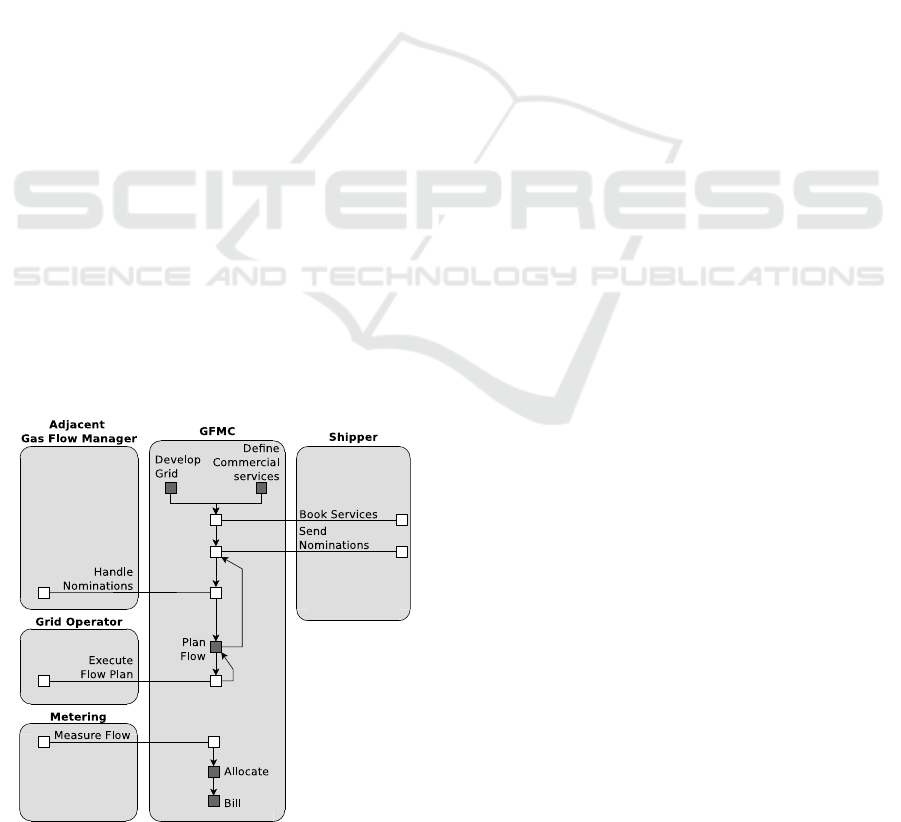

Figure 3: Stable GFMC model.

In a previous publication, we focused on a repeat-

able and reproducible method to design such models

(Huysmans et al., 2010), and the beneﬁts which can

be achieved with such an approach. That description

was limited to the top layers of the enterprise archi-

tecture, i.e., the business and functional layers. In

this paper, we focus on the preconditions for apply-

ing this approach, which are situated on the functional

and information layers. For this approach to work, the

speciﬁcation the functional layer may not be restricted

by the information layer. Modular dependencies be-

tween artifacts from the information layer and arti-

facts from the functional layer can be used as an indi-

cation for such restrictions. Before the organizational

split, applications had separate data sources, which

impacted the speciﬁcation of application scope. Put

differently, dependencies existed between the func-

tional and information layers. Because the seman-

tic differences between entities in these data sources,

it was not feasible to design applications which re-

lied on data from different sources without creating

complexity within the application. In the enterprise

architecture maturity model, this indicates an archi-

tecture which is not correctly modularized (Ross and

Beath, 2006). For example, the entity “customer” ex-

isted in different data sources. In some sources, this

entity referred to end consumers of the gas which is

transported. In other sources, it contained the cus-

tomers of the gas ﬂow manager company (i.e., the gas

traders). As a result, the scope of applications was de-

ﬁned based on the scope in the data sources. During

the enterprise architecture project, a glossary was de-

veloped iteratively with business users from different

areas to ensure consistent terminology across the or-

ganization. The glossary deﬁnes the entities and their

relationships to each other. Based on this glossary, a

database scheme was developed and imposed on the

different data sources. Consequently, the dependency

of the application scope on the data source scope was

resolved. The coupling between the functional and

information layer was thus removed. As a result, the

modules on the functional layer could be designed to

be well-aligned with the business layer, without being

restricted by aspects from the information layer.

Moreover, the solution applied in this case follows

the solution presented in modularity theory. In or-

der to resolve modular dependencies, modularity the-

ory proposes to specify an architectural rule. Such

a rule limits the design freedom for the implementa-

tion aspects of modules by prescribing a certain de-

sign choice. In this case, the glossary limits the al-

lowed interpretation of, for example, the “customer”

entity. As a result, no conversions need to be per-

formed to ensure a correct use of data entities. Other

BMSD 2011 - First International Symposium on Business Modeling and Software Design

solutions are possible to resolve dependencies as well.

Currently, we focus on the ability of modular depen-

dencies to identify coupling between modules of dif-

ferent architectural layers as a cause for restrictions

on higher-level layers. In future research, we elab-

orate on different methods to deal with this kind of

coupling. However, the current case illustrates how

a modularity approach can be complementary to en-

terprise architecture frameworks. While the different

applications and data sources can be represented in

an enterprise architecture, no indications of the cou-

pling between the different viewpoints can be repre-

sented. When we consider the applications and data

sources as modules, we can use a Design Structure

Matrix (DSM) to represent aspects of the module im-

plementation which affect each other.

4 APPLICATION OF MODULAR

DEPENDENCIES

In the previous cases, we illustrated the relevance

of modular dependencies in enterprise architecture

projects. We now apply the insights gained from the

analysis described above to a case study in a gov-

ernmental organization. The mission of the organiza-

tion is to introduce and implement e-government so-

lutions. To achieve this goal, it undertakes projects

in the ﬁeld of back-ofﬁce reengineering, and tries to

leverage these improvements by supporting projects

with governmental partners. In this paper, we focus

on a project that improves the way data from various

sources is used in governmental processes. We will

refer to this project as the Data Usage in Governmen-

tal Processes (DUGP) project. Similar to the descrip-

tion in Section 3.2, the structure of the data sources

limits the design of governmental processes. Because

of the political situation, different data sources are

controlled by different governmental entities, which

belong to governments on different levels (e.g., fed-

eral, regional, local level). As a result, different im-

plementations exist for a large amount of design pa-

rameters. For example, the data delivery design pa-

rameter may be implemented by an online web inter-

face, an FTP transfer, or through web services. Con-

sider the partial Design Structure Matrix represented

in Figure 4, which has been developed to describe

the situation before the DUGP project. In this DSM,

multiple design parameters are considered simultane-

ously. Compare this to the coupling in the GFMC

enterprise architecture, where we focused on a single

design parameter (i.e., data semantics).

The “x”-es with the grey background represent (1)

the dependency of the data retrieval design parameter

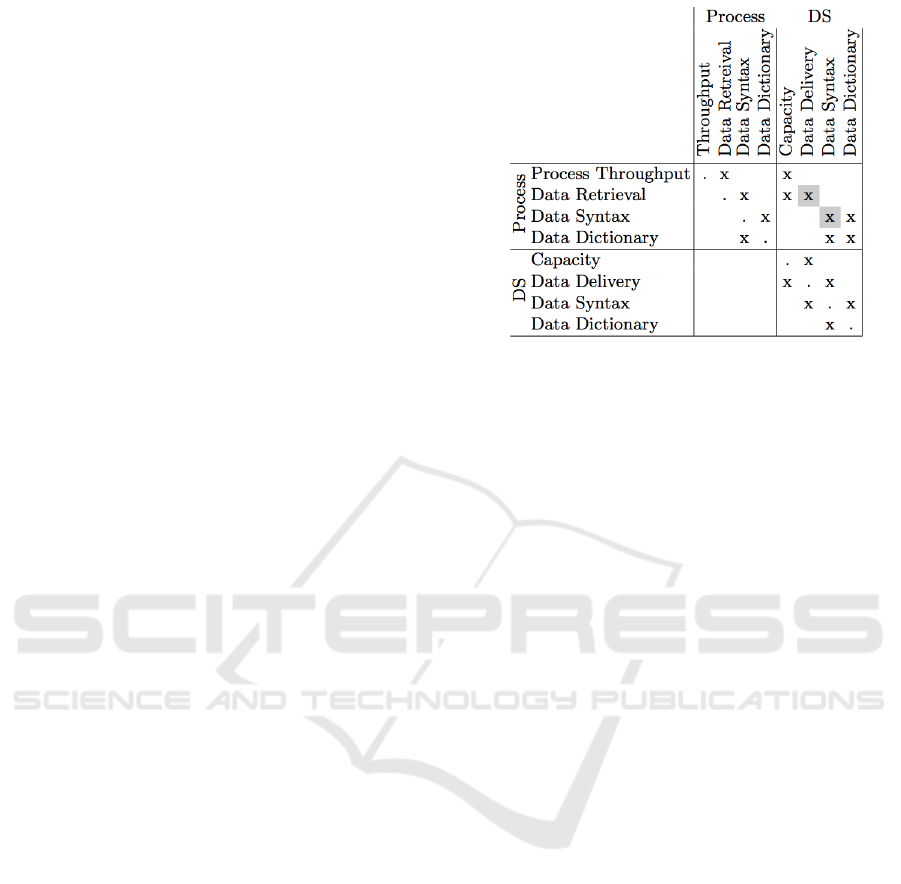

Figure 4: DSM before the DUGP project.

of the processes on the data delivery design parame-

ter of the data sources, and (2) the dependency of the

data syntax used in the processes on the data syntax

used in the data sources. Consider the impact of these

two design parameters in the following example. A

process to request construction premiums requires

personal data of the citizen requesting the premium

(from data source A) as well as geographical data of

the construction site (from data source B). Since the

databases which contain the personal and geograph-

ical data are not integrated or standardized, various

conversions between the implemented data parame-

ters of these data sources may be necessary. Sup-

pose that the information required from data source

A needs to be obtained by invoking a single web ser-

vice call, providing the address from the end user us-

ing four data ﬁelds (street name, street number, bus

number, city name). In order to query geographical

information in data source B, a request ﬁle containing

two data ﬁelds (street name and street number, and

ZIP code) has to be transferred using the FTP proto-

col. Since the construction premium process depends

on both data sources, it needs to be able to communi-

cate using two different versions of address data syn-

tax, and two different versions of data retrieval tech-

nology. If the construction premium process needs

to be changed, and an additional data source is re-

quired, the process owner needs to be aware of the

data syntax and data retrieval method offered by the

new data source. Moreover, when changes are made

to these implementation aspects of data sources, ad-

ditional versions need to be supported by the pro-

cesses. The resulting complexity of these conversions

is a barrier for the use of these data sources. More-

over, this example shows that different design param-

eters are intertwined in a certain implementation. As

a result, it is hard to resolve these dependencies indi-

vidually. The goal of the DUGP project is therefore

DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL MODULARITY

to eliminate these dependencies at once in order to

reduce the complexity of using data sources in gov-

ernmental processes. However, the solution which is

suggested by modularity theory, i.e., the deﬁnition of

architectural rules, was not feasible because of the

governmental structure. The different data sources

are controlled by different governmental entities, who

can decide independently on the implementation of

design parameters. Declaring an architectural rule for

a design parameter therefore requires an agreement

between all governmental units responsible for a data

source. However, since most units rely heavily on

legacy systems to provide data services, changes to

the implementation of design parameters are not eas-

ily realized. Therefore, it is difﬁcult to reach such an

agreement if an organization which can impose rules

to these governmental units is not in place.

Consequently, the e-government organization de-

veloped a platform to consolidate data sources and

provide uniform data access. Similar to the PBC

case discussed in Section 3.1, an abstraction layer was

developed to offer the required functionality with-

out exposing the complexity of the layer offering

these services. This abstraction layer provides ser-

vices from the information layer to governmental pro-

cesses, which are considered to be on the functional

layer. The platform is based on two existing data

sources from the federal government. Data from these

data sources will be augmented with data available in

data sources from other governments (e.g., geograph-

ical data, which is offered by regional governments).

The ﬁrst data source which is used focuses on data

concerning organizations. In this data source, data

such as registration number, ofﬁcial addresses and le-

gal statute of enterprises can be obtained. We will re-

fer to this data source as the Data Source for Organi-

zations (DSO). The Federal Public Service Economy

is responsible for this data source. The second data

source offers data concerning individuals. It refers to

data such as employment and social status of citizens.

We will refer to this data source as the Data Source

for Individuals (DSI). This data source is governed by

a separate organization created by the federal govern-

ment. The platform will maintain this distinction, and

offer its data services grouped in an Enhanced Data

Source for Organizations (EDSO) and an Enhanced

Data Source for Individuals (EDSI).

Since the EDSO relies on the DSO for its data,

and the EDSI relies on the DSI, they need to consider

the implementation of these data sources. Many im-

plementations of design parameters are quite differ-

ent. For example, the DSI has webservices available

to query its data. As a result, these webservices can

be used to develop webservices in the EDSI. These

webservices are not directly offered in their original

form. Instead, a facade pattern is used. This en-

ables the creation of a uniform web service syntax

throughout the platform. Otherwise, a dependency

on the data syntax design parameter would be intro-

duced. In contrast, the DSO has no webservices avail-

able. It is a mainframe which operates using batch

requests. Therefore, a copy is made from the origi-

nal DSO every night. This copy is then augmented

with data from other governmental authorities, and

used as a central database on which the services from

the EDSO are provided. In order to simplify data ac-

cess, the new platform provides three data delivery

methods which will be available for all data sources:

data repositories, an online application and webser-

vices. Customized data repositories are large data

ﬁles, which are copied to the process owner. Af-

ter this initial data provision, automatic updates are

transferred when data changes. These repositories are

offered to enable process owners to incorporate the

data from the new platform in their processes, with-

out having to implement a webservices-based data ac-

cess. Since many organizations are accustomed to us-

ing their own data sources in their processes, a cus-

tomized data repository can be implemented without

many changes in the processes. However, the unau-

thorized data sources which have been collected by

the organizations themselves will then be replaced

with authentic data. The online application allows for

manual consultation of the data with a much smaller

granularity: instead of a single large data ﬁle, only the

result of a single query is returned. The same result

can be obtained automatically through the use of web-

services. Webservices offer the same data granularity,

but can be implemented to automate processes.

From a modularity perspective, the platform can

be considered as an additional module to eliminate

dependencies between data and process modules. The

DSM for the DUGP project is shown in Figure 5.

When comparing DSM of the platform in Figure 5

with the DSM in Figure 4, we can conclude that some

of these dependencies are indeed eliminated. Con-

sider for example the data syntax and data delivery.

We included an empty grey background to mark the

previous existence of these dependencies. The syntax

of webservices offered by EDSI is decoupled from the

naming conventions of the DSI by using a facade pat-

tern. As a result, naming conventions can be kept in-

ternally consistent with custom-built webservices for

EDSO. The data syntax can be considered as an archi-

tectural rule which is maintained by the e-government

organization. By adhering to this data syntax, process

owners no longer need conversions between different

data syntax versions. Another example is the data de-

BMSD 2011 - First International Symposium on Business Modeling and Software Design

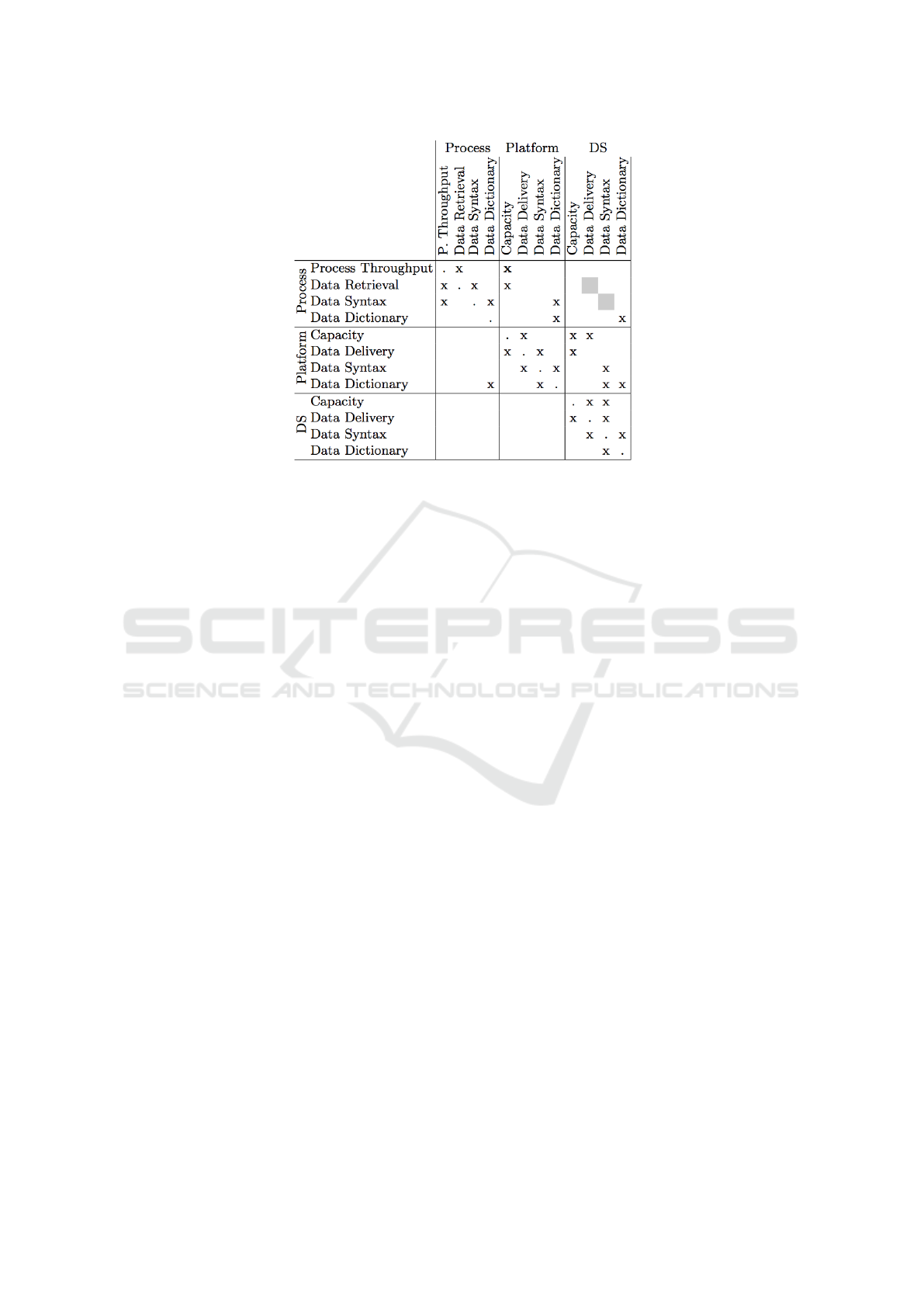

Figure 5: DSM of the DUGP project.

livery design. In data sources from the platform, data

can be provided through customized data repositories,

an online application or webservices. Here, a single

design option has not been selected, but the consistent

offering of all data delivery techniques allows process

owners to implement a single design for data deliv-

ery. Again, process owners no longer depend on the

speciﬁc data delivery technique of the individual data

sources. Consequently, it seems that the platform aids

to decouple the process owners from the design deci-

sion of the data sources.

However, as stated by Baldwin and Clark, elimi-

nating all dependencies in a modular structure is not

a trivial task (Baldwin and Clark, 2000). Consider

the design option process throughput in the case of

an automated process. Our respondents indicated that

the number of processes which can be supported is

limited by, amongst others, the capacity of the data

delivery implementation. In Figure 5, this is visu-

alized by the “x” where the column of the capac-

ity of the platform intersects with the row of pro-

cess throughput. A possible data delivery implemen-

tation in the platform are webservices. As described

above, webservices from the platform can be either

custom-built by the e-government organization (e.g.,

webservices for EDSO), or can be part of a facade-

pattern, calling underlying webservices (e.g., webser-

vices for EDSI). The custom-built webservices oper-

ate on a local database. Consequently, their capacity

is limited by the servers of the e-government organi-

zation itself. However, webservices which are part

of the facade pattern are dependent on the capacity

of the underlying services of DSI. Based on the im-

plementation, issues with webservice capacity need

to be discussed with the e-government organization

or with the organization responsible for the original

data source. The difference between the implemen-

tation of webservices in the platform is based on the

available data delivery techniques from the original

data sources. In Figure 5, this is visualized by the

“x” where the column of the data delivery of a data

source intersects with row of the capacity of the plat-

form. It therefore seems that an unexpected depen-

dency can be identiﬁed: when the platform is used,

the process throughput design decision is impacted by

the data delivery technique of the original date source.

When the data delivery of DSO is changed (e.g., web-

services become available) and used by the platform,

process performance may be impacted. This is an ex-

ample of a chained design dependency which propa-

gates through the design structure matrix. Such de-

pendencies are difﬁcult to trace and to account for in

change projects.

5 CONCLUSIONS

In this paper, we explored a concrete application of

modularity on the organizational level. We have

shown that by modeling modular dependencies, inter-

actions between layers in enterprise architecture mod-

els can be represented. Such interactions are not ex-

plicitly focused on in enterprise architecture frame-

works. Therefore, this approach is complementary to

existing frameworks. These frameworks usually fo-

cus on the top-down speciﬁcation of different view-

points. However, these viewpoints can not be consid-

ered to be independent from each other in complex or-

ganizations. As a result, one needs to be aware of the

DESIGNING FOR INNOVATION BY APPLYING ORGANIZATIONAL MODULARITY

impacts and restrictions imposed by lower-level lay-

ers during a top-down speciﬁcation of enterprise ar-

chitecture models. Therefore, research on this subject

should be based on observations in real-life case stud-

ies instead of on theoretical examples. We focused on

the restrictions of modeling artifacts on higher-level

layers based on dependencies on the implementation

of design parameters of lower-level artifacts. First,

we demonstrated how this effect occurs in the PBC

case study. Second, we discussed how the elimina-

tion of such dependencies can be a prerequisite in

successful enterprise architecture projects. We illus-

trated this prerequisite in the context of the GFMC

case study, which was published earlier. Moreover,

we explored the applicability of dealing with mod-

ular dependencies as suggested by modularity liter-

ature. This solution implies the deﬁnition of archi-

tectural rules to limit the implementation possibilities

of design parameters. Consequently, artifacts which

are dependent on these design parameters can assume

that a ﬁxed implementation will always be supported.

Third, we applied the insights from the observations

in these case studies more concretely to the DUGP

project. We showed that a DSM can be used to rep-

resent relevant issues for the enterprise architecture

project as modular dependencies. This perspective al-

lows to objectivate the issues which are resolved by

the project. Moreover, a structured analysis can lead

to the discovery of remaining issues after the project.

Remaining issues can be unresolved dependencies,

or newly introduced dependencies. This was illus-

trated by identifying the capacity design parameter as

a chained dependency.

Future research needs to be conducted to gain

insight on how modular dependencies on this level

can be dealt with. In some cases, the deﬁnition of

architectural rules seems appropriate. However, in-

stead of choosing a single implementation option, it

has already been observed that a consistent offering

of multiple implementations can be required as well.

Moreover, in some cases, imposing architectural rules

does not seem feasible, because of the organizational

structure. In the DUGP project, it was impossible

to impose architectural rules to different organiza-

tional units. Therefore, an additional module was

added. However, the introduction of new dependen-

cies shows that a structured approach is required to

adequately resolve modular dependencies.

REFERENCES

Arsanjani, A., Ghosh, S., Allam, A., Abdollah, T., Gariap-

athy, S., and Holley, K. (2008). Soma: a method for

developing service-oriented solutions. IBM Syst. J.,

47:377–396.

Baldwin, C. Y. and Clark, K. B. (2000). Design Rules, Vol-

ume 1: The Power of Modularity, volume 1 of MIT

Press Books. The MIT Press.

Baldwin, C. Y. and Clark, K. B. (2003). The value, costs and

organizational consequences of modularity. Working

Paper.

Barjis, J. and Wamba, S. F. (2010). Organizational and

business impacts of rﬁd technology. Business Process

Management Journal, 16(6):897–903.

Campagnolo, D. and Camuffo, A. (2010). The concept of

modularity in management studies: A literature re-

view. International Journal of Management Reviews,

12(3):259–283.

Galunic, D. C. and Eisenhardt, K. M. (2001). Architec-

tural innovation and modular corporate forms. The

Academy of Management Journal, 44(6):1229–1249.

Huysmans, P., Ven, K., and Verelst, J. (2010). Designing for

innovation: using enterprise ontology theory to im-

prove business-it alignment. Proceedings of the 1st

International Conference on IT-enabled Innovation in

Enterprise, pages 177–186.

Lucke, C., Krell, S., and Lechner, U. (2010). Critical is-

sues in enterprise architecting - a literature review. In

AMCIS 2010 Proceedings.

Parnas, D. L. (1972). On the criteria to be used in decom-

posing systems into modules. Communications of the

ACM, 15(12):1053–1058.

Ross, J. and Beath, C. M. (2006). Sustainable it outsourc-

ing success: Let enterprise architecture be your guide.

MIS Quarterly Executive, 5(4):181–192.

Schekkerman, J. (2005). Trends in enterprise architecture:

How are organizations progressing? Technical report,

Institute For Enterprise Architecture Developments.

Sch

oenherr, M. (2008). Towards a common terminology

in the discipline of enterprise architecture. In ICSOC

Workshops’08, pages 400–413.

Simon, H. A. (1962). The architecture of complexity.

Proceedings of the American Philosophical Society,

106(6):467–482.

The Open Group (2009). The open group ar-

chitecture framework (togaf) version 9.

http://www.opengroup.org/togaf/.

Yin, R. K. (2003). Case Study Research: Design and Meth-

ods. Sage Publications, Newbury Park, California, 3rd

edition.

BMSD 2011 - First International Symposium on Business Modeling and Software Design
