Guided Exploratory Search on the Mobile Web

Günter Neumann

and Sven Schmeier

DFKI - German Research Center for Artiﬁcial Intelligence, Stuhlsatzenhausweg 3, 66123 Saarbrücken, Germany

DFKI - German Research Center for Artiﬁcial Intelligence, Alt–Moabit 91c, 10559 Berlin, Germany

Keywords:

Exploratory Search, Unsupervised Topic Extraction, Search Query Disambiguation.

Abstract:

We present a mobile touchable application for guided exploration of web content and online topic graph ex-

traction that has been successfully implemented on a tablet, i.e. an Apple iPad, and on a mobile device/phone,

i.e. Apple iPhone or iPod. Starting from a user’s search query a set of web snippets is collected by a standard

search engine in a ﬁrst step. After that the snippets are collected into one document from which the topic graph

is computed. This topic graph is presented to the user in different touchable and interactive graphical represen-

tations depending on the screensize of the mobile device. However due to possible semantic ambiguities in the

search queries the snippets may cover different thematic areas and so the topic graph may contain associated

topics for different semantic entities of the original query. This may lead the user to wrong directions while

exploring the solution space. Hence we present our approach for an interactive disambiguation of the search

query and so we provide assistance for the users towards a guided exploratory search.

1 INTRODUCTION

The World Wide Web is a huge set of hyperlinked and

semantically correlated documents. When searching

the Web using standard search engines users get pre-

sented just some nodes of this Web in form of ranked

lists of (text snippets and pointers to) documents. The

underlying link structure is more or less hidden from

the users’ perspective.

This kind of Web lookup search has been shown to

be quite successful if the user is mainly interested in

retrieving facts or answers for her query (Marchion-

ini, 2006). Important reasons are:

• It is hard to ﬁnd any alternative successful com-

peting way of searching the Web for ordinary

users. Hence people got used to that way of

searching the Web.

• On ordinary computers human-computer interac-

tions are mainly done by typing on the keyboard.

It is not hard to reformulate search queries in case

the desired results are not in the best n documents

(Hearst, 2009) .

So it seems that the simplicity and easiness of the

interactions with current search engines are strongly

correlated with the still keyboard-dominated human-

computer interfaces.

Nowadays, the mobile Web and mobile touchable

devices, like smartphones and tablet computers, are

getting more and more prominent and widespread.

For such devices the most convenient way to inter-

act with is by tapping on buttons, swiping the screen,

squeezing it with two or more ﬁngers etc. It is reason-

able to assume that the current success and popularity

of such mobile devices is also due to the fact that or-

dinary users have vastly accepted these kind of touch-

able interfaces as a very convenient way of interacting

with them.

Furthermore, we are convinced that touchable de-

vices and interfaces also support the development and

breeding of alternative Web search strategies like ex-

ploratory search. In such a search activity the user

only has a vague idea of the information in question

and just wants to explore the information space in

order to develop new knowledge about the topic in

question which usually involves multiple iterations of

search (Marchionini, 2006).

In (Neumann and Schmeier, 2011) and (Neu-

mann and Schmeier, 2012) we have shown that mo-

bile touchable devices can be a very convenient way

for realizing simple and intuitive exploratory search

strategies and to provide an usable mobile device

searches to “ﬁnd out about something”. The core idea

of the underlying search strategy is:

1. A user query is considered as a speciﬁcation of

a topic that the user wants to know and learn

more about. Hence, the search result is basically

Neumann G. and Schmeier S..

Guided Exploratory Search on the Mobile Web.

DOI: 10.5220/0004135900650074

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2012), pages 65-74

ISBN: 978-989-8565-29-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

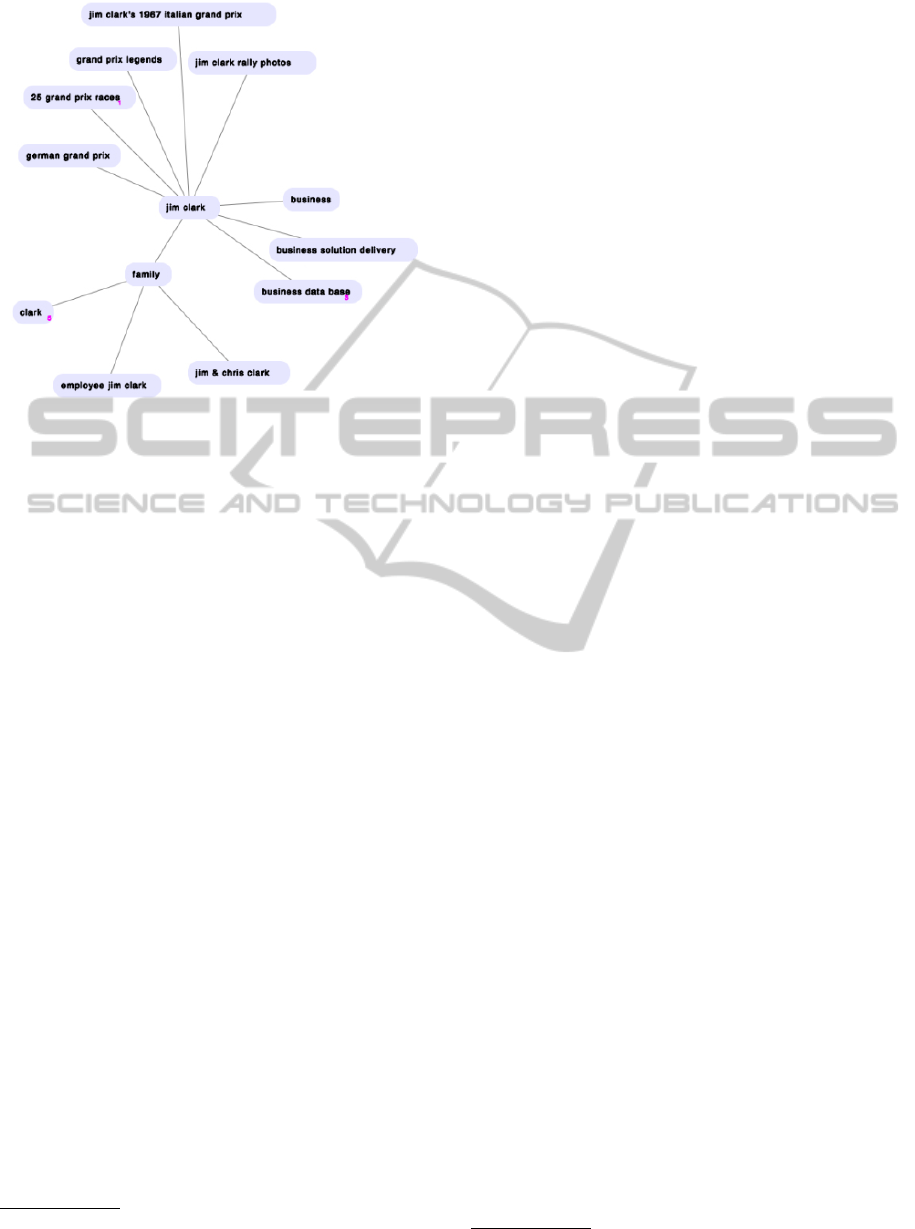

Figure 1: The associated topics refer to three different enti-

ties.

a graphical structure of that topic and associated

topics that are found.

2. The user can interactively further explore this

topic graph using a simple and intuitive touchable

interface in order to either learn more about the

content of a topic or to interactively expand a topic

with newly computed related topics.

However the success of working with such a sys-

tem heavily depends on the quality of the topics pre-

sented in the topic graph. One possible source of in-

sufﬁcient quality is the uncovered, implicit ambigu-

ity of a search query (which usually the user is not

aware of or at least not of all possible readings, e.g.,

natural entities). For example, if the user looks for in-

formation about the person Jim Clark she might only

have in mind either the racing driver or the Netscape

founder

. As the retrieved search results may con-

tain information about both entities or all of them,

the topic graph will show associated topics that might

lead the user into wrong directions while further ex-

ploring the search space (Fig. 1).

Consequently, the search strategy should be able

to detect and uncover this sort of ambiguity and

should explicitly use it for guiding the user’s further

exploratory search into the direction of the selected

preferred reading. Hence, the goal and major contri-

bution of the work presented in this paper is twofold:

1) to extend the above mentioned search strategy to

a guided exploratory search by proposing a method

for interactive disambiguation, and 2) to propose an

automatic method for its evaluation.

... or the baseball player, the football player, the bank

robber, the ﬁlm editor, the war hero,...

2 A STRATEGY FOR GUIDED

EXPLORATORY SEARCH

To begin with we will use the topic “Jim Clark” as

a running example to brieﬂy describe our approach

of guided exploratory search before we present and

discuss its details in the next sections.

A user starts her exploratory search by entering a

query q consisting of one or more keywords used to

represent the topic in question (in our example, just

the two words “Jim” and “Clark”). Instead of di-

rectly computing and presenting a topic graph for q

(as done in the previous mentioned non–guided ex-

ploratory search approach), possible senses of q are

identiﬁed and enumerated by referring to an external

knowledge base, Wikipedia in our case. Beside the

fact that Wikipedia is known to cover a huge number

of possible senses for a very large number of topics,

we also consider Wikipedia as a suitable means of a

human–computer interface in the sense that both, a

human and a computer, can directly communicate in

natural language (NL). Continuing our running exam-

ple, this means that the search strategy determines all

possible senses (i.e., Wikipedia pages) that entail q as

part of the Wikipedia title (i.e., the NL name of the

concept described in the Wikipedia page). All found

readings are then sorted and presented to the user and

the user is asked to select her preferred one.

Assuming that the user selects the “British racing

driver” sense, then the major content of the Wikipedia

concept (basically the ﬁrst sentence s of a Wikipedia

page which usually deﬁnes the concept) is used to cre-

ate a new expanded query q

from q and s. Now, using

an initial topic graph is computed on the ﬂy from a

set of Web snippets that has been collected by a stan-

dard search engine (currently, we are using Bing

Rather than considering each snippet in isolation, all

snippets are collected into one document from which

the topic graph is computed. We consider each topic

as an entity, and the edges are considered as a kind

of (hidden) relationship between the connected top-

ics. The content of a topic are the set of snippets it

has been extracted from, and the documents retriev-

able via the snippets’ Web links.

The topic graph is then displayed on a tablet com-

puter (in our case an iPad) as touch–sensitive graph.

By just selecting a node the user can either inspect

the content of a topic (i.e, the snippets or Web pages)

or activate the expansion of the topic graph through

an on the ﬂy computation of new related topics for

the selected node. The user can request information

from new topics on basis of previously extracted in-

http://www.bing.com/

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

formation by selecting a node from the topic graph.

Note that each new query sent to the search engine

is created from the label of the selected node and the

“sense”-information s created above from Wikipedia.

Thus, each search triggered by a selected topic node

is guided towards the user’s preferred reading. This is

why we call it guided exploratory search.

The rest of the paper is organized as follows. We

ﬁrst summarize the major steps of the computation of

a topic graph in section 3. In section 4 we present

the major steps of the guided exploratory search and

present a fully automatic method for its evaluation.

Details about the touchable user interface are then

presented in section 5. Section 6 relates our approach

to others, and ﬁnally, section 7 discusses open issues

and future plans.

3 UNSUPERVISED TOPIC

GRAPH CONSTRUCTION

The representation of results in a topic graph provides

alternative possibilities to perform search on a mobile

device. The process is as follows:

• Show main topics that are generated from snippets

retrieved by an ordinary search engine instead of

documents in a ﬁrst step.

• Present topics as interactive graphical structures.

• Let the user interact with the system by different

interaction methods.

• Presenting a complete document is the last step in

the search process.

We consider the extraction of topics as (1) a

speciﬁc empirical collocation extraction task where

collocations are extracted between chunks combined

with (2) the cluster descriptions of an online cluster-

ing algorithm. (1) and (2) are computed in parallel for

efﬁciency reasons.

The collocation extraction (step (1)) is done by us-

ing a special measure of point-wise mutual informa-

tion (PMI c.f. (Turney, 2001)) that explicitly takes

distance information into account. For this we ﬁrst

tag the snippets with Part–of–Speech (PoS) infor-

mation using the SVMTagger (Gimenez and Mar-

quez., 2004) and chunk the PoS-tagged text in the

next step. The chunker recognizes two types of word

chains. Each chain consists of longest matching se-

quences of words with the same PoS class, namely

noun chains or verb chains, where an element of

a noun chain belongs to one of the extended noun

tags

, and elements of a verb chain only contains verb

tags. We ﬁnally apply a kind of “phrasal head test”

on each identiﬁed chunk to guarantee that the right–

most element only belongs to a proper noun or verb

tag. For example, the chunk “a/DT british/NNP for-

mula/NNP one/NN racing/VBG driver/NN from/IN

scotland/NNP” would be accepted as proper NP

chunk, where “compelling/VBG power/NN of/IN” is

not.

We compute the chunk–pair–distance model

CPD

using the frequencies of each chunk, each

chunk pair, and each chunk pair distance. CPD

is used for constructing the topic graph in the ﬁnal

step. Formally, a topic graph T G = (V,E,A) con-

sists of a set V of nodes, a set E of edges, and a

set A of node actions. Each node v ∈ V represents

a chunk and is labeled with the corresponding PoS–

tagged word group. The nodes and edges are com-

puted from the chunk–pair–distance elements. Since

the number of these elements is quite large (up to sev-

eral thousands), the elements are ranked according

to a weighting scheme which takes into account the

frequency information of the chunks and their col-

locations. More precisely, the weight of a chunk–

pair–distance element cpd = (c

i j

), with D

i, j

= {( f req

,dist

),( f req

,dist

),...,( f req

,dist

)}, is

computed based on point–wise mutual information

(PMI, cf. (Turney, 2001)) as follows:

PMI(cpd) = log

((p(c

)/(p(c

) ∗ p(c

)))

= log

(p(c

)) − log

(p(c

) ∗ p(c

))

where relative frequency is used for approximating

the probabilities p(c

) and p(c

). For log

(p(c

))

we take the (unsigned) polynomials of the corre-

sponding Taylor series using ( f req

,dist

) in the k-th

Taylor polynomial and adding them up:

PMI(cpd) = (

∑

k=1

)

) − log

(p(c

) ∗ p(c

))

,where x

f req

∑

k=1

f req

For step (2), we use the online clustering sys-

tem Carrot2 (Osinski and Weiss, 2008) to cluster the

snippets and to generate sensible cluster descriptions.

Carrot2 is based on the Lingo (Osinski et al., 2004)

algorithm. It ﬁrstly extracts frequent terms from the

Concerning the English PoS tags, “word/PoS”

expressions that match the following regular ex-

pression are considered as extended noun tag:

“/(N(N|P))|/VB(N|G)|/IN|/DT”. The English Verbs

are those whose PoS tag start with VB. We are using the

tag sets from the Penn treebank (English) and the Negra

treebank (German).

GuidedExploratorySearchontheMobileWeb

input documents and produces a term–document ma-

trix. Secondly, it performs a reduction of this matrix

using Singular Value Decomposition (SVD) for the

identiﬁcation of latent structure in the search results.

Finally, we combine the results of both methods

(1) and (2), such that the cluster labels are used to

ﬁlter out the collocation results using simple fuzzy

matching methods. The visualized part of the topic

graph is then computed from a subset of the ﬁl-

tered CPD

using the m highest ranked chunk–pair–

distance elements for ﬁxed c

. In other words, we re-

strict the complexity of a topic graph by restricting the

number of edges connected to a node.

4 GUIDING TEXT

EXPLORATION BY

ENUMERATING SENSES

We already mentioned in sec.1 that the topic extrac-

tion process may suffer from possible ambiguities of

the search query. Suppose, for example, the search

query has two prominent senses then the set of re-

trieved snippets will quite likely also cover two differ-

ent thematic areas and so the set of extracted topics,

too. If the user performs an investigative search (see

section 6) she will then possibly end up with confu-

sion more than solution. In (Sanderson, 2008) it is re-

ported that between 7% and 23% of frequent queries

in the logs of two search engines are ambiguous. This

not only includes ambiguous queries (e.g., caused by

homonym keywords like “bank” or “jaguar”) but also

queries that may lead to a different solution space of

a search engine’s document pool. Hence in this con-

text the disambiguation task is strongly correlated to

the automatic determination of the user’s intension or

goals. For todays search engines these tasks become

very tricky to solve as often enough both problems

are correlated and occur at the same time for users’

search queries.

Regarding our solution for exploratory search on

mobile devices the disambiguation part is less hard to

solve. As our system supports the idea and paradigm

of exploratory search we also let the user decide

in which thematic area her exploration should go.

Hence our solution divides the above mentioned prob-

lems, query disambiguation and determination of the

user goal, in a natural way by presenting to the user

the possible directions before actually presenting the

topic graph. The difﬁcult part is to ﬁlter out topics

and to gather new topics in case too many nodes in

the current topic graph do not ﬁt the chosen context.

In order to detect possible ambiguities and to

present them in an appropriate way we are focussing

on a knowledge–based method by making use of

Wikipedia (cf. sec. 2 for our motivation of using

Wikipedia). The idea is to ﬁrst match the user query

with entries in Wikipedia. If we ﬁnd more than one

match we trigger the disambiguation process. As a

starting point we indexed a snapshot of Wikipedia into

a structured Lucene

index containing the title and the

abstract of each article in separate ﬁelds. The index

contains 2.999.597 articles with 4.320.497 different

terms and has a size of 7.63 GB on a disc. Using this

knowledge base, our query disambiguation algorithm

works as follows:

10 let Q=user’s query;

20 let TG=produce_TG(Q); // initial topic graph TG

30 let LI=Lucene Index;

40 let q[]=SA(tokenize(Q));

50 let query=(title:+q[1] ... +q[n]);

60 let results[]=search(LI ,query);

70 if (num(results[]) > 1) {

80 let ass[]=SA(associated_topics(TG));

90 let Qexp=(title:+q[1] ... +q[n]) AND

(body:+ass[1] ... +ass[m]);

100 let docs[]=search(LI, Qexp);

110 if (user chooses docs[i]) {

120 let s=definition_sentences(docs[i]);

130 let TGnew=produce_TG(Q + s);

140 return TGnew;

140 }} else {

150 return TG;} // return initial TG

We start to compute an initial Topic Graph T G

with the original user query (20) using the T G con-

struction process described in section 3. The steps

(30) to (60) then compute the degree of sense ambigu-

ity using Wikipedia in the following way. Firstly (40),

we tokenize the query and apply Lucene’s SimpleAn-

alyzer SA which lowercases all words in the query

and deletes numbers. In a next step Lucene retrieves

all documents that entail all tokens of the query in the

titles of the articles (50+60). In this way it is guaran-

teed that we ﬁnd all instances for an entity. The title

of an article uniquely identiﬁes each instance because

it typically describes the entity in the article and is

further qualiﬁed by parenthetical expressions. For ex-

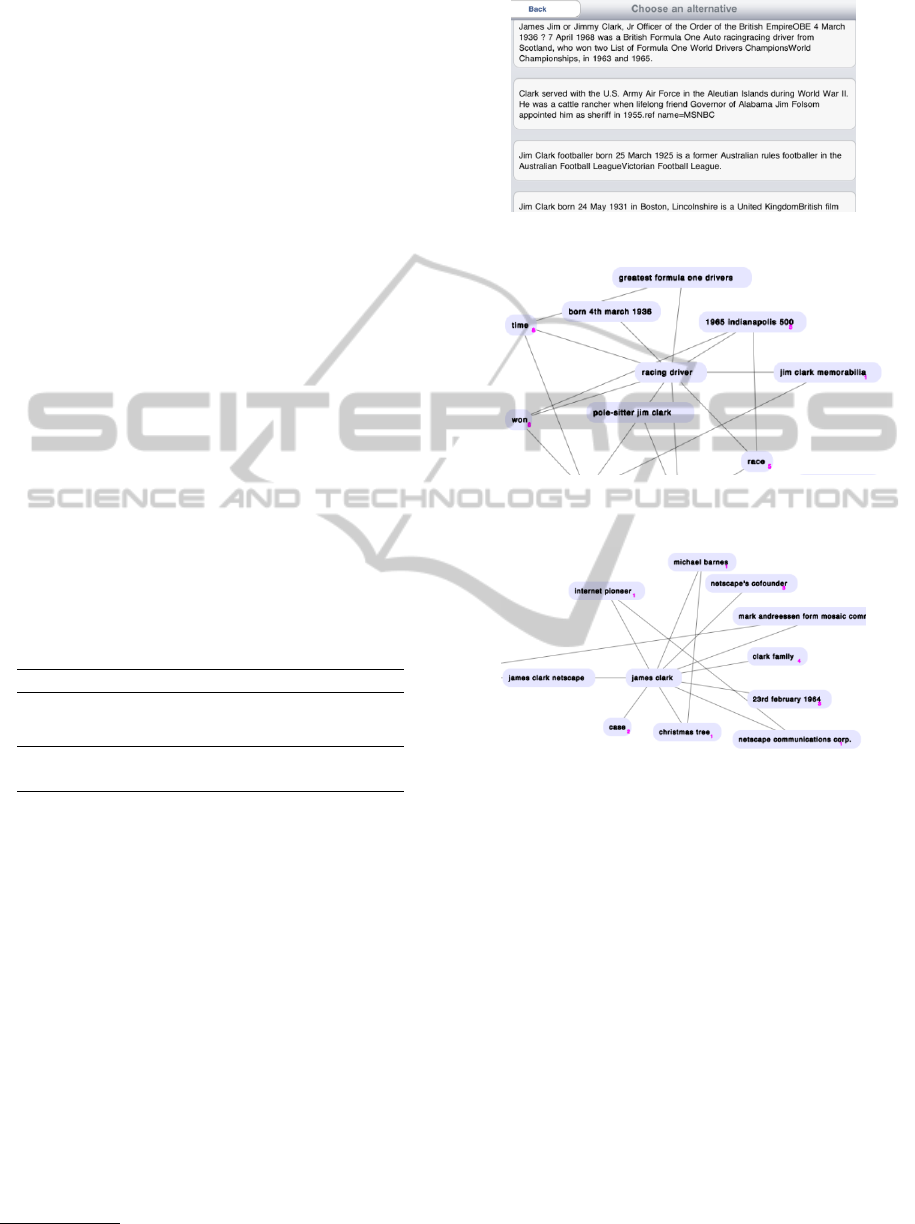

ample, the query for “Jim Clark” also matches “James

(Jim) Clark”, “Jim Clark (sheriff)”, “Jim Clark (ﬁlm

editor)”, etc. If only a single title matches or if there

is no match at all, we return the initial topic graph

T G (150). Otherwise (70) we know that the query

matches different Wikipedia articles, and hence, that

the query is potentially ambiguous.

In principle, we could now present the different

http://lucene.apache.org/core/

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

concepts to the user just in the order determined by

Lucene. However, the problem is that this ordering

actually ignores the information already expressed in

the topic graph T G. It could happen that the higher

ranked elements in the ranked list are unrelated with

the information used by the search engine and cov-

ered in T G. On the other hand, T G already ex-

presses some interesting latent semantic information

computed via the use of PMI, e.g., expressing that

neighboring nodes of a node n are semantically more

related to n than nodes with larger distance. Thus in

order to achieve a more user query and T G related or-

dering we perform the following steps (80) to (140).

Firstly, we perform a query expansion by adding top-

ics from T G that are determined by a 1NN strategy

(80) to the original query, i.e. we use only the directly

associated topics. In the next steps (90 ff) we again

formulate a query against our Wikipedia index. This

time we use the associated topics to also search in the

articles’ body. The result is an ordered list accord-

ing to the main topics in T G where the most probable

meaning is listed ﬁrst. The abstracts of the articles

are presented to the user to chose from. We extract

the most important terms (using the function deﬁni-

tion_sentences() deﬁned more precisely in the next

listing) from the chosen article (120) and produce the

ﬁnal T G using the combination of the terms and the

original query (130).

10 let first=article.firstSentence

20 let first_pos=POS_Tagging(first)

30 let sep=first_pos.indexOf(((is|was)(a|the)));

40 let isa_part=substr(first_pos,sep);

50 return filter_pos("N",isa_part);

According to Wikipedia article guidelines

usu-

ally an article contains a deﬁnition in the ﬁrst sentence

(10). Therefore we ﬁrst tag the sentence with PoS in-

formation (20). If we ﬁnd the deﬁnition phrases “is

a”, “is the", “was a” or “was the” we choose its right

adjacent substring (30+40). If the deﬁnition phrase

cannot be found, we choose the whole sentence. We

ﬁlter out all tokens that are not tagged as nouns and

return the remaining list (50).

4.1 Experimental Evaluation

In the experimental evaluation we present an auto-

matic way of how to determine the accuracy of the

knowledge–based disambiguation algorithm. In a ﬁrst

step we use the above mentioned algorithm. Please

note we evaluate real ambiguous queries only. Then

we alter the original algorithm in the following way:

http://en.wikipedia.org/wiki/Wikipedia:Lead_section#

Introductory_text

110 let right=0; all=0;

120 foreach(doc in docs) {

130 let s=definition_sentences(doc);

140 let TGnew=produce_TG(Q + s);

150 let ass[]=SA(associated_topics(TGnew));

160 let Qexp=(title:+q[1] ... +q[n]) AND

(body:+ass[1] ... ass[m]);

170 let articles[]=search(LI,Qexp);

180 if(doc==articles[0]) {

190 right++;

200 }

210 all++;

220 }

230 final_accuracy=right/all ;

The idea behind this automatic evaluation is as fol-

lows: the topic graph produced, starting from a dis-

ambiguated document, results in a new Topic Graph

T Gnew. A search against the Wikipedia index using

the original query for the title–ﬁeld and the 1NN as-

sociated topics from T Gnew should have the disam-

biguated document as its best result.

In our experiments we took the entries of ‘List of

celebrity guest stars on Sesame Street”

(Set1) and the

“List of ﬁlm and television directors”

(Set2). Fur-

thermore we evaluated both kinds of the topic graph

construction process described above in sec. 3: Topic

retrieval based on collocations only (TopCol) and its

combination with the cluster descriptions (TopClus).

Table 1 shows the results on the two datasets and the

two different T G construction approaches (The ﬁrst

column says: 1:Set1; 2:Set2; A:TopCol; B:TopClus).

Table 1: Accuracy of disambiguation.

Set All Ambig Good Bad Acc

1+A 406 209 375 54 87.41%

1+B 406 209 378 51 88.11%

2+A 1028 229 472 28 94.4%

2+B 1028 229 481 19 96.2%

4.2 Manual Evaluation

To doublecheck the results of the previous section we

also did manual evaluations on datasets by randomly

picking results from several test runs and let two in-

dependent human judges (not the authors) check the

correctness and usefulness of the topics for the chosen

senses. This kind of evaluation is often used to eval-

uate unsupervised methods, cf. (Fader et al., 2011).

The general setup was to count the number of correct

vs. incorrect topics for a given sense. We further-

more gave the judges the chance to intuitively decide

http://en.wikipedia.org/wiki/

List_of_celebrity_guest_stars_on_Sesame_Street

http://en.wikipedia.org/wiki/

List_of_ﬁlm_and_television_directors

GuidedExploratorySearchontheMobileWeb

whether they would have followed right paths while

exploring the solution space. i.e. the task of guiding

the exploratory search would have been successful.

Table 2 shows the results: the ﬁrst column denotes the

kind of topic retrieval like in the automatic evaluation,

A for TopCol and B for TopClus. The next column

shows the number of examples or senses that have

been checked

. Column 3 shows the total number

of extracted topics. The combined retrieval delivers

less topics but as you can see in column 4 the quality

seems to be improved as the ratio between correct and

incorrect topics decreases for both testers. The last

column shows whether the guidance towards topics

for the chosen sence has been successful, i.e. the per-

centage of followed paths that are appropriate for the

given sense. Please note the values in the columns 3–5

are highly subjective. So for example, for the second

judge lots of tokens do not make sense in her opinion

but on the other hand she would not have followed

them during exploration anyway. Hence although she

generally judged more topics not to ﬁt, she rated the

algorithms original sense, i.e. guiding the search to-

wards the right direction, as more successful than the

ﬁrst judge.

However we see that the manual evaluations seem

to proove the results and the method of the automatic

evaluation.

Table 2: Manaual evaluation.

Set All Topics Good Bad Guidance

A 20 167 132 35 ca. 95%

B 20 145 129 16 ca. 95%

A 20 167 108 59 > 97%

B 20 145 105 40 > 97%

5 VISUALISATION ON MOBILE

DEVICES

In this section we brieﬂy introduce the guiding part as

it is implemented on the mobile device. Whenever the

system ﬁnds any possible ambiguities in the search

query the user receives a list of cells containing short

expressive context information for the search term. In

our example (Fig. 2) the search query has been “Jim

Clark” and the user gets presented all possible found

meanings. After selecting one of the cells by simply

tapping on it the list-view ﬂips back and the related

topic graph is shown. In our example Fig. 3 shows

the associated topics for Jim Clark the racing driver,

Fig. 4 shows the results for Jim Clark the Netscape

Each judge checked the same examples independently

Figure 2: The alternatives to choose from (part).

Figure 3: Excerpt of the topics for the British racing driver

Jim Clark.

Figure 4: Excerpt of the topics for the Netscape founder

James “Jim” Clark.

founder. The user now may interact with the graph by

a single tap on a node - shows new associated topics

for the node; squeezing with two ﬁngers - zooms the

view; sliding around - moves the topic graph; double

tap - brings in a new view showing the snippets con-

taining the topic of the node (Fig. 5). The cells are

interactive and by tapping on a cell the corresponding

Web page will be shown (Fig. 6).

In this way the user is able to explore the solution

space by simple and well known interaction patterns.

6 RELATED WORK

6.1 Exploratory Search

Nowadays information has become more and more

ubiquitous and the demands of searchers on search

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

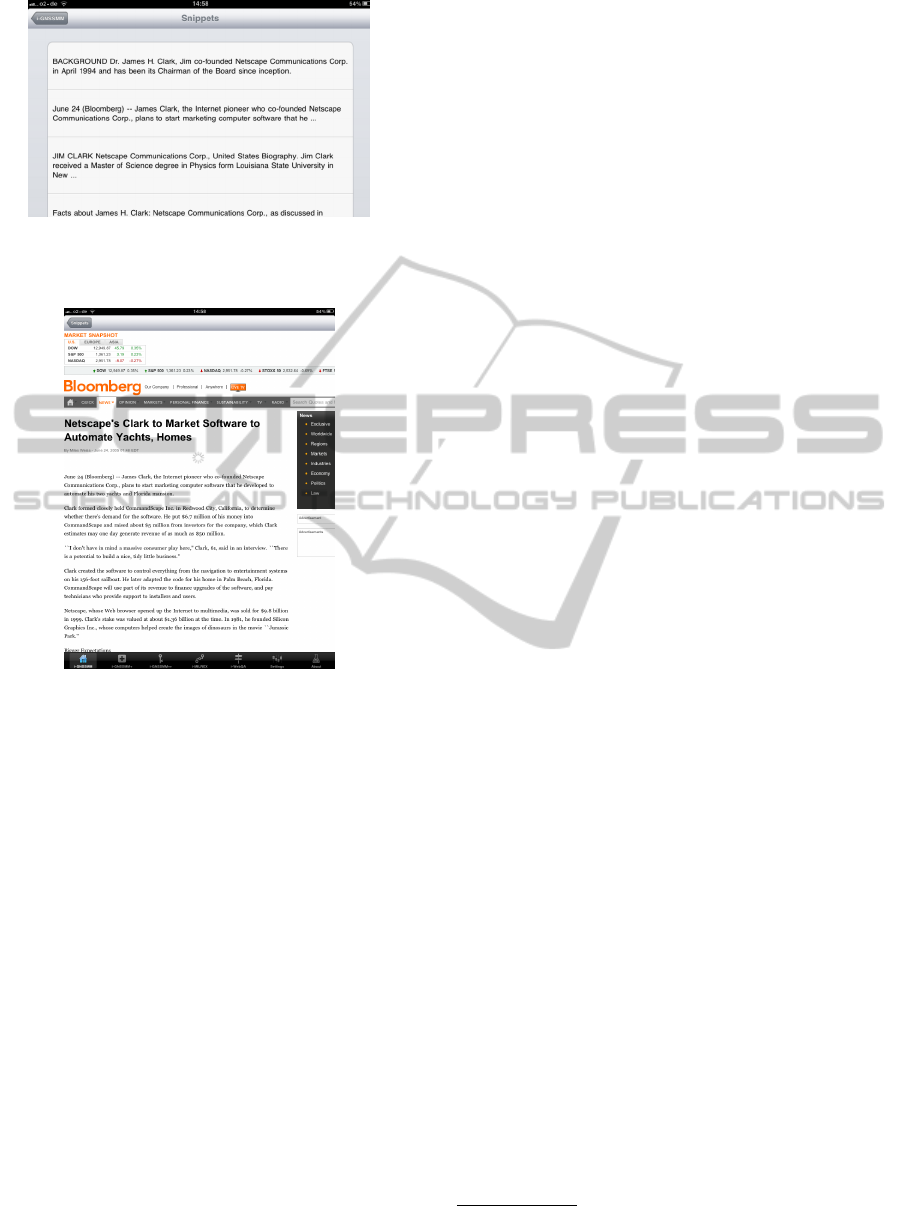

Figure 5: Excerpt of the snippets for the Netscape founder

James “Jim” Clark after double tap on the node “netscape

communications corp”.

Figure 6: The website behind the second snippet of Fig. 5.

engines have been growing, i.e. is a growing need

for systems that support search behaviors beyond doc-

ument oriented simple “one-shot” lookup. The re-

search ﬁeld Exploratory Search embedded in the ﬁeld

of Human Computer Interaction HCI explores the

process of information seeking and tries to ﬁnd solu-

tions to support it. Exploratory search systems should

for example discover new associations and kinds of

knowledge, resolve complex information problems,

or develop an understanding of terminology and in-

formation space structure. The general aim of this

research is to come to a next generation of search in-

terfaces to support users to ﬁnd information even if

the goal is vague, to learn from the information, and

to investigate solutions for complex information prob-

lems. “Exploratory search can be used to describe

an information-seeking problem context that is open-

ended, persistent, and multi-faceted; and to describe

information-seeking processes that are opportunistic,

iterative, and multi-tactical” (White and Roth, 2009).

Exploratory searches are driven by curiosity or a

desire to learn about or investigate something. Ac-

cording to Marchionini (Marchionini, 2006) a more

detailed view on search is:

1. Lookup: Fact retrieval, Known-item search, Nav-

igation, Transaction, Veriﬁcation, and Question

answering

2. Learn: Knowledge acquisition, Interpretation,

Comparison, Integration, and Socialize

3. Investigate: Accretion, Analysis, Exclusion, Syn-

thesis, Evaluation, Discovery, Planning, and

Transformation

The still dominating ranked list approach is well

suited for lookup up search strategies, but probably

less suited for a learn search strategy. For investiga-

tive search strategies it is too simple and does not sup-

port a discourse of questions and answers. Further-

more it is also known that information placed at the

end of a ranked list will perhaps never be accessed

(Sping et al., 2001).

The clustering interface Grouper (Zamir and Et-

zioni, 1999) has been originally implemented for

the HuskySearch engine and it has been compared

with the ranked list interface of the same. A

clustering algorithm called SufﬁxÂt’Tree Clustering

(STC) groups the search results into coherent groups.

Through the analysis of behavior logs of the search

engine with and without clustering it could be proven

that ﬁnding speciﬁc documents that are ranked very

high in the result set of the engine without cluster-

ing could be used more efﬁciently. After some time

working with the system people enjoyed the cluster-

ing system more although not in all cases.

Findex (Käki, 2005) again used clustering to orga-

nize search results. An automatic computation of la-

belled categories/clusters based on the search results

by Google is shown to the left side of the web inter-

face. The clusters may be clicked to ﬁlter the overall

search result set. The evaluation of the system has

been based on an analysis of Web-logs and by a ﬁ-

nal questionnaires for the testers. The results pretty

much conﬁrmed the ﬁndings by Zamir and Etzioni:

speciﬁc searches show less improvement than vague

searchers concerning user’s performance. Also users

need to get used to the new kind of result presentation

but they accept and even like it more after a very short

time.

WordBars (Hoeber and Yang, 2006) provides ac-

tive user interaction during the search process in con-

trast to the previous systems. It visualizes an or-

dered list of terms that occur in the titles and snip-

pets of the ﬁrst 100 documents gathered by Google.

The user has the possibility to add or remove terms

Answering speciﬁc question like: when, who, where,

how much - in contrast to: how, why, ...

GuidedExploratorySearchontheMobileWeb

from his query and thereby resorting the search re-

sults. In fact WordBars helps the user to reﬁne her

query and supports result exploration for speciﬁc and

vague initial queries. They report that one fundamen-

tal design of their system is to create the right bal-

ance between computer automation and human con-

trol. Hence WordBars does not simply expand the

original query but instead actually waits for user in-

teraction before activating next steps. The crucial part

is to present the possible choices as good as possible

in order to create a real interactive Web information

retrieval system. The authors show that for speciﬁc

and for vague initial query their system is able to im-

prove the overall result quality although there was no

signiﬁcant improvement concerning the user’s perfor-

mance.

WebSearchViz (Nguyen and Zhang, 2006) uses the

analogy to the solar system for presenting the search

results. The query represents the sun, the documents

are the planets and location, speed, rotation, color,

and distance of objects represent the ranking of the

result documents. Relevant Web documents are deter-

mined by sending a user query to the Google search

engine. Then, the user is asked to provide the sub-

jects of interest and assigns weights for keywords that

correspond to each subject. She can choose any sub-

jects to be displayed in the visual space. The others

will not be shown, still remain in the system unless

the user explicitly deletes them. During the interac-

tion with the visual space, the user is able to modify,

add, delete, or redeﬁne subjects at will. The visual

space will be updated accordingly.

The Lighthouse system (Leuski and Allan, 2000)

combines the well known ranked list representation

and clustering visualization. The documents are rep-

resented as spheres ﬂoating in space and they are po-

sitioned depending on their mutual relatedness. The

more related the closer are the spheres. Hence the re-

sult space shows clustered documents and documents

that do not belong to any clusters. During evaluations

for measuring users’ acceptance the result showed

positive results. Users showed to be more success-

ful with the Lighthouse system than they are using

ranked document lists.

(Akhavi et al., 2007) apply the results of a cluster-

ing algorithm on the representation like a fractal tree.

It also supports zooming into the leaves of the tree

and to ﬁnd more and more details down to the docu-

ment itself. The thickness of a branch represents the

density, i.e. semantic closeness of the documents.

(Di Giacomo et al., 2007) organize search results

of Web clustering engines. The WhatsOnWeb–system

uses graphs instead of trees to present the clusters and

sub–clusters of the result document set for a query.

According to their evaluations the graph based in-

terface showed more or less similar successful result

identiﬁcation by users compared to tree based sys-

tems. When it comes to ﬁnd the correct single doc-

uments the graph based approach was more appropri-

ate.

6.2 Web Query Disambiguation

There are several approaches for Web query disam-

biguation. The goal is not only to detect ambiguities

in the words of the query but also to decide the right

direction in the solution space and present it to the

user. Some approaches like (Qiu and Cho, 2006) or

(Chirita et al., 2005) try to automatically learn a user’s

interest based on the click history. In order to achieve

this they provide a three step algorithm: 1) a model

representing a user’s interest based on the click his-

tory; 2) a process that estimates the user’s hidden in-

terest based on the click history; 3) a ranking mecha-

nism that reranks the search engine result on the basis

of 1) and 2). Other approaches like (Shen et al., 2005)

or (Gauch et al., 2003) follow the same principle but

with different learning and ranking algorithms.

Another approach is based on hyperlink structures

of the Web and aims for a personal PageRank that

modiﬁes the search engines’ PageRanks. Examples

for this approach are (Haveliwala, 2002) and (Jeh and

Widom, 2003).

A more generalizing approach consists of collab-

orative ﬁltering methods. Here the search history of

groups with similar interests are used to reﬁne the

search. This method has been used in (Sugiyama

et al., 2004) where users’ proﬁles are constructed us-

ing a collaborative ﬁltering algorithm (Breese et al.,

1998), or (Sun et al., 2005) where the correlation

among users, queries, and clicked Web pages is an-

alyzed. The advantage for the user is by the increased

completeness of the search results because the knowl-

edge base for the ﬁltering process is already ﬁlled by

other users - provided there are users with similar in-

terests.

In contrast there has also been much research

trying to post process the search results using clus-

tering algorithms. (Liu and Lu, 2011) propose a

very promising approach for disambiguation of per-

son names. This approach does not require user mod-

els or a learning and personalization phase. The re-

sults from a search process are clustered by taking dif-

ferent document properties into account: Title, URL,

metadata, snippet, context window (around the origi-

nal query), context sentence, and bag of words of the

whole document. The main property of this algorithm

is the robustness and speed and hence the disambigua-

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

tion performance. However it lacks - as reported in

this paper - the labeling or deﬁnition of the clusters.

So again the user has to check by reading at least some

snippets inside a cluster (Cucerzan, 2007).

7 CONCLUSIONS AND

OUTLOOK

We presented an approach of guided interactive topic

graph extraction for exploration of web content. The

initial information request is issued online by a user

to the system in the form of a query topic description.

Instead of directly computing and presenting a topic

graph for the user query, possible senses of the query

are identiﬁed and enumerated by referring to an exter-

nal knowledge base, Wikipedia in our case. All found

readings are then sorted and presented to the user and

the user is asked to select her preferred one. The user–

selected sense is then used for constructing an initial

topic graph from a set of web snippets returned by a

standard search engine. At this point, the topic graph

already represents a graph of strongly correlated rel-

evant entities and terms. The topic graph is then dis-

played on a tablet computer (in our case an iPad) as

touch–sensitive graph. The user can then request fur-

ther detailed information through multiple iterations.

Experimental results achieved by means of an au-

tomatic evaluation procedure demonstrate the beneﬁt

of the disambiguation method for exploratory search

strategies. The automatic evaluation has been ap-

proved by another human evaluation. Currently, the

main problem of our approach arises when an am-

biguous query cannot be found in Wikipedia using our

strategy. For example, the query “Famous Jim Clark”

would not be found as we require that all words of

the query occur in an Wikipedia article’s title. Even

if we could cope with this using a modiﬁed fuzzy

search strategy we still would not ﬁnd out ambiguities

in queries that simply are not present in Wikipedia.

However, in the running system we plan to give some

feedback to the user by changing the color of the

search entry. Then the user knows that there may

be more then just one meaning for her query. An-

other open question is whether an improvement of

our rather simple way of expanding the query using

Wikipedia abstracts will lead to signiﬁcant improve-

ments of the disambiguation results. We are planning

to do some research on this.

ACKNOWLEDGEMENTS

This research was conducted in the context of the

project Deependance (funded by the German Fed-

eral Ministry of Education and Research, contract

01IW11003)

REFERENCES

Akhavi, M. S., Rahmati, M., and Amini, N. N. (2007).

3d visualization of hierarchical clustered web search

results. In Proceedings of the Computer Graphics,

Imaging and Visualisation, CGIV ’07, pages 441–

446, Washington, DC, USA. IEEE Computer Society.

Breese, J. S., Heckerman, D., and Kadie, C. (1998). Empir-

ical analysis of predictive algorithms for collaborative

ﬁltering. pages 43–52. Morgan Kaufmann.

Chirita, P. A., Nejdl, W., Paiu, R., and Kohlschütter, C.

(2005). Using odp metadata to personalize search.

In Proceedings of the 28th annual international ACM

SIGIR conference on Research and development in in-

formation retrieval, SIGIR ’05, pages 178–185, New

York, NY, USA. ACM.

Cucerzan, S. (2007). Large-scale named entity disambigua-

tion based on wikipedia data. In In Proc. 2007 Joint

Conference on EMNLP and CNLL, pages 708–716.

Di Giacomo, E., Didimo, W., Grilli, L., and Liotta, G.

(2007). Graph visualization techniques for web clus-

tering engines. IEEE Transactions on Visualization

and Computer Graphics, 13:294–304.

Fader, A., Soderland, S., and Etzioni, O. (2011). Identifying

relations for open information extraction. In Proceed-

ings of the 2011 Conference on Empirical Methods in

Natural Language Processing, EMNLP 2011, pages

1535–1545.

Gauch, S., Chaffee, J., and Pretschner, A. (2003). Ontology-

based personalized search and browsing. Web Intelli.

and Agent Sys., 1:219–234.

Gimenez, J. and Marquez., L. (2004). Svmtool: A gen-

eral pos tagger generator based on support vector ma-

chines. In In Proceedings of the 4th International

Conference on Language Resources and Evaluation

(LREC’04), vol. I, pages 43 - 46. Lisbon, Portugal,

2004. (ISBN 2-9517408-1-6).

Haveliwala, T. H. (2002). Topic-sensitive pagerank. In

Proceedings of the 11th international conference on

World Wide Web, WWW ’02, pages 517–526, New

York, NY, USA. ACM.

Hearst, M. A. (2009). Search User Interfaces. Cambridge

University Press.

Hoeber, O. and Yang, X. D. (2006). Interactive web in-

formation retrieval using wordbars. In Proceedings

of the 2006 IEEE/WIC/ACM International Conference

on Web Intelligence, WI ’06, pages 875–882, Wash-

ington, DC, USA. IEEE Computer Society.

Jeh, G. and Widom, J. (2003). Scaling personalized web

search. In Proceedings of the 12th international con-

ference on World Wide Web, WWW ’03, pages 271–

279, New York, NY, USA. ACM.

GuidedExploratorySearchontheMobileWeb

Käki, M. (2005). Findex: search result categories help

users when document ranking fails. In Proceedings

of the SIGCHI conference on Human factors in com-

puting systems, CHI ’05, pages 131–140, New York,

NY, USA. ACM.

Leuski, A. and Allan, J. (2000). Lighthouse: Showing the

way to relevant information. In Proceedings of the

IEEE Symposium on Information Vizualization 2000,

INFOVIS ’00, pages 125–, Washington, DC, USA.

IEEE Computer Society.

Liu, Z. and Lu, Q. (2011). High performance clustering for

web person name disambiguation using topic captur-

ing. Ratio.

Marchionini, G. (2006). Exploratory search: from ﬁnding

to understanding. Commun. ACM, 49:41–46.

Neumann, G. and Schmeier, S. (2011). A mobile touchable

application for online topic graph extraction and ex-

ploration of web content. In Proceedings of the ACL

2011 System Demonstrations. ACL.

Neumann, G. and Schmeier, S. (2012). Exploratory search

on the mobile web. In 4th International Conference

on Agents and Artiﬁcial Intelligence (ICAART 2012),

pages 110–119. SciTePress.

Nguyen, T. and Zhang, J. (2006). A novel visualization

model for web search results. IEEE Transactions on

Visualization and Computer Graphics, 12:981–988.

Osinski, S., J.Stefanowski, and WeissOsinski, D. (2004).

Lingo: Search results clustering algorithm based on

singular value decomposition. In Proceedings of

the International IIS: Intelligent Information Pro-

cessing and Web Mining Conference. Advances in

Soft Computing, Zakopane, Poland, Springer (2004)

359ï£¡368.

Osinski, S. and Weiss, D. (2008). Carrot2: Making sense of

the haystack. In ERCIM News.

Qiu, F. and Cho, J. (2006). Automatic identiﬁcation of user

interest for personalized search. In Proceedings of

the 15th international conference on World Wide Web,

WWW ’06, pages 727–736, New York, NY, USA.

ACM.

Sanderson, M. (2008). Ambiguous queries: test collec-

tions need more sense. In Proceedings of the 31st

annual international ACM SIGIR conference on Re-

search and development in information retrieval, SI-

GIR ’08, pages 499–506, New York, NY, USA. ACM.

Shen, X., Tan, B., and Zhai, C. (2005). Implicit user mod-

eling for personalized search. In Proceedings of the

14th ACM international conference on Information

and knowledge management, CIKM ’05, pages 824–

831, New York, NY, USA. ACM.

Sping, A., Wolfram, D., Jansen, M., and Saracevic, T.

(2001). Searching the web: The public and their

queries. Journal of the American Society for Infor-

mation Science and Technology, pages 226–334.

Sugiyama, K., Hatano, K., and Yoshikawa, M. (2004).

Adaptive web search based on user proﬁle constructed

without any effort from users. In Proceedings of the

13th international conference on World Wide Web,

WWW ’04, pages 675–684, New York, NY, USA.

ACM.

Sun, J.-T., Zeng, H.-J., Liu, H., Lu, Y., and Chen, Z.

(2005). Cubesvd: a novel approach to personalized

web search. In Proceedings of the 14th international

conference on World Wide Web, WWW ’05, pages

382–390, New York, NY, USA. ACM.

Turney, P. D. (2001). Mining the web for synonyms: Pmi-ir

versus lsa on toeﬂ. In In proceedings of the Twelfth

European Conference on Machine Learning.

White, R. W. and Roth, R. A. (January 2009). Exploratory

search: Beyond the query-response paradigm. Synthe-

sis Lectures on Information Concepts, Retrieval, and

Services, Vol. 1, No. 1, pages 1–98.

Zamir, O. and Etzioni, O. (1999). Grouper: a dynamic clus-

tering interface to web search results. In Proceedings

of the eighth international conference on World Wide

Web, WWW ’99, pages 1361–1374, New York, NY,

USA. Elsevier North-Holland, Inc.

KDIR2012-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval
