Designing a Click Fraud Detection Algorithm

Exposing Suspect Networks

Dimitris Antoniou

, Christos Makris

, Despina Meridou

,Giannis Tzimas

and Emmanouil Viennas

Department of Computer Engineering and Informatics, University of Patras, Patras, Greece

Department of Applied Informatics in Management & Economy, Faculty of Management and Economics,

Technological Educational Institute of Messolonghi, Messolonghi, Greece

Keywords: Burst Web Visits, Click Fraud, Burst Tries.

Abstract: As the use of the Web expands and appears almost everywhere in business’ practices, new algorithmic

problems appear and need to be efficiently handled; one of them that has attracted the attention of both

researchers and practitioners is click fraud. Click fraud can be defined as the practice of repetitively clicking

on search ads without being actually interested in the content of the related links, with the intention of either

increasing the Website’s profits or exhausting an advertiser’s budget. In this work, we propose an algorithm,

which exposes suspect networks instead of single IPs, based on utilizing efficient data structures that have

not been employed in previous works.

1 INTRODUCTION

The emerging size of the World Wide Web, and its

growing pattern of use, creates new challenges and

new algorithmic problems that need to be efficiently

handled. One of these problems that has attracted the

attention of researchers is click fraud detection. As

going online becomes common practice to more and

more commercial enterprises, it has become vital for

them to be advertised online to customers. An online

ad is usually placed in the Web page of a hosting

Website as a banner and the owner of the Web site

gets paid a fee for each click on the ad from a casual

customer; this is the pay-per-click model (PPC) of

online advertisement, sometimes also called cost-

per-click model. Click fraud is a problem that is

deeply connected with this model of online

advertisement and is intimately connected (or,

better, related) to the problem of burst of visits

(Zhou et al., 2004), affecting a specific Web page.

Click fraud can be formally defined as the

practice of deliberately and repetitively clicking on

search ads with the intention of either having third-

party Website profits increase, or of depleting the

budget that the advertisers have charged for this

click (Sakkopoulos et al., 2010). In both cases,

instead of real users automated scripts or programs

can simulate multiple clicks on the ad, and since the

advertiser gets charged without taking any true

values, the term “fraud” is naturally used. Other

similar terms are “unwanted clicks” or “invalid

clicks”; this terminology is sometimes used by

Google since the word “fraud” can have legal

implications or be difficult to be proved. It should be

noted that Google publishes reports concerning the

dangers behind click fraud and defines them as

clicks produced by methods that are normally

prohibited.

Since this deliberate action of misleading an

advertiser can be naturally justified only if the gains

are large, the number of clicks need to be quite large

for someone to suspect that something is going

wrong, hence bursts of visits to the specific site

accompanied with clicks on the related ad may help

to indicate the probable presence of a click fraud. A

pattern of visits or accesses is considered bursty

when it occurs with high intensity over a limited

period of time and such patterns have been also

observed in various Web applications in a number of

studies (Zhou et al., 2004), since they can be utilized

for personalization purposes and as indicators of

other interesting events. A burst scenario can be

algorithmically characterized and captured by using

counters and recording for each Web page the

number of accesses in a fixed time interval. The

basic principles behind detecting click fraud

exploiting burst of visits is to employ thresholds in

the frequency of visits from the various IP addresses

Antoniou D., Makris C., Meridou D., Tzimas G. and Viennas E..

Designing a Click Fraud Detection Algorithm - Exposing Suspect Networks.

DOI: 10.5220/0004369300930098

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (WEBIST-2013), pages 93-98

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

and locate as responsible the IP behind the majority

of the visits.

In this work we aim at detecting click fraud real-

time and ban the networks responsible, by

presenting the design of an innovative solution

which considerably increases the security in such

cases by detecting bursts caused by networks. The

novelty in our approach lies in the fact that our

technique locates not individual IPs but whole sub-

networks, since it is able to detect the common

prefix (that is the sub-network) in the IP addresses

that are responsible for bursts of visits and depict

similar in frequency patterns of accesses under a

dominant one; this was not possible in previous

techniques that focused on individual IP addresses.

The rest of the paper is organized as follows. In

section 2, the related work is presented. In section 3,

our proposed technique in order to efficiently detect

networks that are suspects for click fraud is

described. Finally, conclusions and future work are

discussed in section 4.

2 RELATED WORK

There are various techniques that can be employed

in order to detect click fraud, which are mainly

based on the application of data mining and machine

learning techniques in order to provide detailed

evidence of possible click fraud patterns. The work

of (Antoniou et al., 2011) is the most resembling to

ours in the problem. In this paper, an approach for

click fraud detection was proposed, that analyzed the

number of visits during a certain time interval,

depending on the kind of the investigated click fraud

and on the application at hand (e.g. poll, posts).

The novelty of that approach was the effective

use of novel data structures for reducing the space

consumption and allowing the real time detection of

click fraud. However, that work was not capable of

dealing with bursts of visits for which not just an IP

address, but a whole network is responsible. In this

case, multiple IPs, belonging to a greater network,

perform visits to the banner on a Web site. Since

every IP is unique, the algorithm posed by the

authors cannot detect a single suspect IP and the

click fraud event remains undetected. In order to

detect such kinds of click fraud, there should exist a

data structure, which would be able to return not the

most recent and frequent IP address, but an

equivalent prefix. This prefix would represent the

network, to which, a group of IPs responsible for the

burst of visits belongs. To do so, we utilize another

advanced data structure, the burst tries (Heinz et al.,

2002); as we will describe in the sequel, burst tries

have interesting properties that permit the efficient

handling and detection of such kind of activities.

Before proceeding to the main section, we should

mention that, in this paper, the term “burst” is used

to describe two different concepts: (1) the bursting

process in a burst trie, which will be described later

and (2) a “burst” of visits: the case where few Web

pages become very popular for short periods of time

and are accessed very frequently in a limited

temporal space.

In order to distinguish between these two

different concepts, we will hereafter refer to a

“burst” of visits using quotes.

3 CLICK FRAUD DETECTION

USING BURST TRIES

A burst trie is an elegant data structure tailored to

store strings, that is series of symbols taken from a

given alphabet, and it can be considered to be a

hybrid data structure composed of two levels; the

upper level resembling a traditional trie storing the

strings according to the alphabetic representation of

prefixes of them with a specific length and the lower

level that stores the remaining parts of the strings

using a dictionary data structure chosen according to

the specific application at hand. In particular, the

upper level of the structure is termed as Access trie

and it resembles a traditional trie with the difference

that the leaves, instead of atomic elements, store sets

of elements. Each of these sets of elements is stored

to the so called Containers that are implemented

with data structures suitable to store small sets of

elements. The structure begins with an empty

container and is equipped with heuristics, three of

which are described in (Heinz, et al., 2002), that are

defined when a container is burst, and needs to be

split in more than one containers. When a container

at depth i is burst, then it is replaced by a new trie

node and a set of containers at depth i+1. From the

above description, it is clear that for a container

corresponding to a leaf of the Access trie with depth

i, all its stored elements share a common prefix of

length i, and this common prefix does not need to be

stored in the data structure implementing the

container. Burst tries have been shown to perform

effectively in practice and in various applications are

better than splay trees and ternary search trees that

are natural competitors in various applications

(Heinz et al., 2002).

The major property of the burst trie that suits our

application is that if : (i) containers are implemented

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

using self-adjusting data structures, and (ii) the

heuristic according to which a container is burst is

based on how skew the accesses are in the elements

of the container, then at any time instance the

elements in the same container have similar access

characteristics under a dominant one and can be

represented by their common prefix, while the

topmost element in the container is the one with the

biggest share in the accesses.

In our algorithmic application and since we need

to capture frequent patterns of accesses and hence

represent strings where the frequency of access

should be taken into account, we have chosen to

implement the containers by employing splay trees.

3.1 Description of the Algorithm

In order to detect a “burst” of visits, we utilize a two

dimensional matrix B



, with n denoting the number

of Web pages or data units and with m representing

the number of timestamps that are maintained for

each data unit. We assign a number w

[0, m-1] to

every Web page or data unit of the Website at

random. Thus, each Web page or data unit

corresponds to a row of the array B



. We define

that, for the data unit i, a “burst” has occurred if and

only if the difference between the timestamps stored

in positions (i, m-1) and (i, 0) is equal or smaller

than T, where T is the period of time in which the

visits should occur in order to suggest a “burst”.

We should mention that in the algorithm

described in (Antoniou et al., 2011) a splay tree was

used in order to store Web pages and a stack of

timestamps for each node of the splay tree. In our

present approach, we simplify the employed data

structures and we save time and space, since we

have replaced the splay tree with a simple two

dimensional array, while additionally by using the

two dimensional array we are no longer in need of

the stacks storing the timestamps of the various

users’ accesses.

In our algorithm, we use IP addresses

represented in dot decimal notation and we represent

every IP address as a string of bits. We store the

visiting IPs by employing the burst trie data

structure. In order to take into account the different

Internet Protocols we utilize two different burst tries,

depending on whether the visiting IP is defined as a

32-bit number (Internet Protocol Version 4 – IPv4)

or as a 128-bit number (Internet Protocol Version 6

– IPv6). An Internet Protocol Version 4 (IPv4)

address consists of 32 bits, which may be divided

into four octets. These four octets are written in

decimal numbers, ranging from 0 to 255, and are

concatenated as a character string with full stop

delimiters between each number. Similarly and as

far as IPv6 is concerned, the 128 bits of the address

are split in 16 octets and each two octets are

represented with a hexadecimal four digits number.

As already mentioned, we use splay trees in

order to implement the containers of the burst tries.

Using the splaying technique, the most popular

nodes of the tree, which represent parts of the

visiting IP addresses, are rearranged so that they are

located near the root of the container. Thus, the node

that is being splayed to the root of the container

could be quickly accessed in the future. For efficient

splaying, a record in a splay tree requires three

pointers, two pointing to its children and one to its

parent, thus they use the most space of any of the

container structures considered in (Sleator and

Tarajn, 1985). However, it is a natural choice in our

application since we want frequent IP accesses to be

stored near the root of the container, in order to

apply the burst heuristics that accompany the

specific structure.

The general principle for maintaining a burst trie

is to locate inefficient containers and burst them. In

particular three heuristics are proposed in (Heinz et

al., 2002); the ratio, the limit and the trend

heuristics. In the ratio heuristic, a container is burst

when the ratio of the number of accesses to the root

of the container with the total number of accesses is

less than a threshold, and simultaneously the number

of accesses to the container is large enough. In the

limit heuristic, the container is burst when the

number of the elements in the container exceeds a

threshold, and finally in the trend heuristic the

container is burst when its potential is exhausted;

during each access to the container the potential is

incremented by a fixed amount when the root of the

container is accessed, otherwise it is decremented by

another amount. In our application we have chosen

to follow a different set of heuristics since our main

aim is to guarantee that IPs with common prefixes

and similar distribution in their access characteristics

will be grouped together in the same container under

the same dominant IP; moreover the root of the

container will correspond to the dominant IP of the

group. Hence, storing IPs and employing these

heuristics should guarantee that IPs that depict

similar characteristics will be distributed in nearby

containers, and thus it will be easy for our

application to locate IPs that have the same prefixes

and similar access characteristics, in order to

efficiently locate the responsible sub network for a

specific “burst” of visits.

More analytically our algorithm is as follows:

DesigningaClickFraudDetectionAlgorithm-ExposingSuspectNetworks

1. We store the IPs in the containers, with each

container being implemented as a self-adjusting

search tree.

2. We count as root accesses for a container the

number of times the element of the root of the

container is accessed. We also define as root

ratio the one between the root accesses and the

total number of accesses in a container.

3. The aim of using the Burst Trie is to cluster IPs

with similar access behaviour under the same

container (in order to capture their common

prefix, and hence the latest sub network

responsible for attacks). The ratio heuristic

employed in (Heinz et al., 2002) is the one

closest to our aims, but we found more

appropriate to change it as follows:

Burst Rule: Let x be the number of elements

in the container when it was initially created

(after the split of another container). A container

will be split again when the number of operations

(accesses/insertions) becomes larger than x, and

the root ratio is out of a chosen range [l,u] that is

a subrange of [0,1]. For example we could

choose [l,u]=[1/2, 2/3]. Hence, when the number

of operations in the container becomes greater

than x and the root ratio is smaller than 1/2 or

larger than 2/3, it should burst.

By employing the above burst rule, we try to

guarantee that the elements in a container have

similar access behaviour. Another technique to

achieve that could be to maintain an access

counter for each element of a container and split

the container when the elements depict skewed

access behaviour (the amount of how much

skewed defined by us). However, this technique

would cost too much and would need the

employment of many parameters, and our burst

heuristic seems more appropriate.

We take advantage of the previously described

structure in order to detect suspicious networks for

click fraud. Suppose that a “burst” of visits is

generated from different IPs, which though belong

to the same network. In the beginning, the first

visiting IP may form its own container. As more and

more visits from the same network occur, they are

inserted in the same container and thus the Access

trie (the upper level component of the burst trie)

permits the efficient location of the common prefix

of the IPs (the responsible sub-network), while the

IP address in the container that caused the most

visits will be splayed to the root of the container

splay tree. After a certain number of visits coming

from this particular network, the prefix of the IP

denoting the network address will burst out of the

containers due to the extreme amount of visits that

cause the prefix’s popularity to rise.

Using this technique, we are able to detect the

responsible network for the “burst” of visits and

subsequently take action to prevent a possible

“burst” in the future coming from this particular

network. Specifically, the moment that a “burst” of

visits occurs, we detect the responsible IP and we

then insert it in the burst trie. If the insertion of this

IP in the burst trie results to an event of burst in the

trie, then we identify the subnet corresponding to the

extracted and this subnet is banned as suspect of

click fraud. The banned network remains as is for a

specific amount of time in order to avert any future

attempts coming from this network. Only after this

specific period of time has passed is the IP network

allowed to access the Web pages again.

3.2 Example

Suppose that our Web page consists of five data

units and that we store five timestamps for every

data unit. Therefore, a 5x5 two dimensional matrix

is formed (Table 1). A number of the visiting IPs is

shown in Table 2.

Table 1: The two dimensional matrix that stores

timestamps t

Suppose that all but the last of the example’s IPs

have already visited the Web site. Suppose now that

at time t

, the IP 150.140.141.2 visits the data unit

0. If by comparing the two timestamps t

and t

, we

realize that t

- t

< T, then a burst has occurred. At

the same time, the visiting IP is added in the burst

trie. As shown in Figure 1, the addition of this

particular IP results in the burst of a container and at

the same time the total prefix that has burst out of

the container has a length of 8 characters, including

the “.”. Thus, this prefix represents a subnet and the

network 150.140 is banned.

Table 2: Table showing the visiting IPs.

150.140.141.2

150.140.142.3

150.140.153.4

150.140.168.2

159.149.52.12

159.122.149.13

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

0 1 2 3 4 5 6 7 8

┴

149052012

122149013

168002

153004

142003

141002

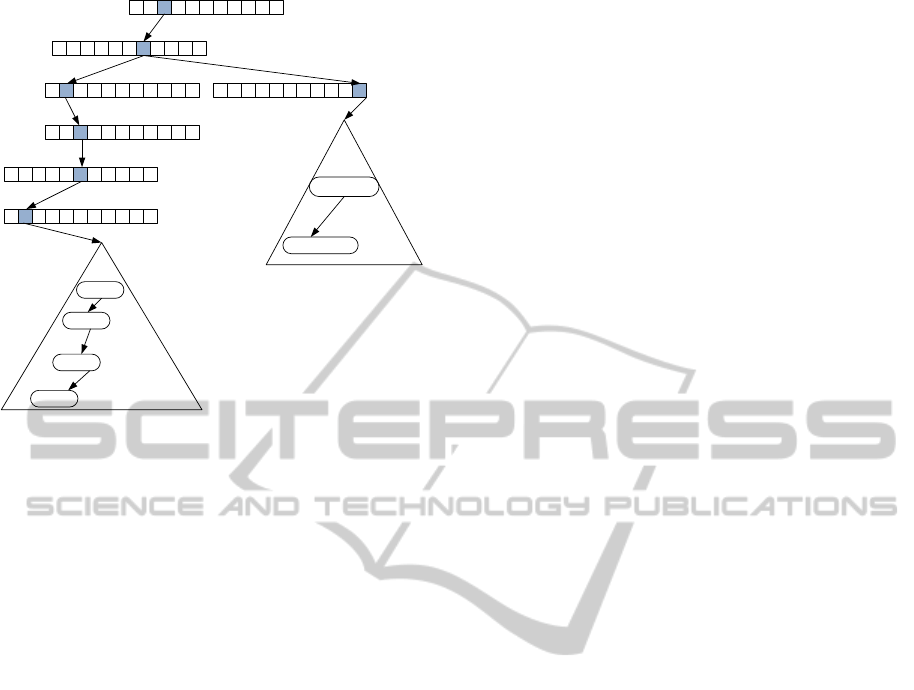

Figure 1: The burst trie after inserting the IP

150.140.168.2. (For readability reasons the example uses

decimal representations instead of binary).

At this point, we ought to mention that, for

readability purposes of the above example, we used

the conjecture that a sub-network address (suffix)

consists of six decimal digits, or equivalently 16

bits. The amount of bits that are used in order to

declare the network address, which a certain IP

address belongs to, may vary according to the

subnetting method used. Thus, the conjecture

adopted enables us to apply our algorithm in the

general case, where 16 bits are used to represent the

network address without loss of generality.

In order to test the efficiency of the algorithm in

practice, the proposed technique was implemented

and experimentally applied on the user traffic of an

experimental test scenario. The technique was

implemented, using C Sharp (C#) programming

language, as a module (Burst Module) on Microsoft

IIS (Internet Information Services) 7.5 Web Server,

while utilizing the IHttpModule interface. Whenever

an HTTP request arrives on the Web server, the

relative IP address is forwarded and stored in the

data structure proposed by our technique through the

burst module, thus enabling the click fraud detection

process.

In order to prove the effectiveness of the

approach, Microsoft Visual Studio load test feature

was utilized. Through the IP switching capability

provided by Visual Studio (in each PC-test agent

under the Load Test Manager an IP range(s) or

random IPs are assigned thus enabling the emulation

of a real life stress test scenario) we have conducted

a range of experiments using a varying number of

PCs (three, five, ten, fifteen) as test agents for the

initial load test configuration and applying various

real time scenarios:

 Mobile traffic, PC traffic etc.

 100, 200, 500, 1.000, 3.000, 5.000, 10.000 requests

per second.

 Various subnets assignments, as well as random

IPs, to the various test agents’ members etc.

The tests have proved in all cases that when a

burst is detected, the Burst module automatically

blocks the relative subnet causing the burst.

3.3 Calibration of the Algorithm -

Parameters

As far as the size of the data structure is concerned,

given that the algorithm is designed to be running in

online mode, it should not exceed certain size

constraints. One way to tackle this issue is to re-

initialize the data structure. In other words, after a

certain time period, the contents of the trie are

cleared and a new version of the burst trie is built.

The time period is chosen according to the visiting

frequency of the Website on which the algorithm is

running. In the case of high traffic Websites, the trie

should be often re-initialized, unlike Websites with

low traffic. Another way to cope with the increasing

size of the burst trie would be a merge operation.

Our future research includes studying how the nodes

of the tree that their IP is not recently accessed could

be merged, in order to avoid re-initializing the tree

and decrease its size at the same time.

A second very important issue concerning the

efficiency of the algorithm is the size of the sub-

networks we wish to detect. We consider a subnet as

a candidate to be banned when it is of class-B (16

bits prefix) and below in order to avoid banning a

larger network for a click fraud coming from a

subnet. To be able to detect the exact subnet from

which the click fraud was generated, we have to find

the common prefix of all IP-addresses (in binary)

that visited the Web server.

For example, suppose that the Web server

receives hits from the following IP-addresses:

 150.140.141.8 (binary: 10010110. 10001100.

10001101. 00001000)

 150.140.141.9 (binary: 10010110. 10001100.

10001101. 00001001)

 150.140.141.10 (binary: 10010110. 10001100.

10001101. 00001010)

 150.140.141.11 (binary: 10010110. 10001100.

10001101. 00001011

DesigningaClickFraudDetectionAlgorithm-ExposingSuspectNetworks

Then, a burst of visits is caused by the subnet

10010110. 10001100. 10001101.000010 (longest

common prefix).

We apply our algorithm in order to detect the

suspicious subnet. All IP-addresses are inserted into

the burst trie. For achieving the best performance of

the algorithm, it can be adjusted in several ways as

follows:

1. If the IP-addresses are inserted in binary format,

the alphabet of the trie would be {0, 1} and the

number of the tree levels would increase.

However, the exact subnet would be detected.

2. If the IP-addresses are inserted in decimal

format, the alphabet of the trie would be {0, 1, 2,

3, 4, 5, 6, 7, 8, 9} and although the tree would be

more efficient, an accurate detection of the

subnet would be impossible. The reason for this

situation is that there is no one-to-one

correspondence of the decimal representation to

the binary one, as far as the subnets are

concerned. If this is the case, the detection is

limited to class A networks (2

IP-addresses),

class B (2

IP-addresses) and class C (2

IP-

addresses) resulting to non-efficient detection

process and in most of the cases extreme IP-

addresses ranges banning.

In order to find the best solution to the issues just

described, a possible choice would be to insert IP-

addresses in binary format but with all bits grouped

in pairs. Then the trie alphabet would be {00, 01, 10,

11} and a better performance would be achieved,

since the subnet detected would be close enough to

the actual suspect subnetwork (maximum difference

of one bit).

Another possibility would be to insert the IP-

addresses in two formats simultaneously as follows.

The fields of the address until class B network are

inserted in decimal format (6 first digits: 255.255.

***. ***) and the remaining digits are inserted in

simple binary format or as bits grouped in pairs. The

reason for this choice is obvious, because as already

explained the subnet we are looking for is of class B

and below.

In all cases the splay trees of the burst trie data

structure will host the remaining part of the IP

addresses as a whole number (in binary or decimal

format as shown on Figure 1).

4 CONCLUSIONS & FUTURE

WORK

In this paper we have presented the design decisions

for an algorithm for real-time detection of click

fraud that focuses not on individual IPs, but on

whole subnetworks. In order to achieve that, we

exploited inherent properties and characteristics of

the burst trie data structure that permit the efficient

implicit clustering of IPs with common prefixes that

depict similar access characteristics. It would be

interesting to find out if this specific structure can

have other applications too and compare it

experimentally with other algorithmic choices that

could (if suitably enhanced) depict similar

characteristics, such as the structure in (Badr and

Oommen, 2005).

Moreover, we are planning to investigate the use

of other data structures that could be employed

besides burst tries such as self-adjusting ternary

search tries (Badr and Oommen, 2005), and compare

the pros and cons of both alternatives.

REFERENCES

Antoniou, D., Paschou, M., Sakkopoulos, E., Sourla, E.,

Tzimas, G., Tsakalidis, A. K. and Viennas,

E.,2011.Exposing click-fraud using a burst detection

algorithm. In Proc. ISCC, pages 1111-1116.

Badr, H. G., and Oommen, B., 2005. Self-Adjusting of

Ternary Search Tries Using Conditional Rotations and

Randomized Heuristics. In Computer Journal, pages

200-219.

Heinz, S., Zobel, J., and Williams, H. 2002. Burst tries: a

fast, efficient data structure for string keys. In ACM

Trans. Inf. Syst, pages 192-223.

Sakkopoulos, E., Antoniou, D., Adamopoulou, P.,

Tsirakis, N., Tsakalidis, A., 2010. A Web

personalizing technique using adaptive data structures:

The case of bursts in Webvisits. In Journal of Systems

and Software, Elsevier, vol. 83, issue 11, pages 2200-

2210.

Sleator, D. D, Tarjan, R.E., 1985. Self adjusting binary

search trees. In Journal of the ACM 32, pages 652–

686.

Zhou, B., Hui, S. C., Chang, K., 2004. An intelligent

recommender system using sequential Web access

patterns. In IEEE Conference on Cybernetics and

Intelligent Systems, pages 393-398. IEEE, Singapore.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies
