Data Model and Data Access Control Method
on Service Platform for Smart Public Infrastructure
Yohei Kawada
1
, Kojin Yano
2
, Yoshihiro Mizuno
1
and Hirofumi Terada
2
1
Information & Telecommunication Systems Company, Hitachi Ltd., Tokyo, Japan
2
Yokohama Research Laboratory, Hitachi Ltd., Kanagawa, Japan
Keywords: Data Model, Data Access Control, Service Platform, Smart Public Infrastructure.
Abstract: In the smart city projects that will “smartize” urban infrastructures, a new access control technology is
needed to offer appropriate consumer data to appropriate applications. In this paper, we analyze
characteristics and problems of the data access in the service platform for smart public infrastructure and
clarify requirements for data access control. Next, we propose a data model and a data access control
method that satisfy those requirements. The data model includes access authorization that expresses the
contracts between consumer and service provider. In the data access control method, data corresponding to
the access authorization is filtered in RDBMS for the performance. Finally, we evaluate the proposed
method by implementing a prototype and confirm that the requirements are satisfied.
1 INTRODUCTION
Recently some “smart grid” projects have included
the widespread adoption of technologies such as
renewable energy resources and electric vehicles
(EVs). This has led to the concept of “smart city”
attracting attention (Naphade et al., 2011). The roles
for IT in “smartizing” public infrastructure are as
follows.
Data Acquisition
Obtaining data from devices or equipment in real
time. The data are about demanded and supplied
amounts of electric varying from hour to hour.
Data Management
Collecting the data and providing them to users
as a gateway service.
Data Application
Utilizing the data to forecast the demanded and
supplied amounts of electric and shift the
demand.
System architectures have been proposed that
consist of a sensor layer, system layer, and service
layer that respectively correspond to the above roles.
Moreover, in these proposals, the system layer is
realize by a service platform that collects the data
from a wide variety of devices or equipment in the
sensor layer and provides the data (transformed
standardized formats) to a wide variety of
applications in the service layer (Lee et al., 2011);
(Nam and Park, 2011).
Data access control is considered a necessary
function for the service platform (Naphade et al.,
2011). In this case, data access control means
providing data to only appropriate users on the basis
of contracts between data owner and user. For
example, in the electric power industry, it is
suggested that the business model will change from
one between consumers and suppliers (equal electric
companies) to one among consumers, suppliers, and
aggregators (NIST, 2010). The aggregators serve the
consumers by visualizing their demanded amounts
or control their appliance directly for saving the
amount. The consumer means the consumer of
electrical energy, which is the generator of data, and
the application means a service provider for
consumer and the user of data. Either manager or
generator of data becomes the owner of data. The
manager of data is an electric power company, and a
generator of data is consumers. Figure 1 shows data
flow in case that the owner of data is the consumer.
As this figure shows, the consumers have the
contract with the aggregators, so the service
platform must grant the access to consumer’s data to
only the aggregators that have the contract with their
consumers. Moreover, the service platform must
grant the access to only data permitted by their
contract. The data that the service platform holds
become huge, but the platform has to realize data
235
Kawada Y., Yano K., Mizuno Y. and Terada H..
Data Model and Data Access Control Method on Service Platform for Smart Public Infrastructure.
DOI: 10.5220/0004508502350243
In Proceedings of the 4th International Conference on Data Communication Networking, 10th International Conference on e-Business and 4th
International Conference on Optical Communication Systems (ICE-B-2013), pages 235-243
ISBN: 978-989-8565-72-3
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
Figure 1: Data flow among consumers, supplier (data
manager), and aggregators.
access control on the basis of individual contracts
with realistic performance. This problem was not
considered in the above papers.
In this paper, we describe the data access control
in providing the data (about the history of
consumer’s demanded amounts of electric or the
states of their devices) to services like the
aggregators. We assume that the access control of
each service is handled on the platform. The access
control of each user of the service is handled on
service provider side.
The remainder of this paper is organized as
follows. The next section describes the characteris-
tics of data access and the requirements for data
access control. Section 3 describes related work
about data access control. Section 4 describes the
proposed data model and implementation of data
access control. Section 5 describes the evaluation
our proposal from the aspect of the requirements.
Section 6 concludes the paper.
2 CHARACTERISTICS
AND PROBLEMS OF DATA
ACCESS
2.1 Data Model and Data Providing
Types to Applications

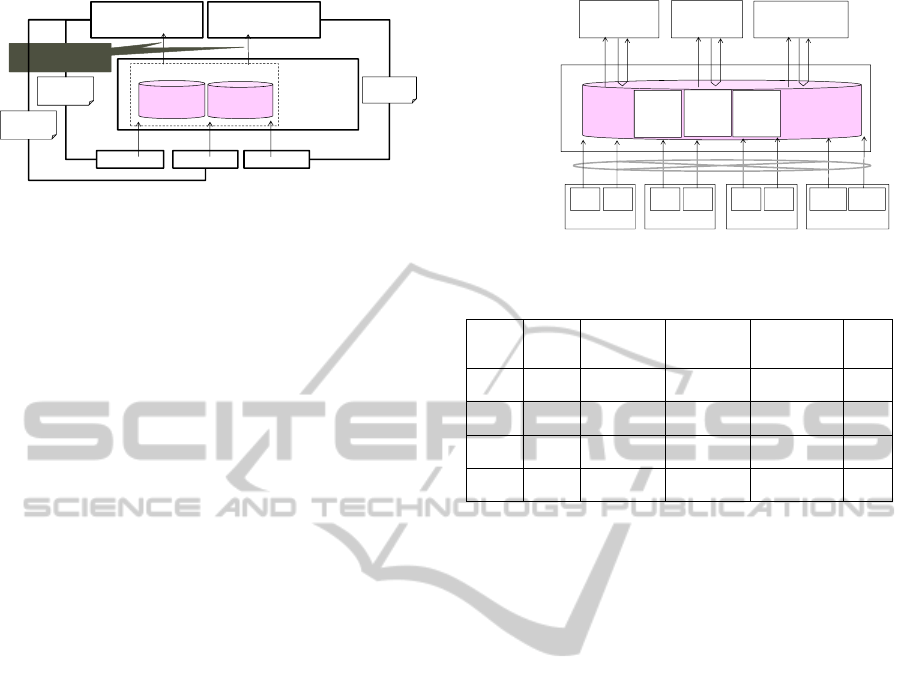

Figure 2 shows the system architecture that we
assume in this paper. As this Figure shows, the
platform collects the data about demanded/supplied
amounts of electric from devices or equipment and
provides the data to applications. Table 1 shows the
example of the demanded-amount data on a
relational database table. “Node ID”, “Class ID”,
and “Timestamp” are based on CIM (Common
Information Model) object in OpenADE
specification (OpenADE, 2010). Node ID means the
unique ID of devices, Class ID the kind of each
Node ID device, and Timestamp the date and time
when the following values are measured by sensor.
Figure 2: System architecture.
Table 1: Example of demanded-amount data.
Node
ID
Class
ID
Timestamp Instant
consumption
(kW)
Accumulative
consumption
(kWh)
Power
Device
a-1
Smart
Meter
2012/5/11
10:00:00
21 1343
Device
a-2
Battery 2012/5/11
11:00:00
3 123 OFF
Device
b-1
Smart
Meter
2012/5/11
10:00:00
24 3442
Device
b-2
Heat
Pomp
2012/5/12
12:00:00
4 63 ON
“Instant consumption”,“Accumulative consumption”,
and “Power” are the values from the sensor attached
on devices. Instant consumption means the instant
electric power amount that each device consumes.
Accumulative consumption means the accumulative
electric power amount that each device consumes
during a definite period. Power means whether each
device is on or off. The kind of data in this example
is the demanded amount on the consumer-side, but
the platform can hold multiple kinds of data.
As to provide data to the applications, the
following two types of data accesses are used
(OpenADE, 2010).
Event Notification
The platform sends the data to defined
application(s) when it receives the data from
devices whose defined conditions correspond to
any of the platforms data.
Batch Transfers
The platform sends the data to an application it
when receives the request including search
conditions from the application. The platform
searches the data corresponding to the conditions
from their database and replies to the result.
In next subsection, we will clarify the
characteristics of the batch transfers data access.
2.2 Characteristics and Problems
with Batch Transfers Data Access
There are various characteristics when the platform
Service Platform
demanded
amount on
consumer-side
supplied
amount on
consumer-side
Data manager
(ex. Electric
company)
Service Provider
(Aggregator) A
Consumer a Consumer b Consumer c
Service Provider
(Aggregator) B
Contract
B-c
Contract
A-a
Access is possible
within the contract
Access is possible
within the contract
Contract
A-b
Service Platform
Application A
(Adjustment of
supply and demand)
Application B
(Visualization of
demand)
Application C
(Remote watch out for
device user’s safety)
Supplier dConsumer b Consumer c
Equip-
ment d-1
Equip-
ment d-2
Device
b-1
Device
b-2
Device
c-1
Device
c-2
Demanded
amounts of
Device a-1
Supplied
amounts of
Equipment
d-1
Demanded
amounts of
Device b-1
…
Consumer a
Device
a-1
Device
a-2
Service
(Data Application)
System
(Data Management)
Sensor
(Data Acquisition)
Event
Notification
Batch
Transfers
ICE-B2013-InternationalConferenceone-Business
236
provides data with batch transfers data access. We
clarify two characteristics and problems below.
(A) The authorization is based on the individual
contract between the application and the consumer.
In the model of Figure 1, the range of data to
provide to service providers is based on contract
between a consumer and the service provider. The
following shows the example of the data the service
provider's applications make available.
Application A (Adjustment of supply and
demand)
To coordinate the supply and demand between
consumers, this service provider makes a
contract with all consumers that states
"Application A can refer to the data of the smart
meter". For example, in Figure 3, this application
can refer to only the data in the “Smart Meter”
Class ID.
Application B (Visualization of demanded
amount)
The devices targeted for visualization are
prescribed in a contract between consumer and
service provider. For example, in Figure 3, the
service provider makes a contract with Consumer
a. Thus, all devices Consumer a owns (Device a-
1 and Device a-2) are the targets. Therefore, this
application can refer to only the data where Node
ID is Device a-1 or Device a-2 and Timestamp is
within the contract period.
Application C (Remote watch out for device
user’s safety)
This application confirms that the user of the
devices is fine by checking the use history of the
devices and notifies the requester such as the
user’s families or primary care doctor. The
devices targeted for checking are prescribed in a
contract between consumer and service provider.
For example, in Figure 3, the target user is
Consumer b and the target devices are prescribed
as Device b-2 in the contract. Therefore, this
application can refer to only the data where Node
ID is Device b-2 and Timestamp is within the
contract period.
We define the rights to access data from given
applications as data access authorizations. The data
access authorizations are based contracts like the
above. When a set of the application is assumed
s
,s
,…s
,…,s
and a set of consumers is
assumed o
,o
,…,o
,…,o
, a set of data
access authorizations is assumed as follows.
s
o
,s
o
,…,s
o
,…,s
o
,s
o
(1)
m is the number of applications and n is the number
of consumers. This means that the maximum
number of authorizations accords with the number of
combinations of application and consumers. The
platform must define and hold this authorization
based on individual contracts.
However in case that the owner of data
corresponds to the data manager such as the electric
power company, the application makes a contract
Figure 3: Examples of data to which each application can
refer.
with data manager. The platform must define and
hold this authorization based on the contracts. It is
necessary for the platform to define and hold the
authorization based on both contract with the
individual consumer and contract with the electric
power company.
(B) A huge number of data is targeted for a
judgment about whether application can access.
In the near future, the number of consumers and
their devices is expected to grow along with urban
population. In addition, data are expected to be
collected from the devices more frequently so that
the applications can grasp the state of the devices
and consumers in detail. That is why the number of
data (i.e., the number of rows in Table 1) per time to
be provided to the application may increase. In this
case, if the platform judges about whether
application can access for every data, the time it
takes for a judgment about data access authorization
will increase when more of the data correspond to
search conditions.
A result set of the rows corresponding to the
search condition in which application s
requested is
assumed as
d
,…,d
(k is a number of rows).
The time Time
for judging whether application can
access by every row is assumed as follows.
Time
1
T
time
d
,s
o
∝k
(2)
T is a number of threads for judging process, and
time
d
,s
o
is assumed as the time to judge
whether row d
corresponds to the data access
authorization s
o
( o
is a owner of data d
. The
owner means the consumer who owns the device
Node ID Class ID Timestamp
Instant
consumption
(kW)
Accumulative
consumption
(kWh)
Power
Device
a-1
Smart
Meter
2012/5/11
10:00:00
21
1343
Device
a-2
Battery
2012/5/11
11:00:00
3
123
OFF
Device
b-1
Smart
Meter
2012/5/11
10:00:00
24
3442
Device
b-2
Heat Pomp
2012/5/12
12:00:00
4
63
ON
Application A
Application B
Application C
DataModelandDataAccessControlMethodonServicePlatformforSmartPublicInfrastructure
237
outputting datad
) or not. If k is a large, Time
is
also large, so Time
is proportionate tok.
3 RELATED WORK
This section describes related work about concept or
method of data access control.
3.1 General Data Access Control
Identity Based Access Control (IBAC) performs
access control based on the Access Control List
(ACL) defined in every data. The ACL defines the
applications that can access. This method is
generally used in networks and operating systems.
If IBAC was applied to the platform in this paper,
data access authorizations based on every contract
would possibly be defined. In this case, ACL has to
be defined by every consumer, device, or data row.
It is necessary to judge whether the application that
required data exists on the ACL for each data. As
described in 2.2(B), when the number of data is huge,
the processing time becomes long.
In Role Based Access Control (RBAC) (Sandhu
et al., 1996), data access authorization is assigned to
the application. Plural roles are able to be assigned
to a user by relating many-to-many relationships
between the user and role. In addition, a higher role
can succeed to a lower role due to the hierarchical
structure of the roles. These techniques make RBAC
suitable to manage the authorizations of the user in
an organization.
If RBAC was applied to the platform in this
paper, RBAC could be applied when the contracts
do not differ. On the other hand, when contracts
differ, access control based on the individual
contract is necessary. For example, in Figure 4,
Application B can access the data from all devices of
Consumer a but only the data from the smart meter
of Consumer b. In the RBAC, different roles need
to be assigned when authorization is different. This
means that the stated advantage of the RBAC (its
ability to simplify a definition by assigning
authorization for a role) does not make sense.
Barker and Douglas introduced an example in
which RBAC is implemented in an SQL database
(Barker and Douglas, 2004). They showed that the
performance of RBAC is reasonable in practice use
but does not mention an implementation method or
the results measuring RBAC for large data.
Attribute Based Access Control (ABAC) (Yuan
and Tong, 2005); (Bertino et al., 2001); (Duri et al.,
2004) is an access control method in which access
authorization is based on the attribute of a data,
application, or environment. It is suitable for open
systems such as data dissemination systems on the
Internet. In ABAC, the characteristic of the
application is unidentified beforehand and an
application is added to during use.
If ABAC is applied to the platform in this paper,
ABAC may perform the access control based on
contracts by regarding the contract between service
Figure 4: Example of the different role when authorization
(equal contract) is differs between consumers.
provider and consumer as attributes. However,
similarly, an implementation method and the
attributes model of ABAC for large data have not
been discussed.
3.2 Data Access Control for Smart
Grid
As access control for smart grid systems, access
control using XACML based on SOA is proposed
(Jung et al., 2012). In this proposal, Policy Decision
Point (PDP) acquires XACML policy, and judges
whether the access to a resource is possible based on
the policy. However, this proposal does not describe
the details about the judgment processing on PDP.
In addition, a method to apply an attribute base
encryption to the access control of the smart grid
system is proposed (Ruj and Nayak, 2013).
4 PROPOSAL OF THE DATA
ACCESS CONTROL METHOD
For the requirements mentioned in section 2, this
section describes the proposed data model and data
access control method on a service platform for
smart public infrastructure. In the related work in
section 3, access authorization and data from devices
are managed separately. Therefore authority
judgment processing is likely to become the
bottleneck. In the proposal, we add the access
authorization to a data model, which is composed on
Application B
Data of Consumer a
Data of Consumer b
Role B-b
Only smart meter
data access OK
Role B-a
All Devices
data access OK
Smart
meter
Heat
Pomp
Battery
Smart
meter
Heat
Pomp
Battery
ICE-B2013-InternationalConferenceone-Business
238
the basis of the contract between the consumer and
the service provider. This access authorization
defines the condition of the data accessible by every
application. The platform judges whether the access
is admitted or refused by using this access
authorization when it receives an access demand
from the application.
4.1 Data Model with Access
Authorization for Data Access
Control
CIM defines the data model for the device
configuration and the historical sensing data (e.g.
demanded/supplied amounts of electric for devices),
but does not define the data model for applications
that utilize the data and access control. Therefore, as
shown in Figure 5, we propose to extend the data
model to add the access authorization. The access
authorization is defined for every application, and
the content is based on a contract between the
service provider that operates the application and the
consumer. For example, in the case of the data
search demand from Application A, the platform
searches for the data corresponding to the search
conditions from Application A and judges whether
the data corresponds to the access authorization of
Application A or not. As a result, the platform
returns only data corresponding to access
authorization.
We assume that contracts have two kinds of
content. One is common between consumers, and
the other is may be different for each consumer. The
former corresponds to the contents such as the kinds
of data access (e.g. register, refer, update, delete),
the kinds of data, and valid period for application.
The latter corresponds to the contents such as
contract period and targeted devices. Based on this
supposition, the access authorization consists of two
parts. One corresponds to former contents, called
“application authority information”. The other
corresponds to latter contents, called “access
condition” and “relation information”. Figure 6
shows the constitution of access authorization.
Table 2 shows the example of application
authority information. In this table, a record
expresses an authority (a combination of one kind of
data and one kind of access) that an application is
given. This information includes Auth ID, which
identifies the authority, Application ID, which
means the targeted application, valid period, the time
in which the application is in operation, and kind of
access, and kind of data.
Access condition and relation information

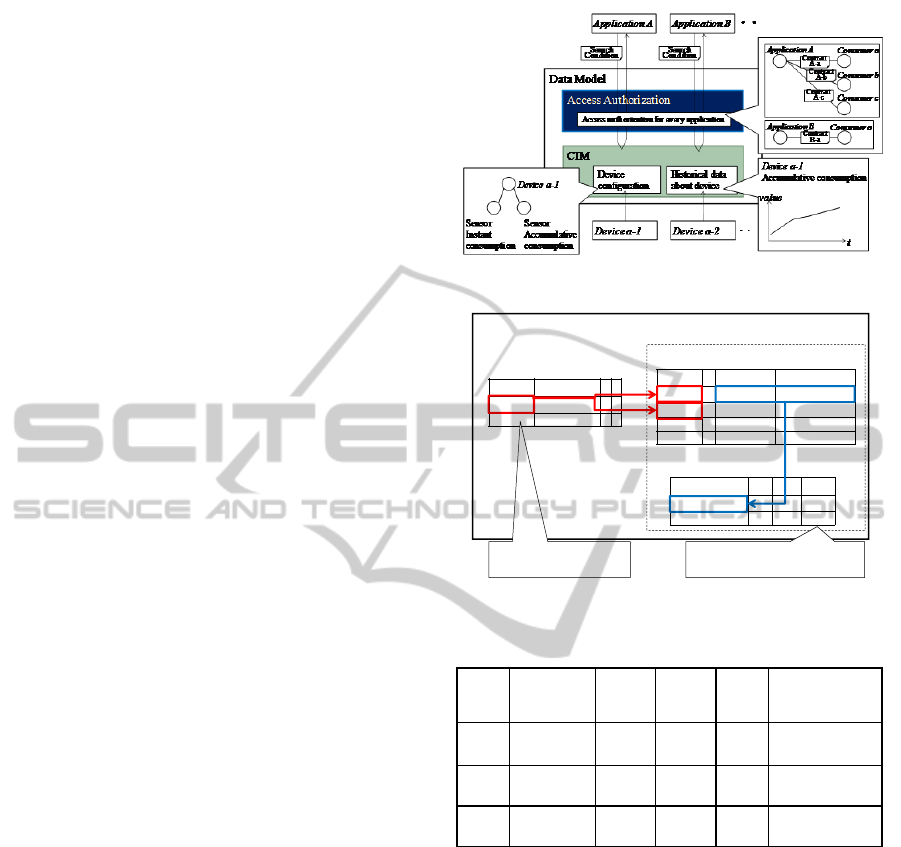

Figure 5: Extended data model for data access control.

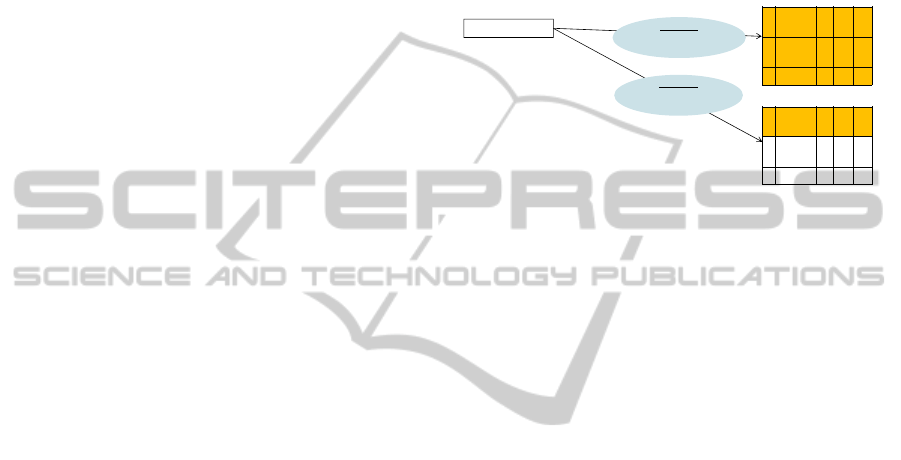

Figure 6: Constitution of access authorization.
Table 2: The example of application authority information.
Auth ID Application ID
Valid
Period
(Start)
Valid
Period
(End)
Kind of
access
Kind of data
1 Application A 2012/4/1
refer
demanded amount
on consumer-side
2 Application B 2012/4/1
refer
demanded amount
on consumer-side
3 Application C 2012/4/15 2014/7/31 refer
demanded amount
on consumer-side
express the contract contents that may differ for each
consumer. The access condition is related to the
application authority information, meaning
conditions of data in which application authority
information becomes effective. In other words, if the
data correspond to the contents defined in the access
condition, the application can access data in a
defined range in authority information. Table 3
shows an example access condition. In this table, a
record expresses a condition (combination of item
name of data and value) of targeted data. This
includes Auth ID, which means related record in
application authority information, item name of data
that is targeted in the condition, condition type
(discussed below), and value which, is the value at
item name of data. Plural access conditions are able
to be related to application authority information. In
Access Authorization
Auth ID
Ap plication ID
1
Application A
Application authority
information
Auth ID
Relation type
Val u e
1 relation Service providing
1
Access condition
Relation type
Service providing
Relation Information
Common between
consumers
Contents that may differ for
each consumer
DataModelandDataAccessControlMethodonServicePlatformforSmartPublicInfrastructure
239
this case, if there are plural conditions for the same
item name of data, these conditions are OR
conditions. If there are plural conditions for different
item names of data, these conditions are AND
conditions.
For example, in the case of Auth ID:”1” in Table
2, Application A can refer to the data of demanded
amount of electric on the consumer-side. However,
as defined in Table 3, Application A can refer to only
the data where the value of Class ID equals “Smart
Meter”.
In addition, the devices related to the
applications are able to be assigned as the value in
access conditions by using relation information. In
this case, “relation” is assigned at “condition type”,
and “relation type” is assigned at “value” in the
access condition. Table 4 shows the example of the
relation information. In this table, a record expresses
a one–on-one relation. This information includes
relation type, which means the kind of relation,
Upper ID, Lower ID, start date, which is the date the
relation started, and end date, which it the date the
relation ends. The relation is valid from start date to
end date. Upper ID and Lower ID are assigned
Application ID, Node ID, or Consumer ID. In Table
4, Application B and Consumer a are related and the
relation type is “service providing”, which means
Application B provides a service to Consumer a.
Start date correspond to the date on which the
contract between Application B and Consumer a
starts. Moreover, Consumer a is related to Device a-
1 and Device a-2, and relation type is “own”. In the
example in Table 2, application authority
information in which Auth ID is “2” is for
Application B. In Table 3, “relation” is assigned at
condition type, and “service providing, own” is
assigned at value. This means that Application B can
refer to the data in which Node ID corresponds to
the devices that Consumer a owns. Thus,
Application B can refer to the data in which the
Node ID is Device a-1 or Device a-2. Similarly,
Application C can refer to the data in which the
Node ID is Device b-2.
By using the relation information, the access
authorization that reflected each contract content
such as contract period can be defined.
4.2 Data Access Control Method
In the requirement at 2.2(B), the time for judging
whether the access is allowed or refused must not
drastically increase. Thus, in the proposed data
access control method, a SQL based on an access
authorization is generated and the data are filtered
by the SQL performed at the RDBMS in the
platform. If the filtering process is done at the
RDBMS, the process can be speeded up by
configuration of RDBMS (e.g. indexing, etc.).
Table 3: Example access condition.
Auth ID Item name of data Condition type Value
1 Class ID Smart Meter
2 Node ID relation service providing, own
3 Node ID relation service providing, target
Table 4: Example of relation information.
Relation type Upper ID Lower ID Start date End date
service providing Application B Consumer a 2013/1/1
service providing Application C Consumer b 2013/1/1
own Consumer a Device a-1 2012/10/1
own Consumer a Device a-2 2012/11/1
target Consumer b Device b-2 2013/1/1
Figure 7 shows the flow chart of the proposed data
access control method based on the above principle.
The contents of processing are as follows:
(1) When the platform receives the request from an
application, the platform searches for the
application authority information and related
access conditions by Application ID. If the
condition type in access conditions corresponds
to “relation”, the relation information is also
searched for by Application ID.
(2) The platform generates WHERE-phrase of SQL
based on application authority information and
access condition obtained in (1). Figure 8 shows
the contents of WHERE-phrase.
(3) The platform generates WHERE-phrase of SQL
based on search condition from the application.
(4) The platform generates a SQL by combining the
(2) and (3) WHERE-phrase and carries out the
SQL.
(5) The platform obtains the result of (4) and sends
them to the application.
5 EVALUATION
This section describes an evaluation for the proposed
data model and data access control method.
In the point of the data model, it is possible that
the contract contents mentioned in 2.2(A) are
defined in Tables 2, 3, and 4. However, the
following limits at least.
When designated data items in access conditions
are the same, they become OR conditions. When
ICE-B2013-InternationalConferenceone-Business
240
they are different, they become AND conditions.
Therefore, a contract must not become the OR
condition between different data items.
At present, no application has been found that has a
problem with the limit mentioned above.

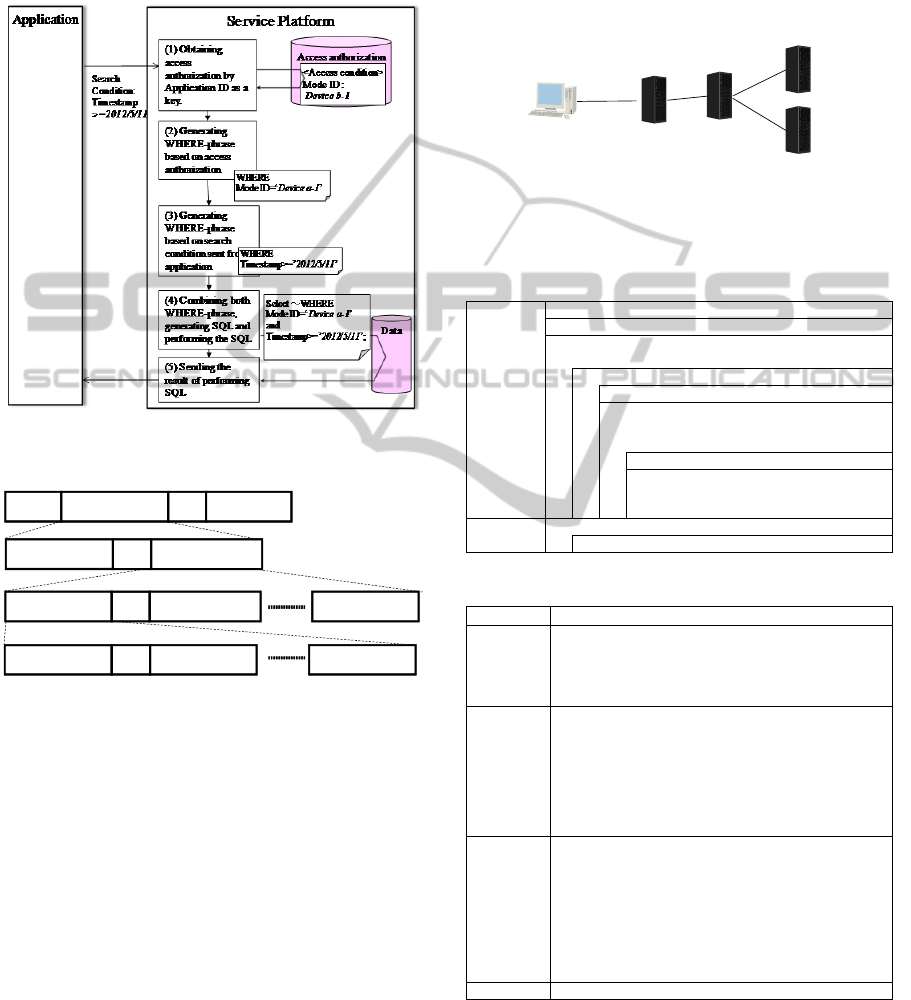

Figure 7: Flow chart of proposed data access control
method.
Figure 8: Contents of WHERE-phrase.
In the data access control method, a prototype
system of the platform based on the proposed
method was developed by Java. Table 5 lists the
specifications of the data search function that the
prototype provides for applications. An evaluation
environment implementing the prototype system is
shown at Figure 9 and Table 6. Application Client
sends an XML message corresponding to the
argument in Table 5 to Platform Server in HTTP
Request. Platform Server sends select SQL via
JDBC to DB Server and obtains the result. Platform
Server composes the XML message corresponding
to the return value of Table 5 and replies to
Application Client as HTTP Response. After the
demanded-amount data is registered with the DB
Server and a data search is carried out, it is
confirmed that only the data corresponding to the
AND condition between the search condition and the
access authorization were returned as a return value.
These Servers secure availability by multiplexing
servers and scalability by adding BES.
Next, the performance of the data search is
measured by using the environment mentioned
above. If the number of targeted consumer is
Figure 9: Experiment Environment.
Table 5: Specification of data search function for
applications.
Argument Application ID
Data Type
List of search conditions (AND condition in the case of
plural search conditions)
Search condition
The name of targeted data item
List of boundary value and condition (OR
condition in case of plural boundary values
and conditions)
Boundary value
Condition
“equal”, “higher”, “higher and equal”,
“lower” or “lower and equal”
Return
value
List of data
Data corresponding to search condition(s)
Table 6: Experiment Equipment Specifications.
Equipment Specification
Application
Client
Send request XML message to Platform Server and receive
response XML message from Platform Server.
OS: WindowsXP
CPU: Core 2 Duo E7300(2.66GHz)
Memory:2GB
Platform
Server
Prototype is implemented. Receive request XML message
from Application Client, send SQL to FES, receive the
result of SQL from FES and send response XML message
to Application Client
OS: Red Hat Enterprise Linux 5
CPU: Xeon X5690 3.47GHz 12 core (6core+HT)
Memory: 8GB
Web Server: Hitachi Web Server
DB Server
(FES: Front
End Server,
BES: Back
End Server)
FES: Receive SQL from Platform Server, analyze SQL,
allocate process to BES, aggregate the result from BES and
send the result to Platform Server.
BES: Distributed Server that retain data. receive the
process from FES and send the result of process to FES.
OS: Red Hat Enterprise Linux 5
CPU: Xeon X5690 3.47GHz 12 core (6core+HT)
Memory: 8GB
RDBMS: HiRDB Parallel Server Version9
LAN 1000Base-T Switching HUB
400,000, the number of the targeted devices per
consumer is three, and if data are collected in half-
hour periods, the data accumulated per day are
57,600,000. After registering data of this number
WHERE
Access authorization
AND
Search condition
Application authority
information
AND
List of access condition
AND
List of access condition
for first data item
Access condition
OR
List of access condition
for second data item
List of access condition
for n-th data item
Access condition Access condition
Ap plication
Client
Platform
Server
DB Server
(FES)
DB Server
(BES)
DataModelandDataAccessControlMethodonServicePlatformforSmartPublicInfrastructure
241
with the DB Server, we experimented with five
patterns of the number to correspond to search
conditions: 1, 10, 100, 1,000, and 10,000. All data
corresponding to the search condition corresponded
to the access authorization that the application was
given. As a comparison, we also experimented in the
case in which access control was not valid. In this
case, the platform processes only from (3) to (5) in
Figure 7.
Table 7 shows the measurement results of
processing time from the platform receiving the
request to return the response. Figure 10 shows the
increasing rate from the processing time of the case
in which access control is not valid (Non-Access
Control) to the processing time of the case in which
it is (Access Control). As the results show, in case of
Access Control, the processing time slightly
increased in comparison with a case of Non-Access
Control. This is because that Access Control needs
the process to achieve access authorization
incrementally. However, even in the cases of 1,000
and 10,000, the increasing rate of the time is less
than 8%. Therefore, even if the number of data
becomes huge, the processing time for judging the
access allowed or refused does not largely increase.
The cause that the case of 100 input data is the
highest increasing rate is unclear, but characteristics
of the RDBMS might be related. Meanwhile, in the
case of equation (2) in 2.2(B), if it is assumed that
the number of thread T=10 and the average of
time
d
,s
o
is 14.6msec (by the result that the
number of data is 1), the processing time is 14,600
msec in the case of 10,000. In this case, the
increasing rate is over 1,500%.

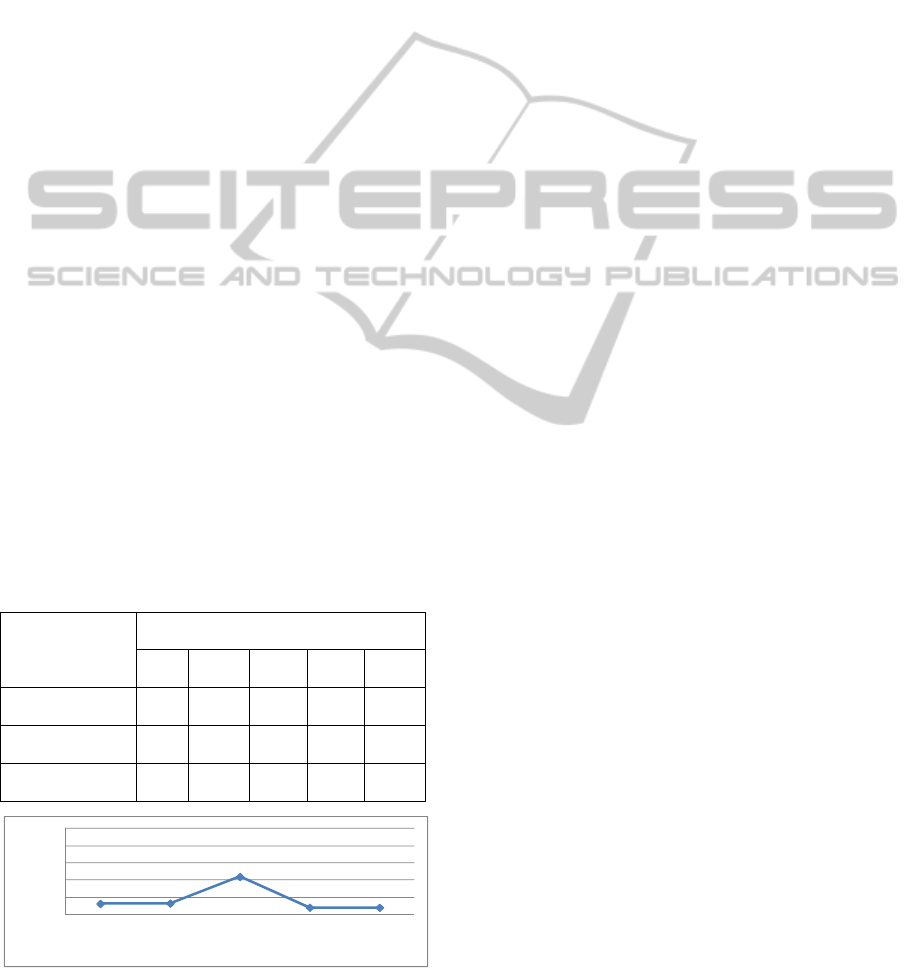

Table 7: Experiment Result (unit: msec).
Number of data corresponding to search
condition
1 10 100 1,00
0
10,00
0
Access Control 132.8 134.7 195.7 286.
2
980.6
Non-Access
Control
118.2 119.4 136.1 265.
1
908.8
Increasing Rate
(%)
12.4 12.8 42.8 7.9 7.9
Figure 10: Experiment Results.
6 CONCLUSIONS
In this paper, we focused on a service platform that
collects and manages the data collected from public
infrastructure devices or equipment. We clarified
requirements about the data access control when the
platform provided the data to the service providers
such as the aggregator. Next, we proposed a data
model and a data access control method to meet the
above requirements. In the proposal data model, the
platform holds every contract between a consumer
and a service provider as a data access authorization.
In addition, this access authorization consists of
following three pieces of information: application
authority information to express authority contents
of the application, access condition to express the
condition about accessible data derived by contract
contents, and relation information. Moreover, we
proposed avoiding a large increase in the authority
judgment processing time by filtering the data
corresponding to access authorization by RDBMS.
In the future, we will evaluate the validity and
sufficiency of the proposal method by applying in an
actual experiment.
REFERENCES
Barker, S., Douglas, P., 2004. RBAC Policy Implement-
ation for SQL Databases, Data and Applications
Security XVII IFIP International Federation for
Information Processing Volume 142, pp 288-301.
Bertino, E., Ferrari, E., Pitoura, E., 2001, An Access
Control Mechanism for Large Scale Data
Dissemination Systems, 11
th
International Workshop
on Research Issues in Data Engineering, pp.43-50.
Duri, S., Elliot, J., Gruteser, M., Liu, X., Moskowitz, P.,
Perez, R., Singh, M., Tang, J., 2004. Data Protection
and Data Sharing in Telematics, Mobile Networks and
Applications, 9(6), pp.693-701.
Jung, M., Hofer, T., Dobelt, S., Kienesberger, G., Judex,
F., Kastner, W., 2012. Access Control for a Smart
Grid SOA, The 7
th
International Conference for Inter-
net Technology and Secured Transactions, pp.281-287
Lee, J., Baik, S., Lee, C., 2011. Building an Integrated
Service Management Platform for Ubiquitous
Ecological Cities, IEEE Computer, 44(6), pp.56-63.
Nam, K., Park, J., 2011. Software Platform Architecture
for Ubiquitous City Management, Proc. 5th Int’l Conf.
Digital Society, pp.178-181.
Naphade, M., Banavar, G., Harrison, C., Paraszczak, J.,
Morris, R., 2011. Smarter Cities and Their Innovation
Challenges, IEEE Computer, 44(6), pp.32-39.
National Institute of Standards and Technology(NIST),
2010. NIST Framework and Roadmap for Smart Grid
Interoperability Standards Release 1.0.
0
20
40
60
80
100
1 10 100 1000 10000
Increasingrate(%)
Numberofdatacorresponding tosearch condition
ICE-B2013-InternationalConferenceone-Business
242
OpenADE Task Force(OpenADE), 2010. OPENADE 1.0
SERVICE DEFINITION – CORE, DRAFT V0.8.
Ruj, S., Nayak, A., 2013. A Decentralized Security Frame-
work for Data Aggregation and Access Control in
Smart Grids, IEEE Transactions on Smart Grid, 4(1),
pp.196-205.
Sandhu, R., Coyne, E., Feinstein, H., Youman, C., 1996.
Role-Based Access Control Models, IEEE Computer,
29(2), pp.38-47.
Yuan, E., Tong, J., 2005. Attributed Based Access
Control(ABAC) for Web Services, Proceedings of the
IEEE International Conference on Web Services.
DataModelandDataAccessControlMethodonServicePlatformforSmartPublicInfrastructure
243
