KASS: Korean Automatic Scoring System for Short-answer

Questions

Eun-Seo Jang

, Seung-Shik Kang

, Eun-Hee Noh

Myung-Hwa Kim

, Kyung-Hee Sung

and Tae-Je Seong

School of Computer Science, Kookmin University, Seoul, Republic of Korea

Korea Institute for Curriculum and Evaluation, Seoul, Republic of Korea

Keywords: Automatic Scoring, Short-answer Questions, Token-based Answer Template, Morphological Analysis,

Natural Language Processing, JSON Format.

Abstract: The scoring of short-answer questions in a national-wide achievement test to public school students needs a

lot of human efforts and financial expenses. Since we know that natural language processing technology can

be applied to replace the manual scoring process by automatic scoring software, many researchers tried to

build an automatic scoring system like c-rater and e-rater in English. In this paper, we explored a Korean

automatic scoring system for short and free-text responses. NLP techniques like morphological analysis are

used to build a token-based scoring template for increasing the coverage of the automatic scoring process.

We performed an experiment to measure the efficiency of the automatic scoring system and it covered about

90 to 95% of the student responses with an agreement rate 95% to the manual scoring.

1 INTRODUCTION

Educational achievement test is moving from the

offline handwritten platform to an online computer-

based assessment (Page, 1966; Valenti, 2003). It

causes an automatic scoring method being

investigated to save the overall cost of the

assessment (Elliot, 2003; Shermis, 2003; Dikli,

2006). Now, automated scoring is one of the

interesting research topics in the field of natural

language processing in which scoring process

includes NLP techniques such as morphological

analysis (Kang, 1994). Especially in the case of

short-answer questions, lots of different answers to

the same question are possible. Therefore, the

resources like time, human, finance that is required

for assessment can be reduced by the automated

system that can handle those questions properly

(Sung, 2010; Noh, 2012).

Large-scale exams like CSAT(College Scholastic

Ability Test) and NAEA(National Assessment of

Educational Achievement) are annual assessment

tests in Korea. Automatic scoring for CSAT or

NAEA should be fast and accurate. CSAT is very

critical to Korean students and the result of the exam

determines the entrance of a college or university.

Another test TOPIK (Test of Proficiency in Korean)

is a Korean language test that is offered four times a

year to foreigners.

In this paper, we propose a concept-based

scoring method that can evaluate complex questions.

Also, we developed a Korean automated scoring

system that is suitable for assessing large-scale

exams. We performed an experiment on some

questions with student answer sets and the result will

be discussed in Chapter 4.

2 RELATED WORKS

C-rater is an automatic scoring system for English

short-answer questions. The system uses predicate

argument structure, pronominal reference,

morphological analysis and synonyms to improve

scoring accuracy. C-rater system is applied to two

studies and results show that about 84% of the

responses are assessed identically by the system and

human graders (Sukkarieh, 2009; Leacock, 2003).

But as mentioned earlier, c-rater is applicable only to

English questions.

On the other hand, several methods have been

tried for scoring Korean questions automatically.

Chung (2009) used cosine similarity between each

student response and given model answer. The

system assesses responses as correct if critical

keywords of the question match (Chung, 2009). Park

226

Jang E., Kang S., Noh E., Kim M., Sung K. and Seong T..

KASS: Korean Automatic Scoring System for Short-answer Questions.

DOI: 10.5220/0004864302260230

In Proceedings of the 6th International Conference on Computer Supported Education (CSEDU-2014), pages 226-230

ISBN: 978-989-758-021-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

(2003) classified open-ended questions to 4

categories; short answer, fill-blank answer, a

sentence answer, many sentences answer. The

scoring system uses classifying questions, exact

matching, applying partial credits, critical keywords

and heuristic similarity (Park, 2003).

Kang (2011) classified questions to 6 categories.

The scoring system classifies questions then

processes them with the proper methods for specific

category. Kang’s system uses morphological

analysis, similarity with heuristics and score

calculator (Kang, 2011). Oh (2005) and Cho (2006)

used techniques from information retrieval for the

scoring system. The system uses semantic kernels,

vector space model and latent semantic analysis.

Experiments were performed with actual exam

papers and the result shows that accuracy of the

system was about 80% (Oh, 2005; Cho, 2006).

3 KASS: KOREAN AUTOMATIC

SCORING SYSTEM

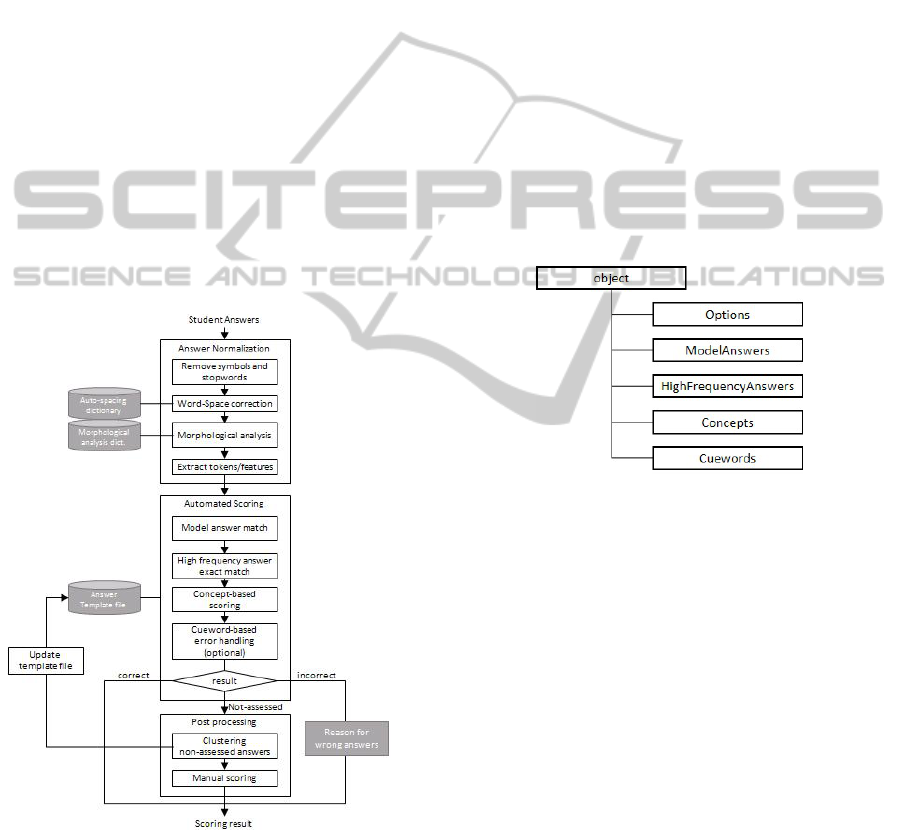

Figure 1: Structure of the proposed system.

The scoring system requires two inputs; student

answers to apply automated scoring and model

answers with a specific scoring guideline. Model

answers are described in an answer template that is

constructed by human grader and contains scoring

in-formation about model answers, high-frequency

student answers, concepts, cuewords and scoring

options.

In order to handle automated scoring process, the

system should normalize student answers with given

options that are defined in an answer template. Then

the system proceeds to a scoring step, which also

uses an answer template. After a scoring step is

finished, the system performs post processing with

student answers that are not assessed in the scoring

step. Figure 1 shows the structure of the automatic

scoring system.

3.1 Answer Templates

Automatic scoring system does not work standalone,

but it needs scoring information about a question

(Park, 2012). An answer template adopted JSON

(JavaScript Object Notation) format which contains

detailed scoring guidelines about the question that

needs to be assessed. An answer template consists of

five parts and the internal structure looks like Figure 2.

Figure 2: Structure of answer template..

Four options are given for normalize student

answers; spelling correction, word-spacing

correction, unnecessary symbol remove, and

cueword applying option. Options can be changed

and stored in the answer template file to be used at

the actual scoring stage.

After the options are set, student answers are

sorted in the order of frequency and a human gives

the score to the high-frequency answers. Scoring

information that is generated in this step is also

stored in the answer template file. Apart from the

“high frequency answers”, human graders mark

some of the student responses that is to be

constructed as initial concepts. Each marked

response will be generated automatically as a

concept. Finally, human graders can insert some cue

words of the question for treating incorrect

responses, if the cueword option is set.

KASS:KoreanAutomaticScoringSystemforShort-answerQuestions

227

3.2 Student Answer Normalization

Although model answers are given for each

question, student responses significantly have so

many variants of the correct or incorrect answers.

So, identifying the characteristics of each question is

also important.

Table 1: Example of student responses and result of the

normalization.

Answer

Original text Normalized text

Model

answe

마음을치유

Heal the min

마음을치유

Heal the min

response 1

A: 마음을치유

A: heal the min

마음을치유

Heal the min

response 2

마음을치유

Healthemin

마음을치유

Heal the min

response 3

(상처받은)마음을치유

Heal the

(

hurted

)

min

상처받은마음을치유

Heal the hurted min

For instance, human graders should consider

spelling errors about several questions of the Korean

language courses. The system should normalize

every student responses including model answers

with certain considerations. Three of four options

are used for normalization stage, except the cueword

option. Table 1 is an example of student responses

and result of the normalization with all options

enabled; spelling error correction, word-spacing

error correction and eliminating unnecessary

characters or symbols.

3.3 Automated Scoring

Once an answer template file and normalized student

responses are prepared, the system is now ready to

proceed to the actual scoring phase. Automated

scoring process consists of four sequential steps;

model answers matching, high frequency answers

exact matching, concept-based assessment and

cueword-based handling for incorrect responses. A

cueword-based task can be skipped by the option.

Each scoring step processes every student responses,

and then passes the unprocessed responses to the

next step.

Model answers and high frequency answers are

already evaluated by human graders and normalized

by the system. Since the information which are

stored in the template file and student responses are

already normalized, scoring process can be done

with exact matching method.

After exact matching, the system proceeds to the

concept-based scoring step. A concept consists of

one or more tokens. There are two token types of

lexical and grammatical morpheme. A Korean word

is split into two tokens through morphological

analysis. The system produces concepts from

unprocessed student responses then tries to find a

concept from the answer template in a

conceptualized student response. Concept-based

method can handle responses even if part of the

answer matches with a concept. Figure 3 shows how

the system handles student responses with concepts.

The fourth element in the concept has been modified

to an asterisk ‘*’ so that any token is matched to this

token.

Figure 3: Example of concept matching.

Last step handles incorrect responses with

cueword-based methods. Cue word is an essential

keyword of the question for writing a correct

response. In contrast to the previous step, each

response will be treated as incorrect if the response

does not include any of the cue words. As mentioned

earlier, this step can be skipped by the option. If

cueword option is disabled, unprocessed responses

after concept-based step will be treated as non-

assessed. Non-assessed responses are passed to a

post processing module.

3.4 Post Processing

After automated scoring, unprocessed student

responses may exist. The purpose of post processing

is merging student responses. As a result, a list of

merged concepts will be produced. Human graders

can examine the produced list and select concepts to

create.

Post processing will proceed in the following

order; conceptualizing and sorting student responses

then merging into concepts. First of all, every

student responses are conceptualized. Then post

processor sorts student responses by size because

merging concept requires same sized responses. If

the size of target concepts are same, the system sorts

them alphabetically.

Next step is merging the concepts. The system

investigates every responses of the same size and

picks targets for merging. With the picked

responses, the processor performs a comparison,

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

228

token by token. If there is an error of less than one or

two, the different token is inserted to same position

of the other response. Figure 4 shows how concept

merging works, where ‘Areumi’ is a name of a bear.

The new concepts that are generated as a result of

merging the concepts will be updated in the answer

template file.

Figure 4: Example of concept merging

4 EXPERIMENTS

We performed experiments to evaluate an efficiency

of the scoring system. For the experiments we used

about 21,000 student responses from 2012 NAEA.

We measured automatic scoring rate per each step.

Results are summarized in table 2. The result in

table 2 shows that about 80% of the responses are

processed in model answers step. 10~15% of the rest

is assessed in high frequency answers step, only

5~10% of the responses are passed to concept-based

or cueword-based step.

Table 2: Result of the experiments without using cueword

option.

# of answers

3018 3013 3017 3017 3012 3023 3035

Model

answers

2603 2611 2600 2771 2004 2249 1774

HighFreq

answers

296 318 242 121 858 722 1229

Concept-

based

66 33 93 54 30 21 23

Non-scored

53 51 82 71 120 31 9

We also compared the results between human

grader and the automatic scoring system. The results

are in table 3 and the average matching rate was

about 95%. The result in table 3 shows that error

rates of the system is very low. Note that errors

might occur in experiments because the system

operator is not an expert of the question.

Table 3: Comparison between KASS and human grader’s

scoring result.

# of

mismatch

4 3 11 4 7 1 12

Matching

rate(%)

98.1 98.2 97.1 97.6 95.8 99.3 99.3

5 CONCLUSIONS

We designed and implemented an automatic scoring

system for Korean short-answer questions that

requires free-text answers. To evaluate the efficiency

and accuracy of the system, we performed

experiments with 7 questions. The results of

experiments show that the system can be applied to a

large-scale test like CSAT or NAEA. As a future

work, we will focus on some part of the system

which is relevant with concepts. Building an answer

template semi-automatically will be a part of the

work.

ACKNOWLEDGEMENTS

This research has been conducted through R&D

program for national assessments of educational

achievement funded by Korea Institute for

Curriculum and Evaluation (KICE).

REFERENCES

E. B. Page, 1966. The imminence of grading essays by

computer, Phi Delta Kappa, pp.238-243.

S. Valenti, F. Neri, and A. Cucchiarelli, 2003. An

overview of current research on automated essay

grading, Journal of Information Technology

Education, pp.319-330.

S. Dikli, 2006. An overview of automated scoring of

essays, The journal of technology, learning, and

assessment, pp.1-35.

S. Elliot, 2003. Intellimetric: From here to validity,

Automated essay scoring: A cross-disciplinary

perspective, pp.71-86.

M. D. Shermis, J. C. Burstein, 2003. Automated essay

scoring: A cross-disciplinary perspective, Lawrence

Erlbaum Associates, Inc.

C. Leacock and M. Chodorow, 2003. C-rater: automated

scoring of short-answer questions, Computers and the

Humanities, vol.37, pp.389-405.

J. Sukkarieh and J. Blackmore, 2009. C-rater: automatic

content scoring for short constructed response,

KASS:KoreanAutomaticScoringSystemforShort-answerQuestions

229

Proceedings of the Twenty-Second International

FLAIRS Conference, pp.290-295.

T. J. Sung, K. S. Yang, T. H. Kang, and E. Y. Chung,

2010. A survey of computer-based scoring method of

free-text or constructed answers in study-advancement

evaluation, Korea Institute for Curriculum and

Evaluation, Research Report RRE 2010-1.(in Korean).

E. H. Noh, J. H. Sim, M. H. Kim, and J. H. Kim, 2012. A

prospect of the developing an automatic scoring

system for Korean free-text answers in a large-scale

evaluation, Korea Institute for Curriculum and

Evaluation, Research Report ORM 2012-92.(in

Korean).

E. M. Chung, M. S. Choi, and J. C. Shim, 2009. Design

and implementation of automatic marking system for a

subjectivity problem of the program, Journal of Korea

Multimedia Society, vol.12, no.5, pp.767-776.(in

Korean).

H. J. Park and W. S. Kang, 2003. Design and

implementation of a subjective-type evaluation system

using natural language processing technique, The

Journal of Korean association of computer education,

vol.6, no.3, pp.207-216.(in Korean).

W. S. Kang, 2011. Automatic grading system for

subjective questions through analyzing question type,

The Journal of the Korea Contents Association,

vol.11, no.2, pp.13-21. (in Korean).

J. S. Oh, W. J. Cho, Y. S. Kim, and J. Y. Lee, 2005. A

descriptive question marking system based on

semantic kernels, The Journal of Korean institute of

information technology, vol.3, no.4, pp.95-104. (in

Korean).

W. J. Cho, 2006. An Intelligent Marking System based on

Semantic Kernel and Korean WordNet, Master Thesis,

Hallym University.(in Korean).

I. N. Park, E. H. Noh, J. H. Sim, M. H. Kim, and S. S.

Kang, 2012. Answer template description for

automatic scoring of Korean free-text or constructed

answers, Proceedings of the 24th Hangul and Korean

Language Processing, pp.138-141.(in Korean).

I. N. Park, E. H. Noh, J. H. Sim, M. H. Kim, and S. S.

Kang, 2012. Concept-based automatic scoring system

for Korean free-text or constructed answers,

Proceedings of the 24th Hangul and Korean Language

Processing, pp.69-72. (in Korean).

S. S. Kang and Y. T. Kim, 1994. Syllable-based model for

the Korean morphology, Proceedings of the 15th

International Conference on Computational

Linguistics (COLING-94), vol.1, Kyoto, Japan,

pp.221-226.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

230
