Analysis and Requirements Gathering of User Interfaces for Home

Automated Systems

Akash Bhrat Manilal

and Paulo Carreira

Department of Computer Science and Engineering, Technical University of Lisbon, Lisbon, Portugal

INESC-ID, Lisbon, Portugal

Keywords:

Building Automation Systems, Home Automation Systems, User Interfaces, Smart Environment, Human-

Machine Interaction, Usability.

Abstract:

As Home and Building Automation Systems become more widespread, the need for more natural forms of

interaction also increases. However, many of these technologies are brittle and do not adapt to the user’s

explicit or implicit wishes. Indeed, variety of devices and functionalities required in a smart environment

makes it difﬁcult to integrate all controls together under a single UI, making it confusing, overwhelming and

hard to operate. Moreover, there are no clear guidance when it comes to designing UI for Building and Home

Automation Systems. This document analyses existing User Interfaces for Home Automation Systems to

uncover their fundamental aspects of interaction. An action plan will be deﬁned in order to develop the ideal

UI. In this plan, studies of previous attempts to improve BAS Interfaces will also be presented.

1 INTRODUCTION

Automation Systems have managed to expand their

features to mostly all devices and gadgets. Nowa-

days, turning a light on, increasing the TV volume or

even heating the oven can be accomplished with a sin-

gle application. As a consequence, more controls are

necessary to command each desired feature. Physical

interfaces are cluttered, displaying a lack of usabil-

ity and adaptability. With the increasing ubiquity of

interactive computer systems, usability becomes in-

creasingly an important issue. Minor usability prob-

lems can scale to having major economic and social

consequences (Mayhew, 1999). Whereas in terms of

functional requirements systems have been showing

evolution (Ghanam et al., 2009), we must give impor-

tance to the various aspects of interaction between the

user and the application.

Interfaces for Home Automation have tried to fo-

cus on responsive behaviour in order to make them

more appealing. Human-Machine Interaction is an

interdisciplinary area of applied research and design

practice. Its key concern is to understand the creation

of User Interfaces for machines as experienced and

manipulated by human users. It draws many estab-

lished areas of science and craft: psychology, com-

puter science, anthropology, industrial design (Car-

roll, 1991).

This document will address the most frequent

problems related to Home Automation Systems

(HAS) Users Interface, such as Hysteresis, Manual

Override, notion of Progress, Completion and much

more. In the end, a design proposal will be provided.

A description of the procedure that will be used in

the creation of a new User Interface (UI) focused on

HAS as well as the evaluation method to conﬁrm it’s

effectiveness.

1.1 Goals

The goal of this paper is to resolve some existing

problems related to usability, user friendliness and

feature management of Home Automated Systems

and build the most complete User Interface.

To implement our idea we have to identify func-

tional requirements (all the features a house has to of-

fer), non-functional requirements (Usability, Acces-

sibility, Portability, etc.) , all the possible modalities

(all the devices it can be implemented) and the UI pat-

terns we can apply.

For house features purposes we will split into

the following categories: White Goods (everything

that has to do with electronic Equipment), Illumina-

tion, HVAC, Environmental (analysing external fac-

tors that can inﬂuence, for example, illumination in-

side the house) and Security. One of the problems we

324

Manilal A. and Carreira P..

Analysis and Requirements Gathering of User Interfaces for Home Automated Systems.

DOI: 10.5220/0004975003240335

In Proceedings of the 3rd International Conference on Smart Grids and Green IT Systems (IEEHSC-2014), pages 324-335

ISBN: 978-989-758-025-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

will face is how to build a single User Interface for all

those categories and still make it user friendly.

1.2 Problem Deﬁnition

Home automation and controls provide advanced

functionality to homes using distributed control sys-

tems. Demand for energy efﬁcient solutions, en-

hanced security, increased venture capital funding,

and greater convenience are some of the factors that

have led to the growth of the home automation and

controls market. The market is, currently, at the high

growth stage of the industry life cycle, and is expected

to remain in this phase till 2018.

The majority of existing Home and Building Au-

tomation Systems focus on functionality gathering,

house features, integrating with external systems or

even improving response time. Even though they

are signiﬁcant points, they conceal other requirements

that also are of major importance to the proper func-

tioning of systems and acceptance from users.

With this work we propose to resolve the fol-

lowing issues: notion of progress and completion

(real-time feedback), Hysteresis and Manual Over-

ride. Giving the user a accurate progression state dur-

ing the course of a requested action allows him to

have a real-time knowledge of the state of his request.

The same goes to the notion of completion. Solving

this problem has a great impact on Home and Build-

ing Automation Systems (HBAS) since they can make

use of this solution to any kind of request.

Hysterisis is the dependence of a system not only

on it’s current environment but also on it’s past one.

Regarding BHAS, we can identify Hysteresis prob-

lems when a user wants to perform an action that

contradicts a previous one. Solving this problem, we

would be not only conserving the system itself but

also the physical hardware that could be affected by

it.

Manual Override is an action where the control

is taken from an automated system and given to the

user. The conﬂict resides in what the system should

do, either gives full responsibility to the user, allowing

him to fully override any scheduled event or refuses

to cede control, making the user less empowered.

Although there are several other issues to be iden-

tiﬁed, we believe that solving at least these three

would show great improvements for Home Automa-

tion Systems.

2 CONCEPTS

User Interface is the visual part of computer applica-

tion through which a user interacts with a software. It

determines how commands are given to the computer

or the program and how information is displayed on

the screen. However, the ﬁeld that studies how UI’s

should be designed is much wider than it’s deﬁni-

tion. In this section we will introduce the concept of

Smart homes and Human-Machine Interaction. Both

of them will be related with UI designs referencing

Ten Usability Heuristics.

2.1 Smart Homes

Smart homes go by several names, including Inte-

grated Control Systems (ICS) and Home Automation

Systems (HAS). By any name, these systems are used

to control devices around the home. Home electronics

and appliances including doors, lights, surveillance

systems and consumer electronics are some exam-

ples (Humphries et al., 1997). Control Systems can

also provide information, meaning, users can ﬁnd out

how much electricity they have used on speciﬁc ap-

pliances and utilities can read meters remotely (Han

et al., 2010). An important goal of smart home re-

search becomes how to appropriately expand sys-

tem capabilities to produce more control both per-

ceived and actual (Davidoff et al., 2006). To pro-

vide mobility, usually, users are able to control with

a smart-phone or tablet. However, these systems lack

user friendliness and are neither intuitive nor realis-

tic (Wimsatt et al., 2006).

Domestic technologies have been adopted at dif-

ferent rates throughout the years. To better understand

the direction smart home technologies are taking and

what programmers and scientist believe is the next

evolution for HAS (Harper, 2003), it is important that

we distinguish the concepts of time-saving goods and

time-using goods (Bowden and Offer, 1994). The ﬁrst

ones are meant to reduce the time needed to complete

a task, in order to have more time for yourself. Vac-

uum cleaners, washing and drying machines are some

examples. The majority of these goods took decades

to diffuse and all of them are clearly related to house-

hold income. As for time-using goods are those which

occupy free time and improve its quality by giving the

user more to entertain. Television, radio and video are

the most common and well-known time-using goods

for most people. Unlike time-saving goods, these

have spread quickly and showed much less relation-

ship to household income.

The relation between these two goods rely on the

time they occupy. The more people spend time using

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

325

goods like television or radio, the less they have to

complete house tasks. This can be considered the mo-

tivation needed to start thinking about smart homes.

2.2 Human-Machine Interaction

Human-Machine Interaction (HMI) is described as

the interaction between human users and machines.

The abbreviation HMI should be considerably ex-

tended to cover the ergonomics challenges presented

by the contemporary, highly complex and dynamic

human-machine systems. The notion remains a key

point with its properties of friendliness, usability,

transparency, etc. However, cognitive ergonomics has

developed a large number of studies on human au-

tomation relationship failures, which concern what is

behind the interface (Baecker and Buxton, 1987).

The degree of automation in control of dynamic

systems has substantially been increased over the last

decades. This is true for all technical systems. High

levels of safety, performance and efﬁciency have been

achieved by means of the raise use of automatic con-

trol. The need for improved Human-Machine Inter-

action (HMI) spread proportionally to the degree of

automation. Generally, increased automation does

not replace human users who are interacting with the

machine, but shifts the location of the interface be-

tween both. Higher complexity and more sophisti-

cated control structures require a new quality of com-

munication and co-operation between human and ma-

chine. From the front line humans operator point of

view, machines are not only tools but also possibly au-

tonomous agents and some coherence must be main-

tained between humans and machines actions on the

environment, regardless the interface (Johannsen, ).

2.2.1 Usability Heuristics

We can analyse UI’s through analysis techniques,

computerized procedures, empirical methods and

heuristic methods (Nielsen, 1994; Nielsen and

Molich, 1990). The last one consists in presenting

an UI to a number of people that are asked to evalu-

ate a set of usability principles. The original set of

heuristics used for several early studies was devel-

oped with the main goal of making the method easy

to teach (Nielsen and Molich, 1989). In order to nor-

malize the evaluation set of usability principles, Jakob

Nielsen deﬁned what is considered to be the Bible of

Usability Evaluation:

Visibility of System Status, meaning, the system

should always keep users informed about what

is going on, through appropriate feedback within

reasonable time;

Real-world Conventions should be followed, mak-

ing information appear in a natural and logical or-

der (words and phrases);

Supporting Undo and Redo is necessary in case

users choose system functions by mistake and

need to leave the unwanted state without having

to go through an extended dialogue;

Consistency and Standards prevent users from

wondering whether different words, situations, or

actions mean the same thing;

Eliminating Error-prone conditions or showing

conﬁrmation boxes before users take an action

will help make it clearer;

Minimize the user’s Memory Load by making ob-

jects, actions, and options visible. Instructions for

use of the system should be visible or easily re-

trievable whenever appropriate;

Flexibility and Efﬁciency of Use for more experi-

enced users, the system should allow them to

speed up the interaction so they can execute the

desired task;

Stick with what Really Matters . Dialogue boxes

should not contain irrelevant information. Over-

ﬂow of information might confuse the user and

will eventually hide the focus point;

Help users Recognize, Diagnose, and Recover from

Errors. Error messages should be expressed in

plain language, precisely indicating the problem,

and constructively suggesting a solution;

Provide Help and Documentation even though it is

better if the system can be used without it. Any

such information should be easy to search, fo-

cused on the user’s task, list concrete steps to be

carried out, and not be too large.

2.3 Fundamental Aspects of Interaction

with HAS

2.3.1 Feedback Issues

Feedback is the process part of a chain cause-and-

effect. Wondering what a software program is do-

ing is a common way to conﬁrm that UI lacks clear

information. Feedback principles in a UI needs to

be immediate and synchronized with user action. As

for Home and Building Automation Systems (HBAS)

there are a speciﬁc set of responses an UI should give

to their users.

Hysterisis is the dependence of a system not only

on it’s current environment but also on it’s past one.

This dependence is due to conﬂicts on internal states.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

326

To avoid conﬂicts, it’s history must be known (Vis-

intin, 1994). We can identify this problem every time

a user requests a functionality that is exactly the op-

posite of the previous one in a short amount of time.

Opening and closing blinds and turning the heater on

and off are some examples of such problem. To an

HBAS it is relevant to determine whether the applica-

tion should not allow the user to complete his task or

simply showing a warning message to acknowledge

the user that his request might cause conﬂicts.

Other kinds of feedback issues come from

Progress and Completion of tasks. For the ﬁrst one we

can show the user an accurate progression of the re-

quested action by measuring the average time to com-

plete the activity (Best Effort). Once the average time

has passed, a message is shown to the user, conﬁrming

the completion of the task. This approach may lead

the user in error since we cannot be certain the task

is already completed. The second option is to give

the Feedback Bus the responsibility of sending and

acknowledge (ACK) signal to conﬁrm when the task

is completed. The last choice and the most common

one, is using a motion sensor in order to get physical

feedback. This approach can cause issues if an object

is preventing the motion sensor to read correctly.

Manual Override is an action where the control is

taken from an automated system and given to the user.

When building HBAS, the main goal is to give the

user as less work as possible to perform tasks. How-

ever, the system should be prepared to deal with ex-

ceptions. On extreme cases, giving the machine full

responsibility for automations of all features of the

house can become an issue. If they follow rules in-

stalled by the manufacturer or required by law and

refuse to cede control in some situations then the own-

ers of the devices may feel less empowered, alienated

and lacking true ownership.

The last two feedback issues are related to Con-

ditions and Energetic Behaviour. The ﬁrst one is an

issue frequently related to temperature. Considering

a scenario where an user is using an application con-

nected to all devices in the house, including HVAC,

and pretends to turn the heater on. As the tempera-

ture rises, the system should be able to control it so it

doesn’t get uncomfortable to the user (too hot or too

cold). Energetic Behaviour relates to how the user

deals with his house. The UI should be capable of

changing users behaviour in order to save electricity

and water.

2.3.2 Control Abstractions

There are many ways users can interact with the sys-

tem. Each of them can have different results and raise

distinct issues. Control abstractions can be distin-

guish between Spatial, Equipment and Services. For

each one of them a different UI should be presented

since they possess distinct features.

Spacial requests are what we call Scenarios. They

allow the user to change multiple features at the same

time in order to create the environment he wishes.

Taking an everyday situation such as a user wanting

to watch a ﬁlm, there should be a scenario that is able

to dim the living room lights, turns on the tv, turns off

any other light and starts the ﬁlm. Spacial requests

involves the whole house and all its features. To rep-

resent this control in an UI, besides showing the pos-

sible scenarios, the layout should contain the details

of each of them.

Controlling Equipments allows the user to make

system requests targeted to a speciﬁc equipment. The

action to be applied to the equipment does not have

to be detailed. Requests like dimming all the lights to

twenty percent are considered equipment requests.

Requesting for a service is the same as saying that

the user wants a speciﬁc task to be performed. For ex-

ample, turning on the lights. These types of services

are what make the UI vast and showing too many of

these can make the UI less User Friendly and very

confusing. It is important that we organise all features

with categories so the user ﬁnds it easier to request a

speciﬁc service.

3 RELATED WORK

In this section we will address theoretical studies re-

lated to HAS characteristics and their User Interfaces.

Firstly we will present the notion of portable sys-

tems and remote access. Then we will show some

systems capable of controlling various house features

with only one UI and in the same section we will dis-

cuss customisable UI’s.

3.1 Portability and Remote Access

Regarding HAS in relation to portability, typical user

interfaces for controlling home systems include com-

puter displays with touch screens, dedicated display

devices such as LCD panels with buttons or a touch

screen or hand-held remote controllers. All of these

examples are devices which are dedicated for control

only. The users require extra space and incur extra

expenses for them. In some cases, these display de-

vices are installed into walls. In these cases, special

installation work is necessary and it becomes very dif-

ﬁcult to modify the devices and/or their location. In

the case of hand-held remote controllers, the display

capabilities are limited and the functions are typically

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

327

dedicated to speciﬁc purposes such as lighting con-

trol. Portability began to matter and attempts where

made in order to overcome those drawbacks.

In 1996 a method for menu-driven UI, more par-

ticularly, for distributing menus throughout a home,

was presented (Fujita and Lam, 1996). In order to

make the software portable, functions could be im-

plemented using a personal computers, infra-red, re-

mote controls, home distributed networks and televi-

sion receivers. This invention was advantageous in a

way that menus could be distributed to any place in a

home, users could control the home system and out-

side services from any display location in the home

and different menus could be distributed at the same

time to distinct display locations.

In 2005, a mobile-based HAS solution was in-

troduced (Van Der Werff et al., 2005). The de-

sign consisted on a mobile phone with Java applica-

tions, a cellular modem, and a micro-controller. User

friendly graphical UI was provided on the mobile

phone through applications developed in Java pro-

gramming language. The controller board resided at

home and worked as a home server, which carried

out the task of operating and monitoring house ap-

pliances. The home server communicated with the

remote control via cellular modem.

More recently, a ZigBee-Based Home Automa-

tion System was proposed (Gill et al., 2009). ZigBee

is a speciﬁcation for a set of communication proto-

cols used to build personal area networks built from

series of small, low powered digital radios (Alliance,

2006). It is based on an IEEE 802.15 standard. Zig-

Bee devices often transmit data over longer distances

by passing data through intermediate devices to reach

more distant ones, creating a network with no central-

ized control or high-power transmitter/receiver able to

reach all of the networked devices. The decentralized

nature of such wireless ad hoc networks make them

suitable for applications where a central node can’t

be relied upon.

Another key feature for HAS is the capability for

remote operation. Considerable efforts have been put

into the development of remote control systems for

home automation. With the proliferation of Internet,

various Internet-based remote control architectures

for home automation have been proposed (Al-Ali and

Al-Rousan, 2004; Corcoran and Desbonnet, 1997).

These systems rely on the Internet as the medium for

communication and generally feature friendly graph-

ical user interfaces. Home gateways provide network

interoperability, a simple and ﬂexible user interface,

and remote access to the system.

3.2 All in One and UI Customisation

Home Automated Systems have been making an ef-

fort to control all house features. The standard ap-

proach now commonly used is for each device or sys-

tem in a given environment to be controlled according

to a particular methodology which might differ dra-

matically from other systems (Stein et al., 2000). For

example, a home might include a security system, an

entertainment system, an environmental control sys-

tem, and so forth, each with it’s own unique interface.

By requiring the user to learn several methods of oper-

ating each system or set of devices in the environment,

it is more difﬁcult for the user to become familiar with

the various systems and to take full advantage of all

their features. Another drawback associated with this

standard approach is that the use of different inter-

faces may result in an increase in the amount of space

taken up in the setting. More and more users want a

single application capable of controlling Illumination,

HVAC and white goods.

Liu and Xian approached this problem particu-

larly for disabled people (Liu and Xian, 2007). The

system was build so as to merge all house features.

To enhance the experience, a voice controlled, User

Friendly UI was carefully designed, so that user could

use not only standard keyboard and mouse, but also

the voice to control home environments including

lights, TV, radio, VCD/DVD player, fan, and air con-

ditioner. Furthermore, the self-designed software ap-

plied home automation control idea to internet access

and PC application software access with the features

of surﬁng the internet, sending and receiving emails,

using other PC software such as Microsoft Ofﬁce.

A report by William Wimsatt went further and in

addition to gathering features, developed a contextual

UI (Wimsatt et al., 2006). Contextual Interface is a

product of a design process in which the various inter-

face features are selected to improve the users ability

to operate the interface. Examples of interface fea-

tures that can be controlled include the selection of

controls, size, shape and position, background and

foreground colour schemes, sounds, as well as the

selection of actions that are initiated by operating a

control. In most graphical user interfaces these items

remain static so that irrespective of the context, a con-

trol such as a start button, remains in the same place

on a display with the same appearance and performs

the same function. This invention involved two levels

of contextual relevance.

First, the user interface as a whole is contextu-

ally sensitive to the elements appearance (e.g., colour,

size, font, etc.) and their behaviour vary depending on

the context of the control unit (CU). The context of

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

328

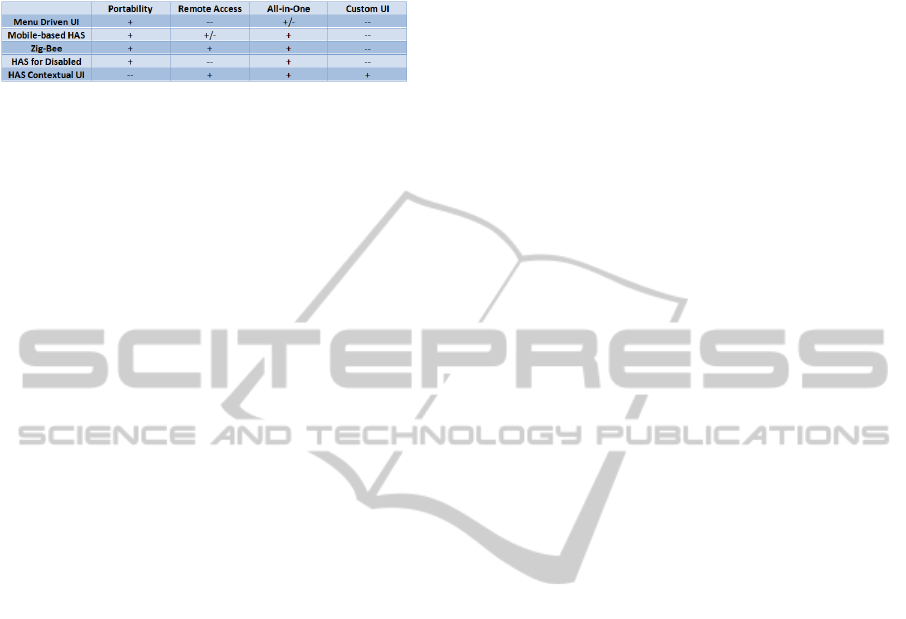

Table 1: Systems Comparison. Each column represents

the dimensions analysed while the lines represent the sys-

tems/works mentioned on the previous sections.

the CU is represented by state information known to

it, including context-speciﬁc and global information

known to a single or multiple CU’s in a system.

And second, individual elements are themselves

made contextually sensitive. In a particular imple-

mentation, contextual sensitive interface elements in-

clude interactive screen elements such that a sin-

gle screen element can simultaneously display infor-

mation about the context (e.g., current temperature,

sound volume, light level, etc.) as well as implement-

ing behaviour to send messages to a controlled system

that can affect the displayed information (e.g., a ther-

mostat, an entertainment system, or a lighting subsys-

tem).

3.3 Discussion

In order to identify the common issues and strengths

of each work described during this section, a compar-

ison was made. Table 1 shows the results of the analy-

sis based on the details of each work. To facilitate the

comparison, a convention of symbols with different

meanings were deﬁned:

”+” the system fully supports the feature to be eval-

uated;

”+/-” the system partially supports the evaluated fea-

ture;

”–” either the system does not support the feature

that is being tested or the work does not present

any information regarding the evaluated dimen-

sion.

Examining the table we can see that each di-

mension has different results. Regarding portability,

we can verify that all of them, excluding the work

of William Wimsatt (Wimsatt et al., 2006) (which

doesn’t present any information related to this di-

mension), are portable. The systems were built in

a way that allows users to access it in different de-

vices. Some of them use infra-red, remote controls

and home distributed networks to accomplish this fea-

ture. In contrast, almost none of them are customis-

able.

UI Customisation is the common issue among

most systems. When building User Interfaces, sys-

tems tend to create ﬁxed layouts that they believe

to be ideal, usability wise. To surpass this prob-

lem, Contextual User Interfaces was used (Wimsatt

et al., 2006). Contextual Interface is a product of

a design process in which the various interface fea-

tures are selected to improve the users ability to oper-

ate the interface. Examples of interface features that

can be controlled include the selection of controls,

size, shape and position, background and foreground

colour schemes, sounds, as well as the selection of

actions that are initiated by operating a control.

Forcing a user to have a system that controls ir-

rigation, another that controls water and another for

illumination nowadays is not viable. Companies un-

derstood this problem and made an effort to join all

those systems into one, requiring the user to adapt a

single UI. According to table 1 we can see that all of

them took this problem into account and gather all the

functionalities.

The last analysed feature was the remote access.

In the last few years, companies have been trying to

make their software as accessible as possible, using

the network as an asset. According to the table, results

vary from work to work.

4 EVALUATION OF EXISTING

SYSTEMS

HAS has been growing exponentially in the last years.

The proof relies in the various Automation Systems

available in the market. The last few years there’s

been an increase of requests to implement Integrated

Control Systems (or Smart homes) and at the same

time, an increase of companies capable of providing

and supporting those systems. In order to evaluate ex-

isting systems we’ve decided to choose six HAS that

stood out among the others: mControl, HomeSeer,

Control4, PowerHome2, Vivint and ActiveHomePro.

4.1 Evaluation Method

In order to fairly evaluate the systems we there was

a need to deﬁne a set of points (or dimensions) of

evaluation, each of them containing a set of speciﬁc

features. For every dimension of evaluation, a sys-

tem can get minimum score of 0 or a maximum of 5.

We decided to also include an ”Observations” criteria,

that allows the system to gain or loose 0.5 points. If

we ﬁnd features that we did not take into account in

our evaluation but are worth mentioning, whether it’s

good, bad or some detail, it will be considered.

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

329

4.1.1 System Features

This evaluation point will take into account house fea-

tures that the system allows you to control. For eval-

uation purposes, we consider that are four essential

features:

Lighting and illumination of the whole house. The

system should also give the possibility to control

brightness;

Heating, Ventilation and Air Conditioning(HVAC)

The software should be able to control home’s

heating and cooling system as well as give

information about current state;

Motion Sensors allows the system to detect move-

ment or monitor occupancy status throughout the

house. This feature, combined with any other, can

be very helpful to support other functionalities;

White Goods or whiteware, relates to heavy con-

sumer durables such as air conditioners, refrigera-

tors, stoves, etc., which used to be painted only in

white. Despite their availability in varied colours

now, they are still called white goods;

4.1.2 User adaptability

The UI has to be clever enough to adapt users de-

mands. In this point, for the software to get the max-

imum score it has to able to schedule events (timed

events) so the user has the ability to prepare every-

thing with no worries. It has to have scenarios. A

scenario is a feature that allows the user to control the

space around him (Spatial Control Abstraction). They

trigger multiple events at the same time with a single

button.

The last two points of evaluation are UI Customi-

sation and Session-based application. The ﬁrst one

concerns the UI’s ability to be modiﬁed. Letting the

user customise the main panel, enabling a favourites

section/tab are two features to be taken into account.

As for the second one, it is related to the capacity of

the system to distinguish between different users in-

side the same house. If each user has it’s own user-

name and password the system would be able to col-

lect different types of data, identifying the person that

has spent most water and/or energy in the house or

even be able to give suggestions based on what it has

learned.

4.1.3 Ease of Use, Help and Documentation

Concerning the Ease of Use of an application, we

rated each product on its ability to produce an intu-

itive user interface based on its Commands Organiza-

tion. If the application uses tabs, buttons with intu-

itive icons, colour scheme to facilitate the differenti-

ation between functionalities and so on. Overcompli-

cated processes and clunky interfaces caused systems

to rank lower in this category. Another point is the

Remote Access. Nowadays it is crucial that the user

is able to access the application from anywhere in the

world. The most usual devices that should give access

are desktop computers, laptops and smartphones. The

last point to be evaluated is Voice Recognition. The

user shouldn’t be obligated to carry his device around

the house. Once he is inside he wants to communi-

cate with it in order to satisfy his/her needs. Voice

recognition allows that to happen and shows to be an

extremely valuable point for this evaluation.

As for Help and Documentation, we ranked each

system on the customer service options that it pro-

vided, including tutorials, user manuals, online docu-

mentation and phone support. Less common features

like a live chat option and user forums can also be

included.

4.2 Systems Evaluation

4.2.1 mControl v3

mControl was build thinking of all the devices a house

can possibly have. This product can control Lighting,

HVAC, security systems, IP cameras, irrigation sys-

tems, A/V systems, window shades and much more.

This software allows the users to choose from pre-

set scenarios that can trigger multiple functionalities

at the same time. Some of them can be automatically

initiated if certain conditions are met (Sunset/sunrise

events or even timers). Alternatively, you can pro-

gram your own scenarios.

There isn’t, however, any way to customise the

UI itself, meaning, buttons layout, main menu pref-

erences. Another ﬂaw of mControl is that it cannot be

session oriented (login/logout) and that does not al-

low us to know for sure who is spending what and at

what rate. For example: if the software alerts the user

that this week there was an increase of 30 percent on

electricity there is no way to know who is account-

able for that, making it hard to control or reduce that

percentage.

The interface is clean and intuitive: they mostly

use tabs to organise commands and abilities. There

are already a pre-set role of scenarios that the user can

use. These scenarios can be activated through voice

recognition functions. The remote access is very use-

ful and a big advantage because it allows the user to

access the local panel by using a pc, laptop, a touch-

screen device with internet connection, smartphones

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

330

or browsers.

mControl is sold in modules. There is a manda-

tory Base Module that can be extended with Energy

Management, Media Control and Professional Mod-

ules. Besides providing mobile application to access

this software, mControl also is iTunes and Windows

Media Center compatible. That means that you can

program to turn on your tv or make it part of a sce-

nario.

Help and Documentation is the Achilles tendon of

this system. They do not offer interactive tutorials,

nor phone support. Besides the user manual, mCon-

trol offers email support, online forums and FAQs and

live chat option with customer service.

4.2.2 HomeSeer

HomeSeer includes all the features we were looking

for and many more. It has a set of scenarios that you

can customise and trigger either manually or automat-

ically. You can even include the motion sensors in

your scenarios. For example, when you pull your car

out of the garage, all the lights turn off and the alarm

system is activated.

Just like mControl, HomeSeer also does not allow

the user to customise the UI and is not session-based.

This system is known for their emphasis on ease of

use. In this case, the software separates different func-

tionalities using tabs and colour schemes, making it

easier to ﬁnd features. It also has voice recognition

commands, as long as you implement a speciﬁc mi-

crophone throughout the house and supports remote

operations.

The HomeSeer system is compatible with an enor-

mous variety of popular and niche programs. It sup-

ports all of the major media management applica-

tions, like iTunes, Windows Media Player and Win-

dows Media Center.

As for Help and Documentation, it offers every-

thing we analysed and more. They have a tutorial that

you can access easily through their website and a FAQ

section. They also give phone support.

4.2.3 Control 4

Like the previous systems, it meets all the require-

ments of house features we were looking for. It has

Audio and Visual control systems to complement.

The big contrast between Control 4 and the previous

systems is the lack of compatibility with other pro-

grams.

Control4 allows to schedule events and create cus-

tom scenarios with complex triggers (involving vari-

ous functionalities from different tabs). Drawbacks:

lacks compatibility with other programs, it is not cus-

tomisable (in terms of UI) and is not session-based.

This system is the ﬁrst one of our analyses that

does not meet all requirements we established for

Ease of Use. The command organization is made

mostly through colour schemes and their remote ac-

cess allows you to control the system any part of the

world. However, it does not support voice recogni-

tion.

Help and Documentation is very poor. It only has

User Manual and a FAQ section on their website to

help customers in trouble. Does not have telephone,

email or live chat support, making this system the

worst between all the analysed ones for this dimen-

sion.

4.2.4 Power Home

The ﬁrst one that does not meet all the basic require-

ments of our system features analysis, PowerHome is

still able to cover the following house features: Light-

ing, Motion Sensors and most of the White Goods.

PowerHome allows the basic of scheduling events

and has a pre-set number of scenarios that cover most

of the user needs. It also does not allow the user to

customize his UI and is not session-based.

The UI it seems to be confusing. They do not

separate clearly all the features they provide nor use

any kind of understandable scheme to ease the use of

the application. It is not User Friendly, it is actually

overwhelming and cluttered. The system offers lim-

ited support for external modules, and it doesn’t have

mobile applications. It offers a comparable user ex-

perience to HomeSeer, providing a clean and easily

understandable interface.

When it comes to help and documentation they

do not have tutorials or phone support, however they

have a live chat option, user manual and a forum that

can respond to almost every doubt you might have.

4.2.5 Vivint

The most impressive part of Vivints home automa-

tion system is its integration with their security sys-

tems. The Go!Control panel that comes with every

Vivint system serves as the central hub for all activity,

including announcements of time-based triggers and

device activations. You are given more control over

your devices through their online control panel. In

the web-based application, you can create and mod-

ify time-based and scripted triggers for all of your de-

vices.

Vivint is the only one of our analysis that of-

fers something similar to session-based software. As

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

331

mentioned before, the point of working with a lo-

gin/logout system is for the system to acknowledge

who did what and provide ways to control the con-

sumption and every kind of expenses of the house. It

allows each user to have distinct codes when using

the software. With this we have a way to know who

spend what and when. The disadvantages of the prod-

uct are the inability to offer Software Integration and

not allowing UI Customization.

It has a very good command organization, using

tabs and explicit icons to clearly distinguish between

all the features it can provide. The system also pro-

vides mobile applications on several platforms that

you can use to control your devices from any loca-

tion with an internet connection, though you cannot

create or modify triggers or events from the mobile

application. Vivint does not offer voice recognition

commands.

In Help and Documentation point, this software

is above average. Although it doesn’t offer tutorials,

besides user manual, FAQ section and phone support,

it allows you to clear your doubts or issues through

email (email support).

4.2.6 ActiveHome Pro

This system is the product of the home automation

manufacturer X10s. Despite the extensive know-how

backing the product it presents great lack of com-

patibility with other programs and devices. When it

comes to house features it only includes Lighting and

White Goods. There are no motion sensors or HVAC

control, making the triggers and scenarios very lim-

ited.

ActiveHome Pro includes timed triggers and

generic event triggers, like sunrise/sunset events. It

is also possible to use events to create scenarios, as

with other products. The system does not offer voice

recognition or remote access. This lack of remote ac-

cess is one of the more confusing things about Active-

Home Pro. All scenarios, triggers, programming and

management must take place at the console or com-

puter that you set it up on. This drawback signiﬁ-

cantly damages the usability of the product, limiting

to a very narrow set of potential uses.

As for Help and Documentation, it brings every

option to the table from email support to a FAQs sec-

tion to user forums. They offer a vast selection of

customer support options.

4.3 Results and Discussion

After the previous analysis it is clear that most of the

systems include, either in modules or as a whole pack-

age, all the house features we were looking for. We

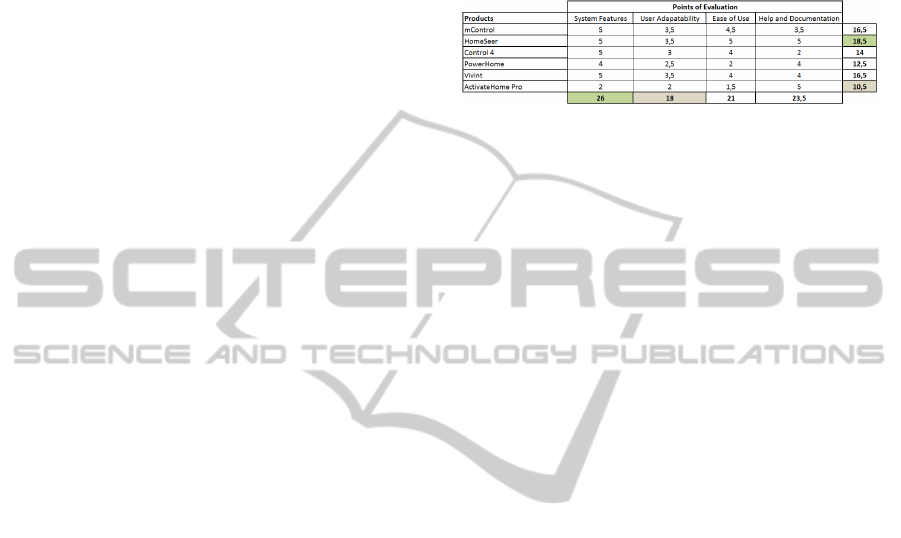

Table 2: Overall systems comparison. Horizontally, an in-

dividual score is presented, according to each dimension of

evaluation. the last cell of each line represent the total score

of each system. Vertically, the last cell represent the sum of

all the points acquired in a speciﬁc dimension. Darker cell

represents the best dimension and system. Grey cell repre-

sent the system and dimension with the lowest total score.

need to take this information into account since our

solution will be based on what most system possess.

According to table 2, the low scores presented on

user adaptability are due to the lack of ﬂexibility re-

garding UI customization. None of the presented sys-

tems offers that option to the customer. Users should

be able to customise as they see ﬁt, in order to get to

the functionalities they use the most the fastest way.

The other reason making this point with an average

score is the fact of not being session-based applica-

tions. Most of the systems allow the user to access

the software remotely. However not all allow voice

commands. Tabs seem to be the preferred way to or-

ganise functionalities.

Finally, the last point analysed, help and support,

showed to be a bit controversial. There are some sys-

tems with low scores on system features, user adapt-

ability and ease of use but offer great ways to solve

problems. The less the user uses help and documen-

tation, the better he knows how to use the software.

This doesn’t mean we can ignore documentation or

warning messages. We have to let the user know what

he’s doing in order to avoid making him search for the

answers.

5 SOLUTION PROPOSAL

5.1 Action Steps

The research of this document, specially with respect

to the conclusions drawn from our analysis of the re-

lated work, resulted in a set of requirements and as-

sumptions in which the work is based. Some will still

call for the opinion of our target users.

We know that the application is for domestic use,

meaning, different age groups will interacting with it.

Therefore, the UI should be User Friendly, look fa-

miliar to the user and easy to understand. The goal is

to respect all the usability heuristics deﬁned by Jakob

Nielsen.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

332

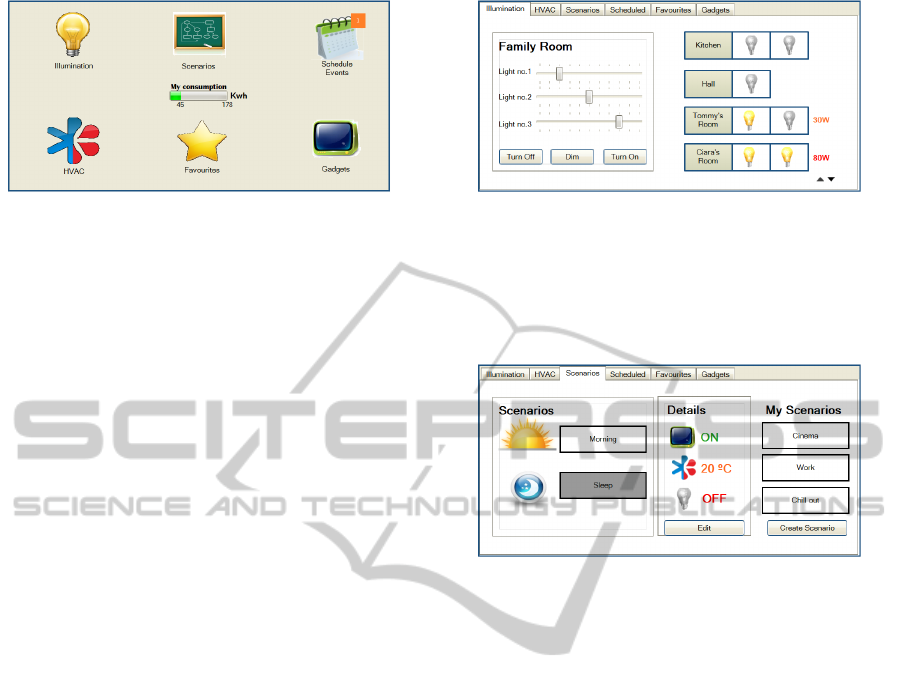

Figure 1: Main panel mockup. From top left: Illumina-

tion, Scenarios and Scheduled Events, HVAC, Favourites,

Gadgets. In the middle of the screen there is a energy con-

sumption bar where the user can see the amount of power

watts spent in the house and the amount he contributed.

Another aspect we have been pointing out is the

need to differentiate each user within its own house.

This means that, whatever other functional require-

ments it might have, it has to be session-based. Tak-

ing into account previous research, this can be achieve

with simply making the users register in the system in

order to be distinguished.

Other functional Requirements will be subject

of evaluation: Features like illumination, HVAC and

White Goods. The application should also allow users

to choose from presets, edit and/or create scenarios.

Scheduling events it is also important. Besides that,

the application should be able to verify spacial occu-

pation through motion sensors (either inside or out-

side the house) so it can help regulate Illumination or

simply for security reasons.

5.2 User Interface Mockups

To study our solution proposal, we have developed

mockups that sketch the ﬁnal interface. Figures 1, 2

and 3 present three of them.

The ﬁrst one (ﬁgure 1) shows the UI main panel,

containing 6 buttons: Illumination, HVAC, Scenarios,

Favourites, Schedule Events and Gadgets. In the mid-

dle there is what we call a consumption bar where the

user can see how much electricity was spent in gen-

eral (in this case 178Kwh) and, at the same time, how

much that speciﬁc user spent (45Kwh). If the user

scheduled any events, the main panel will present a

numeric notiﬁcation referring to the number of events

scheduled that are due to start.

As for ﬁgure 2, shows the Illumination tab. This

layout can be seen every time a user chooses the Illu-

mination button. On the left side, the UI will present

the number of available lights in the compartment the

user is (it will be possible thanks to the motion sen-

sors and occupancy veriﬁcation), meaning, this UI

will change according to the room you are in. Besides

that, the application will show a status of all lights in

Figure 2: Illumination mockup. On top all the tabs rep-

resenting main menu buttons. The left side shows all the

Family Room lamps and their brightness. Below the three

buttons, turn off, dim and turn on, are actions that can be

taken only for that compartment. The right side shows all

the other house divisions and the intensity of illumination

(if any).

Figure 3: Scenario mockup. On top all the tabs representing

main menu buttons. On the left side shows two default sce-

narios: morning and sleep (selected). In the middle are the

speciﬁcations of the selected scenario. The right side shows

all the custom scenarios created by the user.

the house, whether they are switched on or off and the

total power watts of all the lamps.

Finally, 3 buttons will be available for quick ac-

tion:

1. Turn Off - Turns off all the lights in the compart-

ment the user is.

2. Dim - Dims the lights in order to adjust the bright-

ness.

3. Turn On - Turns all the lights of the current com-

partment on.

At last, ﬁgure 3 represents the layout for the Sce-

narios button. The UI is clearly divided into three

parts: the default scenarios, i.e., the ones already de-

ﬁned by the application itself and present no matter

who’s the user, details, representing the details of the

chosen scenario. In this case we can see that the sleep

scenario will turn off all gadgets, turn the Air con-

ditioner to 20 degrees and turn off all the lights. Fi-

nally, the my Scenarios part shows the custom scenar-

ios. This part may vary depending on what the user

set up. It also allows the user to edit any scenario or

create more.

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

333

5.3 Evaluation

To validate our solution proposal we have decided two

ways to evaluate it: Target users feedback and evalu-

ation metrics.

Target users can be divided in two types: the ones

that already had experiences with other interfaces for

Home Automated Systems and the ones that never

had any kind of experience with this type of systems.

The ﬁrst ones are able to give feedback, comparing

it with other systems. Not only they can point out

design ﬂaws, but they can also give advice based on

ideas from other HAS. As for users that never used

interfaces for HAS before, they can give a different

perspective, usability wise. Since they do not have

any terms for comparison, reviews are going to con-

centrate on the level of satisfaction and comfort our

User Interface offers.

In the previous section of this document, an analy-

sis of existing systems was made. The evaluation was

based on the following dimensions: System features

(Illumination, HVAC,etc.), user adaptability, ease of

use and help and documentation. We are going to use

these dimensions and compare the same systems that

went through this evaluation.

With this two validations we are capable of vali-

dating our solution proposal not only with target users

but also with systems that are well rated in the Home

Automation market.

6 CONCLUSIONS

Feedback issues regarding User Interfaces for Home

Automation Systems were presented. This paper aims

to solve some of them, mainly: Hysteresis, Manual

Override and Notion of progress and completion.

So far we have studied previous attempts to solve

this problem, understood the dimension of it and

conducted a study with existing HAS in the market

and analysed the results regarding a set of evaluation

methods deﬁned by us. Furthermore we designed a

set of mockups capable of simulating some of the

feedback problems we aim to solve.

However, the proposed approach is yet to be eval-

uated in real life settings. We believe that the current

mockups can be enhanced by a number of ways. For

future work we intend to test the designed mockups

in order to get users feedback.

We think that our effort in this project is a corner-

stone that can inspire the building of more sophisti-

cated and usable UI’s for HAS in the near future.

REFERENCES

Al-Ali, A.-R. and Al-Rousan, M. (2004). Java-based home

automation system. Consumer Electronics, IEEE

Transactions on, 50(2):498–504.

Alliance, Z. (2006). Zigbee speciﬁcation. Document

053474r06, Version, 1.

Baecker, R. M. and Buxton, W. (1987). Human-computer

interaction. A multidisciplinary up.

Bevana, N., Kirakowskib, J., and Maissela, J. (1991). What

is usability? In Proceedings of the 4th International

Conference on HCI.

Bowden, S. and Offer, A. (1994). Household appliances and

the use of time: the united states and britain since the

1920s1. The Economic History Review, 47(4):725–

748.

Brown, P. J. (2003). Software portability. John Wiley and

Sons Ltd.

Carroll, J. M. (1991). Designing interaction: Psychology

at the human-computer interface, volume 4. CUP

Archive.

Corcoran, P. M. and Desbonnet, J. (1997). Browser-style

interfaces to a home automation network. Consumer

Electronics, IEEE Transactions on, 43(4):1063–1069.

Davidoff, S., Lee, M. K., Yiu, C., Zimmerman, J., and Dey,

A. K. (2006). Principles of smart home control. In

UbiComp 2006: Ubiquitous Computing, pages 19–34.

Springer.

Fujita, Y. and Lam, S. P. (1996). Distribution system and

method for menu-driven user interface. US Patent

5,500,794.

Ghanam, Y., Shouman, M., Greenberg, S., and Maurer, F.

(2009). Object-speciﬁc interfaces in smart homes.

Technical report, Citeseer.

Gill, K., Yang, S.-H., Yao, F., and Lu, X. (2009). A zigbee-

based home automation system. Consumer Electron-

ics, IEEE Transactions on, 55(2):422–430.

Han, J., Yun, J., Jang, J., and Park, K.-R. (2010).

User-friendly home automation based on 3d virtual

world. Consumer Electronics, IEEE Transactions on,

56(3):1843–1847.

Harper, R. (2003). Inside the smart home. Springer.

Humphries, L. S., Rasmussen, G., Voita, D. L., and Pritch-

ett, J. D. (1997). Home automation system. US Patent

5,621,662.

Johannsen, G. Human-machine interaction.

Krueger, C. W. (1992). Software reuse. ACM Computing

Surveys (CSUR), 24(2):131–183.

Liu, D. and Xian, D. (2007). Home environmental con-

trol system for the disabled. In Proceedings of the 1st

international convention on Rehabilitation engineer-

ing & assistive technology: in conjunction with 1st

Tan Tock Seng Hospital Neurorehabilitation Meeting,

pages 164–168. ACM.

Mayhew, D. J. (1999). The usability engineering lifecy-

cle. In CHI ’99 Extended Abstracts on Human Factors

in Computing Systems, CHI EA ’99, pages 147–148,

New York, NY, USA. ACM.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

334

Mooney, J. D. (1995). Portability and reusability: common

issues and differences. In Proceedings of the 1995

ACM 23rd annual conference on Computer science,

pages 150–156. ACM.

Nielsen, J. (1994). Heuristic evaluation. Usability inspec-

tion methods, 17:25–62.

Nielsen, J. and Molich, R. (1989). Teaching user interface

design based on usability engineering. ACM SIGCHI

Bulletin, 21(1):45–48.

Nielsen, J. and Molich, R. (1990). Heuristic evaluation of

user interfaces. In Proceedings of the SIGCHI confer-

ence on Human factors in computing systems, pages

249–256. ACM.

Prieto-D

ıaz, R. (1993). Status report: Software reusability.

Software, IEEE, 10(3):61–66.

Spencer, D. (2004). What is usability? University of Mel-

bourne, Melbourne, pages 108–115.

Stein, M., Kaufman, T. R., Richarz, Y. A., Tarlow, K. A.,

and Nesbitt, B. C. (2000). User interface for home

automation system. US Patent 6,140,987.

Van Der Werff, M., Gui, X., and Xu, W. (2005). A mobile-

based home automation system. In Mobile Tech-

nology, Applications and Systems, 2005 2nd Interna-

tional Conference on, pages 5–pp. IEEE.

Visintin, A. (1994). Differential models of hysteresis.

Springer Berlin.

Wimsatt, W. et al. (2006). Home automation contextual user

interface. US Patent 7,047,092.

AnalysisandRequirementsGatheringofUserInterfacesforHomeAutomatedSystems

335
