Systematic Mapping
Formalization of UML Semantics using Temporal Logic
Vinicius Pereira and Marcio E. Delamaro
Instituto de Ciencias Matematicas e Computacao, Universidade de Sao Paulo, Sao Carlos, SP, Brazil
Keywords:
Systematic Mapping, UML Semantics, Unified Modeling Language, Temporal Logic, Formal Verification.
Abstract:
Despite offering a wide variety of elements for graphical representation of models, the UML does not have a
well-defined semantics. Therefore, over the years researches seek to assign some kind of formal semantics for
UML. Objective: In this context, this paper seeks to bring evidence about the techniques for formalizing the
UML semantics available in the literature, particularly those using temporal logic. Method: For this purpose,
we conducted a systematic mapping study based on searching of major electronic databases. Results: We
explored 278 studies, of which we claim 13 studies for analysis. In other words, the result shows that the
overall picture defined by them is interest, because it shows that the majority of studies deal only with the
formalization of one type of UML diagram. Conclusion: Summing up, we found out that State Diagram is
the more formalized diagram in the studies. It is difficult to find the formalization of three or more UML
diagrams, perhaps because of the difficulty in ensuring the overlap between UML elements. Furthermore,
the results can provide perception of new research in the UML semantics for investigating and defining new
tools/process to assist the software engineers.
1 INTRODUCTION
Formal methods introduces a great rigor in the
software development. It aims to improve software
structure and maintainability besides making them
less prone to errors. Consequently, the formal
methods field have researches that aim to creating
techniques and methods to help with software
formal specification (Bowen and Hinchey, 2006).
Furthermore, UML (Unified Modeling Language)
(Eriksson et al., 2004) Eriksson04 is a modeling
language widely spread and employed in different
fields of computer application in industry (Grobelna
et al., 2010). Despite the benefits, however,
its semantics is not well defined. Moreover, in
most cases developers use the semantics of target
programming language (e.g. Java). Thus, many
researchers seek to assign a clearer semantics for
UML elements, e.g. (Micskei and Waeselynck, 2011;
Bouabana-Tebiel, 2009; Snook and Butler, 2006).
These researches deal with a limited number of UML
elements and impose constraints on practical use of
the same. Nevertheless, we noted that the proposed
approaches do not always provide support tools for
users without large experience in formal methods,
making it difficult the adoption of formal verification
by software developers.
The objective here is to present the planning and
conduction of a systematic mapping that aimed to
identify studies that have one or more items of interest
related to the theme “formalization of the UML
semantics using temporal logic”, using the systematic
review guidelines (Kitchenham, 2004) as base.
Following this introduction, this is our papers
structure: in Section 2 we present the planning of
systematic mapping, including the strategy adopted
to select and use of the search engines, selection
of works, among other items; Section 3 shows how
we conduct the selection of the studies. Section 4
discusses the results. In Section 5 we present the main
findings in this systematic mapping. The Section 6
shows the threats to validity identified in this paper.
Finally, Section 7 presents the conclusions of this
research.
2 PLANNING
We conducted the systematic mapping based on the
protocol model for systematic review presented by
Kitchenham (Kitchenham, 2004). The objective
is to analyze the techniques and approaches in
486
Pereira V. and E. Delamaro M..
Systematic Mapping - Formalization of UML Semantics using Temporal Logic.
DOI: 10.5220/0005468704860493
In Proceedings of the 17th International Conference on Enterprise Information Systems (ICEIS-2015), pages 486-493
ISBN: 978-989-758-097-0
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
the literature that use formal verification to assign
semantic to UML models. In order to achieve
such objective we worked out the following research
questions:
• (RQ1) “Which techniques to formalize the
semantics of UML models using temporal logic
have been proposed until the moment of this
research?”
• (RQ2) “Which UML diagrams are more common
to be formalized?”
• (RQ3) “Which are support tools and how
practical they are?”
• (RQ4) “Which techniques has the results
displayed back to the model?”
According to Kitchenham (Kitchenham, 2004) it
is necessary to define the scope of the systematic
mapping, which describes the population considered,
intervention and expected results. Therefore, we
defined the scope as follows: (i) Population:
primary studies related to techniques to formalize
the semantics of UML models; (ii) Intervention:
primary studies that document, describe and present
techniques to formalize the semantics of UML
models; and (iii) Expected results: overview of the
main techniques to assign formal semantics to UML
that we investigated in the literature. Based on this
result, we intend to highlight the researches that
aimed to enhance or introduce new techniques to
formalize the semantics of UML models.
2.1 Search Strategy
To establish the search strategy of the primary studies,
we built the search string and selected the electronic
databases. Thus, we defined the search string based
on a set of keywords and acronyms. We split these
keywords and acronyms into some categories, such
as:
• Related to Techniques: Technique, Approach,
Framework, Environment and Tool;
• Related to UML: Unified Modeling Language,
Unified Modelling Language (variation between
American and British English) and UML;
• Related to UML Semantics: UML Semantics and
Semantics of UML (these two cases are together
with the previous one to avoid an AND clause,
which could constrain the results);
• Related to formal semantics, formalization and
other cases: Formal Semantics, Formalization,
Formalisation (variation between American and
British English), Formal Verification (e.g. “formal
verification of UML models”) and Formal Model
(e.g. “UML...verification of its formal models”)
and
• Related to temporal logic: Temporal Logic.
Based on these keywords and acronyms we
created the following search string:
((“Technique” OR “Approach” OR
“Framework” OR “Environment” OR “Tool”)
AND (“Unified Modeling Language” OR “Unified
Modelling Language” OR “UML” OR “UML
Semantics” OR “Semantics of UML”) AND
(“Formal Semantics” OR “Formalization” OR
“Formalisation” OR “Formal Verification” OR
“Formal Model”) AND (“Temporal Logic”)).
The next step involved choosing which databases
we should use to conduce the search of primary
studies. We chose the following: ACM Digital
Library, IEEE Xplore, Scopus and Springer. These
search databases were chosen because, according to
Dyba et al (Dyba et al., 2007), they are among the
most relevant in the context of software engineering.
In addition, we conducted a manual search to verify if
it was possible to find a study that we missed by using
the search string.
2.2 Inclusion/Exclusion Criteria
The inclusion and exclusion criteria support the
selection of relevant studies and appropriately assist
in clarifying the research question proposed. In
this context, studies were examined according to the
following criteria:
• (Criterion 1) Studies that deal with the formal
semantics of UML.
• (Criterion 2) Studies that show the formalization
through the use of temporal logic.
• (Criterion 3) Complete studies in English or
Portuguese.
• (Criterion 4) Studies with full text available on
the Web.
• (Criterion 5) If there is duplicate studies, one
should select the most recent study and/or more
complete. Exclusion criteria are the negation
of the criteria presented above. For example,
if a primary study is not written in English or
Portuguese, Criterion 3 will exclude it.
The selection of primary studies was performed
by the authors of this paper and other three students in
two stages: a preliminary and a final selection. After
this, it was applied quality criteria for the studies
selected, in order to improve the level of primary
studies chosen. Regarding the preliminary selection
SystematicMapping-FormalizationofUMLSemanticsusingTemporalLogic
487
stage, the process followed was: (i) Identify relevant
studies; (ii) Exclusion of studies based on reading
the title and abstract; and (iii) Validation of the
selected studies. The final selection had the following
procedure: (i) Selection based on a full reading of the
papers; (ii) Validation of the results; and (iii) Conduct
of Quality Evaluation of the selected studies.
Finally, to guide the Quality Evaluation, we
stipulated some quality criteria (QC), applied in the
primary studies remaining after the final selection.
They are:
• (QC1) Is there a clear description of the
technique/approach used to formalize the
semantics of UML models?
• (QC2) Is there a presentation about the used
temporal logic?
• (QC3) Is there a description of the characteristics
of the support tool?
• (QC4) Was the tool evaluated?
• (QC5) Are the results reported clearly?. For
each question, the studies were scored with 1.0
if the answer is “Yes”, with 0.5 if the answer is
“Partially” and 0.0 if the answer is “No”. Adding
the points of the five criteria, we excluded studies
with a score equal or less than 2.5 (half of the total
points) from the systematic mapping because it
does not have satisfactory quality.
3 CONDUCTION
The systematic mapping was conducted for a period
of three months (January/2014 to March/2014). A
resume of the whole process can be seen in Figure 1.
In total, 439 primary studies were identified. Of this
amount, 161 were duplicated and excluded according
to the Criterion 5. The total number of studies for the
preliminary selection was reduced to 278 studies (see
Search Results in Figure 1).

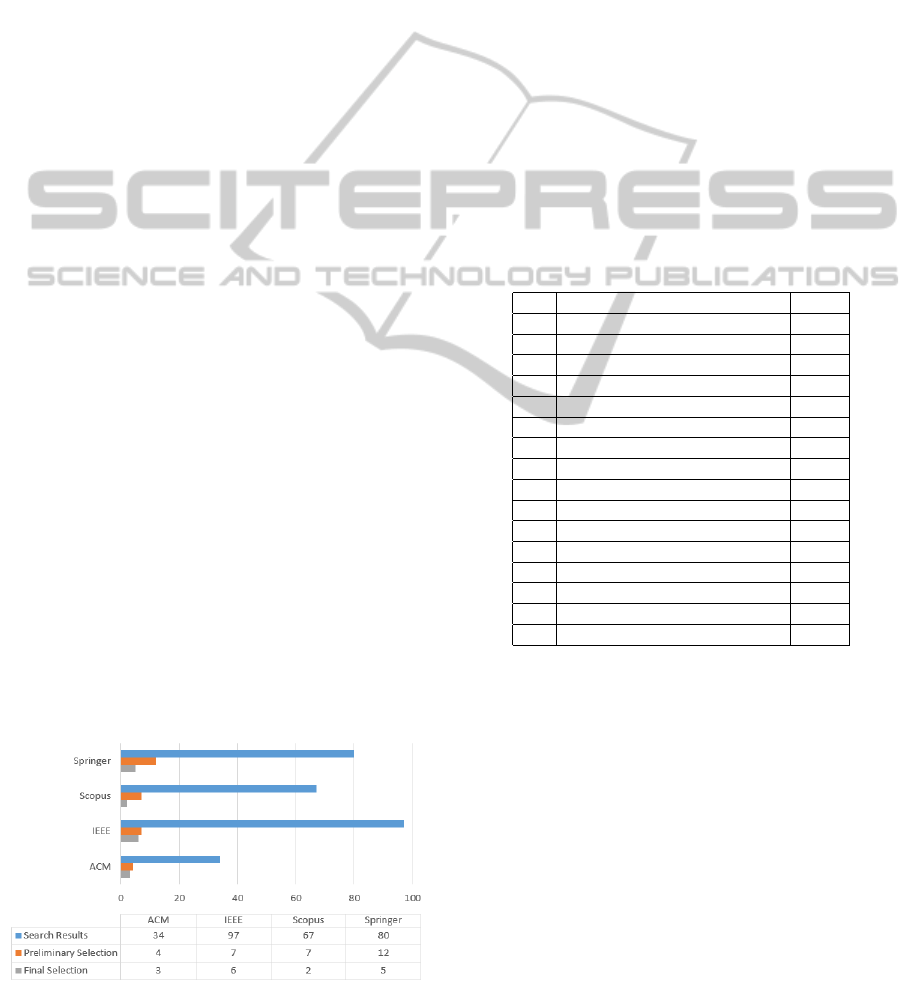

Figure 1: Papers in each search database.
Initially, 7 studies were excluded because we can
not find them on the web with at least their abstract
(criterion 5). Later, we excluded other 241 primary
studies, based on the Criterion 1 and the Criterion 2.
Thus, at the end of the preliminary selection, a total
of 30 studies were included for the next stage (see
Preliminary Selection in Figure 1).
At the beginning of the final selection one study
was removed, due to unavailability for complete
reading on the Web (Criterion 4). After this, we
followed the procedure set out in the Planning phase.
The full reading of the primary studies was made,
with the application of the inclusion and exclusion
criteria. Thirteen studies were excluded based on
reading the full text, by non deal about formal
semantics of UML models (Criterion 1) or do not
present the formalization through the use of temporal
logic (Criterion 2). Summing up at the end of this
stage we included a total of 16 studies (see Final
Selection in Figure 1 and Table 1).
Table 1: Selected Studies.
ID Paper year
1 (Baresi et al., 2012) 2012
2 (Mayerhofer et al., 2012) 2012
3 (Bauer and Jurjens, 2010) 2010
4 (Diethers and Huhn, 2004) 2004
5 (Dong et al., 2001) 2001
6 (Forster et al., 2007) 2007
7 (Graw et al., 2000) 2000
8 (Grobelna et al., 2010) 2010
9 (Kaliappan and Konig, 2012) 2012
10 (Kaliappan et al., 2010) 2010
11 (Konrad et al., 2004) 2004
12 (Lavazza et al., 2001) 2001
13 (Motta, 2012) 2012
14 (Rossi et al., 2004) 2004
15 (Zhang et al., 2009) 2009
16 (Zhao et al., 2005) 2005
Of this total of 16 primary studies, after apply
the quality criteria, 3 of them were excluded for
having obtained final score equal or less than 2.5,
namely: (Bauer and Jurjens, 2010) (ID 3), (Dong
et al., 2001) (ID 5), and (Zhang et al., 2009) (ID 15).
The notes of these excluded studies were 2.5, 2.0 and
2.5, respectively. Table 2 presents the score for the
quality of all 16 primary studies with some data about
them.
Therefore, after applying the quality criteria in
selected studies of this stage, a total of 13 studies were
reviewed for data extraction. The Table 3 shows the
13 studies and their score in each Quality Criterion.
By using the selected studies were possible to
extract some information. The distribution of the
search databases for the 13 selected primary studies
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
488
Table 2: Studies after Final Selection.
ID Criteria Quality Excl. Quality
1 I1, I2 3,5 -
2 I1, I2 4,0 -
3 I1, I2 2,5 X
4 I1, I2 3,5 -
5 I1, I2 2,0 X
6 I1, I2 3,5 -
7 I1, I2 3,0 -
8 I1, I2 3,0 -
9 I1, I2 4,0 -
10 I1, I2 3,0 -
11 I1, I2 4,0 -
12 I1, I2 3,5 -
13 I1, I2 3,0 -
14 I1, I2 3,0 -
15 I1, I2 2,5 X
16 I1, I2 4,0 -
Table 3: Quality Score of each study.
ID QC1 QC2 QC3 QC4 QC5 Total
1 1.0 1.0 0.5 0.0 1.0 3.5
2 1.0 0.5 1.0 0.5 1.0 4.0
4 1.0 0.5 1.0 0.5 0.5 3.5
6 0.5 1.0 1.0 0.5 0.5 3.5
7 1.0 1.0 0.0 0.0 1.0 3.0
8 1.0 0.5 0.5 0.0 1.0 3.0
9 1.0 1.0 1.0 0.5 0.5 4.0
10 1.0 1.0 0.0 0.0 1.0 3.0
11 1.0 0.5 1.0 0.5 1.0 4.0
12 1.0 1.0 0.5 0.0 1.0 3.5
13 1.0 0.5 1.0 0.0 0.5 3.0
14 1.0 1.0 0.0 0.0 1.0 3.0
16 1.0 0.5 1.0 0.5 1.0 4.0
is: ACM with 23% of the total (3 studies); IEEE
Xplore with 31% (4 studies); Scopus with 8% (1
study) and Springer with 38% (5 studies). The
distribution among types of publication is: book
chapters (LNCS) correspond to 38% of the total (5
studies); both journals and conferences correspond
to 31% each (4 studies each one). The Table 4
summarizes these informations.
Finally, the Figure 2 shows the distribution of
selected primary studies over the years, varying
between 2000 and 2012, with the majority of studies
in recent years.
4 DISCUSSION
The selected primary studies deal with the formal
semantics of UML models, making use of concepts
of temporal logic. The following are present some
information about these studies and helps to respond
RQ1.
Table 4: Database and Publication info.
ID Search DB Publication Type
1 ACM Journal
2 Springer Chapter
4 Springer Conference
6 IEEE Conference
7 IEEE Conference
8 IEEE Conference
9 Springer Chapter
10 Springer Chapter
11 IEEE Journal
12 ACM Journal
13 ACM Conference
14 Springer Journal
16 Scopus Chapter

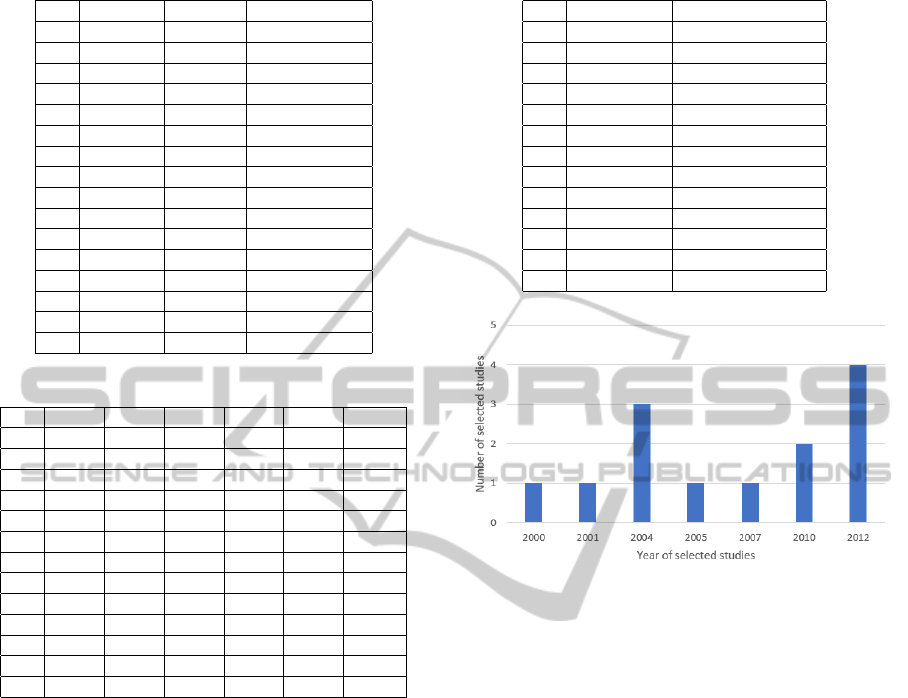

Figure 2: Distribution over the years.
The study (Baresi et al., 2012) presents the
MADES UML, a subset of UML comprising some of
the major UML diagrams, such as: Class Diagram,
Sequence Diagram, State Diagram and Interaction
Diagram. The MADES UML uses TRIO temporal
formalism and the model checker Zot to analise
its models. The paper cites a prototype tool that
translates UML elements to the input recognized by
Zot. As example, a car collision avoidance system
is used, showing their respective diagrams, properties
the system should satisfy and the counterexample (if
available).
The authors in (Mayerhofer et al., 2012) show
how they created an extension of the fUML and
both transformations (model to formal and formal to
model) through the use of a dedicate trace. Despite
being interesting, the process presented in their paper
can be applied only with Statecharts.
In (Diethers and Huhn, 2004) the authors present
a tool to be used in the formal verification of
UML models through State Diagrams. This tool
uses the model checker UPPAAL as a base. The
study explores just some concepts of temporal logic,
quoting only that it is the same logic used by
UPPAAL. The presented results are few due to
scalability issues with State Diagrams, mostly with
SystematicMapping-FormalizationofUMLSemanticsusingTemporalLogic
489
non-deterministic models.
The study (Forster et al., 2007) presents a
formalization of the Activity Diagram semantics
based on stereotypes of PPSL (Process Pattern
Specification Language). To execute the semantics
of the business processes, it is used the framework
Dynamic Meta Modeling (DMM).Within the DMM
approach, the authors chose to produce the results
as a labeled system, making it possible visualize
the defects found. Finally, formal verification is
performed by the model checker NuSMV.
This other study (Graw et al., 2000) uses temporal
logic based on cTLA (compositional Temporal Logic
of Actions semantics), which is adequately explained.
It integrates the Class, Sequence, State and Activity
Diagrams. Although the authors present an extensive
section on formal proofs, they are strictly conceptual.
No tools are cited in the study, but the authors indicate
the UPPAAL tool for future works.
In (Grobelna et al., 2010) the authors present a
transformation of Activity Diagrams (AD) to Petri
nets. The AD are presented as well the equivalent
Petri nets and a table of inputs and outputs of the
system. The temporal logic used by the authors
to analyze this problem and create the properties is
the LTL, however without specifying which type of
LTL. Despite showing the input code of NuSMV, the
authors do not explain how the two transformations
were made (AD to Petri nets and then to the input of
NuSMV).
The authors in (Kaliappan and Konig, 2012)
explain the developed tool for converting Activity
Diagrams for temporal logic cTLA. The basic
concepts about cTLA are explained, with an example
showing the difference between TLA and cTLA. It
is detailed how was developed the transformation
process created, showing the process of defining
the semantics used, through a simple example of
communication between processes. The formal
verification step, which is the next step, is not
discussed, only briefly mentioned how it works.
The study (Kaliappan et al., 2010) is prior to the
above, showing the theoretical conversion between
Activity Diagrams and cTLA temporal logic. The
authors detail how the conversion is performed,
showing the protocol established for this purpose.
This protocol shows the use of Sequence Diagrams
for modeling communication and Activity Diagrams
for modeling the expected behavior, but only the
Activity Diagrams are converted to cTLA.
In (Konrad et al., 2004) is presented a case study
to illustrate the use of the approach proposed by the
authors. The approach assigns a semantics to Class
and State Diagrams, through a temporal formalism
developed by the authors. This approach translates
these diagrams into a formal specification that can be
analyzed using SPIN. Finally, the authors show how
the formal elements are equivalent to Class Diagrams
before they are analyzed by SPIN.
The authors in (Lavazza et al., 2001) present
a technique for formalize the semantics of Class
and States Diagrams. For this, they use the TRIO
formalism and developed a tool that automates
the translation process of models into the TRIO
axioms. To analyze these axioms, the authors used
a tool called TRIOMatic and the counter-examples
generated are converted into OCL (Object Constraint
Language) and displayed on modeling environment.
It is not specified if this transformation for OCL is
included in the tool created by the authors.
In (Motta, 2012) the author presents a support tool
developed for MADES UML. Although still call it
a prototype, it is best detailed when compared with
other studies on MADES UML. It is displayed the
workflow of the tool, going through the modeling
process with UML to the transformation step. After
that, the transformed model is used as input by Zot
tool.
(Rossi et al., 2004) present in the study an
approach to formalize the semantics of States
Diagrams, through a temporal logic developed by
them, called LNint-e. The study explains in detail the
formalism of LNint-e, providing examples to assist
in understanding. Unfortunately, the authors do not
indicate how the desired properties can be analyzed,
if through another tool or using the LNint-e itself.
In (Zhao et al., 2005) is present a combination
of techniques for models transformation with tools to
perform formal verification. It is used an extension
of the State Diagrams (RT-UML - Real-Time UML)
and, regarding the temporal formalism, an extension
of the OCL (RT-OCL - Real-Time OCL). The
transformation of the properties written in RT-OCL
for axioms is done directly. But the same does not
happen with the RT-UML, according to the authors.
In this case, it is necessary use AsmL (Abstract
State Machine Language). Once with AsmL and
the RT-OCL axioms ready, a set of tools for AsmL
models is used to validate the model.
5 MAIN FINDINGS
Many of the 278 papers found using the search string
fit the research question, because they deal about the
semantic formalization of the UML. However, when
analyzing them about the use of temporal logic, we
note that the “UML” union with “temporal logic” is a
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
490
less comprehensive topic within this context. Based
on this systematic mapping, it is noticed that there is
a concern about creating more intuitive ways (with
different levels of abstraction) to assign semantic to
UML. This shows that the fact of UML is widely
known and used in the industry does not go unnoticed
by researchers working on formal verification.
About the RQ2, some of the studies are focused
only on the use of State Diagrams (Diethers and
Huhn, 2004; Rossi et al., 2004; Zhao et al., 2005;
Mayerhofer et al., 2012). Others only in Activity
Diagrams (Forster et al., 2007; Grobelna et al., 2010;
Kaliappan et al., 2010; Kaliappan and Konig, 2012).
The other studies in the use of more than one UML
diagram (Graw et al., 2000; Lavazza et al., 2001;
Konrad et al., 2004; Baresi et al., 2012; Motta, 2012).
An important thing to be noted is that the last
two cited studies (Baresi et al., 2012; Motta, 2012)
deals with the MADES UML, a subset of the UML
which attempts to assign semantics to a greater variety
of diagrams. It is believed that by increasing the
number of formalized UML diagrams, it creates a
list of options for the software developer to work
on different types of fields. This may contribute to
greater adoption of formal verification in industrial
applications.
For RQ3, the existence of a tool to support
this process of semantically formalize the UML,
despite (Graw et al., 2000) presents an approach that
encompasses the largest number of UML diagrams,
no tool is cited that supports its use. In fact, only
the studies of (Diethers and Huhn, 2004; Kaliappan
and Konig, 2012; Konrad et al., 2004; Lavazza et al.,
2001; Zhao et al., 2005) and the ones related to
MADES UML (in particular the work of (Motta,
2012)) feature a support tool that assist the developer
to use their approaches.
Thus, despite efforts to develop new techniques to
formalize the semantics of UML, the fact of having
few tools hinders the practical application of the
approaches, especially in industry. Moreover, these
tools require a high level of knowledge outside the
domain of the user (usually, the software developer
has no knowledge of formal verification and their
topics), which is another factor that causes difficulties
in the practical use of them.
Therefore, it is necessary to develop techniques
that allow the use of simple, functional tools for
developers. Thus, formal verification could be more
easily adopted by industry.
Finally, about RQ4, only one study ((Mayerhofer
et al., 2012)) present a how to show the formal
results in a way that a non-expert user can understand.
The lack of this in other papers may be a problem
because it make difficult to use formal verification
with a users that do not have knowlegde in this area.
Furthermore, create a tool with a formal verification
engine “transparent to user” became unfeasible or
even one where user does not need to be a expert in
formal verification to understand the results provided
by a model checker.
6 THREATS TO VALIDITY
Missing Important Primary Studies: We conducted
the mapping in several search engines, even though
it is rather possible we missed some primary studies.
We tried to mitigate this threat by selecting search
engines which have been regarded as the most
relevant scientific sources (Kitchenham et al., 2009).
Search String Problems: Another threat is
related to the search string, since there may be other
synonyms for “formal semantics” and with them the
search string could collected more evidences. To try
to avoid this, we wrote the search string with the most
common synonyms for each word.
Search Engines Format: One difficulty in
conducting this research was in relation to the search
engines, as each one requires a different format for
the search string. To avoid this problem, we adapted
the search string following the default format of each
search engine, but sometimes it appeared to be not the
correct one when executed.
7 CONCLUSION
Research in the area of formal verification and UML
semantics can result in significant advancement in
development of models and therefore software that
has a higher level of accuracy and lesser probability
of error. To get an overall view of the current research
in this area, we defined a few research questions and
launched a systematic mapping study. To respond
to our RQ1, we found 13 publications that possess
maximum relevance to fulfill objectives of our study.
The selected papers have appeared between 2000 and
2012. Possibly this result came about due to the fact
that among the techniques found, we considered only
those which have used temporal logic as the basis of
formalization.
Regarding RQ2, the tendency observed was that
in general only one or two UML diagrams has
formalized its semantics and in most cases is the State
Diagram or the Activity Diagram. A technique that
formalized more UML diagrams can be found, but
is not much common. Regardless of the number
SystematicMapping-FormalizationofUMLSemanticsusingTemporalLogic
491
of diagrams formalized, there is a lack of support
tools to assist the software developer in the stage of
formal verification. Even the tools existing at the
moment of this review do not have a practical use,
which complicates its adoption in the industry. About
RQ3 the few tools deal in general with the process
of translating UML models for the inputs of formal
verification tools, ignoring the fact that the results
should be presented in a more common language for
software developers. Finally, about RQ4 only one
study shows how to put the formal results in a diagram
to make it more readable for the user.
Therefore, this paper seeks to show such
evidences so that future works in the area of formal
verification and UML models have focus on both the
formalization of UML semantics as creating tools that
can be used by developers without much knowledge
in formal semantics and temporal logic which deal
with the process of transforming the models into
formal inputs and of showing the formal results in
non-formal environments.
ACKNOWLEDGEMENTS
The Brazilian funding agency CAPES (Grant. No.:
DS-7902801/D) supports this research.
REFERENCES
Baresi, L., Morzenti, A., Motta, A., and Rossi, M.
(2012). A logic-based semantics for the verification
of multi-diagram UML models. SIGSOFT Softw. Eng.
Notes, 37(4):1 – 8.
Bauer, A. and Jurjens, J. (2010). Runtime verification
of cryptographic protocols. Computers and Security,
29(3):315 – 330.
Bouabana-Tebiel, T. (2009). Semantics of the interaction
overview diagram. In Proceedings of the 10th IEEE
International Conference on Information Reuse &
Integration (IRI’09), pages 278 – 283. IEEE Press.
Bowen, J. P. and Hinchey, M. G. (2006). Ten
commandments of formal methods... ten years later.
IEEE Comput., 39(1):40 – 48.
Diethers, K. and Huhn, M. (2004). Vooduu: Verification
of object-oriented designs using UPPAAL. In Tools
and Algorithms for the Construction and Analysis of
Systems (TACAS’04), volume 2988 of Lecture Notes
in Computer Science, pages 139 – 143. Springer.
Dong, W., Wang, J., Qi, X., and Qi, Z.-C. (2001).
Model checking UML statecharts. In 8th Asia-Pacific
Software Engineering Conference (APSEC), pages
363 – 370.
Dyba, T., Dingsoyr, T., and Hanssen, G. K. (2007).
Applying systematic reviews to diverse study types:
An experience report. In Proceedings of the
First International Symposium on Empirical Software
Engineering and Measurement (ESEM’07), pages 225
– 234. IEEE Computer Society.
Eriksson, H. E., Penker, M., and Lyons, B. (2004). UML 2
Toolkit, volume 1 of OMG Series. Wiley Pub.
Forster, A., Engels, G., Schattkowsky, T., and Straeten, R.
V. D. (2007). Verification of business process quality
constraints based on visual process patterns. In First
Joint IEEE/IFIP Symposium on Theoretical Aspects of
Software Engineering (TASE), pages 197 – 208.
Graw, G., Herrmann, P., and Krumm, H. (2000).
Verification of UML-based real-time system
designs by means of cTLA. In 3rd IEEE
International Symposium on Object-Oriented
Real-Time Distributed Computing (ISORC), pages 86
– 95.
Grobelna, I., Grobelny, M., and Adamski, M. (2010).
Petri nets and activity diagrams in logic controller
specification - transformation and verification. In
17th International Conference on Mixed Design of
Integrated Circuits and Systems (MIXDES), pages 607
– 612.
Kaliappan, P. and Konig, H. (2012). On the formalization
of UML activities for component-based protocol
design specifications. In SOFSEM 2012: Theory
and Practice of Computer Science, volume 7147 of
Lecture Notes in Computer Science, pages 479 – 491.
Kaliappan, P., Konig, H., and Schmerl, S. (2010).
Model-driven protocol design based on component
oriented modeling. In Formal Methods and Software
Engineering, volume 6447 of Lecture Notes in
Computer Science, pages 613 – 629.
Kitchenham, B. (2004). Procedures for performing
systematic reviews. Technical report tr/se-0401, Keele
University and NICTA.
Kitchenham, B., Brereton, O. P., Budgen, D., Turner,
M., Bailey, J., and Linkman, S. (2009). Systematic
literature reviews in software engineering - a
systematic literature review. Information and Software
Technology, 51:7 – 15.
Konrad, S., Cheng, B. H. C., and Campbell, L. (2004).
Object analysis patterns for embedded systems. IEEE
Transactions on Software Engineering, 30(12):970 –
992.
Lavazza, L., Quaroni, G., and Venturelli, M. (2001).
Combining UML and formal notations for modelling
real-time systems. SIGSOFT Softw. Eng. Notes,
26(5):196 – 206.
Mayerhofer, T., Langer, P., and Kappel, G. (2012). A
runtime model for fUML. In Proceedings of the 7th
Workshop on Models@run.time (MRT’12), pages 53 –
58.
Micskei, Z. and Waeselynck, H. (2011). The many
meanings of UML 2 sequence diagrams: a survey.
Software and Systems Modeling, 10:489 – 514.
Motta, A. (2012). Towards the verification of multi-diagram
UML models. In International Conference on
Software Engineering (ICSE), pages 1531 – 1534.
ICEIS2015-17thInternationalConferenceonEnterpriseInformationSystems
492
Rossi, C., Enciso, M., and de Guzman, I. P. (2004).
Formalization of UML state machines using temporal
logic. Software and Systems Modeling, 3(1):31 – 54.
Snook, C. and Butler, M. (2006). UML-B: Formal modeling
and desing aided by UML. ACM Transactions on
Software Engineering and Methodology, 15:92 – 122.
Zhang, P., Duan, Z., and Tian, C. (2009). UML statecharts’
PTL formal semantics. In 3rd International
Symposium on Intelligent Information Technology
Application (IITA), volume 1, pages 381 – 385.
Zhao, Y., Kardos, M., Oberthur, S., and Rammig,
F. J. (2005). Comprehensive verification framework
for dependability of self-optimizing systems, volume
3707. LNCS.
SystematicMapping-FormalizationofUMLSemanticsusingTemporalLogic
493
