Similarity-based Image Retrieval for
Revealing Forgery of Handwritten Corpora
Ilaria Bartolini
DISI, Universit`a di Bologna, Bologna, Italy
Keywords:
Similarity-based Image Retrieval, Low-level Features, k-Nearest Neighbor, Handwritten Corpora, Forgery.
Abstract:
Authorship attribution is a problem with a long history and a wide range of applications. Recent works in
non-traditional authorship attribution contexts demonstrate the practicality of automatic analysis of documents
based on authorial style. However, such analyses are difficult to apply and few “best practices” are available. In
this paper, we show how quantitative techniques based on image similarity search can be profitably exploited
for revealing forgery of handwritten corpora. More in details, we explore the case where a document is
represented by means of the image of the document itself. Preliminary experimental results conducted on real
data demonstrate the effectiveness of the proposed approach.
1 INTRODUCTION
Authorship attribution is the science of inferring iden-
tity of an author from the characteristics of documents
written by the author itself. It represents a problem
with a long history and a wide range of applications.
Recent works in non-traditional authorship attribu-
tion domains demonstrate the practicality of auto-
matic analysis of documents based on authorial style.
Such analyses are however difficult to apply, little is
known about types or rates of error, and few “best
practices” are available (David and Karl, 2014).
The specific type of automatic document analy-
sis depends on the meaning we convey to the word
“document”. The variance of this concept, in fact,
implies that different methods could be exploited for
automatically managing corpora with the final aim to
reveal forgery. Computer scientists, mathematicians,
philologists, quantitative linguists and digital human-
ists have different points of view on what a document
is. This entails different approaches that could be con-
structively integrated in order to help with complex
problems such as forgery (Tomasi et al., 2013).
In the following, we will focus on how to ex-
ploit traditional computer science practices in order
to reveal forgery of handwritten corpora and show
how quantitative techniques based on image similar-
ity search can be profitably exploited for this purpose.
More in details, we explore the case where a hand-
written document is represented by means of the im-
age of the document itself, that is, the digital represen-
tation of a manuscript page. The reference problem
is thus turned into a similarity-based image retrieval
one (Smeulders et al., 2000).
We demonstrate how the automatic characteriza-
tion of the content of document pages, in terms of
“low-level features”, can effectively contribute to au-
thorship attribution. In doing this, we need to inves-
tigate a set of relevant related issues. In particular,
(1) Which low-level features should be used for rep-
resenting pages? (2) How to compare such automat-
ically extracted features? (3) How to asses if two
pages are “(dis)similar”, thus establishing whether a
manuscript corpus is authentic or not with respect to
a specific author?
In tackling above issues, we also need to consider
that similarity could not be always a satisfactory cri-
terion in order to attribute authorship in the case of
suspected forgery: it is not surprising that a forgery
is similar to the author’s work. The problem is how
to verify if a document is too similar to the author’s
work, and if such types of similarity cannot be found
elsewhere in the remaining corpus.
Further,we haveto consider that manuscript pages
could be analyzed at different levels of granularity,
each one defining an image element: syllables, words,
sentences, paragraphs, whole pages, etc.
From each element, visual characteristics, able to
define specific graphic aspects of an author (thus, able
to differentiate her/his handwriting), are extracted.
Among them, well known examples coming from the
traditional paleography context are leading, writing
104
Bartolini I..
Similarity-based Image Retrieval for Revealing Forgery of Handwritten Corpora.
DOI: 10.5220/0005564401040112
In Proceedings of the 12th International Conference on Signal Processing and Multimedia Applications (SIGMAP-2015), pages 104-112
ISBN: 978-989-758-118-2
Copyright
c
2015 SCITEPRESS (Science and Technology Publications, Lda.)
body, writing angle, density, word’sspacing, and duc-
tus. Although effective, however, all such features
represent a completely manual solution to the prob-
lem, since this requires human experts, possibly sup-
ported by some image editing tools (David and Karl,
2014), to extract them.
In order to automate the management of handwrit-
ten corpora, we propose a completely automatic rep-
resentation of elements based on the notion of hand-
writing shape. To model the writing shape, a set of
effective visual characteristics (called local features)
are extracted from each element using specific image
analysis techniques like, for example, SIFT (Lowe,
1999) and SURF (Bay et al., 2008). So-obtained lo-
cal features are then compared in order to establish
their degree of (dis)similarity, with the final aim to
establish whether a corpus is authentic or not with
respect to a specific author. This implies a pre-
processing phase where the analysis of some hand-
written pages of authentic writings is executed in
order to build a “ground truth” reference informa-
tion for comparing suspicious writings to the authen-
tic ones. Given an input page, composed by a set
of target elements, and an element distance function
that measures the (dis)similarity of a given pair of
elements using their local features, we want to de-
termine automatically if the query manuscript page
could be considered authentic with respect to a spe-
cific author. The (dis)similarity between pages is nu-
merically assessed by way of a page distance func-
tion that somehow “combines” the single element dis-
tances into an overall value. Preliminary experimen-
tal results conducted on a software implementation of
the proposed solution, namely WRITINGSIMILARI-
TYSEARCH (WSS), and using real data demonstrate
the effectiveness of our method and encourage further
investigations on this direction.
The rest of the paper is organized as follows: Sec-
tion 2 reports the related work; Section 3 details the
proposed similarity-based image retrieval approach.
In Section 4 we describe WSS, whereas in Section 5
we comment some preliminary experimental results
based on real document collections. Finally, Section 6
concludes the paper.
2 RELATED WORK
In this section we report state-of-the-art solutions to
authorship attribution with respect to the specific field
of image analysis.
OCR is a traditional approach based on pattern
recognition techniques that enable a computer to read
texts (i.e., scanned images of a texts) (Bunke and
Wang, 1997). However, if this is a feasible solution
on printed text, its use for manuscripts is rather prob-
lematic. In general, OCR applied to handwritten texts
is far from being perfect because of the issue of “vari-
ations”. For example, the same letter drawn by the
same person is slightly different each time, as well
as letters drawn by different hands. These variations
make it hard for the computer to read the writing cor-
rectly and to make a successful match in the context
of authorship attribution.
Due to poor recognition results provided by OCR,
handwritten document image retrieval remains a very
challenging problem: keeping documents as image
format is a more economical and flexible alternative
than converting image documents into text format by
OCR; furthermore, it is more robust for different vari-
ations and degradations (David and Karl, 2014).
In (Aiolli and Ciula, 2009), the authors propose
the tool System for Paleographic Inspections (SPI).
SPI solves the problem of variations by training and
working on prototypes of letters, i.e., collecting ab-
stracted models of a single person’s handwriting. The
prototype comes with a predefined set of limits be-
tween which the letter belonging to the unidentified
document may deviate from the prototype. The main
limit of SPI is that the segmentation process focuses
on the shape of individual letters only. Thus, the over-
all appearance of the manuscript page, at the different
levels of granularity (i.e., sentences, words, etc.), and
its immediate context are completely ignored.
In (Rath et al., 2004), a probabilistic annotation
model for word matching in written documents is
presented. Word images are represented by means
of Fourier coefficients. A learning model is trained
to map any given word image to a specific word
from a vocabulary with a probability. At query time,
the model estimates the probability of a query word
and a sequence of feature vector occurring together.
The method is pure text-based retrieval and achieves
multiple-words query tasks; however, it suffers from
queries which do not appear in the training set.
Finally, (Cao et al., 2011) propose an adapted vec-
tor model for word retrieval, where documents and
queries are represented by means of a vector space of
term frequency (TF) and inverse document frequency
(IDF) for each term in the vocabulary. TFs and IDFs
are estimated by means of word segmentation and
recognition likelihood. Retrieval is achieved by mea-
suring the similarity between vectors of query and
data documents with a ranked list. Similarly to (Rath
et al., 2004), also this approach is impracticable when
queries do not belong to the vocabulary.
To the best of our knowledge, WRITINGSIMI-
LARITYSEARCH is the first attempt to provide a thor-
Similarity-basedImageRetrievalforRevealingForgeryofHandwrittenCorpora
105
ough solution to the problem of revealing forgery of
handwritten corpora based on image similarity.
3 THE SIMILARITY-BASED
IMAGE RETRIEVAL
APPROACH
In this section, we detail our content-based im-
age similarity solution to the authorship attribution
problem. In our model, each document is repre-
sented by means of the image of the document it-
self, that is, through the digital representation of
the manuscript page. By applying image analysis
methods and (dis)similarity search techniques, we
automatically characterize the content of each page
through “low-level features” and easily retrieve the
most (dis)similar pages to the target (i.e., a specific
author) one, following the k-Nearest Neighbor (k-
NN) search paradigm (Baeza-Yates and Ribeiro-Neto,
1999).
The basic idea of our approach is summarized in
Figure 1: we build a database of training features
extracted from some handwritten pages of authentic
writings (what we call “ground truth”). Then we ex-
tract the same features from a (suspicious) test page
and compute the (dis)similarity between above fea-
tures in order to establish the paternity of the test page
with respect to the target author.
User
Test image
Training image DB
Authorship attribution
based on features
similarity (e.g., writing
shape, body, angle, …)
?
Figure 1: The basic idea of content-based image similarity
search for authorship attribution.
Data and comparison models are inspired by the
Windsurf ones (Bartolini et al., 2011)
With respect to the data model, images are com-
posed by elements, that is, relevant parts of the hand-
written page; each element is described by means of
automatically extracted low-level features that repre-
sent, in an appropriate way, the content of the element
itself (i.e., the handwriting style of an author with re-
spect to a specific set of graphic aspects).
As for the comparison model, given an input
(query) manuscript page, composed of m relevant ele-
ments, and an element distance function d
e
that mea-
sures the dissimilarity of a given pair of elements us-
ing their features, we want to automatically deter-
mine if the query manuscript page could be consid-
ered authentic with respect to a specific author. The
(dis)similarity between manuscript pages is numeri-
cally assessed by means of a page distance function
d that somehow “combines” the single element dis-
tances into an overall value. The efficient resolution
of comparisons over features is ensured by an index
structure (e.g., M-tree (Ciaccia et al., 1997)) built on
top of elements (for example, words).
Pragmatically, manuscript pages are first seg-
mented in parts (e.g., syllables, words, sentences, and
also the whole page). From each element, visual
salient characteristics, able to define specific graphic
aspects, and thus differentiate the handwriting of an
author, are extracted. Image elements are then com-
pared according to their visual features according to
an ad-hoc distance metric d
e
. Elements scores are fi-
nally appropriately matched to aggregate distance val-
ues of matched elements using the page distance func-
tion d (e.g., the average).
Among relevant visual features, we have charac-
teristics traditionally used in paleography literature
like (1) leading: vertical distance between a line and
the next one of a document page; (2) writing body:
height of the body of the letters (except ascenders and
descenders); (3) writing angle: angle of inclination of
the pen (except ascenders and descenders); (4) den-
sity: filling factor of selected area (black pixels vs.
white ones); (5) words’ spacing: horizontal distance
between two consecutive words; (6) ductus: quali-
ties and characteristics of writing instantiated in the
flow of writing the text. Note that, some of the above
features refer to the whole document page (e.g., lead-
ing, density, and ductus), while others work at a finer
granularity level (e.g., writing body, writing angle,
and words’ spacing). Each feature is represented as a
numerical value (1-D feature vector); comparison be-
tween elements is then assessed as the absolute value
of the difference between single feature values.
Although effective, and thus used in paleogra-
phy contexts, all above features share the limit of
requiring a manual extraction process by human ex-
perts, eventually supported by image editing tools like
Graphoskop.
1
In the latter case only, we can refer to
paleography features as semi-automatic ones.
To scale and integrate traditional methods, we
propose a completely automatic solution for the rep-
1
Graphoskop library: www.palaeographia.org/
graphoskop/
SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications
106
resentation of each element based on its content (i.e.,
writing shape) description. In details, we model writ-
ing shape through a set of local features (or salient
points) automatically exacted using image analysis
techniques like, for example, SIFT (Lowe, 1999) and
SURF (Bay et al., 2008). So-obtained salient points
are then compared in order to establish their degree
of (dis)similarity, with the final aim of establishing
whether a corpus is authentic or not with respect to a
specific author. We refer to writing shape features as
automatic features.
As above mentioned, SIFT and SURF techniques
represent the image content by means of a (large) set
of local salient points (e.g., corners, blobs, and T-
conjunctions). Each point is usually represented by
a 128-D feature vector. Similarity between images
is then assessed by matching visual characteristics of
their salient points based on Euclidean or quadratic
distance functions and aggregating (using the average
function) local scores to a global value.
Clearly, high dimensionality can be an issue work-
ing with both SIFT and SURF: e.g., 200/1000 salient
points, each represented by a 128-D vector, can be
used for representing a single image element. To
overcome this problem, approximate solutions to the
k-NN search problem in high-dimensional spaces are
applied: the “best bin first” 1-1 matching (instead
of exact one) is adopted together with a simple Eu-
clidean distance function as similarity criterion. The
rationale of the approximate matching algorithm is to
match each salient point of the query element, start-
ing from the first one, to the “best” (i.e., most similar)
salient point of the target DB element.
2
From the complexity point of view, using the “best
bin first” approximation allows us to bound the global
cost to O(N
2
), denoting with N the (average) number
of salient points in an image (Rui et al., 1998) (the
complexity of 1-1 exact matching, e.g., by means of
the Hungarian algorithm, is O(N
3
)).
4 WRITINGSIMILARITYSEARCH
This section describes WRITINGSIMILARITY-
SEARCH (WSS), the software architecture that
implements the proposed approach and that is able to
automatically analyze and classify manuscript pages.
WSS is basically composed of two phases:
2
We note that our approach is completely independent
from specific features, distance functions, and matching al-
gorithms; this is due to the nice property of the Windsurf
framework to be parametric with respect to all such dimen-
sions.
Training Phase: the ground truth is built on a repre-
sentative subset of the documents collection (i.e., au-
thentic writings) by extracting features from elements
at different level of granularity; each image is also
labeled by means of the reference “author class” that,
in the more general case, is represented by a keyword.
The class can be also modeled at a finer level of gran-
ularity; this is possible by associating to each image
a path of an “author taxonomy”, (i.e., “author/date”,
“author/word”, “author/word/date”, etc.).
Test Phase: at run time, given a suspicious im-
age element, its features are extracted and compared
to the training features in order to compute their
(dis)similarity scores; paternity of the test element
is established based on a k-NN classifier, as we will
present in the following.
In doing this, WSS exploits both “automatic”
extracted features (i.e., writing shape) and “semi-
automatic” extracted paleography characteristics (i.e.,
leading, body, angle, density, words’ spacing, mar-
gins, etc.), and provides the user with several func-
tionalities, such as persistent (MySQL-based) fea-
tures extraction, features comparison, k-NN querying
and classification, that are available through an intu-
itive and user-friendly GUI (see Figure 2).
Figure 2: WRITINGSIMILARITYSEARCH’sinterface.
WSS is based on the Windsurf software li-
brary (Bartolini et al., 2011), freely available at
URI http://www-db.disi.unibo.it/Windsurf/. Further,
it exploits the graphical functionalities offered by
Graphoskop to deal with traditional paleography fea-
tures in a semi-automatic way.
Windsurf provides a general framework for
region-based image retrieval that we have oppor-
tunely instantiated and extended for the specific con-
text of handwritten documents collections. We also
have included a software module that offers to the
user specific graphical tools to extract paleography
features.
Focusing on writing shape, given an image of
Similarity-basedImageRetrievalforRevealingForgeryofHandwrittenCorpora
107
a document element (for example, the Italian word
“punto” depicted in Figure 2), SIFT/SURF fea-
tures are automatically derived and persistently main-
tained.
3
The process can be recursively repeated for
whole folders of images by using the Add Folder but-
ton in the GUI instead of the Add Image one.
The basic ingredients of the Windsurf framework
are instantiated within our new context as follows:
image regions correspond to elements features (e.g.,
SURF salient points); the region (dis)similarity func-
tion d
e
is the Euclidean distance; the matching prob-
lem is solved by means of the best bin first 1-1 match-
ing and using the average aggregation function for
computing (dis)similarity between images.
To complete the WSS description, we detail how
the k-NN classifier works (Baeza-Yates and Ribeiro-
Neto, 1999). This is based on the notion of k-NN
similarity search, where, given a query (test) image
and a numeric value k, the k most similar images of
the training set with respect to the query are returned
in descending order of similarity (or, equivalently, the
k less dissimilar, in ascending order of dissimilarity)
(see Figure 3, for a concrete example).
6

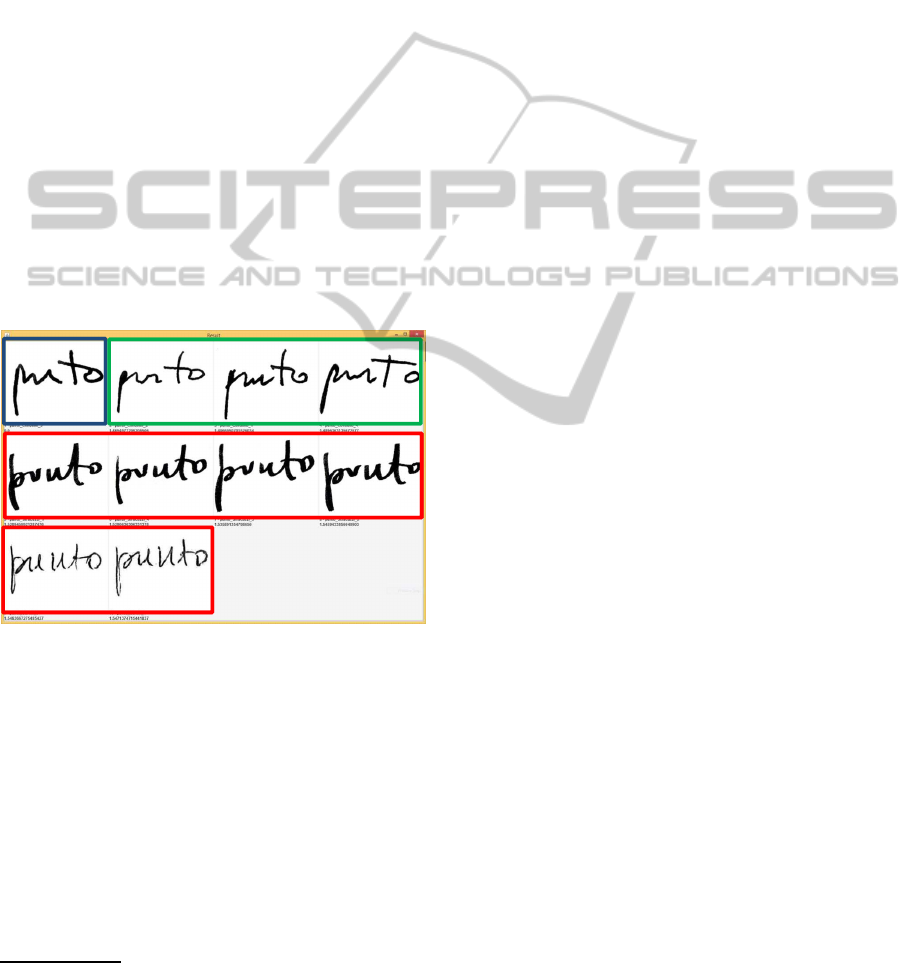

Figure 3: k-NN similarity search example in WSS: 9-NN
results for the query “punto” (top-left image) depicted in
Figure 2.
Images in the above figure have been highlighted
with different colors to emphasize their relevance
with respect to the query image. The first three im-
ages (colored in green) have been written by the same
author of the query, while other images (colored in
red) have been written by different authors. In this
case, therefore, we are able to automatically (and cor-
rectly) predict that the author of the query image is the
author of the green-colored images (the most similar
to the query).
3
We experimentally found that a good number of salient
points for representing the shape of a document element,
such as a word, ranges from 200 to 500 points.
Since the k-NN similarity query is performed on
images that are part of the ground truth, the classifier
simply analyzes the paternity classes associated to the
k returned images, assigning to the (suspicious) test
image the most frequent class over the k results. Of
course, the choice of the “optimal” value of k is an
issue that requires to be experimentally investigated
for our k-NN classifier in the proposed context.
We note that the same approach can also be ex-
ploited at a cluster level of training features, instead
that using individual elements, as described above. In
this case, a clustering phase is integrated within the
training process in order to derive clusters of elements
at fixed levels of paternity classes (e.g., at level of
author/, author/word, author/date, author/date/word,
etc.). For each of so-derived cluster, a centroid is
computed as the average of the included elements fea-
tures. Since all images belonging to a single class
are now compacted into the corresponding centroid,
the k-NN search is now reduced to a 1-NN search,
and the predicted class is the one of the most similar
centroid. As a main consequence, here the selection
of the numeric value k is no longer an issue; further-
more, the comparison process becomes simpler than
before, since it now involves a lower number of ele-
ments (clusters) instead of the whole dataset of indi-
vidual training elements. On the other hand, it has to
be noted that the effectiveness of a cluster-based clas-
sifier is strongly influenced by the “quality” of cen-
troids in representing all cluster elements, thus in the
variance of the involved features, i.e., classes having
a high variance in elements’ features are expected to
be less effective than homogeneous classes.
In the following, we will refer to the two classi-
fying modalities as cluster-based and element-based
classifiers, respectively.
5 EXPERIMENTAL RESULTS
We include here the results of preliminary experi-
ments performed on real handwritten corpora consist-
ing of about 200 JPEG image documents (320x240
pixels in size). The reference corpora includes doc-
uments by a specific target author X and suspicious
documents written in a very similar handwriting style
to the target author, that we refer as X’.
In details, paleography features (i.e., leading,
body, angle, and density) were computed on the
whole documents using WSS provided graphical
tools, while writing shape features were automatically
extracted from specific word elements characterizing
the writing style of the target author X. In our specific
image context, we experimentally found similar re-
SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications
108
sults in effectiveness using SIFT and SURF features.
Thus, for efficiency reason, we decided to base our
feature extraction process on the SURF algorithm. In
particular, about 200 salient points were extracted for
each word. Several tests demonstrated that 200 salient
points represented a good compromisebetween effec-
tiveness and efficiency for representing the content of
single words. Finally, in order to add noise to our
initial corpora, a large number of handwritten docu-
ments (representing both whole document pages and
same special words as above), written by different au-
thors (named A, B, and C), were added to the refer-
ence DB. A sample of representative query images,
not belonging to the training set and for which pa-
ternity classes (at different levels of granularity) were
associated for evaluation purposes, was randomly se-
lected to test our classifier.
We start our investigation by trying to answer to
a preliminary important question: “Does the way we
obtain the digital representation of an original hand-
written page, e.g., scan of the original page, photo of
the original page, scan/photo of a photocopy of the
original page, etc., affect the target features represen-
tation?”
We experimentally found that both traditional pa-
leography and writing shape features are invariant to
the digital representation of the original handwritten
page. In fact, the absolute value of the differences be-
tween single feature values representing paleography
characteristics, when extracted from scan, photo and
scan/photo of the original page, were almost equal to
zero. The same behavior was confirmed for shape
features: k-NN searches based on any of above dig-
ital representations of the original page (image query)
provided the same ranking of returned images.
We are now ready to demonstrate the effectiveness
of the WSS classifier in predicting the paternity of
a suspicious test writing. In particular, we provide
the results of both WSS element-based and cluster-
based classifiers. In doing this, we use both traditional
paleography features and writing shape ones.
We start by using traditional paleography fea-
tures. In details, we clustered individual features so
as to train WSS for each author; then we applied the
cluster-based classifier.
Table 1 shows the effectiveness of WSS in dis-
tinguish handwritings from different authors: training
author was in this case set to B, whereas the test image
(query) was written by author A.
To check paternity, absolute differences in indi-
vidual paleography features of test image and training
class are compared to experimentally derived thresh-
old values. In the proposed example, we postulate that
the test image (written by author A) belongs to train-
Table 1: Discriminative power of WSS in distinguishing
handwritings coming from different authors: training author
is B; test image is associated to author A by the ground truth.
Target Features Training (B?) Test (A) Abs. Diff.
Leading (mm) 5.01 5.00 0.01
Writing Body (mm) 4.45 2.90 1.55
Writing Ascender (mm) 1.50 1.30 0.20
Writing Descender (mm) 1.57 1.30 0.27
Writing Angle (
◦
) 89.40 76.00 13.40
Writing Ascender Angle (
◦
) 88.70 76.00 12.70
Writing Descender Angle (
◦
) 86.90 77.00 9.90
Space between Words (mm) 2.65 3.40 0.75
Density (%) 10.10 6.00 4.09
ing class B. However, the table highlights high differ-
ence values for the following features: writing body
(> 0.5 mm), all writing angles (> 5
◦
), space between
words (> 0.5 mm), and density (> 2%). Since the
number of sufficiently dissimilar features between the
test image and the training (average) image is high,
we conclude that the test image does not belong to
the test class B. In this case, WSS is thus able to infer
that the test image has not the same handwriting than
the training author.
If we apply the WSS classifier to the whole clus-
ter dataset, predicted author for the test image is A,
since the most similar centroid of all trained authors
is the one corresponding to cluster A and the number
of differences in features exceeding the threshold is
low. Again, WSS is able to classify the given test
image to the correct class.
In Table 2, we report the results of a similar ex-
periment: this time, we trained WSS on a subset of
writings (i.e., from a specific decade) of the author X
and on a sample writings of the suspicious author X’
coming from the same period. Then, we set author X
as training and provide a test image (query) written
by author X’ to WSS. In this case, we want to investi-
gate if WSS is able to distinguish (possibly existing)
differences between the two handwritings corpora.
Table 2: Discriminative power of WSS in distinguishing
handwritings coming from similar authors: training author
is X; test image is associated to author X’ by the ground
truth.
Target Features Training (X?) Test (X’) Abs. Diff.
Leading (mm) 7.70 7.10 0.30
Writing Body (mm) 2.23 2.10 0.13
Writing Ascender (mm) 2.07 2.40 0.33
Writing Descender (mm) 2.36 2.60 0.23
Writing Angle (◦) 71.00 73.00 2.00
Writing Ascender Angle (◦) 75.42 74.00 1.42
Writing Descender Angle (◦) 80.26 77.00 3.26
Space between Words (mm) 2.92 2.60 0.32
Density (%) 8.83 10.00 1.17
Similarity-basedImageRetrievalforRevealingForgeryofHandwrittenCorpora
109
As we can observe from statistics shown in table,
differences here are very small. The classifier would
thus confirm the hypothesis (i.e., X’=X).
We now show the performance of WSS with re-
spect to writing shape features, showing how the sys-
tem is able to discriminate handwritings of different
authors by exploiting k-NN search. In particular, we
evaluate the effectiveness of k-NN search using the
well known precision (P) and recall (R) metrics. Pre-
cision measures the number of relevant (i.e., the same
word written by the same author) images to the query,
over the k returned images, while recall is the number
of relevant images to the query over the total number
of relevant samples in the training set.
Table 3 shows the average results of P and R ob-
tained on our test queries representing words. In this
case, the k-NN search is performed over the query
word written by different authors.
Table 3: k-NN average precision (P) and recall (R) values
vs. k.
k P R
1 1 0.1937
2 1 0.3875
4 0.9375 0.7437
6 0.783 0.8562
8 0.5625 0.8562
10 0.475 0.8562
15 0.3162 0.9062
20 0.2567 0.9375
Considering that classes in our dataset have (on
average) 5.5 relevant samples in the training set, we
observe how the quality of the results is quite good:
WSS is able to return most of the relevant images in
the first positions; further, almost all relevant samples
are localized by the system very soon (we get values
of recall close to 1 in the first 15 − 20 results). This
demonstrates the effectiveness of both local features
and comparison method adopted by WSS. Similar re-
sults were confirmed when searching for the author
of any word. Even when a query word is not included
in the training set, WSS is therefore able to correctly
predict its author, thus obtaining good performance at
different levels of granularity.
Next, we test the quality of WSS classifier. For
evaluating the quality (Q) of the classifier, we as-
signed the binary value 1, when the class prediction
for a test image was correct with respect to the ground
truth, and 0 otherwise. With respect to the choice of
the value k, we experimentally found that a reasonable
solution is to bound k to the average value of the total
number of relevant images with respect to the query
in the training set.
For the element-based approach, our experiments
produce 100% accuracy for any value of k in the range
1 − 8. This is expected because of the very good
performance of the k-NN search demonstrated earlier
(see P and R values in Table 3).
Table 4 shows the average value of Q for the
cluster-based working modality (Figure 4).
Table 4: Average quality results of WSS cluster-based clas-
sifier: Q vs. clustering level.
Clustering Level Q (Cluster-based)
author 0.2
author/word 1
We observe how the quality decreases to 20%
when working at the “author” level; as we argued
in Section 4, this is due to the high variance in el-
ements’ features of author classes. In fact, as soon
as the classifier is set to work at the “author/word”
level, Q reaches optimal values, as for the case of the
element-based classifier.
To complete our analysis, we report two visual ex-
amples of the WSS classifier at work, with the aim to
show how WSS could be helpful in predicting the pa-
ternity of a suspicious test image by author X’ (see
Figures 4 and 5).
C
Figure 4: Visual example of k-NN classification based on
elements (k = 4).
In details, Figure 4 shows the prediction according
to the most frequent class among the results of a 4-NN
individual elements query (i.e., element-based classi-
fier). Since the four ranked results are all of distinct
authors (C, X, A, and B, respectively), the classifier
would select for the test image the class author asso-
ciated to the most similar image (i.e., C). Thus, the
classifier would have refused the thesis X’=X.
In Figure 5 the classification is based on the class
of a 1-NN cluster query; note that, further results in-
cluded in Figure 5 (with k = 4) show that WSS con-
siders, in this case, the handwriting from X’ (query
image) very far from the handwriting from author X
(which is ranked only at position 4). Even in this case,
the classifier would have refused the thesis X’=X.
SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications
110
A

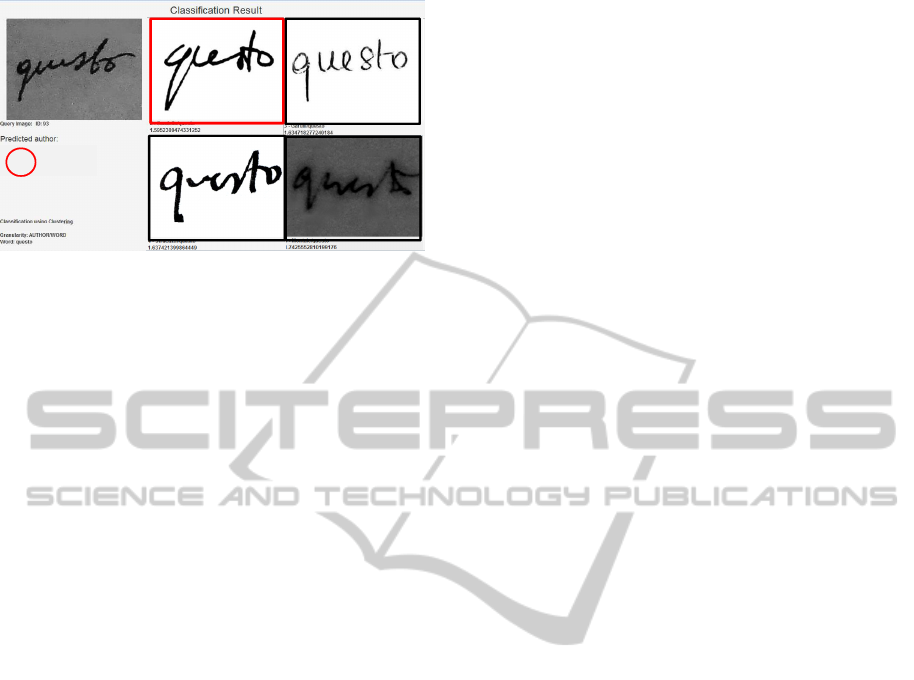

Figure 5: Visual example of k-NN classification based on
clusters (at author/word level).
Summarizing, provided results confirm the effec-
tiveness of traditional manual practices of human ex-
perts in the context of paleography (i.e., manual ex-
traction and human observation of specific corpora
characteristics), practices here permitted by WSS in
a semi-automatic way and with the final aim to clas-
sify suspicious writing to the proper class. Further,
provided tests demonstrate how the same ability to
discriminate between different handwritings can be
obtained in a completely automatic way by exploit-
ing writing shape features, meaning that the WSS
classifier could be a very convenient and smart refer-
ence software architecture for paleography experts for
tackling the authorship attribution problem. In par-
ticular, we envisage two possible uses of the WSS
classifier: (1) The two classifiers (the one using pa-
leographic features and the one using writing shape
features) could be used separately to predict a class
for a same query image; if the two predicted classes
are different, then we alert the handwriting expert that
the query image is suspect and that further investiga-
tion is needed. (2) Since the classifier using paleo-
graphic features requires additional parameters (i.e.,
the (dis)similarity thresholds) for which an appropri-
ate value can be hard to be derived, we can use the
classifier using writing shape features (which is com-
pletely automatic) to predict the class of the query
image; then, the handwriting expert can restrict her
search only on the author (or word) that has been pre-
dicted by WSS.
6 CONCLUSIONS
In this paper, we proposed a novel approach to the au-
thorship attribution problem based on image similar-
ity search. In details, we presented WSS, a software
architecture able to automatically predict the pater-
nity of a (suspicious) test document exploiting both
automatic and semi-automatic features. Preliminary
experimental results conducted on real data demon-
strated the effectiveness of our classifier and encour-
age further investigations on this direction.
In the future, we plan to study and compare alter-
native representations for writing shapes, e.g., based
on global features, like wavelet and Fourier coeffi-
cients. Finally, we advocate the creation of bench-
marks consisting of large handwriting corpora allow-
ing the comparison of existing approaches. In doing
this, our intention is clearly to involve human experts
in the validation process.
ACKNOWLEDGEMENTS
Part of this research has been supported by the FARB
Project “Authorship, variants, style: textual analysis
between philology, linguistics, mathematics and com-
puter science”. A special thank to the students that
participated in the WSS software development.
REFERENCES
Aiolli, F. and Ciula, A. (2009). A case study on the system
for paleographic inspections (SPI): Challenges and
new developments. In Proc. Conf. Comp. Intell. and
Bioeng., pp. 53–66, Amsterdam, The Netherlands.
Baeza-Yates, R. A. and Ribeiro-Neto, B. (1999). Modern
Information Retrieval. Addison-Wesley.
Bartolini, I., Patella, M., and Stromei, G. (2011). The
Windsurf library for the efficient retrieval of multime-
dia hierarchical data. In SIGMAP 2011, pp. 139–148,
Seville, Spain.
Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).
Speeded-up robust features (SURF). Comput. Vis. Im-
age Underst., 110(3):346–359.
Bunke, H. and Wang, P. S. P., editors (1997). Handbook of
character recognition and document image analysis.
World Scientific.
Cao, H., Govindaraju, V., and Bhardwaj, A. (2011). Un-
constrained handwritten document retrieval. IJDAR,
14(2):145–157.
Ciaccia, P., Patella, M., and Zezula, P. (1997). M-tree: An
efficient access method for similarity search in metric
spaces. In VLDB ’97, pp. 426–435, Athens, Greece.
David, D. and Karl, T. (2014). Handbook of Document Im-
age Processing and Recognition. Springer.
Lowe, D. G. (1999). Object recognition from local scale-
invariant features. In ICCV ’99, pp. 1150–1157.
Rath, T. M., Manmatha, R., and Lavrenko, V. (2004). A
search engine for historical manuscript images. In SI-
GIR 2004, pp. 369–376, Sheffield, UK.
Rui, Y., Huang, T. S., Ortega, M., and Mehrotra, S. (1998).
Relevance feedback: A power tool for interactive
content-based image retrieval. Trans. on Circuits and
Systems for Video Technology, 8(5):644–655.
Similarity-basedImageRetrievalforRevealingForgeryofHandwrittenCorpora
111
Smeulders, A. W. M., Worring, M., Santini, S., Gupta, A.,
and Jain, R. (2000). Content-based image retrieval at
the end of the early years. TPAMI, 22(12):1349–1380.
Tomasi, F., Bartolini, I., Condello, F., Esposti, M. D.,
Garulli, V., and Viale, M. (2013). Towards a taxonomy
of suspected forgery in authorship attribution field: A
case: Montale’s diario postumo. In DH-CASE ’13, pp.
10:1–10:8, Florence, Italy.
SIGMAP2015-InternationalConferenceonSignalProcessingandMultimediaApplications
112
