Counter based Detection and Mitigation of Signalling Attacks

Mihajlo Pavloski, G

okc¸e G

orbil and Erol Gelenbe

Department of Electrical and Electronic Engineering, Intelligent Systems and Networks Group,

Imperial College, London SW7 2AZ, U.K.

Keywords:

Signalling Attacks, Detection, Mitigation, Denial of Service.

Abstract:

The increase of the number of smart devices using mobile networks’ services is followed by the increase of

the number of security threats for mobile devices, generating new challenges for mobile network operators.

Signalling attacks and storms represent an emerging type of distributed denial of service (DDoS) attacks and

happen because of special malware installed on smart devices. These attacks are performed in the control plane

of the network, rather than the data plane, and their goal is to overload the Signalling servers which leads to

service degradation and even network failures. This paper proposes a detection and mitigation mechanism of

such attacks which is based on counting repetitive bandwidth allocations by mobile terminals and blocking

the misbehaving ones. The mechanism is implemented in our simulation environment for security in mobile

networks SECSIM. The detector is evaluated calculating the probabilities of false positive and false negative

detection and is characterised by very low negative impact on un-attacked terminals. Simulation results using

joint work of both detector and mitigator, are shown for: the number of allowed attacking bandwidth alloca-

tions, end-to-end delay for normal users, wasted bandwidth and load on the Signalling server. Results suggest

that for some particular settings of the mechanism, the impact of the attack is successfully lowered, keeping

the network in stable condition and protecting the normal users from service degradations.

1 INTRODUCTION

The use of smart devices and mobile data services in

mobile networks record a great increase in the last

couple of years. The number of global mobile de-

vices and connections rose for almost half a billion in

2014 out of which smartphones accounted for 88%

of the growth. The mobile data trafﬁc grew 69%

from 2013 to 2014, reaching 2.5 exabytes per month

(Cisco, 2015). In parallel, the number of security

threats for mobile devices is rapidly growing with a

tenfold increase of mobile malware attacks per month

from August 2013 to March 2014 (Kaspersky Lab and

INTERPOL, 2014).

Signalling attacks that have emerged as novel se-

curity threats to mobile networks are instrumented by

such mobile malware. Their purpose is to develop

a distributed denial of service (DDoS) attack (Ge-

lenbe et al., 2004) on the control plane of the net-

work rather than the data plane (Gelenbe and Loukas,

2007). The impact of these attacks can be maximised

by using groups of mobile devices - botnets (Mulliner

and Seifert, 2010), and by adapting the attack to

the network’s parameters (Abdelrahman and Gelenbe,

2014). Similar attacks can also happen due to poor

development of smart device applications which use

frequent background messages, and are known as Sig-

nalling storms (Gabriel, 2012; Gorbil et al., 2014).

Both of these attacks cannot be detected by tradi-

tional ﬂooding-based attack detection systems (Ric-

ciato et al., 2010). Such attacks can be particularly

dangerous when coupled with emergency situations

(Filippoupolitis et al., 2008) where the physical emer-

gency is exacerbated by the mobile attack that im-

pedes communications, and such attacks also have

side effects in signiﬁcantly increasing the consump-

tion of energy in the mobile operator’s backbone and

in the hand-held devices (Gelenbe and Morfopoulou,

2011).

The vulnerability that is exploited by these attacks

is located in the radio resource control (RRC) part

of the system. Whenever a mobile terminal wants to

transfer some data, it needs to ask for some commu-

nication resources from the network, which triggers a

signalling procedure called connection/radio bearer

setup in 3G Universal Mobile Telecommunications

System (UMTS) networks or random access in 4G

Long Term Evolution (LTE). This procedure involves

exchange of up to 22 Signalling messages in the radio

access network (RAN) and core network (CN) parts

413

Pavloski M., Görbil G. and Gelenbe E..

Counter based Detection and Mitigation of Signalling Attacks.

DOI: 10.5220/0005573504130418

In Proceedings of the 12th International Conference on Security and Cryptography (SECRYPT-2015), pages 413-418

ISBN: 978-989-758-117-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

in UMTS, while a smaller number of messages are

exchanged in LTE. If this behaviour is repeated by a

decent number of mobile terminals in the network it

can cause overloading of the singling servers which

leads to service degradation and even system outages

(Gabriel, 2012). For the mobile user this is manifested

in high battery consumption (Gupta et al., 2013) and

even unwanted billing.

In previous work (Gorbil et al., 2015; Gelenbe

et al., 2014) it is shown that these attacks can be

identiﬁed by their repetitive pattern and low usage

of communication resources in order to evade get-

ting detected by ﬂooding security mechanisms. The

low bandwidth usage characteristic is used in attacks

detection in (Pavloski et al., 2015). Some previous

work from analytical aspect in this ﬁeld is included

in (Gelenbe et al., 2014), where the authors look at

the repetitive pattern of attacks and propose a mech-

anism for their detection and mitigation. This paper

proposes a detection mechanism using the repetitive

pattern of attacks and shows results obtained from its

implementation in a simulation environment. The pa-

per is organised as follows. Section 2 explains the vul-

nerability used by these attacks and covers the details

of the mechanism. In Section 3 we implement and

evaluate the detector in the SECSIM simulator (Gor-

bil et al., 2015) in UMTS networks and show results

on the joint work by the detector and mitigator. Sec-

tion 4 concludes paper and suggests future improve-

ments.

2 MECHANISM DESCRIPTION

The proposed mechanism enables detection and mit-

igation of Signalling attacks and storms per mobile

terminal in real-time. The detection part of the mech-

anism is based on counting the repetitive bandwidth

allocations of same type, while the mitigation part on

blocking the misbehaving mobile terminal’s commu-

nication for some time interval. From an implemen-

tation perspective, it is important that the mechanism

could be implemented on both mobile terminal and

network/operator side. If implemented on the mobile

terminal side, due to the terminal’s limited resources,

some special requirements are needed so it does not

impose any processing, storage, and memory difﬁcul-

ties to the terminal. For this purpose, the proposed

mechanism is envisioned as lightweight background

process requiring only two parameters: the time in-

stances of bandwidth allocation and the type of band-

width allocation. These two parameters are stored in

memory for the duration of a time window of length

around one minute. To explain why these parameters

are used, ﬁrst we need to brieﬂy explain how attacks

work in UMTS network for example.

2.1 Radio Resource Control in UMTS

The radio resource control (RRC) protocol of UMTS

is responsible for managing resources in the radio ac-

cess network (RAN). Each mobile terminal, called

user equipment (UE), is associated a state machine

which maintains the RRC state that could be one of

the following:

• Idle - the initial state when UE is turned on and it

does not have a connection with the network;

• cell-FACH - the UE is connected to the network

and is allocated a shared channel for low-speed

communication;

• cell-DCH - the UE is connected to the network

and is allocated dedicated bandwidth for high-

speed communication;

• cell-PCH - a low energy state in which the UE is

connected to the network but cannot send/receive

data.

When a UE wants to send or receive some data it

needs to have established one radio connection (RC)

and one or more radio bearer(s) (RB) with the base

station, which is equivalent to obtaining one of cell-

FACH or cell-DCH RRC states. Establishing RC

and RB requires exchanging up to 22 Signalling mes-

sages between the UE and the radio network con-

troller (RNC) depending on the RRC state. After ﬁn-

ishing with communication, the UE keeps the RC/RB

active for short period, of a couple of seconds, called

inactivity timeout before bandwidth is deallocated.

Signalling attacks work in such way that they trigger

bandwidth allocations, even without having any data

to send or receive, then wait for the inactivity timeout

to elapse, before repeating the same procedure again.

2.2 Detection

As mentioned earlier, the detection part of the mecha-

nism counts repetitive bandwidth allocations of same

type, with ’type’ being either: allocation of shared

bandwidth (cell-FACH state) or dedicated bandwidth

(cell-DCH state). A decision of an attack being de-

tected is simply taken when the number of repeti-

tions reaches a predeﬁned threshold called repetitions

threshold - n. Repetitions are counted in a sliding time

window manner t

of length suitable to the chosen

n. If we denote with t

the duration of the inactiv-

ity timer of bandwidth allocation, then obviously we

should take t

such that t

> n · t

, i.e. the window

SECRYPT2015-InternationalConferenceonSecurityandCryptography

414

should be large enough to collect n repetitions. Con-

trary, if t

is too large, the mechanism may use more

storage space than needed, and may even have bad

inﬂuence on the decision process. In the following,

we take t

= 3nt

which is a suitable value used in

the simulations. Research in (Gelenbe et al., 2014)

looks at the problem from an analytical perspective

and shows a way of ﬁnding the optimal threshold n.

2.3 Mitigation

The idea for the mitigation technique is based on

(Pavloski and Gelenbe, 2014). The authors of the

paper propose a mathematical model of RRC part in

UMTS and look at the inﬂuence of the system’s pa-

rameters on the impact of the Signalling attack. Fur-

thermore, they manage to lower the attack impact by

adding delay to Signalling messages asking for band-

width allocation. In a similar fashion, in this paper

we will use a ﬁxed time duration t

called blocking

time in which all the communication of a misbehav-

ing terminal will be blocked. This approach may have

a negative inﬂuence on normal mobile users, but it is

the detector which is responsible for making the right

decisions. For that purpose, in the following we will

ﬁrst evaluate the detector’s performance.

3 EVALUATION AND

SIMULATION RESULTS

The proposed detection and mitigation mechanisms

are implemented in the SECSIM simulator, which

is brieﬂy described here. Furthermore, the counter

based detector is evaluated in terms of probability of

false positive and false negative detection. Finally,

both detector and mitigator are set to work together

and some results are obtained regarding the Signalling

load, delay and resources allocation in the network.

3.1 Simulator Description

The SECSIM simulator focuses on modelling and

simulation of the Signalling layer of radio access

part of mobile networks. It is developed in Om-

net++ (Varga and Hornig, 2008), an object-oriented

discrete event simulator. SECSIM is a modular simu-

lator, building network components on top of smaller

ones - modules. Its current version contains models

of both UMTS and LTE networks, including compo-

nents such as: UE, RNC, NodeB, SGSN, GGSN, eN-

odeB, SGW, Internet hosts etc. The UE model con-

sists of the session management (SM), GPRS mo-

bility management (GMM) and RRC layers in the

control plane and application layer with both cir-

cuit switched and IP applications in the data plane.

The transport layer consists TCP and UDP protocols,

while there is also a simpliﬁed IP layer. MAC and

PHY layers are not modelled, while changes in radio

conditions are modelled as random variations. The

RNC model has the RRC containing a single Sig-

nalling server, RANAP, NBAP and GTP protocols.

The Signalling server plays a crucial role in the Sig-

nalling attacks and their mitigation.

3.2 Detector Evaluation

Since the detector plays central role in the proposed

mechanism, it is important to evaluate its perfor-

mance. The two metrics of interest are: the false pos-

itives probability P

, deﬁned as the fraction of time

in which an attack is detected but not existing and the

false negatives probability P

which is deﬁned as the

fraction of time in which an attack is ongoing but is

not detected. The P

metric is particularly important

because it shows the error the detector makes because

of misclassifying normal data transmissions. In order

to protect normal mobile users from being ’punished’

it is important to keep P

value at minimum. To cal-

culate the deﬁned metrics for different values of the

threshold n ∈ {2, 3, 4, 5, 7, 10}, we run experiments

with 3 simulated hours in a UMTS network of 500

mobile terminals among which 150 perform attacks

at random intervals. The selection of 25% attackers

is used because it has shown that is enough to cause

congestion in the network (Gorbil et al., 2015). All

mobile terminals use an application for web brows-

ing, whose parameters come from probability distri-

butions of real world Internet trafﬁc (Ramachandran,

2010), while the 150 attackers have installed an extra

application for attack on the DCH state. The attack

application is assumed to have estimated the inactiv-

ity timeouts of the network with an exponentially dis-

tributed error with mean value of 2 seconds. All ex-

periments are repeated 5 times with different seeds for

the random number generators. Mitigation is not used

in the experiment and t

= 3nt

DCH

. Figure 1 shows

the calculated metrics of interest.

Results show that the false positive probability is

generally much lower than the false negative proba-

bility for all values of n. The P

values are satisfac-

tory because for n ≥ 3, P

is lower than 0.005, which

gives the percentage of normal trafﬁc being confused

as an attack. It drops with the rise of n because less

normal trafﬁc is distinguished as attack. Contrary, the

false negatives probability rises with n because less

attacks are detected and more normal trafﬁc is mis-

classiﬁed as attack. Its values are generally high be-

CounterbasedDetectionandMitigationofSignallingAttacks

415

2 3 4 5 7 10

0.01

0.02

0.03

0.04

0.05

(a)

2 3 4 5 7 10

0.1

0.2

0.3

0.4

0.5

(b)

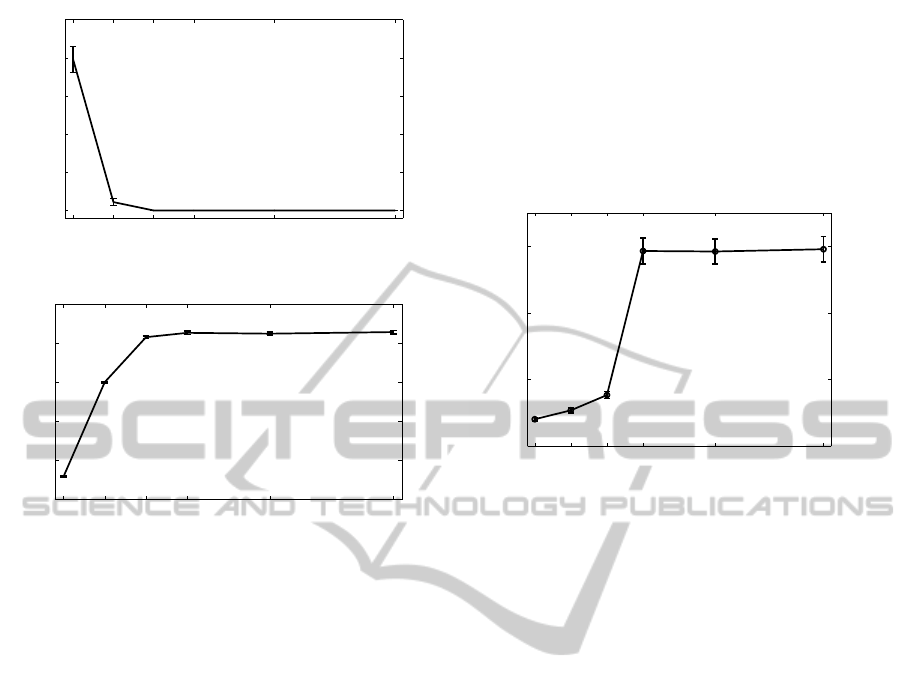

Figure 1: a) Probability of false positive detection and b)

probability of false negative detection; 95% conﬁdence in-

terval used.

cause of the mixture of attack trafﬁc with normal one.

Normal bandwidth allocations interrupt attacking rep-

etitions and reset the counter to 0, failing to detect the

attack. Normally, it could also happen that attack-

ers use only an attack application on the mobile ter-

minal in order to increase the impact of the attack.

In these case, we expect that attacks will be detected

more successfully, and the values of P

will drop

signiﬁcantly.

3.3 Mitigation Results

Now we’re interested in using both the detector and

the mitigator at the same time. To mitigate the at-

tack we will use blocking of the attacking UEs for a

time duration of t

= 60s. The blocking is done im-

mediately when attack is detected. The simulation

scenario for this purpose is same as in Section 3.2,

only this time the attacking terminals attack during

the whole duration of the experiment and the mitiga-

tion is switched on in all terminals.

First, we are interested in counting the success-

ful bandwidth allocations that happen due to attacks

on Figure 2. The Figure depicts the total number of

allocations per mobile terminal for the duration of 3

hours, and the corresponding normalized values. Al-

though the detector successfully detects over 94% of

attacks for n = 2 (P

= 0.059), the mitigator does not

stop all of them. As expected, the number of attack al-

locations increases with the increase of n because the

detector waits for more repetitions to happen before

making a decision. For n ≥ 5 our mechanism shows

unsatisfying results.

2 3 4 5 7 10

0.1

0.2

0.3

No. of successful attacks

No. of successful attacks (normalized)

160

110

Figure 2: Average number of successful bandwidth allo-

cations due to attack per mobile terminal; 95% conﬁdence

interval used.

Furthermore, Figure 3 shows the average end-to-

end delay experienced by normal terminals. This is

the delay measured on the application layer of the pro-

tocol stack. The selected number of attackers (25%

of all terminals) is enough to perform a successful

Signalling attack and overload the Signalling server.

This results in higher delays for the normal terminals

in the network. Results suggest that using the pro-

posed mechanism with a threshold of n ∈ {2, 3, 4},

the system is kept stable and normal delays are ex-

perienced. Again for n ≥ 5, the mechanism does not

manage to mitigate the attack. The abrupt increase

between n = 4 and n = 5 is due to the type of nor-

mal web trafﬁc used, which happens with a rate that

usually doesn’t allow the attacker to perform more

than 4 consecutive repetitions. Furthermore, the de-

lay variability for n ≥ 5 is much higher than for n < 5.

This could be possible because in a congested system

packets are consecutively lost and retransmitted using

the TCP protocol. For longer data bursts, this could

result in pretty long delays.

Finally, we are interested in the amount of com-

munication resources (time-frequency blocks) wasted

due to the attacks. Figure 4 shows the average allo-

cated bandwidth in uplink direction in Cell-DCH state

for attacked and normal mobile terminals in duration

of one hour and the corresponding normalized val-

ues. Note that in Cell-DCH state a bandwidth allow-

ing high-speed transmission is dedicated exclusively

SECRYPT2015-InternationalConferenceonSecurityandCryptography

416

2 4 6 8 10

End−to−end delay [s]

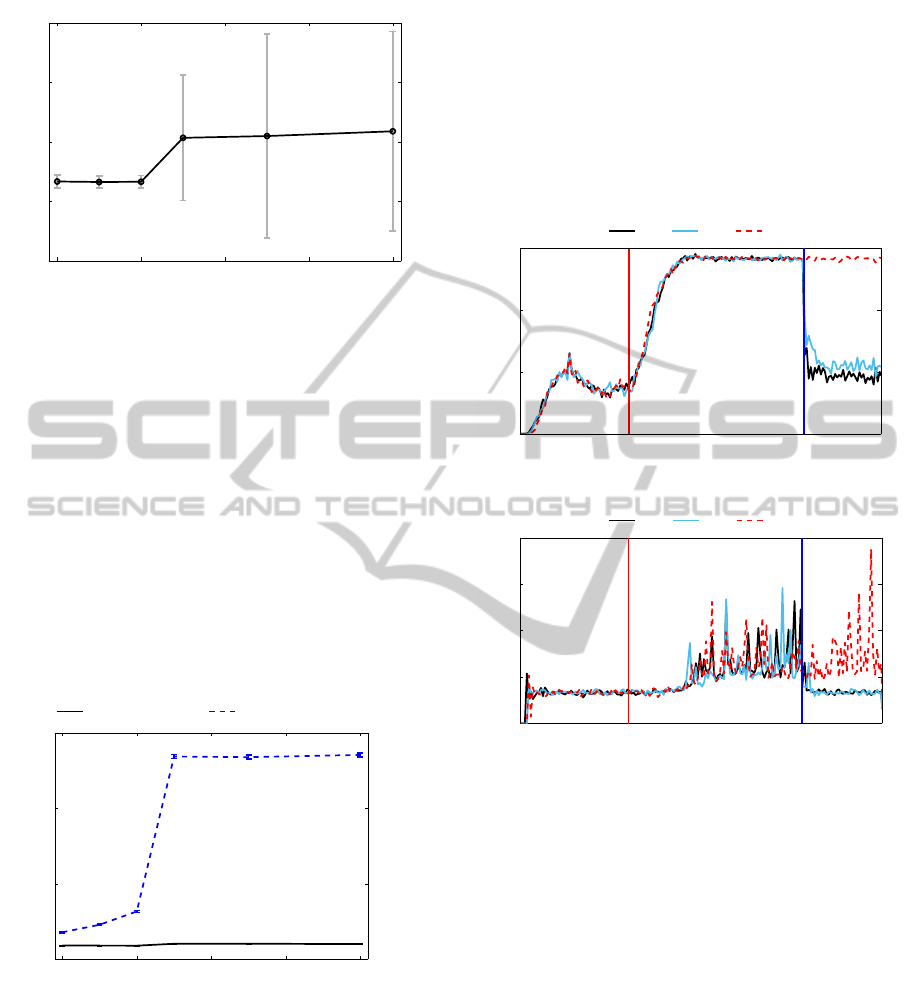

Figure 3: Average end-to-end delay per normal mobile ter-

minal; 99% conﬁdence interval used.

to the requesting terminal, a feature that is excluded

in the following generations of mobile networks, like

HSPA and LTE. Results show that the amount of re-

sources allocated per attacked terminal is much higher

than per normal one, such that for n = 10 the attack-

ers are allocated around 600 MB more than normal

users in a single hour. Looking at this from a billing

perspective, the user containing this kind of malware

on his device may be charged much more than usual.

Anyway, for n ∈ {2, 3, 4} the proposed mechanism

manages to lower the impact of the attack and the

amount of wasted resources drops to 40-90 MB per

terminal per hour.

2 4 6 8 10

0.3

0.6

0.9

Allocated bandwidth (normalized)

Allocated bandwidth [MB/hour]

Normal terminal Attacked terminal

240

480

720

Figure 4: Average allocated uplink bandwidth in Cell-DCH

for attacked and normal terminals; 95% conﬁdence interval

used.

To show how the mechanism works in time do-

main, we will conduct another small experiment. The

scenario setup is again similar to the described in Sec-

tion 3.2, only this time the mitigation starts in the 117

minute, a randomly chosen value. Figure 5 shows the

load on the Signalling server in the radio network con-

troller, in terms of received messages per second, and

the average end-to-end delay experienced by normal

mobile users. From the moment of start of the attack,

the load on the RNC is constantly increasing and after

it reaches some maximum value the normal users start

experiencing communication delays. Starting the mit-

igation with n ∈ {2, 3} helps in stabilizing both the

network load and the experienced delay. The varia-

tion in the delay in congested system is again due to

TCP retransmission of packets.

0 45 117 180

Time [min]

Signaling load [msg/s]

n=2 n=3 n=5

Mitigation

start

Attack

start

(a)

0 45 117 180

Time [min]

End−to−end delay [s]

n=2 n=3 n=5

Attack

start

Mitigation

start

(b)

Figure 5: a) Signalling load on the RNC and b) End-to-end

delay per normal terminal.

4 CONCLUSION

Signalling attacks and storms are a reality in the last

couple of years, forcing many mobile operators to

look for solutions. These attacks threaten the stability

of networks, and on many occasions reduce the qual-

ity of offered services and even cause complete net-

work outages (Gelenbe et al., 2013b; Gelenbe et al.,

2013a). We have distinguished some basic charac-

teristics of these attacks and used the ’repetitive pat-

tern’ to deﬁne a detection technique which is capa-

ble of detecting attacks in real-time. The technique

can be implemented on both mobile terminal and net-

work sides of the system. We evaluated the proposed

detector calculating the probability of false positive

and false negative detection. Furthermore, we used

CounterbasedDetectionandMitigationofSignallingAttacks

417

the detector together with a simple attack mitigation

technique and provided some simulation results on

network load, end-to-end delay and wasted commu-

nication resources. Certain settings of the mecha-

nism manage to detect attacks and lower their im-

pact. Further improvements could be done in com-

bining the proposed mechanism with the one based

on ’low bandwidth usage’ characteristic to obtain bet-

ter results.

ACKNOWLEDGEMENTS

This work is part of the EU FP7 project NEMESYS

(Enhanced Network Security for Seamless Service

Provisioning in the Smart Mobile Ecosystem), un-

der grant agreement no.317888 within the FP7-ICT-

2011.1.4 Trustworthy ICT domain.

REFERENCES

Abdelrahman, O. H. and Gelenbe, E. (2014). Signalling

storms in 3G mobile networks. In Proceedings of

IEEE International Conference on Communications

(ICC’14), Communication and Information Systems

Security Symposium, pages 1017–1022, Sydney, Aus-

tralia.

Cisco (2015). Cisco visual networking index: Global mo-

bile data trafﬁc forecast update, 2014–2019. White

Paper.

Filippoupolitis, A., Hey, L., Loukas, G., Gelenbe, E., and

Timotheou, S. (2008). Emergency response simula-

tion using wireless sensor networks. In Proceedings

of the 1st international conference on Ambient me-

dia and systems, page 21. ICST (Institute for Com-

puter Sciences, Social-Informatics and Telecommuni-

cations Engineering).

Gabriel, C. (2012). DoCoMo demands Google’s help with

signalling storm.

Gelenbe, E., Abdelrahman, O. H., and G

orbil, G. (2014).

Time-outs and counters against storms.

Gelenbe, E., Gellman, M., and Loukas, G. (2004). De-

fending networks against denial of service attacks. In

Carapezza, E., editor, Proceedings of the Conference

on Optics/Photonics in Security and Defence (SPIE),

Unmanned/Unattended Sensors and Sensor Networks,

volume 5611, pages 233–243, London, UK.

Gelenbe, E., G

orbil, G., Tzovaras, D., Liebergeld, S., Gar-

cia, D., Baltatu, M., and Lyberopoulos, G. L. (2013a).

NEMESYS: enhanced network security for seamless

service provisioning in the smart mobile ecosystem.

In Gelenbe, E. and Lent, R., editors, Information Sci-

ences and Systems 2013 - Proceedings of the 28th In-

ternational Symposium on Computer and Information

Sciences, ISCIS 2013, Paris, France, October 28-29,

2013, volume 264 of Lecture Notes in Electrical En-

gineering, pages 369–378. Springer.

Gelenbe, E., G

orbil, G., Tzovaras, D., Liebergeld, S., Gar-

cia, D., Baltatu, M., and Lyberopoulos, G. L. (2013b).

Security for smart mobile networks: The NEMESYS

approach. In 2013 International Conference on Pri-

vacy and Security in Mobile Systems, PRISMS 2013,

Atlantic City, NJ, USA, June 24-27, 2013, pages 1–8.

IEEE.

Gelenbe, E. and Loukas, G. (2007). A self-aware approach

to denial of service defence. Computer Networks,

51(5):1299–1314.

Gelenbe, E. and Morfopoulou, C. (2011). A framework for

energy-aware routing in packet networks. The Com-

puter Journal, 54(6):850–859.

Gorbil, G., Abdelrahman, O. H., and Gelenbe, E. (2014).

Storms in mobile networks. In Proceedings of the 9th

ACM Symposium on QoS and Security for Wireless

and Mobile Networks (Q2SWinet’14), pages 119–126.

Gorbil, G., Abdelrahman, O. H., Pavloski, M., and Gelenbe,

E. (2015). Modeling and analysis of RRC-based sig-

naling storms in 3G networks. IEEE Transactions

on Emerging Topics in Computing, Special Issue on

Emerging Topics in Cyber Security, PP(99):1–14.

Gupta, M., Jha, S., Koc, A., and Vannithamby, R. (2013).

Energy impact of emerging mobile internet applica-

tions on LTE networks: issues and solutions. Commu-

nications Magazine, IEEE, 51(2):90–97.

Kaspersky Lab and INTERPOL (2014). Mobile Cyber

Threats. Joint Report.

Mulliner, C. and Seifert, J.-P. (2010). Rise of the iBots:

Owning a telco network. In Proc. 5th Inter. Conf. on

Malicious and Unwanted Software (MALWARE’10),

pages 71–80.

Pavloski, M. and Gelenbe, E. (2014). Signaling attacks in

mobile telephony. In Proceedings of the 11th Interna-

tional Conference on Security and Cryptography (SE-

CRYPT’14), pages 206–212.

Pavloski, M., Gorbil, G., and Gelenbe, E. (accepted, 2015).

Bandwidth Usage - Based Detection of Signaling At-

tacks. In 30th International Symposium on Computer

and Information Sciences. Springer Verlag.

Ramachandran, S. (2010). Web metrics: Size and number

of resources.

Ricciato, F., Coluccia, A., and DAlconzo, A. (2010). A

review of dos attack models for 3g cellular networks

from a system-design perspective. Computer Commu-

nications, 33(5):551 – 558.

Varga, A. and Hornig, R. (2008). An overview of the OM-

NeT++ simulation environment. In Proc. 1st Inter.

Conf. on Simulation Tools and Techniques for Com-

munications, Networks and Systems W’shops (Simu-

tools’08), pages 60:1–60:10.

SECRYPT2015-InternationalConferenceonSecurityandCryptography

418
