The Role of Experimental Exploration in Cloud Migration for SMEs

Frank Fowley

, Divyaa Manimaran Elango

, Hany Magar

and Claus Pahl

IC4, Dublin City University, Dublin 9, Ireland

Free University of Bozen-Bolzano, Bolzano, Italy

Keywords:

Cloud Migration, Experiment, Prototyping, Migration Method, SME, Cloud Architecture, Cloud Cost Model.

Abstract:

The migration of IT systems to the cloud is still a problem, in particular for smaller companies without much

cloud expertise. Generally, some expected beneﬁts are deﬁned and an awareness of potential problems does

exist to some extent in the organisations. However, this is often not sufﬁcient to conﬁdently embark on a

full migration project in the cloud. While discussions and conceptual analyses can help to some extent, we

explore here the suitability of feasibility studies with experimental explorations at the core. These studies

would typically cost 5% of the overall migration cost based on our use cases, but can help with a reliable

risk assessment. It can clarify how much of the expectations and intentions can materialise in the cloud. The

cost of the migration, but, more importantly, the cost of operating an IT system in the cloud can be estimated.

Using a feasibility study with an experimental core based on a partial prototype delivers much more reliable

ﬁgures regarding conﬁgurations, quality-of-service and costing than a theoretical analysis could deliver.

1 INTRODUCTION

While cloud computing is established, the migration

of systems to the cloud (Jamshidi et al., 2013) is

still a problem for small and medium-sized enter-

prises (SMEs) without cloud expertise (Giardino et

al., 2015). These need to rely on support from con-

sultants and solution providers. Expected beneﬁts are

known and an awareness of potential problems exists.

However, this is often not sufﬁcient to conﬁdently em-

bark on a full migration, which requires estimates of

the migration costs as well as costs of operating soft-

ware in the cloud within given quality limits.

Consultants and solution providers offer discus-

sions and analyses that can help to some extent. How-

ever, some assumptions rely on expert knowledge

from similar cases, but might not always be fully re-

liable. We explore here the suitability of feasibil-

ity studies with some experimental exploration at the

core. These studies are a worthwhile investment, and

would typically be 5% of the overall migration cost.

A second application context where this applies is

migration to another cloud architecture setting. So,

rather than cloud-onboarding, the source architecture

is already cloud-based. An example is an IaaS to PaaS

migration from a basic, virtualized on-premise sys-

tem into a fully cloud-native architecture. A proper

project scoping for the migration is a key problem

(Son, 2013), because of misconceptions and unclear

technical expectations. Migration frameworks and

case studies have been reported in the literature by

academics and practitioners from industry (Jamshidi

et al., 2013; Gholami et al., 2016; Jamshidi et al.,

2016), but how to reliably estimate a proper ‘right-

scaling’ of a cloud deployment remains unclear.

The beneﬁt of feasibility studies is a reliable risk

assessment. It can clarify how much of the expec-

tations and intentions can materialise. The cost of

the migration (Arshad et al., 2015), but, more im-

portantly, the cost of operating an IT system in the

cloud can be estimated (Jamshidi et al., 2014). It also

helps to better understand technical cloud architecture

concerns. Another question is a re-engineering one.

What is migratable and what is the extent of refac-

toring necessary to make migration work? Often, re-

engineering software in order to modernise and adapt

to cloud constraints is needed. Using a feasibility

study with an experimental core based on a partial

prototype of the proposed cloud software system (Li

et al., 2011) delivers much more reliable ﬁgures re-

garding conﬁgurations, quality-of-service and costing

than a theoretical analysis could delivery.

We use case studies that we carried out as inde-

pendent consultants with SMEs in the software sector

using this model to validate the beneﬁts.

The paper is organized as follows. In Section

2, we introduce a migration feasibility framework.

Then, we deﬁne the aims of the feasibility studies.

Practical concerns are presented in Section 4. In Sec-

tion 5, we discuss observations.

Fowley, F., Elango, D., Magar, H. and Pahl, C.

The Role of Experimental Exploration in Cloud Migration for SMEs.

DOI: 10.5220/0006234503290334

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 301-306

ISBN: 978-989-758-243-1

301

2 MIGRATION FEASIBILITY

FRAMEWORK

For the migration feasibility studies, we used a

pattern-based approach to deﬁne a draft migration

plan. This involves (i) the source architecture of the

system, (ii) target architecture options in the cloud,

and (iii) high-level architectural transformations for

the different target architectures (Xiong et al., 2013).

We use a catalogue of migration patterns to describe

simple architectural transformations for speciﬁc sce-

narios (e.g. for simple cloudiﬁcation in an IaaS solu-

tion). This deﬁnes a staged process based on a migra-

tion path which in the individual steps are driven by

selection criteria (e.g., time to market or introduction

of new capabilities). A sample pattern is Multi-Cloud

Relocation (Jamshidi et al., 2014), see Fig. 1.

• Deﬁnition: A component re-hosted (or relocated)

on a cloud platform is enhanced by using the en-

vironmental services of the other cloud platforms.

• Problem: Availability of an application needs

to be enhanced without architecture change, and

without capital expenditure for hardware.

• Solution: Leverage cloud platform environment

services to improve availability, e.g., live migra-

tion from existing platform to target platform in

case of outage.

• Beneﬁts: As component re-hosting in multi-

ple cloud platforms and improve availability and

avoid vendor lock-in.

• Risks: Cloud providers do not provide the neces-

sary services for applications to run in cloud plat-

forms without re-architecting or rewriting code.

Migration paths emerge as sequential compositions

of these patterns on a source architecture, see Fig. 1.

These paths are deﬁned based on discussions with the

company about their existing architecture and a high-

level speciﬁcation of technical and business targets.

Migration paths deﬁne decision points where typi-

cally several architectural options emerge, e.g., dif-

ferent data storage options (Xiong et al., 2013; Pahl

and Xiong, 2013; Pahl et al., 2013). For (a subset

of) these options, an experimental evaluation can be

considered. Based on these paths, a plan focusing on

a subset of components is identiﬁed for experimental

evaluation: Firstly, deﬁne source and possible target

architectures. Secondly, select critical components,

e.g., high volume data process to test scalability of

storage (DB) or communications infrastructure to test

integration and communications scalability. The ben-

eﬁt of the patterns is that they link architecture con-

ﬁguration to quality. We use this link to select compo-

nents for the feasibility exploration based on the most

relevant quality concern to be explored.

3 EXPERIMENTAL MIGRATION

FEASIBILITY STUDIES

Experimentation is the central activity during the fea-

sibility study. Its objectives are:

• QoS and Cost: Quantiﬁcation of QoS and cost

aspects. Often, scalability is an important con-

cern, driven by the business objective to expand.

In this case, an experimental feasibility study can

validate a proposed architecture scalability. An-

other motivation is a cost-vs-performance experi-

ment, i.e., to consider different options and com-

pare them technically (e.g., scalability of different

target architecture options), but rank them consid-

ering the costs they would entail (Pahl et al., 2017;

Fowley et al., 2013).

• Usage and Cost: Considering ‘usage’ changes the

focus to the potential user. Usage exploration

through experiments is a suitable tool to explore

usage patterns and predict potential income based

on this. This can then directly be related to the re-

sources (and their costs) to facilitate user requests.

• Understanding: Experimentation allows to

achieve a better understanding of technical

constraints and operational activities in the cloud.

What experimentation can shows is the difference

between PaaS/IaaS/SaaS solutions (as consumer

and provider) and integration and interoperation

problems. It also clariﬁes how to structure and

cost a staged migration (plan derivation).

An important question arises that links quality, usage

and costs to the architectural conﬁguration:

“How many processes can I host on a ﬁxed cloud

compute resource with a pre-deﬁned latency

performance target for a forecasted number of users

of a particular application with a forecasted mix of

application operation usage.”

Experimental studies therefore play a central role

in the migration feasibility determination. Experi-

mentation often results in a prototype evaluation of

a partly cloud-native architecture. Rather than just

cloudifying a system in a virtual machine, we of-

ten selected a component such as data storage and

have experimented with different cloud-native stor-

age options, including for instance a mix of traditional

RDBM and other table/blob storage formats. Partial

experimentation with cloud-native prototypes allows

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

302

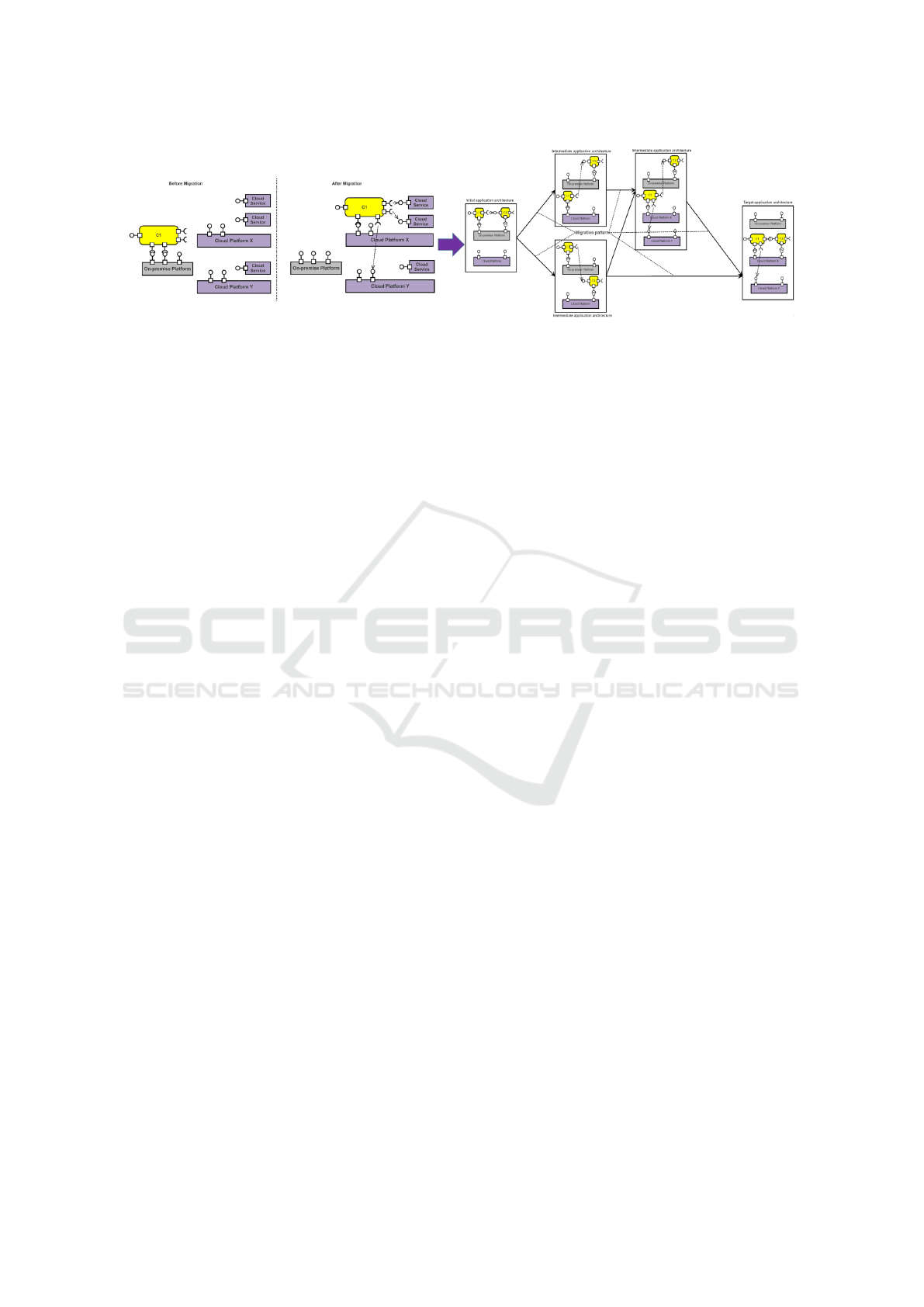

Figure 1: Cloud Migration Pattern (left) and a Migration Path based on several pattern applications (right).

to consider a fully cloud-native architecture to be dis-

cussed with realistic technical (e.g., scalability) and

cost assumptions (storage, access) (Al-Room et al.,

2013). Only realistic costs for cloud operation allows

a charging model for their own product to be devel-

oped and validated.

When looking at concrete use cases, we distin-

guish what is expected and understood on the one

hand and misconceptions and lack of knowledge on

the other.

• Clarity of vision: Business reasons to go to cloud

are often clear, e.g., a planned internationalisation

or expecting an increase in company value (in the

cloud). Technical reason to go to cloud are at a

high level clear, for instance scalability.

• Understanding of cloud concerns (having an im-

pact on architecture and process selection) is of-

ten limited. Technically, the difference between

provision models/layers is unclear. This includes

the management effort at I/P/SaaS level in com-

parison. Another problem is a possible vendor

lock-in. In business terms, e.g., possibly required

revenue model changes remain very unclear. Le-

gal/Governance concerns such as data location are

known, but without reliable knowledge.

We have carried out case studies in the following

ﬁve application domains. We highlight the speciﬁc

need for a feasibility study in each case:

• Document management: a document image pro-

cessing to allow more efﬁcient processing in the

cloud, but also to enable the company to extend

into new markets,

• Banking solution: an integrated solution (account

management plus ATM operations) – provided

in Africa and Asia, raising uncertainty concerns

from security to legal,

• Insurance: a solution for multi-product manage-

ment in multiple countries – uncertainty arise

from the need for variability management of a sin-

gle product across different regions/jurisdiction,

• Food sector ERP: an ERP solution for food pro-

duction and sales – where a stable in-house solu-

tion is prepared for launch as a product into dif-

ferent markets. Food safety regulations impact on

the architecture a cloud-based solution,

• Business Registry: enterprise repositories – scal-

able internationalisation is the driver, allowing

clients to access their services through the cloud.

4 STRUCTURED FEASIBILITY

EXPERIMENTATION

Experimentation aims to allow to establish a link be-

tween technical feasibility and quality (e.g., perfor-

mance) and costs (Xiong et al., 2013). The pattern-

approach helps to guide the select the components for

exploration based on the most relevant quality con-

cern. This can range from performance to security to

integration and interoperability, as indicated for the

use cases.

Furthermore, in many development approaches,

quality testing is an integral component, in particu-

lar if the software is directly used by end-users. Load

testing is difﬁcult if prior testing has been done in-

house and no expertise in testing in the cloud exists.

The feasibility study thus also addresses load testing.

4.1 Process

First, we need a process for the feasibility study:

1. deﬁne source and possible target architectures,

2. select critical components, e.g., a high volume

data process to test scalability of storage (DB) or a

communications infrastructure to test integration

or communications scalability.

Challenges for the migration expert and the com-

pany architects are to understand the existing archi-

tecture and to select best component for experimen-

tation (ranges from individual component to full vir-

tualisation as VM). The feasibility process is based

The Role of Experimental Exploration in Cloud Migration for SMEs

303

on architecture determination, prototype component

selection, and construction of realistic use case: (i)

setup of services and data (real or dummy) and mon-

itoring, (ii) experiment speciﬁcation, (iii) experiment

execution, (iv) data collection and analysis.

4.2 Experimentation Beneﬁts

Sample experiments that we carried out targeted e.g.

data storage for image processing in the ‘Document

Management’ use case. What experimentation shows

are a number of concerns that would normally not

always be identiﬁed and clariﬁed in discussions and

non-experimental analyses:

• Difference between PaaS/IaaS/SaaS solutions (as

consumer and provider). Based on the migration

architecture it allows to practically demonstrate

conﬁguration and operation of different scenarios.

• Scalability of the solutions, as exemplied in Fig-

ures 2 and 3 for response time behaviour based on

different retrieval and update loads.

• Identiﬁcation of integration and interoperation

problems that emerge in the prototype implemen-

tation when on-premise components are migrated.

• How to structure and cost a staged migration

(plan derivation) can be estimated on the proto-

type component migration that typical involves

the migration of existing components. In order to

experiment, data and trafﬁc needs to be available,

again either imported or generated. In all cases, a

realistic prediction of software and data migration

tasks and related costs is possible.

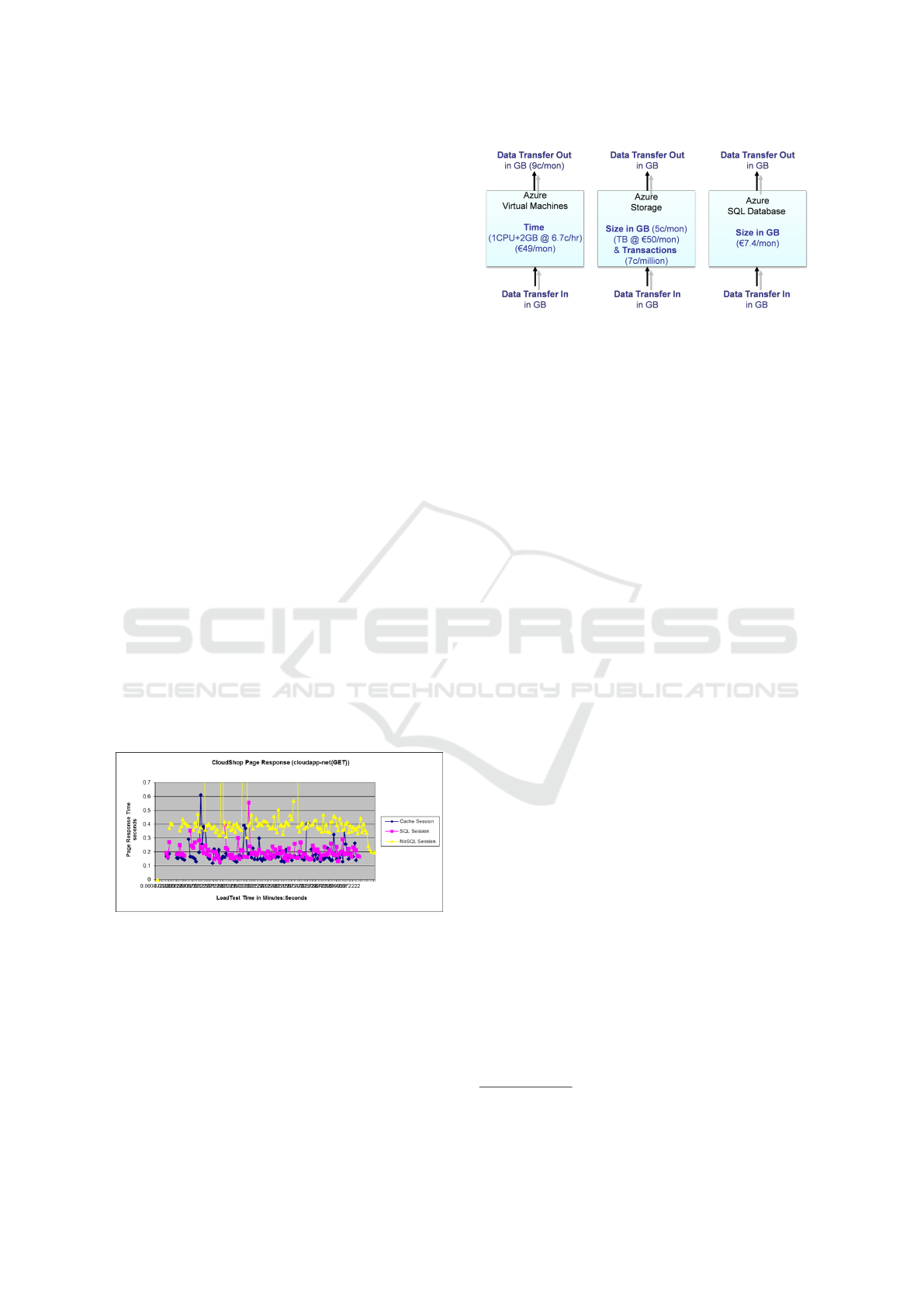

Figure 2: Comparison of storage options (technical quality).

Fig. 2 shows the performance results for different

storage options for a Web application. Fig. 3 maps

the architectural options onto costs.

4.3 Justiﬁcation of Experimental Effort

Cost is a key factor to decide whether to conduct a

feasibility study, i.e., does it pay off to carry out a

feasibility study. The costs include the cloud platform

to experiment with and the migration expert.

Figure 3: Comparison of storage options (data

consumption-versus-cost).

The total experimental costs are 5-10% of the pre-

dicted migration costs based on our case study expe-

rience – including architectural analysis, draft migra-

tion plan and security and data protection analysis

5 OBSERVATION & EVALUATION

The feasibility beneﬁts are experimentation results

and documentation: (i) a proper documentation of

scenarios and plans needed at a high level, which

allow detailed migration plans for a full migration

to be developed, and (ii) experiments help to clarify

options, address misconceptions, and identify open

problems. They help to scope a full migration project.

We have evaluated the feasibility approach to cloud

migration based on the following criteria:

• Clariﬁcation of architectural options ans concerns

• Reliable quality prediction & cost prediction

• Cost effectiveness as an instrument

5.1 Clarify Architectural Concerns

Clariﬁcation of architectural options for SME through

architectural prototyping using a pattern approach al-

lows to use patterns that link quality to structure (Pahl,

2005; Pahl and Lee, 2015). A survey has been carried

out with architects involved in the migration studies

– with at least 3 architects for each participating use

case). This includes architects both within the com-

pany in question and also the architects from the con-

sulting organisation.

The important survey results are as follows: All

participants (100%) agree or strongly agree that the

method is suitable as an analysis tool to identify op-

tions and concerns. 88% agree that the migration

method is suitable to analyse and discuss functional

and non-functional architecture requirements for mi-

gration. One limitation has been ﬂagged. Whereas

These cost were part-funded for the given use cases by

governmental business innovation schemes.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

304

55% strongly agree that the method is suitable for

SMEs and that is also suitable for multi-cloud mi-

gration (80% positive), 43% have concerns with its

applicability for large-scale migration.

5.2 Predict Quality and Cost

We distinguish quality and cost observations:

• Reliable Quality Prediction: experimental quality

assessment results in trustworthy, reliable input

to predict full system behaviour. This has been

discusses and analysed with the customer com-

pany. In the case of successful migrations at a

later stage, we have not found any major devia-

tions from the predictions when using the conﬁg-

urations experimented with.

• Reliable Cost Prediction: experimental cost as-

sessment provides a low-to-high demand cost

range, allowing to predict to system costs on a re-

liable basis (Wang et al., 2012). These have been

discussed with the customer company and, where

possible, evaluated through a later full implemen-

tation.

Only an empirical evaluation of the two quality items

is currently possible due to the lack of suitable quality

and cost mapping models. Cloud computing is here,

however, highly suitable as monitoring of technical

details can be set to be detailed for the experiments

and billing for the resources used is equally detailed

with typically metered usage for different resources

used. For instance, for the ‘Document Management’

use case, the factors considered for storage only were:

region, replication options, data size stored, transac-

tion number, data transfer.

5.3 Cost Effectiveness

Cost effectiveness as an instrument is a key aim of our

approach. We look at the actual costs of feasibility

studies relative to full migration costs. We also con-

sider how successful feasibility studies were in terms

of determining the actual migration.

• Cost per project: Across the 5 migration cases

that we have carried out with SMEs, the average

cost was around 5% of the total budget for a full

migration. The full migration budget was deter-

mined after the feasibility study concluded. The

5% cost was considered adequate. Please note that

the overall budget for the migrations ranged be-

tween 100,000 and 250,000 Euros, including sub-

stantial re-architecting in some cases.

• Decisions taken: Concrete results from the use

cases are as follows: 1 full migration (document

management) has started and is currently being ﬁ-

nalised, 1 full migration (insurance) has started,

1 decision against due to quality grounds (bank-

ing), 2 decision have at this stage not yet been

taken (food, registry). In the all ﬁnalised cases,

the companies in questions have based their deci-

sion on the outcome of the feasibility studies.

For the discussion with the companies in question,

readiness to make a decision to embark on a full mi-

gration is considered a success. The experimental fea-

sibility study is also considered successful if a deci-

sion against migration is taken on the grounds of an

unfavourable quality or cost result.

5.4 Discussion

Limitations of the approach are related to the delay it

might cause. In many circumstances this might not be

an issue, but in some situations an approval to embark

on a full migration is necessary, possibly depending

on a successful outcome of the study. This approval

is typically one of the following:

• External private investment in a cloud

• Public support, e.g. through innovation schemes

• Internal approval for further funding

While there might be a delay in these situations, any

decision can be based on reliable input data. Note that

in the use cases where a decision has not been taken

yet, this was not due to the study results.

6 RELATED WORK

A number of migration approaches exist. Jamshidi et

al. (Jamshidi et al., 2013) survey the literature. Fah-

mideh et al. (Gholami et al., 2016) provide a compari-

son framework for cloud migration. We target specif-

ically an experimental framework that goes beyond

process models for migration.

Costing models for cloud are important for SMSs

to understand their own costs and expenses. In (Ar-

shad et al., 2015), an overview of pricing models for

the cloud is provided. On the expenses side, e.g., at

IaaS level, resources are priced often like commodi-

ties (Wang et al., 2012). At the income side for the

SME, the product is typically provided as a SaaS with

possibly a mix of model from pay-per-use to pay-per-

user and ﬂat-fee models. Our solution is meant to

bridge between the two perspectives.

Quality in cloud is managed for factors as per-

formance by conﬁguring the resources used appro-

priately. We propose a manual experimentation ap-

proach for cloud prototype implementation. In (Son,

The Role of Experimental Exploration in Cloud Migration for SMEs

305

2013) a system to support automated resource selec-

tion is suggested. Although this is not generally appli-

cation, the ideas could help to automate our approach

further. The automation of cloud experimentation is

also addressed in (Affetti et al., 2015) through a tool

suite for OpenStack.

7 CONCLUSIONS

Reliability of data and an understanding of the pro-

cesses and their impact are essential for any deci-

sions (Chappell, 2016). For a cloud-based software

provider, quality and cost need to be reconciled in an

architecture that maps IaaS or PaaS hosted software

onto a SaaS delivery model.

We suggest feasibility studies that clarify the costs

of both migration and also the operation of a software

product in the cloud. They provide decision support,

allowing to answer whether/how a software product

can be deployed and delivered cost-effectively in the

cloud while maintaining required quality. The bene-

ﬁt is increased reliability of data/assumptions, rather

than relying on experience or guesses.

Experiments have another beneﬁt. They cover

tasks normally not done until a systems deployments

stage. Performance engineering is important, but load

tests are normally not done until a late project stage.

Here, load testing is a key experimental focus that al-

lows to reduce technical risks at a very early stage.

As already mentioned, one aspect for future work

is the increased automation of the experiments. This

could include automated test case generation for scal-

ability tests or even the selection of different alter-

native services for a given component (e.g., an auto-

mated storage service selection and conﬁguration).

ACKNOWLEDGEMENTS

This work was partly supported by IC4 (the Irish Cen-

tre for Cloud Computing and Commerce), funded by

EI and IDA.

REFERENCES

Jamshidi, P., Ahmad, A. and Pahl, C. (2013). Cloud migra-

tion research: a systematic review. IEEE Transactions

on Cloud Computing.

Jamshidi, P., Pahl, C. and Mendonca, N.C. (2016). Pattern-

based multi-cloud architecture migration. Software:

Practice and Experience.

Son, J. (2013). Automated Decision System for Efﬁcient

Resource Selection and Allocation in Inter-Clouds.

The University of Melbourne.

Arshad, S., Ullah, S., Khan, S.A., Awan, M.D. and Khayal,

M. (2015). A survey of Cloud computing variable

pricing models. In Eval of Novel Appr to Sw Eng.

Jamshidi, P., Pahl, C., Chinenyeze, S. and Liu, X. (2014).

Cloud migration patterns: a multi-cloud service archi-

tecture perspective. WESOA.

Xiong, H., Fowley, F., Pahl, C. and Moran, N. (2013). Scal-

able architectures for platform-as-a-service clouds:

performance and cost analysis. Europ Conference on

Software Architecture.

Pahl, C. and Xiong, H. (2013). Migration to PaaS Clouds

- Migration Process and Architectural Concerns.

MESOCA Symposium.

Pahl, C., Xiong, H. and Walshe, R. (2013). A comparison

of on-premise to cloud migration approaches. Europ

Conf on Service-Oriented and Cloud Computing.

Al-Roomi, M., Al-Ebrahim, A., Buqrais, S. and Ahmad, I.

(2013). Cloud Computing Pricing Models: A Survey.

Intl Jrnll of Grid and Distr Comp. Vol.6, No.5.

Wang, W., Zhang, P., Lan, L. and Aggarwal, V. (2012). Dat-

acenter net proﬁt optimization with deadline depen-

dent pricing. Conf on Inf Sciences and Systems.

Giardino, C., Bajwa, S.S., Wang, X. and Abrahamsson, P.

(2015). Key Challenges in Early-Stage Software Star-

tups. XP Conference.

Li, H., Zhong, L., Liu, J., Li, B. and Xu, K. (2011). Cost-

effective partial migration of VoD services to content

clouds. Cloud Computing.

Fowley, F., Pahl, C. and Zhang, L. (2013). A comparison

framework and review of service brokerage solutions

for cloud architectures. ICSOC Workshops.

Pahl, C., Jamshidi, P. and Weyns, D. (2017). Cloud archi-

tecture continuity: Change models and change rules

for sustainable cloud software architectures. Journal

of Software: Evolution and Process.

Pahl, C. (2005). Layered ontological modelling for web

service-oriented model-driven architecture ECMDA-

FA, LNCS 3748, pp. 88-102.

Chappell, D. (2016). Cloud Computing White Pa-

pers. http://www.davidchappell.com/writing/

white_papers.php.

Gholami, M.F., Daneshgar, F. and Rabhi, F. (2016).

Cloud Migration Methodologies: Preliminary Find-

ings. CloudWays Workshop.

Pahl, C. and Lee, B. (2015). Containers and clusters for

edge cloud architectures - a technology review. Intl

Conf on Future Internet of Things and Cloud.

Affetti, L., Bresciani, G. and Guinea, S. (2015). aDock:

A Cloud Infrastructure Experimentation Environment

Based on Open Stack and Docker. Intl Conf Cloud

Comp.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

306
