Translation of Heterogeneous Requirements Meta-Models Through a

Pivot Meta-Model

Imed Eddine Saidi

, Mahmoud El Hamlaoui

, Taoufiq Dkaki

Nacer Eddine Zarour

and Pierre-Jean Charrel

IRIT Laboratory, University of Toulouse-Jean Jaurès, Toulouse, France

IMS-ADMIR Laboratory, ENSIAS, Rabat IT Center, Mohammed V University in Rabat, Rabat, Morocco

LIRE Laboratory, University Constantine 2, Constantine, Algeria

Keywords: Requirements Engineering, Pivot Model, Translation, Interoperability.

Abstract: Companies use these different approaches to elicit, specify, analyse and validate their requirements in

different contexts. The globalization and the rapid development of information technologies sometimes

require companies to work together in order to achieve common objectives as quickly as possible. We

propose a Unified Requirements Engineering meta-model (UREM) that allows cooperation in the

requirements engineering process between heterogeneous RE (Requirement Engineering) models. In this

paper, we explore UREM as a pivot meta-model to ensure interoperability between heterogeneous RE

models.

1 INTRODUCTION

The globalization and the rapid development of

information technologies require that nowadays

systems and organizations cooperate with each

other. Many research works have emerged to

support this cooperation which gave birth to the

Cooperative Information Systems (CIS) in order to

deal with the problem of heterogeneity at all levels

of software development lifecycle. Most of the work

focuses on the architectural (conceptual) level of

software projects. Very little work focuses on the

most abstract level (early stage) of the software

development lifecycle namely the requirements

engineering (RE); which aims to describe and

manage upstream phases of software projects. This

does not mean that there are no problems in this

stage of RE when it comes to inter-company

cooperation. It should be noted that one of the

reasons affecting the failure of software projects is

the bad definition of requirements. Hence, focusing

on requirements engineering becomes gradually one

of the most important concerns in the software

development lifecycle. This has resulted in the

emergence of different kinds of requirements

engineering approaches such as goal, viewpoint, and

scenario oriented approaches. This variety of RE

approaches makes cooperation among companies

stakeholders in this stage a difficult activity due to

the heterogeneity of these approaches. The aim of

this paper is to propose a solution which allows

companies that use different kinds of RE approaches

to cooperate without forcing companies to migrate to

a unique approach which is very time and cost

consuming.

Bendjenna, (Bendjenna and al., 2010) has

proposed an integrated approach MAMIE which

combines different kinds of concepts: goal, scenario

and viewpoint in order to allow cooperation between

companies. In i* approach, there exists different

variations for particulars usages. Carlos (Carlos and

al., 2011) has defined super meta-model hosting

identified variations of i* and implementing a

translation algorithm between these different

variations oriented to semantic preservation. Our

work intends to be a combination between the two

works. We propose an abstract meta-model which

allows cooperation and translation of information

between different kinds of RE approaches.

This paper is organized in six sections. In section

two, we present requirements engineering meta-

models. In section three, we present the idea behind

the unified meta-model and in section four, we

present our unified meta-model UREM. In section

five, we deduct translation rules between concepts.

376

Saidi, I., El Hamlaoui, M., Dkaki, T., Zarour, N. and Charrel, P.

Translation of Heterogeneous Requirements Meta-Models Through a Pivot Meta-Model.

DOI: 10.5220/0006789903760382

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 376-382

ISBN: 978-989-758-300-1

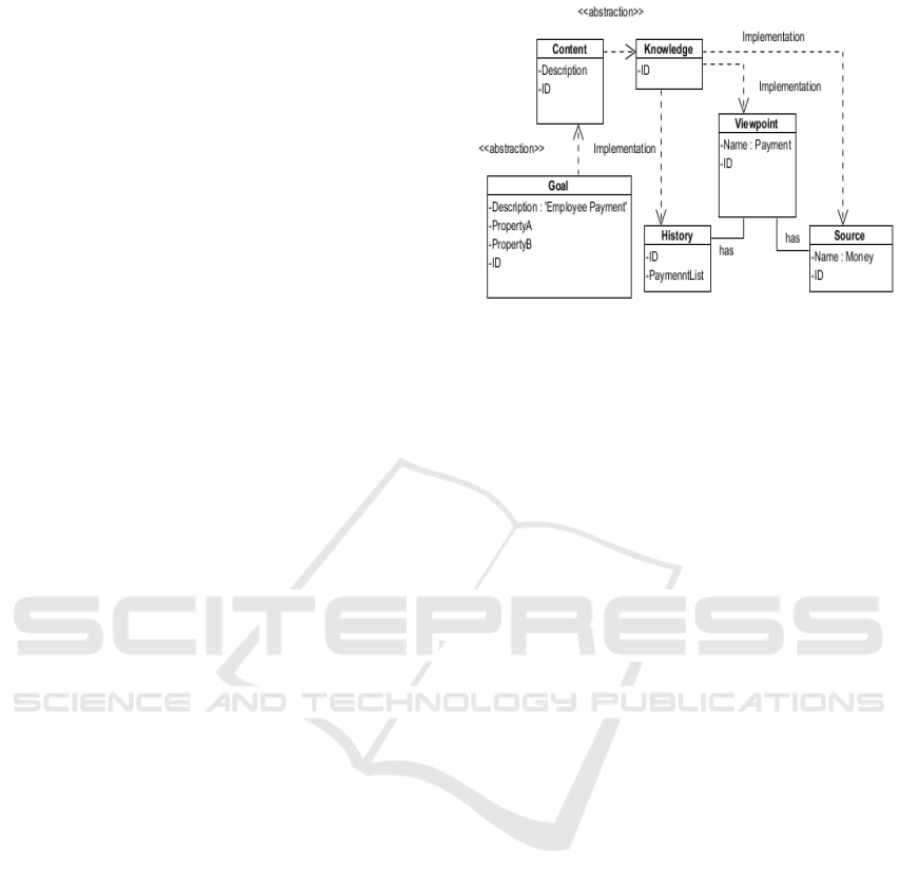

In section five, we illustrate a simple example of

translation between RE models. Finally, we

conclude and draw perspectives of this paper.

2 REQUIREMENTS

ENGINEERING

META-MODELS

In requirements engineering, different models exist

and each model is composed of a set of concepts,

these approaches are commonly grouped in three

groups. In this section, we draw the meta-model of

what we believe is the most widely approach of each

group or type. We explore respectively the meta-

model of i* as a goal oriented approach, PREview as

a viewpoint oriented approach and CREWS as a

scenario oriented approach. Most of the concepts in

the following meta-models share two common

attributes: ID and Name. Intuitively, each concept

has a name. The attribute ID is added in order to

keep a trace (index) to each instance of each

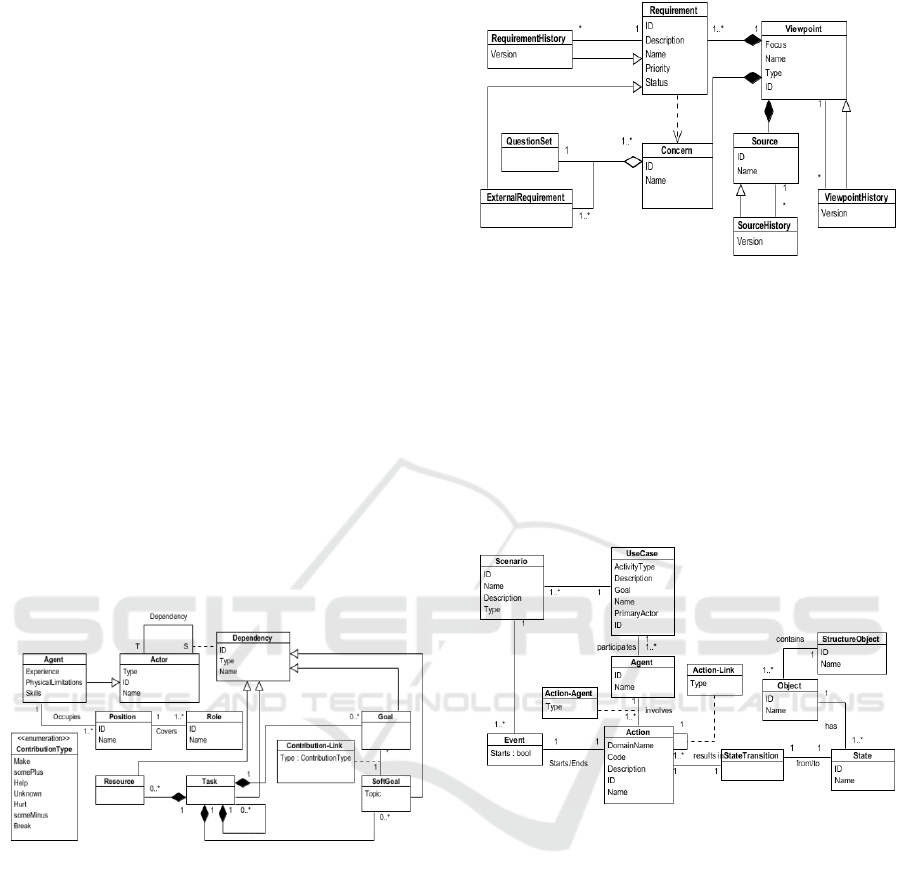

concept. Figure 1 illustrates the meta-model of i*

according to the description given in (Castro and al.,

2011).

Figure 1: i* meta-model.

In i*, Actors depend on each other through four

intentional elements: Task, Goal, SoftGoal and

Resource. An Actor can be an Agent which occupies

a certain position. Each position covers a set of

Roles. The Task concept can be decomposed into a

set of intentional elements: Sub-Tasks, Sub-Goals,

Sub-SoftGoals and Resources. A soft goal can

contribute positively or negatively to the

achievement of one or more goals.

Figure 2 illustrates the meta-model of PREview

(Sommerville and al., 1997).

Figure 2: PREview meta-model.

PREview is a viewpoint-oriented approach where

each viewpoint has a Focus, a Name, and a Type and

is composed of a set of concerns, sources,

requirements and history which aims to ensure the

traceability of the focus, requirements and sources of

information. We can observe the attribute Version in

the three classes that represent the history concept.

Figure 3 illustrates the meta-model of CREWS as

described in (Sutcliffe and al, 1998).

Figure 3: CREWS meta-model.

CREWS is a scenario oriented approach starting by

defining use cases of the problem to be solved. Each

use case can generate one or more scenarios

knowing that each scenario is a sequence of events.

Many agents can participate to a use case and

involve one or more actions. Actions are inter-

connected through eight types of links. An action

can use an object and can change its state through a

state transition.

3 INTEROPERABILITY OF

HETEROGENEOUS MODELS

Conceptually, the interoperability of heterogeneous

models can be performed either directly without

Translation of Heterogeneous Requirements Meta-Models Through a Pivot Meta-Model

377

intermediate transformation or after a transformation

tin order to express models within the same "pivot"

language. A pivot model is a model used as an

intermediate representation to align the input models

to the same formalism.

The concept of a pivot model has been

introduced in several research areas related to the

model-driven engineering especially in taking into

account the interoperability. Commonly, the term

“pivot” means the point of rotation in a lever system.

It is also the term used to describe an interpreter who

translates a low level language “Maltese” (national

language of Malta) to a language (e.g : English). The

translated text is then used as a source of translation

for other languages (Beleg and al., 2009).

One of the first uses of the term “pivot” in

Computer Science referred to the quicksort

algorithm numbers (quicksort). The algorithm

consists in choosing a number (called pivot) from a

list of disordered numbers and switch all the

elements, so that all those who have a lower value to

the pivot are placed to the left and all those who a

higher value on his right.

Milanovic introduced in (Milanovic and al.,

2009): R2ML (Rewerse Rule Markup Language), a

pivot meta-model for bidirectional alignment taking

into account in one hand the ontologies that are the

backbone of the semantic web and in the other hand

MDA concepts. In the field of ontologies, central

area of the Semantic Web, the models are described

by OWL (Ontology Web Language) and SWRL

language (Semantic Web Rule Language) for

expressing validation rules for the semantic web.

Whereas in the field MDA, models are described in

UML with OCL as constraints expression language.

Thus models expressed in UML / OCL can be

exploited in the field of semantic web by translating

them into OWL/SWRL models and vice versa

through neutral model: R2ML.

Similarly Sun and al. in (Yu Sun and al., 2009)

have defined a pivot model. Many tools according to

them are developed to automatically detect

redundant codes in a program and represent them

into appropriate statistics. The problem is that each

of these tools has a different representation of the

obtained result which gives the integrator a hard task

to know each of these representations in order to act

on the portion of the appropriate program.

The idea presented is to provide a common

graphical representation in SVG. This is achieved by

defining a meta-model pivot GCC (Generic Code

Clone) that contains common concepts and

characteristics of redundant code blocks detection

tools. This meta-model will serves as (intermediate)

between redundant code detection tools and SVG

(Scalable Vector Graphics) model.

The use of pivot as an intermediate model makes

it easy to centralize and optimize the data format in

order to represent the input models in the same

formalism. The interoperability process is thus

simplified and can continue with less complexity.

In the next section we explore our Pivot model

(UREM) which is proposed to perform translation

between different RE models.

4 UNIFIED REQUIREMENTS

ENGINEERING META-MODEL

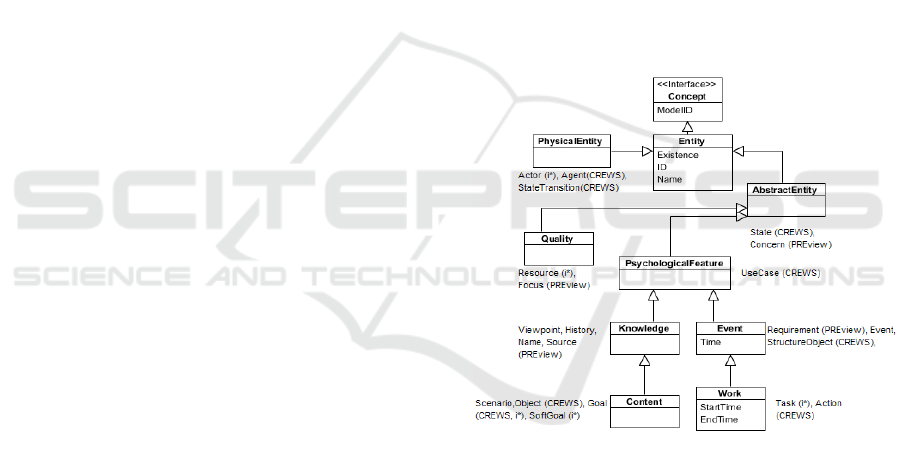

UREM is an intermediary of communication and

information translation between different types of

RE models. RE models are instances of different

types of RE meta-Models where each meta-Model is

composed of a set of concepts.

The idea behind the pivot UREM is to create a

new meta-Model which is composed of a set of

classes where each class is an abstraction of a set of

concepts (similar concepts) that exist in different RE

meta-models. To find abstractions between RE

concepts, we have adopted a rigorous process that is

concerned with the meaning of concepts (Semantic

Process). Our process is based on WordNet (George,

1995) to find semantic relationships and similarities

between words which represent RE concepts (words

are the only thing that we get to apprehend RE

concepts).

Our aim is to perform cooperation between

different types of approaches. In the unification

process, we have chosen one approach from each

type of RE approaches in order to achieve our goal,

regardless of the RE approach chosen, our

unification process is applicable to various other

approaches. In this paper, we deal with approaches

that are widely used: i* (Castro and al., 2011) as

goal oriented approach, CREWS (Sutcliffe and al,

1998) as scenario oriented approach and PREview

(Sommerville and al., 1997) as viewpoint oriented

approach.

The following sub-sections give us an overview

of the unification process.

4.1 Concepts Categorization

The first step of the unification process is to

categorize all concepts of the three RE approaches

mentioned above under two categories:

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

378

 Concepts of category one: the most of these

concepts are represented as one word and we

can get directly the definition and the different

semantic relationships between them from

WordNet;

 Concepts of category two: the most of these

concepts are composed of more than one

word and we cannot get directly the

definition and the different semantic

relationships between them from WordNet.

We adopt an incremental process in order to

create the unified meta-model UREM. We start with

concepts of category one. Next, we use results of

category one to complete the unification process

with the concepts of the second category and

conclude UREM.

4.2 Dealing with Concepts of Category

One

The algorithm of unification of this category of

concepts is composed of two steps:

4.2.1 Semantic Relatedness and Word Sense

Disambiguation (WSD)

In English language, a word can have more than one

sense that can lead to ambiguity. Disambiguation is

the process of finding out the most appropriate sense

of a word (concept) that is used in a given context.

The Lesk algorithm (Lesk, M., 1986) uses

dictionary definitions (gloss) to disambiguate a

polysemous word in a sentence context. The idea of

the algorithm is to count the number of words that

are shared between the two glosses. The more

overlapping (overlap scoring) the words, the more

related the senses are. We have used an adapted

version of Lesk (Satanjeev B., and al., 2002) which

uses WordNet to access a dictionary with senses

arranged in a hierarchical order. This extended

version uses not only the gloss/definition of the

synset, but also considers the meaning of related

words.

4.2.2 Least Common Hypernym and

Semantic Similarity between Two

Senses

In this step we look up using WordNet the least

common hypernym (LCH) for each pair of this

category of concepts using appropriate senses

that are previously assigned. Hyponymy is a ‘kind

of’ relation, for example: tree is a kind of plant, tree

is a hyponym of plant and plant is a hypernym

(abstraction) of tree. We treat the taxonomy of

hyponymy as a tree T

. Once all trees are built, we

establish connections between all LCH. These LCH

are the set of abstraction concepts used in UREM.

4.3 Dealing with Concepts of Category

Two

In this step, we use results obtained from the

previous step to conclude the unified requirements

engineering meta-model UREM. We are aware that

where exist a common hypernym between two

concepts, there exist a path between them in the tree

. The shorter path from the first concept to the

second, the more similar they are. Regarding this

category of concepts, we compute similarity scores

between concepts by comparing text definitions for

each pair of them with LCH elements that are

archived in the previous step. The resulted meta-

model UREM is shown in figure below.

Figure 4: Unified Requirements Engineering meta-model.

Each abstract concept in UREM covers a set of RE

concepts that exist in different RE models,

proceeding from UREM, we are looking for all

correspondences between RE concepts of the three

meta-models. These correspondences will be used to

translate a source concept CS of a source model MS

to a target concept CT of a target model MT. In one

hand, we can say that the whole set of all possible

RE concepts can be in the same correspondence at a

certain abstraction because all UREM concepts are

related through inheritance relationship knowing that

each instance of a class in object oriented design can

be an instance of its parent class according to the

Liskov Substitution Principle [6]. In the other hand,

Translation of Heterogeneous Requirements Meta-Models Through a Pivot Meta-Model

379

we care more about details when performing

translation in order to maximize the quantity of

information to be translated among concepts. Each

correspondence should have at least one concept for

each approach (i*, CREWS or PREview) to ensure

that all concepts in all approaches can be translated

to other concepts in the remaining approaches. We

define correspondences from the most detailed

concept in UREM to the most abstract by relating

each abstract concept to its parent until getting at

least one concept for each approach in the

correspondence. The result is given in the following

correspondences:

• Corresponence 1 = {Scenario, Object

(CREWS) , Goal (CREWS,i*), SoftGoal

(i*), Viewpoint, History, Name, Source

(PREview)}

• Correspondence 2= {Task(i*), Action,

Event, StructureObject (CREWS),

Requirements (PREview)}

• Correspondence 3={UseCase, State, Agent,

StateTransition (CREWS), Concern, Focus

(PREview),Resource, Actor (i*)}

Concepts in the same correspondence which share

the same abstraction are more similar to each other

than the rest of concepts in the same

correspondence. This important point is proportional

for the information to be translated among concepts.

5 DEDUCTION OF

TRANSLATION RULES FROM

UREM

In this section, we deduct translation rules from

UREM illustrated in figure one. We observe in

figure one a list of concepts of different RE meta-

models near each class of UREM. So, each class

covers a set of concepts and plays the role of a pivot

between these concepts. Proceeding from UREM,

we are looking to find for each source concept c

model M

, a target concept or a set of target

concepts c

of model M

. We perform two-way

translation between two given models M

and M

first from M

to M

then we translate each not-

translated concept of M

to a target concept of M

Two-way translation allows us to ensure that we

have applied translation on all concepts of all

different RE models.

We conclude two types of translation between

concepts: Direct Translation and Inheritance

Translation. The following sub-sections describe

each type of translation.

5.1 Direct Translation

This type of translation is used if the source concept

of a model M

and the target concept c

of a

model M

share the same abstraction c

in UREM.

To perform translation from the source concept to

the target concept, we check the abstraction of the

source concept then create the target concept by

implementing the abstraction c

in two steps: Copy

shared attributes to the target concept and then

translate the rest of attributes one by one.

For example, the concept Resource in an

instance of i* meta-model share the same abstraction

Quality in UREM with the concept Concern of a

PREview model then Resource concept must be

translated to a Concern in PREview model and vice

versa.

5.2 Inheritance Translation

This type of translation is used if a source concept c

of a model M

can’t be translated to any target

concept c

of model M

using Direct Translation. In

this type of translation, we check classes that are

linked to the abstraction c

of the source concept in

order to find the abstraction of a target concept c

Since we care more about details of concepts, we

check first child classes of c

. If no abstraction of a

target concept is founded, we check parent classes

(abstractions of c

). If no abstraction of a target

concept is founded then the source concept c

can’t

be translated to a target concept c

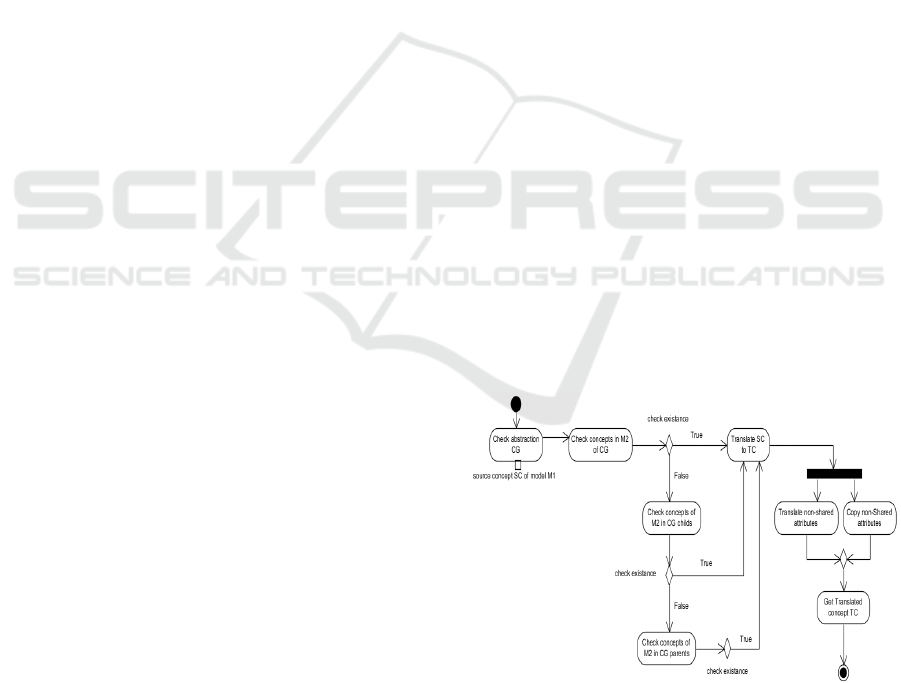

Figure 5: Activity diagram of translation between

requirements engineering concepts.

For example, to perform translation from a

Requirement of a PREview model to other concept

in i* model. We observe that Requirement doesn’t

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

380

share an abstraction which is Event with any

concepts of i*. Thus, we look up child classes of

Event class level by level. We find that the child

class Work of Event covers the concept Task in i*

then, when we perform translation from a PREview

model to an i* model, the concept Requirement of

PREview must be translated to the concept Task of

i* and vice versa.

The activity diagram which describes the overall

process of finding translation between concepts is

shown in the figure 5.

6 EXAMPLE OF CONCEPTS

TRANSLATION

The following example is just a simple illustration

of concepts translation between different RE

models in the development of a simple batch

payroll system. A complete case study and

translation between concepts in details will be in a

future work.

CREWS, i* and PREview approaches are used in

order to create a requirements specification of the

desired system. One of the concepts specified in

i* model is the goal ‘employee payment’. To

translate i* model to PREview model, the goal

‘employee payment’ will be translated to Viewpoint,

History, Name and Source concepts as shown in

figure 3.

To translate the goal ‘employee payment’ of an

i* model, we perform the following steps:

 Create an abstraction of type content of the

goal;

 Create the abstraction Knowledge of Content;

 Implement Knowledge by creating three

classes of concepts: Viewpoint, Source and

History. The concept Name is an attribute of

the Viewpoint class and represents the

identifier of the given viewpoint.

Figure below gives us a simple view of

translation from Goal to Viewpoint, History, Name

and Source concepts and does not give a lot of

details of attributes translation.

Figure 6: Translaton of goal concept in i* model to

PREview concepts.

For each employee, there exists a payment

viewpoint associated to this employee. This

viewpoint encapsulates information about the

payment such as: payment type (Hourly, Salaried,

etc.), amount and so on. History class contains a list

of payment records that have been carried out.

Source class represents the money used to pay

employees.

7 CONCLUSION

This paper has presented a unified requirements

engineering meta-model that is resulted from a

semantic unification process of different

requirements engineering meta-models. The

unification process is based on finding semantic

similarities between different concepts that already

exist in different types of requirements engineering

meta-models. The aim of the unified requirements

engineering meta-model UREM as mentioned in

section two and three is to perform translation

between different types of requirements engineering

models in order to allow cooperation between

companies that have different cultures and use

different kinds of Requirements Engineering

approaches. The translation rules are deducted in

section four directly from the unified meta-model

UREM. One of the gaps of these translation rules is

the lack of concrete semantic translation at attributes

level of concepts. We seek to fix this issue of

semantic translation between concepts in a future

work. We seek also to demonstrate other features of

UREM such as evolution and composition.

Evolution is how UREM is easy to update and

maintain. Composition is how to compose a full

requirements specification document of a project

Translation of Heterogeneous Requirements Meta-Models Through a Pivot Meta-Model

381

from different pieces of requirements specifications

arisen from different models. Afterward, we are

looking to implement a visualization tool in order to

present and illustrate the translation operation

between models as graphs.

REFERENCES

Sommerville, I., Sawyer, P., 1997. Requirements

Engineering: A Good Practice Guide. John Wiley &

Sons, Inc. New York, NY, USA. ISBN: 0471974447.

Bendjenna, H., Zarour, N.E., Charrel, P.J., 2010. Eliciting

Requirements for an inter-company cooperative

information System. Journal of Systems and

Information Technology (JSIT).

Cares, C., Franch, X., 2011. A Metamodelling Approach

for i* Model Translations. 23rd International

Conference, CAiSE 2011.

Beleg, G. Design and prototypical implementation of a

pivot model as exchange format for models and

metamodels in a qvt/ocl development environment.

Ph.thesis, Université de technology Dresden, 2007.

Milanovic, M., Gaševic, D., Giurca, A., Wagner, G., and

Devedžic, V. On interchanging between owl/swrl and

uml/ocl. In Proceedings of 6th Workshop on OCL for

(Meta-) Models in Multiple Application Domains

(OCLApps) at the 9th ACM/IEEE International

Conference on Model Driven Engineering Languages

and Systems (MoDELS), Genoa, Italy, pages 81–95,

2006.

Zekai, Y. S., Jouault, F., Tairas, R. and Gray, J. Software

language engineering. A Model Engineering Approach

to Tool Interoperability, pages 178–187. Springer, 2009.

Saidi, I. E., Dkaki, T., Zarour, N. E., Charrel, P. J., 2012.

Towards Unifying Existing Requirements Engineering

Approaches into a Unified Model. KMIS 2012: 311-

315.

George, A. M., 1995. WordNet: A Lexical Database for

English, Communications of the ACM. Vol. 38, pp. 39-

Castro, J., 2011. Goal Oriented Requirements Engineering

i*, Fifth International Conference on Research

Challenges in Information Science.

Sutcliffe, A. G, Maiden N., Shailey, M., Darrel, M.,

1998. Supporting Scenario-Based Requirements

Engineering, IEEE Transactions on software

engineering, vol. 24, No. 12.

Sommerville, I., Sawyer, P., 1997. Viewpoints: principles,

problems and a practical approach to requirements

engineering. Computing Department, Lancaster

University, UK, Annals of Software Engineering.

Lesk, M., 1986. Automatic sense disambiguation using

machine readable dictionaries: how to tell a pine cone.

Satanjeev B., Ted P., 2002. An Adapted Lesk Algorithm

for Word Sense Disambiguation Using WordNet,

Computational Linguistics and Intelligent Text

Processing Lecture Notes in Computer Science

Volume 2276, 2002, pp 136-14.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

382
