Using Machine Learning Approaches to Predict Water Quality of Ibn

Battuta Dam (Tangier, Morocco)

El Mustapha Azzirgue

, Farida Salmoun

, El Khalil Cherif

, Taha Ait Tchakoucht

and Nezha Mejjad

Physico-chemistry Laboratory of Materials, Natural Substances and Environment (LAMSE),

Faculty of Sciences and Techniques of Tangier, Morocco

Institute for Systems and Robotics, Instituto Superior Técnico, University of Lisbon, Lisbon, Portugal

School of Digital Engineering and Artificial Intelligence, Euromed University, Fes, Morocco

Department of Geology, LGAGE, Faculty of Sciences Ben M'Sik, Hassan II University,

B.P 7955, Casablanca 20670, Morocco

elkhalil.cherif@fc.up.pt, taha.ait@gmail.com, mejjadnezha@gmail.com

Keywords: Water Quality, Dissolved Oxygen, Machine Learning, Ibn Batouta Dam.

Abstract: Ibn Batouta dam was built in 1977 next to catchment outlet and provides the Tangier-Assilah cities inhabitants

with drinking water. The present study aims to assess the quality of Ibn Batouta dam water and use machine

learning approaches to predict the future water quality of this dam. We select Dissolved Oxygen as the vital

quality factor to be forecasted. A Long-short term memory (LSTM) network and a fully connected multilayer

perceptron (MLP) are employed to predict Dissolved Oxygen in the next five years. The two models are

assessed concerning, for data collected over twenty-one years (between 1998 and 2019) from Ibn Battuta

station. The two models performances are compared and evaluated based on three metrics, Mean Square Error

(MSE), Mean Absolute Error (MAE) and Root Mean Square Error (RMSE). Experimental results show that

LSTM outperforms MLP by reducing RMSE, MSE and MAE respectively by 87%, 98% and 88%, indicating

that the LSTM model is more accurate in tackling time series.

1 INTRODUCTION

Water makes up about 70% of the globe's surface and

is vital for sustaining life (Umair Ahmed et al., 2019).

Dam water is an essential source for the supply of

drinking water, irrigation, etc. Besides their essential

roles in agriculture, dam water offers special

conditions for aquatic flora and fauna (Ouhmidou et

al., 2015). In Morocco, the growing water needs for

irrigation, electricity production, and the supply of

drinking water have necessitated constructing many

dams (Mohamed ACHMIT et al. ,2017). Due to

urbanization expansion, population growth and

intensification of agriculture, freshwater has become

the most endangered ecosystem type in large parts of

the world, experiencing widespread historical and

continuing declines in land use quantity and quality

of habitats and abundance of many species (S.

Jannicke Moe et al. ,2019).

The use of conventional methods to assess the

quality of surface water is generally expensive and

time consuming. However, applying the artificial

intelligence models can overcome this problem by

predicting and evaluating water quality using

Physico-chemical parameters as characteristics (Ali

El Bilali et al. ,2021). Artificial intelligence

algorithms for modelling water quality have been

explored in recent years (Amir Mosavi et al., 2018).

These algorithms explore the hidden and complex

relationships between input and output variables to

generate models that best represent these

relationships. Numerous advantages of Artificial

intelligence models over traditional physical and

statistical models are as follow: the data needed for

Artificial intelligence models can be collected

relatively in an easy way, sometimes from remote

sensing platforms; Artificial intelligence models are

less sensitive compared to traditional approaches to

missing data; the structures of Artificial intelligence

models are flexible, non-linear and robust; and

Artificial intelligence models can process enormous

amounts of data at different scales (Costabile, P. et

350

Azzirgue, E., Salmoun, F., Cherif, E., Ait Tchakoucht, T. and Mejjad, N.

Using Machine Learning Approaches to Predict Water Quality of Ibn Battuta Dam (Tangier, Morocco).

DOI: 10.5220/0010734100003101

In Proceedings of the 2nd Inter national Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 350-354

ISBN: 978-989-758-559-3

al. 2013) (Fernández-Pato, J et al. 2016). This work

aims at forecasting Dissolved O2 for up to the next

five years, based on historical values of (pH, T °,

Conductivity, Dissolved Oxygen, MES, PT, Chl a,

NO2-, NO3-, NH4+, PO43-, SO42-) parameters,

hence predicting the quality of the dam water Ibn

Batouta, using artificial intelligence. The results

obtained are positively promising, and the proposed

approach offers an effective alternative to calculate

and predict the water quality of the Ibn Batouta dam.

2 PRESENTATION OF THE

STUDY AREA

Our study area, located at the South-East of Tangier

(far from Tangier, about 17 km) (Azzirgue EM, and

Salmoun F, 2019). The commune of Sebt Zinat houses

the Ibn Battuta dam, a source of drinking water for

Tangier. The town belongs to the Tanger Assilah

province, part of the Tanger-Tetouan Al Hoceima

region. It is bounded to the north by el Aouama

commune, to the west by el Menzela commune, to the

east by Jouamaa commune and to the south by Dar

Chaoui commune (SETRAGEC 2018).

Figure 1: Geographical location of the study area and

samples points.

3 PROPOSED APPROACH

3.1 Multi-Layer Perceptron (MLP)

The multilayer perceptron is the most famous feed-

forward artificial neuron network (signals are

transferred in one direction). It mainly comprises

three components, an input layer containing input

features, a hidden layer of neurons, and an output

layer. Neurons are small computing units that use a

non-linear function called the activation function.

MLP adopts a supervised learning technique (output

is known) that uses backpropagation to train the

Model. MLP is different from a simple perceptron in

the way that it can separate data that are not linearly

separable and thus is appropriate for complex

classification and regression problems. (Marius et al.,

2009).

3.2 Long-Short Term Memory (LSTM)

Long-Short Term Memory artificial neural network is

a category of recurrent neural networks that is a well-

suited architecture for dealing with sequence data, as

it has memory (feedback) connections and hence can

catch temporal dependencies. LSTM was developed

to overcome the problems of vanishing gradient

encountered with traditional RNN models and the

issue of short-time memory. LSTM is mainly

composed of 4 components, a cell that memorizes

sequences of previous time steps as well as three

additional gates, namely, input, output, and forgets

gates that manage information transmission to and

from the cell (Hochreiter and Schmidhuber 1997).

3.3 The Architecture of the Approach

Dissolved Oxygen forecasting architecture is built

upon the following steps, as shown in figure 2.

Step1: Data pre-processing. Since data is time

series, it should be reframed to a supervised learning

problem to predict Dissolved oxygen at the current

year (t), given Dissolved oxygen and other

parameters at the initial time step (t-1).

Figure 2: Architecture of the approach.

For this purpose, the models will be trained on

data from 15 years and applied to forecast the five

remaining years in the reframed dataset, given the

Using Machine Learning Approaches to Predict Water Quality of Ibn Battuta Dam (Tangier, Morocco)

351

fundamental values of Dissolved Oxygen. Data is

normalized to speed up the convergence of gradient

descent algorithm using Min-Max technique applied

on each input parameter according to the equation (1):

𝑥

𝑥𝑚𝑖𝑛

𝑚𝑎𝑥  𝑚𝑖𝑛

(1)

Step2: Splitting normalized data into training and

testing sets and feeding them to two separate models,

namely LSTM and MLP, then train the models for a

several epochs, with weights initialized randomly.

Train and test losses are then plotted.

Step3: The trained models are used to forecast

Dissolved Oxygen up to five years in the future

(number of observations in the test set). Predicted

values are combined with input values, and then

normalization is inverted to get back to the original

scaling. The same is done for actual values combined

with input values. Predicted and actual Dissolved

oxygen values in their initial scaling are extracted,

and performance metrics (rmse, mse, mae) are

evaluated.

4 EXPERIMENTS AND RESULTS

4.1 Experimental Data

Data used in the analysis were collected over twenty

one years (between 1998 and 2019) from Ibn Battuta

station (21 observations, one observation for each

year). Each instance in the dataset refers to a specific

year, in which water quality is measured in a

delimited area in the dam, based on 12 parameters

(pH, T °, Conductivity, Dissolved O2, MES, PT, Chl

a, NO2--, NO3-, NH4 +, PO43-, SO42-).

Experiments were performed using Keras, and sci-

kit-learn frameworks, in a PC 64-bit OS with 8GB

RAM and Intel i5 1.6GHz, 1.8GHz. Figure 3 shows

time series plots for each input parameter. Dissolved

Oxygen is selected as the critical factor to be

forecasted.

4.2 Results and Discussion

4.2.1 Qualitative Results

LSTM and MLP Learning techniques are used to

build two models to perform Dissolved Oxygen

prediction and then are compared to adopt the most

accurate approach. The best results were found for the

following network configurations. We set MLP

network with one hidden dense layer of 100 neurons

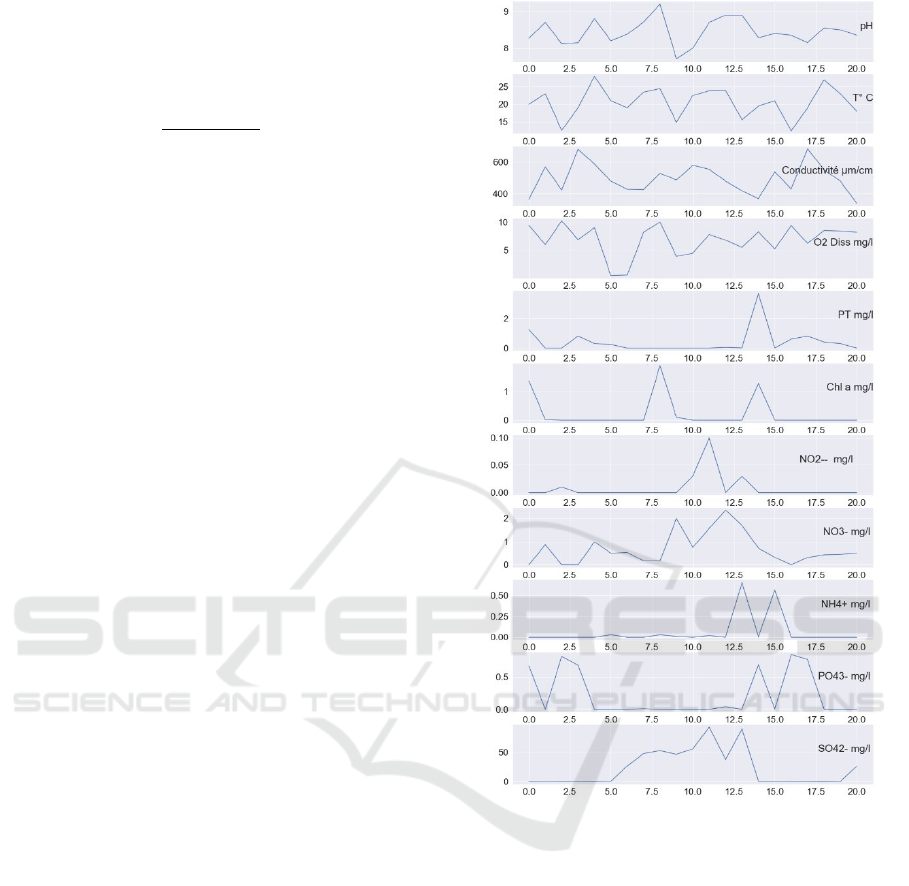

Figure 3: Time series of involved parameters.

and one dense output layer for predicting Dissolved

Oxygen. Weights are randomly initialized. Stochastic

gradient descent (sgd) is used as an optimizer. The

training was performed with 30 epochs and tested

over a test set at each period. Figure 4 show train and

test losses for the MLP model, with network as

mentioned above.

We forecast Dissolved Oxygen for the next five

years given prior Dissolved Oxygen and other input

parameters values. Figure 5 shows the time series for

both actual values (ground truth) and predictions for

the next five years (the 1st year is 0 in the x-axis).

LSTM was configured to include one hidden layer

with 100 units and one dense output unit for

prediction. Training is performed with 100 epochs

and a batch size of 5 samples and a learning rate of

0.001. Weights are randomly initialized.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

352

Figure 4: Train and Test losses for LSTM model.

Figure 5: Time series of both actual and predicted

Dissolved Oxygen in the next five years using MLP model.

Adam version of gradient descent is used as an

optimizer. At each epoch, the model is evaluated on a

validation set (test set). Mean Squared Error Losses

for both training and testing, with respect to the

LSTM model, are shown in figure 6.

Figure 6: Train and Test losses for LSTM model.

Dissolved Oxygen is predicted for the next five

years. Figure 7 displays the time series for both actual

values (ground truth) and predictions for the next five

years (the 1

year is 0 on the x-axis), using the LSTM

model.

Figure 7: Time series of both actual and predicted

Dissolved Oxygen in the next five years using LSTM

model.

Figure 4 and figure 5 show that losses are

decreasing considerably at an early time, proving that

convergence is fast. It can be observed as well that

LSTM loss converges faster than MLP loss.

As accurately. This is also observed from figure 5

and figure 7, which show that the accuracy of

prediction decreases as the prediction time step

increases. Moreover, the values of predicted and

actual Dissolved Oxygen in LSTM at each year are

closer to each other than those belonging to the MLP

model, which yields errors (mse, mae and rmse) that

are smaller.

4.2.2 Quantitative Results

To assess the prediction performance over the next

five years, the two models are assessed concerning for

three metrics, mean squared error (mse), mean

absolute error (mae), and root mean squared

error(rmse). Table 1 exhibits a summary of the

results.

Table 1: Evaluation of the two models

Model MSE MAE

RMSE

MLP 6.2543 2.3911

2.5008

LSTM 0.0924 0.2844

0.304

The smaller the values of the aforementioned

metrics, the better is the prediction accuracy of the

model. MAE represents the average distance between

the predicted value and the actual value. MSE is the

average of the squared difference between predicted

and actual values. RMSE is the square root of MSE,

that gives errors in the same units as the variable

itself.

From Table 1, it can be clearly shown that LSTM

performs better than MLP in every single metric, as it

reduces MSE, MAE, and RMSE respectively by

98.5%, 88% and 87%.

The LSTM model is capable of memorizing long-

time steps, which allows for accurately predicting

long-time durations.

Using Machine Learning Approaches to Predict Water Quality of Ibn Battuta Dam (Tangier, Morocco)

353

5 CONCLUSIONS

The purpose of this study was to assess whether the

two machine learning models are efficient in

predicting the quality of Ibn Batouta dam water and

to identify key water parameters allowing rapid and

accurate monitoring of water quality (K. Chen et al.

2020) (M. Najafzadeh et al. 2020). Dam water quality

prediction performance was comprehensively

compared, and potential key water parameters were

also defined and validated. Through this work, the

main conclusions are:

1. LSTM performs better than MLP in each

measurement because it is able to memorize

longtime steps, which can accurately predict long

durations.

2. The key parameters of water (Dissolved Oxygen)

have been identified and validated by the two

learning models MLP and LSTM.

3. Enriching the dataset with more experimental data

can help in tuning the applied models and thus

increasing the forecasting accuracy

4. Machine learning is recommended for future

monitoring of dam water quality, as it could

provide timely and accurate environmental alerts

and further increase the efficiency of forecasting

and decrease the cost of the dam forecast in the

future monitoring of water quality.

ACKNOWLEDGEMENTS

The authors would like to thank all the collaborators

within this work, from the Field sampling, laboratory

analysis and writing manuscript team. El Khalil

Cherif supported by FCT with the LARSyS - FCT

Project UIDB/50009/2020 and by FCT project

VOAMAIS (PTDC/EEI-AUT/31172/2017,

02/SAICT/2017/31172)

REFERENCES

Ali El Bilali et al. 2021. Groundwater quality forecasting

using machine learning algorithms for irrigation

purposes Agricultural Water Management Volume 245,

February 28 2021, 106625 https://doi.org/10.1016/

j.agwat.2020.106625

Amir Mosavi Water 2018Flood Prediction Using Machine

Learning Models: Literature Review, 10, 1536;

doi:10.3390/w10111536 www.mdpi.com/journal/

water

Azzirgue E-M, and Salmoun F, 2019. Assessment of the

Physico-Chemical Quality of Water of Oued Ouljat

Echatt and Dam Ibn Batouta-Tangier. International

Journal of Advances in Scientific Research and

Engineering (ijasre). E-ISSN: 2454-8006. Volume 5,

Issue 10 October – 2019.

Costabile, P.; Costanzo, C.; Macchione, F. A storm event

watershed model for surface runoff based on 2D fully

dynamic wave equations. Hydrol. Process. 2013, 27,

554–569.

Fernández-Pato, J.; Caviedes-Voullième, D.;

GarcíaNavarro, P. Rainfall/runoff simulation with 2D

full shallow-water equations: Sensitivity analysis and

calibration of infiltration parameters. J. Hydrol. 2016,

536, 496–513.

Hochreiter, S., Schmidhuber, J., 1997. Long short-term

memory. Neural Computation 9 (8): 1735–1780.

K. Chen et al. 2020 Comparative analysis of surface water

quality prediction performance and identification of

key water parameters using different machine learning

models based on big data / Water Research 171 (2020)

115454

Marius, P., Balas, V. E., Perescu-Popescu, L., Mastorakis,

N. E. 2009. Multilayer perceptron and neural networks.

WSEAS Transactions on Circuits and Systems 8(7).

Mohamed ACHMIT et al. 2017. Study of the

physicochemical and bacteriological quality of waters

of dam BAB LOUTA. International Journal of

Innovation and Applied Studies ISSN 2028-9324 Vol.

20 No. Jul 4 . 2017, pp. 1246-1255.

M. Najafzadeh et al. 2020. Prediction of the five-day

biochemical oxygen demand and chemical oxygen

demand in natural streams using machine learning

methods. Environ Monit Assess (2019) 191: 380

https://doi.org/10.1007/s10661-019-7446-8

Ouhmidou et al. 2015 Study of the physicochemical and

bacteriological quality of the barrage Hassan Addakhil

of Errachidia (Morocco) J. Mater. Environ. Sci. 6 (6)

(2015) 1663-1671 ISSN: 2028-2508 CODEN:

JMESCN

SETRAGEC 2018. EIE de l’AEP de la ville de Tanger et sa

région à partir du barrage Ibn Battouta –conduite eau

brute https://esa.afdb.org/sites/default/files/

EIE%20MHARHAR-AEP%20Tanger.compressed.pdf

S. Jannicke Moe et al. 2019. Predicting Lake Quality for the

Next Generation: Impacts of Catchment Management

and Climatic Factors in a Probabilistic Model

Framework. Water 2019, 11, 1767; doi:10.3390/

w11091767, www.mdpi.com/journal/water

Umair Ahmed et al. 2019. Efficient Water Quality

Prediction Using Supervised Machine Learning. Water

2019, 11, 2210; DOI: 10.3390/w11112210

www.mdpi.com/journal/water

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

354
