Responsive Chatbot Using Named Entity Recognition and
Cosine Similarity
Entin Martiana Kusumaningtyas, Ekky Regita Laurentino and Ali Ridho Barakbah
Informatics and Computer Scienece Department, Electronics Engineering Institute of Surabaya, Jl Raya ITS,
Surabaya, Indonesia
Keywords: Natural Language Processing, Chatbot, Text Mining, Cosine Similarity.
Abstract: Most of the higher education student service systems in Indonesia still use conventional and web-based system
to provide academic information to students. This reduces the effectiveness of students in obtaining academic
information. In the conventional system, students must visit the academic service center only to obtain
academic information. In the web-based system, students can access information anywhere, but students also
have to look for the right menu to obtain the academic information needed. This research proposes a chatbot
application to help students of Electronic Engineering Institute o Surabaya (EEPIS) obtain information
effectively and interactively. This application allows students to ask questions related to academic regulations,
grades, class schedules, and attendance recap. This research processes student question using Named Entity
Recognition method, this method can recognize the entities contained in the questions asked by the user. To
improve the ability of Named Entity Recognition (NER) method to handle words, we also implement
synonym checking and keyword matching process. The result entities of previous process will be calculated
its proximity to the keywords in the database using cosine similarity to find the right answer. The result of
this study showed an accuracy of 84.5% with testing 84 questions obtain 71 accurate answer.
1 INTRODUCTION
Education in Indonesia is a manifestation of one of
the country's goals, namely to make the intellectual
life of the nation. Therefore, education is included in
the rights of every Indonesian citizen. This is in
accordance with the constitutional mandate in the
1945 Constitution of the Republic of Indonesia
Article 31 paragraphs (1) and (2). It is also in Law no.
39 of 1999 concerning Human Rights Article (12). To
realize advanced education, adequate facilities are
needed to support the process of running the
education itself, one of which is by holding
educational units or schools or colleges. Furthermore,
in its implementation, educational units, especially
tertiary institutions, not only provide services in the
form of teaching and learning activities, but also meet
the needs of students to obtain student services to
realize a systematic education.
At this time, most universities still use
conventional and web-based systems to meet the
needs of student services such as schedule
information, attendance recap, and grades. In the
conventional system, students must ask student
service staff to obtain this information. This is
considered less effective because of time constraints
which result in student service employees at higher
education being unable to respond to student needs at
all times, especially outside working hours. The
limited number of employees also makes the service
must implement a queue system. These two things
certainly make the implementation of student services
not optimal and can reduce the level of student
satisfaction with student services at the university.
In a web-based student service system commonly
called a student portal, students can get these services
anywhere and anytime. However, in practice, to
access the student portal, many processes are
required, such as searching and selecting menus to
obtain appropriate information. When compared to
administrative services with conventional systems,
the conventional system definitely will be easier
because users can directly convey the required
academic information. Not only that, on a web-based
system, there are also some data provided in the form
of documents, such as data related to academic
regulations. Hence, students have to read the details
of the document to obtain the information needed.
Kusumaningtyas, E., Laurentino, E. and Barakbah, A.
Responsive Chatbot Using Named Entity Recognition and Cosine Similarity.
DOI: 10.5220/0011756300003575
In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 239-245
ISBN: 978-989-758-619-4; ISSN: 2975-8246
Copyright © 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
239
Along with the rapid development of technology,
many studies have been carried out to develop student
service systems. There are various technologies and
methods used to optimize the student service system.
Among them is the collaboration between chatbots
and digital signage to assist students in obtaining
information related to lecture schedules, seminars,
and alerts that can be obtained through digital boards
and chatbots. While the proposed methods in
optimizing student service systems include the K-
Nearest Neighbor method with the dataset used is
FAQ data which allows the system to find answers to
questions asked by users via chatbots. The method
that has also been proposed in previous research is
context recognition implemented on chatbot with the
dataset used is new student admissions data, thus
enabling the system to provide answers to questions
related to new student admissions submitted via chat.
The objective of this research that will be carried
out is to implement named entity recognition method
on chatbot system to provide student services related
to schedule information, attendance recap, grades,
and academic regulations. The major contribution of
this research is to model the chatbot system to help
student get the academic information based on
proposed named entity recognition method.
2 RELATED WORK
Student services is one of the important sectors in the
implementation of education. Student can found out
the information related to their study through such as
schedules, lectures, and grades through student
services. Many researchers have conducted research
to improve student services system. Rio Junardi et al
discussed Chatbot Messenger and digital signage
providing academic information services. On digital
signage, information will be displayed such as lecture
schedules, result seminar schedules, and a
comprehension test schedule. In addition, profiles of
universities are also displayed as well as several
pictures of documentation of activities that have been
carried out by these universities. While the chatbot
system can be used to request academic information
services according to requests by users. Users can
type keywords according to the requested data such
as location, lecturer, or study program. The chatbot
will then provide data according to the keywords
provided by the user.
Kristian Adi Nugraha et al from Duta Wacana
sChristian University discuss how to build a chatbot
to process academic services using the K-Nearest
Neighbor method. The chatbot application was built
to overcome the problem of decreasing customer
service performance due to the limited number of
employees or staffs serving. In addition, it also
overcame problems related to FAQs that were
previously implemented to reduce the customer
service workload but made it difficult for users to find
the list of FAQs needed. Through this chatbot, users
can send questions via chat applications using free
language and without a certain format. This chatbot
uses the K-Nearest Neighbor method which has been
widely implemented to solve problems related to text
classification. From this method, answers are taken
from the database based on similar questions asked.
Marwan Noor Fauzy et al from Amikom
University Yogyakarta propose the academic
information service chatbot by using the fuzzy string
matching method. The chatbot system in this research
is web based and built by using PHP and MySQL
database. To ask a question, the user can first access
the web then a conversation form and login form will
appear. Users are required to login first before asking
questions. After the user sends a question, the system
will recognize it as input data. Then from the data, the
keywords will be searched in it. If the keyword has
been found, it will be matched with the data
dictionary that has been previously defined using
Fuzzy String Matching. Through this method,
answers will be obtained based on keywords found
from user input.
Rico Arisandy Wijaya build a web service chatbot
system by using context recognition and binary
cosine similarity methods. The source of data used as
a knowledge base in this study is information related
to PMB PENS and a list of several questions that may
be asked by users related to PMB PENS. In the
system built, questions from ussers will be processed
by using text mining. Then from the input sentence,
only a few keywords will be taken according to what
is needed through the context recognition process.
This process can speed up the calculation process to
find answers using cosine similarity.
In this article there are several informations or
uniqueness compared to the related researches
mentioned above. This research implement named
entity recognition method to provide student services
using chatbot technology which allow students of
Electronic Engineering Polyechnic Institute of
Surabaya to ask several information about academic
regulations, recap attendances, schedules, and grades.
3 METHODOLOGY
This research was conducted to develop a chatbot
iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science
240
application with the implementation of named entity
recognition method that will be implemented on the
student portal of Electronics Engineering Polytechnic
Institute o Surabaya. The data used in the knowledge
based are academic regulation data and EEPIS
student data. The two types of data will give different
responses. Academic regulations will answer
questions related to academic rules that apply at
EEPIS, while student data will answer questions
related to grades, class schedules, and attendance
recap.

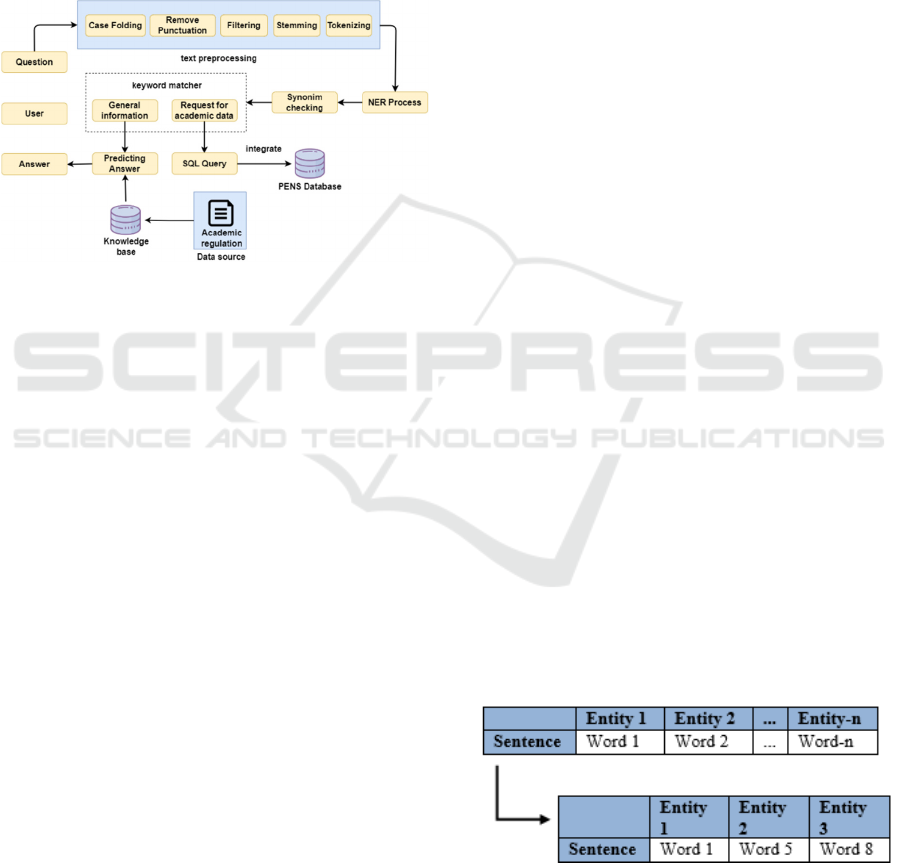

Figure 1: System design.
3.1 Input User
Input is the initial process where the users type in
what information they want to find, for example the
location of the college, the schedule of courses on
certain days in certain classes through a message.
Chatbot is designed to simulate a conversation or
interactive communication with the user. Therefore,
the conversation input is not limited by anything so
that the user can freely ask about any academic
information. Messages from users can be sent via the
chat page which will be provided on the student portal
web.
3.2 Text Preprocessing
Text preprocessing is the stage where all user input in
the form of text is prepared into data that will be
processed further. Text preprocessing aims for
uniformity and ease of reading in the next process.
This process is the stage of scanning the text of the
sentence from the user's question which aims to take
important points or keywords. Text preprocessing
will perform the process of extracting patterns (useful
information and knowledge) from a large number of
unstructured data sources, namely questions from the
user. In this text preprocessing process, there are
several processes to process user input until we get
keywords about what information the user wants.
3.2.1 Case Folding
Case folding is the process of converting all letters in
the user input sentence into lowercase letters. Only
letters 'a' to 'z' are accepted and processed, while
numbers and other punctuation marks will be ignored.
3.2.2 Remove Punctuation
Remove punctuation is a process where all
punctuation marks contained in the sentence will be
removed. This is done because punctuation does not
have effect on text preprocessing.
3.2.3 Filtering
Filtering is a process used to retrieve important words
in a sentence. Each word in a sentence from the user
will be compared with the list of words in the
stopword; the stopword contains common words that
often appear in everyday language and are considered
to have no meaning. Examples of these words are
'yang/that', 'dan/and', 'di/at/in', 'dari/from', and so on.
3.2.4 Stemming
Stemming is the process of removing affixes to words
to produce a root word. One word can often be used
in several contexts by giving different suffixes.
Therefore, affixed words must be separated from their
affixes in order to be processed because the keywords
in the database only contain a set of basic words.
3.2.5 Tokenizing
Tokenizing is the process of breaking a sentence into
several parts according to the constituent words. Each
word generated by the tokenizing process will act as
several keywords which will later be compared with
several keywords in the database.
3.3 Named Entity Recognition
Figure 2: NER illustration.
Named Entity Recognition is a process where the
system will retrieve several important entities in the
sentences entered by the user. The sentence will be a
Responsive Chatbot Using Named Entity Recognition and Cosine Similarity
241
keyword that will be compared with the keywords in
the database and the level of proximity is calculated
using cosine similarity to get the answer. An example
of the results of the named entity recognition process
will be presented in the figure below:
Figure 3: NER result.
3.4 Synonym Checking

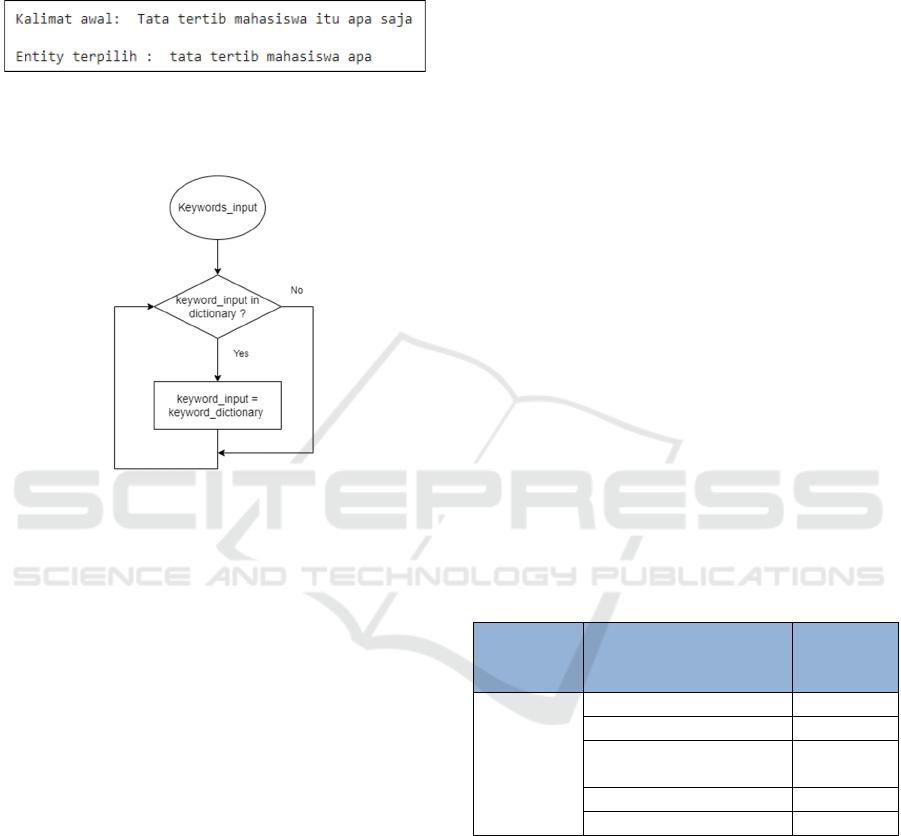

Figure 4: Synonym checking flowchart.
After doing the NER Process on sentences and
producing some important words/keywords, the next
step is to compare these keywords with words that
have the same meaning in the synonym dictionary.
Not all words can be entered as keywords in the
database. If the keywords contained are not the same
as the keywords in the database, then these keywords
will not be detected when the search for answers is
carried out even though they have the same meaning.
Therefore, to expand the knowledge of the system in
understanding the intent of the user and providing the
right answer, the system will add a synonym
dictionary containing keywords and several words
that have the same meaning. Then the system will
check whether the keyword is in the synonym
dictionary and if it is the same, then the word will be
replaced with the keyword in the database.
3.5 Keyword Matching
There are two types of questions that are inputted by
the user, namely questions about general information,
and questions to ask for academic data. Before the
process of searching for answers, the types of
questions must be known, whether the questions are
related to general information or asking for academic
data. Rules are needed to check and decide on the type
of question. Then after knowing the type of question,
the system will be able to determine whether the
answer search process will be carried out by
involving a database containing general questions, or
whether it is necessary to integrate with the PENS
database to obtain academic data.
3.6 Predicting Answer
The process of finding answers is done by using the
cosine similarity method. This method is used to
measure the proximity between the keywords
generated after the previous process and the keywords
in the database. The cosine similarity method is the
right method used in the process of finding answers
in this chatbot application because each answer has a
different number of keywords, and the advantage of
cosine similarity itself is that it is not affected by the
short length of a document to be compared so that
high accuracy results are obtained from the results of
calculations using cosine similarity in comparison of
keywords. The following is an example of the cosine
similarity calculation process with Table 2 is a sample
data of user input and a sample list of questions in the
database. While the details of calculating cosine
similarity for the sentence "Ada berapa program studi
D3 PENS ?” which is calculated for its proximity to
the keyword data " program studi d3 pens " is
described in Table 2.
Table 1: Cosine similarity result.
Input user Keyword database
Cosine
similarity
results
Ada
berapa
program
studi D3
PENS ?
p
ro
g
ram studi d3 pens 0.75
p
ro
g
ram studi d4 pens 0.5
program studi magister
p
ens
0.4472135
sosial media pens 0.0
daftar pens 0.0
Input from the user will go through a text
preprocessing process and check synonyms so that
several keywords are produced which will later be
calculated for cosine similarity with keywords in the
database.
iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science
242
Table 2: Cosine similarity calculation.
Keyword Input
(x)
Database
(y)
x
2
y
2
(x*y)
b
erapa 1 0 1 0 0
p
ro
g
ra
m
1 1 1 1 1
studi 1 1 1 1 1
d3 1 1 1 1 1
p
ens 0 1 0 1 0
Jumlah 4 4 3
||x|| =
√
1
1
1
1
= 2
(1)
||y|| =
√
1
1
1
1
= 2
Cosine
Similarit
y
(x,
y
)
= Dot product(x, y) / ||x|| *
||y||
(2)
= 3 / 2 * 2
= 0,75
3.7 Database System
Database system/Database Management System
(DMS) is a system or software designed to manage a
database and perform operations on data requested by
multiple users. The data referred to in this study are
data related to case studies that will be tested later,
namely data relating to general university information
and academic regulations for students of the Surabaya
State Electronics Polytechnic. This data will be used
to meet the information needs desired by the user.
4 EXPERIMENT RESULT
Database system/Database Management System
(DMS) is a system or software designed to manage a
database and perform operations on data requested by
multiple users. The data referred to in this study are
data related to case studies that will be tested later,
namely data relating to general university information
and academic regulations for students of the Surabaya
State Electronics Polytechnic. This data will be used
to meet the information needs desired by the user. The
chatbot application testing process is divided into
several stages according to the experimental
parameters to be tested. Among them are text
preprocessing processes including case folding,
remove punctuation, filtering, stemming and
tokenizing. Then, it is continued with a trial of finding
answers using cosine similarity to get answers related
to academic regulations and testing to get student data
through SQL Query. The trial will be carried out by
using sample data from user input. The following will
explain the steps in the testing process using sample
user input data.
Table 3: Case folding result.
Input Sentence Case Folding Results
Ada berapa jumlah
p
ro
g
ram studi di PENS ?
ada berapa jumlah
p
ro
g
ram studi di
p
ens ?
PJJ itu apa ya ?
p
jj itu apa ya ?
Apa saja program studi di
D3 PENS ?
apa saja program studi di
d3
p
ens ?
Sa
y
a mau tan
y
a nilai don
g
sa
y
a mau tan
y
a nilai don
g
Saya mau tanya jadwal
kuliah
saya mau tanya jadwal
kuliah
From Table 3 it can be seen that the case folding
process can give the right results. All sentences were
successfully uniformed into lowercase. The next
stage is remove punctuation, where the results of the
folding case will remove all punctuation marks
contained in it.
Table 4: Remove punctuation result.
Case Folding Result
Remove Punctuation
Result
ada berapa jumlah
program studi di pens ?
ada berapa jumlah program
studi di pens
p
jj itu apa ya ?
p
jj itu apa ya
apa saja program studi di
d3 pens ?
apa saja program studi di d3
p
ens
apa saja persyaratan
untuk daftar ulan
g
?
apa saja persyaratan untuk
daftar ulan
g
saya mau tanya nilai
dong
saya mau tanya nilai dong
saya mau tanya jadwal
kuliah
saya mau tanya jadwal
kuliah
From Table 4 it can be seen that the remove
punctuation process can give the right results, all
punctuation marks contained in the sentence can be
erased.
Table 5: Filtering result.
Remove Punctuation
Result
Filtering Result
ada berapa jumlah program
studi di pens
berapa jumlah program
studi pens
p
jj itu apa ya
p
jj
apa saja program studi di d3
p
ens
program studi d3 pens
apa saja syarat untuk daftar
ulang
syarat daftar ulang
saya mau tanya nilai dong
nilai
saya mau tanya jadwal
kuliah
jadwal kuliah
Responsive Chatbot Using Named Entity Recognition and Cosine Similarity
243
From Table 5 it can be seen that the filtering
process can run well. Words marked with yellow are
words that are in the stopword list and are not needed
in the search for answers. The word was successfully
removed through the filtering process. From this
process, it can be analyzed that the stopword list
needs to be updated periodically according to the data
that continues to grow so that the system can run
optimally. The next stage is stemming, the results of
the filtering will be processed to remove the affixes
contained in some words. Sample data will be
presented in Table 6.
Table 6: Stemming result.
Filtering Result Stemming Result
berapa jumlah program
studi pens
berapa jumlah program
studi pens
pjj
pjj
p
ro
g
ram studi d3 pens
p
ro
g
ram studi d3 pens
p
ers
y
aratan daftar ulan
g
s
y
arat daftar ulan
g
nilai nilai
j
adwal kuliah
j
adwal kuliah
From Table 6 it can be seen that the stemming
process can run well, namely changing the affixed
word "requirement" to the basic word "condition".
Once done, the next stage of testing is the NER
Process. Sample data for questions and entities
generated will be presented in Table 7.
Table 7: NER result.
Questions Entities
Ada berapa jumlah
program studi di PENS
?
berapa, jumlah,
program, studi, pens
PJJ itu apa
y
a ?
pjj
Apa saja program studi
di D3 PENS ?
program, studi, d3,
p
ens
apa saja persyaratan
untuk daftar ulan
g
?
syarat, daftar, ulang
Saya mau tanya nilai
don
g
nilai
Saya mau tanya jadwal
kuliah
jadwal
From Table VII it can be seen that each question
will generate several entities. The resulting entity will
be used as a keyword that will be used to find
answers.
The nexst testing stage is finding answers using
cosine similarity. Details of the results of the
calculation of the cosine similarity between the
keywords from the user and the keywords in the
database will be presented in Table VIII.

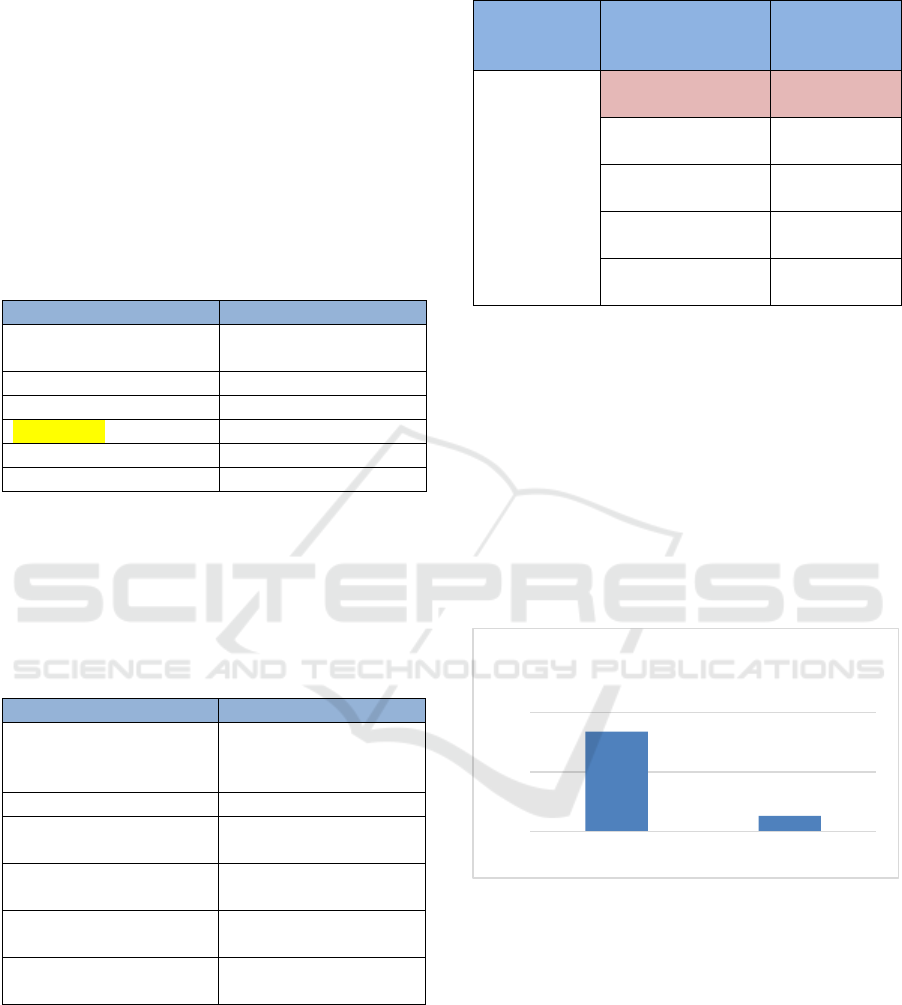

Table 8: Cosine similarity experiment.
Input user
Keyword
database
Cosine
similarity
result
Berapa
jumlah
program
studi yang
ada di PENS
?
jumlah program
studi pens
0.81649658
0927
program studi d3
p
ens
0.61237243
5695
program studi
p
alin
g
minat pens
0.54772255
7505
lokasi pens
0.28867513
4594
psdku pens kota
mana
0.20412414
5231
In Table 8 it can be seen that the keywords with the
highest cosine similarity results are found in the
keyword "total of pens study programs." These
keywords are highly close to the keywords generated
by user input. In addition, the answers to these
keywords are answers that match the user's questions.
It can be stated that the process of finding answers
using cosine similarity is running well. The last stage
is testing the accuracy of the system in answering
questions. The sample data used are 84 questions
asked by the user to the system. The chatbot can
answer as many as 71 questions correctly. The result
of experiment will be shown on figure below.
Figure 5: Accuracy experiment result.
5 CONCLUSION
In this study, the author has implemented text
processing and named entity recognition method that
has been improved by synonym checking and
keyword matching process according to the needs of
the chatbot to get the appropriate answers. The author
also shows how the accuracy of the use of synonym
checking based on the dictionary and also the input
manually. The accuracy of this study reached 84%.
The pre-processing text manually optimize the NER
0
50
100
Akurat Kurangakurat
Perbandinganjumlahjawaban
akuratdankurangakurat
iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science
244
method to recognize the entities contained in the
question. The use of synonym checking can improve
system to recognize words that didn’t exist in the
knowledge base. Dictionary data synonyms also need
to be updated along with foreign words that appear so
that answers become more accurate. The weakness of
using synonym dictionaries is that the admin or the
party that makes the decision must have sufficient
knowledge, and adding synonyms can sometimes
ruin other word or even other synonyms if any
duplication synonym word in different keyword.
In the process of finding answers, the authors
implement binary systems for cosine similarity that is
highly recommended for chatbots because from user
questions on chat forums have a straight forward
purpose (directly mention the core of the question)
because how much the words is not for computing but
more focuses on the set of keywords in the question.
We test 84 sample data questions and obtain 71
accurate answer.
REFERENCES
Badan Pusat Statistik, Potret Pendidikan Indonesia
Statistik. (2019). Pendidikan Indonesia 2019, Badan
Pusat Statistik, 1
st
Edition.
Badan Pusat Statistik, Statistik Pendidikan Tinggi Tahun
2019 (2019). Pusat Data dan Informasi IPTEK DIKTI,
4
th
Edition.
Rio Jumardi, Lia Farokhah, Maghfirah. (2020). Kolaborasi
Digital Signage dan Chatbot Messenger Sebagai
Layanan Penyedia Informasi Akademik, Jurnal Media
Informatika Budidarma, Vol. 04, No. 02, Hal. 347-354,
STMIK Budi Darma Medan.
Ariyan Zubaidi, Ramdani (2019). Layanan dan Informasi
Akademik Berbasis Bot Ttelegram Di Program Studi
Teknik Informatika Universitas Mataram, Jurnal
Teknologi Informasi Komputer dan Aplikasinya, Vol.
1, No. 1, Program Studi Teknik Informatika Universitas
Mataram.
Migunani, Kevin Aditama (2020). Pemanfaatan Natural
Language Processing dan Pattern Matching Dalam
Pembelajaran Melalui Guru Virtual, Jurnal Elektronika
dan Komputer, Vol. 13, No. 1, Hal. 121-133, STMIK
ProVisi Semarang.
Ananda Dwi R, Firdha Imamah, Yusuf Mei Andre S,
Ardiansyah. (2018). Aplikasi Chatbot (MMILKI BOT)
Yang Terintegrasi Dengan Web CMS Untuk Customer
Service Pada UKM MINSU, Jurnal Cendikia, Vol.
XVI, Akademi Manajemen dan Informatika DCC.
G. M. D’silva, S. Thakare, S. More, and J. Kuriakose.
(2017). Real World Smart Chatbot for Customer Care
Using a Software as a Service (SAAS) Architecture, I-
SMAC (IoT in Social, Mobile, Analytics, and Cloud (I-
SMAC) on 2017 Internatioonal Conference on IEEE,
Palladam, India, Hal. 658-664.
Dayinta Warih Wulandari, Putra Pandu Adikara, Sigit
Adinugroho. (2018). Named Entity Recognition (NER)
Pada Dokumen Biologi Menggunakan Rule Based dan
Naïve Bayes Classifier, Jurnal Pengembangan
Teknologi Informasi dan Ilmu Komputer, Vol. 2, No.
11, Hal. 4555-4563, Fakultas Ilmu Komputer
Universitas Brawijaya.
Kanya, N., & Ravi, T. (2012). Modelings And Techniques
in Named Entity Recognition: an Information
Extraction Task. IET Chennai 3rd International
Conference on Sustainable Energy and Intelligent
Systems (SEISCON 2012), Tiruchengode, Tamilnadu,
India.
Kristian Adi Nugraha, Danny Sebastian. (2021). Chatbot
Layanan Akademik Menggunakan K-Nearest
Neighbor, Jurnal Sains dan Informatika, Vol. 7, No. 1,
Program Studi Teknik Informatika Politeknik Negeri
Tanah Laut.
Marwan Noor Fauzy. (2019). Kusrini, Chatbot
Menggunakan Metode Fuzzy String Matching Sebagai
Virtual Assistant Pada Pusat Layanan Informasi
Akademik, Jurnal INFORMA Politeknik Indonusa
Surakarta, Vol. 5, No. 1, Politeknik Indonusa Surakarta.
Rico Arisandy Wijaya, Entin Martiana Kusmaningtyas,
Aliridho Barakbah. (2019). Knowledge Based Chatbot
With Context Recognition, 2019 International
Electronics Symposium (IES), Surabaya, Indonesia,
Hal. 432-438.
Responsive Chatbot Using Named Entity Recognition and Cosine Similarity
245
