Identification of Interface Related Factors Between Safety

Management System and Cybersecurity Management System for

Highly Automated Driving Vehicles

Marzana Khatun

, Florence Wagner

, Rolf Jung

and Michael Glaß

Kempten University of Applied Sciences Kempten, Bavaria, Germany

IFM- Institute for Advances Driver Assistance Systems and Connected Mobility, Benningen, Bavaria, Germany

University of Ulm, Ulm, Baden Wurttemberg, Germany

Keywords: SMS, CSMS, HAD FuSa, Cybersecurity.

Abstract: Functional safety and cybersecurity are essential parts of the development of automated vehicles to ensure

vehicle safety. Highly automated driving (HAD) vehicles require safe and secure development and

communication processes that have to be monitored, maintained and improved through management

processes. Hence, interface management systems are required to confirm HAD vehicle safety. The acceptance

level of the interface between functional safety and cybersecurity in management systems is crucial for the

development of Highly Automated Driving (HAD) vehicles. The Safety Management System (SMS) needs

to consider the aspect of cybersecurity to ensure the overall safety of the vehicles or vice-versa. However, the

interface methods of SMS and Cybersecurity Management System (CSMS) is challenging given the

complexity of the system development and constraints from the company culture. The objective of this study

is to present an interface approach in between management systems with a set of interface specifications

including communication adaption processes. The main contributions of the paper are, (i) Illustrating the

interface areas of the SMS and CSMS by identifying the management factors, (ii) Presenting the degree of

influence of the management factors based on the survey results, and (iii) Providing a support to deal with

SMS and CSMS interface for HAD vehicle development. A list of interface-related management factors is

presented in this paper based on the literature study and findings from other disciplines. Additionally, the

degree of influence of the management factors is presented as a result of this research based on the survey

results from functional safety and cybersecurity experts.

1 INTRODUCTION

The potential impact of cyberattacks on the

functionally safe system needs to be analyzed and

considered at the management level. The interface of

a Safety Management System (SMS) and

Cybersecurity Management System (CSMS) is

required to identify critical issues, raise awareness,

and pinpoint the importance of both Functional Safety

(FuSa) and cybersecurity for Highly Automated

Driving (HAD) vehicle development. SAE

(Shuttleworth, 2019) and (SAE J3016, 2021) level 3

to higher automation levels is treated as HAD

vehicles where the driver is still needed as a fallback

strategy but HAD vehicle may be able to drive by

https://orcid.org/0000-0002-3839-1575

https://orcid.org/0000-0003-3522-1519

itself for an extended period. HAD vehicles focus on

both the functionalities of the systems and the

protection of the vehicle components or set of

components. Ensuring FuSa (ISO 26262, 2018) and

cybersecurity of such vehicles become a necessity

because of the involvement of safety-critical systems

with cyber-physical systems or vice-versa. The

management processes have to be acceptable for

FuSa-related activities and cybersecurity-related

activities. However, management systems deal with

other organizational structures, rules, and methods or

encompass other management systems.

While conventional certification process is

applicable for safety pand cybersecurity are

independently applicable for level 2 vehicle, HAD

Khatun, M., Wagner, F., Jung, R. and Glaß, M.

Identiﬁcation of Interface Related Factors Between Safety Management System and Cybersecurity Management System for Highly Automated Driving Vehicles.

DOI: 10.5220/0011708700003467

In Proceedings of the 25th International Conference on Enterprise Information Systems (ICEIS 2023) - Volume 2, pages 21-30

ISBN: 978-989-758-648-4; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

vehicle certification for on-road driving is still in its

infancy. HAD vehicle development activities

potentially involve new technologies or approaches

for performing dynamic driving tasks and decision-

making strategies. Therefore, the introduction of new

methods in the management system that support

interface aspects is essential and an interesting topic

for research. A set of SMS and CSMS interface

specification is a prerequisite to deal with the new

technology and complex systems applied in HAD

vehicles. Therefore, to reduce the complexity of

development, a systematic approach of management

systems interface is in demand for HAD vehicles

development.

Management-related interface analysis is

becoming a necessity for HAD vehicles, not only to

identify hazard but also to secure the systems. The

purpose of SMS and CSMS is to provide policies,

procedures, and processes to an organization to meet

its respective objectives or project-related goals. FuSa

is concerned with preventing accidents by identifying

potential hazards, including hazardous events in

operational situations, vehicle states (e.g., safe state),

and initial conditions. Cybersecurity, on the other

hand, is concerned with protecting an asset from

potential damage and/or protecting an element or set

of components from potential threats and their

functions/features. Two important key points for the

management systems are first, the identification of

acceptable processes and the description of the

processes, especially for HAD vehicles where new

technologies and innovations are associated with

various development activities. Second,

understanding the management processes is vital for

a safe and secure development with a combination of

knowledge and information sharing, lesson learning,

and decision-making. The hierarchical dimension of

the processes is increasing significantly when

interface planning between FuSa and cybersecurity is

required. Apart from planning time management and

communication management during the development

phases, continuous monitoring and improvement of

the management systems are essential to achieve not

only the organization's goals but also project-

dependent goals. Hence the fulfillment of

management functions is an essential aspect of the

management process including interfaces.

The major challenge for the management systems

(SMS and CSMS) interface is to identify the

influencing management factors based on the

lifecycles and communication aspect. Despite the

implementation of management approaches with

their interfaces, the enforcement of effective

monitoring or control strategies is a prerequisite for

safe and secure HAD vehicle systems development.

This paper aims to provide a framework to deal with

the interface of SMS and CSMS for HAD vehicles by

presenting:

 The interface-related management factors with

respect to SMS and CSMS.

 Experts’ judgement regarding the interface of

the management systems through a series of

questionnaires.

 A survey results based on the feedback from

the participants by means of the degree of

influence of the management factors.

This paper briefly mentions the state-of-the-art

based on standards recommended for HAD systems

development in chapter 2. Afterward, chapter 3

presents adaptions in the FuSa and cybersecurity

processes with respect to risk assessment and

communication. Later, chapter 4 describes the survey

approach and methods with survey results to build

confidence in the proposed interface approaches for

SMS and CSMS. Finally, chapter 5 includes the

conclude the paper's outcomes and mentions future

work.

2 BACKGROUNDS

FuSa focus on the unintended behavior of an

Electrical and/or Electronic (E/E) system. The

functional insufficiency of the intended functionality

of an E/E system is dealt with in the SOTIF aspect.

The protection of E/E systems or even components

against the threat scenario is covered by

cybersecurity. To manage the complexity of risks, an

interface between management systems is required,

covering areas such as FuSa, cybersecurity and Safety

Of Intended Functionality (SOTIF) (ISO 21448,

2022). The section provides a brief overview of

management systems related to FuSa and

cybersecurity by means of available road vehicle

standards and regulations. In this paper, safety covers

the area of FuSa and SOTIF, and cybersecurity deals

with road vehicle cybersecurity aspects for HAD

vehicles.

2.1 Safety and Cybersecurity

Management Systems

Both organizational and technical aspects have to be

considered and carefully coordinated throughout the

product lifecycles. It is therefore important to build a

common understanding of safety and cybersecurity

among the teams. Safety simply means ensuring the

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

absence of unreasonable risk, and SMS can be

defined as an approach to managing risk and ensuring

the effectiveness of the risk controls in a formal or

structured manner. SMS includes the safety culture

through safety promotion, communication by means

of knowledge and information sharing, risk

management, and safety assurance processes. SMS is

well-established in aviation known as International

Civil Aviation Organization (ICAO) and is

considered as state-of-the-art for HAD vehicles

(ICAO, 2009). According to European Union

Aviation Safety (EASA), SMS is defined as “Safety

management benefits the total aviation system by

strengthening traditional risk control practices and

ensuring safety risks are managed systematically.

Safety management allows room for innovation and

flexibility: It is less about describing what to ‘do’ and

more about how to ‘achieve safety’” (Ky, 2019).

Cybersecurity is concerned with the protection of

an asset that has cybersecurity-related properties such

as confidentiality, integrity, and/or availability

(ISO/SAE 21434, 2021). CSMS can be expressed as

an elevated risk that includes cyber attacks, damage,

and/or unauthorized access. However, concerning the

harmonization and/or road vehicle type approval UN

regulation No. 155 UNECE WP.29 is currently in

application. UN regulation No. 155 defines UNECE

WP.29 the CSMS by means of “a systematic risk-

based approach defining organizational processes,

responsibilities, and governance to treat risk

associated with cyber threats to vehicles and protect

them from cyber-attacks” (R155, 2021).

The quality management system is out of the

scope of this study because it focuses on the

achievement of customer and organizational

requirements. However, success in the automotive

sector can only be achieved through compliance with

the SMS and CSMS. Mastering the interface between

SMS and CSMS is one of the main criteria for the

entire lifecycle of HAD vehicles, including safety and

vehicle type approval.

2.2 Management Systems Interface

The interface between FuSa and cybersecurity is

widespread to some degree in various fields such as

aviation (Zhang, 2021), robotics and automation (van

der Aalst, 2018), and railway (Geyer, 2000). In the

aviation sector, the SMS framework consists of

components and elements known from the aviation

organization (ICAO, 2009) and is considered in this

paper for HAD vehicle’s SMS development. ICAO

consists not only of the components of the SMS but

also of the cultural and reporting systems with the

maintenance of FuSa as a critical aspect of the SMS.

Each component, element, and process are explained

in terms of functional expectations, and processes for

the contribution of management systems that can

express a performance evaluation.

Furthermore, management systems interfaces are

addressed as a set of components and comply with the

standards and regulations including the management

frameworks. However, managing cybersecurity is an

expensive, time-consuming, and challenging

approach. Components for SMS and CSMS consists

of operating systems, applications, configuration

management, security patches, vulnerability

checking, and continuous monitoring of the systems

during the product development and post-

development phases.

While automotive SMS implements the functional

safety activities including the standards and

regulations such as FuSa (ISO 26262, 2018), basic

FuSa (IEC 61508, 2010), and autonomous evaluation

(UL4600, 2020), the CSMS implements the

cybersecurity activities including standards like

cybersecurity engineering (ISO/SAE 21434, 2021),

and/or cybersecurity for operational technology (IEC

62443, 2018). The SMS and CSMS explain policies,

procedures, and processes for an organization to meet

the objectives because of the intended safety-related

functionality of the system at the vehicle level or an

asset respectively. The organization culture

demonstrates the organizational trust, objectives, and

cooperation of people and other areas like

organizational capability, safety and security-related

development, adaption, and innovation. Functional

safety culture and cybersecurity culture are

introduced in the standard ISO 26262 and ISO/SAE

21434 accordingly. However, the interface between

FuSa and cybersecurity during the concept and

product development phases is not explained in detail

in these standards. UL4600 is one of the first

standards for safety and the evaluation of autonomous

vehicles and other products that described the safety

principles including the cybersecurity interface.

Additionally, the unsafe and unintended behavior of

human is one of the aspects that has been considered

in the interface of the management systems as the

human factor is a prompt problem to be solved.

Human factors are considered as one of the

influencing management factors as cultural

interfaces, communication, and interface analysis.

Two management systems have some overlapping

in the area of policy, competence, roles, and

responsibilities, change management, and incident

response and planning. However, the interfaces

between the management systems are not widely

Identiﬁcation of Interface Related Factors Between Safety Management System and Cybersecurity Management System for Highly

Automated Driving Vehicles

accepted because of the majority of the mature SMS

compared to CSMS in the automotive industry. It is

important to establish a common understanding

between the FuSa team and the cybersecurity team. It

should be considered that both FuSa and

cybersecurity has different culture and processes.

Misunderstanding and clarification need to be dealt

with systematically and carefully between both teams

to develop safe and secure HAD systems.

3 FUNCTIONAL SAFETY AND

CYBERSECURITY INTERFACE

PROCESS

For HAD systems of automated vehicles, adaption is

in demand and supported by approaches like the

model-based approach, and knowledge-based

approach. To indicate the interface with respect to

system development interface, risk assessment, and

communication interface are focused on in this

section. The objective of the interface process is to

identify the new system areas where management

required and to reduce the conflicts between the

safety and cybersecurity for a specific system by

means of systems integration.

3.1 System Development Interface

Management Processes are known in general for

automotive but no specifications for HAD vehicle’s

SMS and/or CSMS are documented completely.

Automated vehicle specifications are packed with

necessary goals for safety achievement and their

requirements category from mandatory to

conformance in UL4600 as goal-based techniques

(Tech, 2019). Compliance with UL4600 is still

provocative to the industrial application because of its

wide range of safety claims. However, UL4600 is the

first standard addressing autonomous vehicles and

related products like HAD functions applicable to an

autonomous vehicle. Additionally, aspect like

machine learning and operational design domain with

other safety aspects of the autonomous vehicle has

been addressed in UL4600. Functional safety,

operational safety, autonomy safety, and other safety

assurance activities can be used as inputs and

demonstrated the contents and relationships of work

products as evidence (UL4600, 2020). The idea of

adopted management processes is to separate the

SMS and CSMS topics to simplify and decrease the

management steps to attain the required safety level.

This leads to the need for the constant perception of

safety and cybersecurity guidelines (SAE J3061,

2016) and a common understanding of subject

divisions.

3.2 Risk Assessment Interface

Regarding the complexity of HAD systems, safety

hazards can result in cybersecurity threats.

Furthermore, threats can be the reason for new safety

hazards (Khatun et al., 2021). Thus, the collected data

from scenarios must be handled considering hazards

and threats. For the adoption of the risk assessment, it

is proposed that the hazard’s risks are clustered into

sets such as irrelevant to cybersecurity, relevant to a

safety hazard, and relevant to a cybersecurity threat.

Risks relevant to threats are handed over to the risk

assessment and activities are supported by CSMS. An

effective risk assessment requires Hazard Analysis

and Risk Assessment (HARA) that supports the

Threat Analysis and Risk assessment (TARA) for

further development of the product including

processes. The key elements of safety and

cybersecurity are the identification of items and

assets, finding the weak points such as hazard and risk

together with mitigation approaches.

3.3 Communication Interface

Communication interfaces always exist between two

systems of interest that have the intention to exchange

information. For that reason, the systems of interest

are SMS and CSMS. If these management systems

are already in place, they are usually in

communication with other interested parties. Known

communication channels can be implemented in one

or two directions. This means that the ideal case for

the SMS and CSMS interface is two-directional

communications with information flow from SMS to

CSMS as well as information flow from CSMS to

SMS. Some structured interfaces are already defined

in the regulations and can be adapted. For example,

the CSMS to external parties’ communication is

considered and supported with a proposed guideline

in ISO/SAE 21434, Road vehicles — Cybersecurity

engineering (ISO/SAE 21434, 2021). Like in this

example the communication interface between SMS

and CSMS shall be structured and defined. First the

basic requirements shall be met from both sides. This

includes the proper definition of both systems of

interest (SMS and CSMS). Additionally, It is also

important for communication to use the same

language in a figurative sense. Similar terms and

keywords shall be used, a common glossary can be

helpful. Accordingly, the data collected and used in

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

software-based analysis shall be compatible as well.

Data and results from threat analysis tools shall be

understandable, compatible, and easily implemented

in an SMS that apply hazard analysis tool. Same

applies the other way around from hazard analysis to

threat analysis tools.

For the external communication standards already

consider an agreement between the responsible

persons. ISO 26262 particularizes the development

interface agreement that the responsibilities in

between customer and supplier for activities,

evidence or work products shall be exchanged and

specified by each party (ISO 26262, 2018). This

concept can be applied to the SMS and CSMS

interface. It is necessary to define roles,

responsibilities, and accountabilities. Tasks and

person shall be defined and documented. The ICAO

Manual gives the idea to introduce a safety service

office to coordinate all safety-relevant issues and to

pass on the relevant information to the responsible

position (ICAO, 2009). For a structured

communication interface, it can be helpful to

introduce a cybersecurity service office in the CSMS

as well. In this case, it is possible to distribute all

safety and or cybersecurity-relevant information

between the offices and they can coordinate SMS and

CSMS internal communication paths. Other

standards like the UL4600 also consider the

requirements for a comprehensible communication

interface. The resolution of potential safety and/or

cybersecurity-related issues is done by identifying the

processes and activities that support the

communication and tracing of issues (Tech, 2019).

Consequently, it is natural to specify the SMS and

CSMS-related processes and working practices

before they are aligned with each other for similar and

coordinated issue tracing.

4 SURVEY APPROACH AND

CONCEPT

For HAD systems of automated vehicle adaption is in

demand and supported by approaches like, model-

based approach, knowledge-based approach. To

indicate the adaption with respect to management

systems, management processes, risk assessment and

communication interface are focused in this section.

According to our hypothesis, the respondent

evaluates the influence factors based on their

knowledge and experience.

Several industry partners and research groups

have participated to examine the influence factors

related the interface of the SMS and CSMS. In early

stages colleagues that are familiar with the topic are

asked to examine the survey and to complete the tasks

to their best knowledge and experience. After that

industry partners related to topics like management

systems and FuSa are being introduced to the idea of

rating the management factors for their organization.

In fact, the option of using the results of their

reflection on prior projects is presented as an

advantage for future work. Organizations get an

overview of which management factors are important

for themselves and can easily use them for

comparison with the actual state. In total 11

participants from FuSa teams and cybersecurity

teams including management leaders have taken part

in this survey. The employment status of the

interviewee are as follows: 4 of the respondents are

FuSa industrial experts and 3 of the respondents are

cybersecurity industrial experts, 3 of the respondents

are research engineers working in safety and

cybersecurity-related projects and 1 of the

participants is professor from different faculty of

computer science including safety. 36% of the

respondent have already worked in products related

to FuSa and cybersecurity. The used survey contains

the following information:

 SMS and CSMS interface-related

questionnaire.

 Identification of management factors.

 Determine the degree of influence of

management factors.

 Support to prepare a set of interface related

management specification for HAD system.

As a part of the survey preparation, both

organization-based management systems and

standard-based management systems

recommendation related to safety and cybersecurity

has been weighed in this section.

4.1 Method and Procedure

In order to represent the interface of the SMS and

CSMS, the management related components and

elements are considered from a knowledge-based

approach, brainstorming method. In addition, to assist

the implementation of the survey a range of

measurement data are included such as utilization of

the existing technologies qualitative and quantitative

questionaries, monitoring employee activities for a

specific individuals and company perspectives.

Interface between management systems (SMS and

CSMS) at functional level consist not only the

management of the human factor, processes, and

Identiﬁcation of Interface Related Factors Between Safety Management System and Cybersecurity Management System for Highly

Automated Driving Vehicles

activities but also the employee awareness and data

protection. Good practices targeting different

management levels (board level, senior and employee

level) within an exemplary organization has been

considered. From the viewpoint of safety and

cybersecurity management systems interface, the

engineering key points and human factor, methods

such as brainstorming, scenario-based analysis and

STPA are applied. Conventional quantification

methods are not efficient due to the communication

complexities between FuSa and cybersecurity and

human factors. Therefore, the survey supports to

evaluate the interface concept by means of decision

making, development constraints and identifying the

possible actions that needs to be taken when a product

consists functional safety and cybersecurity such as

high automated driving systems. Although

vulnerabilities are often ignored or less prioritized or

misunderstood during the processes and considered

later in the development, but awareness of

cybersecurity is increasing currently with great

importance.

The hypothesis of the study is based on

knowledge-based approach with respect to safety and

cybersecurity interface for HAD vehicles. The survey

provides valuable insights in the interface between

SMS and CSMS with the opinion from different

individuals. Regardless of which methods and

process is applied to determine the management

factors and degree of influences, the survey will be

able to compute the possible safety and cybersecurity

countermeasures for assisting the management

interface. In general, the simple and common

interface factors can be categorized as prediction,

decision making and control. The interface factors

can be evaluated based on the survey results. In

addition, the following survey supports to enhance

the risk assessments, impact analysis, and conduct the

data collection with interface aspects. Systematic

approach for the interface of the management systems

is commonly used in conventional organizational

stage as a simple manner, usually not a deterministic

manner because of the uncertainty of the business.

The defined cases are, (i) chronological

representation of the management factors, (ii)

indicating the degree of interface between the

management factors and (iii) collection of opinion

about the possible management systems interface

from the interviewee/participants.

4.2 Survey Questionnaires

As survey type the questionnaire is chosen which is

usually a paper-and-pencil instrument that the

respondent completes. The respondents are allowed

to fill the form at their own convenience. Matrix

survey questions are used with a series of rating scale

to simplify the questionnaires for the interviewee as

listed in Table 1. In an attempt for better

understanding the interface between the management

systems, the survey is divided into three main cases

as defined the in previous section. A brief

summarization about why the survey is needed and

how it can benefit to overcome the management

systems related challenges has been added in the

survey. The questionaries can be used to gather the

feedback from different types of respondents and

based on their opinion to establish a generic set of

management specification for HAD vehicles. The

intention of this approach is to make the respondents

realize the necessity and further benefit distributed

management systems development. The

questionnaire is divided into three sections (coding

the information, accumulating opinions, and

information collection) to compresence the interface

aspect.

Survey type research has the potential to enhance

the performance of the activities and mature the

systems and known as empirical data collection

method. Applying survey research provides

framework and or requirements for system

engineering such as stakeholders requirements

analysis, architecture design, project management

and risk assessment including information

management (Smartt and Ferreira, 2013). A huge

number of literatures exists related to survey as

questionnaire in different areas as part of data

collection, response of the interviewee as human

factor, support to provide guidelines of the topic for

example influencing factors for interface of

management systems. The survey is performed in the

context of interface between SMS and CSMS. In

addition, the survey can be used in complex systems

development processes with a perspective of

improvement. The goal of the survey is to collect the

interviewee opinion regarding the interface of SMS

and CSMS including the management factors with

influencing degree identification.

4.3 Management Factors

To identify and analyze the interface of the SMS and

CSMS, management factors are investigated and

studied in this study with their influences during safe

and secure HAD vehicle development. The

conceptual outcomes focus on the factors, affecting

the interface of management systems (SMS and

CSMS). To elect the management factors for HAD

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

systems, different sectors such as aviation, (ICAO,

2009) (Sawyer, 2021) (Smartt and Ferreira, 2013) (Li,

2018) robotics, (Khihel and Herbal, 2018) industrial

control system (Śliwiński et al., 2018) are inspected.

Based on the knowledge and expert judgments, a list

of management factors is presented in Table 1 with

the concise description of functions related to the

defined management factors.

Table 1: Management factors based on the SMS and CSMS

interface with function description.

Interface related

Management

factors (MF)

Factors

Function Description

Communication F1

language barrier,

coordination, resource

management and

maintenance

Documentation F2

audit report, interface

uirements, etc.

Equipment F3 Tools, traceability, etc.

Incident

Investigation

contribution factors, human

error, cost, new process, etc.

Interface in

Analysis

hazard analysis, threat

analysis, scenario-based

analysis, mitigation

approach, etc.

Policy F6

organizational structure,

roles and responsibilities,

lans, commitments, etc.

Rules and

Regulations

organizational-based safety

and security rules and

regulations

Committee F8

developing strategies for

interface, safety plan incl.

cybersecurity aspects and

vice-versa, corelative

actions, allocation of

resources, improvement of

roducts.

Conflicts in

domains

constraints, limitations

Cultural

interface

F10

performance measures

responsibilities,

organizational values,

safety culture and

cybersecurity culture etc.

Risk

Management

F11

hazard identification,

threat identification,

analysis/assessment,

impact, Goals and

requirements, etc.

Training and

Competency

F12

team and/or Individual

training, competency

requirements, etc.

Work Practice F13

operational, maintenance,

service, compliance,

standards, activities and etc.

Thereby, the first contribution of this paper has

been achieved. The significance of these management

factors as listed in Table 1 is evaluated with

influencing rate as no influence (No), Low influences

(L), Medium influence (M), High influence (H) and

very high influences (VH). Based on the evaluators

results the most important factors of management

systems can be identified. The risk assessment

methods can be applied to decrease the hazard related

communication hazards.

4.4 Results

It is widely accepted that HAD vehicles focus on the

safe and secure driving for the user/driver. The

complex system development including interface

SMS and CSMS is one of the areas where experts

from different domains are having different opinions,

judgments, and impressions. Therefore, a survey has

been performed to have a view of the interface

between SMS and CSMS. Moreover, surveys are one

of the valuable research techniques that convey

valuable information, outcomes, opinions in a cost-

effective manner.

The outcomes of this survey not only support to

evaluate the organizational aspects of the SMS and

CSMS interface approach but also aid the researchers

for further development. The survey results can be

used as empirical evidence to optimize the

management factors in organizational level and part

of impact analysis. Higher management

commitments with organization cultures, finance and

resources can be fulfilled for safe and secure product

development (e.g., HAD vehicle systems) only if

interface management factors are identified,

prioritized, and monitored.

The answers are categorized as fully, partially, or

not to restrict the considered domain. A glimpse of

the participant’s answers is represented in Figure 1

with three different colors where, blue, orange, and

gray colors indicate fully, partially, or not agreed

respectively. All participants are requested to answer

all questions by selecting the given answer categories

and 10 participants answered. Based on the survey

results, the following questions will be considered for

the development of the interface management

specification.

Identiﬁcation of Interface Related Factors Between Safety Management System and Cybersecurity Management System for Highly

Automated Driving Vehicles

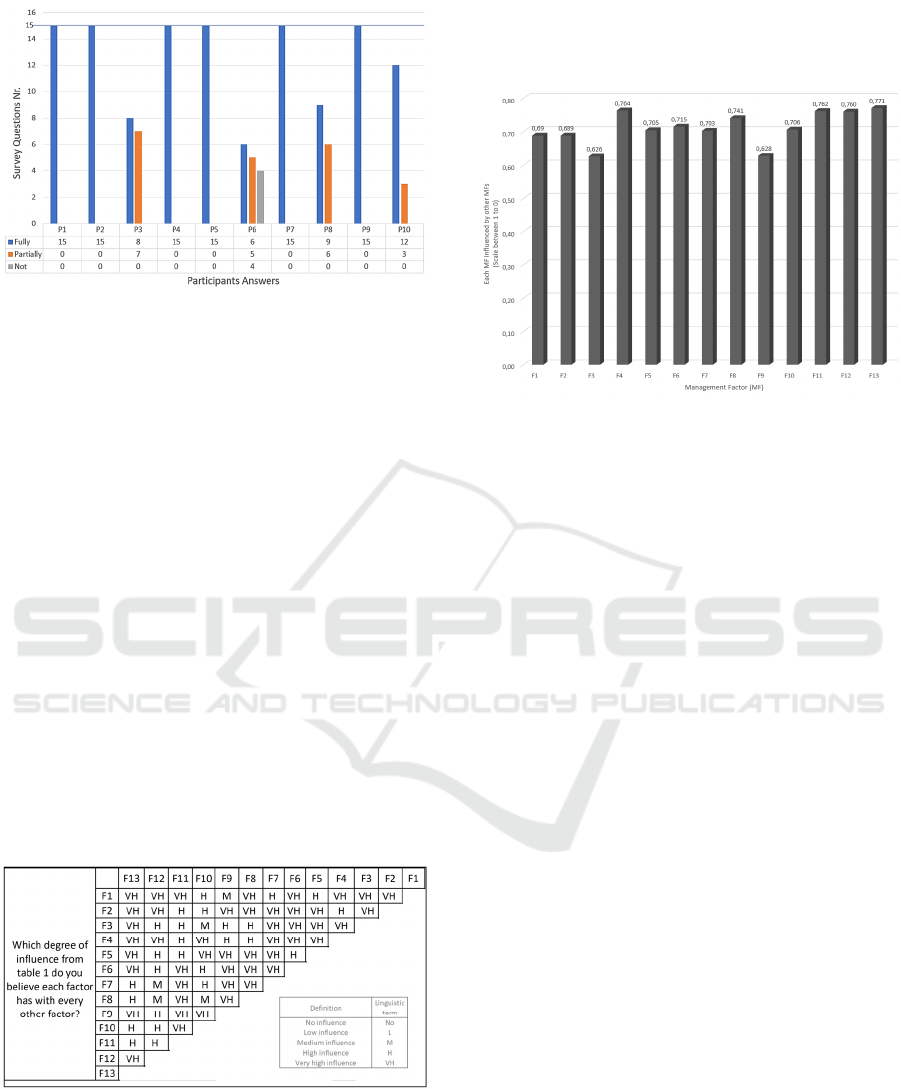

Figure 1: Overall Survey Results from Participants.

The goal of QA session is to allow the user or

participants to ask questions, using the standard

terminology and obtain a concise answer.

Additionally, the aim for accumulating the degree of

influence between the management factors is to

realize which of the following factors has certain

influence that can be acknowledged in the

management interface requirement or specifications.

To receive the opinion based on the degree of

influence among the management factors linguistic

terminology has been requested to use to the

participants. For this reason, participants are asked to

complete an influence rate chart based on the

interface between management factors.

A sample chart from one participant is illustrated

in Figure 2. The influence rate chart has been

considered to identify the influencing degree of the

management factors that can be used to any

automated management framework such as fuzzy

techniques. The survey provides an ample of

information that can be used to determine how

management factors interact and influence each other.

Figure 2: Degree of influences defined by a participant.

The management factors are not only recorded,

but the degree of their influence is also determined.

As consequence the second contribution has been

accomplished as represented in Figure. 2.

The factors that influence the management processes

by means of interface to a certain extent are examined

as a result of the survey as presented in Figure 3.

Figure 3: Each of the MF influenced by other management

factors.

The degree of influence is scaled between 1 and 0,

where 1 means that a factor is very much influenced

by other factors and 0 means that the factor is not

influenced by other management factors. For

example, F13 (work practice) has the most influence

among the other management factors and F3

(equipment) has the least influence as displayed in

Figure.3 based on the survey results. To be precise,

the interface between F12-F13 has the highest degree

of influence, while F4-F12, F5-F11 have the second

highest degree of influence and F4-F13, F4-11, F6-F7

have the third highest degree of influence. In contrast,

F3-F9 have the first lowest degree of influence, F1-

F5, F2-F9, F3-F6 have the second lowest degree of

influence, and F3-F1, F3-F7, F3-F10, F4-F9 have the

third lowest degree of influence. Thus, the third

contribution is fulfilled by identifying the interface

related management factors that shall be considered

during HAD system development.

5 CONCLUSIONS

Safety requires the cybersecurity and can no longer

be overlooked. Cybersecurity is tightly integrated

with the FuSa processes and communication because

of their dependencies between the vulnerabilities and

overall safety. Highly automated driving vehicles are

challenging the current technologies and engineering

methods and approaches in terms of their wide

functionalities and setting new expectation for user as

driver or passengers. The HAD vehicles offer a vast

range of communication and infotainment and

ICEIS 2023 - 25th International Conference on Enterprise Information Systems

accessibility such as app-based, internet access and

remote access. Unfortunately, such vehicle

functionalities or features are putting significant

stress to safe and secure product development that

required mature and continuously improvable SMS

and CSMS.

For HAD vehicle system development, an

assessment of SMS and CSMS, including their

interfaces, needs to be performed (depending on the

organization and/or project) to determine if the safety

policies and procedures are acceptable. The

management systems shall be adjusted and/or

modified based on the activities to develop HAD

vehicle systems. For this reason, the identification of

the management factors is vital at the beginning of the

development phase. The management factors not only

support the safety culture and cybersecurity culture

but also their interaction while developing complex

functions for HAD vehicles. Moreover, several

design patterns can be applied to support management

systems in terms of description and identification in

contexts and schemes for recruiting processes. This

pattern helps not only in information systems as data

management but also support to simplify the

development phases, maintenance and services of

such complex systems.

The focus area of this paper is to propose the

interface of the SMS and CSMS at different level

such as at concept phase, development phase and post

development phase. Additionally, proposed adaption

processes such as risk assessment and communication

domains and gives insight to prepare the survey.

Moreover, this paper exhibits the interface between

the management factors and their degree of influence.

A survey has been performed to build confidence and

provide argument for the importance of the interface

between SMS and CSMS in HAD vehicles that will

not only support both vehicle manufacturers and

suppliers.

Furthermore, based on the survey results the

management factors are evaluated, and the

questionnaires support to get a perspective of the

management systems interface from different aspects.

The adaption of the management process, risk

assessment and communication interface are

evaluated by the survey results as well. Examining the

survey results, the perspective and purpose of the

decision making throughout the safety and

cybersecurity lifecycles can be realized and possible

to provide a set of clarified or specific management

interface requirements. Since this paper represents the

beginning of the interface between management

systems this should be the impetus to organizations to

define and evaluate their own management factors

and to take part in a survey so that for further work

the relations between SMS and CSMS are more

significant.

In the future, the number of survey participants

will be increased by including (Original Equipment

Manufacturers (OEMs) as well as Tire 1 and Tire 2

suppliers for E/E systems and/or components of HAD

vehicles and research institutions. Additionally, the

technique of decision making can be applied to

improve both the organization and project-related

processes. There is a possibility that existing risks and

weaknesses will be revealed through the application

of such techniques in management systems.

Therefore, to understand the management relevant

cause and effect relations among the FuSa and

cybersecurity decision making trial and evaluation

laboratory (DEMATEL) can be considered due to its

structured approach and extended use in decision

making. The classical DEMATEL and/or Fuzzy

DEMATEL methods can be applied on the early stage

of research development and this paper will be

considered as basis for future research work.

ACKNOWLEDGEMENTS

Founded by Federal Ministry of Education and

Research - Project New Multi-Layer Platforms for

Security- and Safety-Relevant Automated Driving

Function (MLPaSSAD).

REFERENCES

Shuttleworth, J. (2019). SAE standards news: J3016

automated-driving graphic update.

https://www.sae.org/news/2019/01/sae-updates-j3016-

automated-driving-graphic

SAE J3016. (2021). Standard, Taxonomy and Definitions

for Terms Related to Driving Automation Systems for

On-Road Motor Vehicles.

ISO 26262 (2018). Standard, Road Vehicle — Functional

Safety, Part 1 to part 13.

ISO 21448. (2022). Standard, Road Vehicles — Safety of

the intended functionality.

International Civil Aviation Organization (ICAO). (2009).

Safety Management Manual (SMM) – Second Edition,

approved by the secretary general and published under

his authority, ICAO Doc 9859 AN/474, ISBN 978-92-

9231-295-4.

Ky, P. (2019). EASA Executive Director, European Union

Aviation Safety (EASA), Safety Management System,

https://www.easa.europa.eu/domains/safetymanageme

nt/safety-management-system-sms

ISO/SAE 21434. (2021) ISO/SAE 21434. (2021). Road

vehicles — Cybersecurity engineering.

Identiﬁcation of Interface Related Factors Between Safety Management System and Cybersecurity Management System for Highly

Automated Driving Vehicles

Sawyer, K. (2021). Senior Manager- Aviation Security

Development, Advisory Services, UK Civil Aviation

Authority, “Security Management Systems-Technical

Assistance by the UK CAA.

R155. (2021). UN Regulation No. 155 UNECE WP.29,

Uniform provisions concerning the approval of vehicles

with regards to cybersecurity and cybersecurity

management system.

IEC 61508 (2010). Functional safety of electrical/electronic

/ programmable electronic safety-related systems, Part

1 to part 7.

UL4600 (2020). Standard for Evaluation of Autonomous

Products.

DIN EN IEC 62443 (2018). Standard, Industrial

communication networks- Network and system

security, Part 3 and Part 4.

Khihel, F. and Herbal, A. (2021). Impact of firms

psychological behavior in process performance: the

optimal employee’s experience, International Journal

of Financial Accountability, Management and

Auditing, ISSN (2788-7189), Volume 3.

ISO/ TR 4804. (2020). Road Vehicles — Safety and

cybersecurity for automated driving systems — Design,

verification, and validation.

Koopman, P. (2019). In Article, An Overview of Draft

UL4699: Standard for Safety for the Evaluation of

Autonomous Products, Edge Case Research.

Tech Industry, (2019). Standard For Safety For The

Evaluation Of Autonomous Products. Standard for

safety analysis and evaluation of autonomous vehicles.

Semiconductor Engineering: Deep Inshight For The

Tech Industry.

SAE J3061. (2016). Cybersecurity Guidebook for Cyber-

Physical Vehicle Systems.

Khatun, M. and Wagner, F. and Jung, R. and Glaß, M.

(2021). Safety Management System and Cybersecurity

Management System Interfaces for Highly Autoamted

Driving Vehicle, FAST-Zero’21 Program &

Procedings, .doi: 10.13140/RG.2.2.20663.85925.

Smartt, C. and Ferreira, S. (2013). Applying Systems

Engineering to Survey Research, Conference of systems

engineering research (CSER), Published by Elester

B.V., Procedia Computer Science 16, Page 1102-1111,

USA.

M. Śliwiński, M. and Piesik, E. and Piesik, J. (2018).

Integrated functional safety and cyber security analysis,

International Federal of Automatic Control (IFAC),

Published by Elester Ltd.

Dwivedi, S. K. and Singh, V. (2013). Research and reviews

in question answering system, International

Conference on Computational Intelligence: Modeling

Techniques and Applications (CIMTA), Procedia

Technology 10, page 417-424, Published by Elester

Ltd., ScienceDirect.

Bouziane, A. and Bouchiha, D. and Doumi, N. and Malki,

M. (2015). Question Answering Systems: Survey and

Trends, The International Conference on Advances

wireless, information, and Communication

Technologies (AWICT), Procedia Computer Science 73,

page 366-375, Published by Elester Ltd.,

ScienceDirect.

van der Aalst, W.M.P., Bichler, M. and Heinzl, (2018). In

article, A. Robotic Process Automation,. Business &

Information Systems Engineering, 60, page 269–272

https://doi.org/10.1007/s12599-018-0542-4

Geyer, A., Davies,A. (2002). In Article, Managing project–

system interfaces: case studies of railway projects in

restructured UK and German markets, Research Policy,

29 (7-8), Pages 991-1013, ISSN 0048-7333,

ScienceDirect. https://doi.org/10.1016/S0048-

7333(00)00116-5,

Guo, D., Zhang, X., Zhang, J., Li, H. (2021). In: Jing, Z.,

Zhan, X. (eds), An Interface Management Approach for

Civil Aircraft DesignLecture Notes in Electrical

Engineering, vol 680. Proceedings of the International

Conference on Aerospace System Science and

Engineering (ICASSE), Springer, Singapore.

https://doi.org/10.1007/978-981-33-6060-0_30

ICEIS 2023 - 25th International Conference on Enterprise Information Systems
